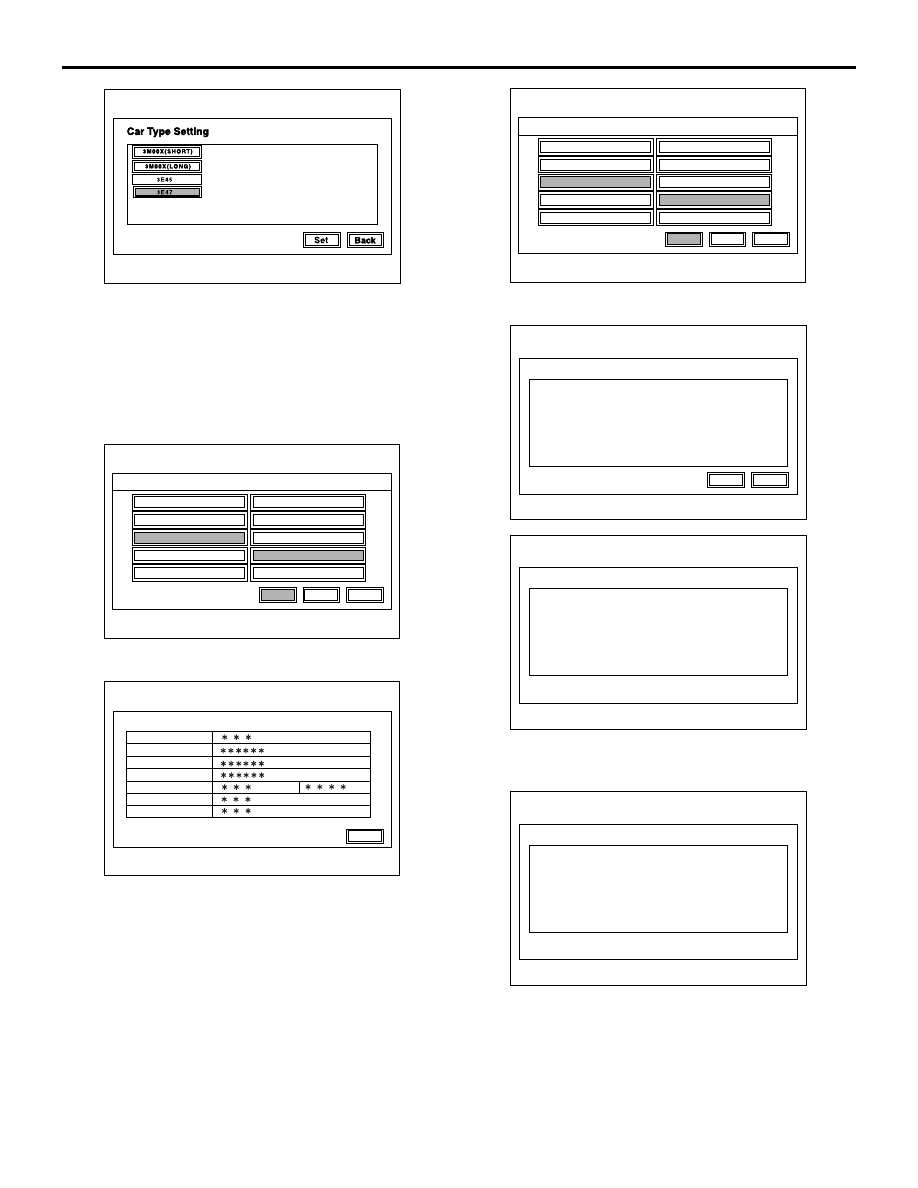

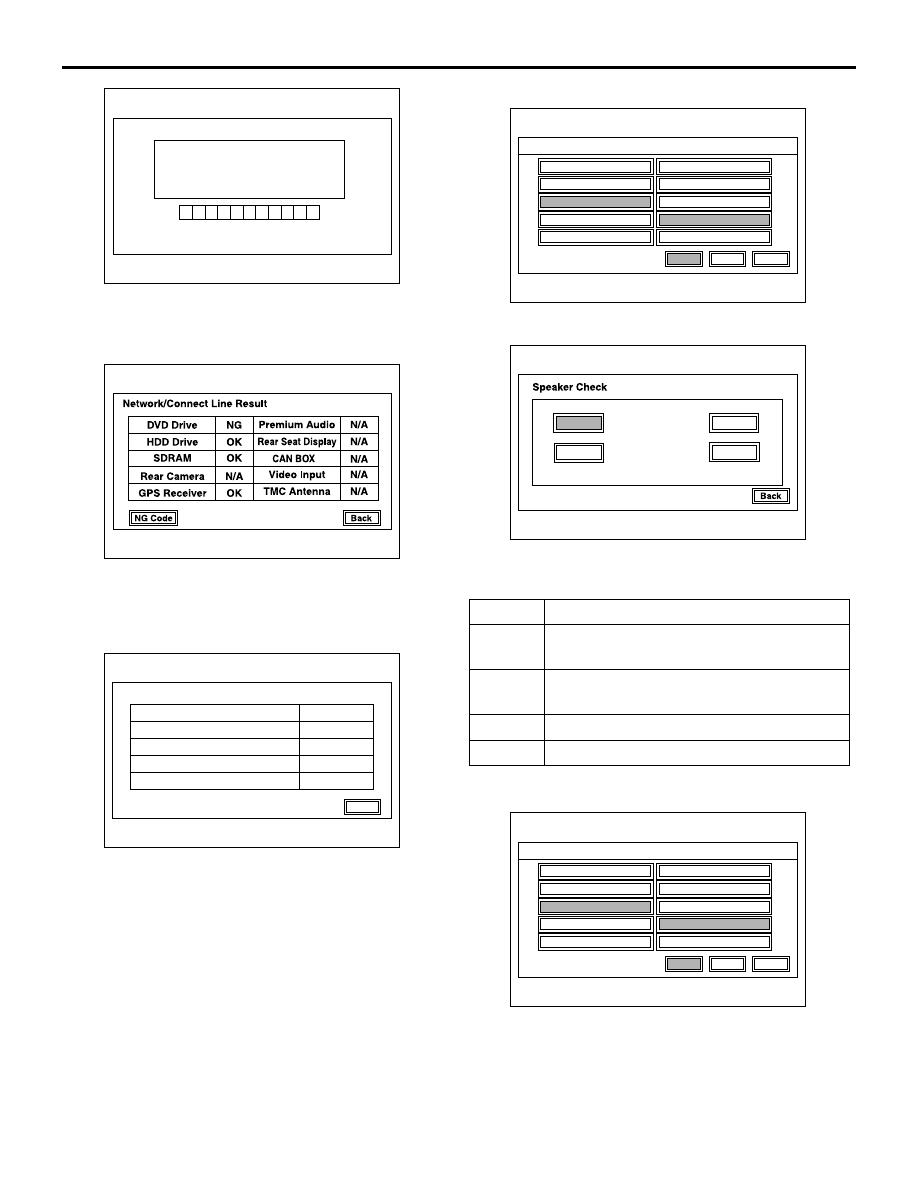

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-307

4. When "Enter" is pressed while the grey scale is

shown with a 16-step gradation, a crosshatch
pattern will be displayed (Each cell should be
square).

5. When "Enter" is pressed on the navigation unit

joystick while the crosshatch pattern is shown, the
screen will turn white.

6. When "Enter" is pressed on the navigation unit

joystick while the screen is white, it will turn black.

7. When "Enter" is pressed on the navigation unit

joystick while the screen is black, the screen will
turn red.

8. When "Enter" is pressed on the navigation unit

joystick while the screen is red, it will turn green.

9. When "Enter" is pressed on the navigation unit

joystick while the screen is green, it will turn blue.

10.When "Enter" is pressed on the navigation unit

joystick while the screen is green, it will return to
the "Service" screen.

NETWORK AND CONNECT LINE CHECK

1. Select "Network/Connect Line Check" on

"Service" screen.

AC611391

AB

AC611392

AB

AC611393

AB

AC606322

AC606323

AC606324

ACB01771

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Car Type Setting

Versions Indication

1/2

Sensor Check

Hands Free Module/USB BOX

Handle Setting

Back

Next

Previous

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-308

2. A network and connect line check will be initiated.

The "Network/Connect Line Check" screen will
display how the check is in progress.

3. When the network and connect line check is

finished, the screen will change to "Network/
Connect Line Result" to show the check results.
NOTE:

If there is "NG" or "N/A" as the check results,
select "NG Code" on the "Network/Connect Line
Result" screen. Then "NG code Indication" screen
will show the NG code.

4. If "Back" is selected on "Network/Connect Line

Result", the screen will return to "Service" screen.

SPEAKER CHECK

1. Select "Speaker Check" on "Service" screen.

2. Select a speaker to be checked, and play test

tone through the speaker.

CAR TYPE SETTING

1. Select "Car Type Setting" on "Service" screen.

AC704596

Network/Connect Line Check

Now checking the connection of the line.

Please wait.

AB

ACB01774

Back

NG Code Indication

DVD Driver

0103

AC606327

Display Sound speaker
FL

Front door speaker (LH) and tweeter
(LH)

FR

Front door speaker (RH) and
tweeter(RH)

RL

Rear door speaker (LH)

RR

Rear door speaker (RH)

ACB01771

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Car Type Setting

Versions Indication

1/2

Sensor Check

Hands Free Module/USB BOX

Handle Setting

Back

Next

Previous

F R

R R

R L

F L

AC806379

ACB01771

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Car Type Setting

Versions Indication

1/2

Sensor Check

Hands Free Module/USB BOX

Handle Setting

Back

Next

Previous

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-309

2. Check that it is set to "3E47". If not, select "3E47",

and then choose "Set".

VERSIONS INDICATION
Displays versions indication (Loader, Application,
Audio Microcomputer, Navi Sub Microcomputer, Map
Data, Monitor).

1. Select "Versions Indication" on "Service" screen.

2. Versions indication is displayed.

SENSOR CHECK
The speed sensor and gyro sensor will be checked,
depending on the vehicle conditions such as driving
condition, stationary condition and travel direction
change.

1. Select "Sensor Check" on "Service" screen.

2. The sensor check with the vehicle stationary will

be executed in accordance with the screen.

3. The sensor check with the vehicle in motion will

be executed in accordance with the screen.

AC900685

ACB01771

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Car Type Setting

Versions Indication

1/2

Sensor Check

Hands Free Module/USB BOX

Handle Setting

Back

Next

Previous

AC610673

Version Information

Loader

Application

Navi Sub Microcomputer

Audio Microcomputer

Map Data

Monitor

CAN BOX

Back

AC

ACB01771

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Car Type Setting

Versions Indication

1/2

Sensor Check

Hands Free Module/USB BOX

Handle Setting

Back

Next

Previous

AC703748

Back

Start

Sensor Check

You can check the sensors.
Please don't move your car until after 5 seconds. After this you
can move your car by changing the directions. lf you are ready.
please push Start

AG

AC703748

Sensor Check

Please don't move your car.

AH

AC703748

Sensor Check

Please move more than 10m

while changing direction of tha car.

AI

MITSUBISHI MULTI COMMUNICATION SYSTEM (MMCS)

CHASSIS ELECTRICAL

54A-310

4. When the sensor checks are complete, the screen

will display the check results.

NOTE:

If there is "NG" or "N/A" as the check results,
select "NG Code" on the "Sensor Check" screen.
Then "NG code Indication" screen will show the
NG code.
NG CODE REFERENCE TABLE FOR SENSOR
CHECK

HANDS FREE MODULE <VEHICLES WITH
HANDS FREE ECU>

1. Select "Hands Free Module" on "Service" screen.

NOTE: For item "Hands Free Module", refer to
Hands Free ECU

−

 Diagnosis Mode

P.54A-406

.)

USB BOX <VEHICLES WITH HANDS USB BOX>

1. Select "USB BOX" on "Service" screen.

NOTE: For item "USB BOX", refer to USB box

−



Diagnosis Mode

P.54A-434

.)

HANDLE SETTING

Back

NG Code

Sensor Check

Gyro Sensor

Speed Sensor

NG

OK

AC606335

Back

NG Code Indication

Gyro Sensor

5

AC606336

Sensor
classification

NG
Code
No.

Error items

Gyro sensor

1

Offset error while the vehicle is
stationary (lower limit error)

2

Offset error while the vehicle is
stationary (upper limit error)

5

Output error during driving

Speed sensor

6

Output error while the vehicle is
stationary

ACB01772

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Car Type Setting

Versions Indication

1/2

Sensor Check

Hands Free Module

Handle Setting

Back

Next

Previous

ACB01773

Service

Vehicle Signal Check

Monitor Check

Camera Setting

Speaker Check

Network/Connect Line Check

Car Type Setting

Versions Indication

1/2

Sensor Check

USB BOX

Handle Setting

Back

Next

Previous
