RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-287

YES :

Go to Step 7.

NO :

Thoroughly connect the antenna plug and
the radio and CD player.

STEP 7. Check by replacing the radio and CD
player.

Q: Does the another radio and CD player work

normally?

YES :

Either repair or replace the radio and CD

player.

NO :

Either repair or replace the antenna
assembly.

Inspection Procedure 13: Distortion on LW/MW/FM.

DIAGNOSIS PROCEDURE

STEP 1. Check the degree in which distortion is
generated.

Q:  How much distortion is generated?

Occasional distortion :

Go to Step 2.

Constant distortion :

Go to Step 3.

Step 2. Check by the transmission antenna.

Q:  Is there distortion by the transmission antenna?

YES :

The input from the antenna is too big.

NO :

Go to Step 3.

STEP 3. Check how the speakers are setup.

Q:  Are any cords coming in contact with the paper

cones of the speakers?

YES :

Move the cords so that they do not come in

contact with the paper cones of the speaker.
Check that a distortion is resolved.

NO :

Go to Step 4.

STEP 4. Check the speakers.

1. Remove the speakers.
2. Check to see if there is any ripping of the paper

cones or any foreign obstacles in the paper cone.

Q:  Are the speakers normal?

YES :

Go to Step 5.

NO :

Repair or replace the speakers. Check that
a distortion is resolved.

STEP 5. Check how the speakers are setup.

Q:  Check to see if the speakers are setup in a

deformed manner.
YES :

Correct the way the speakers are setup so

they are securely setup.

NO :

Repair or replace the radio and CD player.

Inspection Procedure 14: Using the auto select function, too few automatic stations are selected.

DIAGNOSIS PROCEDURE

STEP 1. Check the state of the antenna.

Q:  Is the antenna assembled?

YES :

Go to Step 2.

NO :

Assemble the antenna. The auto-select
function should operate normally.

STEP 2. Check the number of radio stations.

Q:  Are there sufficient numbers of radio stations

within the area?

YES :

Go to Step 3.

NO :

Go to Step 4.

STEP 3. Check the distance from the
transmission antenna.

Q:  Is there a transmission antenna within a range of 2

miles?
YES :

Go to Step 5.

NO :

Go to Step 4.

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-288

STEP 4. The check if there are not that many
radio stations and when there is no transmission
antenna in the vicinity.
Execute automatic selection and check to see that
the strongest radio frequency is receivable within the
area.

Q:  Is reception of the strongest radio frequency

possible within the area?
YES :

There is no action to be taken.

NO :

Go to Step 5.

STEP 5. Check to see if inspections are taking
place is an area exposed to special electric
fields.

Q:  Are inspections taking place under special electric

field conditions (underneath garage, inside a
building, etc)?
YES :

Go to Step 6.

NO :

Go to Step 7.

STEP 6. Relocate and check.
Automatically receive in a good reception area that is
not exposed to special electric fields.

Q:  Is reception of the strongest radio frequency

possible within the area?
YES :

There is no action to be taken.

NO :

Go to Step 7.

STEP 7. Check the connection of the antenna
plug and the radio and CD player.

Q:  Is the antenna plug thoroughly connected to the

radio and CD player?
YES :

Repair or replace the radio and CD player.

The auto-select function should operate
normally.

NO :

Thoroughly connect the antenna plug and
the radio and CD player. The auto-select
function should operate normally.

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-289

Inspection Procedure 15: Preset station are erased.

COMMENTS ON TROUBLE SYMPTOM
The cause is probably a faulty radio CD player mem-
ory backup power supply circuit system.

PROBABLE CAUSES

• Damaged wiring harness or connector.

• Malfunction of the radio and CD player.

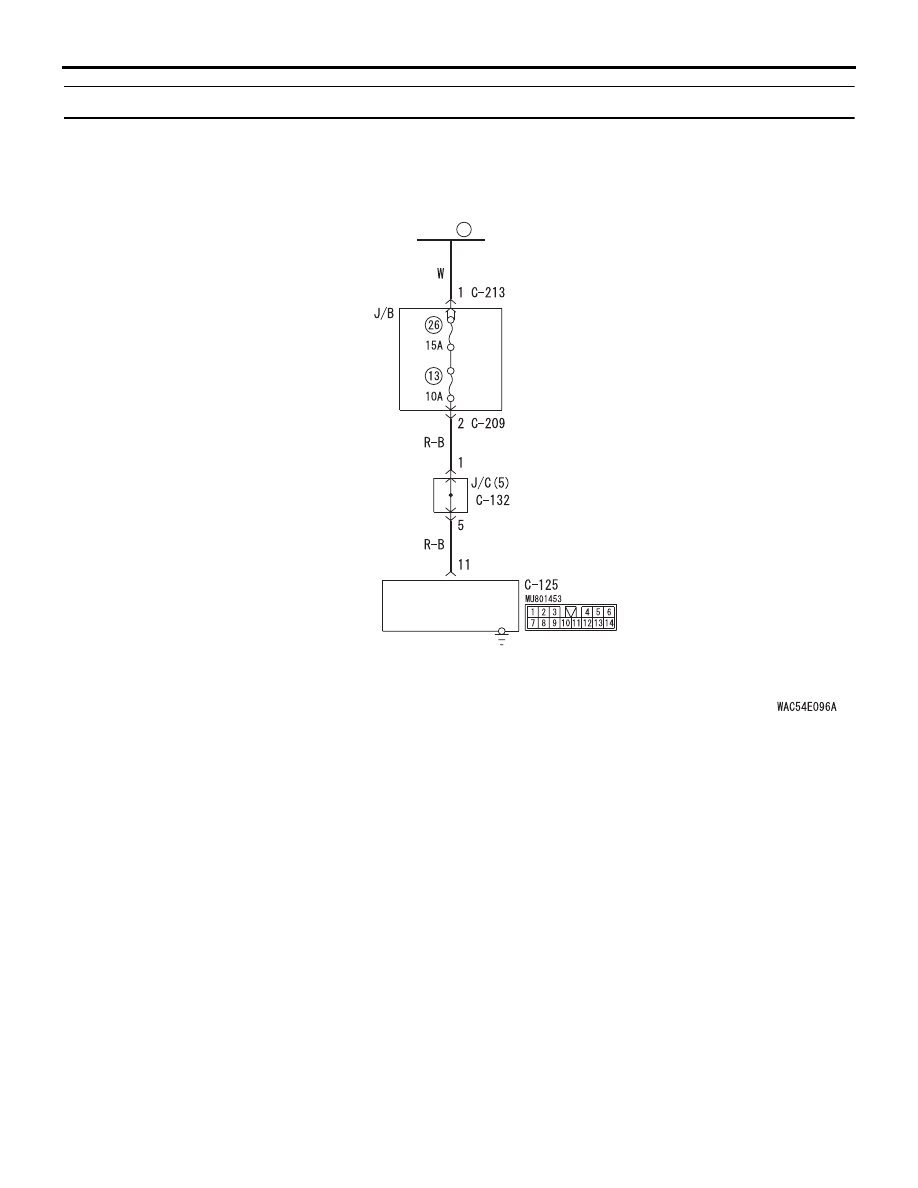

Memory Backup Power Circuit

FUSIBLE
LINK

20

RADIO AND
CD PLAYER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

RADIO AND CD PLAYER

CHASSIS ELECTRICAL

54A-290

DIAGNOSIS PROCEDURE

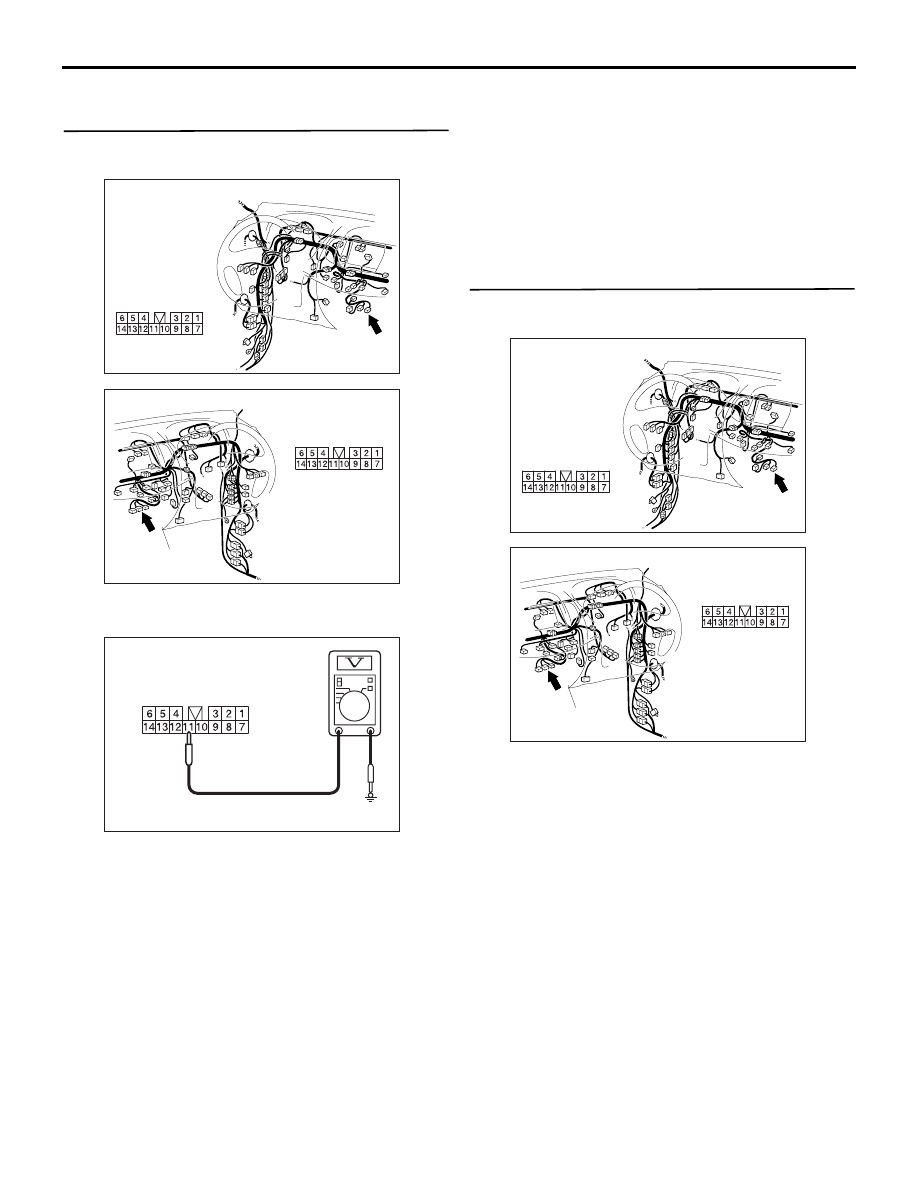

STEP 1. Voltage measurement at radio and CD
player connector C-125.

(1) Disconnect radio and CD player connector C-

125.

(2) Measure the voltage between terminal number 11

and earth.

OK: System voltage

Q: Does the measured voltage correspond with this

range?
 When YES <radio and CD player does not execute
memory save then.> :

Either repair or replace the

radio and CD player. Check that a memory
is retained.

NO :

Go to Step 2.

STEP 2. Connector check: Radio and CD player
connector C-125.

Q: Is radio and CD player connector C-125 in good

condition?
YES :

Go to Step 3.

NO :

Repair or replace the damage
component(s). Check that a memory is
retained.

AC903856AE

Harness side

Connector: C-125 <LHD>

AC903868

AE

Harness side

Connector: C-125 <RHD>

AC402679

Connector C-125
(Harness side)

BW

AC903856AE

Harness side

Connector: C-125 <LHD>

AC903868

AE

Harness side

Connector: C-125 <RHD>
