HEADLAMP

CHASSIS ELECTRICAL

54A-107

STEP 21. Check the wiring harness from the F-04
<vehicles with rear body> or F-23 <vehicles
without rear body> rear combination lamp (turn:
LH) or F-02 <vehicles with rear body> or F-19
<vehicles without rear body> rear combination
lamp (turn: RH) connector terminal No.1 to C-218
ETACS-ECU connector terminal No.3 or No.4.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector F-07 and C-31 <RHD>, junction
block connector C-221 <LHD> or C-204 <RHD>, and
repair if necessary.

• Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 22.

NO :

Repair the wiring harness. Go to Step 23.

STEP 22. Retest the system.
Check that the rear turn-signal lamps illuminate nor-
mally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ). Go to Step 23.

NO :

Replace the rear combination lamp. Go to
Step 23.

STEP 23. Check whether the diagnosis code is
reset.
Check if diagnosis code No.B1707 is set to the
ETACS-ECU.

Q: Is the diagnosis code set?

YES :

Replace the ETACS-ECU and register the

ID codes (Refer to

P.54A-39

).

NO :

The procedure is complete.

AC509935AE

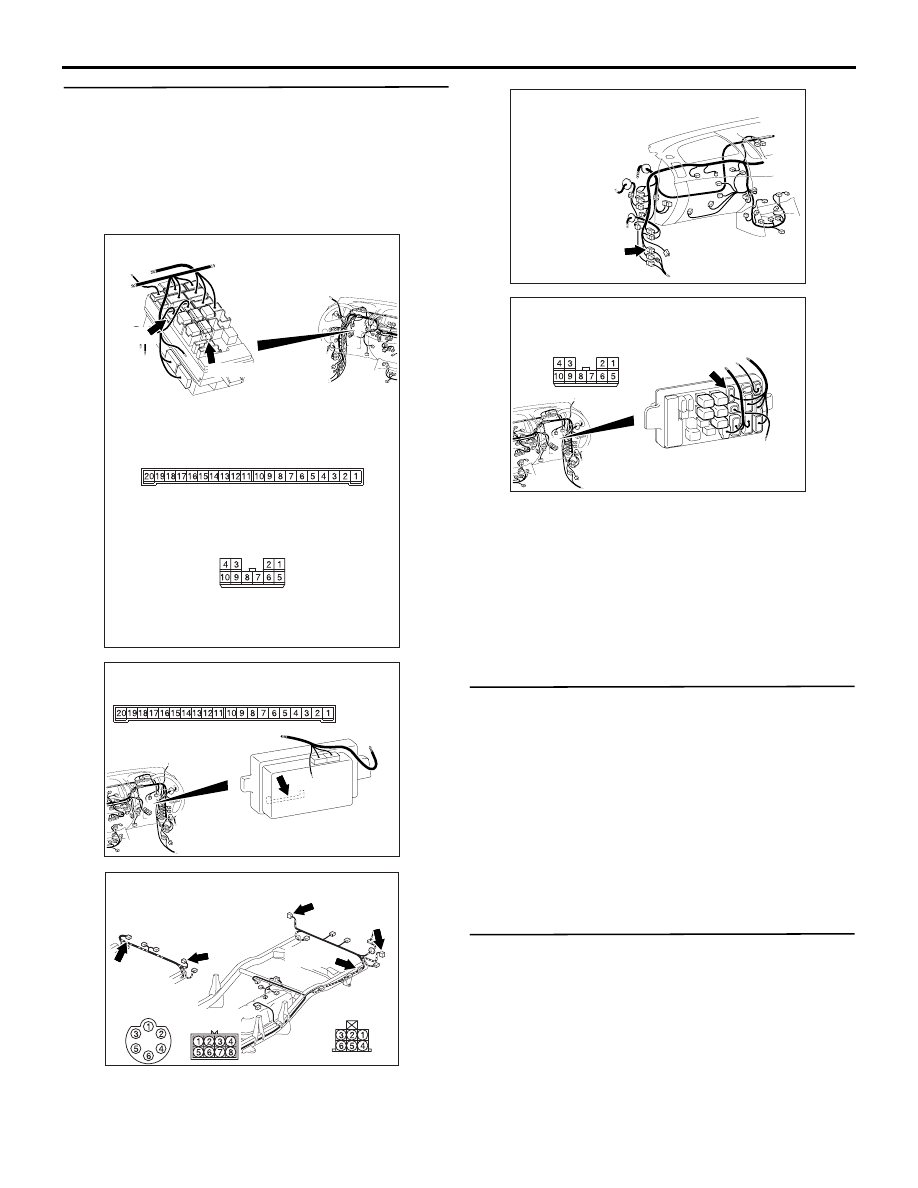

Connectors: C-218, C-221 <LHD>

C-218

C-221

Junction block side

C-218

C-221

Harness side

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side

AC903957AD

Harness side

F-02 (B)

Connectors: F-02, F-04, F-07, F-19, F-23

<Vehicles without
rear body>

F-19

F-23

F-02, F-04

F-04 (B)

Harness side

F-19, F-23

F-07 (B)

F-07

AC903865

Connector: C-31 <RHD>

AS

AC509936

Connector: C-204 <RHD>

Harness side

AO

Junction block
(Front view)

HEADLAMP

CHASSIS ELECTRICAL

54A-108

Code No.L0432 RLS RS adaptation error

DIAGNOSTIC FUNCTION
When the lighting control sensor is installed with the
wrong procedure, code No. L0432 is stored by LIN.

COMMENTS ON TROUBLE SYMPTOM
The lighting control sensor may have been installed
with the wrong procedure.

• Incorrect installation procedure: Connect the con-

nector before mounting the lighting control sensor
onto the optical coupler of the windshield.

• Correct installation procedure: Mount the lighting

control sensor onto the optical coupler of the
windshield. Wipe the windshield surface thor-
oughly, and check that the surface is dry. Then,
connect the connector.

PROBABLE CAUSES

• Lighting control sensor improperly installed

• Lighting control sensor (rain sensor) abnormal

operation

DIAGNOSIS PROCEDURE

STEP 1. Check whether the diagnosis code is
reset.
Disconnect the connector from the lighting control
sensor, and connect the connector to the lighting
control sensor again. Then, check again if the diag-
nosis code is set to LIN.
(1) Disconnect the connector of lighting control

sensor, and connect it again.
NOTE: When connecting the connector, follow
the correct installation procedure.

(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) Check if diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Go to Step 2.

NO :

The lighting control sensor is installed with
the wrong procedure.

STEP 2. Lighting control sensor installation
surface check
Visually check the presence of scratches or air bub-
bles (diameter of 5 mm or more) on the windshield to
which the lighting control sensor is installed. In addi-
tion, visually check that the optical coupler is not bro-
ken and that the lighting control sensor can be
installed.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the windshield (Refer to GROUP
42

− Windshield )

STEP 3. Check whether the diagnosis code is
reset.
Check again if the diagnosis code is set to LIN.
(1) Wipe the windshield surface of the lighting control

sensor section thoroughly, and check that the
surface is dry. Then, perform the lighting control
sensor (rain sensor) adaptation. <Refer to
GROUP 51

− Lighting Control Sensor (Rain

Sensor) Adaptation >.

(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

(3) Check if diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Replace the lighting control sensor.

NO :

The trouble can be an intermittent
malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

Code No.L0434 RLS rain sensor error



Code No.L0436 RLS light sensor error

DIAGNOSTIC FUNCTION
If a trouble occurs in the lighting control sensor, code
Nos. L0434 and L0436 are stored to LIN.

PROBABLE CAUSE
Malfunction of the lighting control sensor

DIAGNOSIS PROCEDURE

Check whether the diagnosis code is reset.
Check again if the diagnosis code is set to LIN.
(1) Erase the diagnosis code.
(2) Turn the ignition switch from "LOCK" (OFF)

position to "ON" position.

HEADLAMP

CHASSIS ELECTRICAL

54A-109

(3) Check if diagnosis code is set.

Q: Is the diagnosis code set?

YES :

Replace the lighting control sensor.

NO :

The trouble can be an intermittent
malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

TROUBLE SYMPTOM CHART

M1540102100799

Symptom

Inspection
procedure
number

Reference
page

Headlamp and tail lamp

None of the low-beam headlamps
illuminate.

1

P.54A-110

None of the high-beam headlamps
illuminate.

2

P.54A-114

The high-beam and low-beam headlamps
do not illuminate when the passing switch
is operated.

3

P.54A-118

One of position lamps or licence plate
lamps does not illuminate.

4

P.54A-119

One of the Headlamps does not Illuminate.
<2-bulb type>

5

P.54A-125

One of the Headlamps does not Illuminate.
<4-bulb type>

P.54A-130

The headlamp automatic-shutdown
function does not work normally.

6

P.54A-134

Daytime running lamp function does not
work normally.

7

P.54A-135

The auto lamp function does not work
normally.

10

P.54A-136

Flasher timer

None of the turn-signal lamps illuminate.

8

P.54A-137

The comfort flasher does not work
normally.

9

P.54A-138

HEADLAMP

CHASSIS ELECTRICAL

54A-110

SYMPTOM PROCEDURES

Inspection Procedure 1: None of the low-beam headlamps illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM
If none of the low-beam headlamps illuminate, the
headlamp switch input circuit, the headlamp relay
(LO) or the ETACS-ECU may be defective.

PROBABLE CAUSES

• Malfunction of the headlamp relay (LO)

• Malfunction of the column switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code.
When the ignition switch is turned to the "LOCK"
(OFF) position, check that the ETACS-ECU does not
set the diagnosis code.

Q: Is the diagnosis code set?

YES :

Refer to diagnosis code chart

P.54A-494

.

NO :

Go to Step 2.

INPUT SIGNAL
(COLUMN-ECU)

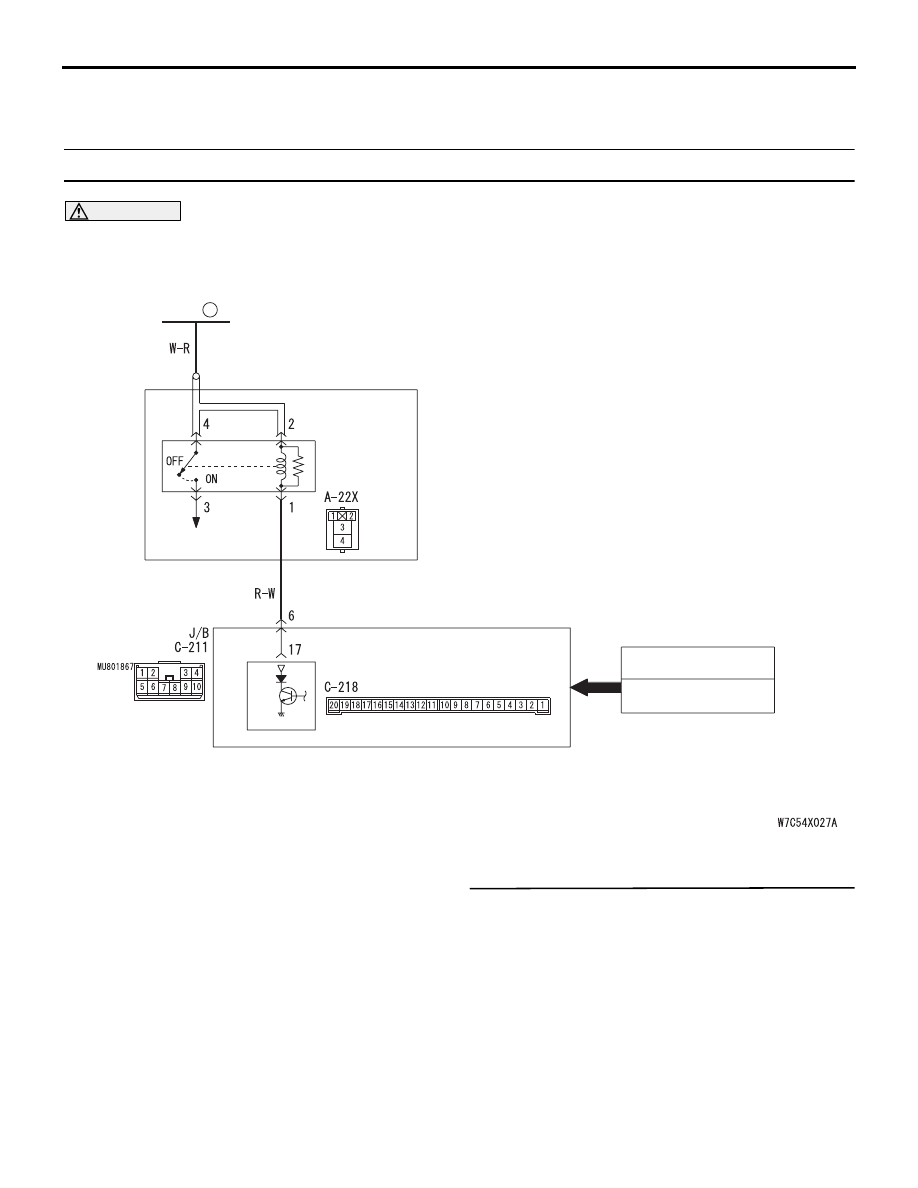

Headlamp Relay (Low-Beam) Circuit

FUSIBLE
LINK

23

RELAY
BOX

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

ETACS-ECU

HEADLAMP SWITCH

HEADLAMP
RELAY
(LO)

HEADLAMP
