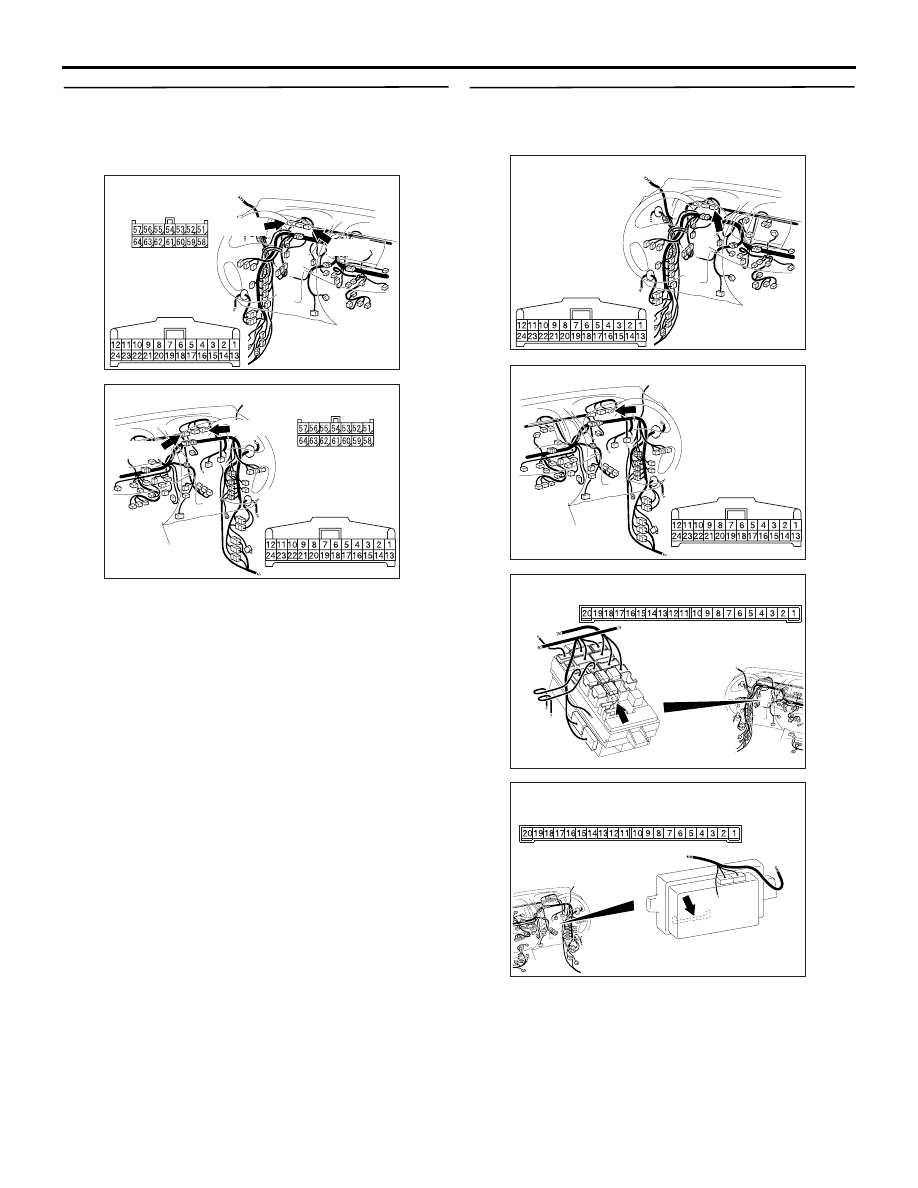

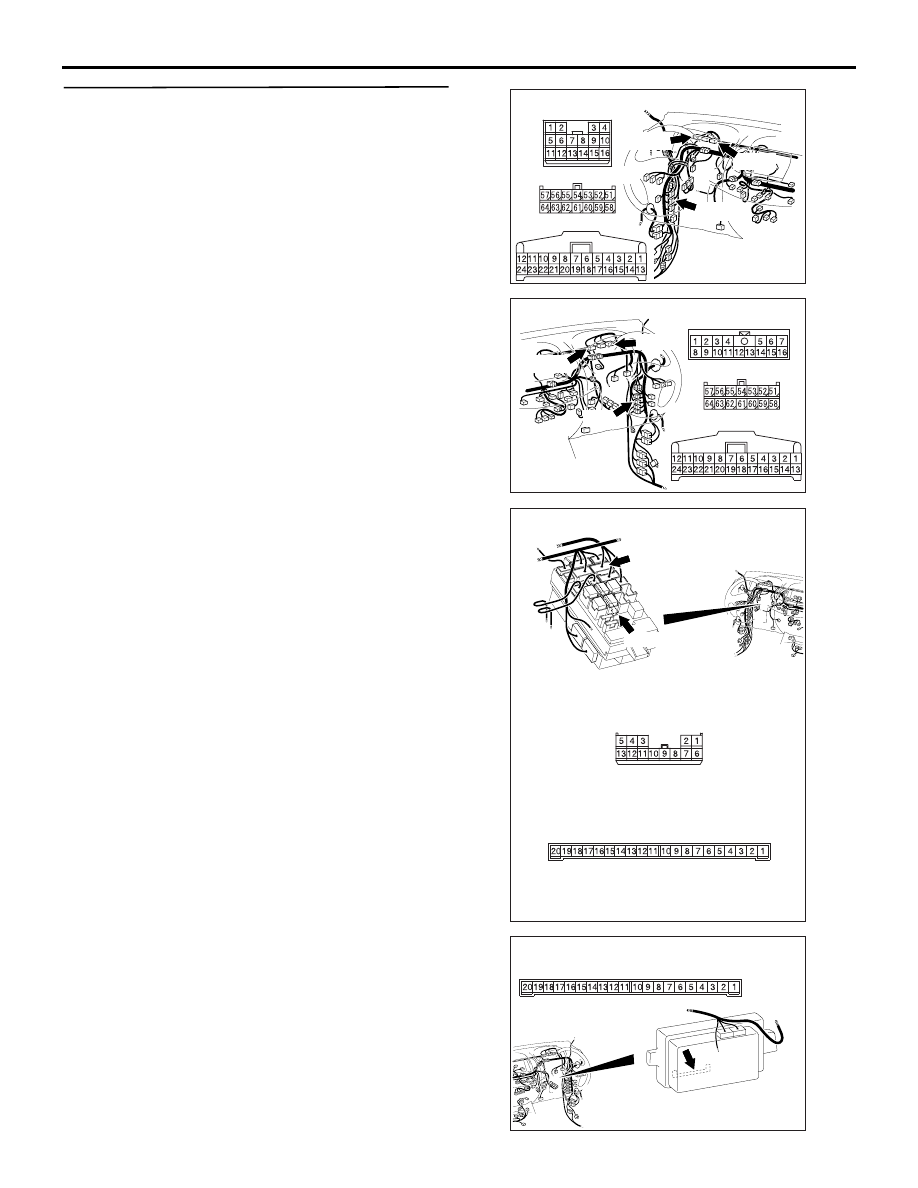

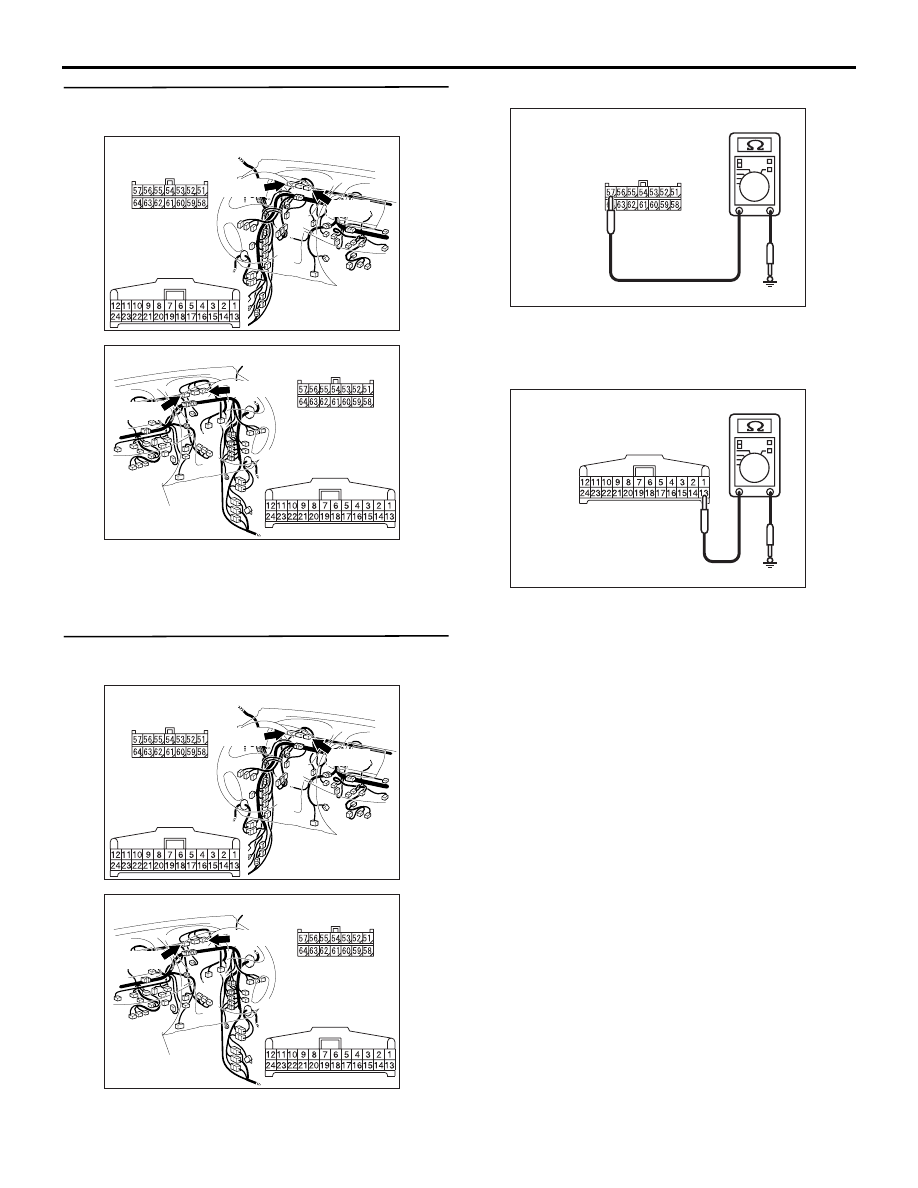

COMBINATION METER

CHASSIS ELECTRICAL

54A-75

Inspection Procedure 12: The turn-signal lamp indicator does not illuminate.

COMMENTS ON TROUBLE SYMPTOM
If the turn-signal lamp indicator does not illuminate,
the wiring harness connector(s) or the combination
meter may be defective.

PROBABLE CAUSES

• Malfunction of the combination meter

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the turn-signal lamps.
When the turn-signal lamp switch is operated, check
that the turn-signal lamps illuminate/go off normally.

Q: Are the turn-signal lamps in good condition?

YES :

Go to Step 2.

NO :

First, repair the turn-signal lamps. Refer to
trouble symptom chart

P.54A-109

.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

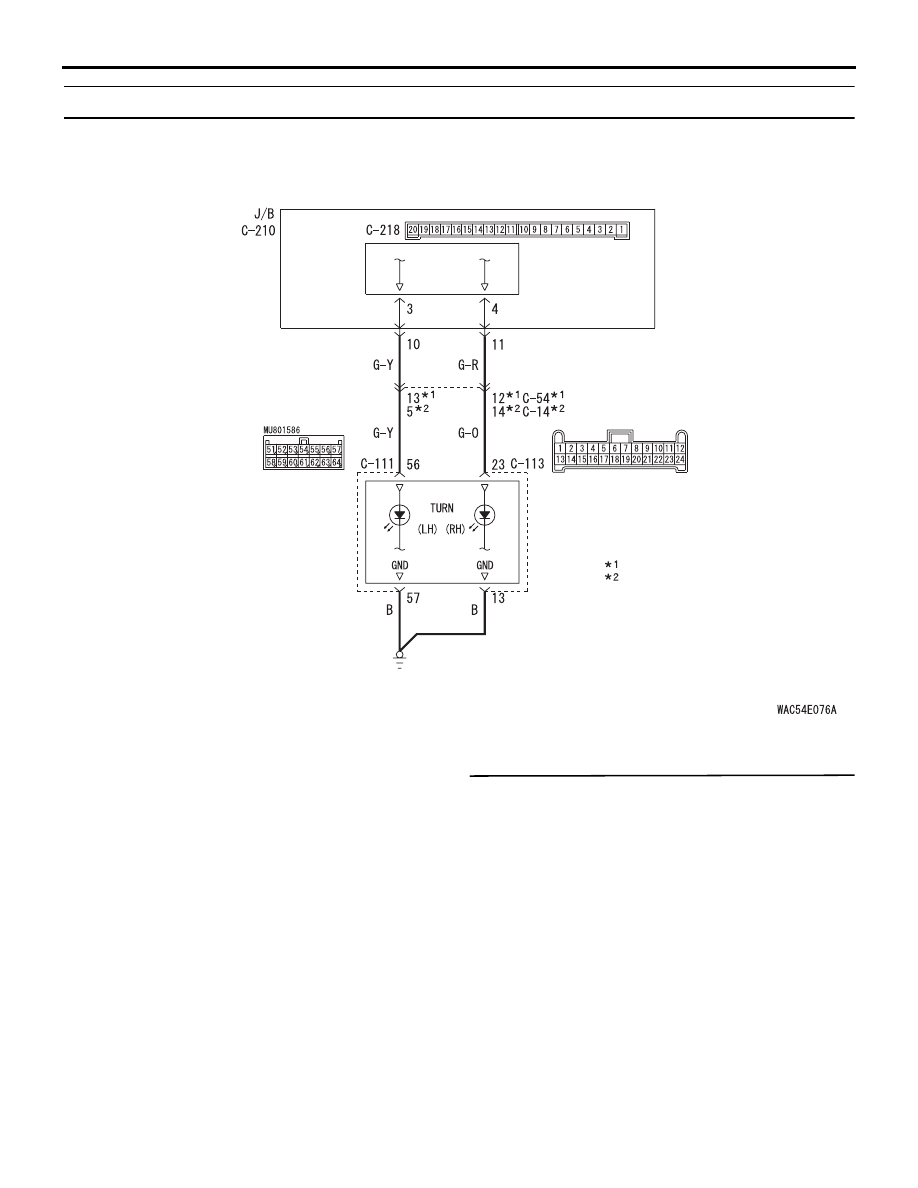

Turn-Signal Lamp Indicator Circuit

J/B SIDE

ETACS-ECU

COMBINATION
METER

NOTE

: LHD
: RHD

COMBINATION METER

CHASSIS ELECTRICAL

54A-76

STEP 2. Connector check: C-111 and C-113
combination meter connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

STEP 3. Resistance measurement at the C-111
and C-113 combination meter connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between C-111 combination meter

connector terminal No.57 and body earth

OK: Continuity exists (2

Ω or less)

(3) Check the resistance between the C-113

combination meter connector terminal No.13 and
body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC903856

C-111 Harness side

C-113 Harness side

BG

Connectors: C-111, C-113 <LHD>

C-111

C-113

AC903868

C-111 Harness side

C-113 Harness side

BX

Connectors: C-111, C-113 <RHD>

C-111

C-113

AC903856

C-111 Harness side

C-113 Harness side

BG

Connectors: C-111, C-113 <LHD>

C-111

C-113

AC903868

C-111 Harness side

C-113 Harness side

BX

Connectors: C-111, C-113 <RHD>

C-111

C-113

AC310506

(Harness side)

Connectors C-111

IF

AC310506

(Harness side)

Connectors C-113

KB

COMBINATION METER

CHASSIS ELECTRICAL

54A-77

STEP 4. Check the wiring harness fromC-111
combination meter conector terminal No.57 or C-
113 combination meter connector terminal No.13
to body earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 5. Connector check: C-113 combination
meter connector and C-218 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC903856

C-111 Harness side

C-113 Harness side

BG

Connectors: C-111, C-113 <LHD>

C-111

C-113

AC903868

C-111 Harness side

C-113 Harness side

BX

Connectors: C-111, C-113 <RHD>

C-111

C-113

AC903856

Harness side

BH

Connector: C-113 <LHD>

AC903868

Harness side

BY

Connector: C-113 <RHD>

AC509934

Connector: C-218 <LHD>

AJ

Junction

block

Junction block side

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side

COMBINATION METER

CHASSIS ELECTRICAL

54A-78

STEP 6. Check the wiring harness from C-111
combination meter (turn: LH) connector terminal
No.56 or C-113 combination meter (turn: RH)
connector terminal No.23 to C-218 ETACS-ECU
connector terminal No.3 or No.4.

AC903856BL

Connectors: C-54, C-111, C-113 <LHD>

C-54

C-113 Harness side

C-113

C-54

C-111

C-111 Harness side

AC903868

CB

Connectors: C-14, C-111, C-113 <RHD>

C-14

C-14

C-113 Harness side

C-113

C-111 Harness side

C-111

AC509935AL

Connectors: C-210, C-218 <LHD>

C-210

Harness side

C-210

C-218

Junction block side

C-218

AC509943

Connector: C-218 <RHD>

AC

Junction block

 (Rear view)

Junction block side
