Mitsubishi L200. Manual - part 675





COMBINATION METER

CHASSIS ELECTRICAL

54A-67

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the combination meter.

Inspection Procedure 10: The front fog lamp indicator does not illuminate.

COMMENTS ON TROUBLE SYMPTOM
If the front fog indicator does not illuminate, the wir-
ing harness connector(s) or the combination meter
may be defective.

PROBABLE CAUSES

• Malfunction of the combination meter

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check of front fog lamp
Check that the front fog lamp illuminates normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the headlamp first.Refer to trouble
symptom chart

P.54A-152

.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

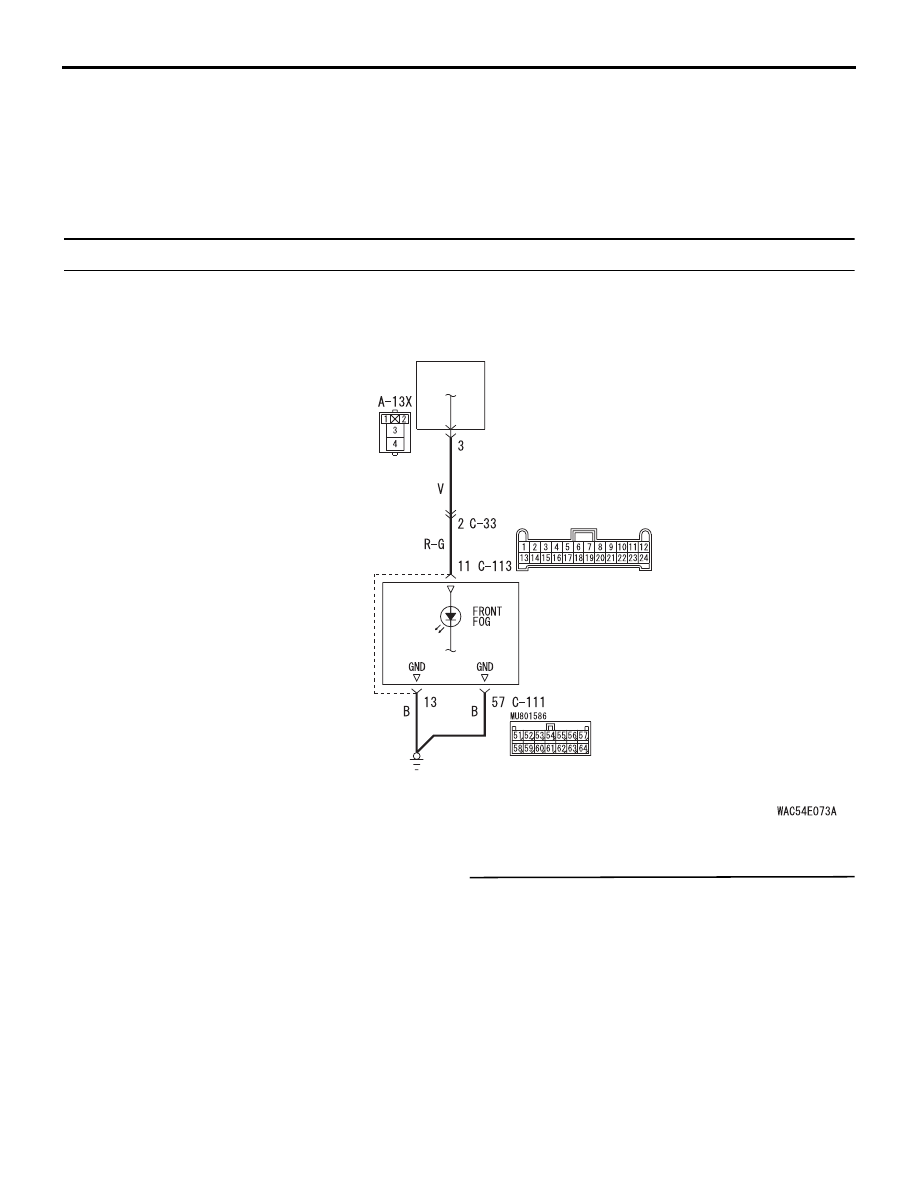

Front Fog Lamp Indicator Circuit

COMBINATION
METER

FRONT FOG
LAMP RELAY

COMBINATION METER

CHASSIS ELECTRICAL

54A-68

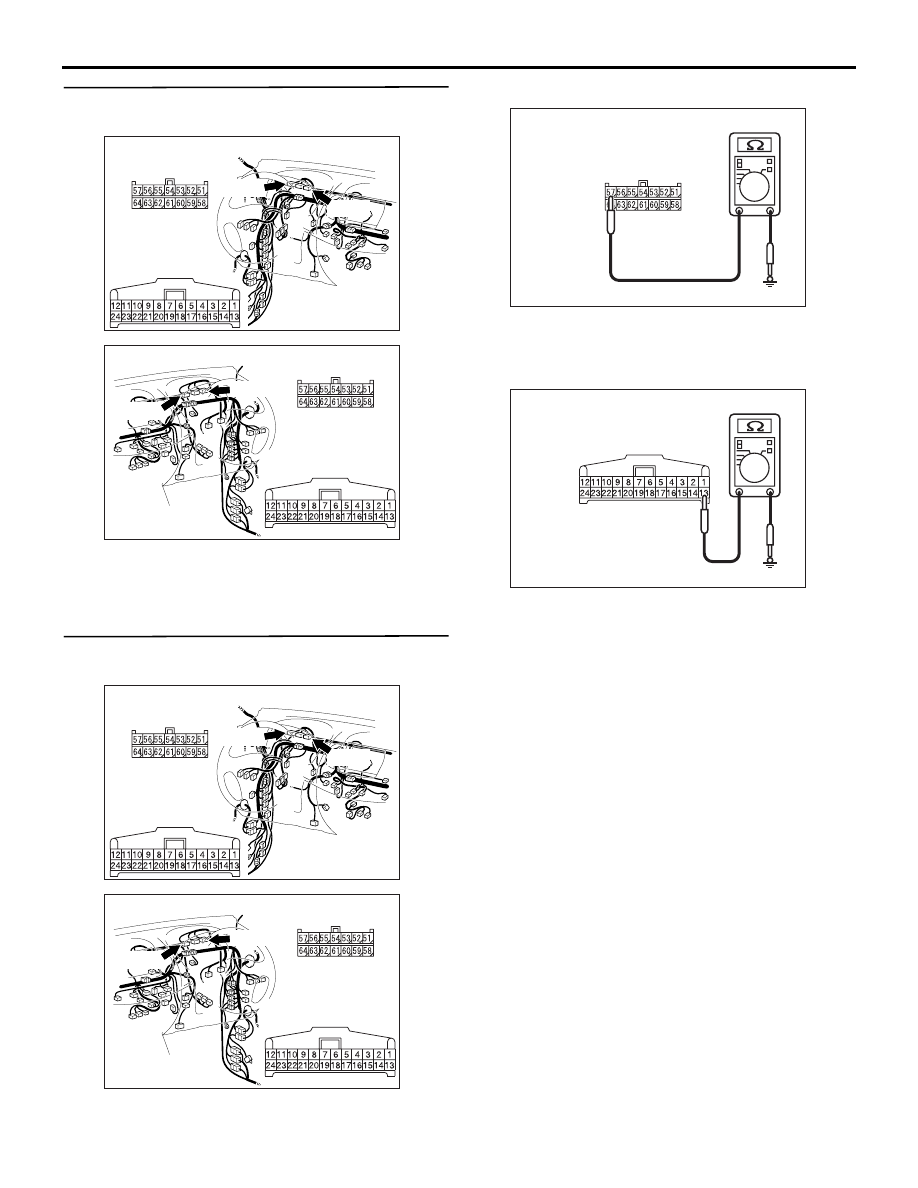

STEP 2. Connector check: C-111 and C-113
combination meter connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

STEP 3. Resistance measurement at the C-111
and C-113 combination meter connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between C-111 combination meter

connector terminal No.57 and body earth

OK: Continuity exists (2

 or less)

(3) Check the resistance between the C-113

combination meter connector terminal No.13 and
body earth.

OK: Continuity exists (2

 or less)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC903856

C-111 Harness side

C-113 Harness side

BG

Connectors: C-111, C-113 <LHD>

C-111

C-113

AC903868

C-111 Harness side

C-113 Harness side

BX

Connectors: C-111, C-113 <RHD>

C-111

C-113

AC903856

C-111 Harness side

C-113 Harness side

BG

Connectors: C-111, C-113 <LHD>

C-111

C-113

AC903868

C-111 Harness side

C-113 Harness side

BX

Connectors: C-111, C-113 <RHD>

C-111

C-113

AC310506

(Harness side)

Connectors C-111

IF

AC310506

(Harness side)

Connectors C-113

KB

COMBINATION METER

CHASSIS ELECTRICAL

54A-69

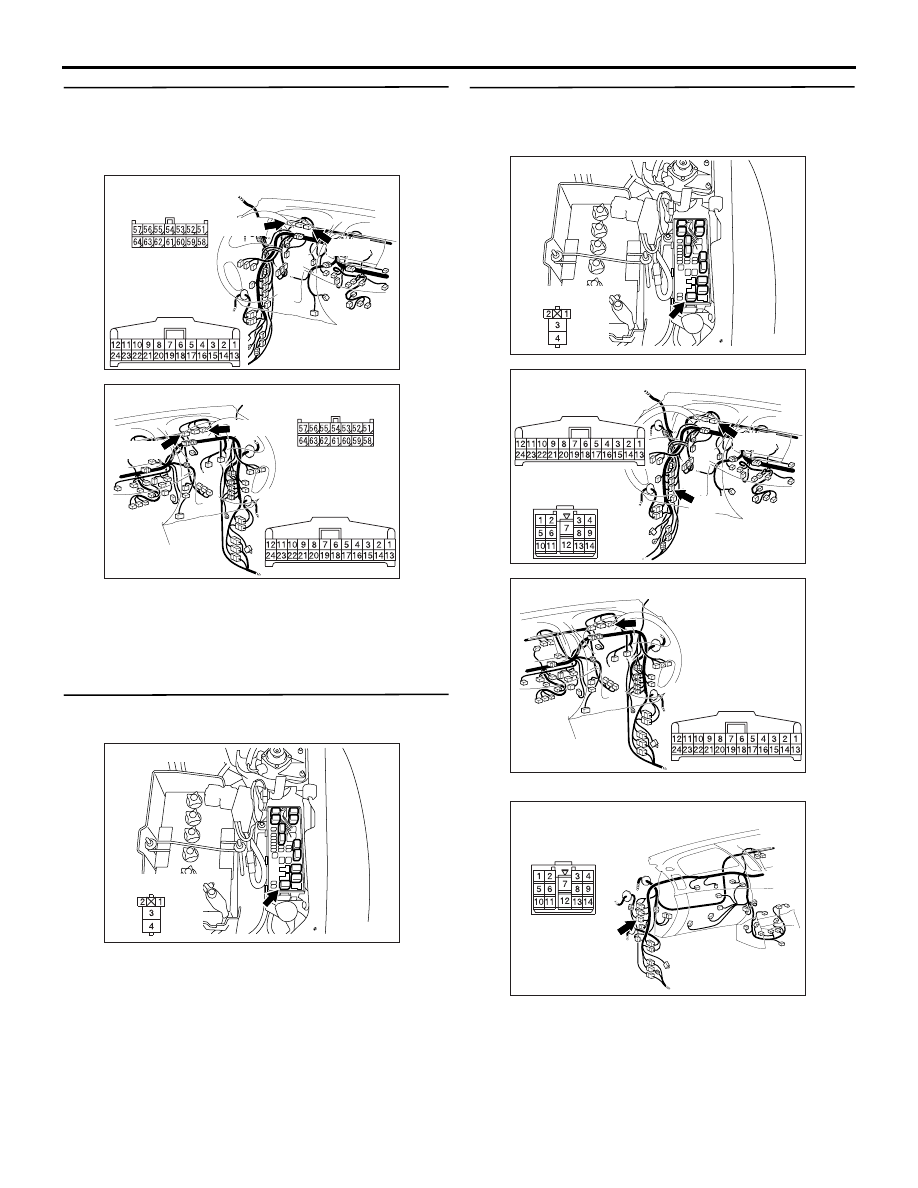

STEP 4. Check the wiring harness from C-111
combination meter connector terminal No.57 or
C-113 combination meter connector terminal
No.13 to body earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

STEP 5. Connector check: Connector check: A-
13X front fog lamp relay connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

STEP 6. Check the wiring harness from C-113
combination meter connector No.11 to A-13X
front fog lamp relay connector terminal No.3.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-33, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

AC903856

C-111 Harness side

C-113 Harness side

BG

Connectors: C-111, C-113 <LHD>

C-111

C-113

AC903868

C-111 Harness side

C-113 Harness side

BX

Connectors: C-111, C-113 <RHD>

C-111

C-113

AC903878

AE

Connector: A-13X

Relay box side

AC903878

AE

Connector: A-13X

Relay box side

AC903856

Connectors: C-33, C-113 <LHD>

BK

C-33

C-113

Harness side

C-113

C-33

AC903868

Harness side

BY

Connector: C-113 <RHD>

AC903865

Connector: C-33 <RHD>

AH

COMBINATION METER

CHASSIS ELECTRICAL

54A-70

STEP 7. Retest the system.
Check that the front fog lamp indicator illuminate nor-
mally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the combination meter.

Inspection Procedure 11: The rear fog lamp indicator does not illuminate.

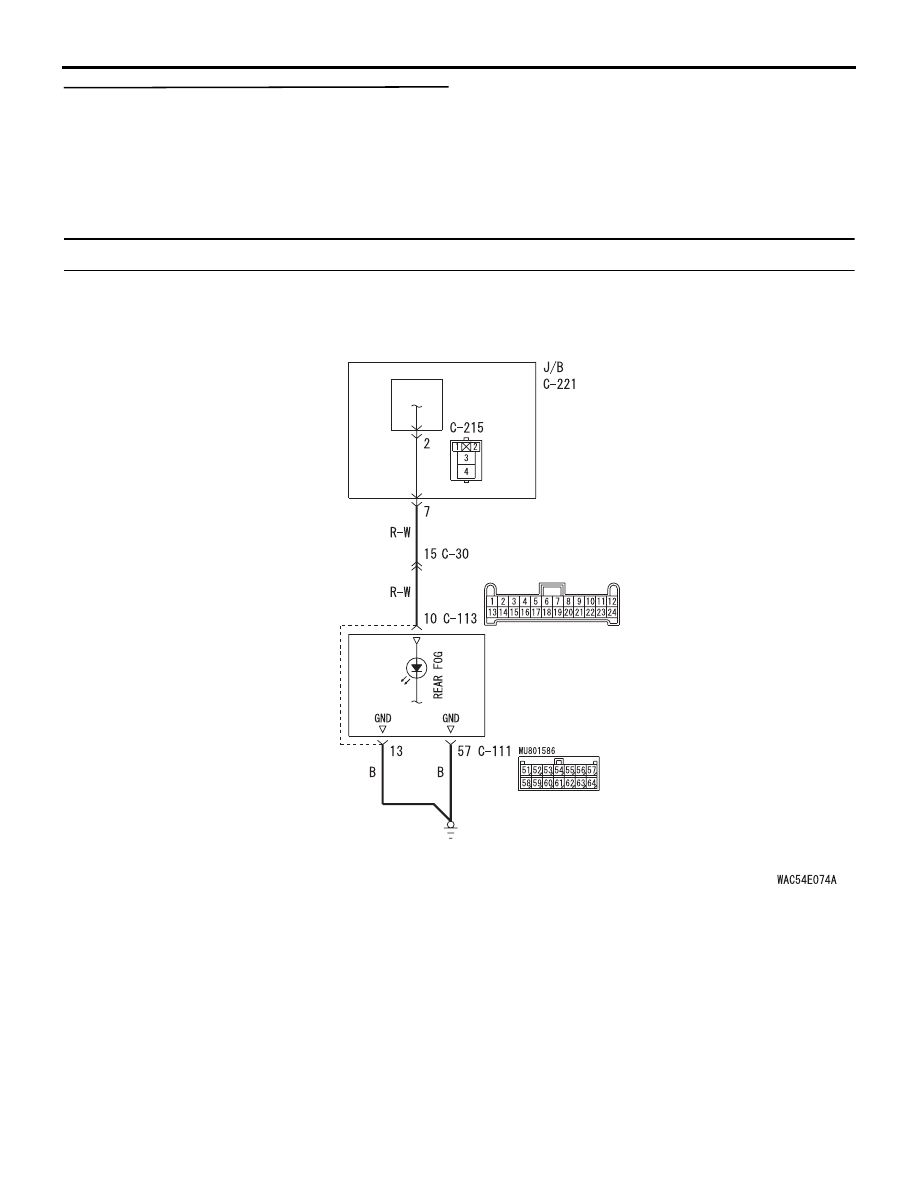

Rear Fog Lamp Indicator Circuit <LHD>

REAR
FOG LAMP
RELAY

COMBINATION
METER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver
