AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-299

WARNING

•

Before deployment, check carefully to be
sure that no one is nearby.

•

The inflator will be quite hot immediately
following the deployment, so wait at least
30 minutes to allow it to cool before
attempting to handle it. Although not poi-
sonous, do not inhale gas from air bag
deployment. See Deployed Air Bag Mod-
ule and Operated Seat Belt Pre-tensioner
Disposal (Refer to ) for post-deployment
handling instructions.

•

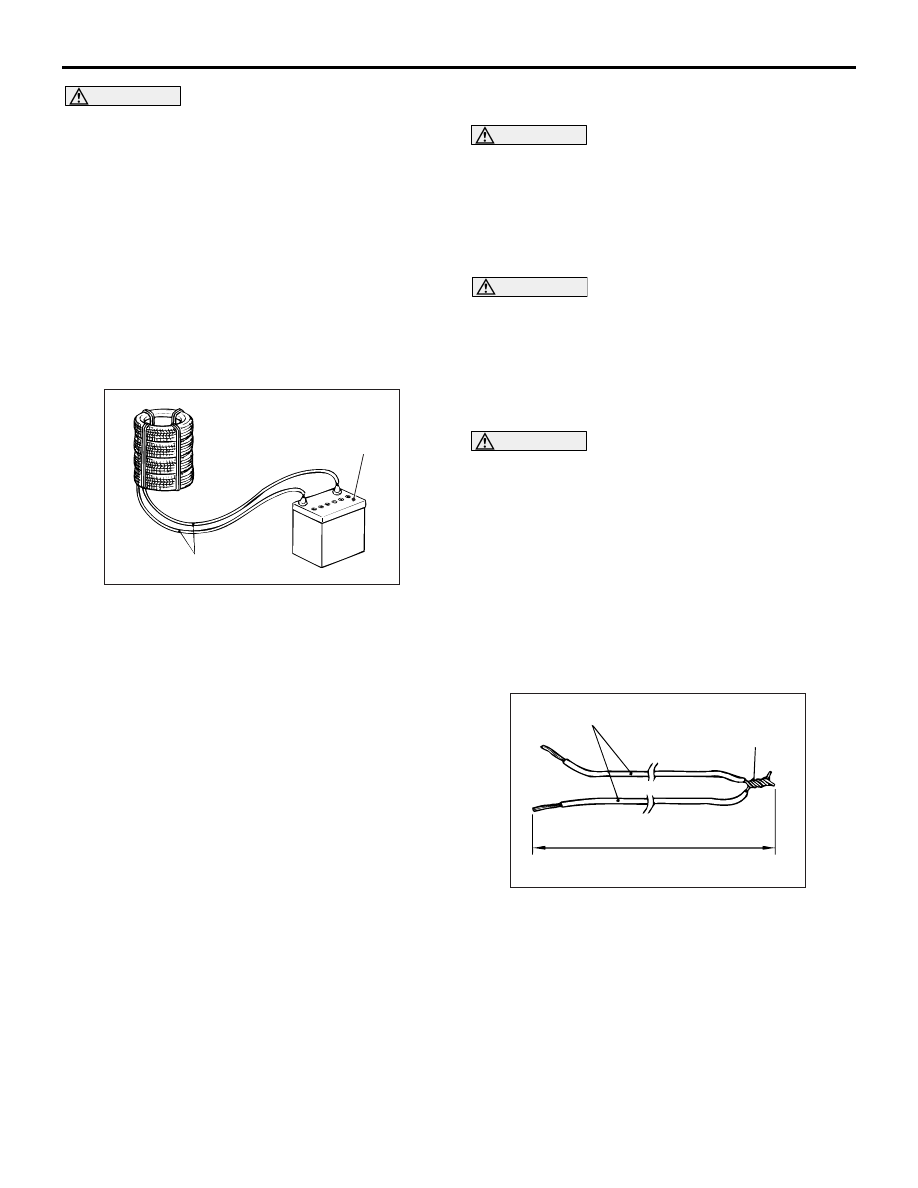

ACX01315AF

Deployment wires

Vehicle battery

If the air bag fails to deploy, do not go
near the module. Contact your distributor.

7. At a location as far away from the passenger's

(front) air bag module as possible, and from a
shielded position, disconnect the two connected
wires from each other, and connect them, to the
two terminals of the battery (which has been
removed from the vehicle) to deploy the air bag.

8. Discard the deployed passenger's (front) air bag

module as specified in Deployed Air Bag Module
and Operated Seat Belt Pre-tensioner Disposal
(Refer to ).

DEPLOYMENT OUTSIDE VEHICLE <SIDE-
AIRBAG MODULE>

WARNING

•

This should be carried out in a wide, flat
area at least 6 m away from obstacles and
other people.

•

Do not deploy outside if wind is high.
Even in a soft wind, ignite to windward of
the air bag modules.

DANGER

Wait at least 60 seconds after disconnecting
the battery cables before doing any further
work (Refer to

P.52B-5

).

1. Disconnect the negative and positive battery

cables from the battery terminals, and then
remove the battery from the vehicle.

WARNING

Once disconnected, both electrodes of the
side-airbag module connector short auto-
matically to prevent accidental deployment
caused by static etc. Still, in consideration of
the accidental deployment, store the air bag
module on flat place with deployment sur-
face facing up. Also, do not put anything on
it.

2. Remove the front seatback assembly with side-

airbag module from the vehicle (Refer to 52A,
Front Seat Assembly ).

AC100450 AC

Connection

Deployment wires

6 m or longer

3. Prepare two deployment wires of 6 m or more,

and keep the terminal at one end connected to
that of the other wire (shorted).
NOTE: This prevents the air bags from uninten-
tional deployment caused by static.

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-300

CAUTION

The following procedures are intended to prevent
the unintentional deployment caused by the
static. Therefore, make sure to perform the pro-
cedures.
4. Touch the vehicle body with bare hands to release

the charged static.

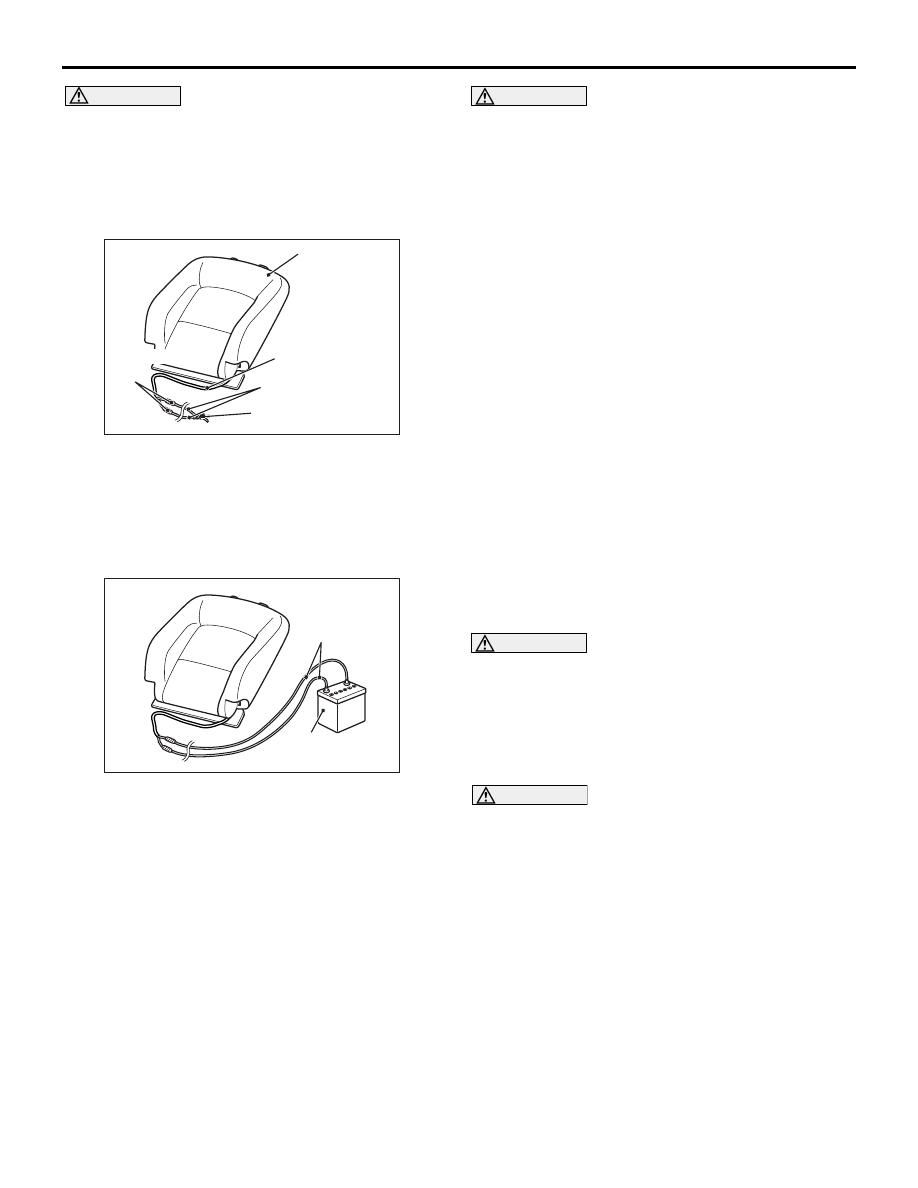

AC801934AG

Connection

Deployment wires

Insulator
tape

Side-airbag
module harness

Front seatback
assembly

5. Install the front seatback assembly with its

backside facing the ground.

6. Cut off the side-airbag module connector from the

wiring harness with nippers. Individually connect a
harness on the two harnesses disconnected,
cover the connection areas with insulation tape.

AC801935AB

Deployment
wires

Vehicle battery

7. Disconnect the shorted part of the deployment

wiring harness at a place as far as possible from
the front seatback assembly. Then, connect the
wires to the removed vehicle battery to perform
deployment.

WARNING

•

Before deployment, check carefully to be
sure that no one is nearby.

•

The inflator will be quite hot immediately
following the deployment, so wait at least
30 minutes to allow it to cool before
attempting to handle it. Although not poi-
sonous, do not inhale gas from air bag
deployment. See Deployed Air Bag Mod-
ule and Operated Seat Belt Pre-tensioner
Disposal (Refer to ) for post-deployment
handling instructions.

•

If the air bag fails to deploy, do not go
near the module. Contact your distributor.

8. At a location as far away from the air bag module

as possible, and from a shielded position,
disconnect the two connected wires from each
other, and connect them to the two terminals of
the battery (which has been removed from the
vehicle) to deploy the air bag.

9. Discard the deployed air bag module as specified

in Deployed Air Bag Module and Operated Seat
Belt Pre-tensioner Disposal (Refer to ).

DEPLOYMENT OUTSIDE VEHICLE <CURTAIN
AIR BAG MODULE>

WARNING

•

This should be carried out in a wide, flat
area at least 6 m away from obstacles and
other people.

•

Do not deploy outside if wind is high.
Even in a soft wind, ignite to windward of
the air bag modules.

DANGER

Wait at least 60 seconds after disconnecting
the battery cables before doing any further
work (Refer to

P.52B-5

).

1. Disconnect the negative and positive battery

cables from the battery terminals, and then
remove the battery from the vehicle.

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-301

WARNING

Once disconnected, both electrodes of the
curtain air bag module connector short auto-
matically to prevent accidental deployment
caused by static etc. Still, in consideration of
the accidental deployment, store the air bag
module on flat place with deployment sur-
face facing up. Also, do not put anything on
it.

2. Remove the curtain air bag module (Refer to

P.52B-279

).

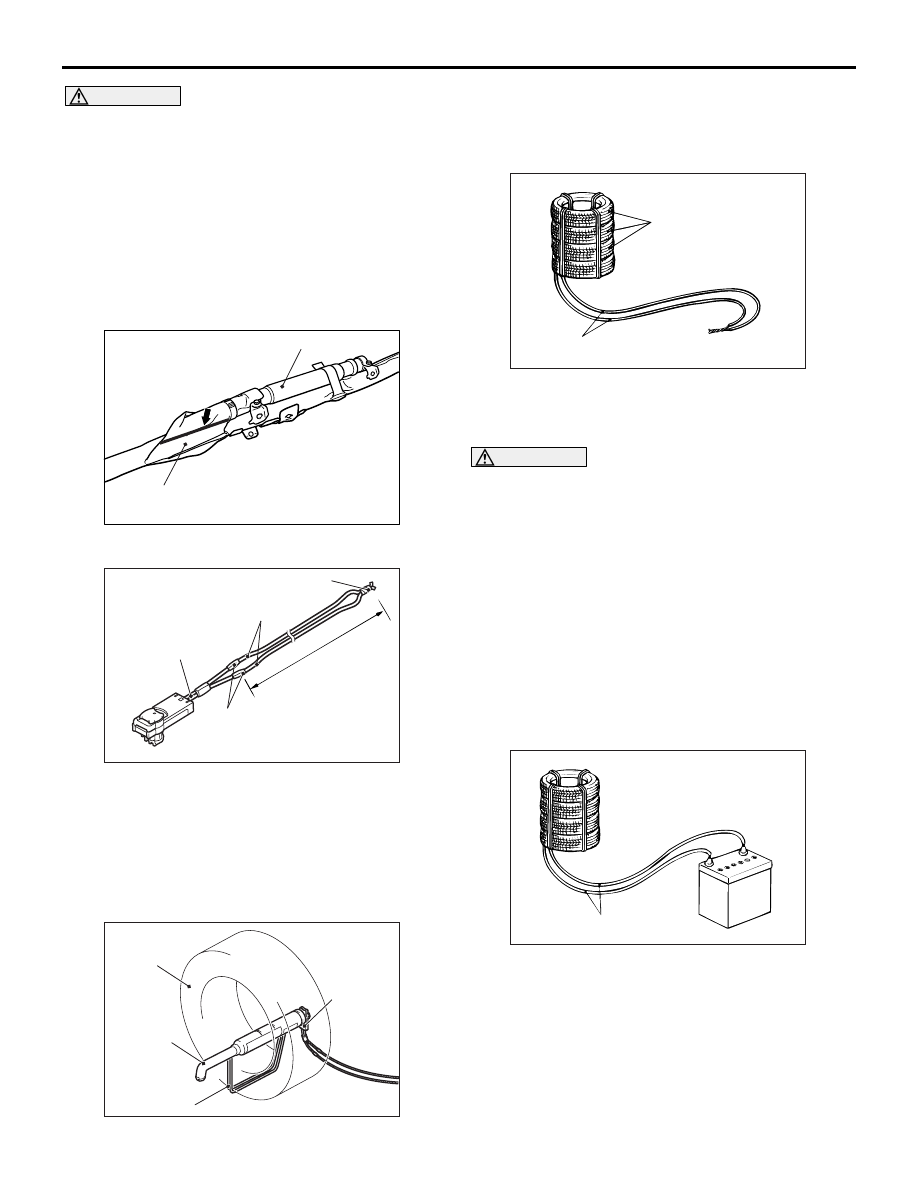

AC312186

AB

Inflator

Air bag

3. Cut the inflator and the air bag with a cutter.

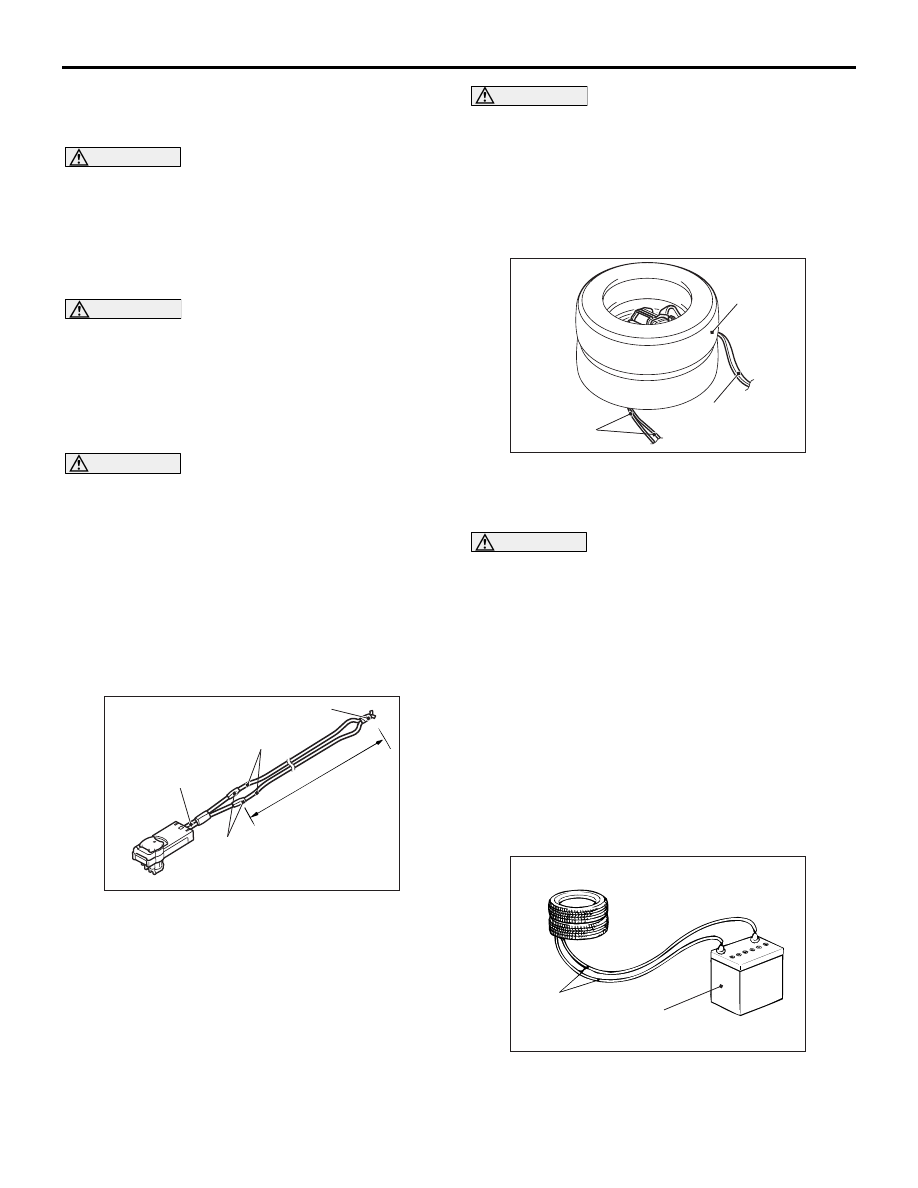

AC300447

AC

Connection

Deployment wires

MB991885

Insulator tape

6 m or longer

4. Connect deployment wires longer than 6 m to

each special tool SRS air bag adapter harness
(MB991885) and insulate the connections with
insulator tape. Also, connect the deployment
wires in the other ends to short, thereby
preventing the curtain air bag from accidental
deployment caused by static etc.

AC312185 AB

Inflator

Wire

Old tyre
without wheel

MB991885

5. Feed a thick wire through the bracket of the

inflator, and connect it to an old tyre with a wheel.

6. Connect the SRS air bag adapter harness

(MB991885) to the inflator connector.

AC300521

Tyres without wheels

Deployment wires

AB

7. Place three old tyres without wheels on top of the

tyre secured to the air bag module, and secure all
tyres together with ropes (four locations).

WARNING

•

Before deployment, check carefully to be
sure that no one is nearby.

•

The inflator will be quite hot immediately
following the deployment, so wait at least
30 minutes to allow it to cool before
attempting to handle it. Although not poi-
sonous, do not inhale gas from air bag
deployment. See Deployed Air Bag Mod-
ule and Operated Seat Belt Pre-tensioner
Disposal (Refer to ) for post-deployment
handling instructions.

•

AC300522

Deployment wires

AB

If the air bag fails to deploy, do not go
near the module. Contact your distributor.

8. At a location as far away from the air bag module

as possible, and from a shielded position,
disconnect the two connected wires from each
other, and connect them to the two terminals of
the battery (which has been removed from the
vehicle) to deploy the air bag.

9. Discard the deployed inflator as specified in

Deployed Air Bag Module and Operated Seat Belt
Pre-tensioner Disposal (Refer to ).

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-302

DEPLOYMENT OUTSIDE THE VEHICLE <SEAT
BELT PRE-TENSIONER>

WARNING

•

This should be carried out in a wide, flat
area at least 6 m away from obstacles and
other people.

•

Do not operate outside if wind is high.
Even in a soft wind, ignite to windward of
the seat belt pre-tensioner.

DANGER

Wait at least 60 seconds after disconnecting
the battery cables before doing any further
work (Refer to

P.52B-5

).

1. Disconnect the negative and positive battery

cables from the battery terminals, and then
remove the battery from the vehicle.

WARNING

Once disconnected, both electrodes of the
seat belt pre-tensioner connector short auto-
matically to prevent accidental deployment
caused by static etc. Still, in consideration of
the accidental deployment, store the seat
belt pre-tensioner on flat place with deploy-
ment surface facing up. Also, do not put any-
thing on it.

2. Remove the seat belt pre-tensioner from the

vehicle (Refer to

P.52B-284

).

AC300447

AC

Connection

Deployment wires

MB991885

Insulator tape

6 m or longer

3. Connect deployment wires longer than 6 m to

each special tool SRS air bag adapter harness
(MB991885) and insulate the connections with
insulator tape. Also, connect the deployment
wires in the other ends to short, thereby
preventing the seat belt pre-tensioner from
accidental deployment caused by static etc.

4. Connect the special tool SRS air bag adapter

harness (MB991885), which the deployment wires
is attached to, to the seat belt pre-tensioner
connector.

CAUTION

The adapter harness below the wheel should be
loose. If it is too tight, the reaction when the seat
belt pre-tensioner operates could damage the
adapter harness.
5. Pass the thick wires through the hole on the seat

belt pre-tensioner bracket and secure them to the
front (raised part) of the wheel on two place.

AC300552 AC

Tyre
without
wheel

Seat belt

Deployment
wires

6. Pull the seat belt out the outside of the tyre, and

then place one tyre without a wheel inside on top
of the existing tyre.

WARNING

•

Before operation, check carefully to be
sure that no one is nearby.

•

The inflator will be quite hot immediately
following the operation, so wait at least 30
minutes to allow it to cool before attempt-
ing to handle it. Although not poisonous,
do not inhale gas from seat belt pre-ten-
sioner operation. See Deployed Air Bag
Module and Operated Seat Belt pre-ten-
sioner Disposal (Refer to ) for post-opera-
tion handling instructions.

•

If the seat belt pre-tensioner fails to oper-
ate, do not go near the seat belt pre-ten-
sioner. Contact your distributor.

AC300555 AC

Deployment wires

Vehicle battery
