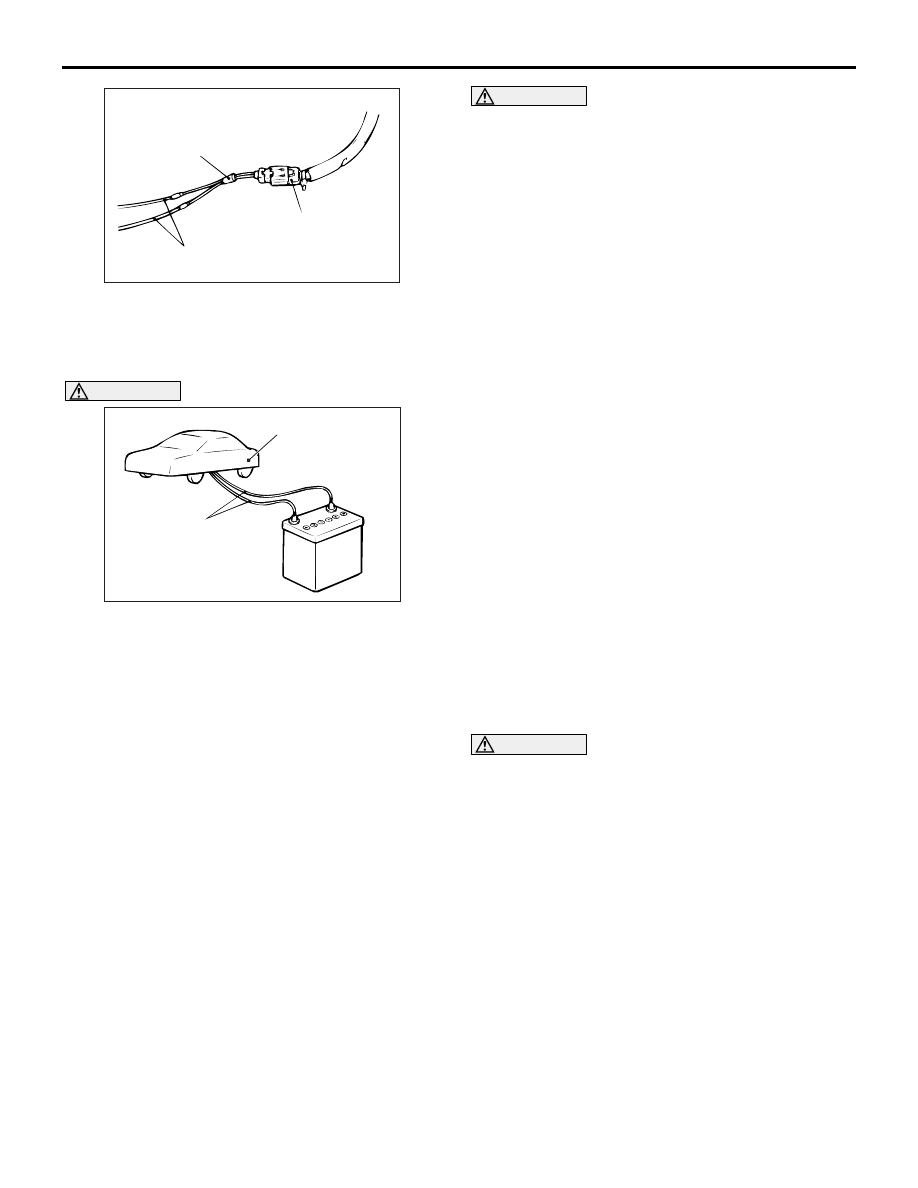

AC300388AD
Cover
Deployment wire
6 m or longer
AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
52B-291
WARNING
If the glass is scratched, air bag deployment
could cause it to crack and fly out of the
vehicle, so always put a cover over the vehi-
cle.
10.To suppress the operation sound as much as
possible completely close all door windows, close
the doors and put the cover on the vehicle.
WARNING
•
Before deploying the air bag in this man-
ner, first check to be sure that there is no
one in or near the vehicle. Wear safety
glasses.
•
The inflator will be quite hot immediately
following the deployment, so wait at least
30 minutes to allow it to cool before
attempting to handle it. Although not poi-
sonous, do not inhale gas from the air bag
deployment. See Deployed Air Bag Mod-
ule and Operated Seat Belt Pre-tensioner
Disposal (Refer to ) for post-deployment
handling instructions.
•
If the air bag module fails to deploy, do
not go near the module. Contact your dis-
tributor.
11.At a location as far away from the vehicle as
possible, disconnect the two connected wires
from each other, and connect them to the two
terminals of the battery (which has been removed
from the vehicle) to deploy the air bag.
12.After deployment, dispose of the air bag module
according to the Deployed Air Bag Module and
Operated Seat Belt Pre-tensioner Disposal (Refer
to ).

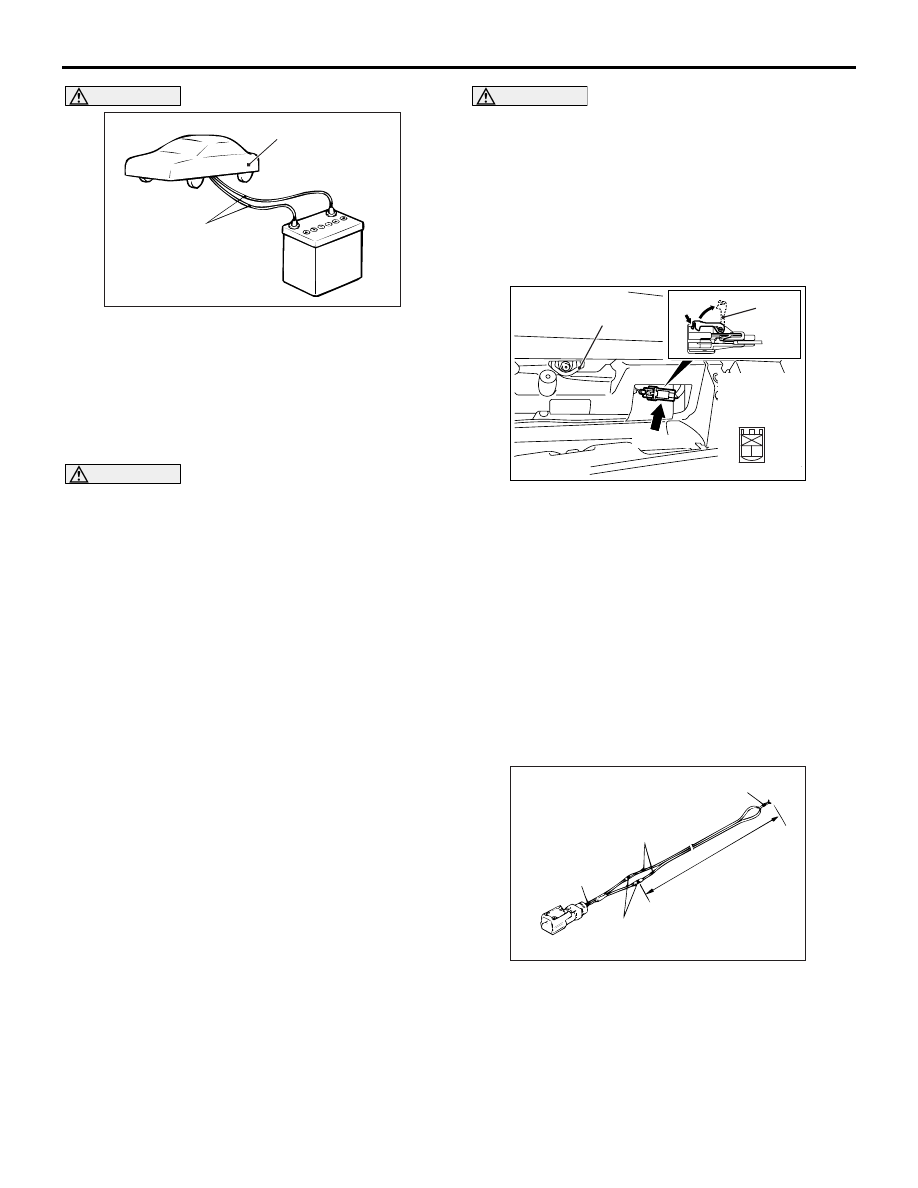

DEPLOYMENT INSIDE THE VEHICLE (WHEN
DISPOSING OF A VEHICLE) <PASSENGER'S
(FRONT) AIR BAG MODULE>
1. Move the vehicle to an isolated spot.
DANGER
Wait at least 60 seconds after disconnecting
the battery cable before doing any further
work (Refer to
2. Disconnect the negative and positive battery
cables from the battery terminals, and then
remove the battery from the vehicle.
3. Remove the glove box (Refer to GROUP 52A,
Instrument Panel Assembly ).
AC509788
C-02 (R)
AC
Glove box striker
2 1
Harness side
connector
(front view)
Lock
lever
Connector: C-02
4. Execute the follow steps to disconnect the
connection between the C-02 passenger's (front)
air bag module connector (2-pin, red) and the
harness side connector (2-pin, red).
NOTE: Once disconnected from the instrument
panel wiring harness, both electrodes of the pas-
senger's (front) air bag module short automati-
cally. This prevents the passenger's (front) air bag
from accidental deployment caused by static, etc.
(1) For connector C-02, pull up the harness side
lock lever with a nail and disconnect the
connector lock.
(2) Disconnect the C-02 harness side connector.
AC300419AC
Connection
Deployment wires
MB686560
Insulator tape
6 m or longer
5. Connect deployment wires longer than 6 m to
each SRS air bag adapter harness (MB686560)
and insulate the connections with insulator tape.
Also, connect the deployment wires in the other
ends to short, thereby preventing the passenger's
(front) air bag from accidental deployment caused
by static etc.
