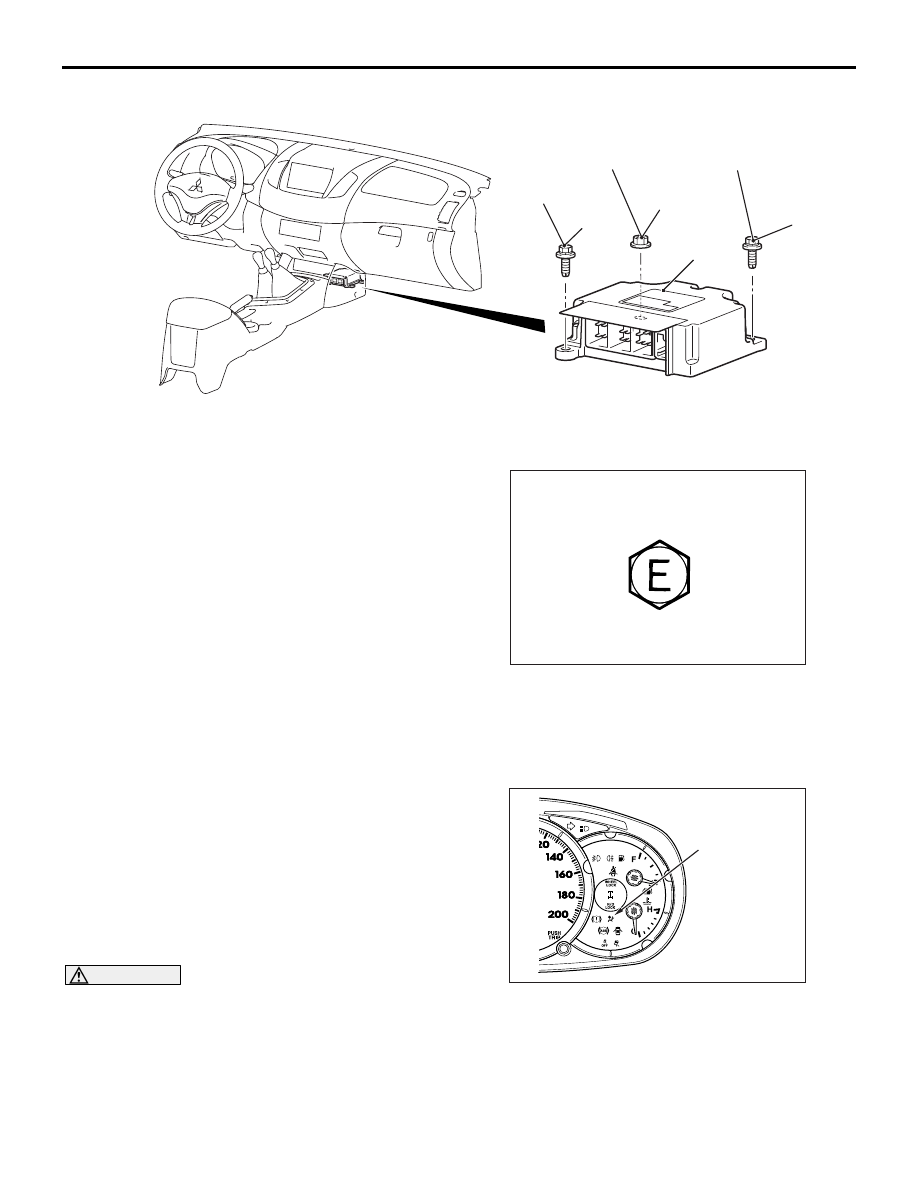

AC805944

9.0 ± 2.0 N·m

2

3

<Vehicles with side-airbag and curtain air bag>

5.0 ± 1.0 N·m

1

5.0 ± 1.0 N·m

4

AB

Removal steps

•

Rear floor console (Refer to
GROUP 52A, Rear floor console
assembly ).

•

Front floor console (Refer to
GROUP 52A, Font floor console
assembly ).

1.

SRS-ECU mounting bolt

2.

SRS-ECU mounting bolt (earth
bolt)

3.

Flange nut

4.

SRS-ECU
Installation steps

>>

A

<<

4.

SRS-ECU

3.

Flange nut

>>

B

<<

2.

SRS-ECU mounting bolt (earth
bolt)

1.

SRS-ECU mounting bolt

•

Front floor console (Refer to
GROUP 52A, Font floor console
assembly ).

•

Rear floor console (Refer to
GROUP 52A, Rear floor console
assembly ).

•

Negative battery cable connection

>>

C

<<

•

Post-installation inspection

SRS CONTROL UNIT (SRS-ECU)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-267

INSTALLATION SERVICE POINTS

>>A<< SRS-ECU INSTALLATION

WARNING

The SRS may not activate if SRS-ECU is not
installed properly.

>>B<< SRS-ECU MOUNTING BOLT (EARTH
BOLT) INSTALLATION

AC701047

Earth bolt head mark

AB

Check the head mark "E" and install the earth bolt.

>>C<< POST-INSTALLATION INSPECTION
1. Connect the negative battery cable.
2. Turn the ignition switch to "ON" position.

AC900540 AB

SRS warning lamp

3. Does the "SRS" warning lamp illuminate for

approximately seven seconds, and go out?

4. If no, refer to troubleshooting (Refer to

P.52B-12

).

DRIVER'S AND PASSENGER'S (FRONT) AIR BAG MODULE(S) AND CLOCK SPRING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-268

INSPECTION

M1524002200540

WARNING

If any problems are found, replace the SRS-
ECU.

• Check the SRS-ECU and brackets for dents,

cracks or deformation.

• Check the SRS-ECU connector for damage, and

the terminals for deformation.

NOTE: For the checks other than the items above,
refer to "Troubleshooting" (Refer to

P.52B-12

).

DRIVER'S AND PASSENGER'S (FRONT) AIR BAG

MODULE(S) AND CLOCK SPRING

REMOVAL AND INSTALLATION

M1524014501132

WARNING

•

Disconnect the negative battery terminal and wait for 60 seconds or more before starting
work. Furthermore, the disconnected battery terminal should be covered with tape to
insulate it.

•

Never attempt to disassemble or repair the air bag modules or clock spring. If faulty,
replace it.

•

Do not drop the air bag modules or clock spring or allow contact with water, grease or oil.
Replace it if a dent, crack, deformation or rust is detected.

•

The removed air bag module should be stored in a clean, dry place with the deployment
surface facing up. Do not place anything on top of it.

•

Do not expose the air bag modules to temperatures over 93

°

C.

•

After deployment of an air bag, the driver’s and passenger’s (front) air bag module has
been replaced with a new one. Also, check the clock spring, and replace with a new one if
there is an abnormality.

•

Wear gloves and safety glasses when handling air bags that have already deployed.

•

An undeployed air bag module should only be disposed of in accordance with the proce-
dures (Refer to

P.52B-289

).

DRIVER'S AND PASSENGER'S (FRONT) AIR BAG MODULE(S) AND CLOCK SPRING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-269

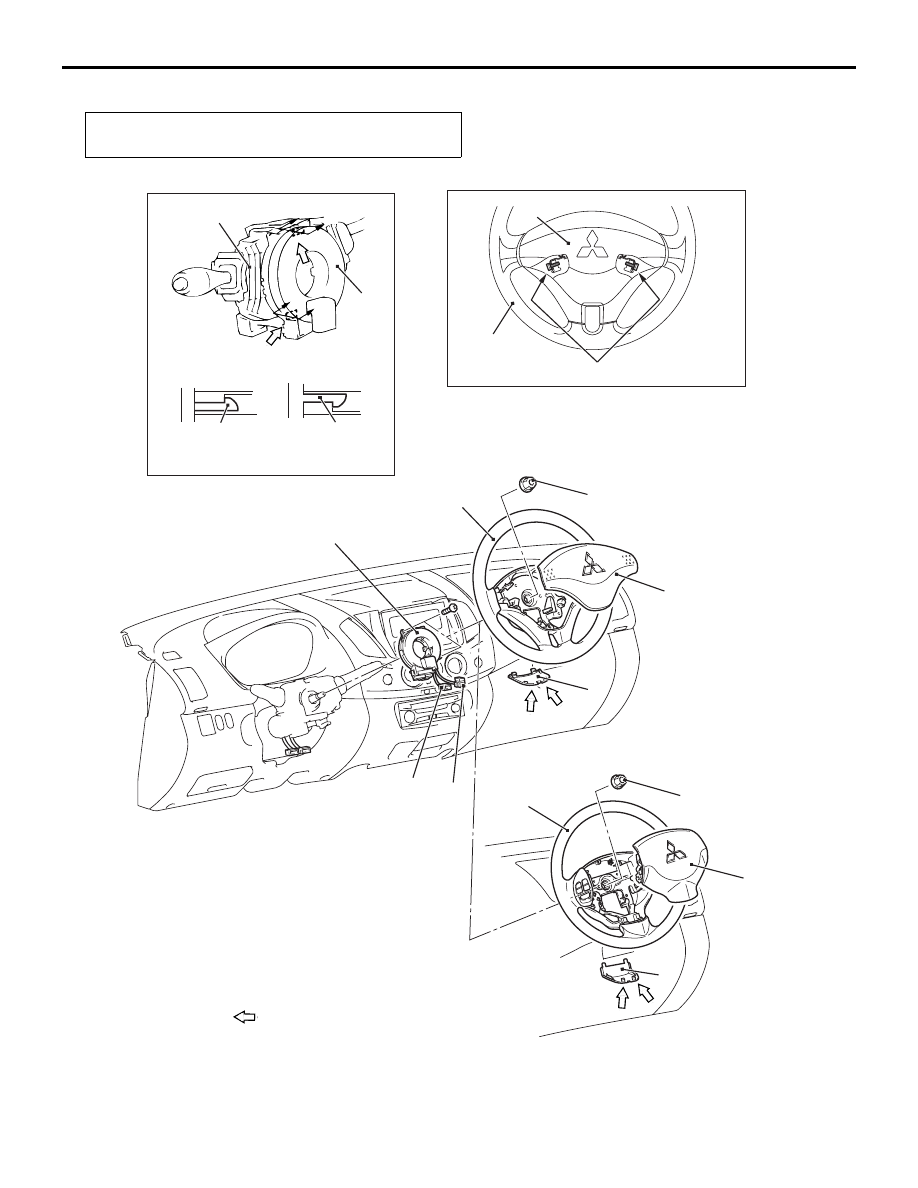

<DRIVER’S AIR BAG MODULE AND CLOCK SPRING>

Pre-removal Operation
• Disconnect the Negative Battery Terminal.

AC501231

AC809519

1

4

5

6

4

5

9.0 ± 2.0 N·m

A

B

B

Column switch

Section A - A

Section B - B

Claw

Claw

6

A

3

2

5

4

Note
       : Claw position

<Vehicles without wide fender (optional)>

<Vehicles with fender (optional)>

1

AC

41 ± 8 N·m

41 ± 8 N·m

Air bag module removal steps

<<

A

>>

1. Cover
2. Horn connector connection

<<

B

>>

3. Driver’s air bag module connector

connection

<<

C

>>

4. Driver’s air bag module

Air bag module removal steps

Clock spring removal steps

<<

A

>>

1. Cover
2. Horn connector connection

<<

B

>>

3. Driver’s air bag module connector

connection

<<

C

>>

4. Driver’s air bag module

<<

D

>>

5. Steering wheel
•

Column cover (Refer to GROUP 37,
Steering shaft ).

<<

E

>>

6. Clock spring

Air bag module installation steps

>>

A

<< • Pre-installation inspection

>>

C

<< 4. Driver’s air bag module

3. Driver’s air bag module connector

connection

2. Horn connector connection
1. Cover
•

Negative battery cable connection

>>

D

<< • Post-installation inspection

Clock spring installation steps

>>

A

<< • Pre-installation inspection

>>

B

<< 6. Clock spring

•

Column cover (Refer to GROUP 37,
Steering shaft ).

>>

C

<< 5. Steering wheel

>>

C

<< 4. Driver’s air bag module

3. Driver’s air bag module connector

connection

2. Horn connector connection
1. Cover
•

Negative battery cable connection

>>

D

<< • Post-installation inspection

DRIVER'S AND PASSENGER'S (FRONT) AIR BAG MODULE(S) AND CLOCK SPRING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-270
