UNDER COVER

EXTERIOR

51-32

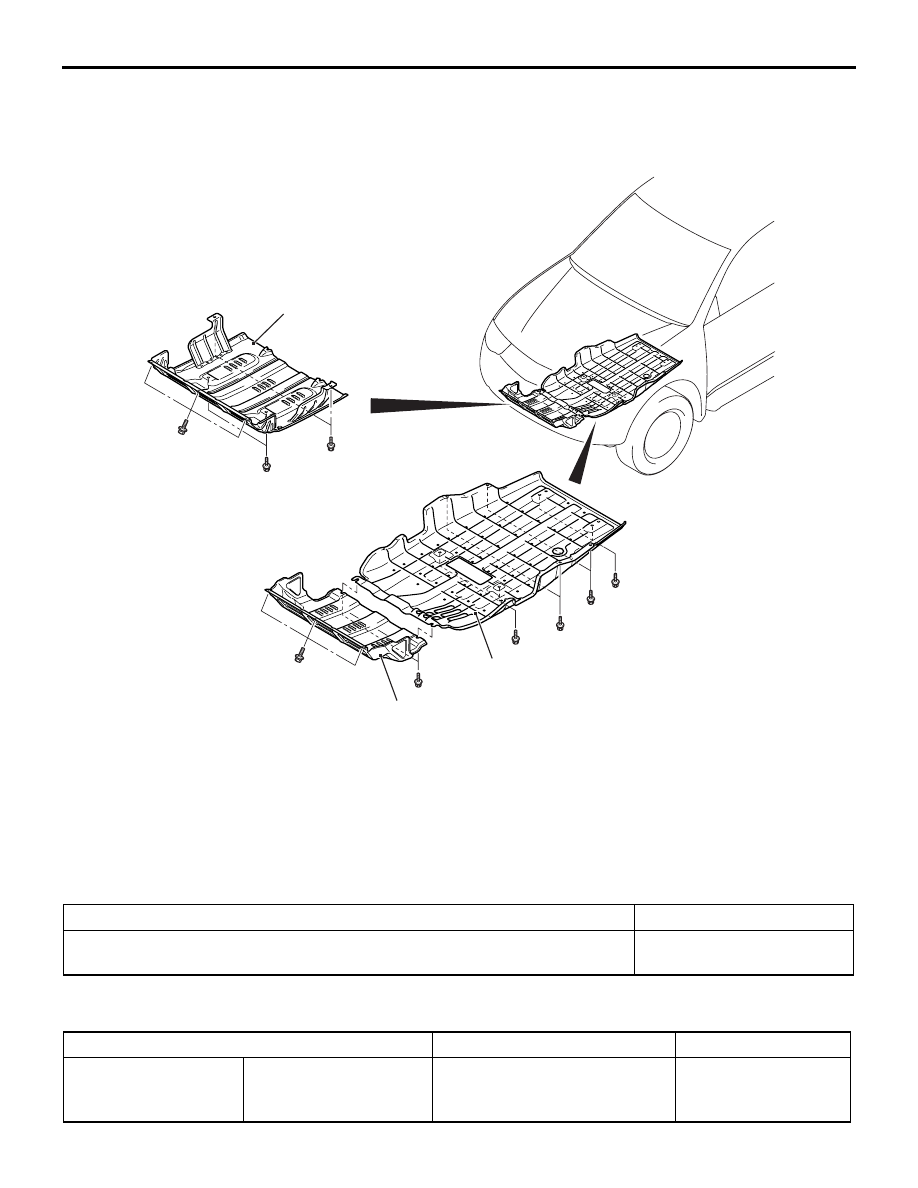

UNDER COVER

REMOVAL AND INSTALLATION

M1511019601231

ACB00494AB

1

2

<2WD>

< High rider and 4WD>

1

Removal steps

1.

Under skid plate

2.

Engine room under cover front

WINDSHIELD WIPER AND WASHER

SERVICE SPECIFICATION

M1511000300778

Item

Standard value (reference)

Stop position of the windshield wiper arm/blade assembly (Distance between
the edge of the wiper blade and the end of the deck garnish) mm

Driver’s side: (31

± 5)

Passenger’s side: (33

± 5)

LUBRICANT

M1511000400043

Item

Specified lubricant

Quantity

Wiper motor link rod

Contact joint between
link rod and wiper motor
link plate

Multipurpose grease SAE J310,
NLGI No.2 or equivalent

As required

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-33

SPECIAL TOOLS

M1511000602764

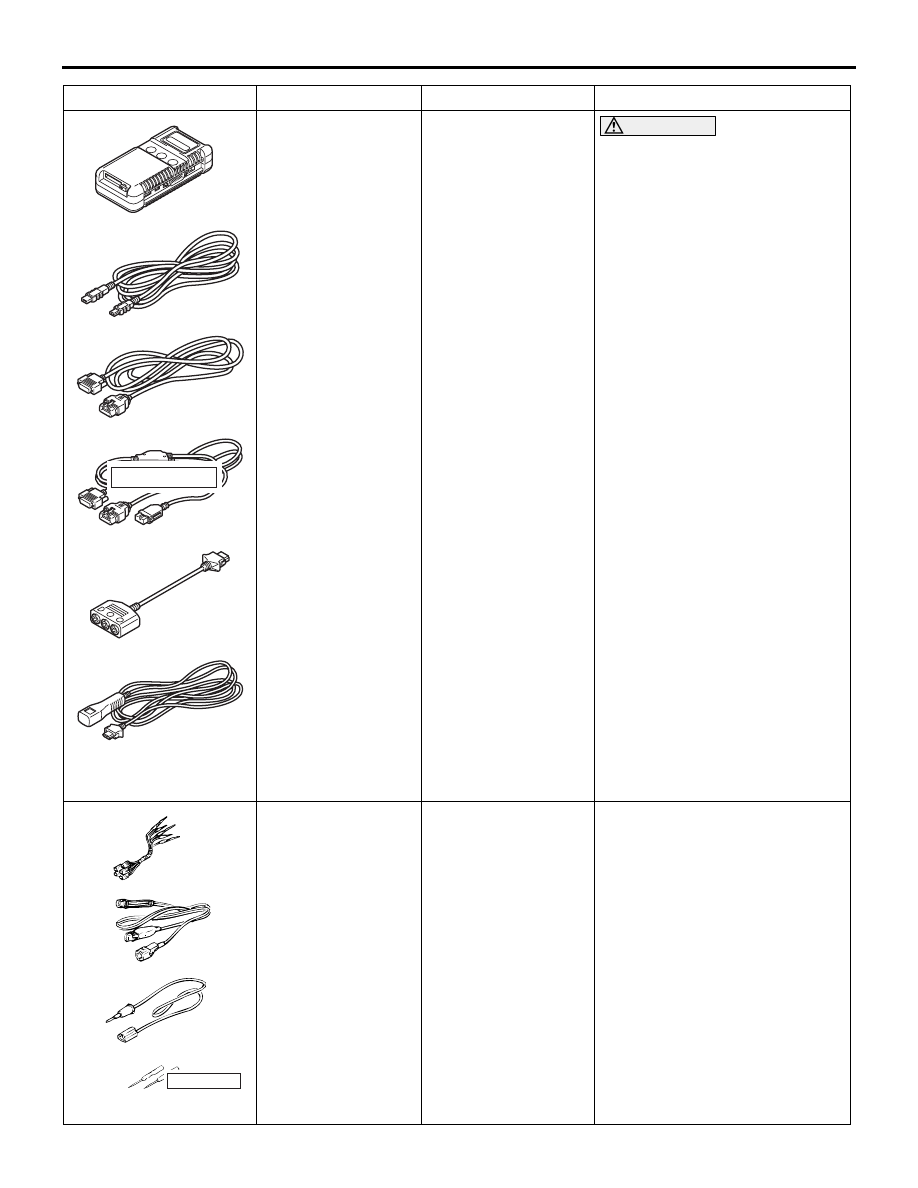

Tool

Number

Name

Use

MB992326

MB992326

Adjustment tool,
washer nozzle

Injection angle adjustment of the
washer nozzle

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-34

Tool

Number

Name

Use

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

MB991955

a: MB991824
b: MB991827
c: MB991910
d: MB991911
e: MB991825
f: MB991826

M.U.T.-III sub-
assembly

a: Vehicle

Communication
Interface (V.C.I.)

b: M.U.T.-III USB

cable

c: M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

d: M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

e: M.U.T.-III measure

adapter

f: M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.
Checking windshield wiper
intermittent time
Lighting control sensor (rain
sensor) adaptation

MB991223

a

d

c

b

DO NOT USE

BF

MB991223

a: MB991219
b: MB991220
c: MB991221
d: MB991222

Harness set

a: Check harness
b: LED harness
c: LED harness

adapter

d: Probe

Continuity check and voltage
measurement at harness wire or
connector

a: For checking connector pin

contact pressure

b: For checking power supply

circuit

c: For checking power supply

circuit

d: For connecting a locally

sourced tester

MB992006

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-35

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1511014600404

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− Contents of Trouble-

shooting .

TROUBLE SYMPTOM CHART

M1511015001851

Symptom

Inspection
procedure

Reference
page

The windshield wipers do not work at all.

1

P.51-36

The windshield wipers do not work normally.

2

P.51-41

The windshield wipers do not stop at the specified park position.

3

P.51-48

The intermittent wiper interval cannot be adjusted by operating the windshield
intermittent wiper volume control.

4

P.51-53

The intermittent wiper interval is not changed according to the vehicle speed.

5

P.51-54

The rain sensitive AUTO wiper function does not work at all <Vehicles with
lighting control sensor>.

6

P.51-62

The rain sensitive AUTO wiper function works even though there is no rainfall
<Vehicles with lighting control sensor>..

7

P.51-62

Sometimes the rain sensitive wiper function works even though there is no
rainfall <Vehicles with lighting control sensor>.

8

P.51-62

The windshield washer does not work normally.

9

P.51-62

NOTE: Even when the ETACS-ECU has failed, the
windshield wiper can work at low speed as fail-safe
mode.

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use
