MOULDINGS

EXTERIOR

51-20

MOULDINGS

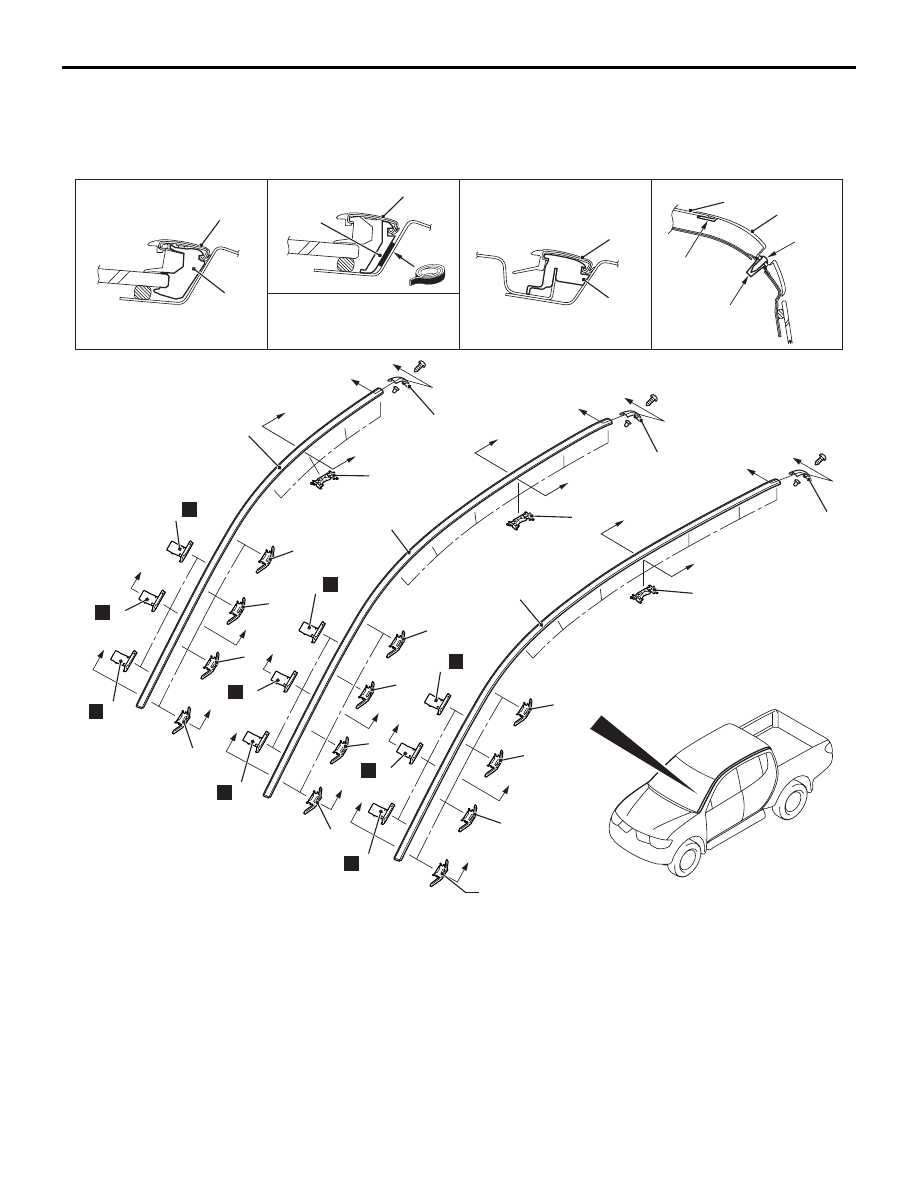

ROOF DRIP MOULDING REMOVAL AND INSTALLATION

M1511004701771

ACA00434AB

Section A – A

Section B – B

Section C – C

Section D – D

A

B

B

B

B

B

A

A

A

D

D

D

D

C

C

C

C

8

N

8

N

8

N

7

N

7

N

7

N

B

A

9

N

9

N

9

N

2

2

2

Claw

Grommet

Screw

2

D

D

1

10

C

C

10

10

1

1

3

3

A

3

6

6

6

5

5

5

4

4

4

10

3,4,5,6

7,8,9

2

2

1

2

Double-sided tape: Generic
products, 10 mm width and
30 mm length

<Double cab>

<Single cab>

<Club cab>

Roof drip moulding removal steps

1. Rear end cover

<<

A

>> >>

A

<< 2. Roof drip moulding

3. Clip A (Yellow)
4. Clip A (Green)
5. Clip A (Dark blue)

6. Clip A (Red)
7. Clip B (Material colour)
8. Clip B (Light grey)
9. Clip B (Yellow)
10. Clip C

Roof drip moulding removal steps

MOULDINGS

EXTERIOR

51-21

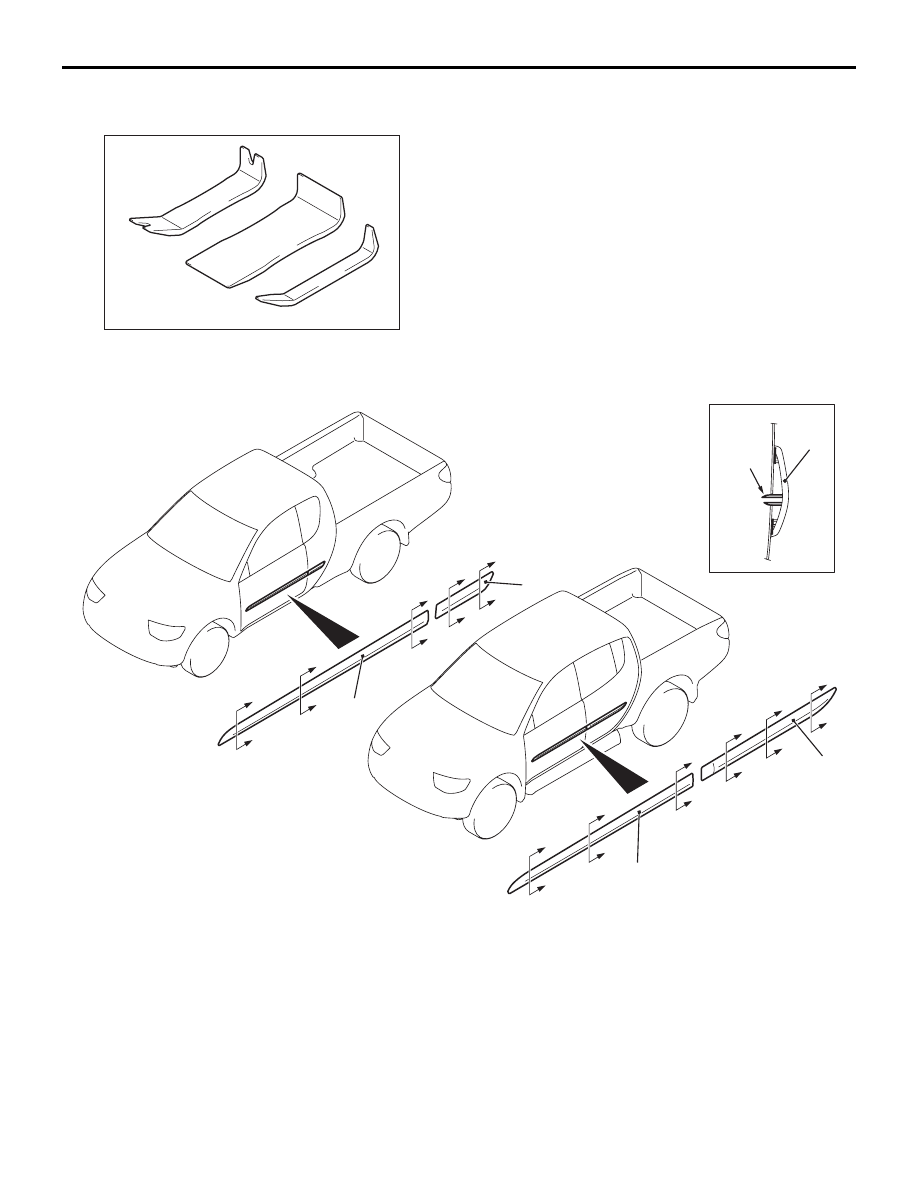

REMOVAL SERVICE POINT

<<A>> ROOF DRIP MOULDING REMOVAL

AC303685

NOTE: Use a commercial ornament remover (resin-
made) as shown to pry out the roof drip moulding.

INSTALLATION SERVICE POINT

>>A<< ROOF DRIP MOULDING INSTALLATION
Install the clips to the roof drip moulding before
installing the moulding to the vehicle body.

DOOR PROTECT MOULDING REMOVAL AND INSTALLATION

AC509718

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

AC

<Club cab>

<Double cab>

Section A – A

Boss

1

1

3

2

1,2,3

Door protect moulding removal
steps

<<

A

>> >>

A

<< 1. Front door protect moulding

<<

A

>> >>

A

<< 2. Rear pillar protect moulding

<<

A

>> >>

A

<< 3. Rear door protect moulding

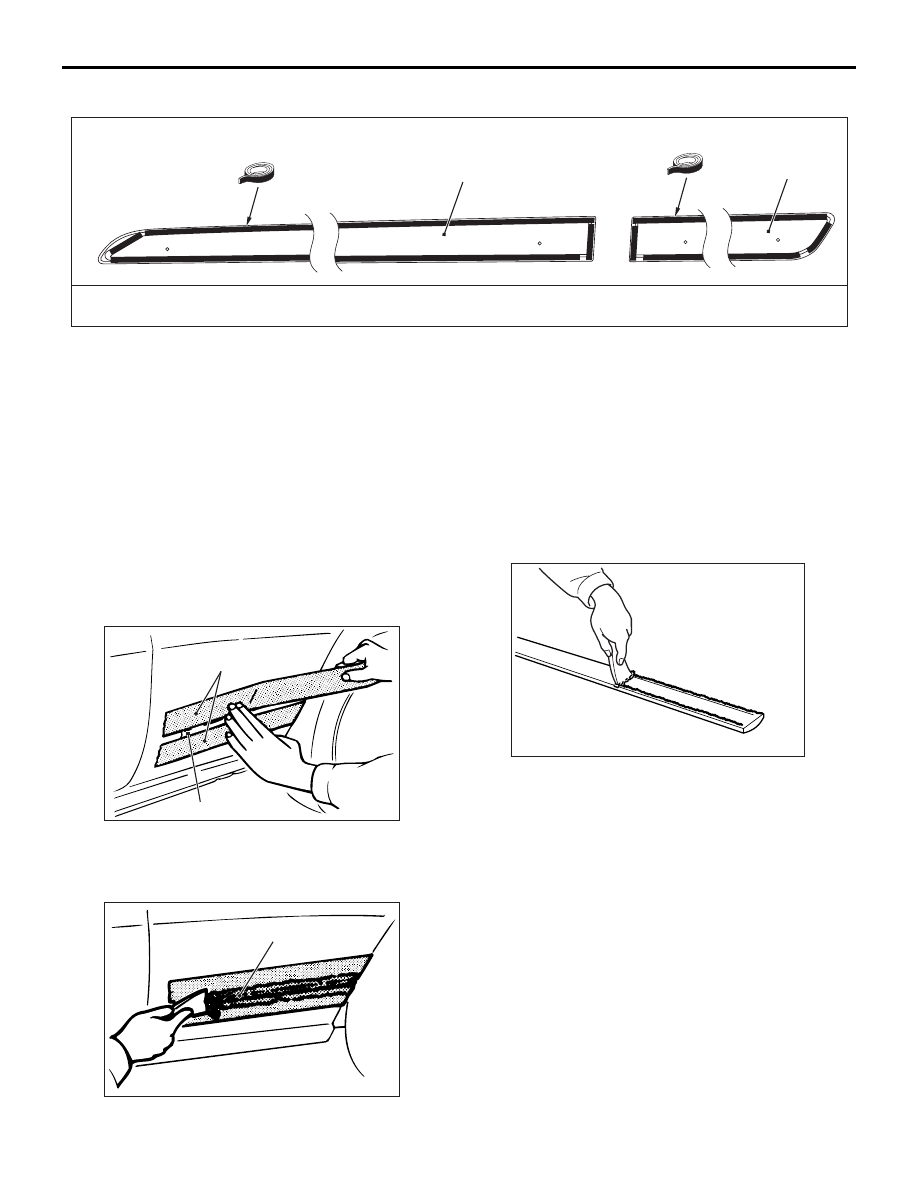

AC509721

Double-sided tape: Generic products

AB

1

2, 3

Double-sided tape affixed location

MOULDINGS

EXTERIOR

51-22

REMOVAL SERVICE POINT

<<A>> DOOR AND REAR PILLAR PROTECT
MOULDINGS REMOVAL
Gently lift and remove the moulding. If there is any
double-sided tape remaining on the moulding,
remove it according to the following instructions.
<Remove double-sided tape remaining on the body
surface>

AC000420

Double-sided tape

Protection tape

AB

1. Attach protection tape all the way along the edges

of the double-sided tape which is still adhering to
the body.

AC000421

Double-sided tape

AB

2. Use a resin spatula to scrape off the double-sided

tape.

3. Peel off the protection tape.
4. Wipe the body surface and clean it with a rag

moistened with the parts cleaner (MZ100387 or
equivalent).

<Remove double-sided tape remaining on the
moulding and adhere double-sided tape (when re-
using a moulding)>

AC313343

1. Scrape off the double-sided tape on the moulding

with a resin spatula as possible.

2. Wipe the door moulding surface and clean it with

a rag moistened with the parts cleaner
(MZ100387 or equivalent).

3. Remove only a small portion of the residual

adhesive.

4. Adhere the double-sided tape as specified on the

moulding.

DOOR SASH TAPE <VEHICLES WITH WIDE FENDER>

EXTERIOR

51-23

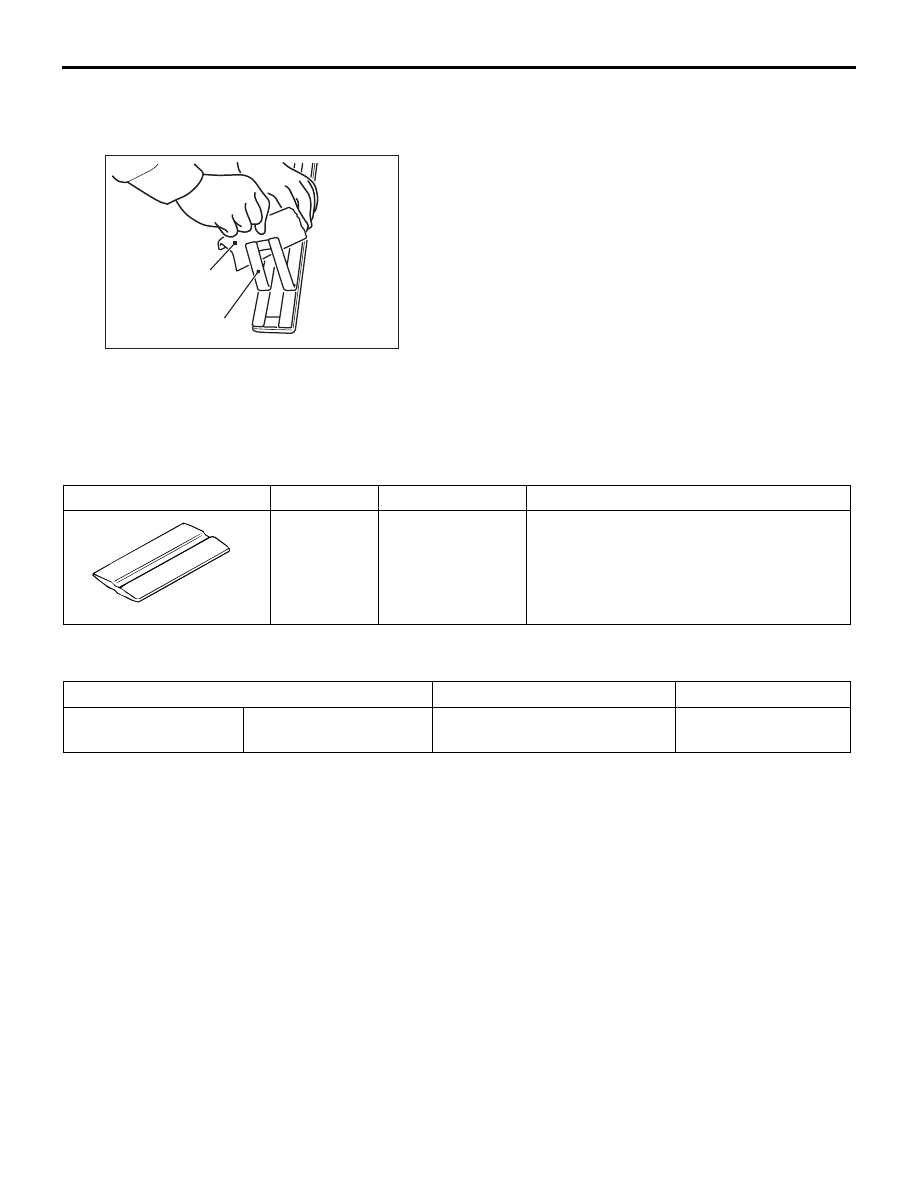

INSTALLATION SERVICE POINT

>>A<< DOOR AND REAR PILLAR PROTECT
MOULDINGS INSTALLATION

AC313344

Backing paper

Adhesive tape

AB

1. Tear off the double-sided tape backing paper.

NOTE: If attach the adhesive tape to the edge of
the backing paper, it will be easy to tear off.

2. Install the clips to the moulding before installing it

to the vehicle body.

3. Install the mouldings.

NOTE: If the double-sided tape is difficult to affix
in cold temperature, etc., warm the bonding sur-
faces of the body and moulding to about 40

−

 60

°

C

before affixing the tape.

4. Firmly press in the moulding onto the respective

body surface.

DOOR SASH TAPE <VEHICLES WITH WIDE FENDER>

SPECIAL TOOL

M1511000601664

Tool

Number

Name

Use

MB990528

MB990528

Stripe tape spatula Installation of door sash tape

LUBRICANT

M1511000400140

Item

Specified lubricant

Quantity

Degrease agent

Grease and dirt removal
from parts surface

Parts cleaner (MZ100387 or
equivalent)

As required
