DOOR

BODY

42-164

window motor (front: LH) connector terminal No.6
and body earth

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Go to Step 10.

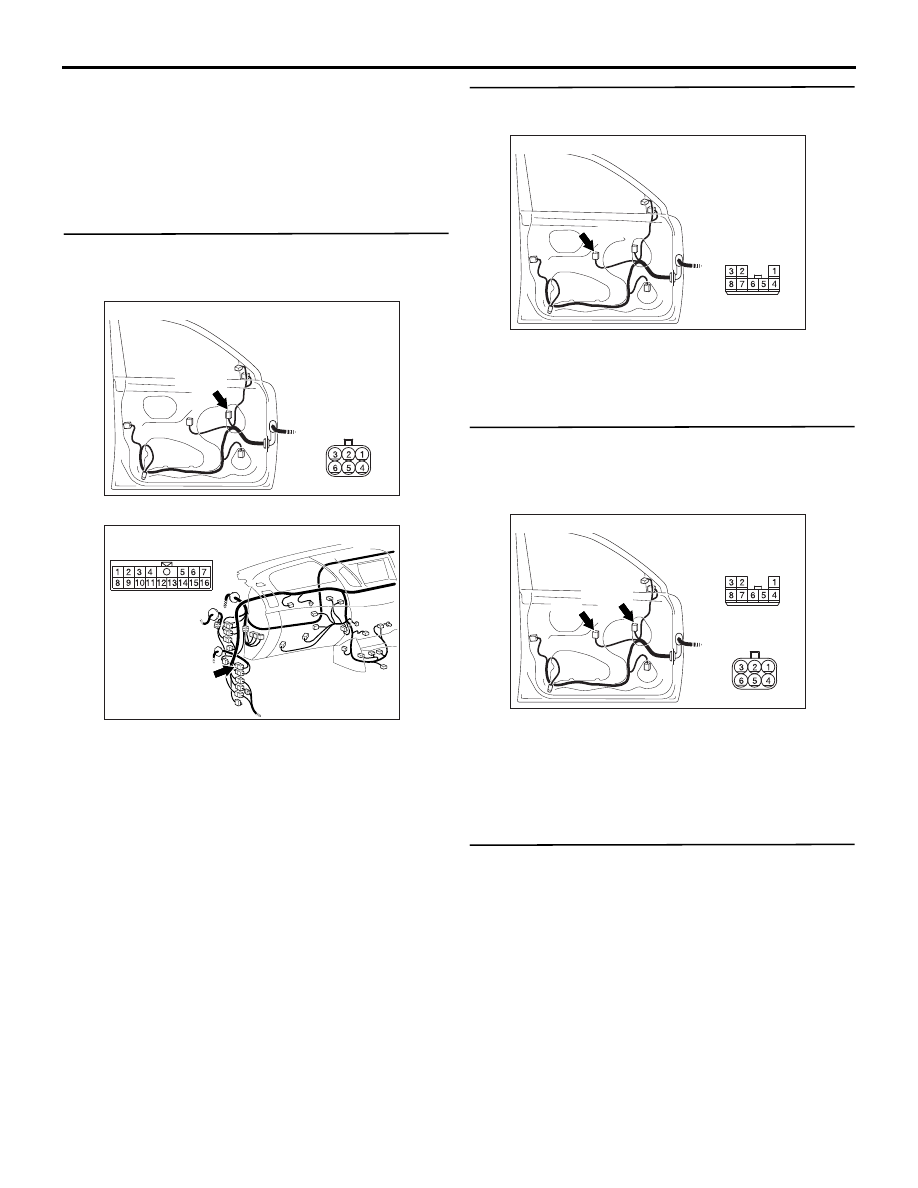

STEP 10. Check the wiring harness between E-18
power window motor (front: LH) connector
terminal No.6 and body earth.

AC509952

Connector: E-18 <RHD>

AK

Harness side

E-18 (B)

NOTE:

AC903363

AK

Connector: C-134

Prior to the wiring harness inspection, check interme-
diate connector C-134 and repair if necessary.

• Check the input and output lines to the revolution

detection sensor for open and short circuit.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the wiring harness.

STEP 11. Connector check: E-16 power window
sub switch (front) connector.

AC509952

Connector: E-26 <RHD>

AJ

Harness side

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the defective connector.

STEP 12. Check the wiring harness between E-16
power window sub switch (front) connector
terminal Nos. 2, 3, 8 and E-18 power window
motor (front: LH) connector terminal Nos. 2, 5, 4.

AC509952

Connectors: E-16, E-18 <RHD>

AH

E-16

Harness side

E-18 (B)

E-18 (B)

Harness side

E-16

• Check the input and output lines to the revolution

detection sensor for open and short circuit.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the wiring harness.

STEP 13. Retest the system.
(1) Replace the power window sub switch (front).
(2) Check that the front passenger's power window

anti-trap function works normally.

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Replace the power window motor (front:
LH).

DOOR

BODY

42-165

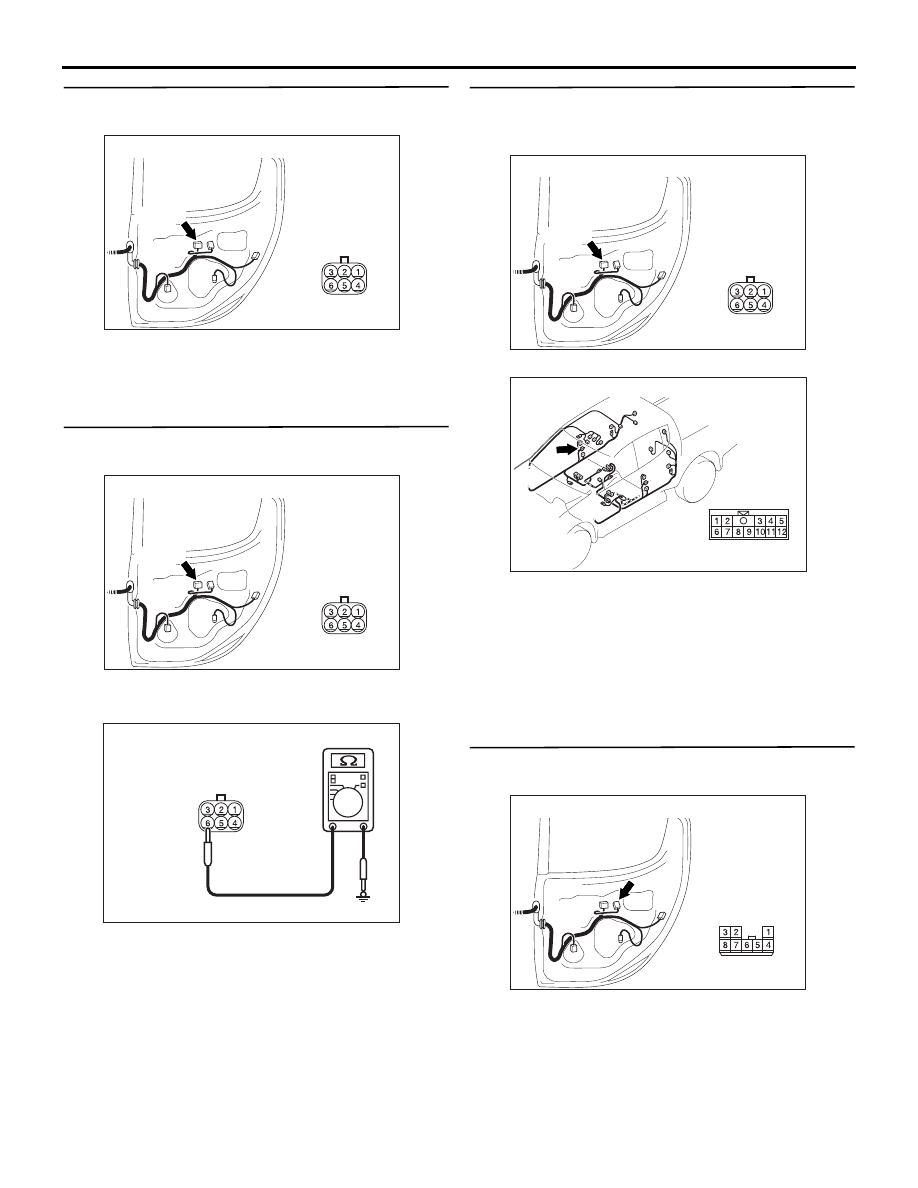

STEP 14. Connector check: E-05 power window
motor (rear: RH) connector

AC509958

Connector: E-05

AE

Harness side

E-05 (B)

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the defective connector.

STEP 15. Resistance measurement at the E-05
power window motor (rear: RH) connector.

AC509958

Connector: E-05

AE

Harness side

E-05 (B)

(1) Disconnect the connector, and measure at the

wiring harness side.

AC209731

AC208731BJ

Connector E-05
(Harness side)

(2) Check the resistance between E-05 power

window motor (rear: RH) connector terminal No.6
and body earth

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Go to Step 16.

STEP 16. Check the wiring harness between E-05
power window motor (rear: RH) connector
terminal No.6 and body earth.

AC509958

Connector: E-05

AE

Harness side

E-05 (B)

NOTE:

AC509969AC

Connector: D-24 <RHD>

Prior to the wiring harness inspection, check interme-
diate connector D-24, and repair if necessary.

• Check the input and output lines to the revolution

detection sensor for open and short circuit.

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Repair the wiring harness.

STEP 17. Connector check: E-06 power window
sub switch (rear: RH) connector

AC509958

Connector: E-06

AD

Harness side

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Repair the defective connector.

DOOR

BODY

42-166

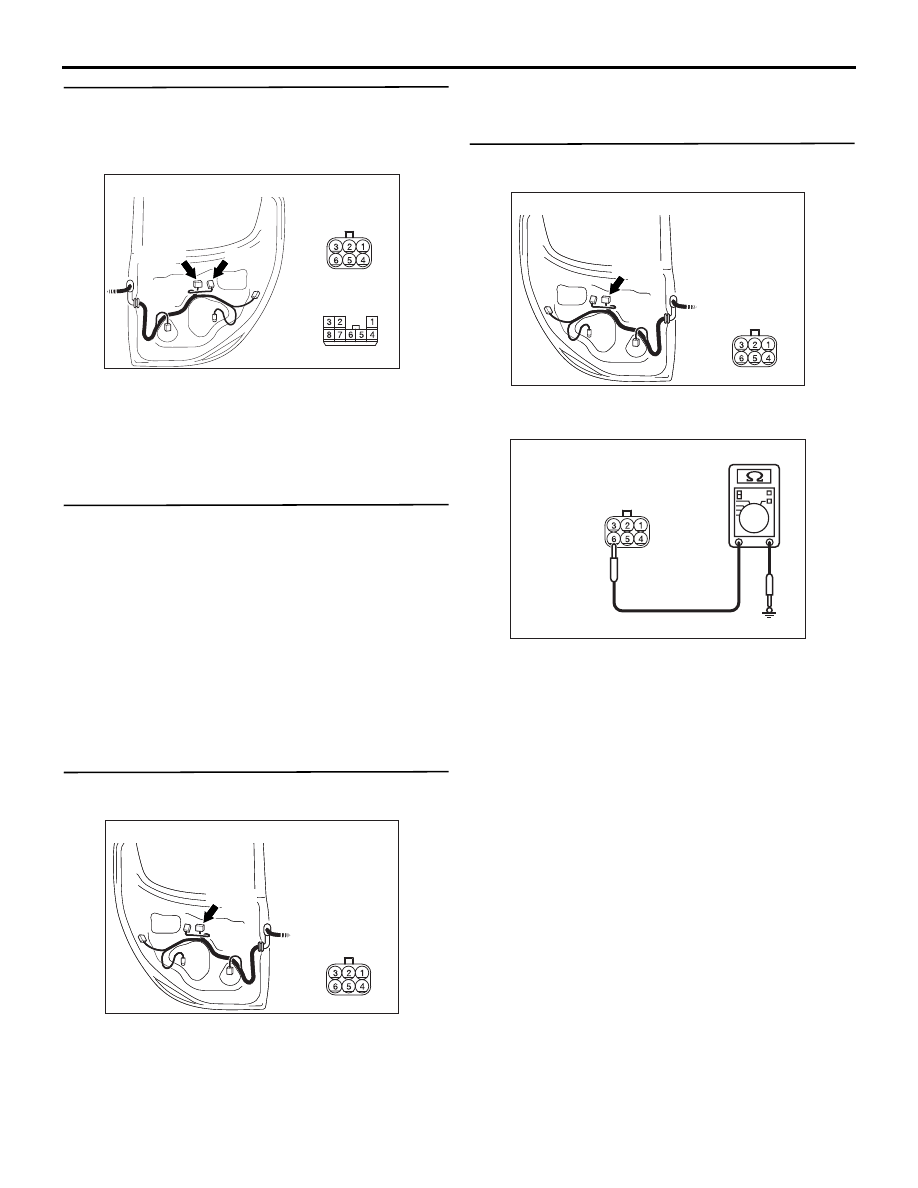

STEP 18. Check the wiring harness between E-06
power window sub switch (rear: RH) connector
terminal Nos. 2, 3, 8 and E-05 power window
motor (rear: RH) connector terminal Nos. 4, 5, 2.

AC509958

Connectors: E-05, E-06

AC

E-06

Harness side

E-05 (B)

E-05 (B)

Harness side

E-06

• Check the input and output lines to the revolution

detection sensor for open and short circuit.

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Repair the wiring harness.

STEP 19. Retest the system.
(1) Replace the power window sub switch (rear: RH).
(2) Check that the rear right power window anti-trap

function works normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the power window motor (rear:
RH).

STEP 20. Connector check: E-14 power window
motor (rear: LH) connector

AC509956

Connector: E-14

AE

Harness side

E-14 (B)

Q: Is the check result normal?

YES :

Go to Step 21.

NO :

Repair the defective connector.

STEP 21. Resistance measurement at the E-14
power window motor (rear: LH) connector.

AC509956

Connector: E-14

AE

Harness side

E-14 (B)

(1) Disconnect the connector, and measure at the

wiring harness side.

AC209731

AC208731BK

Connector E-14
(Harness side)

(2) Check the resistance between E-14 power

window motor (rear: LH) connector terminal No.6
and body earth

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 23.

NO :

Go to Step 22.

DOOR

BODY

42-167

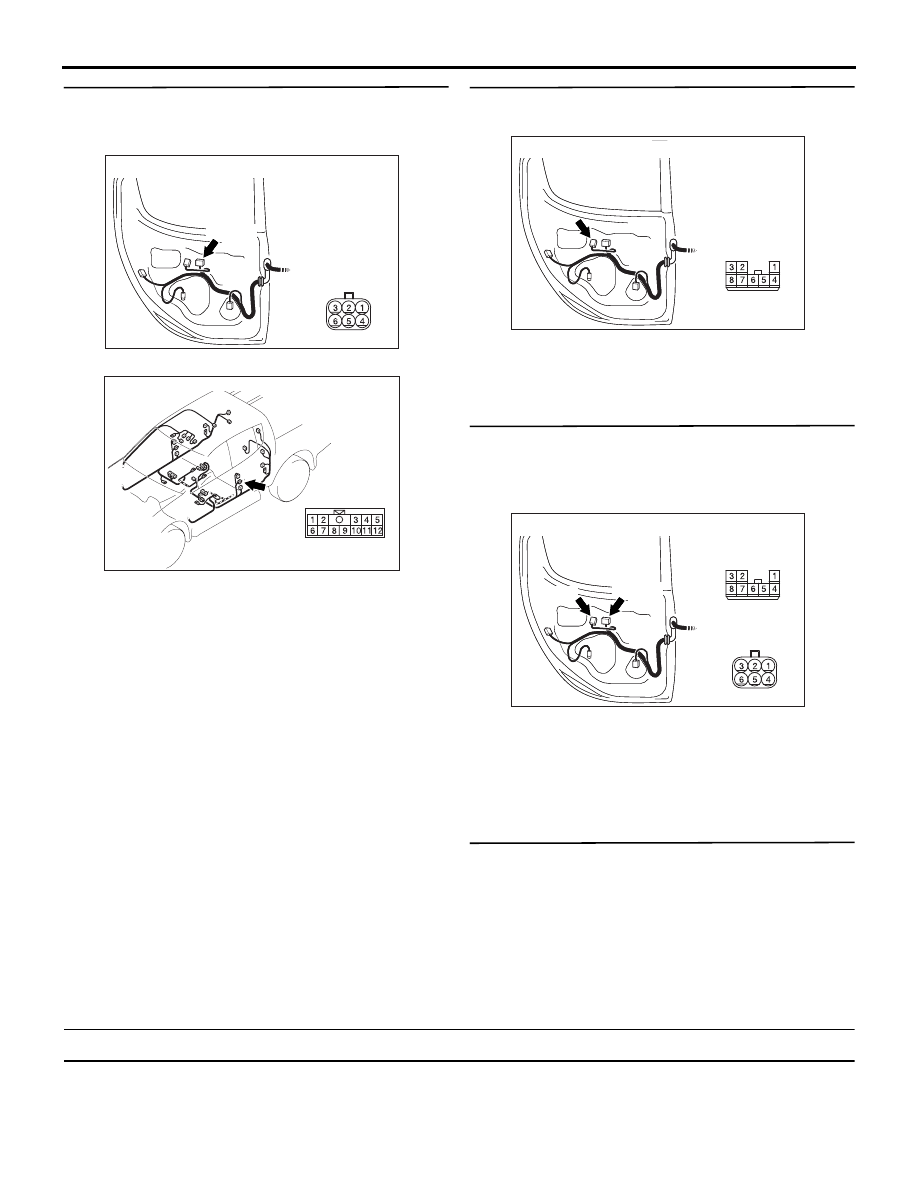

STEP 22. Check the wiring harness between E-14
power window motor (rear: LH) connector
terminal No.6 and body earth.

AC509956

Connector: E-14

AE

Harness side

E-14 (B)

NOTE:

AC509969AB

Connector: D-14 <RHD>

Prior to the wiring harness inspection, check interme-
diate connector D-14, and repair if necessary.

• Check the input and output lines to the revolution

detection sensor for open and short circuit.

Q: Is the check result normal?

YES :

Go to Step 25.

NO :

Repair the wiring harness.

STEP 23. Connector check: E-13 power window
sub switch (rear: LH) connector

AC509956

Connector: E-13

AD

Harness side

Q: Is the check result normal?

YES :

Go to Step 24.

NO :

Repair the defective connector.

STEP 24. Check the wiring harness between E-13
power window sub switch (rear: LH) connector
terminal Nos. 2, 3, 8 and E-14 power window
motor (rear: LH) connector terminal Nos. 4, 5, 2.

AC509956

Connectors: E-13, E-14

AC

E-13

Harness side

E-14 (B)

E-14 (B)

Harness side

E-13

• Check the input and output lines to the revolution

detection sensor for open and short circuit.

Q: Is the check result normal?

YES :

Go to Step 25.

NO :

Repair the wiring harness.

STEP 25. Retest the system.
(1) Replace the power window sub switch (rear: LH).
(2) Check that the rear left power window anti-trap

function works normally.

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Replace the power window motor (rear: LH).

Inspection Procedure B-10: The Window Glass Lowers Automatically while it is Rising.

COMMENTS ON TROUBLE SYMPTOM
If the sliding resistance is too great when the window
is being raised or the window glass encounters an

object, the window glass will lower by approximately
150 mm.
