Mitsubishi L200. Manual - part 500





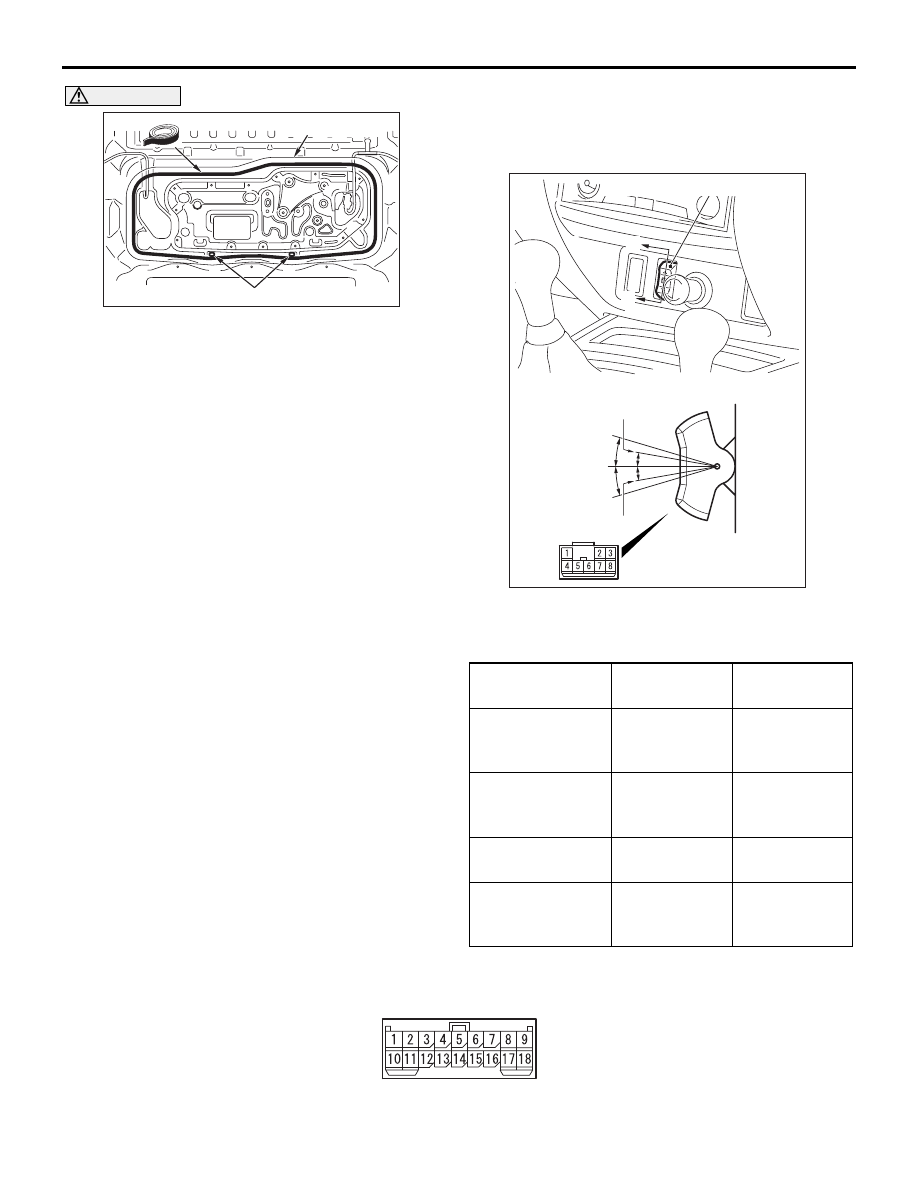

AC502679

Inner panel water drain hole

AB

Waterproof film

REAR PANEL POWER WINDOW <Vehicles with rear panel power window>

BODY

42-60

CAUTION

When sticking the waterproof film, ensure that
the sealant is applied under the inner panel water
drain hole.
Apply the specified sealant to the waterproof film as
shown and stick the film.

Specified sealant: 3M ATD Part No.8625 or
equivalent

INSPECTION

M1429005900096

REAR PANEL POWER WINDOW SWITCH
CONTINUITY CHECK

AC901793AB

Section A – A

Rear panel power window switch

Fully close

Off

Fully open

Ventilation close

A

A

Ventilation open

Remove the rear panel power window switch (Refer
to GROUP 52A, Centre lower panel assembly,
Instrument Panel assembly .).

Switch position

Tester
connection

Specified
condition

Ventilation open

− 8

Continuity
exists (2

Ω or

less)

Ventilation close

− 8

Continuity
exists (2

Ω or

less)

OFF

− 8, 4 − 8, 5 −

8

Open circuit

Fully open/Fully
close

− 8

Continuity
exists (2

Ω or

less)

REAR PANEL POWER WINDOW-ECU TERMINAL INSPECTION

AC503693

D-11

AB

Termin
al No.

Check item

Check condition

Normal condition

1

Output to rear panel power window
motor

2

Output to rear panel power window
motor

3

4

Output to rear panel power window
switch

Rear panel power window switch
(Ventilation open): ON

12 V

5

Output to rear panel power window
switch

Rear panel power window switch
(Fully open/Fully close): ON

12 V

6

Output to rear panel power window
switch

Rear panel power window switch
(Ventilation close): ON

12 V

7

Input from rear panel power window
motor (pulse sensor signal)

When the rear panel power window
are operating

0 to 5 V (pulse signal)

8

Input from rear panel power window
motor (power supply to pulse
sensor)

When the rear panel power window
are operating

5 V

9

Power supply from ignition switch
(IG1)

Ignition switch: ON

System voltage

10

Earth

Always

1 V or less

11

Input from rear panel power window
motor (pulse sensor earth)

0.5 V or less

12

13

14

LIN communication line

Always

0 to 12 V (pulse signal)

15

16

Input from rear panel power window
motor (pulse sensor signal)

When the rear panel power window
are operating

0 to 5 V (pulse signal)

17

18

Battery power supply

Always

System voltage

DOOR

BODY

42-61

DOOR

SERVICE SPECIFICATIONS

M1423000300604

Item

Standard value

Power window operation current (Power supply voltage 14.5

± 0.5 V

at 25

°C) A

± 1

Door outside handle play mm

Front door

0.1

− 5.9 (target value: 2.5)

Rear door

 0.0

− 4.8 (target value: 2.1)

Door inside handle knob play mm

5.2

− 19.6 (target value: 10.9)

Door inside handle lock knob stroke mm

Front door

14.5

− 16.0 (target value: 15)

Rear door

14.5

− 15.5

DOOR

BODY

42-62

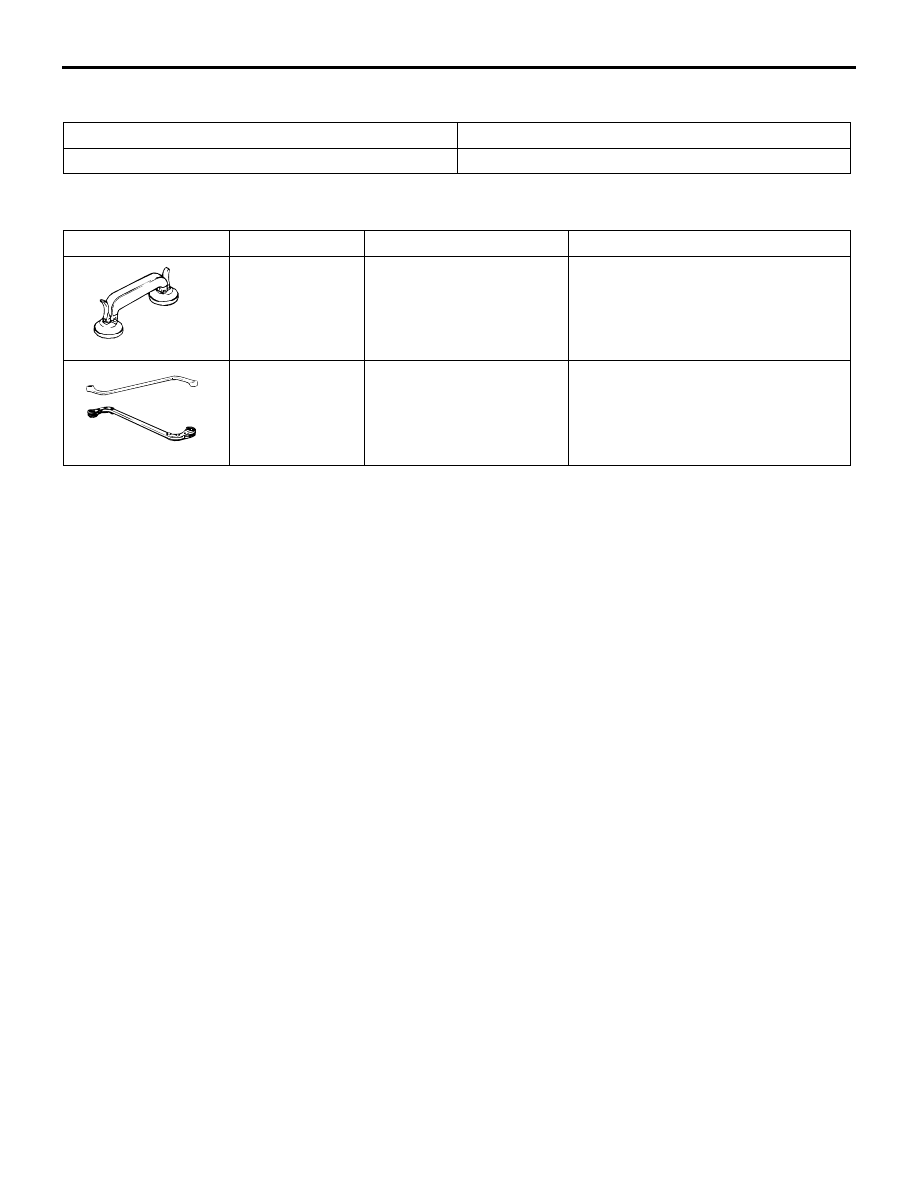

SEALANT

M1423000500501

Item

Specified sealant

Door waterproof film

3M ATD Part No.8625 or equivalent

SPECIAL TOOLS

M1423000601114

Tool

Number

Name

Use

MB990480

MB990480

Window glass holder

Removal of window regulator
assembly

MB990900

MB990834 or
MB991163

Door hinge adjusting
wrench

Door alignment

MB990925AF

A

DOOR

BODY

42-63

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1423006700321

Refer to GROUP 00, Contents of Troubleshooting .

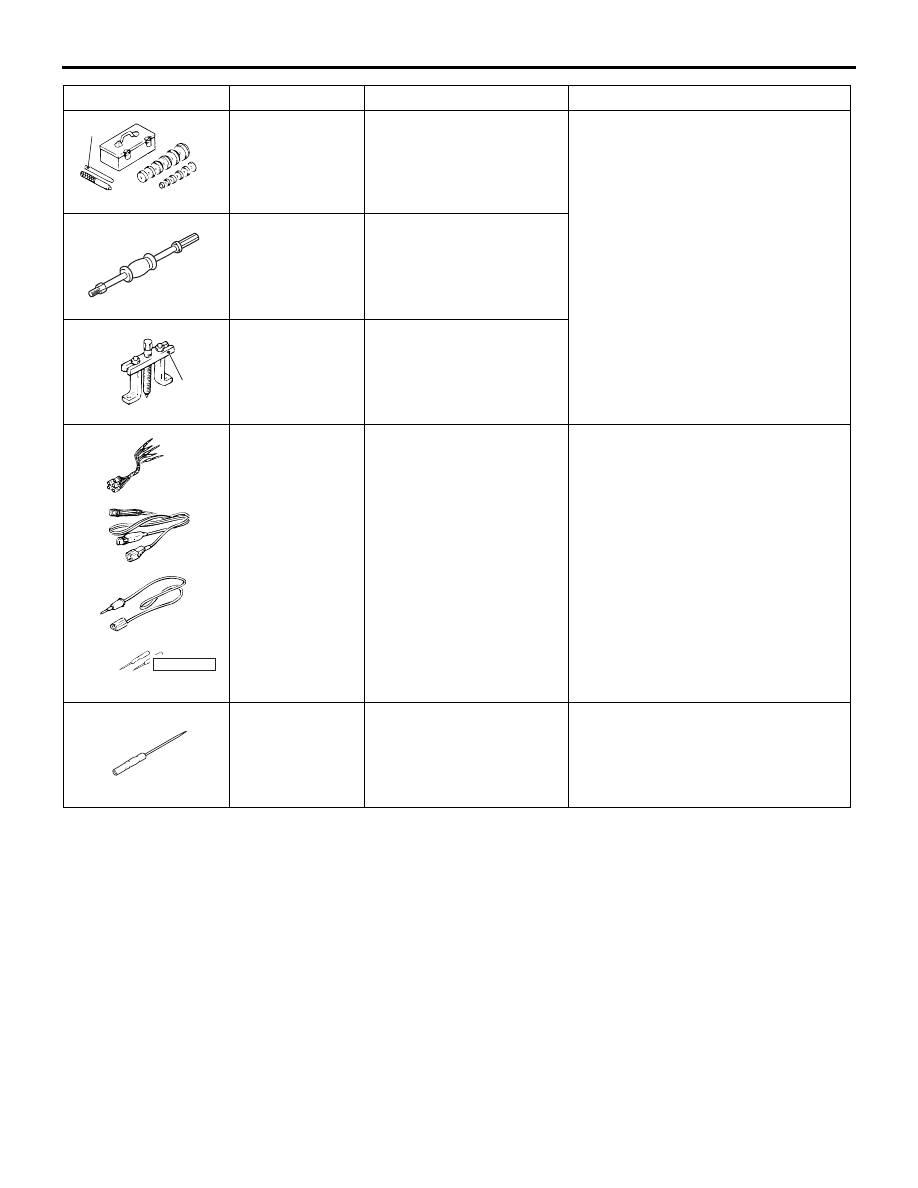

MB990925
A: MB990939

Bearing and oil seal
installer set
A: Remover bar

Door striker adjustment

MB990211

MB990211

Sliding hammer

MB990241

A

AE

MB990241
A: MB990243

Axle shaft puller
A: Body puller

MB991223

a

d

c

b

DO NOT USE

BA

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness adapter
d. Probe

Terminal voltage measurement

a. For checking connector pin

contact pressure

b. For checking power supply circuit
c. For checking power supply circuit
d. For connecting a locally sourced

tester

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use
