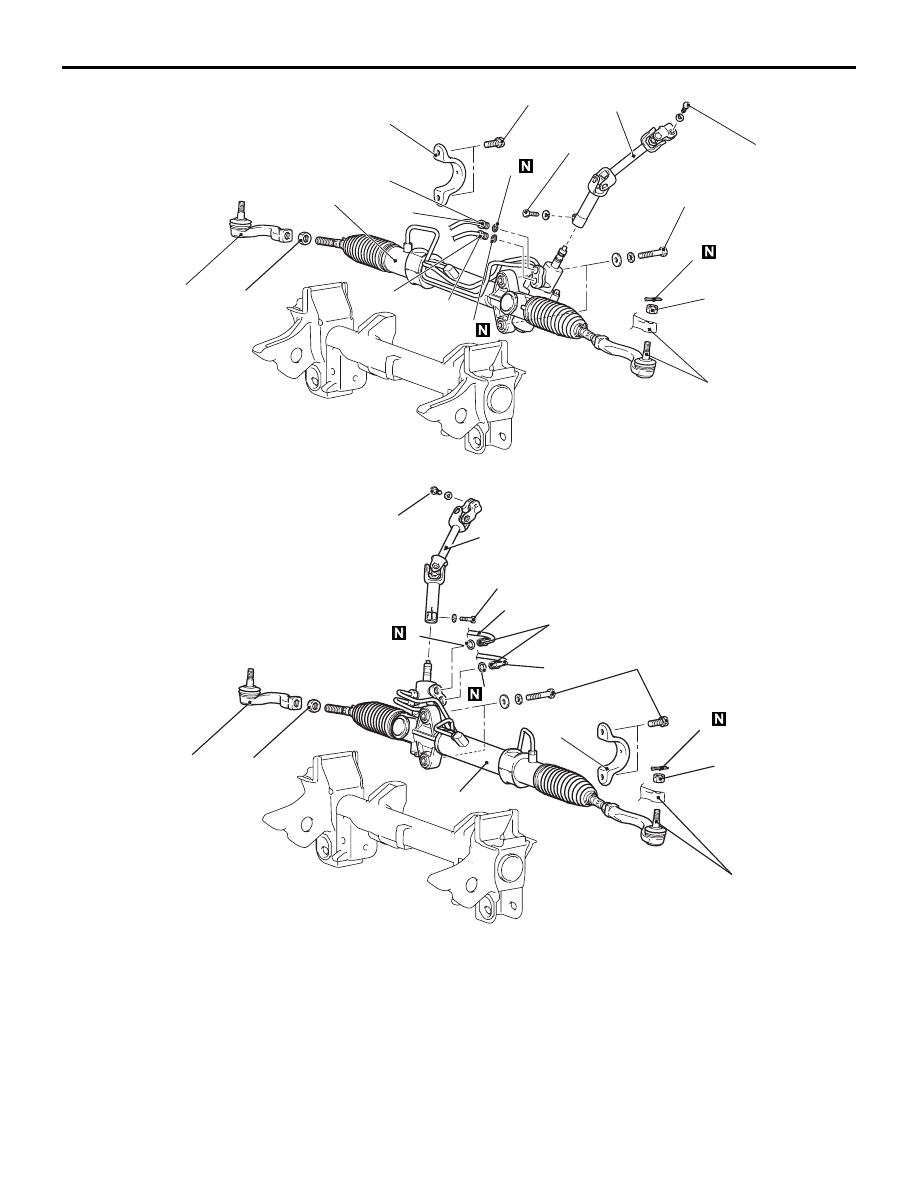

AC508372AG

5

1

18 ± 2 N·m

40 ± 4 N·m

83 ± 12 N·m

83 ± 12 N·m

<2WD (High rider), 4WD-LHD>

18 ± 2 N·m

15 ± 3 N·m

15 ± 3 N·m

3

9

4

7

6

8

10

2

93 ± 15 N·m

AC509027AI

5

1

18 ± 2 N·m

40 ± 4 N·m

83 ± 12 N·m

<2WD (High rider), 4WD-RHD>

18 ± 2 N·m

15 ± 2 N·m

3

9

4

7

6

8

10

2

93 ± 15 N·m

Removal steps

1. Split pin

<<

A

>>

2. Tie rod end and knuckle

connection

3. Tie rod end
4. Shaft assembly

>>

A

<<

5. Return tube connection

6. O-ring

>>

A

<<

7. Pressure tube connection
8. O-ring
9. Clamp

<<

B

>>

10. Power steering gear box

assembly

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-23

Removal steps (Continued)

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-24

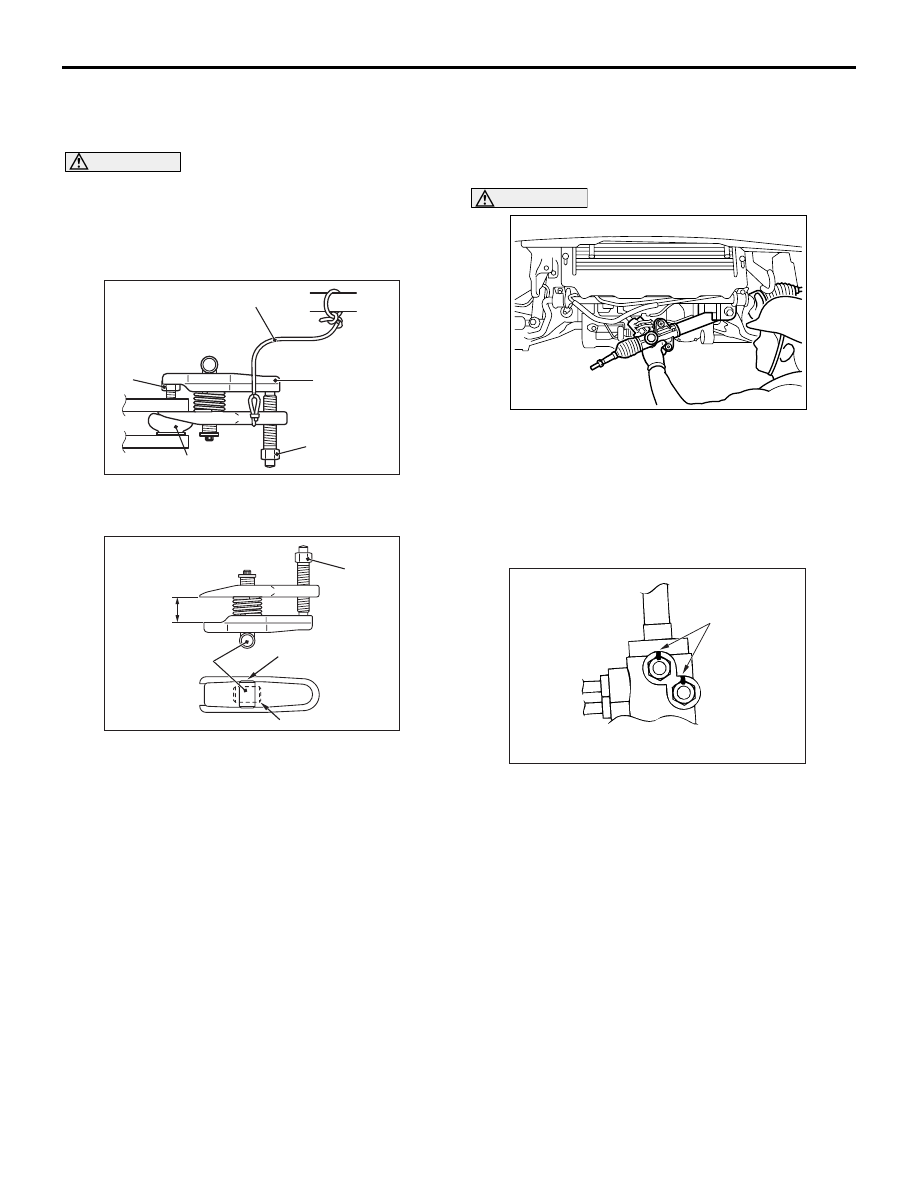

REMOVAL SERVICE POINTS

<<A>> TIE ROD END AND KNUCKLE DISCON-
NECTION

CAUTION

• Do not remove the nut from ball joint. Loosen

it and use the special tool to avoid possible
damage to ball joint threads.

•

AC208247AJ

Cord

Bolt

MB991897
or
MB992011

Nut

Ball joint

Hang the special tool with a cord to prevent it
from falling.

1. Install the special tool ball joint remover

(MB991897 or MB992011) as shown in the figure.

AC106821

Knob

Parallel

Bolt

Correct

Wrong

AC

2. Turn the bolt and knob as necessary to make the

jaws of the special tool parallel, tighten the bolt by
hand and confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make
sure the knob is in the position shown in the fig-
ure.

3. Tighten the bolt with a wrench to disconnect the

tie rod end.

<<B>> POWER STEERING GEAR BOX
ASSEMBLY REMOVAL

AC503507

CAUTION

Be sure not to damage the bellows and the tie
rod end dust cover when removing the gear box
assembly.

INSTALLATION SERVICE POINT

>>A<< PRESSURE TUBE/ RETURN TUBE CON-
NECTION

AC407280 AB

Mating marks

Align the paint marks of the steering gear box, pres-
sure tube and return tube.

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-25

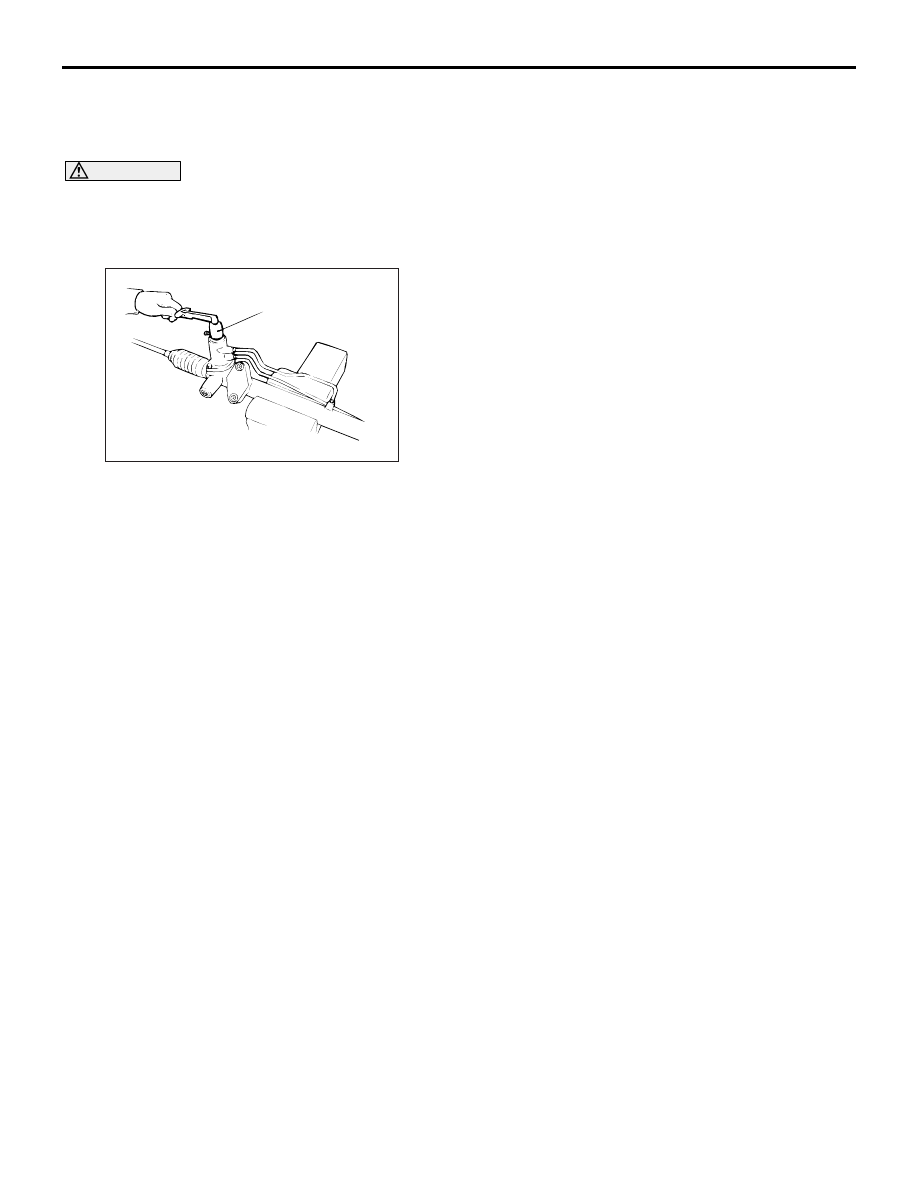

INSPECTION

M1372011000743

STEERING GEAR TOTAL PINION TORQUE
CHECK

CAUTION

When holding the steering gear in a vice, secure
its mounting positions. If it is secured in any
other place, the gear housing may become
deformed or damaged.

AC000996 AC

MB991006

Using special tool preload socket (MB991006), rotate
the pinion gear at the rate of one rotation in approxi-
mately 4 to 6 seconds to check the total pinion
torque.

Standard value: 0.6

− 1.7 N⋅m

[Torque fluctuation: 0.4 N

⋅m or less]

NOTE: When measuring, remove the bellows from
the rack housing. Measure the pinion torque through
the whole stroke of the rack.
If the measured value is not within the standard
range, first adjust the rack support cover, and then
check the total pinion torque again.
If the total pinion torque cannot be adjusted to within
the standard range by adjusting the rack support
cover, check the rack support cover, rack support
spring, rack support and replace any parts if neces-
sary.

TIE ROD END BALL JOINT DUST COVER CHECK
1. Check the dust cover for cracks or damage by

pushing it with your finger.

2. If the dust cover is cracked or damaged, replace

the tie rod end. (Refer to

P.37-26

.)

NOTE: Cracks or damage of the dust cover may
damage the ball joint. If it is damaged during serv-
ice work, replace the tie rod end. (Refer to

P.37-

26

.)

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-26

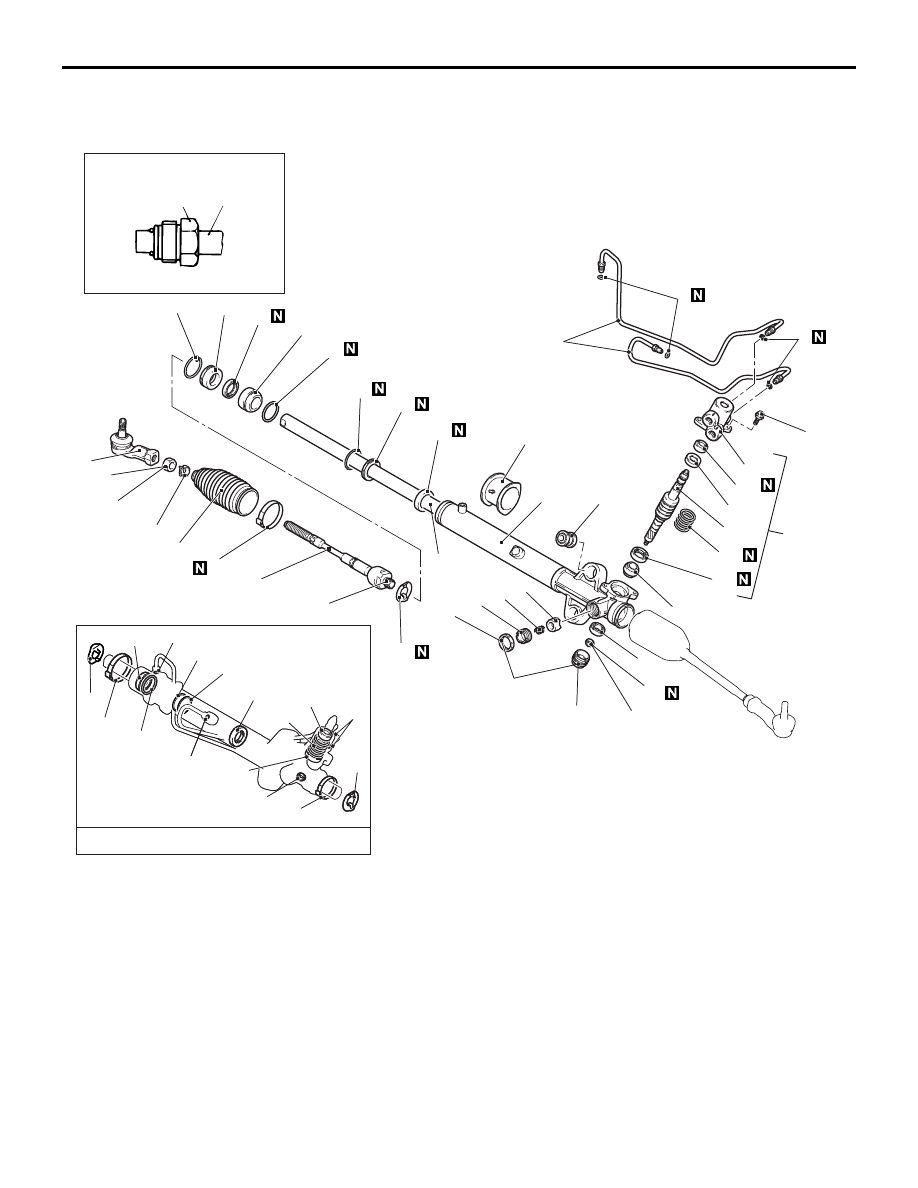

DISASSEMBLY AND REASSEMBLY

M1372011101549

AC511179

AC511428

AC511428

Flare nut

15 ± 3 N·m

3

Steering gear seal kit

6

5

7

9

8

11

10

12 13

14 15

16

17

33

35

36

1

2

34

4

3

24

23

22

21

20

19

18

22 ± 4 N·m

59 ± 10 N·m

25 ± 4 N·m

88 ± 10 N·m

93 ± 15 N·m

AE

25

26

28

29

27

32

31

30

10

8

23

21

19

4

17

4

35

31

32

28

29

10

8

<2WD (except High rider) - LHD>

4

4

Disassembly steps

>>

P

<<

1.

Gear mounting rubber

2.

Gear housing mounting
bushing

3.

Feed pipe

4.

O-ring

>>

O

<<

5.

Lock nut

>>

O

<<

6.

Tie rod end

7.

Clip

>>

N

<<

8.

Bellows band

9.

Bellows

<<

A

>>

>>

M

<<

10. Tab washer

<<

B

>>

>>

L

<<

11.

Tie rod

>>

K

<<

•

Total pinion torque
adjustment

>>

J

<<

12. Lock nut

<<

C

>>

>>

J

<<

13. Rack support cover
14. Support spring
15. Rack support

>>

I

<<

16. End plug
17. Lock nut
18. Valve housing assembly

<<

D

>>

>>

H

<<

19. Lower oil seal

<<

D

>>

20. Pinion and valve assembly

<<

E

>>

>>

G

<<

21. Seal ring

<<

F

>>

>>

F

<<

22. Upper bearing

<<

F

>>

>>

F

<<

23. Upper oil seal
24. Valve housing

<<

G

>

>>

E

<<

25. Circlip

Disassembly steps
