TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-45

(2) Disconnect the C-128 G-sensor connector.
(3) Measure the resistance between the A-01 ABS-

ECU connector terminal No.10 and the C-128 G-
sensor connector terminal No.2.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

An open circuit may be present in the signal
circuit. Repair the wiring harness between
the A-01 ABS-ECU terminal No.10 and the
C-128 G-sensor connector terminal No.2.
Then go to Step 10.

STEP 7. Voltage measurement at C-128 G-sensor
connector.
(1) Disconnect the C-128 G-sensor connector and A-

01 ABS-ECU connector, and measurement at the
harness-side connector.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal No.2 and

body earth.

OK: 0.5 V or less

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

A short circuit may be present. Repair the
wiring harness between the A-01 ABS-ECU
terminal No.10 and the C-128 G-sensor
connector terminal No.2. Then go to Step
10.

STEP 8. G-sensor check
Refer to

P.35B-65

.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Replace the G-sensor (Refer to

P.35B-64

.).

Then go to Step 10 .

STEP 9. Diagnosis code recheck
Erase the diagnosis code.

Q: Are diagnosis codes No.C1382 or No.C1383 set?

YES :

Replace the hydraulic unit (integrated with

ABS-ECU) (Refer to

P.35B-60

). Then go to

Step 10.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Cope with Intermittent

Malfunctions .).

STEP 10. Diagnosis code recheck
Erase the diagnosis code.

Q: Are diagnosis codes No.C1382 or No.C1383 set?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

Code No. C1860: ABS-ECU power supply system malfunction (high voltage)

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnosis code may be set. Prior
to this diagnosis, diagnose the CAN bus lines
(Refer to GROUP 54C

− CAN Bus Diagnostics

Table .).

• Before replacing the ECU, ensure that the

communication circuit is normal.

OPERATION

• The ABS-ECU is energized by the ignition switch

(IG1) through J/B fuse No.15 and the ABS-ECU
terminal No.25.

• The wheel speed sensors are energised via ABS-

ECU terminal No. 25.

DIAGNOSIS CODE SET CONDITION
This diagnosis code is set when the power supply
voltage of the ABS-ECU is abnormally high.

PROBABLE CAUSES

• Battery abnormality

• ABS-ECU malfunction

• Charging system failed

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnosis
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the CAN bus lines (Refer to GROUP
54C

− CAN Bus Diagnostics Table .). On

completion, go to Step 2.

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-46

STEP 2. Diagnosis code recheck after resetting
CAN bus lines

Q: Is diagnosis code No. C1860 set?

YES :

Go to Step 3.

NO :

This diagnosis is complete.

STEP 3. Battery check
Refer to GROUP 54A

− Battery Test .

Q: Is the battery in good condition?

YES :

Go to Step 5.

NO :

Charge or replace the battery. Then go to
Step 4.

STEP 4. Charging system check
Refer to GROUP 16

− Charging System .

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair or replace the charging system
component(s).

STEP 5. Check whether the diagnosis code is
reset.
Erase the diagnosis code.

Q: Is diagnosis code No. C1860 set?

YES :

Replace the hydraulic unit (integrated with

ABS-ECU) (Refer to

P.35B-60

.). Then go to

Step 6.

NO :

The trouble can be an intermittent
malfunction (Refer to GROUP 00

− How to

Use Troubleshooting/How to Cope with
Intermittent Malfunctions .).

STEP 6. Check whether the diagnosis code is
reset.
Erase the diagnosis code.

Q: Is diagnosis code No. C1860 set?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-47

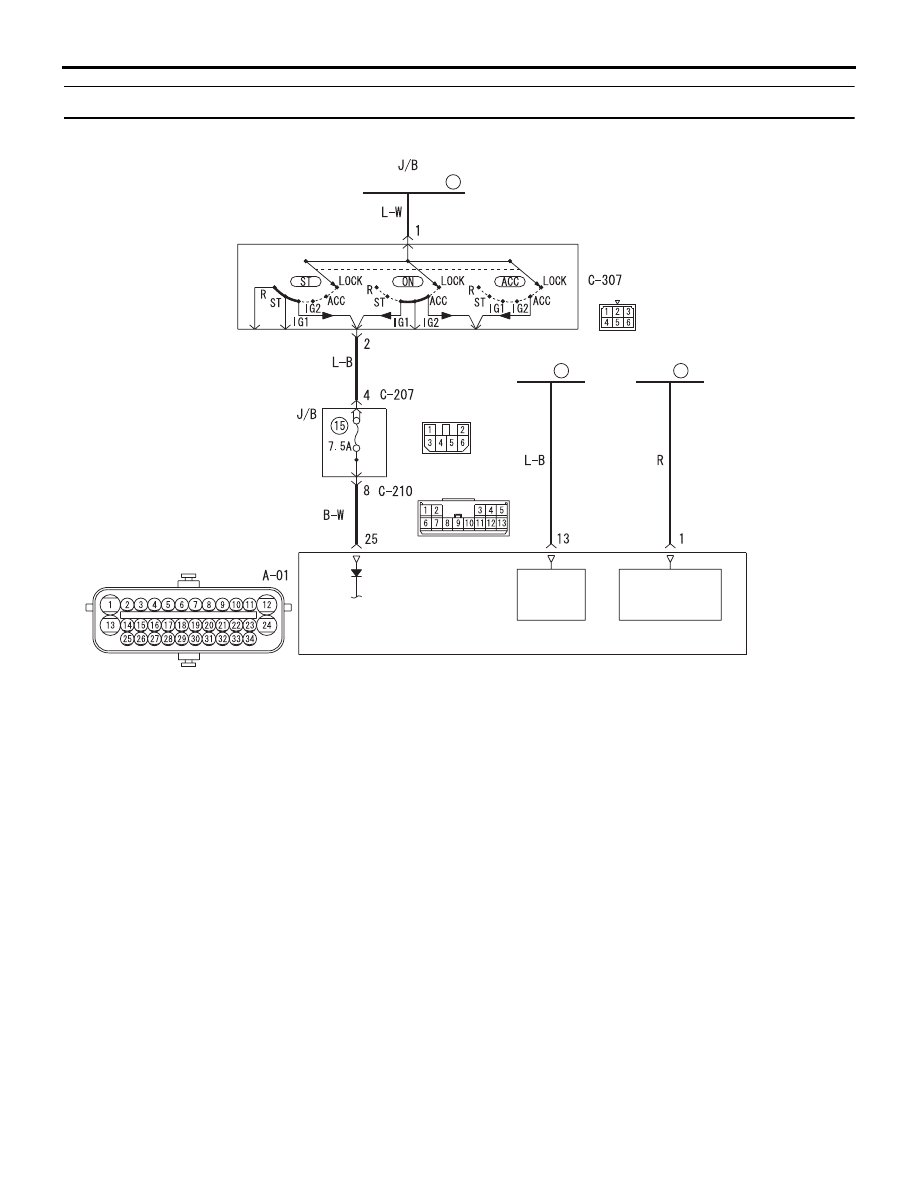

Code No.C1861: ABS-ECU power supply system malfunction (low voltage)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

ACB01038

(FUSIBLE LINK      )

3

IGNITION
SWITCH

MOTOR
POWER
SOURCE

SOLENOID
VALVE POWER
SOURCE

FUSIBLE
LINK

21

FUSIBLE
LINK

22

ABS-ECU

AC501971

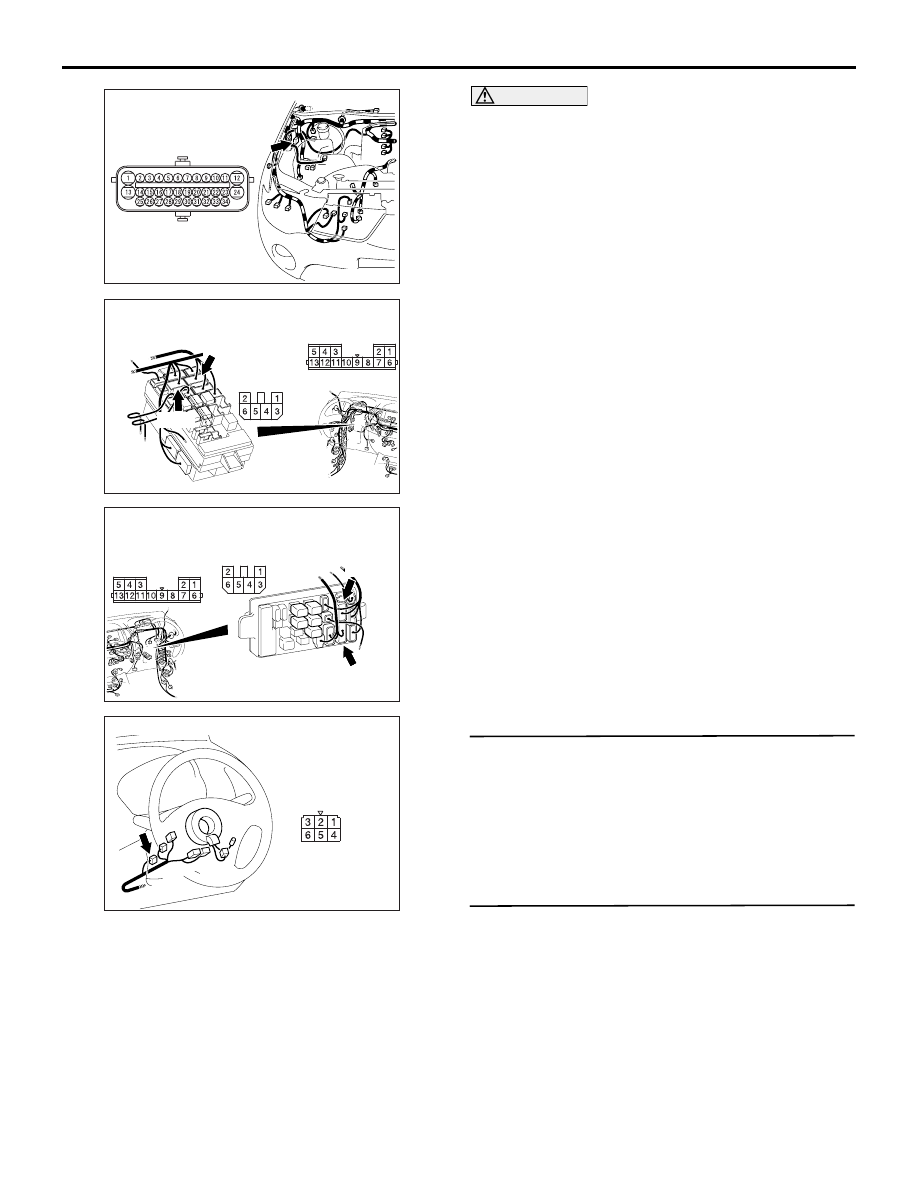

Connector: A-01

AU

(B)

AC509934

Connectors: C-207, C-210 <LHD>

Junction block (Front view)

C-207

C-210

C-207

AO

Harness side

Harness side

C-210

AC509936

Connectors: C-207, C-210 <RHD>

C-207

C-210

C-207

Harness side

Harness side

C-210

AK

Junction block
(Front view)

AC600048AI

Connector: C-307

Harness side

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-48

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnosis code may be set. Prior
to this diagnosis, diagnose the CAN bus lines
(Refer to GROUP 54C

− CAN Bus Diagnostics

Table ).

• Before replacing the ECU, ensure that the

communication circuit is normal.

OPERATION

• The ABS-ECU is energized by the ignition switch

(IG1) through J/B fuse No.15 and the ABS-ECU
terminal No.25.

• Power supply for ABS solenoid valve is supplied

to the ABS-ECU terminal No.1 via fusible link
No.21.

• Power supply for ABS motor is supplied to the

ABS-ECU terminal No.13 via fusible link No.22.

• The wheel speed sensors are energised via ABS-

ECU terminal No. 25.

DIAGNOSIS CODE SET CONDITION
This code is set if the solenoid valve power supply
circuit drops abnormally.

PROBABLE CAUSES

• Damaged wiring harness or connector

• Battery abnormality

• Charging system failed

• ABS-ECU malfunction

• Battery terminal looseness

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnosis
Use M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the CAN bus lines (Refer to GROUP
54C

− CAN Bus Diagnostics Table .). Then

go to Step 2.

STEP 2. Diagnosis code recheck after resetting
CAN bus lines
(1) Erase the diagnosis code.
(2) Turn the ignition switch to the "LOCK" (OFF)

position.

(3) Turn the ignition switch to the "ON" position.
(4) Check if the diagnosis code is set.

Q: Is diagnosis code No.C1861 set?

YES :

Go to Step 3.

NO :

This diagnosis is complete.
