TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-13

C1225

*3

Wheel speed sensor
malfunction

Abnormality in tyre size

Executed

Prohibited

C1226

Control solenoid valve (FR) pressure holding
system

Prohibited

Prohibited

C1236

Control solenoid valve (FL) pressure holding
system

C1246

Control solenoid valve (RR) pressure holding
system

C1256

Control solenoid valve (RL) pressure holding
system

C1231

Control solenoid valve (FR) pressure reducing
system

Prohibited

Prohibited

C1241

Control solenoid valve (FL) pressure reducing
system

C1251

Control solenoid valve (RR) pressure reducing
system

C1261

Control solenoid valve (RL) pressure reducing
system

C1266

*4

Motor malfunction

Motor stick or open
circuit

Prohibited

Prohibited

C1273

*4

Motor relay
malfunction

Open circuit

Prohibited

Prohibited

C1274

Motor relay
malfunction

Short circuit

Prohibited

Prohibited

C1278

Valve relay malfunction Open circuit

Prohibited

Prohibited

C1279

Valve relay malfunction Short circuit

Prohibited

Prohibited

C1340

Stop lamp switch
malfunction

Short circuit (short to
power supply)

Executed

Prohibited

C1365

*5

G-sensor malfunction

Power supply error

Executed

Prohibited

C1381

*5, *6

G-sensor malfunction

Abnormal seizure or
output error

Executed

Prohibited

C1382

*5

G-sensor malfunction

Low voltage

Executed

Prohibited

C1383

*5

G-sensor malfunction

High voltage

Executed

Prohibited

C1860

ABS-ECU power
supply system
malfunction

high voltage

Prohibited

Prohibited

C1861

ABS-ECU power
supply system
malfunction

Low voltage

Prohibited

Prohibited

C1395

Brake fluid charging incompletion

Prohibited

Prohibited

U1073

Trouble in CAN bus system

Executed

Executed

Diagnosis
code No.

Item

Countermeasures for failure
EBD control

ABS control

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-14

NOTE:

.

•

*1

: Normality on rear wheels (both right or left)

•

*2

: Abnormality on rear wheels (both right and left)

•

*3

: This diagnosis code is not set within the vehicle speed of 30 km/h or less.

•

*4

: This diagnosis code is not set within the vehicle speed of 10 km/h or less.

•

*5

: 4WD

•

*6

: This diagnosis code is not set within the vehicle speed of 30 km/h or less.

HOW TO READ DIAGNOSIS CODE

Refer to GROUP 00

− How to Use Troubleshooting

and Inspection Service Points .

HOW TO ERASE DIAGNOSIS CODE

Refer to GROUP 00

− How to Use Troubleshooting

and Inspection Service Points .

DIAGNOSIS CODE CHART

M1352011301905

CAUTION

During diagnosis, a diagnosis code associated with other system may be set when the ignition switch
is turned on with connector(s) disconnected. On completion, confirm all systems for diagnosis
code(s). If diagnosis code(s) are set, erase them all.

Diagnosis code
No.

Item

Reference page

C1200

Wheel speed sensor (FR)

Signal open circuit

P.35B-16

C1205

Wheel speed sensor (FL)

Signal open circuit

C1210

Wheel speed sensor (RR)

Signal open circuit

C1215

Wheel speed sensor (RL)

Signal open circuit

C1201

Wheel speed sensor (FR)

Signal short circuit

P.35B-20

C1206

Wheel speed sensor (FL)

Signal short circuit

C1211

Wheel speed sensor (RR)

Signal short circuit

C1216

Wheel speed sensor (RL)

Signal short circuit

C1202

Wheel speed sensor (FR)

Malfunction power circuit

P.35B-26

C1207

Wheel speed sensor (FL)

Malfunction power circuit

C1212

Wheel speed sensor (RR)

Malfunction power circuit

C1217

Wheel speed sensor (RL)

Malfunction power circuit

C1225

*1

Wheel speed sensor
malfunction

Abnormality in tyre size

P.35B-30

C1226

Control solenoid valve (FR) pressure holding system

P.35B-31

C1236

Control solenoid valve (FL) pressure holding system

C1246

Control solenoid valve (RR) pressure holding system

C1256

Control solenoid valve (RL) pressure holding system

C1231

Control solenoid valve (FR) pressure reducing system

C1241

Control solenoid valve (FL) pressure reducing system

C1251

Control solenoid valve (RR) pressure reducing system

C1261

Control solenoid valve (RL) pressure reducing system

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-15

NOTE:

.

•

*1

: This diagnosis code is not set within the vehicle speed of 30 km/h or less.

•

*2

: 4WD

•

*3

: This diagnosis code is not set within the vehicle speed of 10 km/h or less.

•

*4

: This diagnosis code is not set within the vehicle speed of 30 km/h or less.

C1266

*3

Motor malfunction

Motor stick or open circuit

P.35B-32

C1273

*3

Motor relay malfunction

Open circuit

C1274

Motor relay malfunction

Short circuit

C1278

Valve relay malfunction

Open circuit

P.35B-31

C1279

Valve relay malfunction

Short circuit

C1340

Stop lamp switch malfunction

Short circuit (short to power
supply)

P.35B-35

C1365

*2

G-sensor malfunction

Power supply error

P.35B-39

C1381

*2, *4

G-sensor malfunction

Abnormal seizure or output
error

P.35B-42

C1382

*2

G-sensor malfunction

Low voltage

P.35B-43

C1383

*2

G-sensor malfunction

High voltage

C1860

ABS-ECU power supply system
malfunction

High voltage

P.35B-45

C1861

ABS-ECU power supply system
malfunction

Low voltage

P.35B-47

C1395

Brake fluid charging incompletion

P.35B-50

U1073

Trouble in CAN bus system

P.35B-50

Diagnosis code
No.

Item

Reference page

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-16

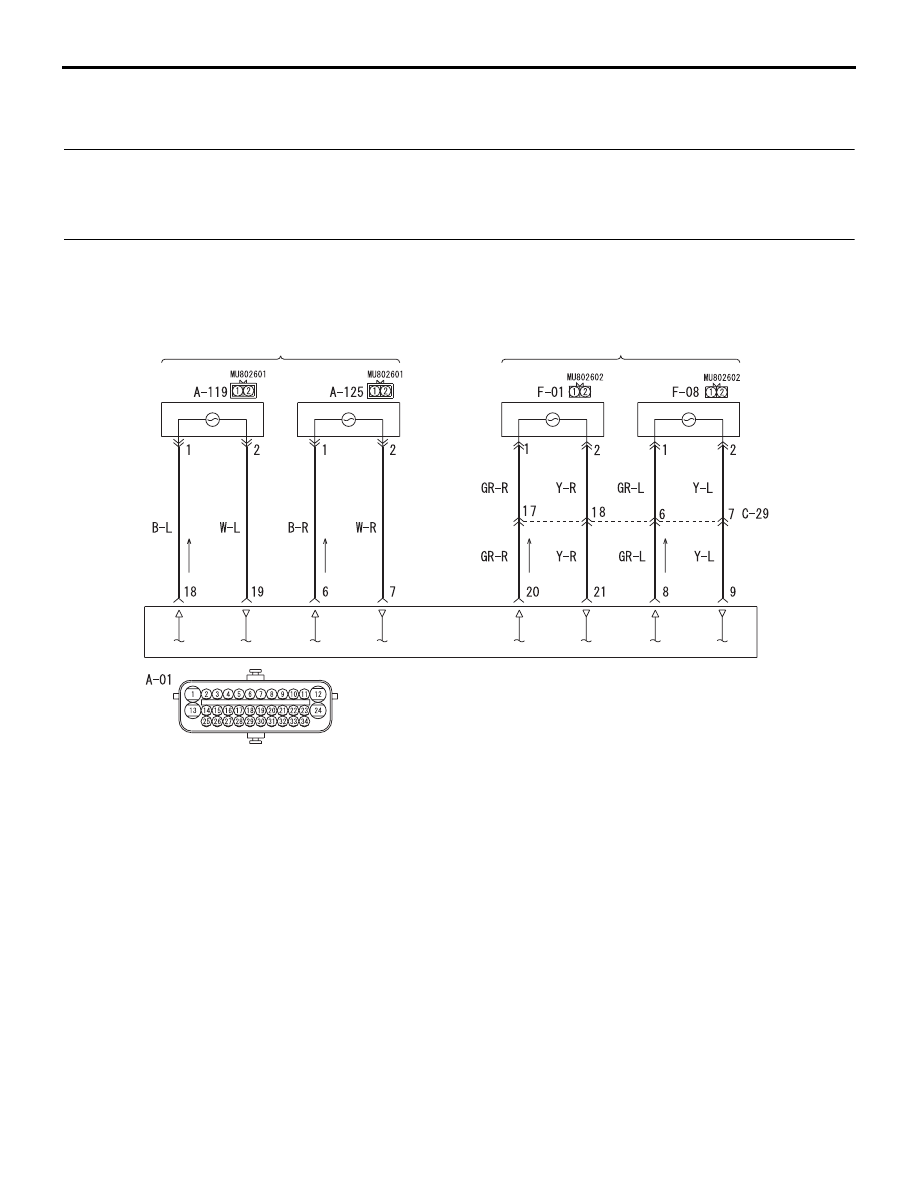

DIAGNOSIS CODE PROCEDURES

Code No.C1200: Wheel speed sensor (FR) (signal open circuit)



Code No.C1205: Wheel speed sensor (FL) (signal open circuit)



Code No.C1210: Wheel speed sensor (RR) (signal open circuit)



Code No.C1215: Wheel speed sensor (RL) (signal open circuit)

<2WD (Except High rider)>

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

(LH)

(RH)

ABS-ECU

FRONT WHEEL SPEED SENSOR

REAR WHEEL SPEED SENSOR

Wheel Speed Sensor Circuit

(LH)

(RH)

ACB00766
