AXLE SHAFT ASSEMBLY

REAR AXLE

27-19

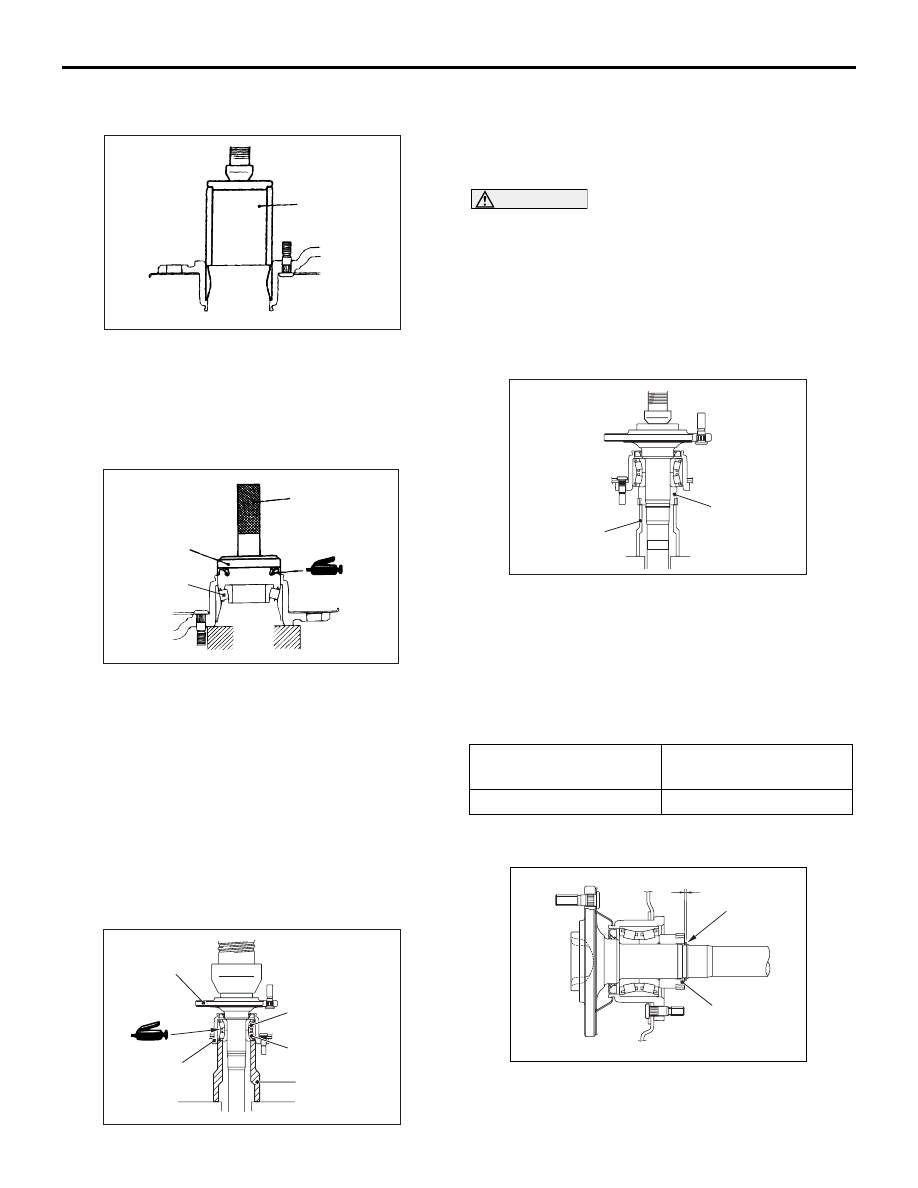

REASSEMBLY SERVICE POINTS

>>A<< BEARING OUTER RACE INSTALLATION

AC004875AB

MB990890 or
MB990891

Use special tool rear suspension bushing base
(MB990890 or MB990891) to press-fit the bearing
outer race to the bearing case.

>>B<< OIL SEAL INSTALLATION
1. Set the outer bearing inner race.

AC004896 AB

MB990936

MB990938

Outer bearing
inner race

2. Apply multipurpose grease to the outside of the oil

seal.

3. Use the following special tools, press-fit the oil

seal into the bearing case until it is flush with the
face of the bearing case.

• Installer adapter (MB990936)

• Installer bar (MB990938)

4. Apply multipurpose grease to the lips of the oil

seal.

>>C<< INNER BEARING INNER RACE/OUTER
BEARING INNER RACE INSTALLATION

AC501191AB

Axle shaft

Bearing case

Outer bearing
inner race

Inner bearing
inner race

MB990799

1. Apply multipurpose grease to the roller surface

and ends of the bearing.

2. Pass the axle shaft through the bearing case and

the inner bearing inner race and outer bearing
inner race.

CAUTION

Both the inner bearing inner race and outer bear-
ing inner race should be press-fitted together.
3. Use special tool ball joint remover and installer A

(MB990799) to press-fit the inner bearing inner
race and outer bearing inner race to the axle
shaft.

>>D<< RETAINER/ABS ROTOR INSTALLATION

AC501192AB

Retainer

MB990799

1. Use special tool ball joint remover and installer A

(MB990799) to press-fit the retainer with ABS
rotor to the axle shaft. Check that the press-fitting
force is at the standard value.

2. If the initial press-fitting force is less that the

standard value, replace the axle shaft.

Standard value:

Initial press-fitting force
N

29,400 or more

Final press-fitting force N 98,000

− 107,800

>>E<< SNAP RING INSTALLATION

AC501193 AB

A

Snap ring

Retainer ring

AXLE SHAFT ASSEMBLY

REAR AXLE

27-20

1. After installing the snap ring, measure clearance

(A) between the snap ring and the retainer with a
feeler gauge. Check that it is within the standard
value.

Standard value (A): 0

 0.166 mm

2. If the clearance exceeds the standard value,

change the snap ring so that the clearance is at
the standard value.

Thickness of snap ring
mm

Identification colour

2.17

2.01

Yellow

1.85

Blue

1.69

Purple

1.53

Red

Example:
Clearance 2.0 mm
Standard value 0

 0.166 mm

Thickness of snap ring 1.85 mm

INSPECTION

M1271002800150

• Check the dust cover for deformation and dam-

age.

• Check the inner and outer bearings for seizure,

discolouration and rough raceway surface.

• Check the axle shaft for cracks, wear and dam-

age.

REAR DIFFERENTIAL LOCK <4WD>

REAR AXLE

27-21

REAR DIFFERENTIAL LOCK <4WD>

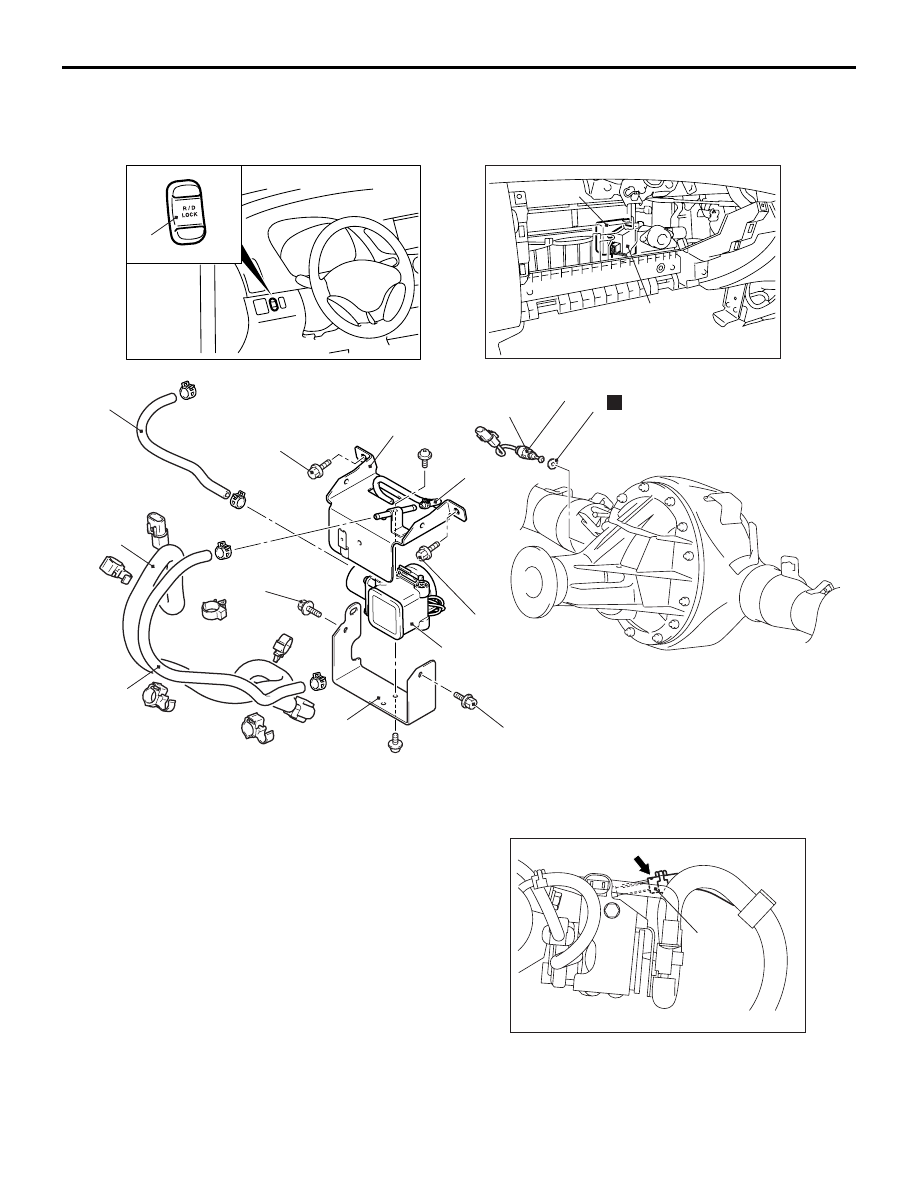

REMOVAL AND INSTALLATION

M1272002700190

AC608183

AC508815

AC510986

AC511009

AC508535

AB

1

3

2

4WD indicator
ECU

37 ± 6 N·m

N

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

12 ± 2 N·m

12 ± 2 N·m

4

9

7

5

6

8

10

11

Removal steps

1. Rear differential lock switch

Glove box cover (Refer to GROUP
52A, Instrument Panel .)

2. Rear differential lock-ECU

>>

A

<< 3. Vacuum hose

4. Rear differential lock harness
5. Vapour hose
6. Hose
7. Bracket
8. Rear differential lock air pump
9. Bracket
10. Rear differential lock detection switch

(Refer to

P.27-24

.)

11. Gasket

INSTALLATION SERVICE POINT

>>A<< VACUUM HOSE CONNECTION

AC508703 AB

Vacuum
hose

Connect the vacuum hose so that the white mark is
located upward.

REAR DIFFERENTIAL LOCK <4WD>

REAR AXLE

27-22

INSPECTION

M1272003300032

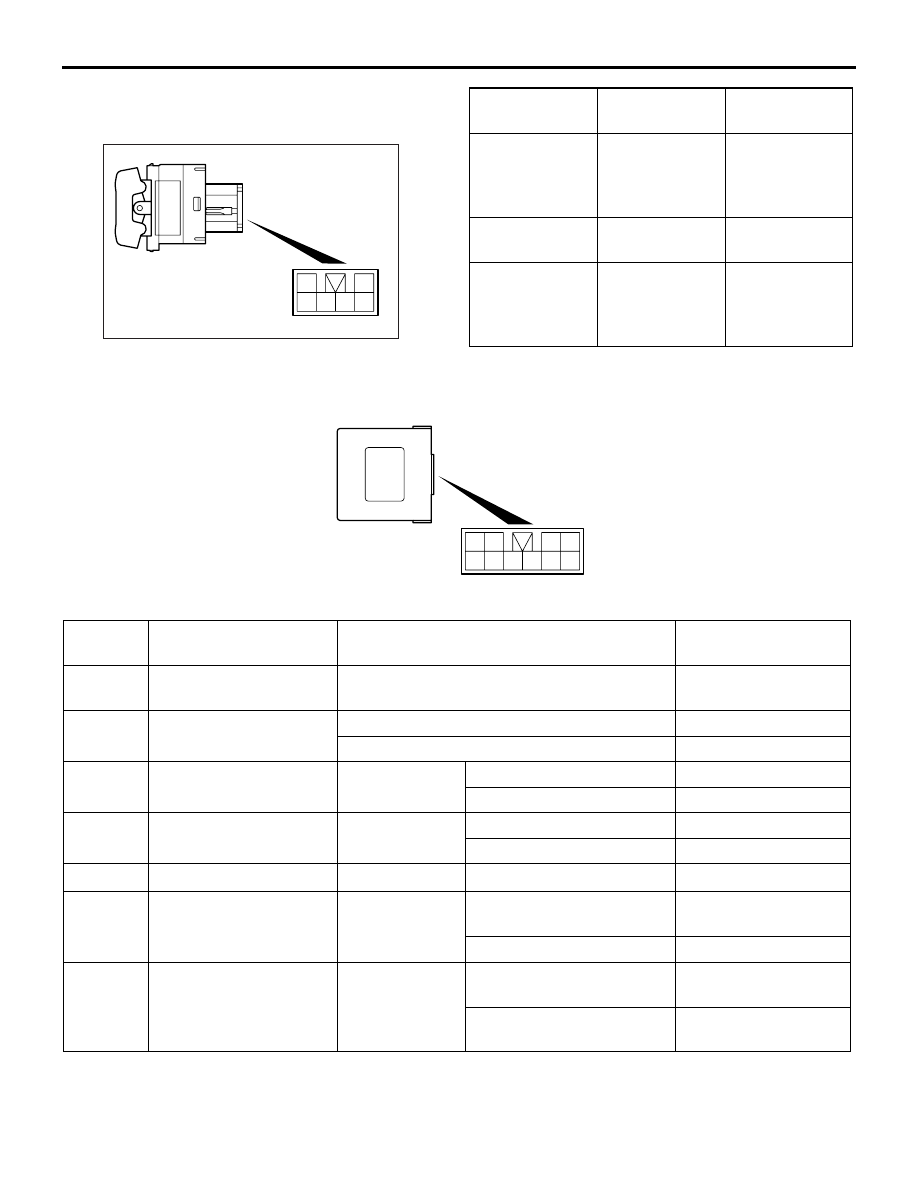

REAR DIFFERENTIAL LOCK SWITCH CHECK

1

2

3 4 5 6

AC508810

Check for continuity between the terminals of the
switch.

Switch
position

Tester
connection

Specified
condition

ON switch
operation (push
the upper part
of switch)

3 - 6

Continuity (less
than 2

Ω)

N (released
switch position)

3 - 6 and 2 - 3

Open circuit

OFF switch
operation (push
the lower part of
switch)

2 - 3

Continuity (less
than 2

Ω)

REAR DIFFERENTIAL LOCK-ECU CHECK

M1272003200079

1 2

3 4

5 6 7 8 9 10

AC608602

Terminal
No.

Item

Condition

Terminal voltage

2

Vehicle speed reed
switch

Select "D" <A/T>, or "1st"<M/T> and drive
forward slowly.

5 V

3

Ignition switch (IG1)

Ignition switch: OFF

1 V or less

Ignition switch: ON

System voltage

4

Rear differential lock air
pump

Ignition switch:
ON

When filling or holding

System voltage

When releasing

1 V or less

5

Free wheel engage
switch

Ignition switch:
ON

4WD

1 V or less

2WD

System voltage

6

Earth

8

Rear differential lock
detection switch

Ignition switch:
ON

Rear differential lock is
locked

1 V or less

Rear differential is free

System voltage

9

Rear differential lock
switch (On position)

Ignition switch:
ON

Rear differential lock switch
is pushed.

1 V or less

Rear differential lock switch
is not pushed.

System voltage
