Thrust bearing No.3

AD

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-47

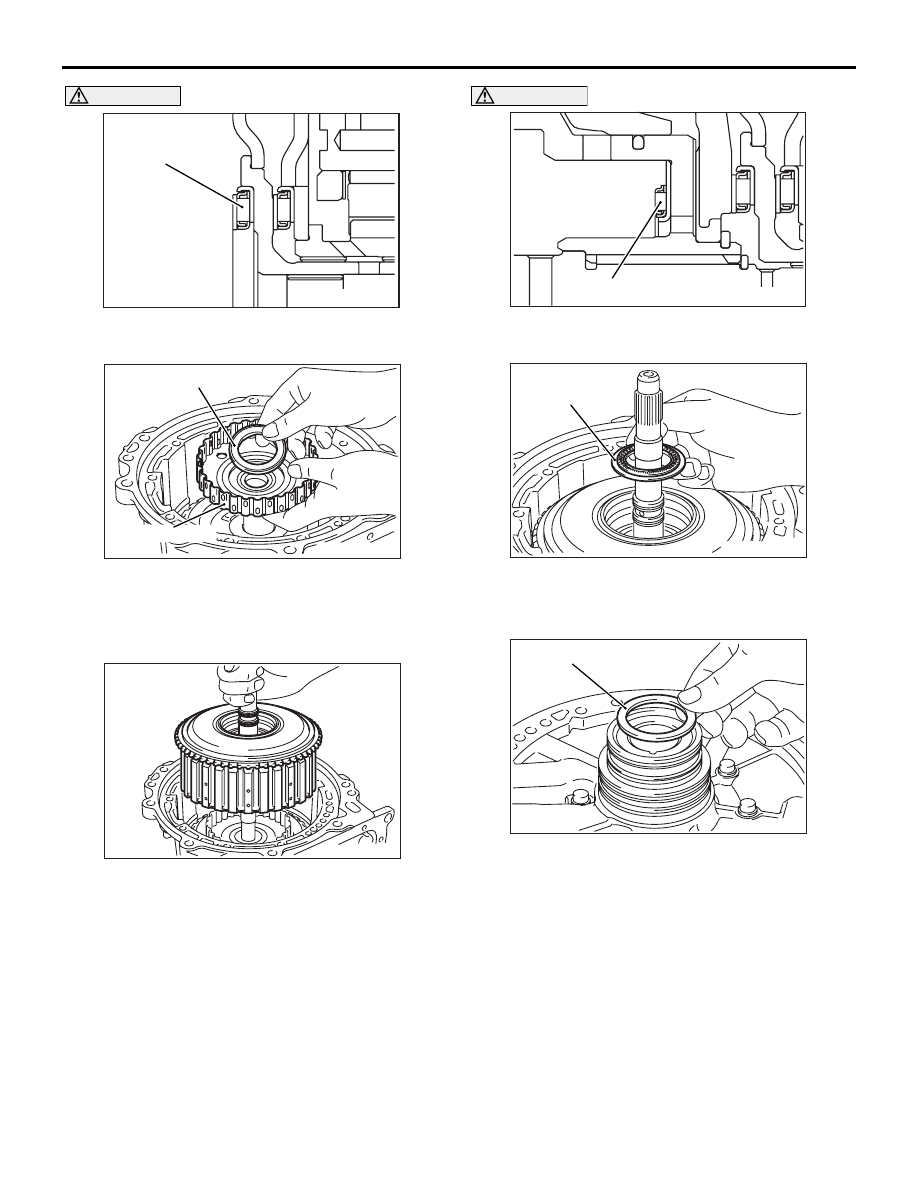

CAUTION

Take care not to mistake the thrust bearing No.3
mounting direction.

AK602008AD

Thrust bearing No.3

Overdrive clutch
hub

37.Apply vaseline or petrolatum jelly on the thrust

bearing No.3, and then install on the overdrive
clutch hub.

38.Install the overdrive clutch hub.

AK602010

39.Install the reverse and overdrive clutch.

AK602012

Thrust bearing No.2

AD

CAUTION

Take care not to mistake the thrust bearing No.2
mounting direction.

AK602011AD

Thrust bearing No.2

40.Apply vaseline or petrolatum jelly on the thrust

bearing No.2, and then install on the reverse and
overdrive clutch.

AK602013AD

Thrust race No.1

41.Apply vaseline or petrolatum jelly on the thrust

race No.1, and then install on the oil pump.

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-48

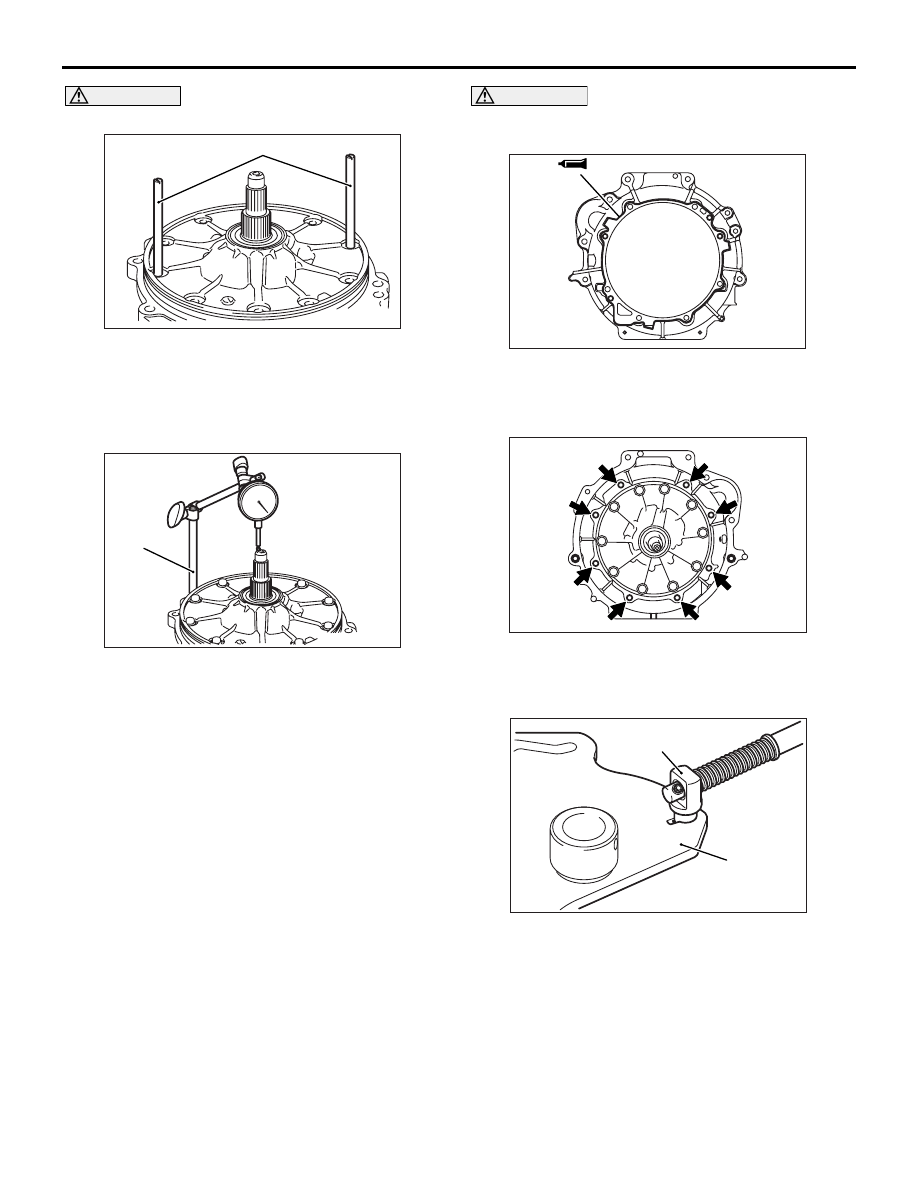

CAUTION

Never reuse the gasket.

AK602014AC

MD998412

42.Install the special tool Guide (MD998412) at the

position shown in the illustration, and using this as
a guide, install the oil pump and gasket.

43.Tighten the ten oil pump mounting bolts to the

specified torque 23

± 3 N⋅m.

AK602015AC

MD998316

44.Using the special tool Dial gauge support

(MD998316), set a dial gauge as shown in the
illustration. Measure the end play of the input
shaft, and replace the thrust race installed in step
41 with a suitable one so that the end play may
meet the standard value. Then, reassemble.

Standard value: 0.25

 0.81 mm

(For input shaft end play)

45.Measure the end play again, and confirm that it is

within the standard value.

CAUTION

Evenly squeeze out the sealant so that it is not
insufficient or excessive.

AK503506

1.6 mm Diameter

AE

46.Apply sealant on the converter housing.

Specified sealant:
Mitsubishi Part No. MR166584 or equivalent

AK503505AB

47.Install the converter housing.
48.Tighten the eight converter housing mounting

bolts to the specified torque 48

± 6 N⋅m.

AK602017AC

Parking roller rod

Detent lever

49.Install the parking roller rod to the detent lever.

AK602018 AC

O-ring

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-49

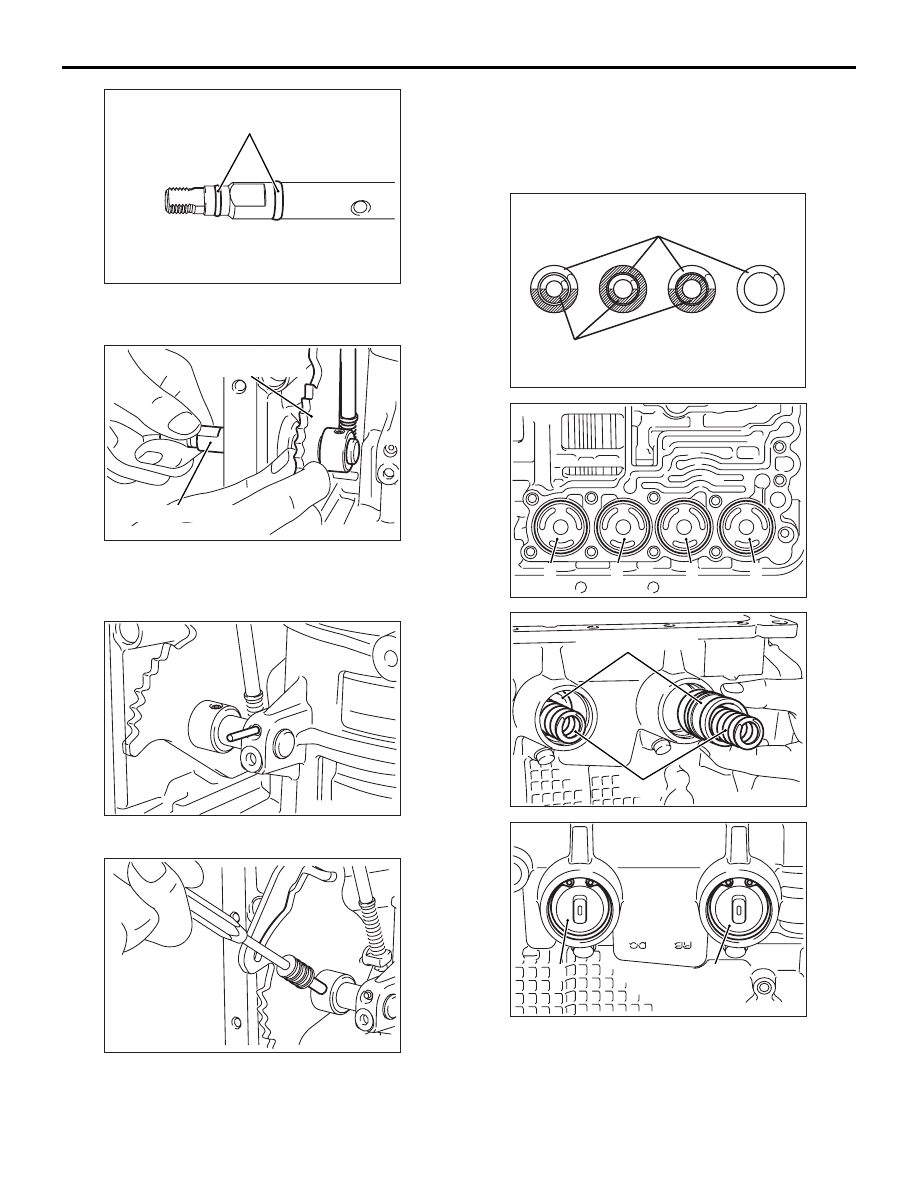

50.Install two new O-rings to the manual control

shaft.

AK602019AC

Detent lever and
parking roller rod

Manual control shaft

51.Install the assemble into the transmission case

together with the detent lever and parking roller
rod.

AK602020

52.Install the pin.

AK602021

53.Hammer in the spring pin so that its slit is

perpendicular to the axial direction of the manual
control shaft.

54.Install a new seal ring onto each accumulator

piston.

AKX00112

Outer spring

Inner spring

AD

4

3

2

1

AK601921AC

4

3

2

1

AK602023AC

Accumulator piston

spring

AK601922 AC

6

5

55.Install each accumulator piston and spring, then

install accumulator cover with O-ring and snap
ring.

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V5A5>

23D-50

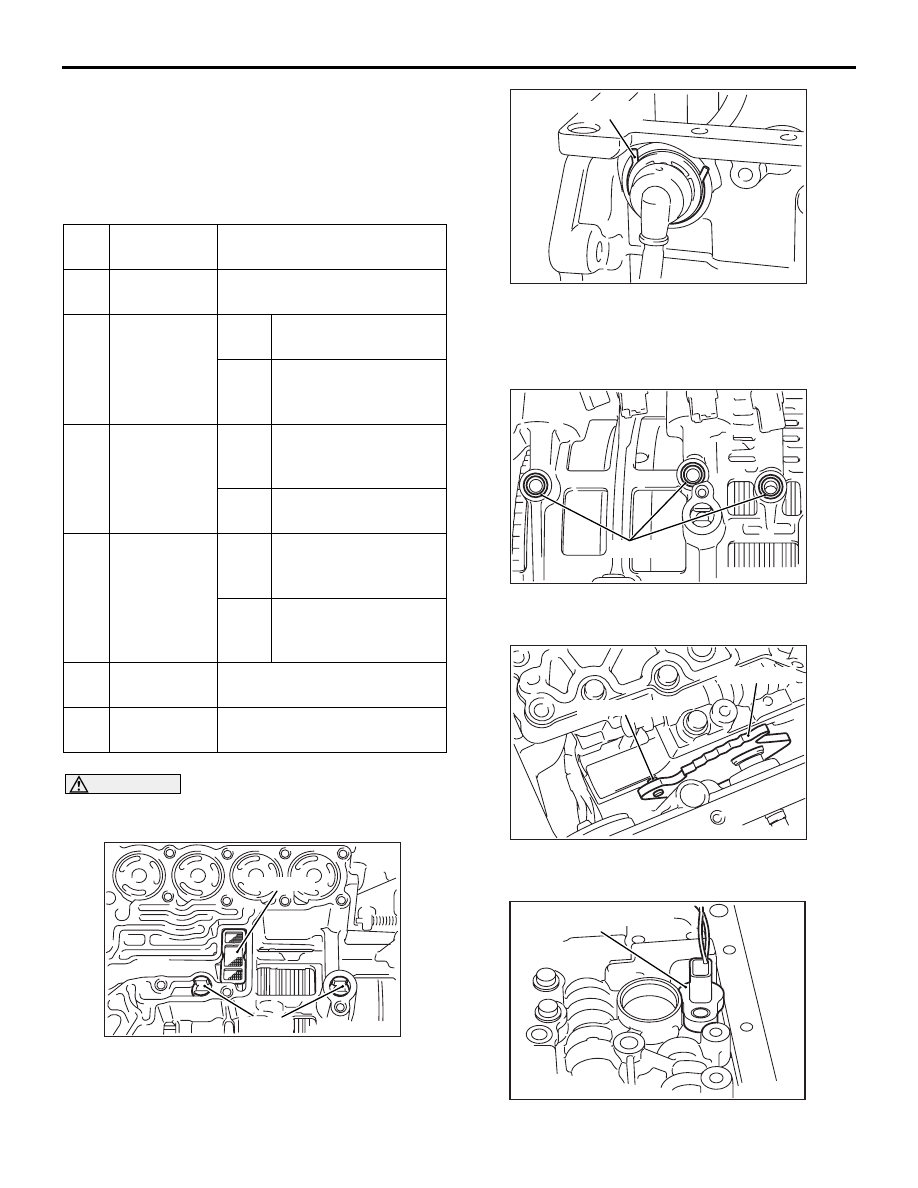

NOTE:

.

Install the accumulator pistons to the original
positions following the identification tags
attached when they were removed.

No.

Name

Identification paint
application position

1

For overdrive
clutch

None

2

For second
brake

Inner Applied on all surface

including both ends

Outer Applied on half of

surface including both
ends

3

For low/
reverse
brake

Inner Applied on half of

surface including both
ends

Outer Applied on entire

surface of one side

4

For
underdrive
clutch

Inner Applied on half of

surface including both
ends

Outer Applied on half of

surface including both
ends

5

For reduction
brake

None

6

For direct
clutch

None

The springs are identified by paint application
position as shown below. Assemble following
this table.

CAUTION

Take care to the installation direction of the oil
seal.

AK602024AC

Oil seal

Oil strainer

56.Install the oil strainer and two new oil seals. Install

the oil seals so that the notched section is
oriented as shown in the illustration.

AK602025AC

Snap ring

57.Install the solenoid valve harness, and then

secure the snap ring to connector groove.
NOTE: Install the harness so that it is oriented as
shown in the illustration.

AK602026AC

O-ring

58.Install new three O-rings onto the transmission

case at the positions shown in the illustration.

AK602027AC

Detent lever

Manual valve pin

59.Install the valve body while inserting the manual

valve pin into the detent lever groove.

AK602028AC

Oil temperature sensor

60.Install the oil temperature sensor.
