Mitsubishi L200. Manual - part 357
AK601987
TRANSMISSION
AUTOMATIC TRANSMISSION OVERHAUL <V5A5>
23D-43

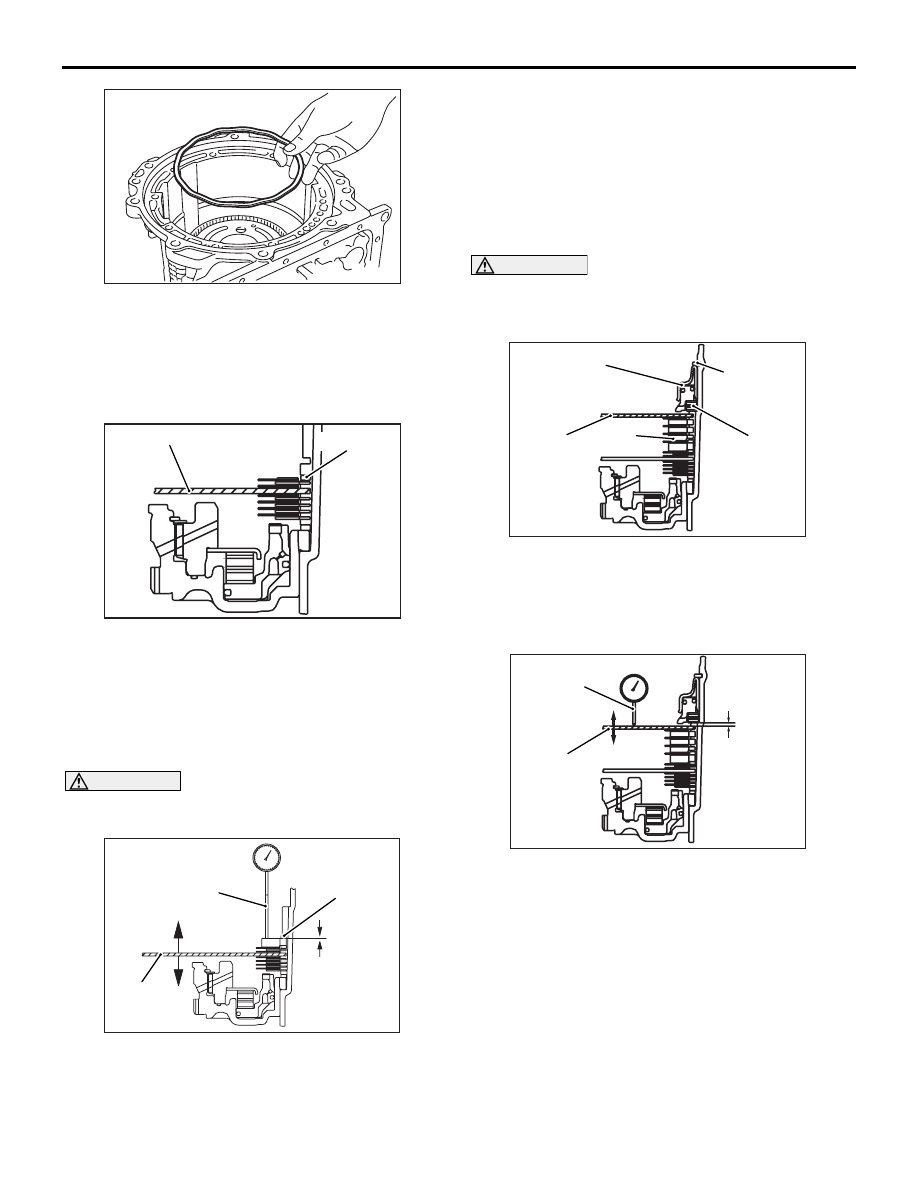

24.Using the following steps, select a snap ring for
adjusting the brake reaction plate end play and
second brake end play, and a pressure plate for
adjusting the low/reverse brake end play.
(1) Install the wave spring onto the low/reverse
brake piston.
AK601988 AC
Snap ring
MB991632
(2) Install the special tool (MB991632) in the
position shown in the illustration instead of the
pressure plate for the low/reverse brake.
Install the brake discs, brake plates and snap
ring.
(3) Install the reaction plate and snap ring that
was used.
CAUTION
Take care to the assembly direction of the reac-
tion plate.
AK601989
MD998913
MB991632
AC
End play
Snap ring
(4) Install a dial gauge onto special tool
(MD998913) so that the tool end contacts the
brake reaction plate. Measure the end play by
moving special tool (MB991632).
(5) Replace the snap ring installed in step 24 (3)
with a suitable one so that the end play may
fall within the standard value. Then,
reassemble.
Standard value: 0
− 0.16 mm
(For brake reaction plate end play)
(6) Measure the end play again, and confirm that
it is within the standard value.
CAUTION
Take care to the shape and assembly direction of
the brake plates installed at section "A" shown in
the illustration.
AK601990
MB991632
AC
A
Snap ring
Second brake
Return spring
(7) Next, install the special tool instead of the
pressure plate for the second brake. Install the
four brake discs and three brake plates.
(8) Install the return spring, second brake and
snap ring.
AK601991
MD998913
MB991632
AC
Moving
amount
(9) Install a dial gauge onto special tool
(MD998913) so that the end contacts the
special tool (MB991632). Move special tool
(MB991632) and measure the moving
amount.
Select a pressure plate with a thickness that
corresponds to the measured moving amount
from the following table.

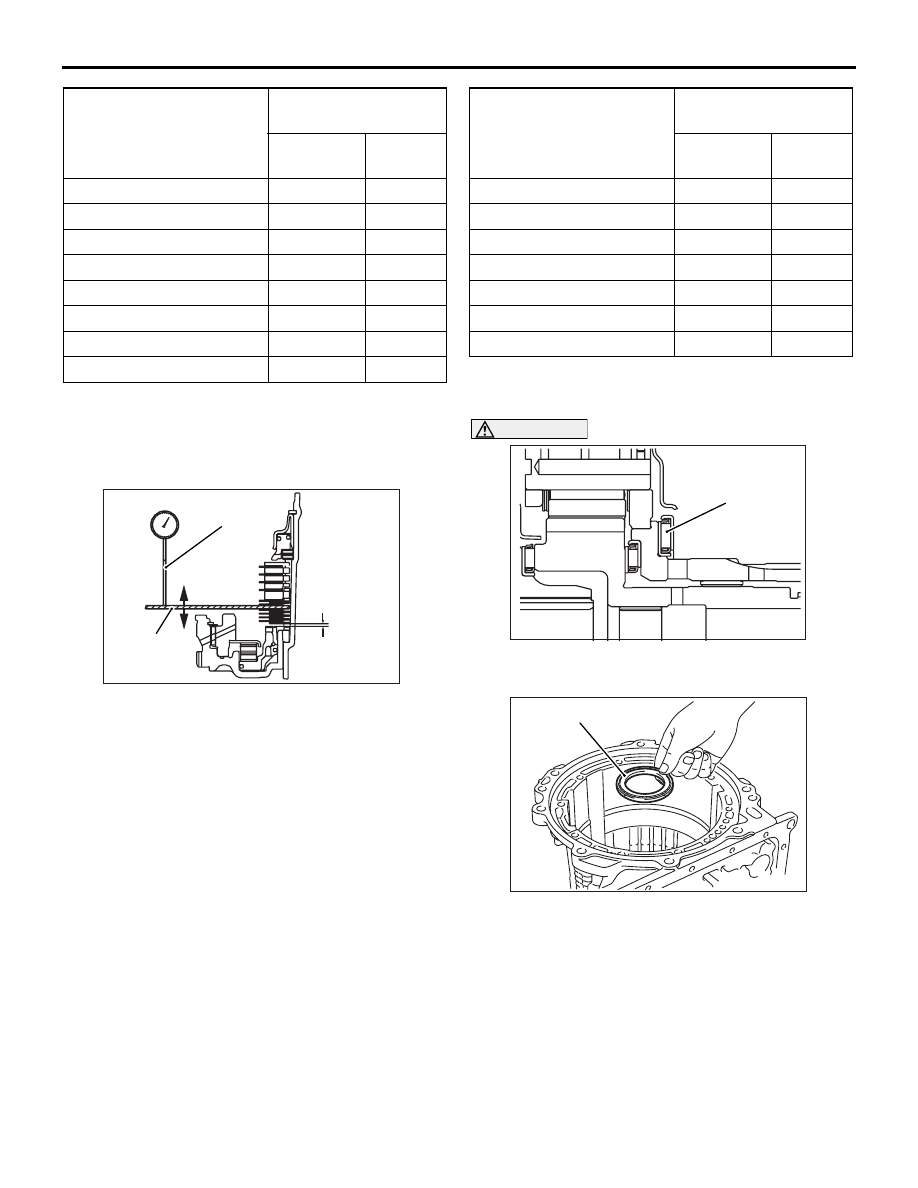

Standard value (reference): 1.49
− 1.95 mm
(For second brake end play)
