AK403506

AB

INPUT GEAR

AUTOMATIC TRANSMISSION OVERHAUL <V4A5>

23C-81

Apply the sealant to the threads.

Specified sealant:

Mitsubishi Part No. MD997740 or equivalent

NOTE: The new bolt is percolate with sealant, so
sealant does not need to be applied.

INPUT GEAR

DISASSEMBLY AND REASSEMBLY

M1233015100249

AK700643

1

2

3

Apply gear oil to
all moving parts
before installation.

AB

Disassembly steps

>>

B

<<

1.

Snap ring

<<

A

>>

>>

A

<<

2.

Ball bearing

3.

Input gear

Disassembly steps (Continued)

INPUT GEAR

AUTOMATIC TRANSMISSION OVERHAUL <V4A5>

23C-82

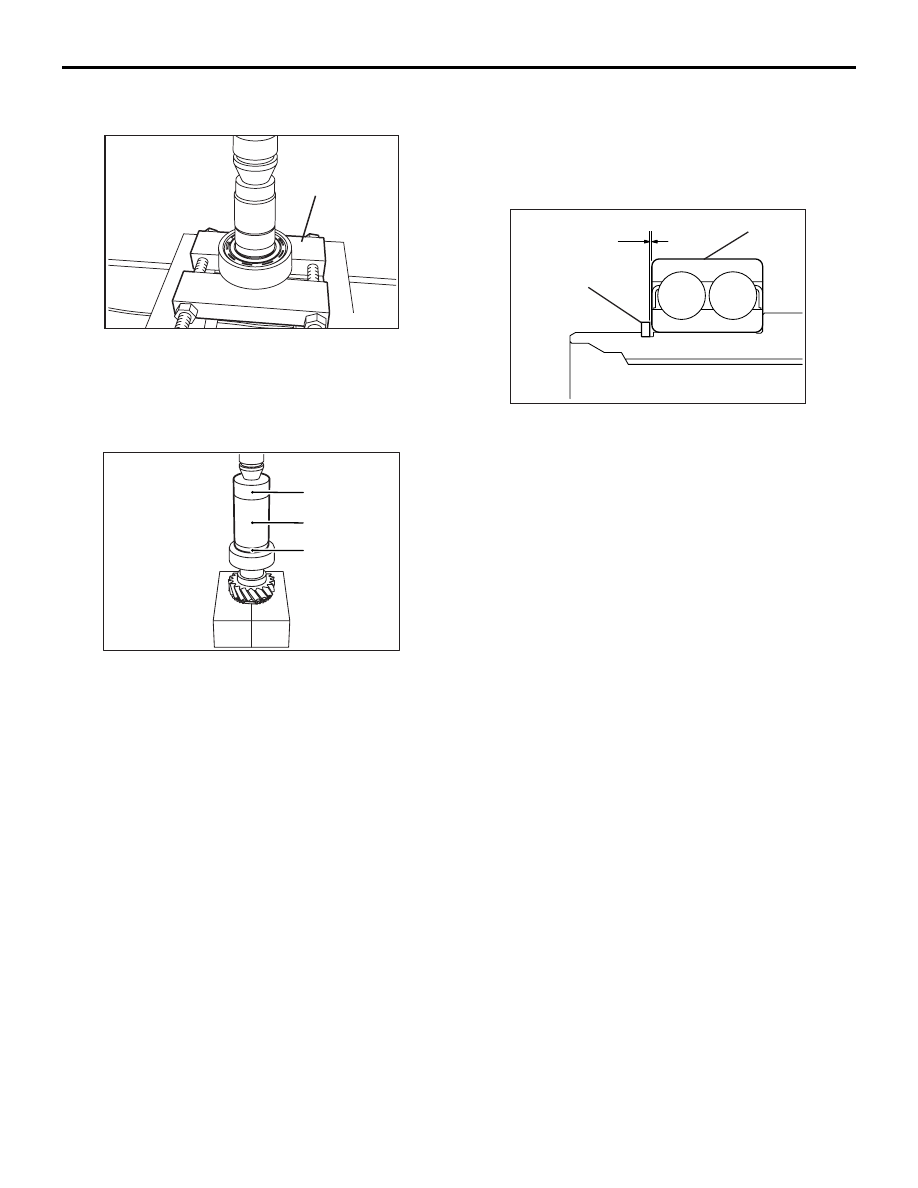

DISASSEMBLY SERVICE POINT

<<A>> BALL BEARING REMOVAL

AKX00253

MD998801

AC

Use special tool Bearing remover (MD998801) to
remove the ball bearing.

REASSEMBLY SERVICE POINTS

>>A<< BALL BEARING INSTALLATION

AK500669

MD998812

MD998824

MD998813

AB

Use special tools to install the ball bearing.

• Installer cap (MD998812)

• Installer-100 (MD998813)

• Installer adapter (MD998824)

>>B<< SNAP RING INSTALLATION

AK500699

Ball bearing

Standard value

Snap ring

AB

1. Install the thickest snap ring that can be fitted in

the snap ring groove of the transfer input gear.

2. Make sure that the transfer input gear bearing end

play meets the standard value.

Standard value: 0

− 0.06 mm

(For input gear bearing end play)

COUNTERSHAFT GEAR

AUTOMATIC TRANSMISSION OVERHAUL <V4A5>

23C-83

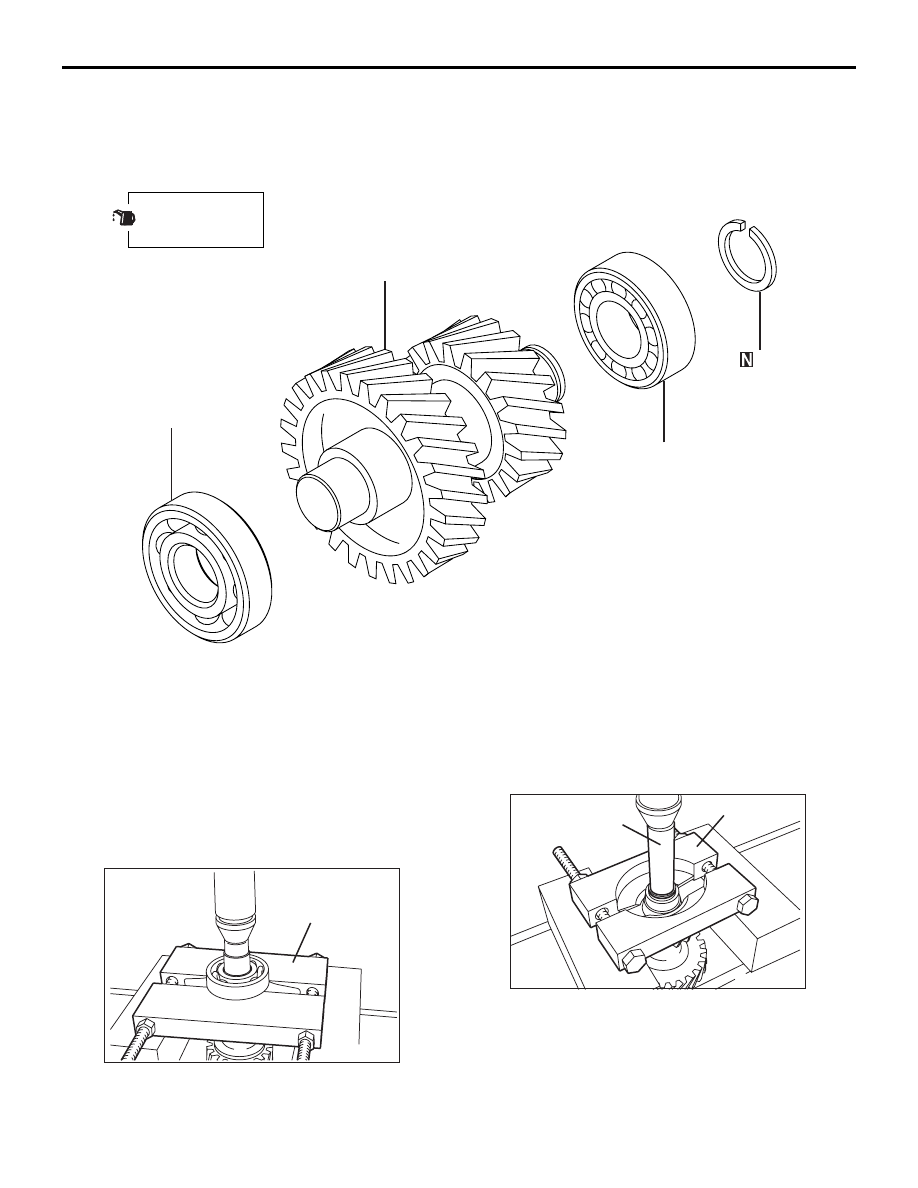

COUNTERSHAFT GEAR

DISASSEMBLY AND REASSEMBLY

M1233024000273

AK700644

Apply gear oil to
all moving parts
before installation.

2

3

4

1

AB

Disassembly steps

<<

A

>>

>>

C

<<

1.

Ball bearing

>>

B

<<

2.

Snap ring

<<

B

>>

>>

A

<<

3.

Roller bearing

4.

Counter shaft gear

DISASSEMBLY SERVICE POINTS

<<A>> BALL BEARING REMOVAL

AKX00257

MD998801

AC

Use special tool Bearing remover (MD998801) to
remove the ball bearing.

<<B>> ROLLER BEARING REMOVAL

AKX00258

MD998801

MD998368

AC

Use special tools to remove the roller bearing.

• Bearing remover (MD998801)

• Bearing installer (MD998368)

COUNTERSHAFT GEAR

AUTOMATIC TRANSMISSION OVERHAUL <V4A5>

23C-84

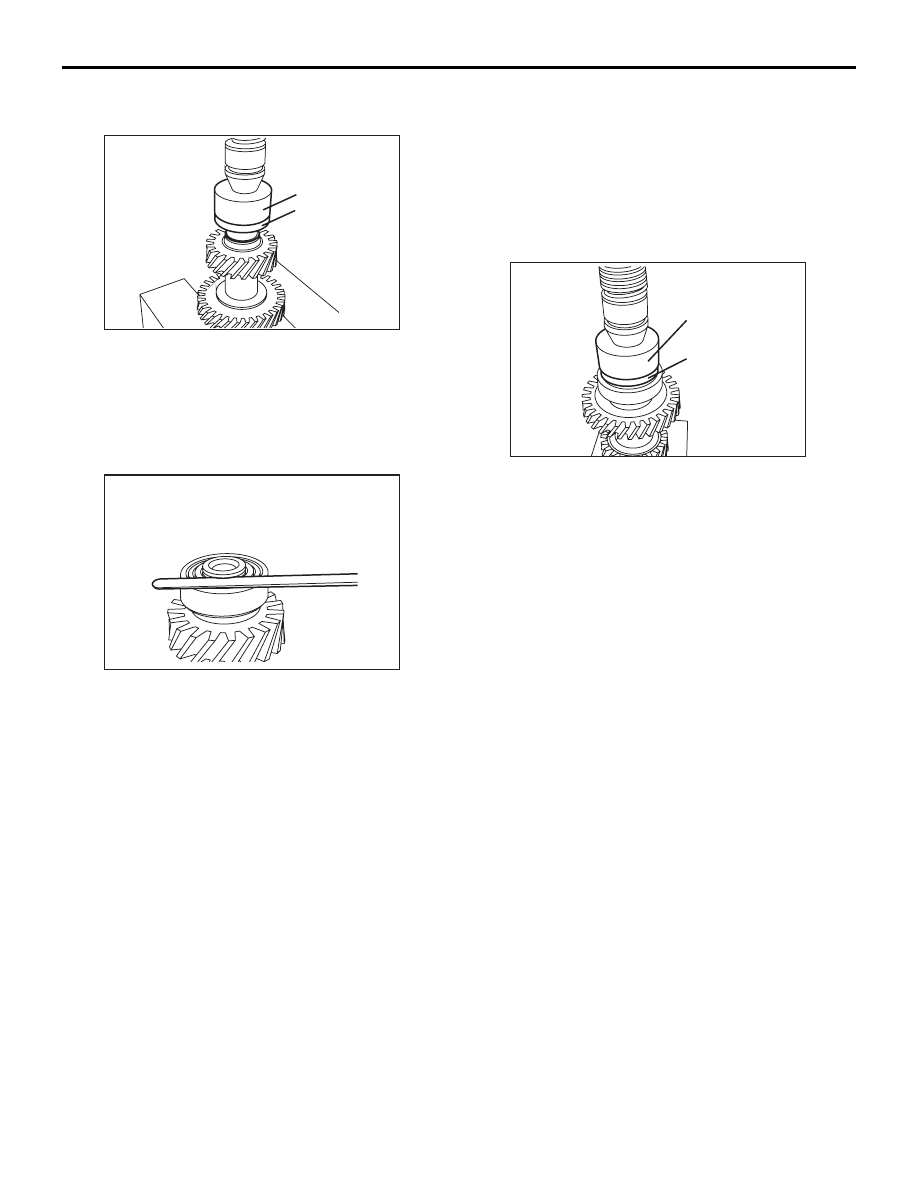

REASSEMBLY SERVICE POINTS

>>A<< ROLLER BEARING INSTALLATION

AKX00259

MD998812

MD998818

AC

1. Use special tools to install the roller bearing.

• Installer cap (MD998812)

• Installer adapter (MD998818)

2. Install the spacer.

>>B<< SNAP RING INSTALLATION

AKX00260

1. Install the thickest snap ring that can be fitted into

the snap ring groove of the counter shaft gear.

2. Make sure that the countershaft gear roller

bearing end play meets the standard value.

Standard value: 0

− 0.08 mm

(For countershaft gear bearing end play)

>>C<< BALL BEARING INSTALLATION

AKX00261

MD998812

MD998818

AC

Use special tools to install the ball bearing.

• Installer cap (MD998812)

• Installer adapter (MD998818)
