Mitsubishi L200. Manual - part 330





TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V4A5>

23C-29

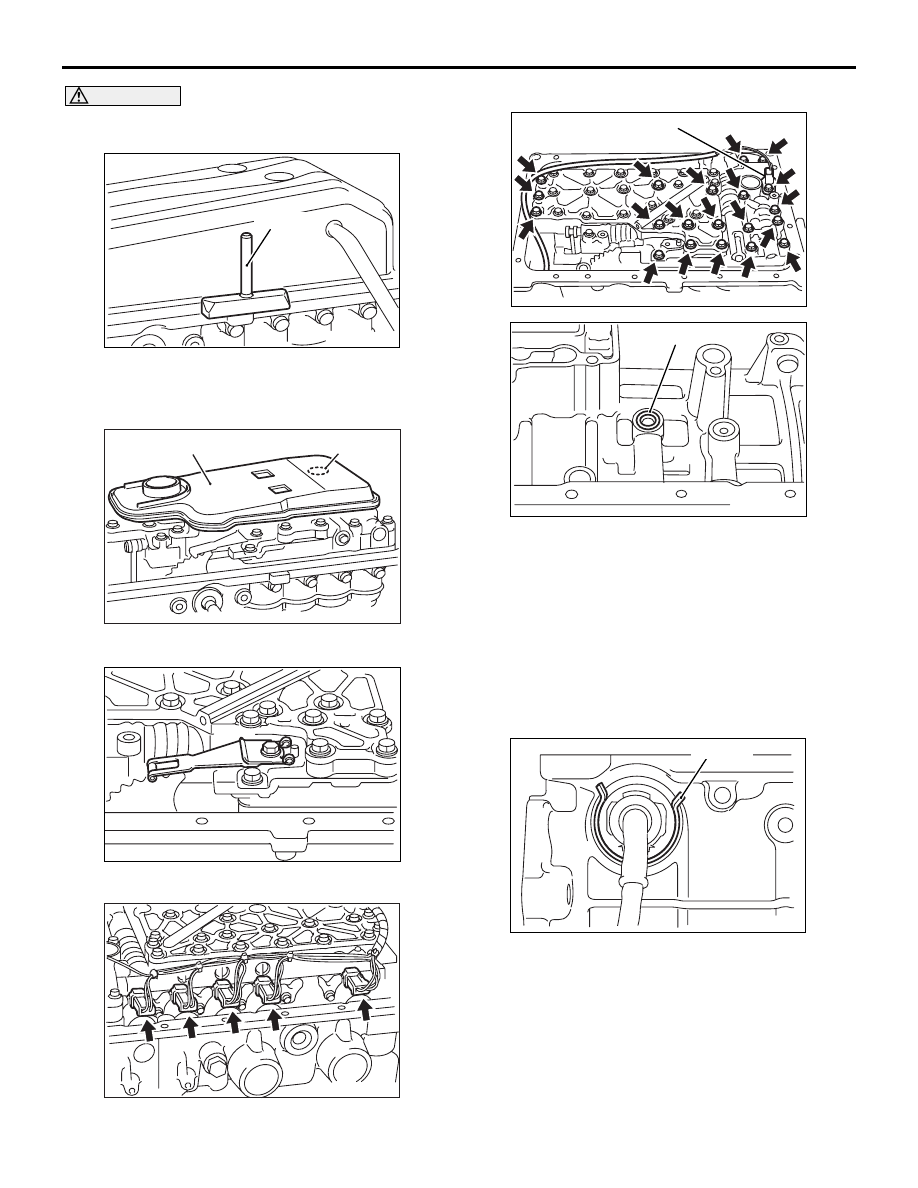

CAUTION

Carefully hammer the special tool so that the oil
pan mounting surface is not damaged.

AK403345AB

MD998727

6. Remove the twenty oil pan mounting bolts and

then use the special tool Oil pan remover
(MD998727) to remove the oil pan.

AK403346

O-ring

Oil filter

AB

7. Remove the oil filter and O-ring.

AK403347

8. Remove the detent spring.

AK700990

AB

9. Disconnect the valve body harness connectors.

AK701362AB

Oil temperature sensor

AK403349AB

O-ring

10.Remove the twenty valve body mounting bolts

and then remove the valve body, O-ring and oil
temperature sensor.
NOTE:

.

The twenty valve body mounting bolts are
plated bolts.

The O-ring is mounted on the transmission
case side as shown in the illustration. How-
ever there may be cases when it will come off
with the valve body.

AK403350AB

Snap ring

11.Remove the snap ring and disconnect the

solenoid valve harness.

AK403351AB

Oil seals

Oil strainer

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V4A5>

23C-30

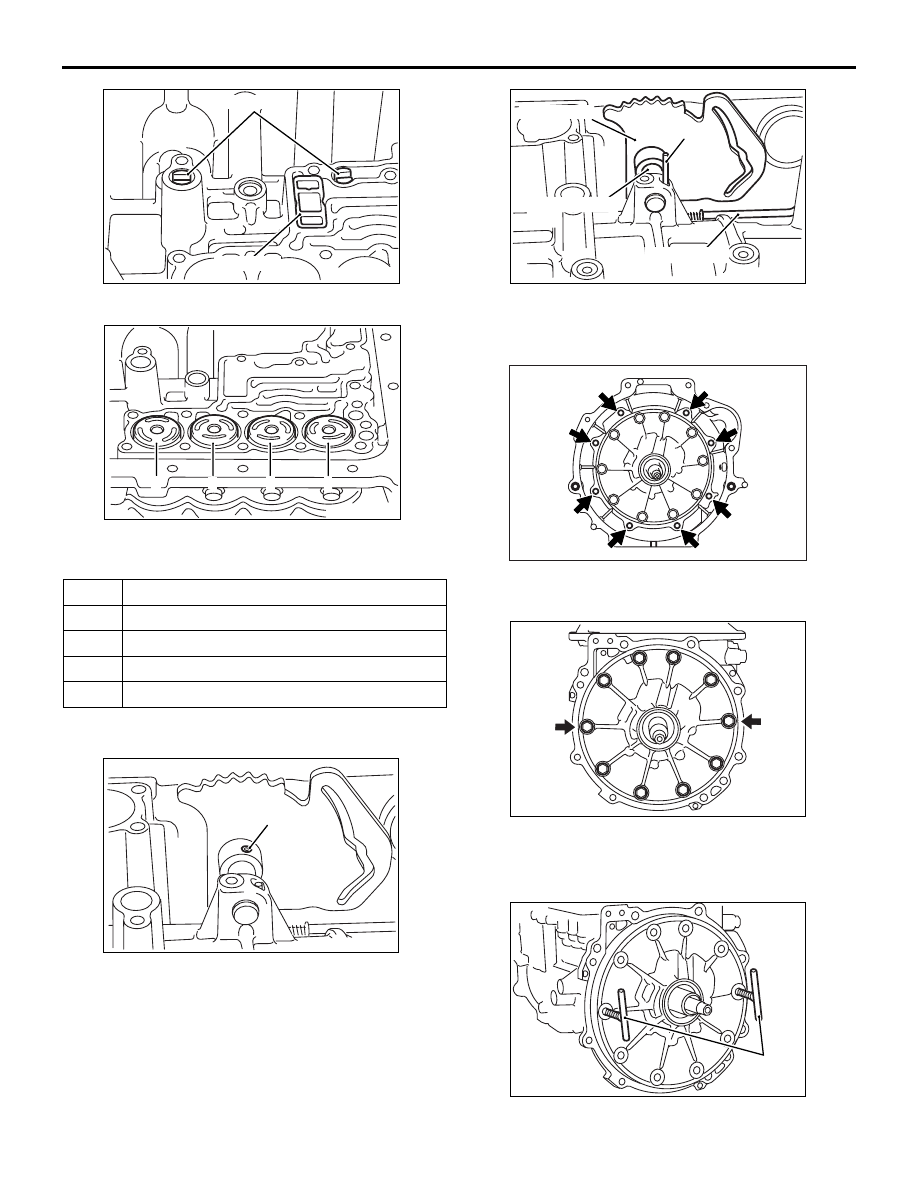

12.Remove the oil strainer and two oil seals.

AK403352AB

1

2

3

4

13.Remover each accumulator piston, seal ring and

spring.

No.

Name

1

For overdrive clutch

2

For second brake

3

For low/reverse brake

4

For underdrive clutch

NOTE: To make assembly easier, attach an iden-
tification tag on the removed accumulator piston.

AK403378AB

Spring pin

14.Remove the detent lever spring pin.

AK403353AB

Pin

Detent lever

Parking roller
rod

Manual control
shaft

15.Remove the pin, and then remove the manual

control shaft, two O-rings, detent lever and
parking roller rod.

AK503505AB

16.Remove the eight converter housing mounting

bolts, and then the converter housing.

AK403355

AB

17.Remove the ten oil pump mounting bolts.
18.Install special tool Oil pump remover (MD998333)

into the bolt hole shown in the illustration.

AK403356AB

MD998333

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V4A5>

23C-31

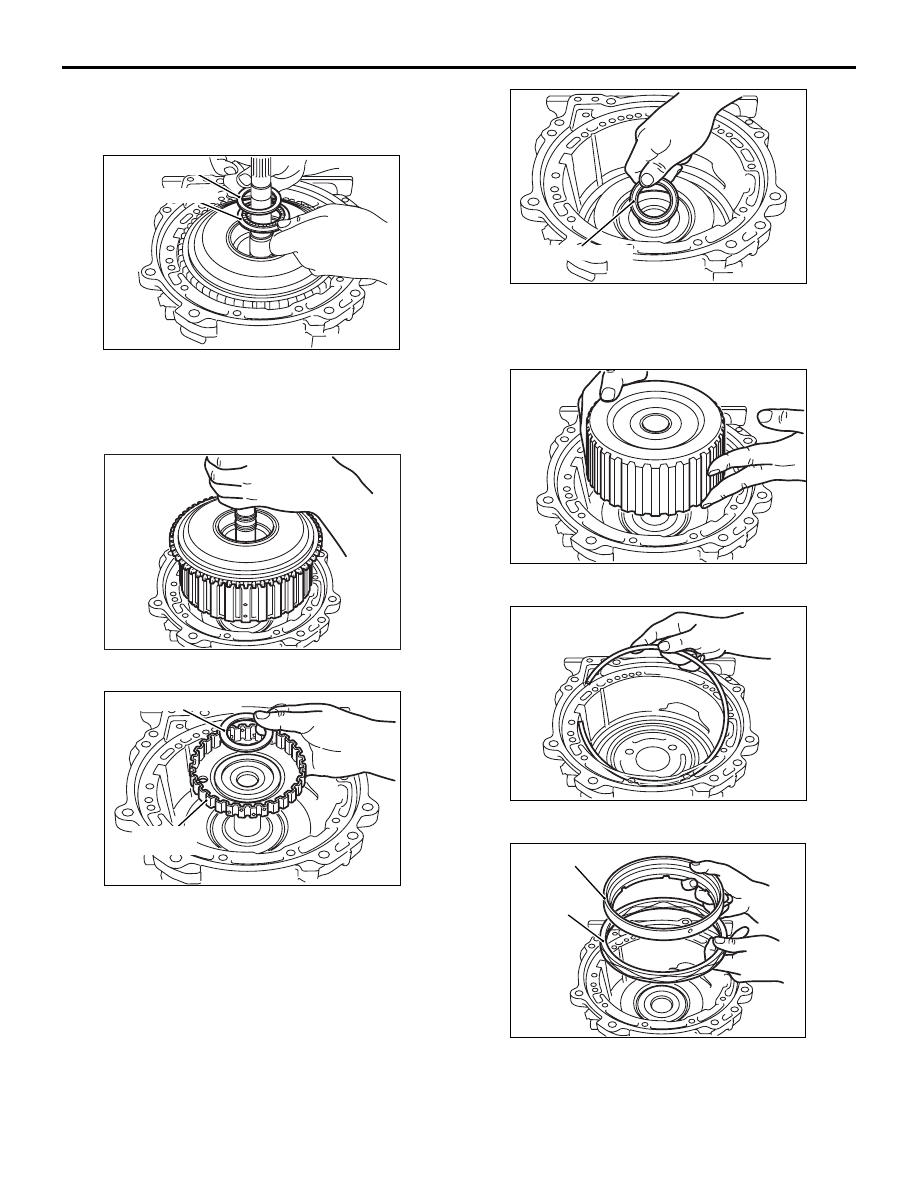

19.While screwing in special tools Oil pump remover

(MD998333) evenly, remove the oil pump.

20.Remove the oil pump gasket.

AK403357AD

Trust race No.1

Trust bearing No.2

21.Remove the thrust race No.1 and thrust bearing

No.2.
NOTE: The thrust race No.1 may be attached to
the oil pump.

AK403358

22.Remove the reverse overdrive clutch.

AK403359AD

Overdrive
clutch hub

Thrust bearing No.3

23.Remove the overdrive clutch hub and thrust

bearing No.3.

AK403360AD

Thrust bearing No.4

24.Remove the thrust bearing No.4.

NOTE: The thrust bearing No.4 may be attached
to the overdrive clutch hub.

AK403361

25.Remove the reverse sun gear.

AK403362

26.Remove the snap ring.

AK403363AB

Second brake

Return spring

27.Remove the second brake and return spring.

AK403364

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <V4A5>

23C-32

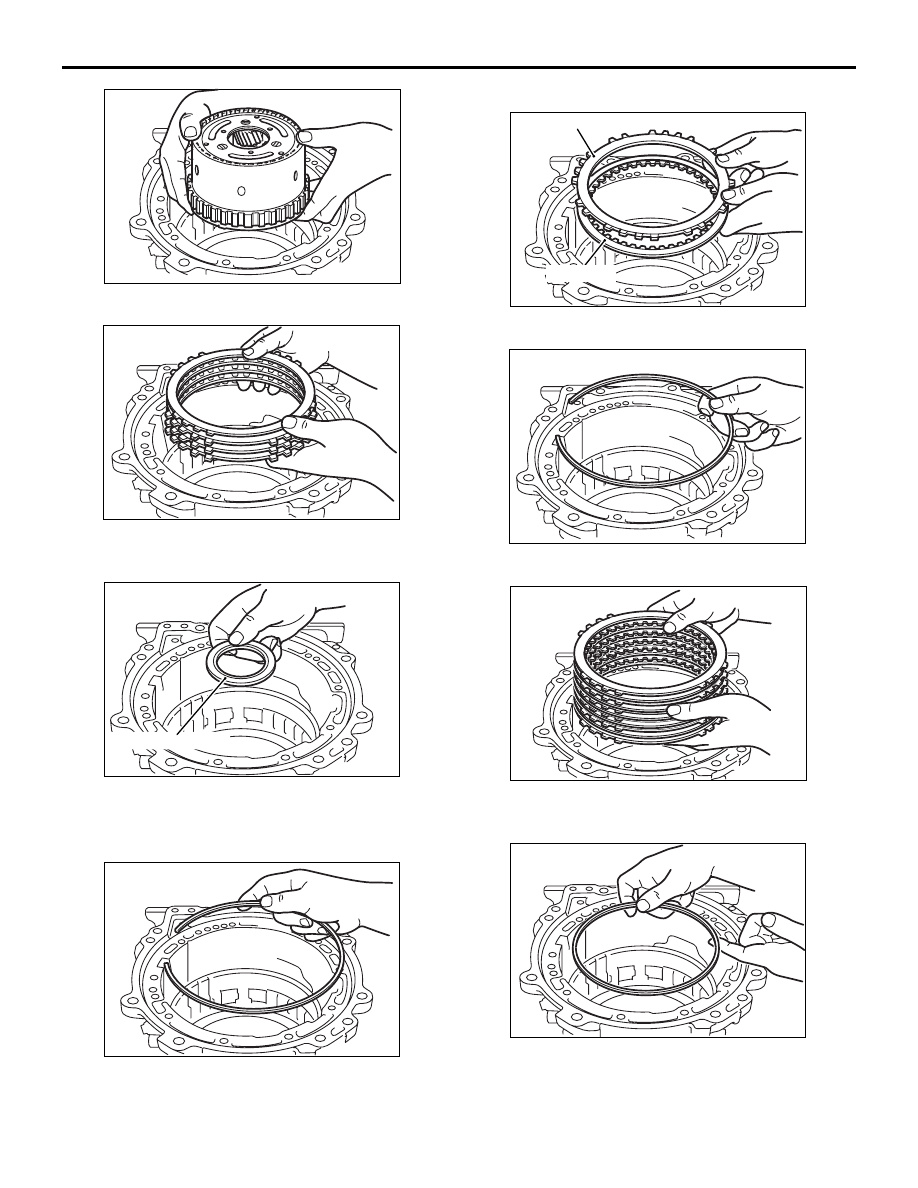

28.Remove the low/reverse annulus gear.

AK403365

29.Remove the pressure plate, brake plates and

brake discs.

AK403366AD

Thrust bearing No.7

30.Remove the thrust bearing No.7.

NOTE: The thrust bearing No.7 may be attached
to the low/reverse annulus gear.

AK403367

31.Remove the snap ring.

AK403368AB

Reaction plate

Brake disc

32.Remove the reaction plate and one brake disc.

AK403369

33.Remove the snap ring.

AK403370

34.Remove the brake plates, brake discs, and

pressure plate.

AK403371

35.Remove the wave spring.
