Mitsubishi L200. Manual - part 313

AK503512

48 ± 6 N·m

39

40

41

43

44

45

46

48

47

49

50

23 ± 3 N·m

42

AE

51

Apply automatic
transmission fluid
to all moving parts
before installation.

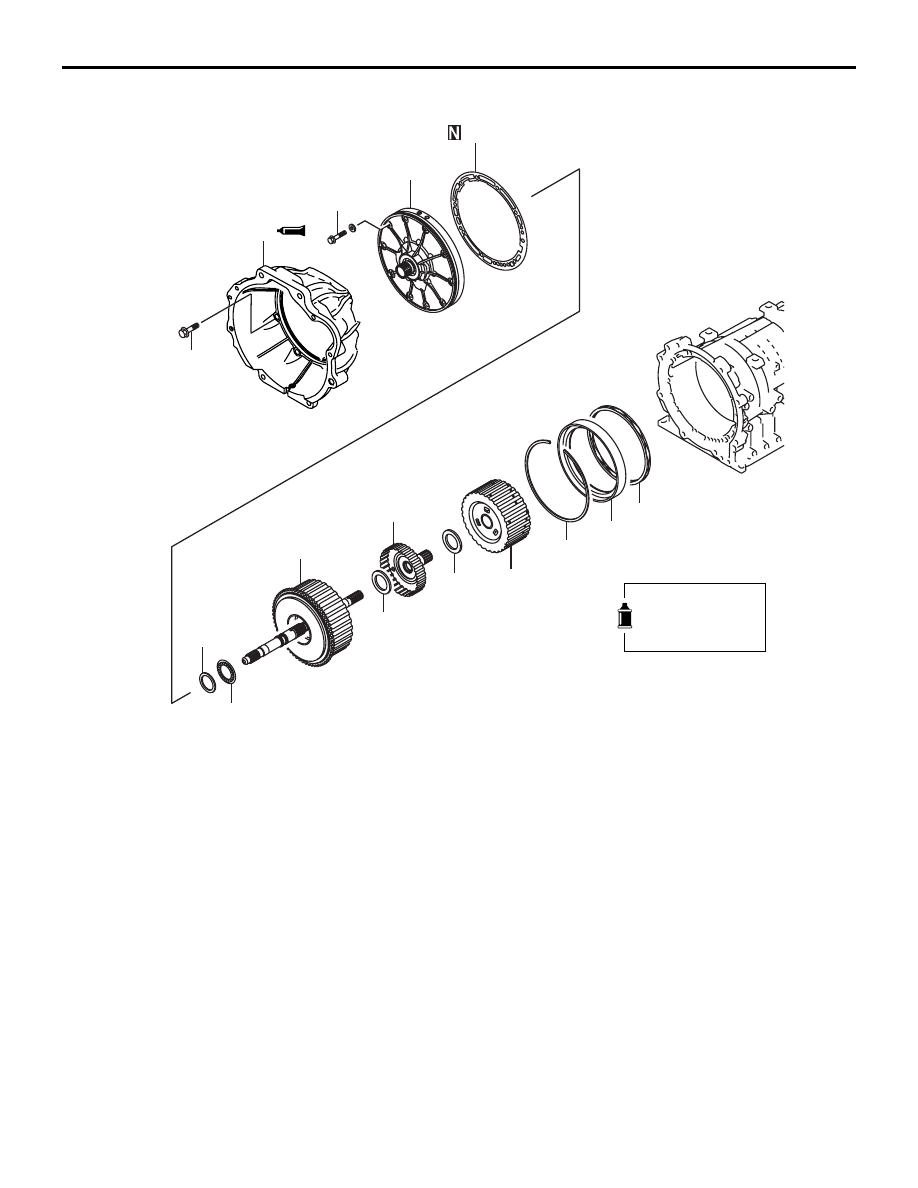

39. Converter housing
40. Oil pump
41. Oil pump gasket
42. Thrust race No.1
43. Thrust bearing No.2
44. Reverse and overdrive clutch
45. Thrust bearing No.3

46. Overdrive clutch hub
47. Thrust bearing No.4
48. Reverse sun gear
49. Snap ring
50. Second brake
51. Return spring

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <R4A5>

23B-16

AKX00019

52

53

54

55

56

57

58

59

60

62

61

AG

Apply automatic
transmission fluid
to all moving parts
before installation.

63

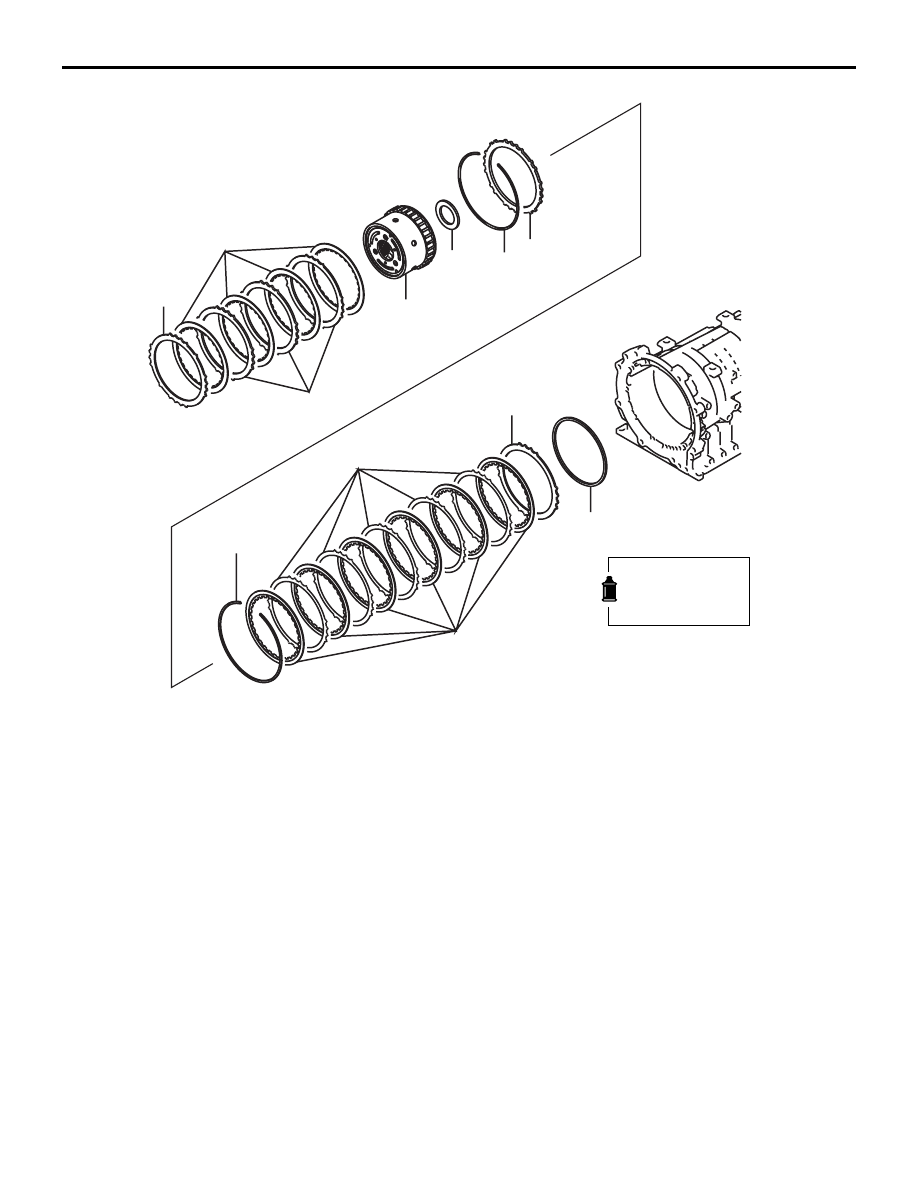

52. Pressure plate
53. Brake plate
54. Brake disc
55. Low/reverse annulus gear
56. Thrust bearing No.7
57. Snap ring

58. Reaction plate
59. Snap ring
60. Brake plate
61. Brake disc
62. Pressure plate
63. Wave spring

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <R4A5>

23B-17

AK800433

Apply automatic
transmission fluid
to all moving parts
before installation.

64

65

66

67

68

69

70

71

72

73

75

74

78

77

76

79

81

80

23 ± 3 N·m

AB

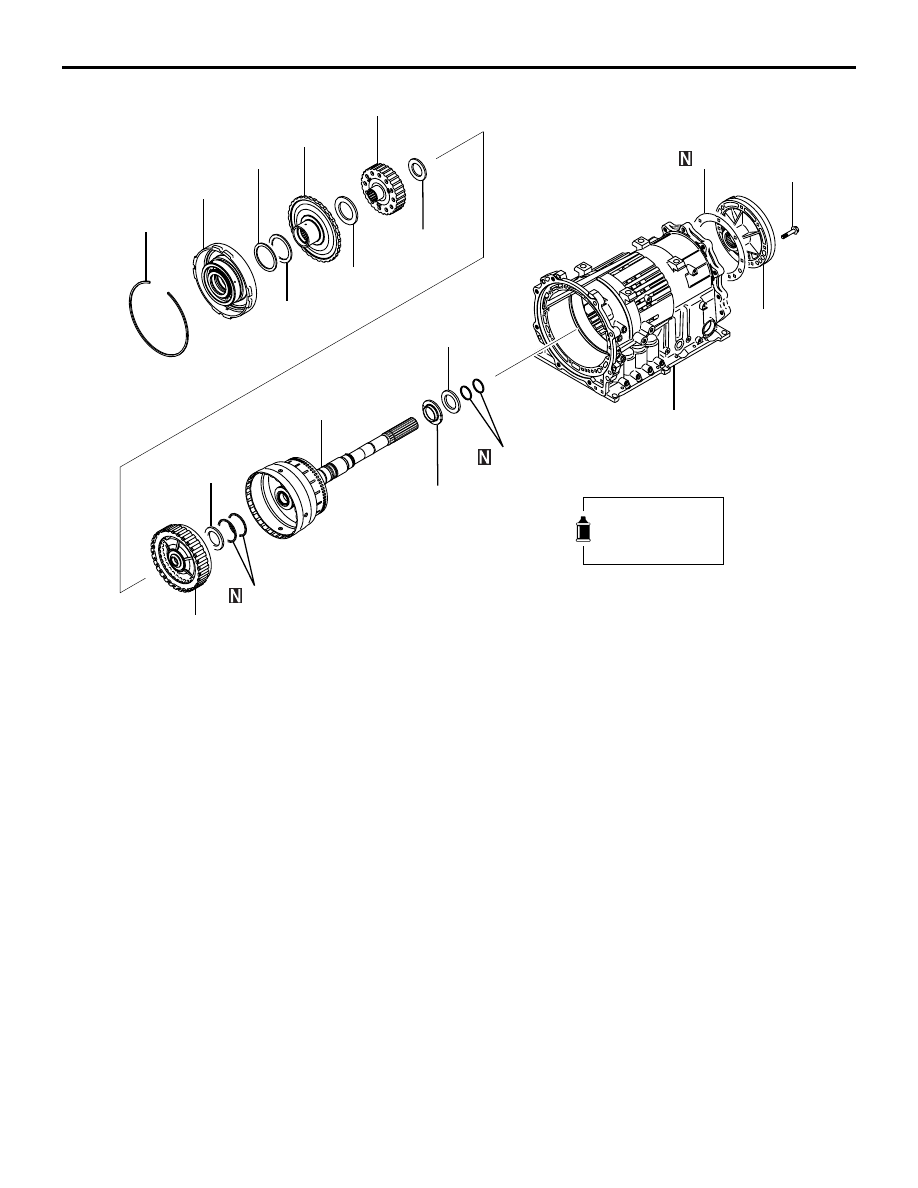

64. Snap ring
65. Center support
66. Thrust race No.8
67. Thrust bearing No.9
68. Output flange
69. Thrust bearing No.10
70. Underdrive clutch hub
71. Thrust bearing No.11
72. Underdrive clutch

73. Thrust bearing No.12
74. Output shaft
75. Seal ring
76. Seal ring
77. Thrust bearing No.13
78. Bearing retainer
79. Output shaft support
80. Output shaft support gasket
81. Transmission case

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <R4A5>

23B-18

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL <R4A5>

23B-19

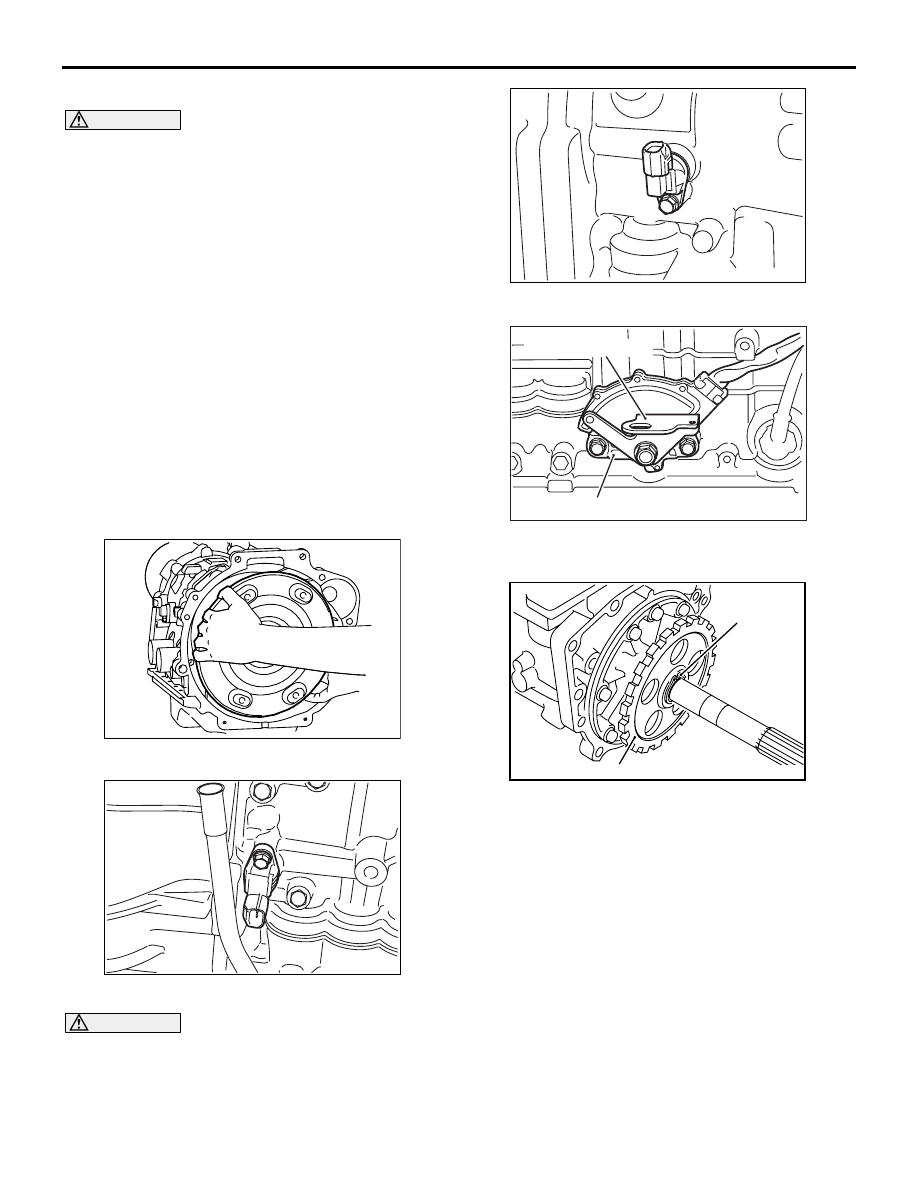

DISASSEMBLY

CAUTION

• The automatic transmission includes many

high-precision parts. Handle these parts
extremely carefully not to scratch or damage
them during disassembly and reassembly.

• Work bench should be covered with a rubber

mat and keep it clean at all times.

• Do not wear any cloth gloves and do not use

any rags during disassembly. Use only nylon
cloth or paper towels if necessary.

• All removed parts must be washed clean.

Metal parts may be washed in an ordinary sol-
vent, but they should be dried completely
using compressed air.

• Clutch discs, plastic thrust plates and rubber

parts should be washed in automatic trans-
mission fluid (ATF) and keep them free of dirt
after washing.

•

AK603561

If the transmission has been found damaged
and repaired, also disassemble and clean the
ATF cooler system.

1. Remove the torque converter.

AK403341

2. Remove the input shaft speed sensor.

AK403342

3. Remove the output shaft speed sensor.

AK403343

Inhibitor switch

Manual control lever

AB

4. Remove the manual control lever, and then

remove the inhibitor switch.

AK800430AB

Snap ring

Parking gear

5. Remove the snap ring, and remove the parking

gear using a puller (corresponding load
approximately 9,800 N).

CAUTION

Carefully hammer the special tool so that the oil
pan mounting surface is not damaged.
