TROUBLESHOOTING

DIESEL FUEL

13A-228

STEP 5. Check harness between A-45 (terminal
No. 2) EGR valve assembly connector and C-105
(terminal No. 81) engine-ECU connector.

• Check earthing line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

STEP 6. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 16: EGR valve position sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Replace the engine-ECU. When the engine-
ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ).

STEP 7. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 16: EGR valve position sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Replace the EGR valve assembly.

Code No. P0420: Catalyst Malfunction <Euro5>

FUNCTION

• The engine-ECU injects the fuel with the slower

timing than usual (post injection), so that the oxy-
gen and HC of exhaust gas burn in the catalyst,
and the exhaust gas temperature raises up to the
level which enables the DPF regeneration.

• The engine-ECU monitors the signals from the

No. 2 exhaust gas temperature sensor (catalyst
temperature) to detect the catalyst inactivation.

TROUBLE JUDGMENT

Check Condition

• On DPF regeneration

Judgement Criteria

• The conditions below continues for 30 seconds.

• The fuel injection amount exceeds the specified

value.

• The engine speed exceeds the specified value.

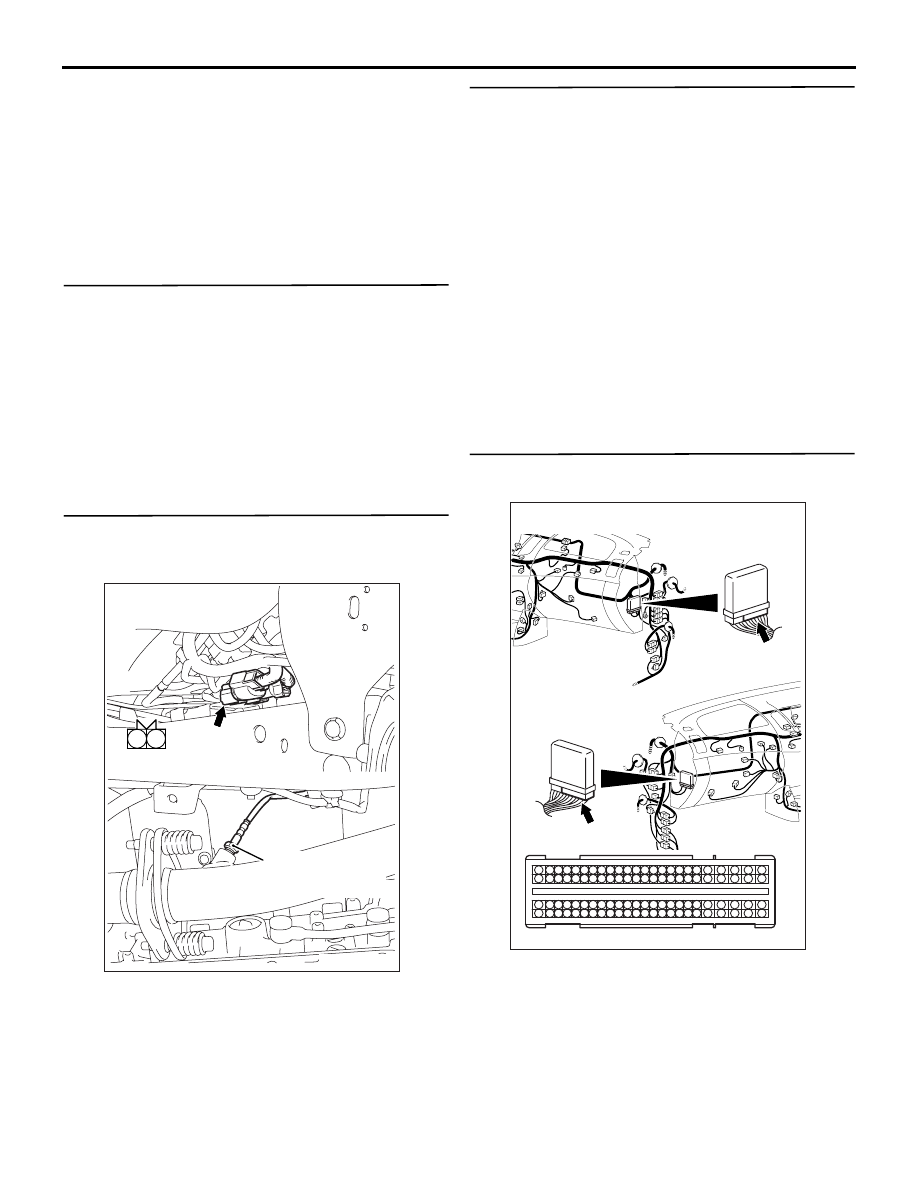

AK501331

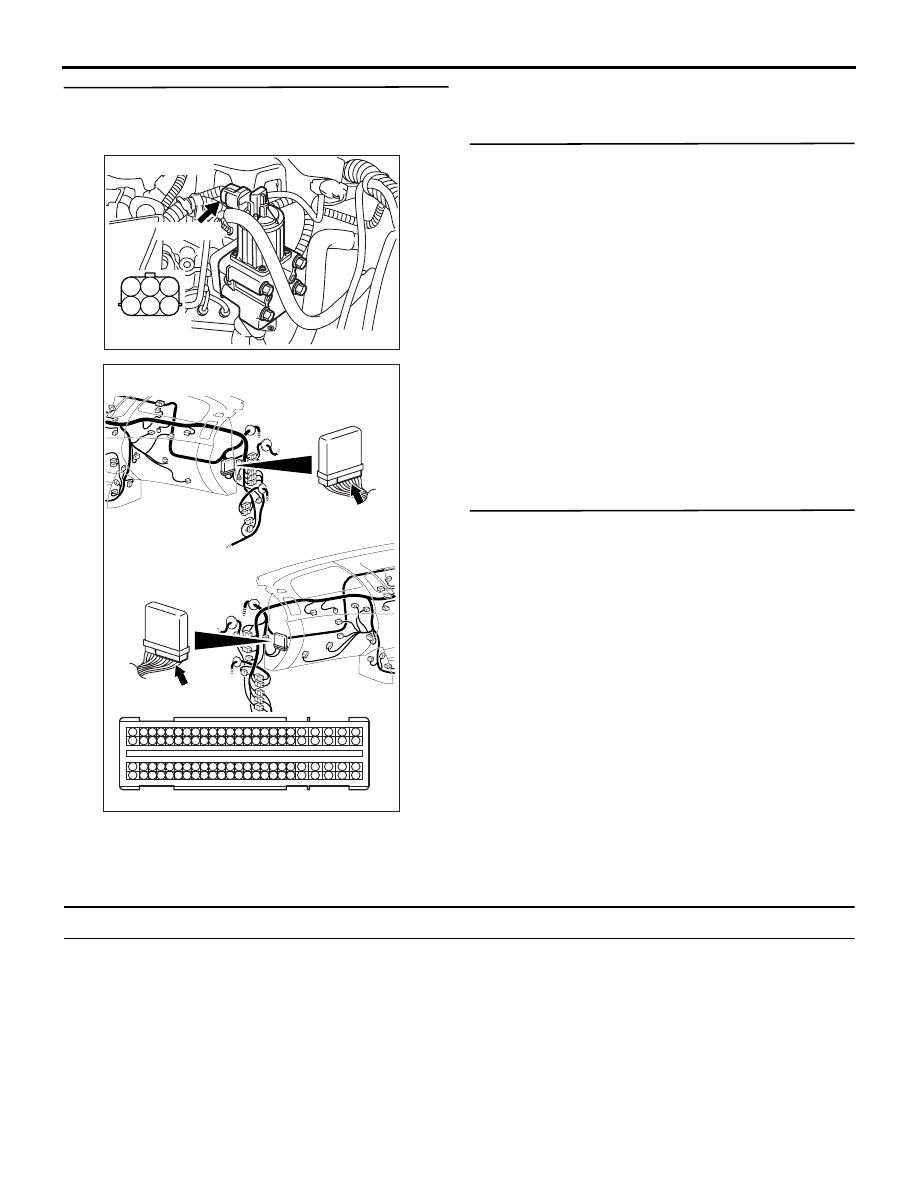

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-229

• The No. 1 exhaust gas temperature sensor is

350

°C or higher.

• The No. 2 exhaust gas temperature sensor (cata-

lyst temperature) is 450

°C or below.

PROBABLE CAUSES

• Failed No. 1 exhaust gas temperature sensor

• Failed No. 2 exhaust gas temperature sensor

(catalyst temperature)

• Catalytic converter inactive

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list.

• Refer to Data List Reference Table

P.13A-542

.

a. Item 117: No. 1 exhaust gas temperature sen-

sor

b. Item 118: No. 2 exhaust gas temperature sen-

sor (catalyst temperature)

Q: Are the check results normal?

YES :

Go to Step 2 .

NO :

Perform the diagnosis code classified check
procedure for the sensor that has shown an
abnormal data value (Refer to Inspection
Chart for Diagnosis Code

P.13A-21

).

STEP 2. Forcible DPF regeneration execution

• Initialise the DPF-related parts, and then delete

the diagnosis code (Refer to GROUP 00

− Pre-

cautions before Service

− Initialisation Procedure

for Learning Value in Diesel Particulate Filter
(DPF) System ).

a. Item 42: DPF system malfunction service

• Carry out the forcible DPF regeneration (Refer to

GROUP 17

− Emission Control − Diesel Particu-

late Filter (DPF) System

− Forcible DPF Regen-

eration ).

Q: Is the diagnosis code P0420 or P1497 output?

YES :

 Replace the catalytic converter. When the

catalytic converter is replaced, initialise the
learning value. (Refer to GROUP 00

−

Precautions before Service

− Initialisation

Procedure for Learning Value in Diesel
Particulate Filter (DPF) System .) On
completion, carry out the forcible DPF
regeneration (Refer to GROUP 17

−

Emission Control

− Diesel Particulate Filter

(DPF) System

− Forcible DPF Regeneration

).

NO :

Replace the engine-ECU. When the engine-
ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
carry out the forcible DPF regeneration.
(Refer to GROUP 17

− Emission Control −

Diesel Particulate Filter (DPF) System

−

Forcible DPF Regeneration ).

TROUBLESHOOTING

DIESEL FUEL

13A-230

Code No. P0427: No. 2 Exhaust Gas Temperature Sensor (catalyst temperature) Circuit Low Input
<Euro5>

OPERATION

• A power voltage of 5 V is applied to the No. 2

exhaust gas temperature sensor (catalyst tem-
perature) output terminal (terminal No. 1) from
the engine-ECU (terminal No. 59).

• The power voltage is earthed to the engine-ECU

(terminal No. 83) from the No. 2 exhaust gas tem-
perature sensor (catalyst temperature) (terminal
No. 2).

FUNCTION

• The No. 2 exhaust gas temperature sensor (cata-

lyst temperature) converts the catalyst tempera-
ture into a voltage and inputs the voltage signal to
the engine-ECU.

• Engine-ECU uses this voltage output for DPF

regeneration control.

• The No. 2 exhaust gas temperature sensor (cata-

lyst temperature) is a kind of resistor, which has
characteristics to reduce its resistance as the cat-
alyst temperature rises. Therefore, the sensor
output voltage varies with the catalyst tempera-
ture, and becomes lower as the catalyst tempera-
ture rises.

TROUBLE JUDGMENT

Check Conditions

• Battery positive voltage is 8 − 16 V

• 2 seconds later after the ignition switch has been

in "ON" position or the engine has started up.

Judgment Criterion

• The No. 2 exhaust gas temperature sensor (cata-

lyst temperature) output voltage is 0.255 V or
less.

AKB00271

1

2

3

4

5 6 7 8 9

10 1112 13 14 15 16 17 18 19 20 21 22 23 24

25 26

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

43 44 45 46 47 48

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

1 2

AB

BR-G

O-B

R-B

GR-R

Engine-ECU

No. 2 exhaust gas
temperature sensor
(catalyst temperature)

A-159

MU802601

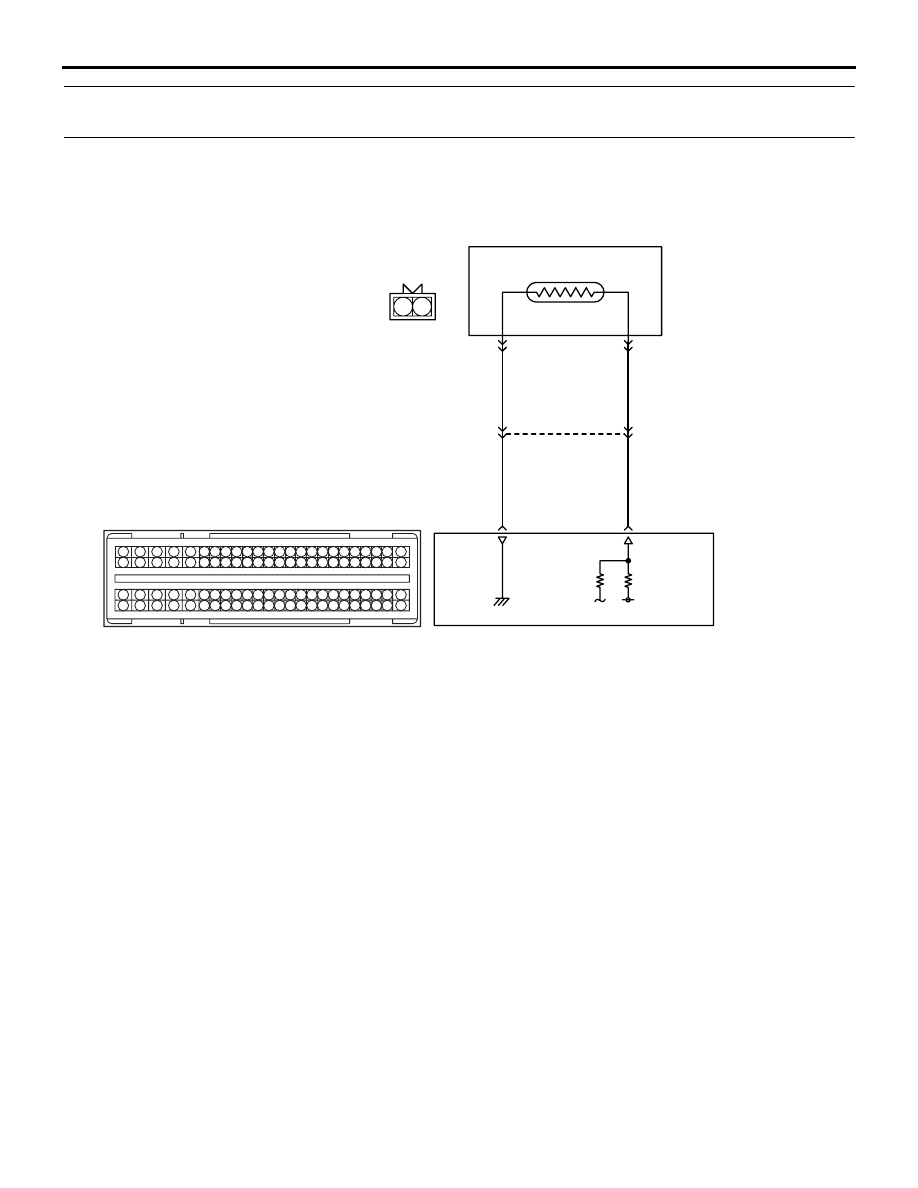

No. 2 Exhaust Gas Temperature Sensor (catalyst temperature) Circuit

2

83

1

2

8

59

A-28

5 V

C-105

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Grey
R: Red  P: Pink  V: Violet  PU: Purple  SI: Silver

TROUBLESHOOTING

DIESEL FUEL

13A-231

PROBABLE CAUSES

• Failed No. 2 exhaust gas temperature sensor

(catalyst temperature)

• Short circuit in No. 2 exhaust gas temperature

sensor (catalyst temperature) circuit or loose con-
nector contact

• Failed engine-ECU

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 118: No. 2 exhaust gas temperature sensor

(catalyst temperature)

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Go to Step 2 .

STEP 2. Connector check: A-159 No. 2 exhaust
gas temperature sensor (catalyst temperature)
connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Check No. 2 exhaust gas temperature
sensor (catalyst temperature) itself.

• Check No. 2 exhaust gas temperature sensor

(catalyst temperature) itself (Refer to GROUP 17
− Emission Control − Diesel Particulate Filter
(DPF) System

− No. 2 Exhaust Gas Temperature

Sensor (catalyst temperature) Check ).

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace the No. 2 exhaust gas temperature
sensor (catalyst temperature). After
replacing the No. 2 exhaust gas
temperature sensor (catalyst temperature),
carry out the forcible DPF regeneration.
(Refer to GROUP 17

− Emission Control −

Diesel Particulate Filter (DPF) System

−

Forcible DPF Regeneration ).

STEP 4. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair or replace the connector.

1

2

AKB00272

A-159 (B)

Harness side
connector

Connector: A-159

No. 2 exhaust gas
temperature sensor
(catalyst temperature)

AB

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB
