Mitsubishi L200. Manual - part 107

TROUBLESHOOTING

DIESEL FUEL

13A-224

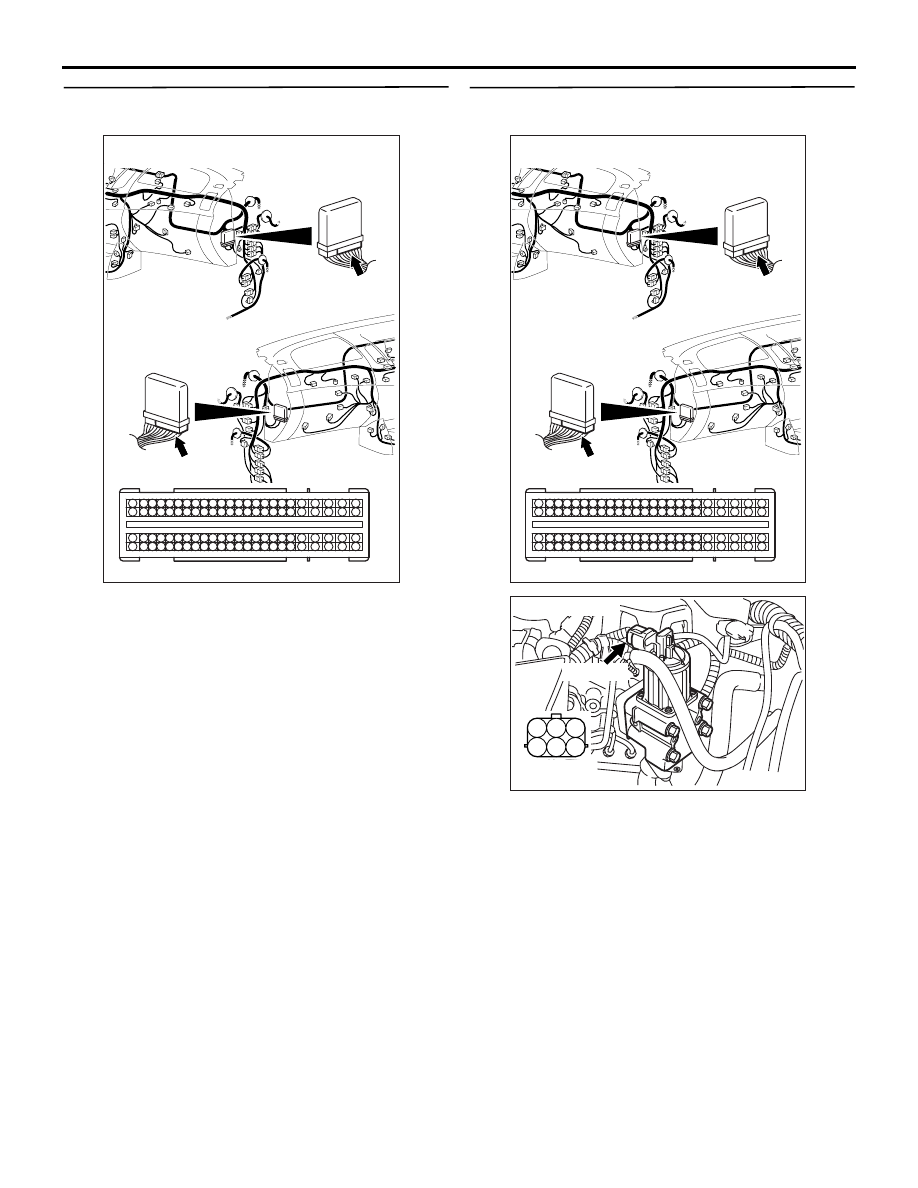

STEP 15. Perform voltage measurement at C-105
engine-ECU connector.

• Measure engine-ECU terminal voltage.

• Engine: Idling (after warning up)

• Voltage between terminal No. 57 and earth.

OK: 2.0 V or higher

Q: Is the check result normal?

YES :

Go to Step 17 .

NO :

Go to Step 16 .

STEP 16. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Check and repair harness between A-45

(terminal No. 1) EGR valve assembly
connector and C-105 (terminal No. 57)
engine-ECU connector.

• Check output line for open circuit and

damage.

NO :

Repair or replace the connector.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

TROUBLESHOOTING

DIESEL FUEL

13A-225

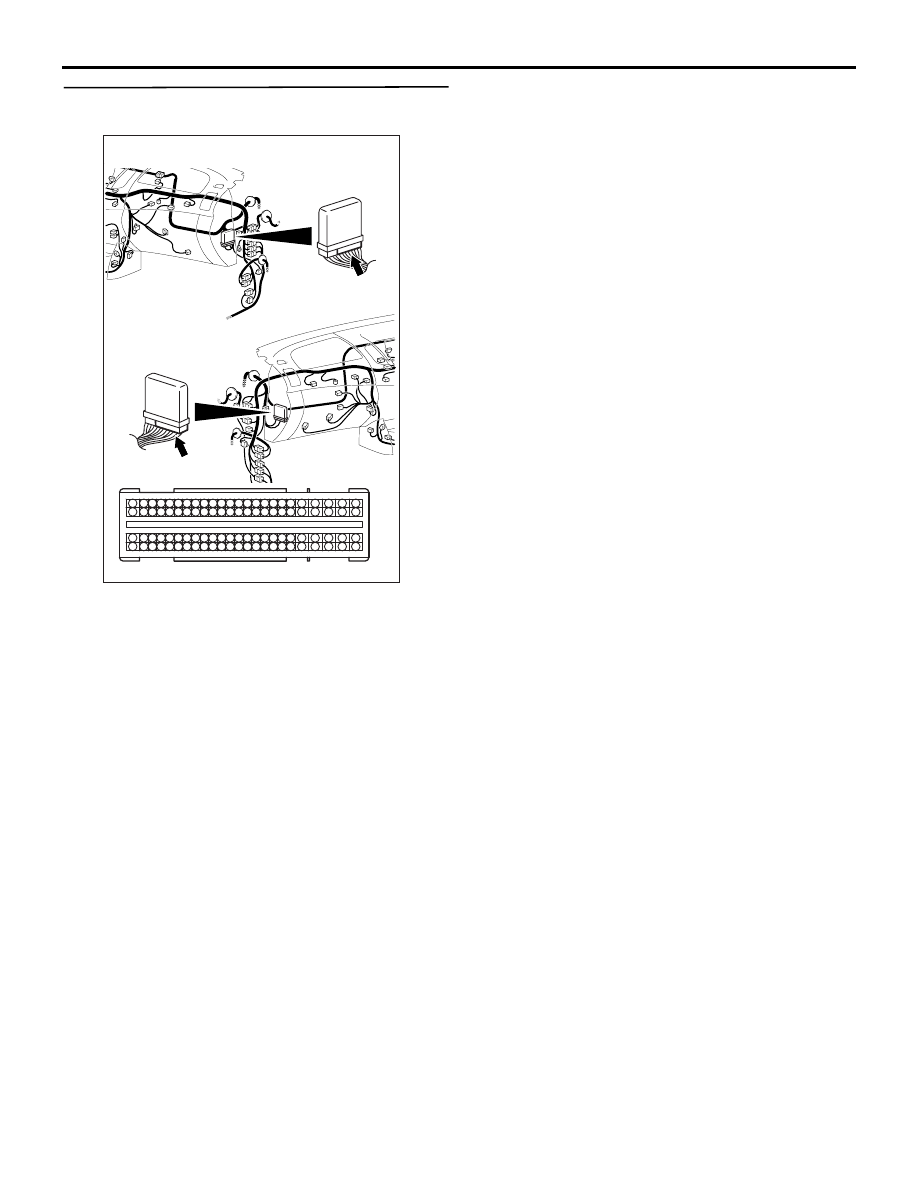

STEP 17. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair or replace the connector.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-226

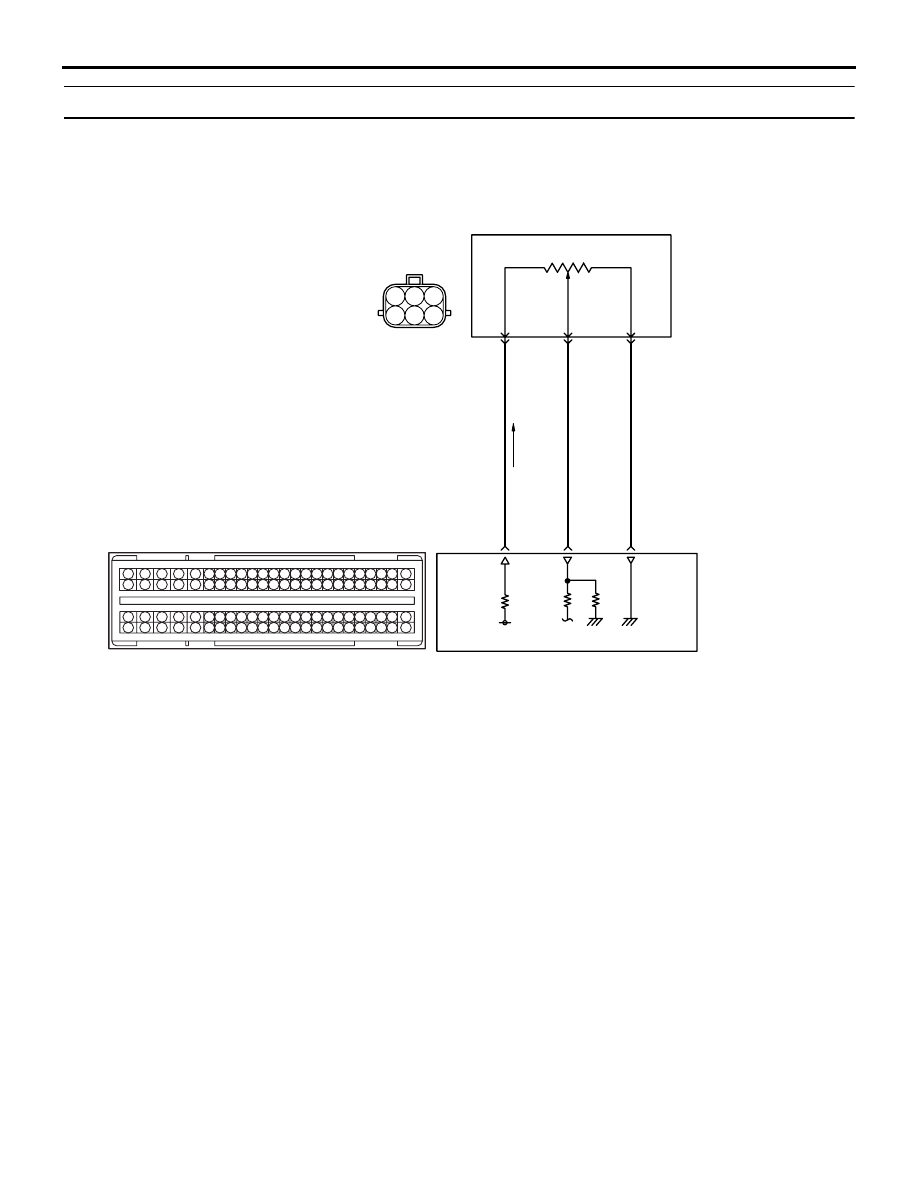

Code No. P0406: EGR Valve Position Sensor Circuit High Input <Except Euro5>

OPERATION

• A power voltage of 5 V is applied to the EGR

valve assembly power terminal (terminal No. 3)
from the engine-ECU (terminal No. 71) and
earthed to the engine-ECU (terminal No. 81) from
the EGR valve assembly (terminal No. 2).

• The sensor signal is inputted to the engine-ECU

(terminal No. 57) from the EGR valve assembly
output terminal (terminal No. 1).

FUNCTION

• The EGR valve assembly detects the position of

the EGR valve and sends the signal to the
engine-ECU.

• Based on the signal, the engine-ECU performs

the feedback control of the EGR valve.

TROUBLE JUDGMENT

Check Conditions

• Battery positive voltage is 8 − 16 V

• 2 seconds later after the ignition switch has been

in "ON" position or the engine has started up.

Judgment Criterion

• The EGR valve position sensor output voltage is

4.80 V or more for 0.5 second.

PROBABLE CAUSES

• Failed EGR valve position sensor

• Open circuit in EGR valve position sensor circuit

or loose connector contact

• Failed engine-ECU

AKA00103

1

2 3

4

5 6

1

2

3

4

5 6 7 8 9

10 1112 13 14 15 16 17 18 19 20 21 22 23 24

25 26

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

43 44 45 46 47 48

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

5 V

71

3

EGR valve assembly

SB

G-B

BR-B

57

81

1

2

EGR valve Position Sensor Circuit

C-105

A-45

(MU802056)

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Grey
R: Red  P: Pink  V: Violet  PU: Purple  SI: Silver

Engine-ECU

AB

TROUBLESHOOTING

DIESEL FUEL

13A-227

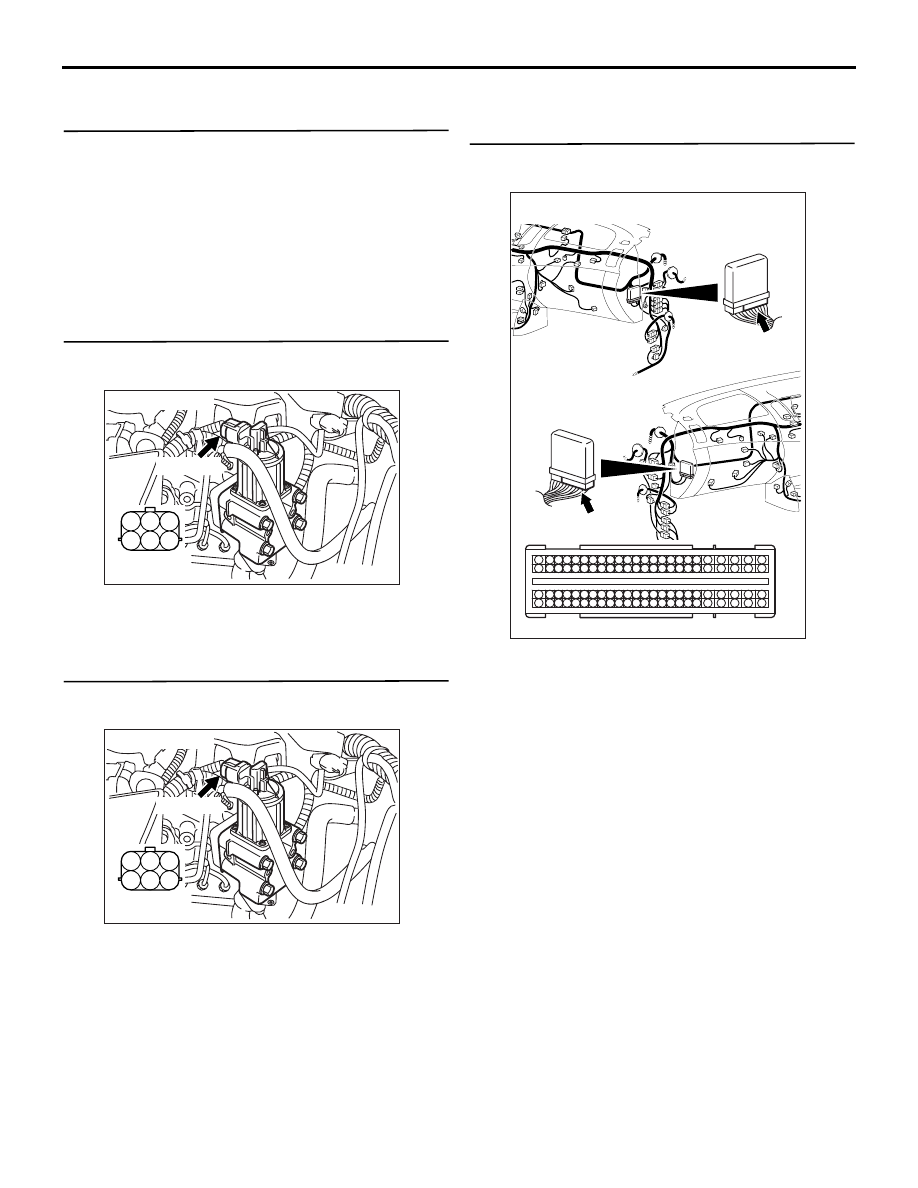

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 16: EGR valve position sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Go to Step 2 .

STEP 2. Connector check: A-45 EGR valve
assembly connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Perform resistance measurement at A-45
EGR valve assembly connector.

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 2 and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Go to Step 4 .

STEP 4. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair or replace the connector.

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB
