TROUBLESHOOTING

DIESEL FUEL

13A-204

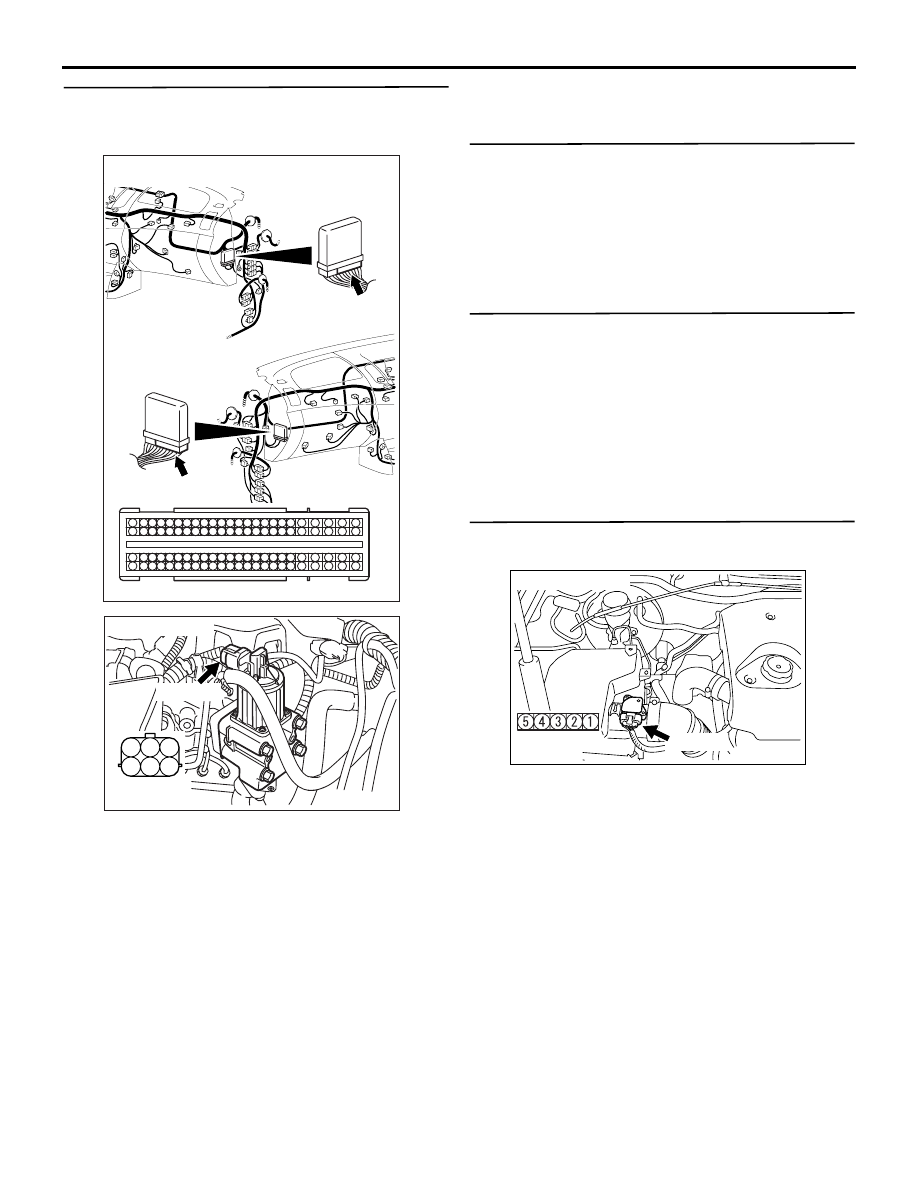

STEP 4. Check harness between C-103 (terminal
No. 115) engine-ECU connector and A-45
(terminal No. 6) EGR valve assembly connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair the damaged harness wire.

STEP 5. Check harness between C-103 (terminal
No. 130) engine-ECU connector and A-45
(terminal No. 4) EGR valve assembly connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

STEP 6. Check harness between C-105 (terminal
No. 81) engine-ECU connector and A-45 (terminal
No. 2) EGR valve assembly connector.

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

TROUBLESHOOTING

DIESEL FUEL

13A-205

• Check earthing line for damage.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair the damaged harness wire.

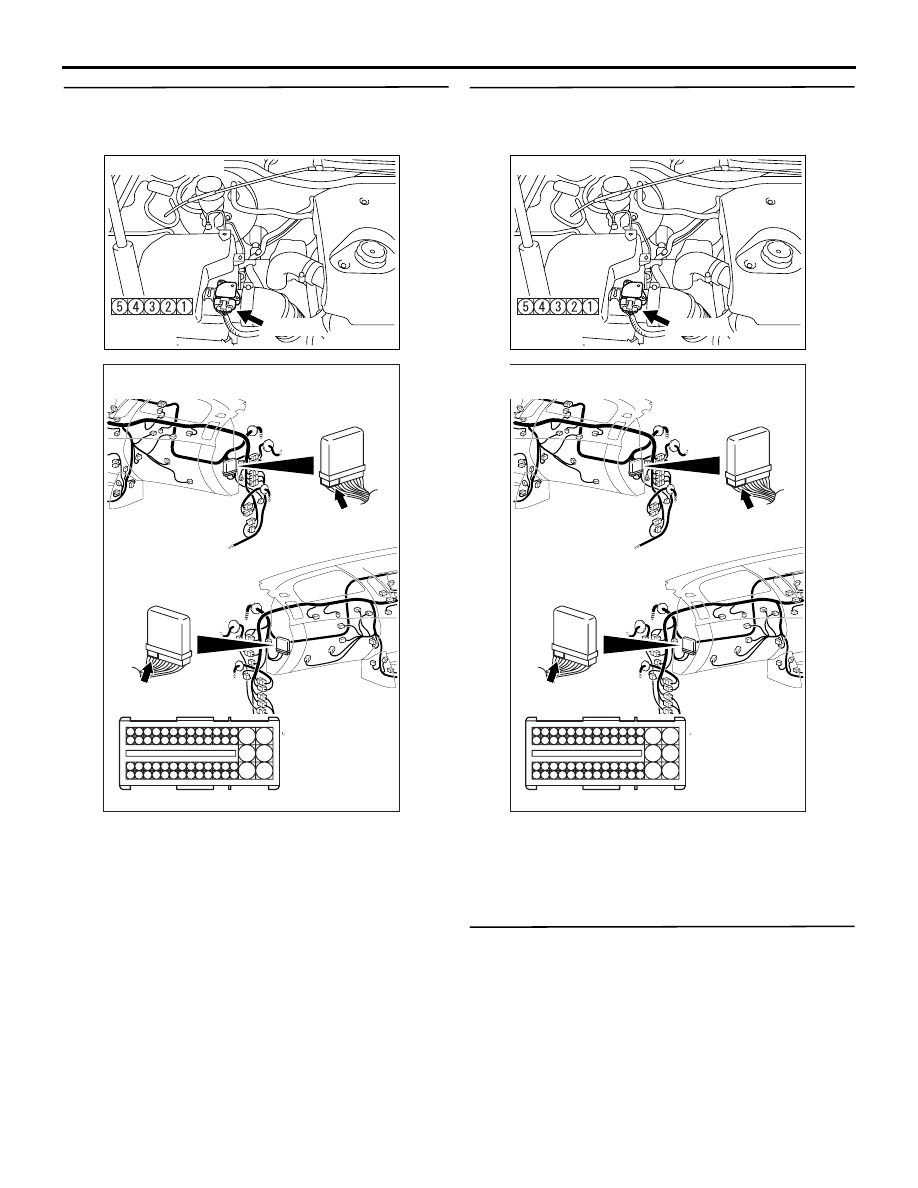

STEP 7. Check harness between C-105 (terminal
No. 71) engine-ECU connector and A-45 (terminal
No. 3) EGR valve assembly connector.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair the damaged harness wire.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

TROUBLESHOOTING

DIESEL FUEL

13A-206

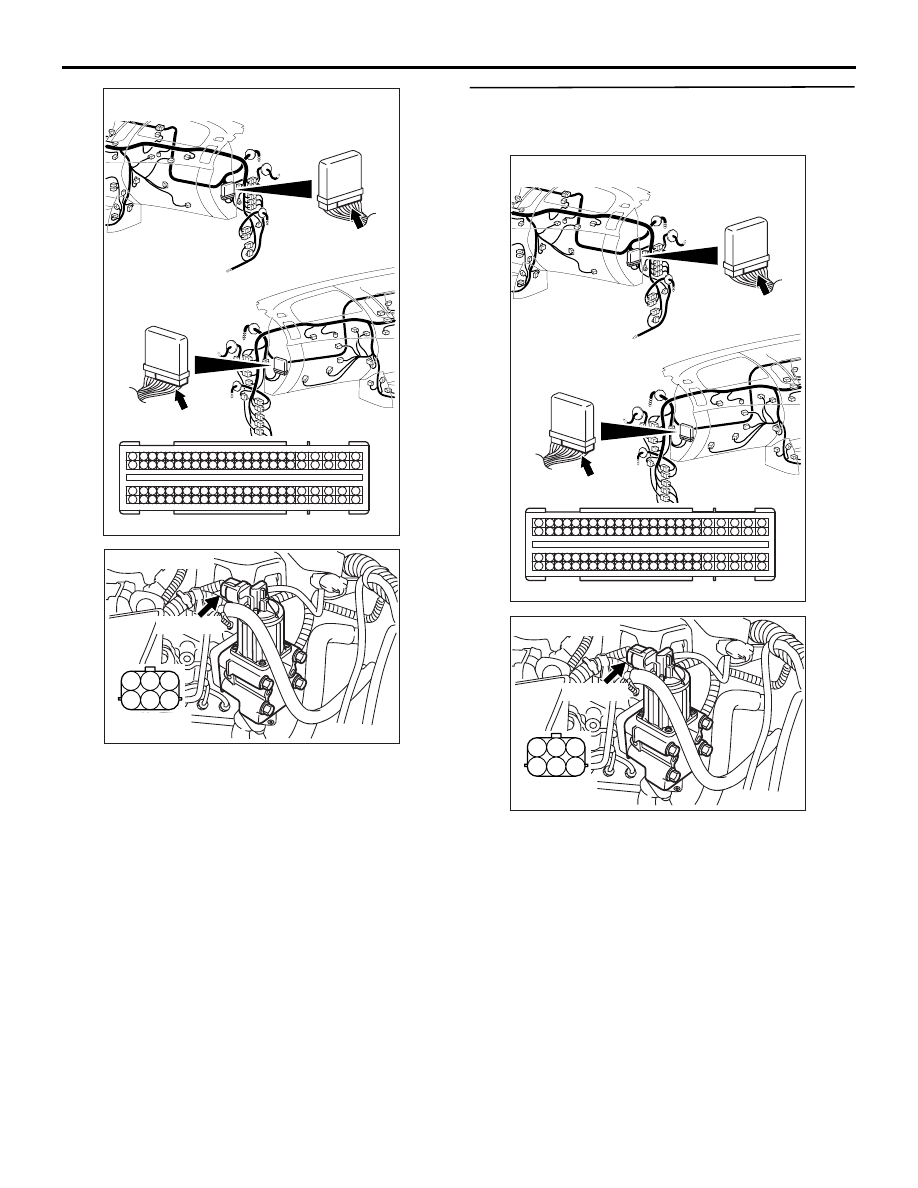

STEP 8. Check harness between C-105 (terminal
No. 57) engine-ECU connector and A-45 (terminal
No. 1) EGR valve assembly connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair the damaged harness wire.

 STEP 9. Check EGR valve itself.

• Check EGR valve itself [Refer to GROUP 17 −

Emission Control

− Exhaust Gas Recirculation

(EGR) System

− EGR Valve (DC motor) Check ].

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Replace the EGR valve assembly.

STEP 10. Check EGR passage for deposits.

• Check the EGR valve, the EGR pipe and the

inside of the EGR cooler for deposits. (Refer to
GROUP 17

− Emission Control − EGR Valve And

EGR Cooler

− Removal And Installation ).

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Cleaning or replace the EGR valve, EGR
pipe and EGR cooler.

STEP 11. Connector check: A-135 air flow sensor
connector.

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Repair or replace the connector.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

AKA00399

AB

Harness side
connector

A-135 (B)

Connector: A-135

TROUBLESHOOTING

DIESEL FUEL

13A-207

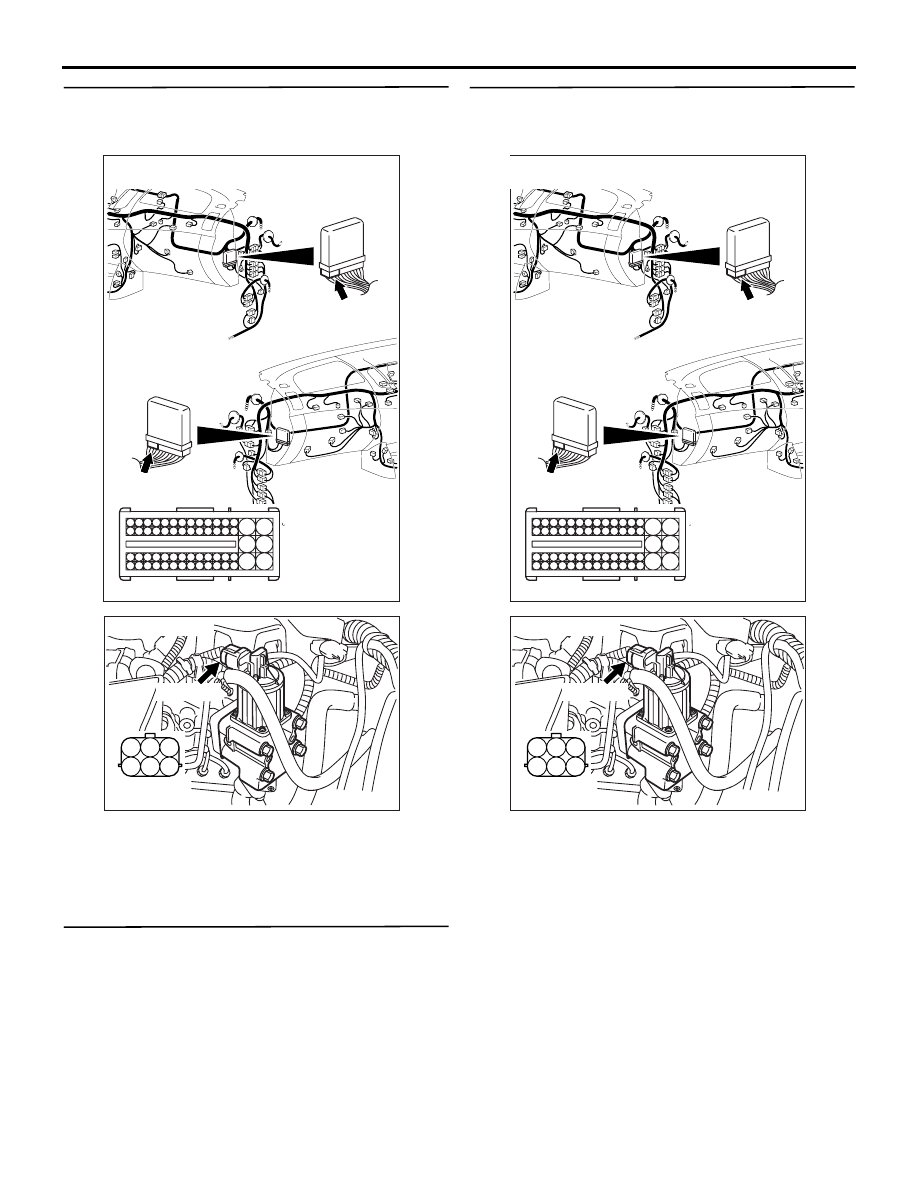

STEP 12. Check harness between A-135 (terminal
No. 4) air flow sensor connector and C-103
(terminal No. 155) engine-ECU connector.

• Check earthing line for damage.

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Repair the damaged harness wire.

STEP 13. Check harness between A-135 (terminal
No. 3) air flow sensor connector and C-103
(terminal No. 140) engine-ECU connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 14 .

NO :

Repair the damaged harness wire.

STEP 14. Replace the air flow sensor.

• After replacing the air flow sensor, re-check the

trouble symptoms.

Q: Is the check result normal?

AKA00399

AB

Harness side
connector

A-135 (B)

Connector: A-135

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

AKA00399

AB

Harness side
connector

A-135 (B)

Connector: A-135

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB
