Mitsubishi L200. Manual - part 54





TROUBLESHOOTING

DIESEL FUEL

13A-12

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1133003700430

Refer to , GROUP 00

− How to Use Troubleshooting/

Inspection Service Points

− Contents of Trouble-

shooting.

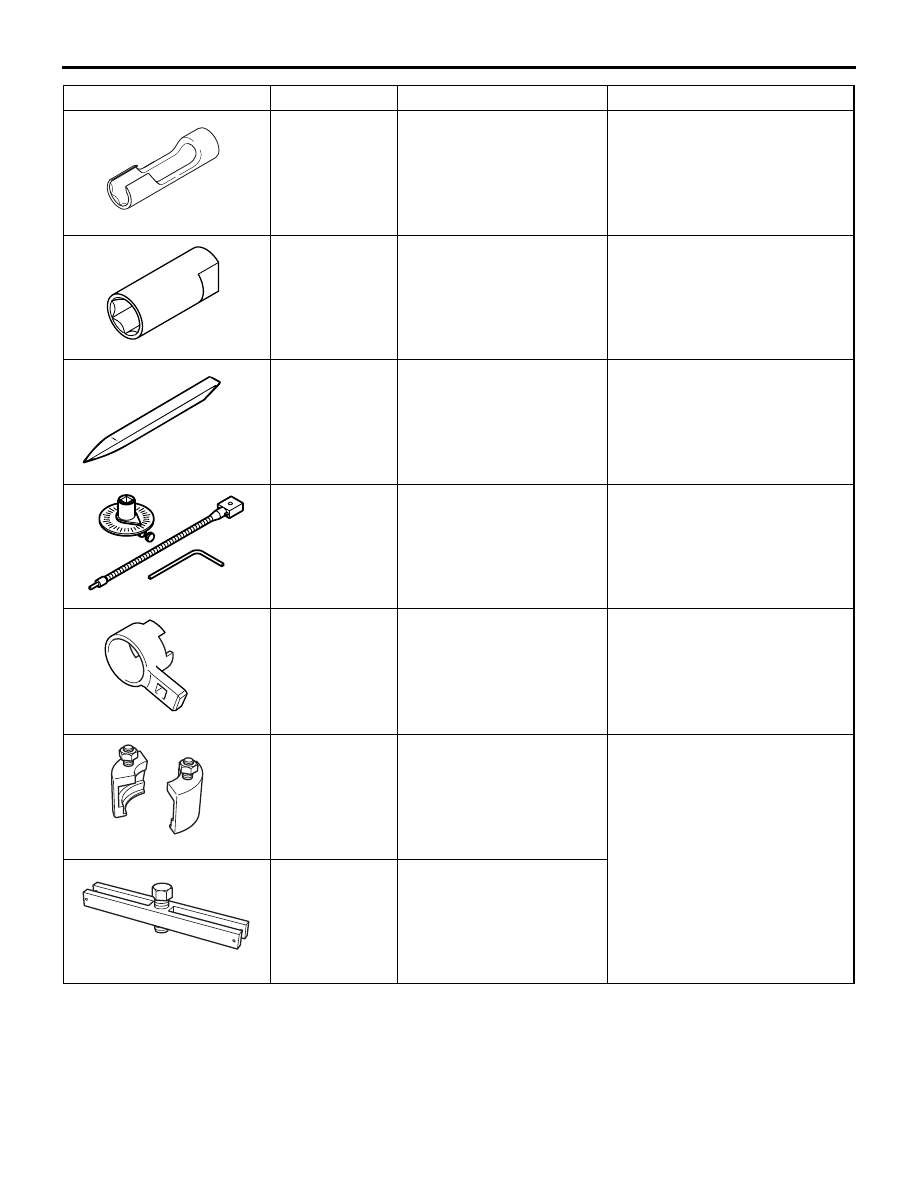

MB992188

Fuel injection pipe wrench

Removal and installation of fuel
injection pipe

MB992042

Engine coolant
temperature sensor wrench

Removal and installation of the
engine coolant temperature
sensor

MB990784

Ornament remover

Carbon deposit cleaning

MB991614

Angle gauge

Installation of injector holder bolt

MB992048

Sprocket holder

Injection pump sprocket bolt
removal and installation

MB992098

Injection pump sprocket
puller

Injection pump sprocket removal

MB992099

Crank pulley puller

Tool

Number

Name

Use

MB992042

MB990784

MB991614

B992048

B992098

B992099

TROUBLESHOOTING

DIESEL FUEL

13A-13

WARNING

A high-tension voltage is flowing between
the engine-ECU and the injectors while the
engine is running. Handle them carefully to
avoid receiving electric shocks from the volt-
age.

CAUTION

After replacing the engine-ECU, register the
injector identification code and learn fuel injec-
tion. (Refer to GROUP 00

 Precautions Before

Service

 What The Common Rail Engine Learns

)

CAUTION

After replacing the injector, register the injector
identification code and learn fuel injection. (Refer
to GROUP 00

 Precautions Before Service

What The Common Rail Engine Learns ).

CAUTION

After replacing the supply pump, learn the supply
pump. (Refer to GROUP 00

 Precautions Before

Service

 What The Common Rail Engine Learns

).

CAUTION

The vehicle equipped with the DPF shall initialize
the learning value after the following parts are
replaced (Refer to GROUP 00

 Precautions

Before Service

 Initialization Procedure for

Learning Value in Diesel Particulate Filter (DPF)
System <Euro5> ).

• DPF
• Exhaust differential pressure sensor
• Catalytic converter
• Engine oil

DIAGNOSIS FUNCTION

M1133003800954

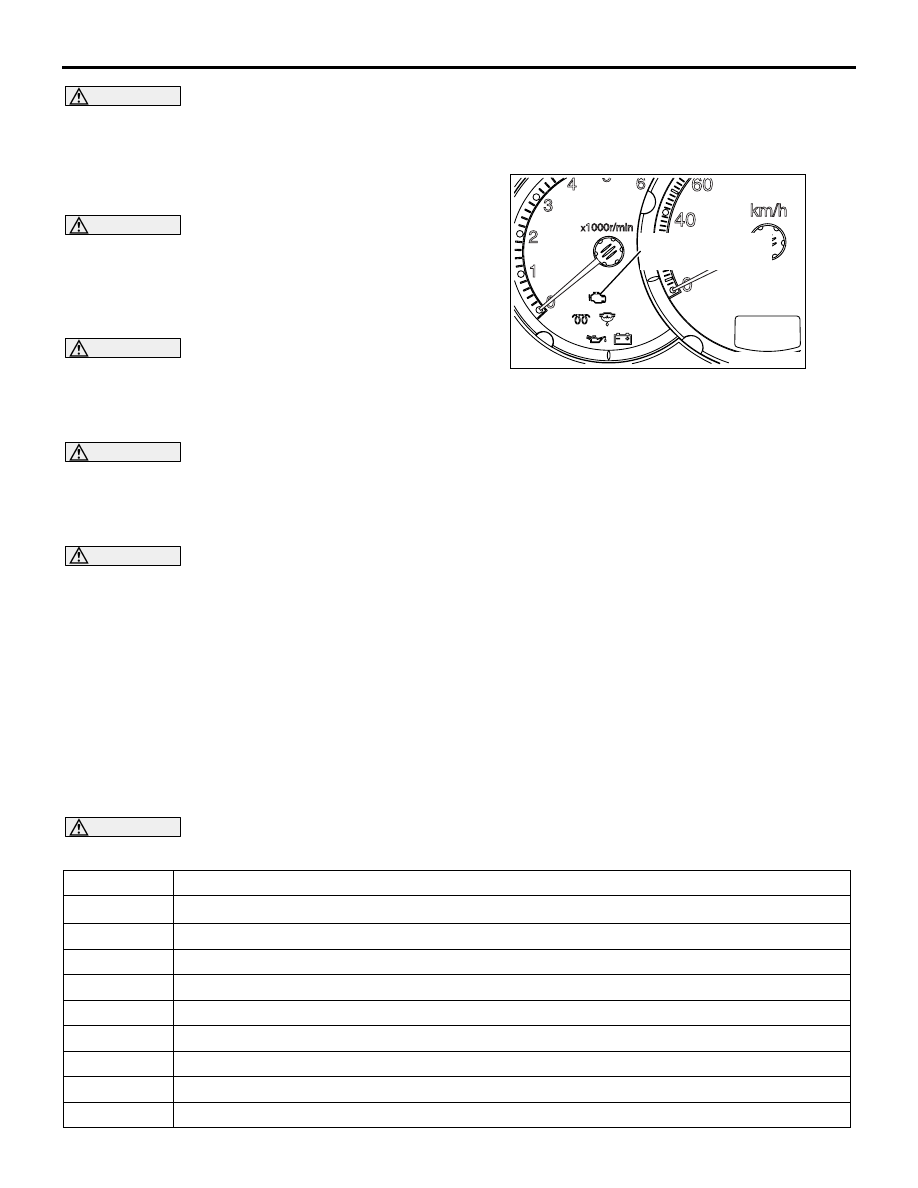

ENGINE WARNING LAMP (CHECK
ENGINE LAMP)

When the abnormal condition occurs with respect to
the items of electronically controlled fuel injection
system shown in the table, the engine warning lamp
is illuminated. When the lamp remains illuminated
after the engine start, or when the lamp is illuminated
while the engine is running, check the diagnosis
code output. There are two methods for checking the
indicator lamp burn out: When the ignition switch is in
ON position, the indicator lamp is illuminated, and
then extinguished few seconds later. When the igni-
tion switch is in ON position and the engine starts,
the indicator lamp is extinguished.

ENGINE WARNING LAMP INSPECTION ITEMS

CAUTION

The engine warning lamp continuously illuminates when the engine-ECU malfunctions.

20

AK500611 AB

Engine warning lamp
(Check engine lamp)

Code No.

Diagnosis item

Engine-ECU

P0003*

Suction control valve open <Euro5>

P0004*

Suction control valve battery short <Euro5>

P0016*

Crank angle sensor/camshaft position sensor phase problem

P0047*

Variable geometry control solenoid valve circuit low input <Euro5>

P0048*

Variable geometry control solenoid valve circuit high input <Euro5>

P0072

Intake air temperature sensor No.1 circuit low input <Euro5>

P0072

Intake air temperature sensor No. 2 circuit low input <Except Euro5>

P0073

Intake air temperature sensor No.1 circuit high input <Euro5>

TROUBLESHOOTING

DIESEL FUEL

13A-14

P0073

Intake air temperature sensor No. 2 circuit high input <Except Euro5>

P0088*

Common rail pressure malfunction

P0089*

Suction control valve stuck

P0093*

Fuel leak problem

P0102

Air flow sensor circuit low input

P0103

Air flow sensor circuit high input

P0106*

Manifold absolute pressure sensor range/performance problem

P0107*

Manifold absolute pressure sensor circuit low input

P0108*

Manifold absolute pressure sensor circuit high input

P0112

EGR gas temperature sensor circuit low input <Euro5>

P0112

Intake air temperature sensor No. 1 circuit low input <Except Euro5>

P0113

EGR gas temperature sensor circuit high input <Euro5>

P0113

Intake air temperature sensor No. 1 circuit high input <Except Euro5>

P0117

Engine coolant temperature sensor circuit low input

P0118

Engine coolant temperature sensor circuit high input

P0122

Throttle position sensor circuit low input

P0123

Throttle position sensor circuit high input

P0182

Fuel temperature sensor circuit low input

P0183

Fuel temperature sensor circuit high input

P0191*

Rail pressure sensor range/performance problem

P0192*

Rail pressure sensor low input

P0193*

Rail pressure sensor high input

P0201*

No. 1 Injector circuit malfunction

P0202*

No. 2 Injector circuit malfunction

P0203*

No. 3 Injector circuit malfunction

P0204*

No. 4 Injector circuit malfunction

P0234*

Turbocharger overboost condition <Except Euro5>

P0299*

Turbocharger under boost condition

P0301*

No. 1 cylinder injector malfunction (No injection)

P0302*

No. 2 cylinder injector malfunction (No injection)

P0303*

No. 3 cylinder injector malfunction (No injection)

P0304*

No. 4 cylinder injector malfunction (No injection)

P0335*

Crank angle sensor system

P0336*

Crank angle sensor range/performance problem

P0340*

Camshaft position sensor system

P0341*

Camshaft position sensor range/performance problem

P0381

Glow plug open/short malfunction <Euro5>

P0401

EGR flow insufficient <Euro5>

P0403

EGR valve (DC motor) malfunction

P0405

EGR valve position sensor circuit low input <Except Euro5>

Code No.

Diagnosis item

TROUBLESHOOTING

DIESEL FUEL

13A-15

P0406

EGR valve position sensor circuit high input <Except Euro5>

P0420*

Catalyst malfunction <Euro5>

P0427*

No. 2 exhaust gas temperature sensor (catalyst temperature) circuit low input <Euro5>

P0428*

No. 2 exhaust gas temperature sensor (catalyst temperature) circuit high input <Euro5>

P0489

EGR valve position sensor circuit low input <Euro5>

P0490

EGR valve position sensor circuit high input <Euro5>

P0502

Vehicle speed sensor low input

P0513*

Immobilizer malfunction

P0545*

No. 1 exhaust gas temperature sensor circuit low input <Euro5>

P0546*

No. 1 exhaust gas temperature sensor circuit high input <Euro5>

P0551

Power steering fluid pressure switch system

P0603

EEPROM malfunction <Except Euro5>

P0604

Random access memory (RAM) malfunction

P0605*

Read only memory (FLASH ROM) malfunction

P0606*

Engine-ECU (main CPU) malfunction

P0607*

Engine-ECU (sub CPU) malfunction

P0628*

Suction control valve open <Except Euro5>

P0629*

Suction control valve battery short <Except Euro5>

P062F

EEPROM malfunction <Euro5>

P0630*

Chassis number not programmed

P0638

Throttle valve control servo stuck

P0642*

Analog sensor reference voltage No. 1 too low

P0643*

Analog sensor reference voltage No. 1 too high

P064C

Glow control unit malfunction <Euro5>

P0652*

Analog sensor reference voltage No. 2 too low

P0653*

Analog sensor reference voltage No. 2 too high

P0683

Glow control unit communication abnormality <Euro5>

P1203*

Capacitor insufficient charging

P1204*

Capacitor excessive charging

P1272

Pressure limiter malfunction

P1273*

Supply pump insufficient flow

P1274*

Supply pump protection

P1275*

Supply pump exchange

P1276

Fuel filter exchange <Except Euro5>

P1298*

Variable geometry turbocharger control system malfunction (high pressure)



<Euro5>

P1299*

Variable geometry turbocharger control system malfunction (low pressure)



<Euro5>

P1427*

No. 3 exhaust gas temperature sensor (DPF temperature) circuit low input <Euro5>

P1428*

No. 3 exhaust gas temperature sensor (DPF temperature) circuit high input <Euro5>

P1497*

DPF system malfunction <Euro5>

Code No.

Diagnosis item
