Mitsubishi L200. Manual - part 50





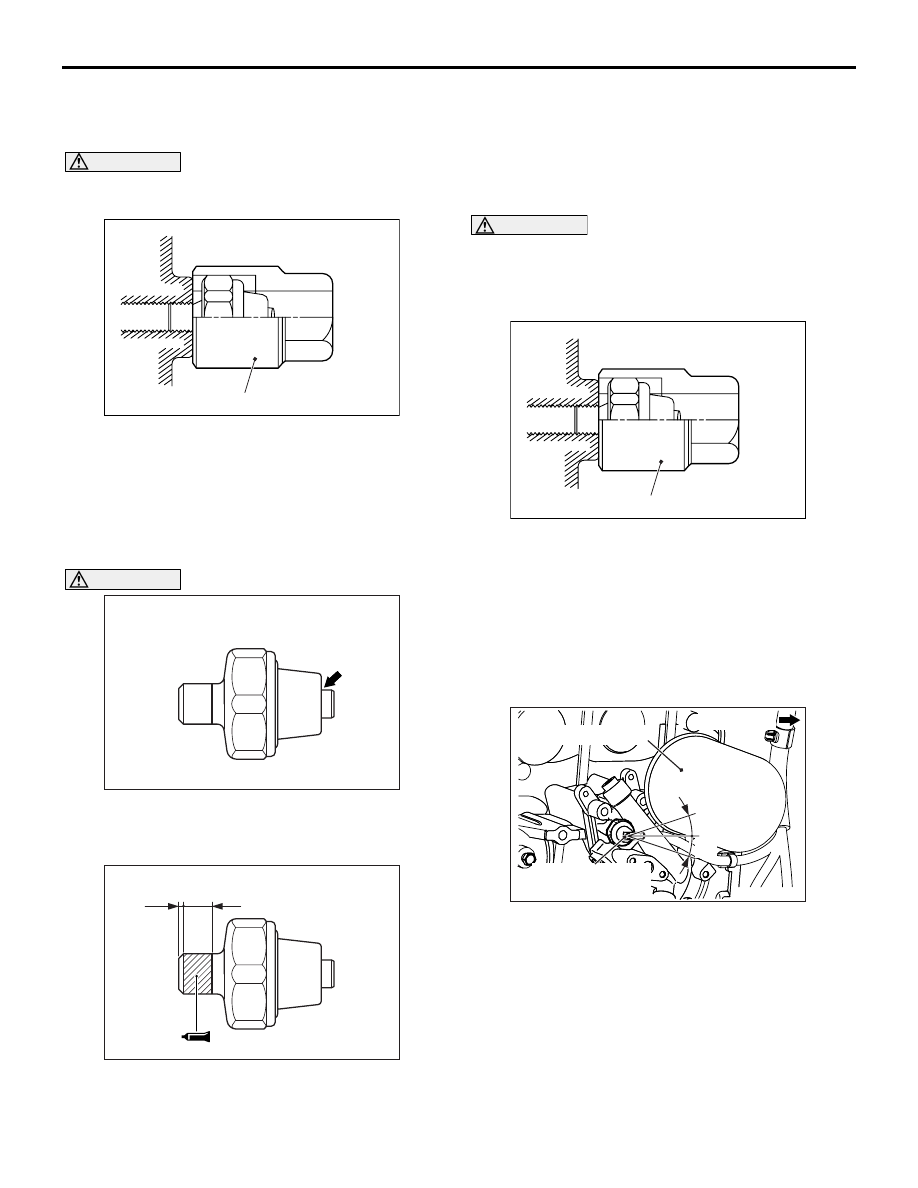

ENGINE OIL PRESSURE SWITCH

ENGINE LUBRICATION

12-7

REMOVAL SERVICE POINT

<<A>> ENGINE OIL PRESSURE SWITCH
REMOVAL

CAUTION

The sealant is applied to the bolt. Remove the
bolt with care not to break it.

AC503935

MD998012

AG

Use special tool oil pressure switch wrench
(MD998012) to remove the engine oil pressure
switch.

INSTALLATION SERVICE POINTS

>>A<< ENGINE OIL PRESSURE SWITCH INSTAL-
LATION

AC804286AB

CAUTION

Do not get any oil (rust prevention oil etc.) on the
area as shown in the figure to prevent the influ-
ence of switch function.

AC611856

1 mm

5 mm

AL

1. Apply sealant to the engine oil pressure switch

thread.

Specified sealant: Three bond 1215 or equiv-
alent

NOTE: Install the engine oil pressure switch
immediately after applying sealant.

CAUTION

After the installation, until a sufficient period of
time (one hour or more) elapses, do not apply the
oil or water to the sealant application area or
start the engine.

AC503935

MD998012

AG

2. In the same manner as removal, use special tool

oil pressure switch wrench (MD998012) to tighten
the engine oil pressure switch to the specified
torque.

Tightening torque: 10

± 2 Nm

>>B<< ENGINE OIL PRESSURE SWITCH
TERMINAL INSTALLATION

AC711376 AD

15˚

15˚

Engine oil filter

Engine oil pressure
switch terminal

Engine front

1. Install the engine oil pressure switch terminal in

the direction shown in the illustration.

2. Tighten the engine oil pressure switch terminal

mounting screw to the specified torque.

Tightening torque: 3.5

± 0.4 Nm

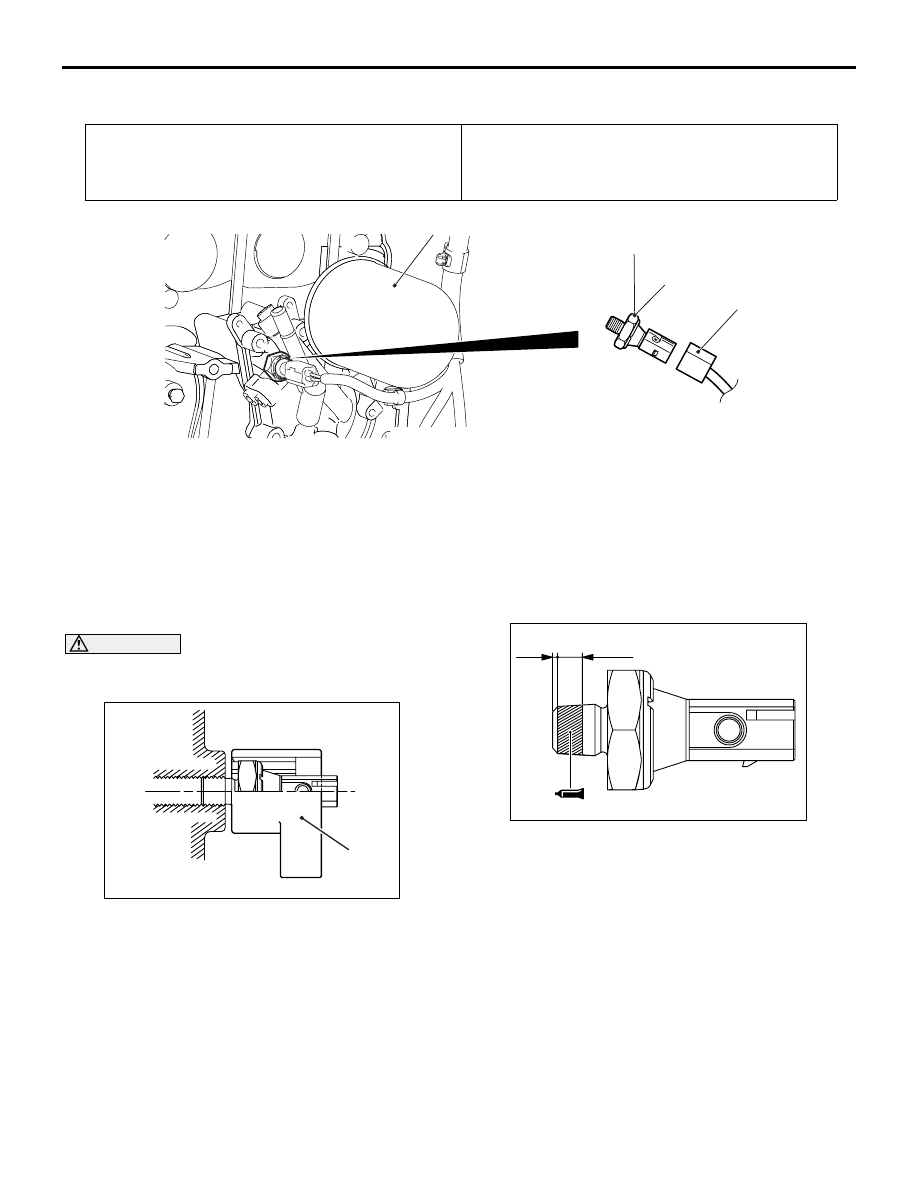

ENGINE OIL PRESSURE SWITCH

ENGINE LUBRICATION

12-8

REMOVAL AND INSTALLATION <Euro5>

M1121002502089

Pre-removal Operation
• Under Skid Plate and Engine Room Under Cover

Removal (Refer to GROUP 51

− Under Cover

P.51-32

).

Post-installation Operation
• Engine Oil Check (Refer to

P.12-4

).

• Under Skid Plate and Engine Room Under Cover Installa-

tion (Refer to GROUP 51

− Under Cover

P.51-32

).

AC903779

AC903864

AB

Engine oil filter

1

2

10 ± 2 N·m

Removal steps

1.

Engine oil pressure switch
connector connection

<<

A

>>

>>

A

<<

2.

Engine oil pressure switch

REMOVAL SERVICE POINT

<<A>> ENGINE OIL PRESSURE SWITCH
REMOVAL

CAUTION

The sealant is applied to the bolt. Remove the
bolt with care not to break it.

AK502606 AD

MB992118

Use special tool oil pressure switch wrench
(MB992118) to remove the engine oil pressure
switch.

INSTALLATION SERVICE POINT

>>A<< ENGINE OIL PRESSURE SWITCH INSTAL-
LATION

AK402699

1 mm

5 mm

AC

1. Apply sealant to the engine oil pressure switch

thread.

Specified sealant: Three bond 1215 or equiv-
alent

NOTE: Install the engine oil pressure switch
immediately after applying sealant.

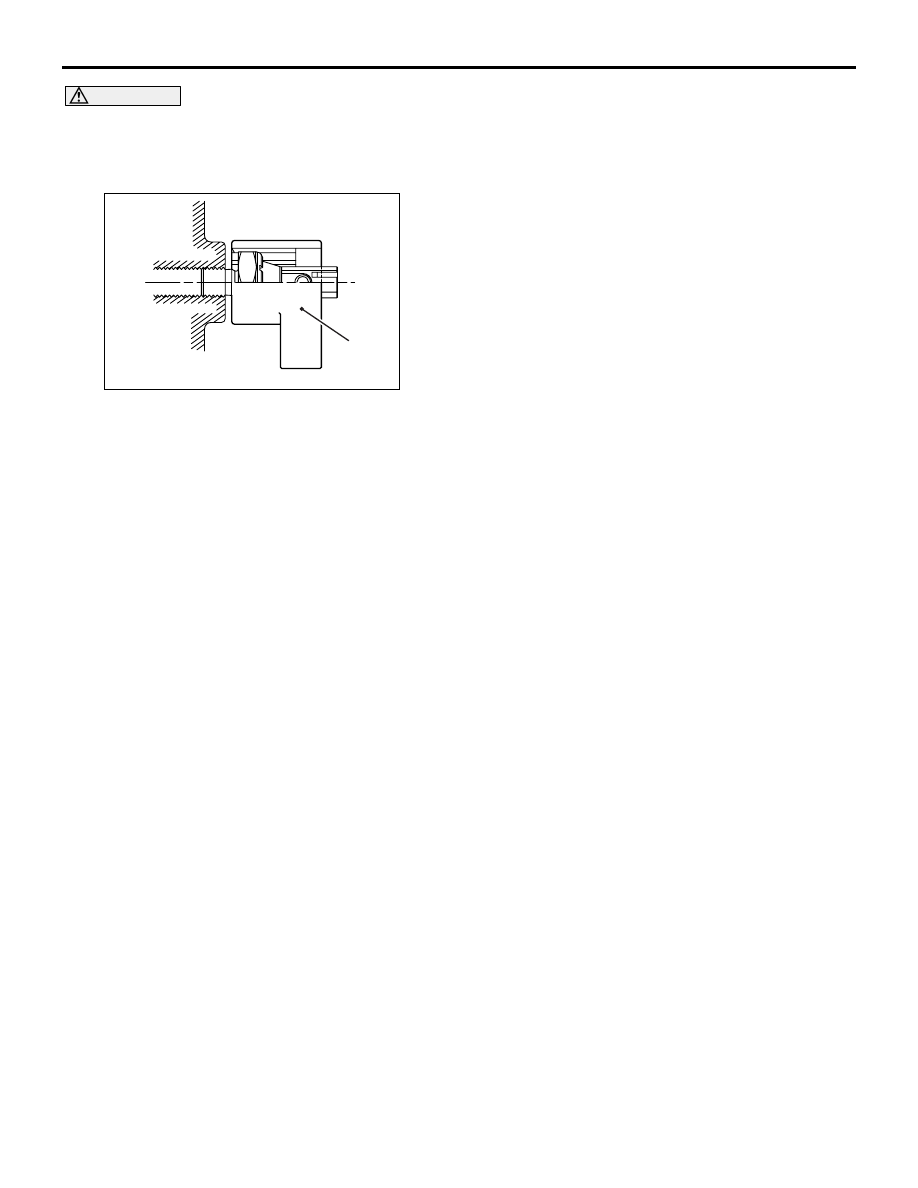

ENGINE OIL PRESSURE SWITCH

ENGINE LUBRICATION

12-9

CAUTION

After the installation, until a sufficient period of
time (one hour or more) elapses, do not apply the
oil or water to the sealant application area or
start the engine.

AK502606 AD

MB992118

2. In the same manner as removal, use special tool

oil pressure switch wrench (MB992118) to tighten
the engine oil pressure switch to the specified
torque.

Tightening torque: 10

± 2 Nm

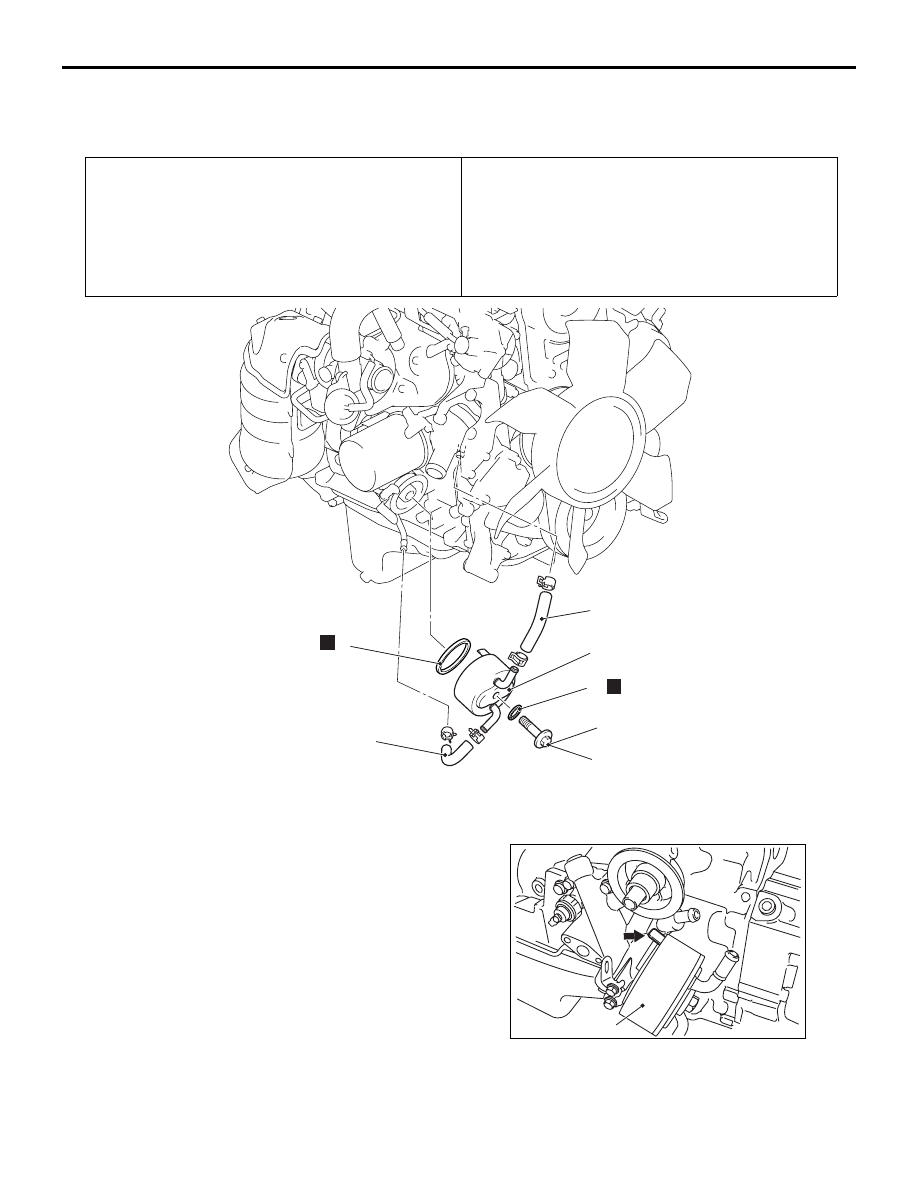

ENGINE OIL COOLER

ENGINE LUBRICATION

12-10

ENGINE OIL COOLER

REMOVAL AND INSTALLATION

M1121001300923

Pre-removal Operation
• Under Skid Plate and Engine Room Under Cover

Removal (Refer to GROUP 51

− Under Cover

P.51-32

).

• Engine Coolant Draining (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement

P.14-4

).

• Engine Oil Draining (Refer to

P.12-4

).

• Alternator Removal (Refer to GROUP 16 − Charging Sys-

tem, Alternator

P.16-13

).

Post-installation Operation
• Alternator Installation (Refer to GROUP 16 − Charging

System, Alternator

P.16-13

).

• Engine Coolant Refilling (Refer to GROUP 14 − On-vehi-

cle Service, Engine Coolant Replacement

P.14-4

).

• Engine Oil Refilling (Refer to

P.12-4

).

• Under Skid Plate and Engine Room Under Cover Installa-

tion (Refer to GROUP 51

− Under Cover

P.51-32

).

AC806119

1

2

39 ± 5 N·m

3

4

AB

5

6

N

N

Removal steps

1.

Water hose

2.

Water hose

3.

Engine oil cooler bolt

4.

O-ring

>>

A

<<

5.

Engine oil cooler

6.

O-ring

INSTALLATION SERVICE POINT

>>A<< ENGINE OIL COOLER INSTALLATION

AC502935

AB

Engine oil cooler

Tab

Position the tab as shown in the illustration.
