CYLINDER HEAD AND VALVES

ENGINE OVERHAUL

11B-50

1. Before correcting the valve seat, check for

clearance between the valve guide and valve and,
if necessary, replace the valve guide.

2. Using the seat grinder, correct to obtain the

specified seat width and angle.

3. After correction, valve and valve seat should be

lapped with a lapping compound.

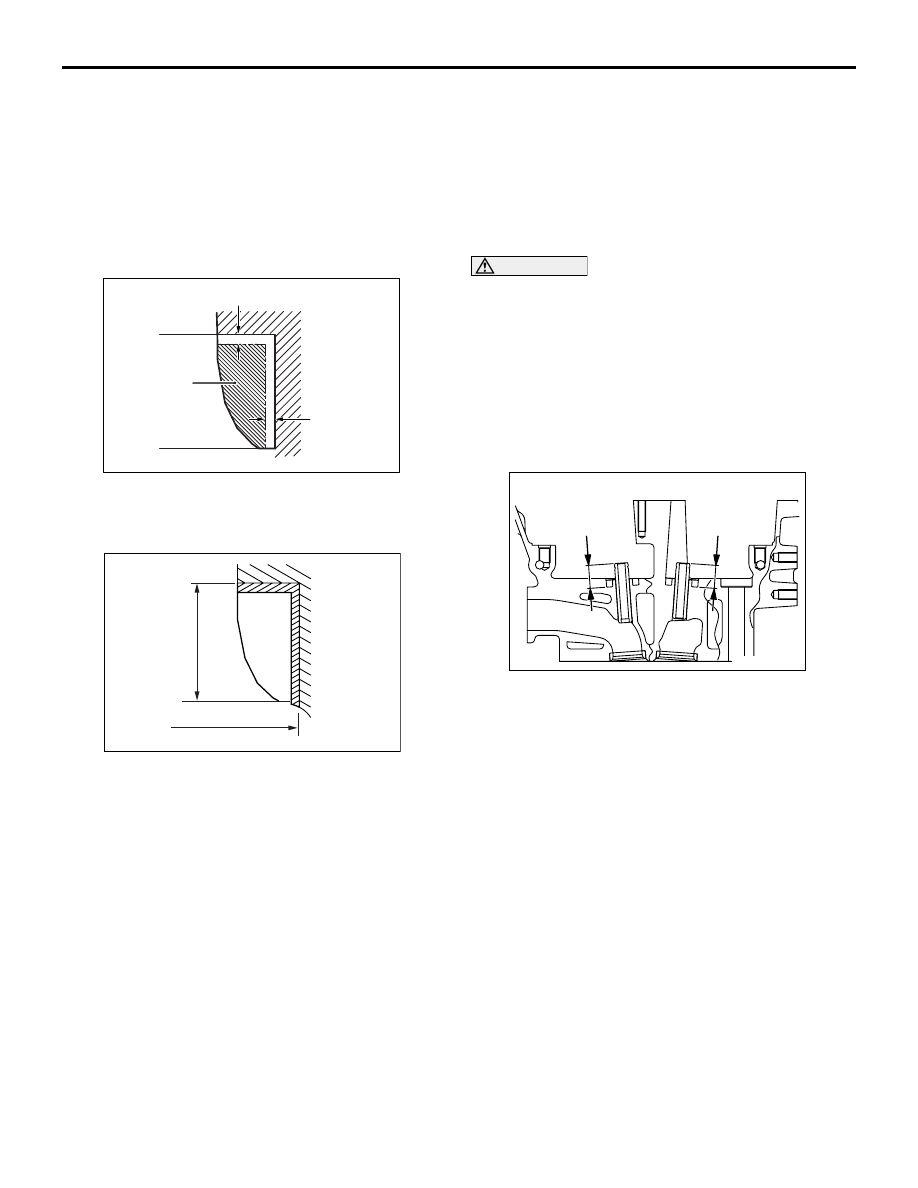

VALVE SEAT REPLACEMENT PROCEDURE

AK400379 AC

0.5 - 1 mm

Cut away

0.5 - 1 mm

1. Cut the valve seat to be replaced from the inside

to thin the wall thickness. Then, remove the valve
seat.

AK400380AD

Valve seat
height

Oversize hole diameter

2. Rebore the valve seat hole in cylinder head to the

oversize valve seat diameter.

Intake valve seat hole diameter:

0.30 O.S.: 33.300

 33.325 mm

Exhaust valve seat hole diameter:

0.30 O.S.: 29.300

 29.321 mm

3. When the valve sheet is a press fit, engine oil is

applied to the valve sheet or the cylinder head not
to damage the inside diameter of the cylinder
head.

4. Using valve seat cutter, correct the valve seat to

the specified width and angle.
See "VALVE SEAT RECONDITIONING
PROCEDURE."

VALVE GUIDE REPLACEMENT PROCEDURE
1. Force out the valve guide toward the cylinder

block using a press.

CAUTION

Do not use a replacement valve guide of the
same size as the removed one.
2. Machine the valve guide hole in the cylinder head

to the size matched to the selected oversize valve
guide.

Valve guide hole diameter:

0.05 O.S.: 11.050

 11.068 mm

NOTE: Do not install a valve guide of the same
size again.

AK500586AB

Protrusion

Protrusion

3. Press-fit the valve guide until it remains protruded

above the cylinder head by the amount indicated
in the illustration.

Protrusion: 18.3

 18.9 mm

NOTE: Press the valve guide from above the cyl-
inder head.
NOTE: The valve guides for the intake valves are
different in length from those for the exhaust
valves (45.2 mm for intake valves; 48.2 mm for
exhaust valves)

4. After installing the valve guide, insert a new valve

in it to check for smooth movement.

OIL PAN AND OIL PUMP

ENGINE OVERHAUL

11B-51

OIL PAN AND OIL PUMP

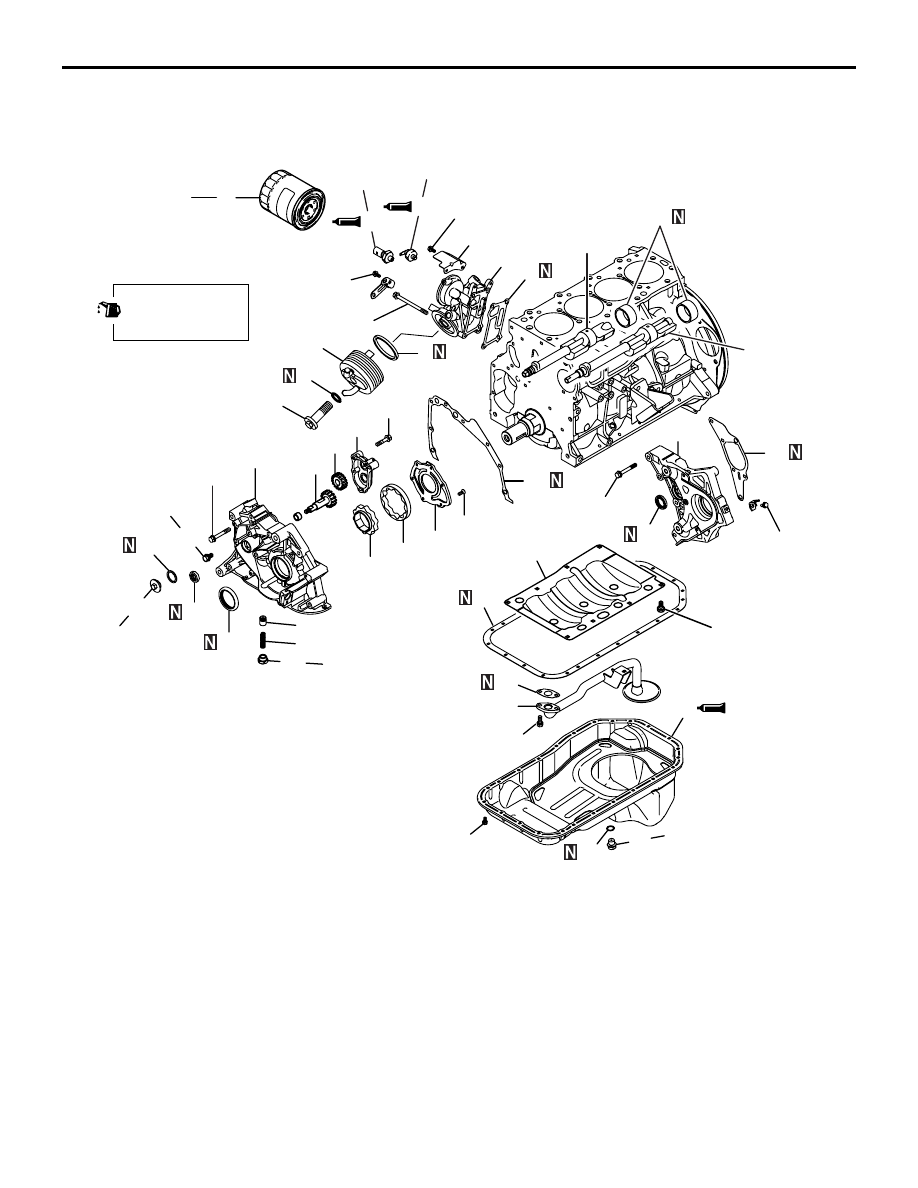

REMOVAL AND INSTALLATION

M1113008102244

AK801110AB

Apply engine oil to
all moving parts
before installation.

1

2

5

7

8

10

11

12

14

16

17

18

19

27

30

31

32

33

35

34

24

9.5 ± 2.5 N·m

37

36

38

9.5 ± 2.5 N·m

10 ± 2 N·m

10 ± 2 N·m

24 ± 4 N·m

39 ± 5 N·m

23 ± 4 N·m

12 ± 2 N·m

24 ± 4 N·m

19 ± 3 N·m

19 ± 3 N·m

39 ± 5 N·m

9.0 ± 3.0 N·m

24 ± 4 N·m

37 ± 3 N·m

37 ± 7 N·m

28

29

26

25

21

23

20

23 ± 3 N·m

22

9

15

6

4

13

22 ± 2 N·m

3

10 ± 2 N·m

Removal steps

>>

M

<< 1.

Oil filter

<<

A

>> >>

L

<< 2.

Oil pressure switch <Except Euro5>

>>

K

<< 3.

Oil pressure switch <Euro5>

4.

O-ring

>>

J

<< 5.

Oil cooler

6.

O-ring

7.

Heat protector <Except Euro5>

8.

Oil filter bracket

9.

Oil filter bracket gasket

10. Oil drain plug

>>

I

<<

11. Oil drain plug gasket

<<

B

>> >>

H

<< 12. Oil pan

>>

H

<< 13. Oil pan gasket

*

14. Oil screen
15. Oil screen gasket
16. Stiffener
17. Front upper case
18. Front upper case gasket

>>

G

<< 19. Front upper case oil seal

20. Plug cap
21. O-ring

<<

C

>> >>

F

<< 22. Flange bolt

23. Front lower case
24. Front lower case gasket

>>

E

<< 25. Crankshaft front oil seal

>>

D

<< 26. Balancer shaft oil seal

27. Plug

Removal steps (Continued)

OIL PAN AND OIL PUMP

ENGINE OVERHAUL

11B-52

NOTE: *:Use either an oil pan gasket or a sealant for
installing the oil pan.

REMOVAL SERVICE POINTS

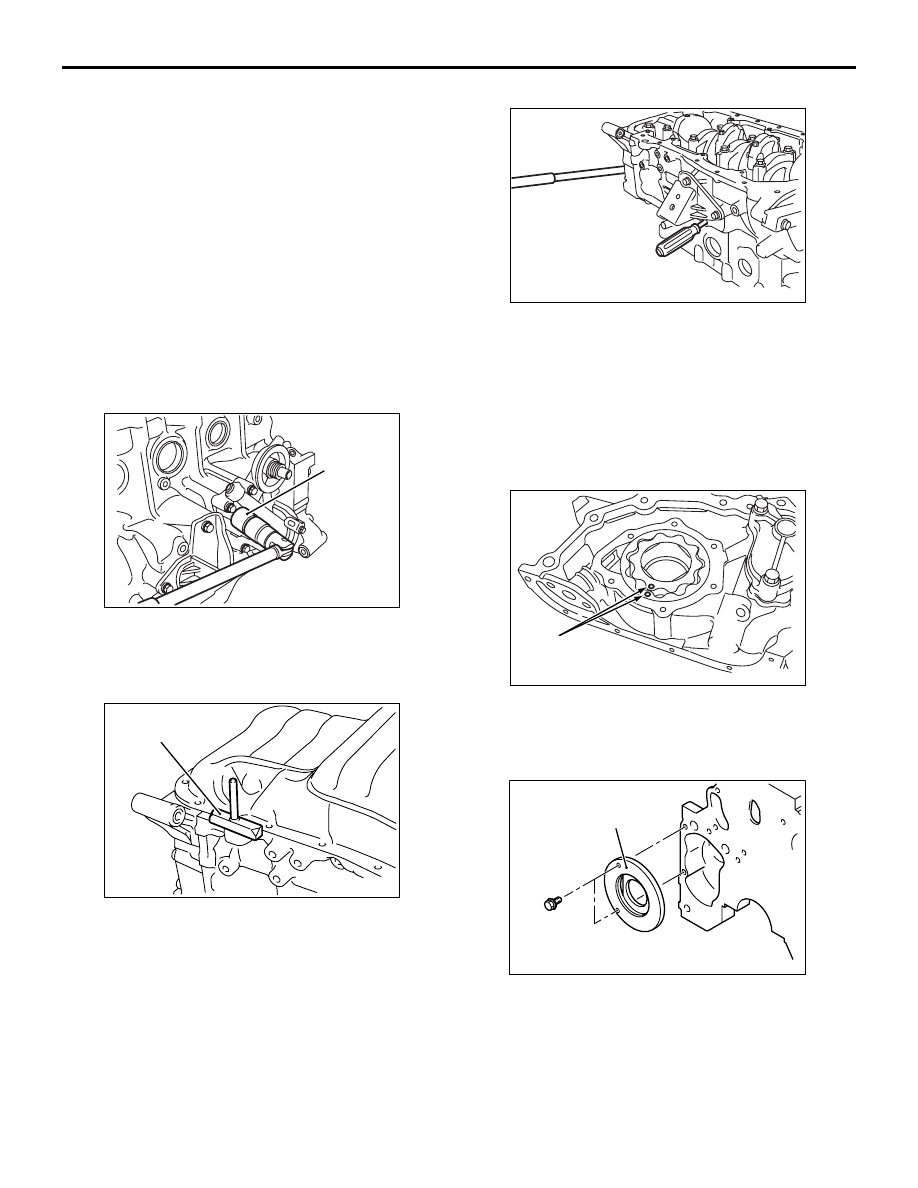

<<A>> OIL PRESSURE SWITCH REMOVAL

AK404158

AB

MD998012

Using special tool Oil pressure switch socket wrench
(MD998012), removal the oil pressure switch.

<<B>> OIL PAN REMOVAL

AK404130AB

MD998727

1. Knock the special tool Oil pan sealer cutter

(MD998727) deeply between the oil pan and the
cylinder block.

2. Hitting the side of the special tool Oil pan sealer

cutter (MD998727), slide the special tool along
the oil pan to remove it.

<<C>> FLANGE BOLT REMOVAL

AK404131

1. Remove the plug on the right side of cylinder

block.

2. Insert a Phillips screwdriver into the plug hole to

lock the silent shaft in position.

3. Remove the flange bolt.

<<D>> OUTER ROTOR / INNER ROTOR
REMOVAL

AK404136

AB

Alignment mark

Put alignment marks on the outer and inner rotors for
reference in reassembly.

<<E>> BALANCER SHAFT BEARING REMOVAL

AK500587

MD998380

AB

1. Install the special tool Bearing installer stopper

(MD998380) to the cylinder block. This is used to
hold the special tool.

28. Relief spring
29. Relief plunger
30. Oil pump cover

<<

D

>> >>

C

<< 31. Inner rotor

<<

D

>> >>

C

<< 32. Outer rotor

33. Balancer shaft gear cover

>>

B

<< 34. Balancer shaft driven gear

>>

B

<< 35. Balancer shaft drive gear

36. Balancer shaft, left
37. Balancer shaft, right

<<

E

>> >>

A

<< 38. Balancer shaft bearing

Removal steps (Continued)

AK402949AB

MD998251

Bearing

MD998380
(Right side only)

OIL PAN AND OIL PUMP

ENGINE OVERHAUL

11B-53

2. Pull out the rear bearing from the cylinder block

using the special tool Balancer shaft bearing
puller (MD998251).

INSTALLATION SERVICE POINTS

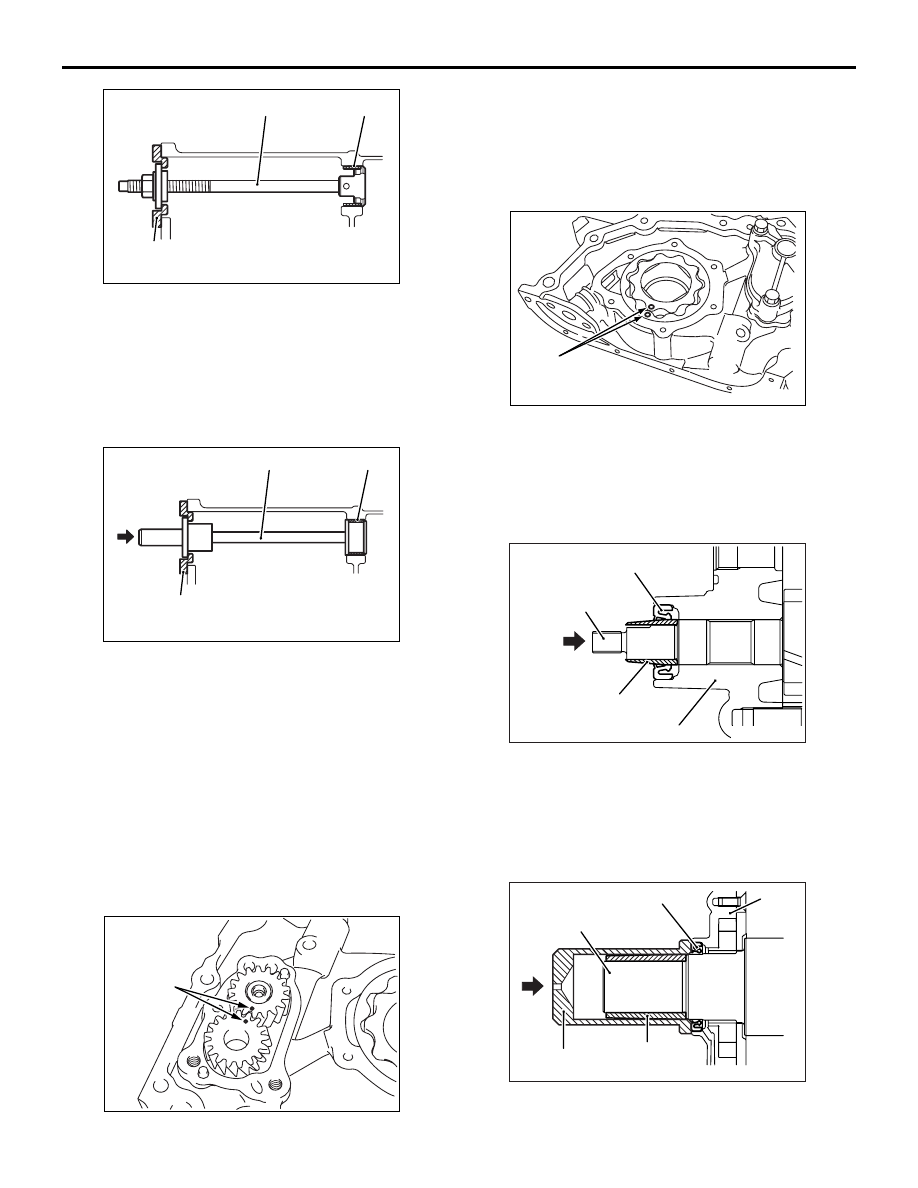

>>A<< BALANCER SHAFT BEARING INSTALLA-
TION

AK402958AB

MD998250

Apply
engine
oil

Bearing

MD998380
(Right side only)

Using the special tools, press-fit the bearing into the
cylinder block.
Before press-fitting the bearing, apply an ample
amount of engine oil to the bearing surfaces as well
as bearing hole in the cylinder block.

• Balance shaft bearing installer (MD998250)

• Bearing installer stopper (MD998380)

>>B<< BALANCER SHAFT DRIVE GEAR /
BALANCER SHAFT DRIVEN GEAR
INSTALLATION
1. Apply engine oil to the balancer shaft drive and

driven gears.

AK404137AB

Alignment
mark

2. Install the balancer shaft drive and driven gears to

the front lower case. Make sure that the alignment
marks are in line.

>>C<< INNER ROTOR / OUTER ROTOR
INSTALLATION

AK404136

AB

Alignment mark

Install the outer rotor in the same direction as before
noting the mark put at the time of removal. Apply
engine oil to the entire rotor surface.

>>D<< OIL SEAL INSTALLATION
1. Apply engine oil to the oil seal outer surface.

AK500588

Oil seal

Balancer shaft
drive gear

Front lower case

MD998385

AB

2. Using the special tool Balancer shaft drive gear oil

seal guide (MD998385), drive in with a socket
wrench.

>>E<< CRANKSHAFT FRONT OIL SEAL
INSTALLATION

AK500589AB

Oil seal

Crankshaft

Front
lower
case

MD998382
(Apply oil to outer surface)

MD998383
