SIDE IMPACT SENSOR (REAR DOOR)

Removal & Installation

1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See

DISABLING & ACTIVATING AIR BAG SYSTEM .

2. Remove appropriate side impact sensor cover. Disconnect side impact sensor electrical connector. See

Fig. 7 . Remove side impact sensor screws. Remove side impact sensor.

3. To install, reverse removal procedure. Activate air bag system. Read diagnostic codes and erase memory.

See DIAGNOSTICS .

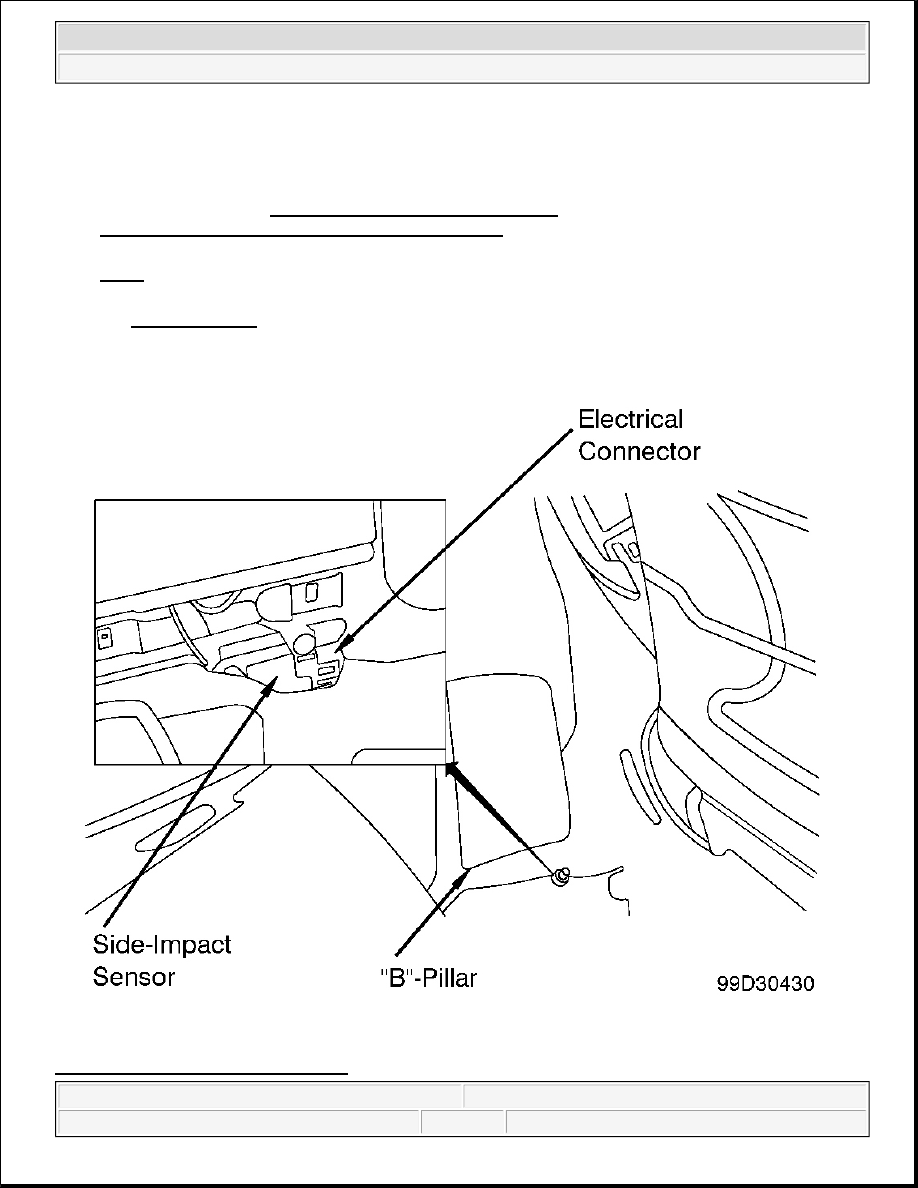

Fig. 7: Identifying Side Impact Sensor



2004 Mercedes-Benz ML350

2004 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me



Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

WIRE REPAIR

DO NOT repair wiring harness. Replace complete SRS wiring harness, if any part is damaged.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

DIAGNOSTICS

Air bag system diagnostic information is not available. All air bag system diagnosis must be carried out using
manufacturers proprietary STAR diagnostic tool.

WIRING DIAGRAMS

Application

Ft. Lbs. (N.m)

Front ETR

Belt end fitting

26 (35)

Belt height adjuster bolt

18 (25)

Bolts

22 (30)

Rear ETR

Belt height adjuster bolt

22 (30)

Bolts

22 (30)

INCH Lbs. (N.m)

Control module bolts

(1)

Driver-side air bag module bolts

71 (8)

Head impact air bag module bolts

71 (8)

Passenger-side air bag module nuts

71 (8)

Side impact sensor screws

(1)

(1)

Information is not available.



2004 Mercedes-Benz ML350

2004 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me





2004 Mercedes-Benz ML350

2004 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me

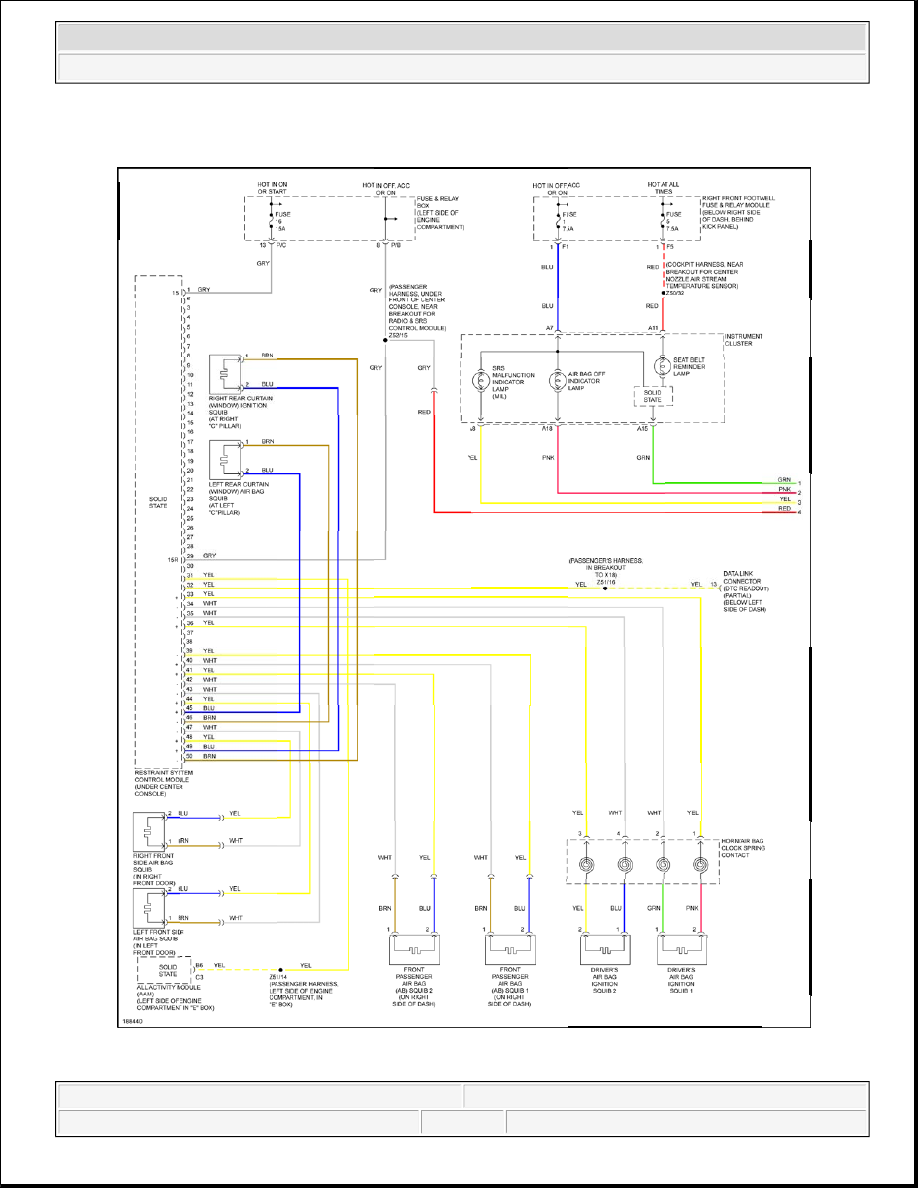

Fig. 8: Air Bag System Wiring Diagram (ML350, ML500-1 Of 2)
