Mercedes-Benz ML320. Manual - part 41

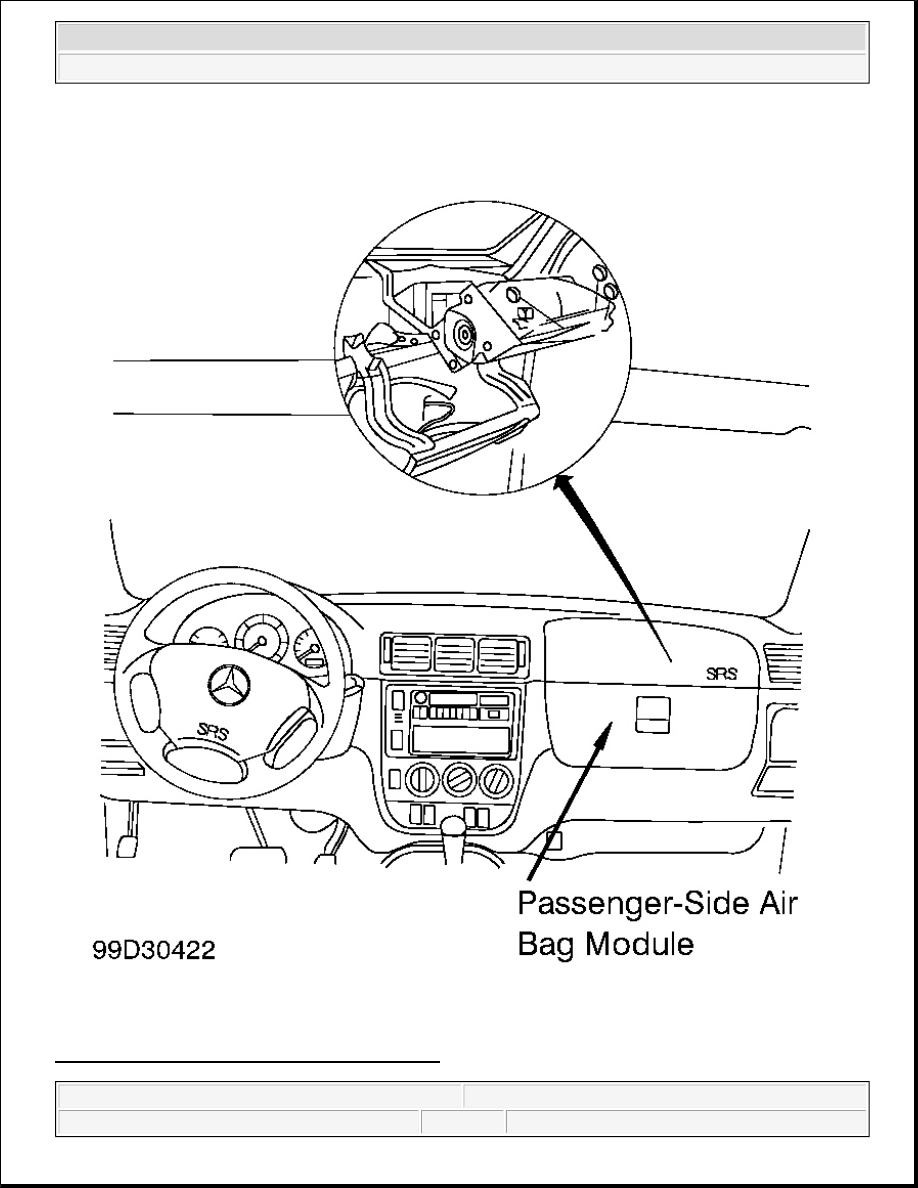

Fig. 4: Identifying Passenger-side Air Bag Module
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2004 Mercedes-Benz ML350

2004 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me



SIDE IMPACT AIR BAG MODULE

Removal & Installation (Front Door)

1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See

DISABLING & ACTIVATING AIR BAG SYSTEM .

2. Remove appropriate door trim panel. Remove rivets securing side impact air bag module to front door.

Remove side impact air bag module from front door. Disconnect side impact air bag module connector.
Remove side impact air bag module. See Fig. 5 .

3. To install, reverse removal procedure. Activate air bag system. Read diagnostic codes and erase memory.

See DIAGNOSTICS .



2004 Mercedes-Benz ML350

2004 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me

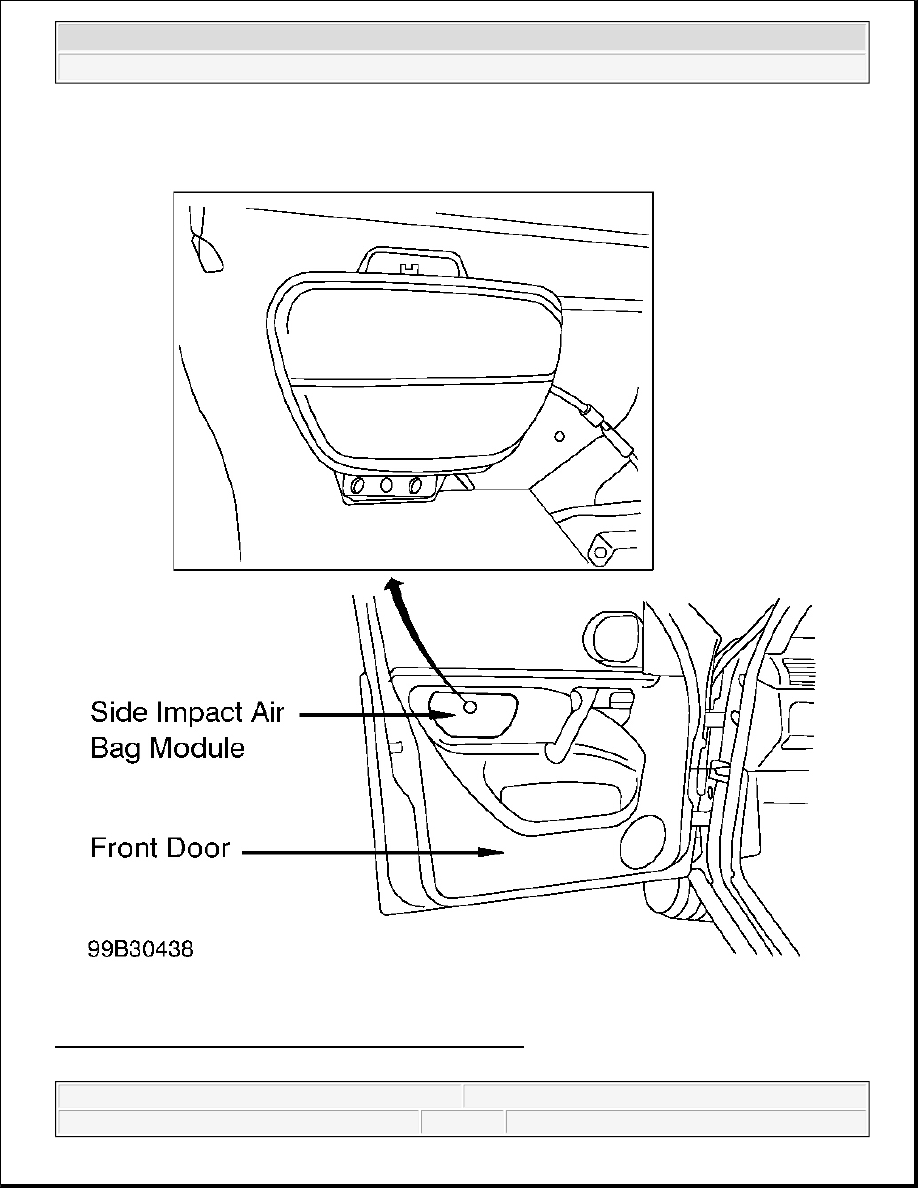

Fig. 5: Identifying Side Impact Air Bag Module (Front Door)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2004 Mercedes-Benz ML350

2004 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me



Removal & Installation (Rear Door)

1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See

DISABLING & ACTIVATING AIR BAG SYSTEM .

2. Remove appropriate door trim panel. Remove rivets securing side impact air bag module to front door.

Remove side impact air bag module from front door. Disconnect side impact air bag module connector.
Remove side impact air bag module. See Fig. 6 .

3. To install, reverse removal procedure. Activate air bag system. Read diagnostic codes and erase memory.

See DIAGNOSTICS .

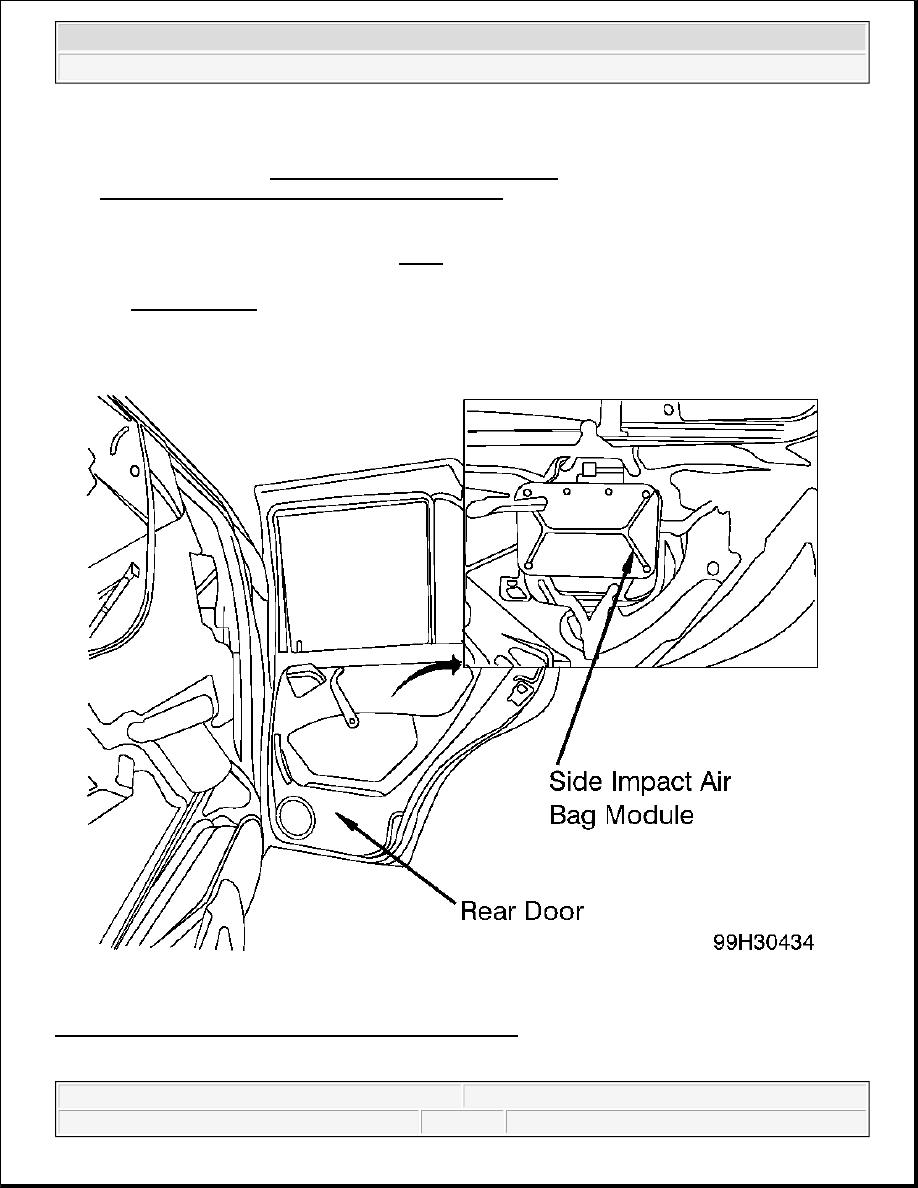

Fig. 6: Identifying Side Impact Air Bag Module (Rear Door)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2004 Mercedes-Benz ML350

2004 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me
