Mazda CX-30 (2022 year). Manual in english

When Driving

Rear View Monitor

▼ Switching to the Rear View Monitor Display

Shift the selector lever to reverse (R) position with the ignition switched ON to

switch the display to the rear view monitor display.

NOTE

When the selector lever is shifted from reverse (R) position to another selector lever

position, the screen returns to the previous display.

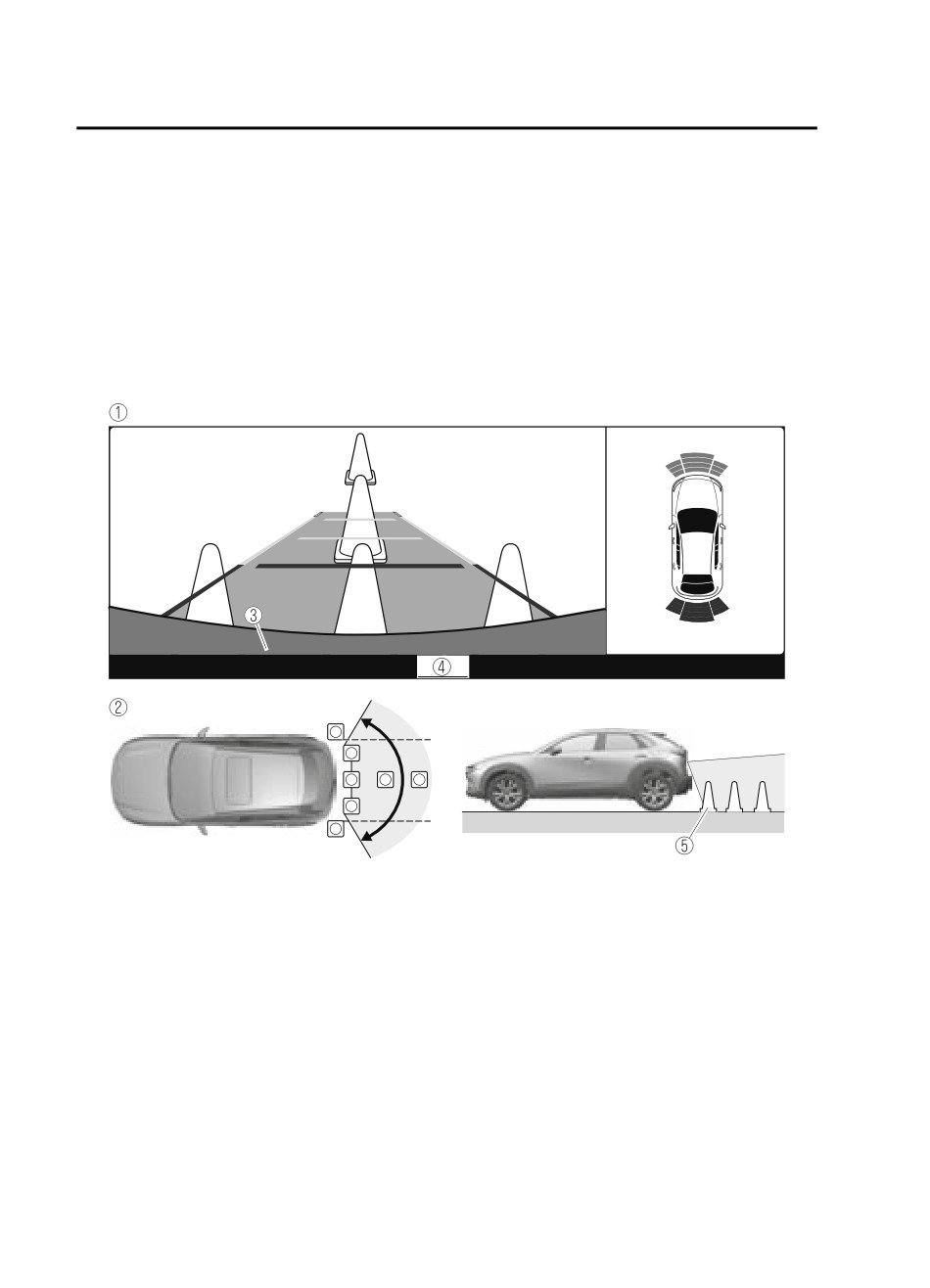

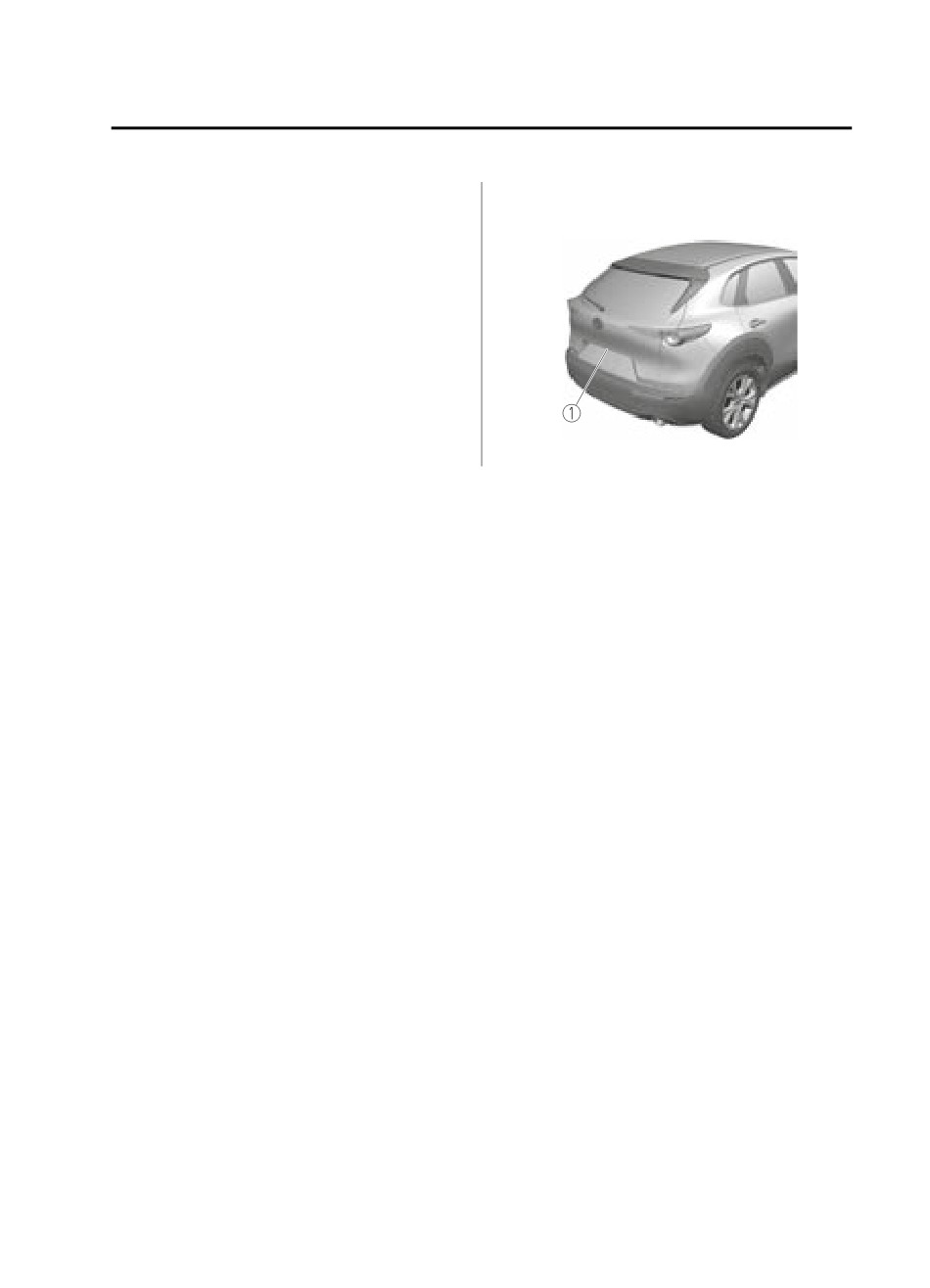

▼ Displayable Range on the Screen

The images on the screen may be different from the actual conditions.

(Screen display)

(Actual view)

3. Bumper

“Check surroundings for safety.” message is displayed

5. Object

4-218

When Driving

Rear View Monitor

NOTE

^ The displayable range varies depending on the vehicle and road conditions.

^ If the camera lens is touched or there is any dirt on it, it could affect the screen

image. Wipe the lens using a soft cloth.

^ The displayable range is limited. Objects under the bumper or around the bumper

ends cannot be displayed.

^ The distance appearing in the displayed image is different from the actual distance

because the rear view parking camera is equipped with a specific lens.

^ Images displayed on the monitor from the rear view parking camera are reversed

images (mirror images).

^ Some optionally installed vehicle accessories may be picked up by the camera. Do

not install any optional parts that can interfere with the camera view, such as

illuminating parts or parts made of reflective material.

^ It may be difficult to see the display under the following conditions, however, it

does not indicate a malfunction.

^ In darkened areas.

^ When the temperature around the lens is high/low.

^ When the camera is wet such as on a rainy day or during periods of high

humidity.

^ When foreign material such as mud is stuck around the camera.

^ When the camera lens reflects sunlight or headlight beams.

^ The surroundings are illuminated by vehicle lights, fluorescent lights, or LED

lights (display may flicker).

^ Extremely small dark or white dots appear on the screen (dots may flicker).

^ An object is close to a camera.

^ Image display may be delayed if the temperature around the camera is low.

4-219

When Driving

Rear View Monitor

▼ Viewing the Display

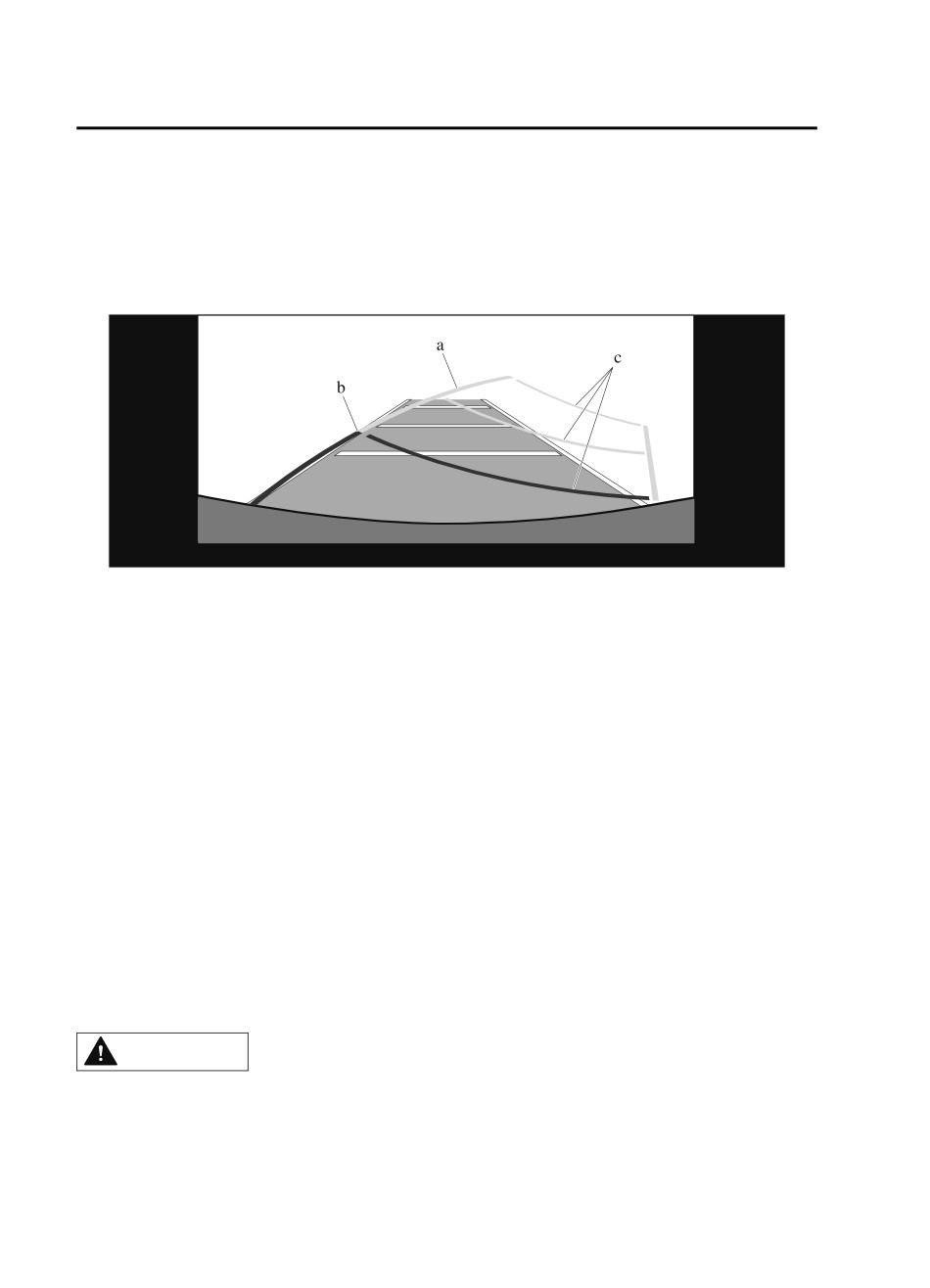

Predicted vehicle path assist lines display type

The projected path guidance mode displays the predicted path of the vehicle after

you turn the steering wheel.

Use this mode for parking your vehicle in a parking space or garage.

a) Projected vehicle path (yellow)

These lines are displayed as a reference for the projected path of the vehicle.

The lines displaying the projected vehicle path change after you turn the steering

wheel.

b) Extended vehicle width lines (blue)

These lines indicate the vehicle's extended width.

These lines are not displayed when the vehicle's wheels are in the straight-ahead

position.

c) Distance guide lines (red)

These lines indicate the approximate distance to a point measured from the

vehicle's rear (from the end of the bumper).

The blue line indicates the point about 0.5 m (19 in) from the rear bumper.

The red and yellow lines, which change position after you turn the steering wheel,

indicate the points about 0.5 m (19 in) for the red line and 1.0 m (39 in) and 2.0

m (78 in) for the yellow lines from the rear bumper (at the center point of each of

the lines).

A degree of error occurs when the wheels are not in the straight-ahead position.

In the above illustration, the right side of the vehicle is in a position closer to the

actual distance displayed by the distance guide lines (red: about 0.5 m (19 in)

point, yellow: about 1.0 m (39 in), and yellow: about 2.0 m (78 in) point behind

the rear bumper), whereas the left side is in a position farther away.

CAUTION

The indicated position of the guide lines on the display changes depending on the

vehicle conditions (such as the number of occupants/cargo load) and the road

conditions (such as a steep gradient to the rear of the vehicle).

Always check the area to the vehicle's rear and the surrounding area directly with

your eyes while backing up.

4-220

When Driving

Rear View Monitor

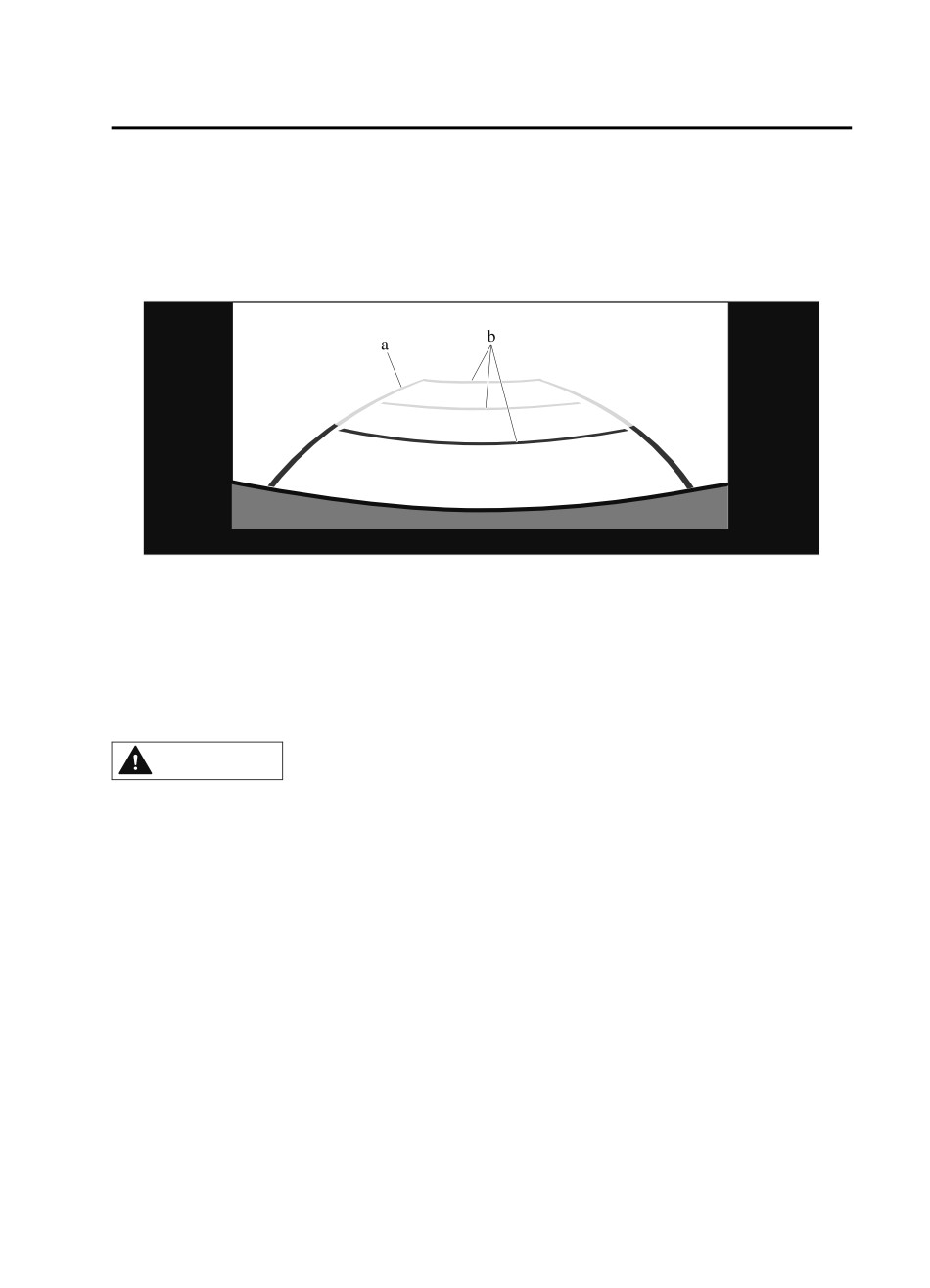

Fixed assist lines display type

Guide lines which indicate the width of the vehicle are displayed on the screen as a

reference to the approximate width of the vehicle in comparison to the width of the

parking space you are about to back into.

Use this display view for parking your vehicle in a parking space or garage.

a) Vehicle width guide lines

Guide lines serve as a reference to the approximate width of the vehicle.

b) Distance guide lines

These guide lines indicate the approximate distance to a point measured from the

vehicle's rear (from the end of the bumper).

The red line indicates the point about 0.5 m (19 in) from the rear bumper.

The yellow lines indicate the points about 1.0 m (39 in) and 2.0 m (78 in) from

the rear bumper.

CAUTION

The guide lines on the screen are fixed lines. They are not synced to the driver's

turning of the steering wheel. Always be careful and check the area to the vehicle's

rear and the surrounding area directly with your eyes while backing up.

▼ Rear View Monitor Operation

The operation of the rear view monitor when reversing the vehicle varies depending

on the traffic, road, and vehicle conditions. The amount of steering and the timing

also varies depending on conditions, so confirm the surrounding conditions directly

with your eyes and steer the vehicle in accordance with the conditions.

Be well aware of the above cautions prior to using the rear view monitor.

4-221

When Driving

Rear View Monitor

Predicted vehicle path assist lines display type

NOTE

The following shows an example of vehicle parking in which the steering wheel is

turned to the right when backing up the vehicle. The operation is reversed when

backing up the vehicle from the opposite direction.

1. Shift the selector lever to reverse (R) position to switch the display to the rear

view monitor display.

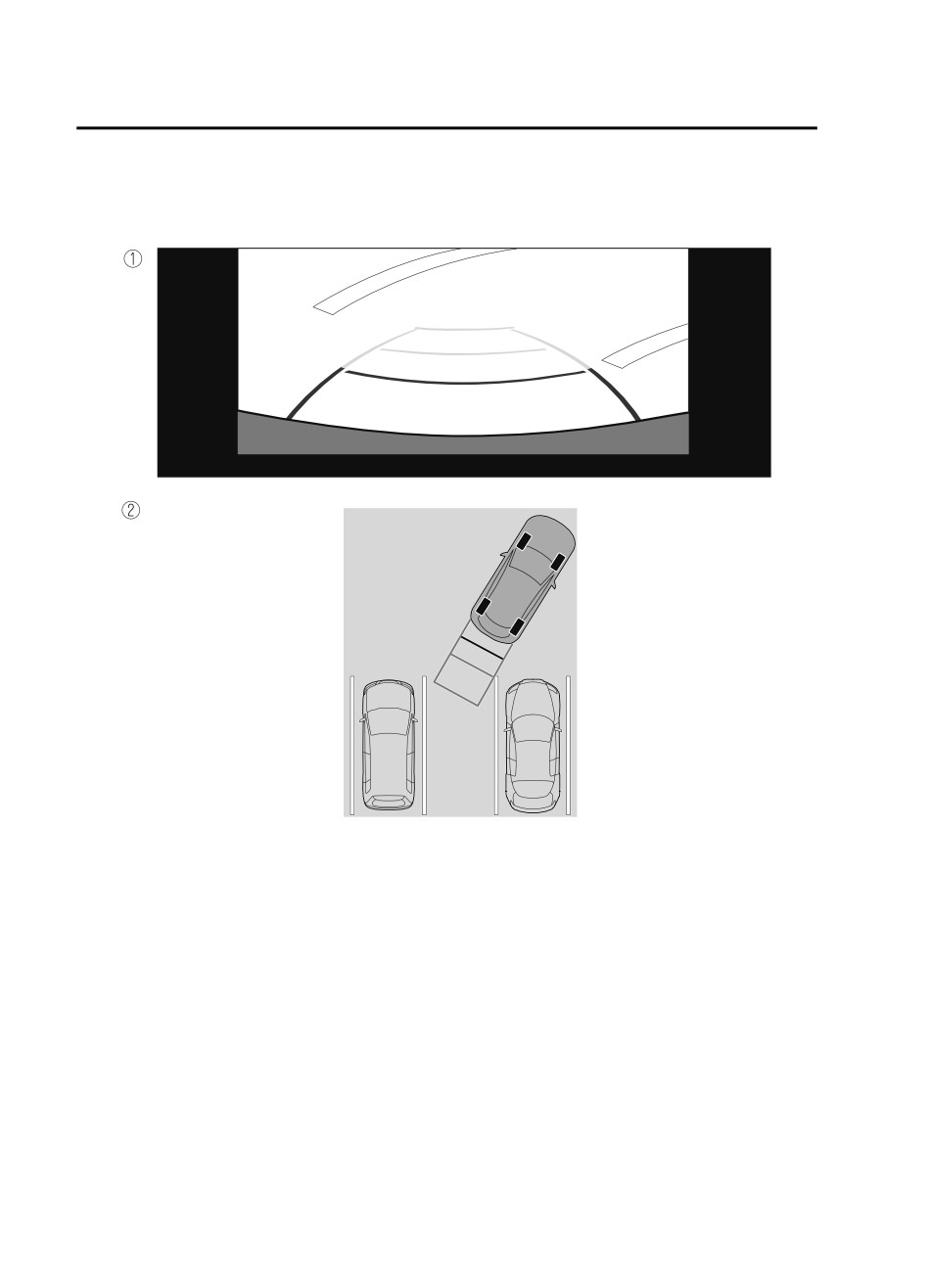

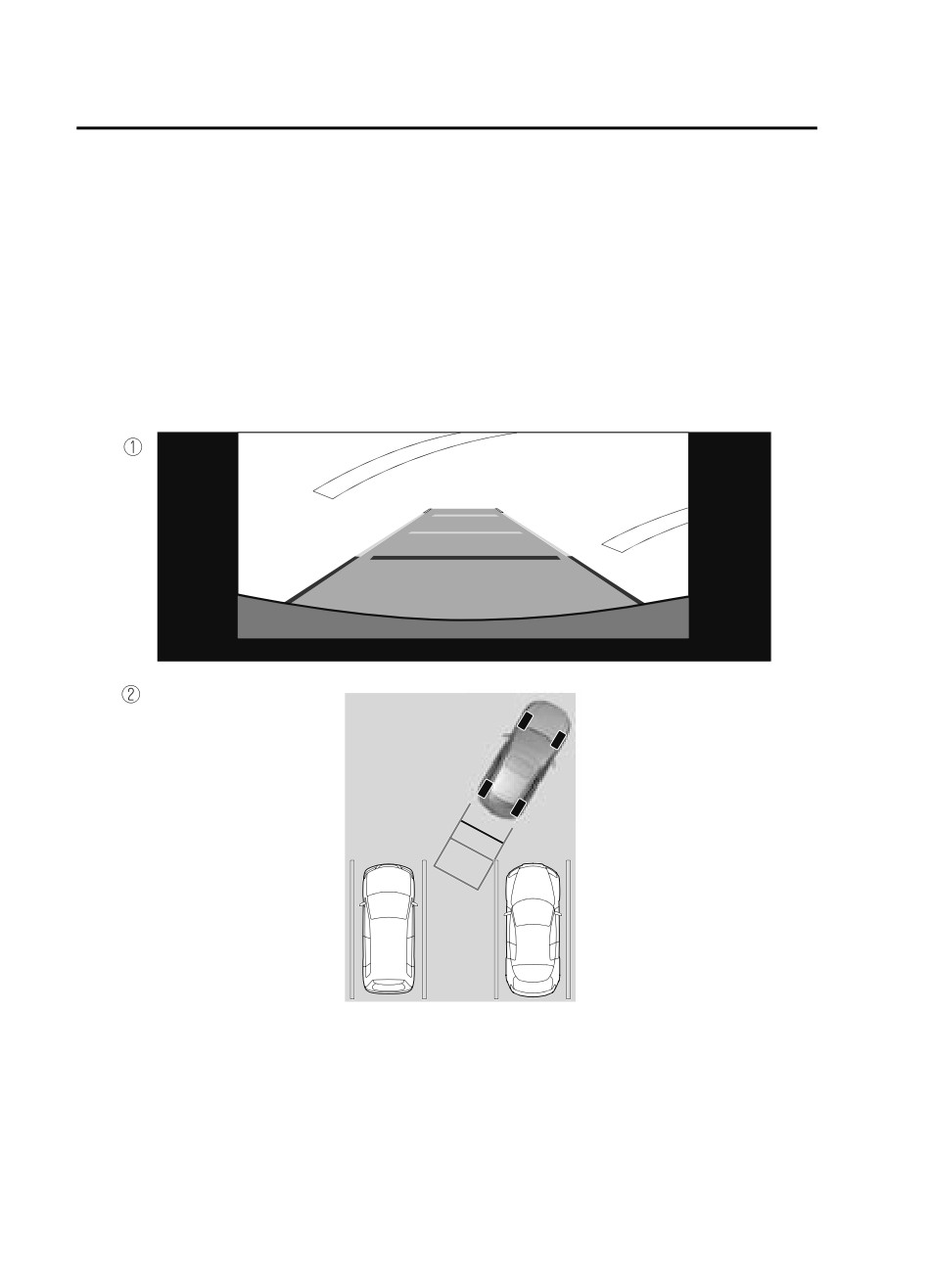

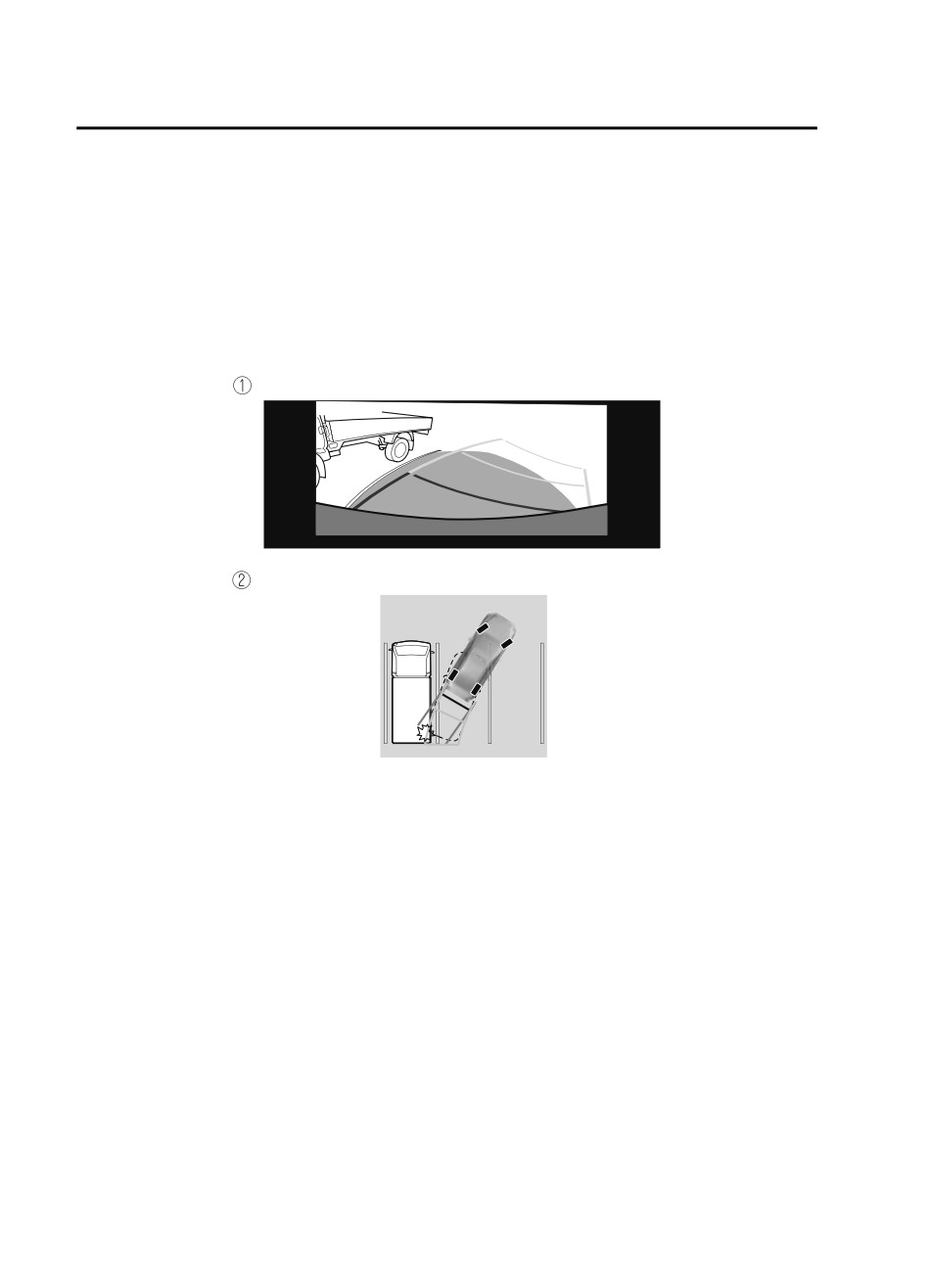

2. Before backing the vehicle into the parking space, turn the steering wheel while

referring to the projected vehicle path display so that the vehicle enters the

center of the parking space.

(Display condition)

(Vehicle condition)

4-222

When Driving

Rear View Monitor

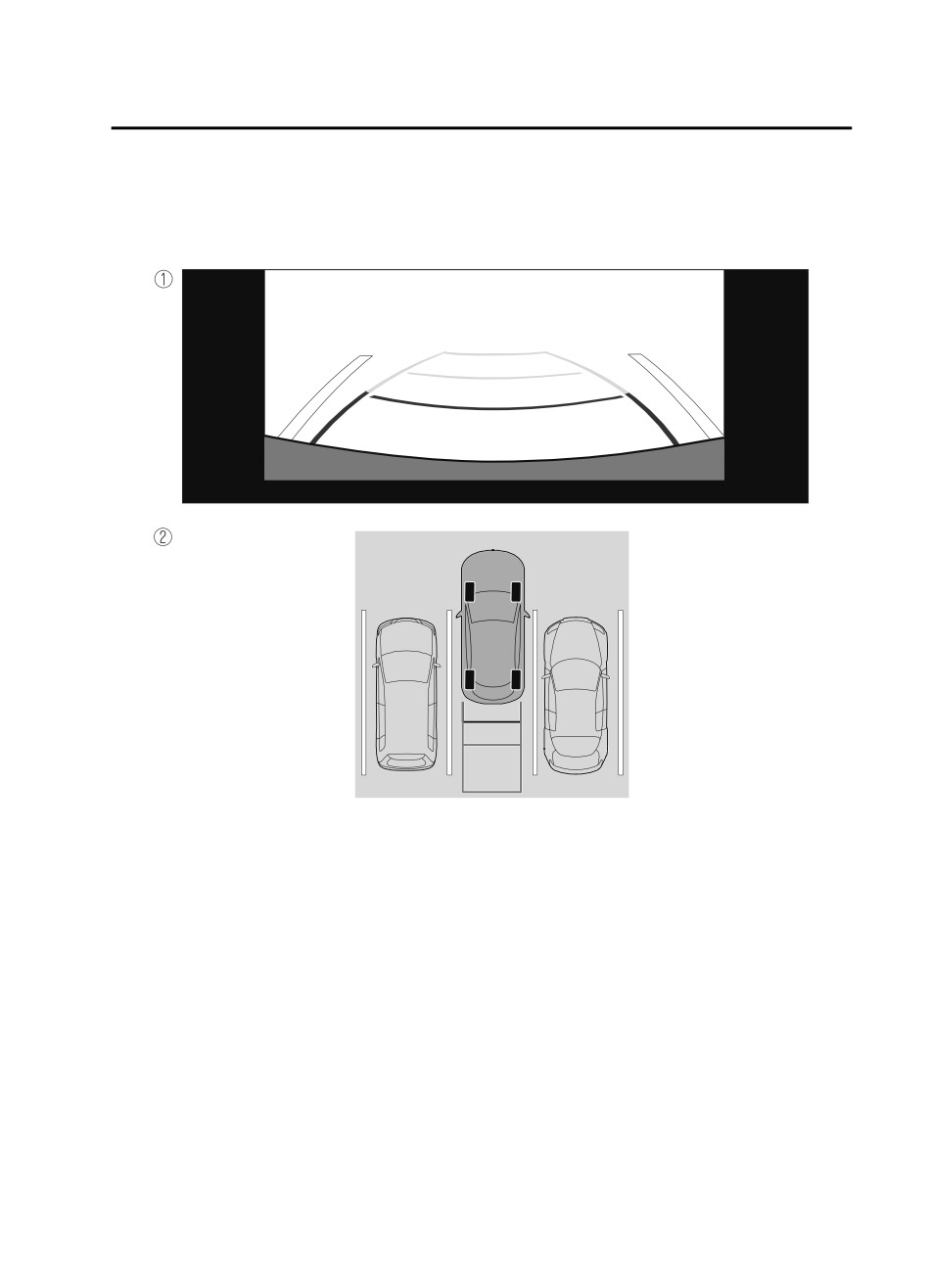

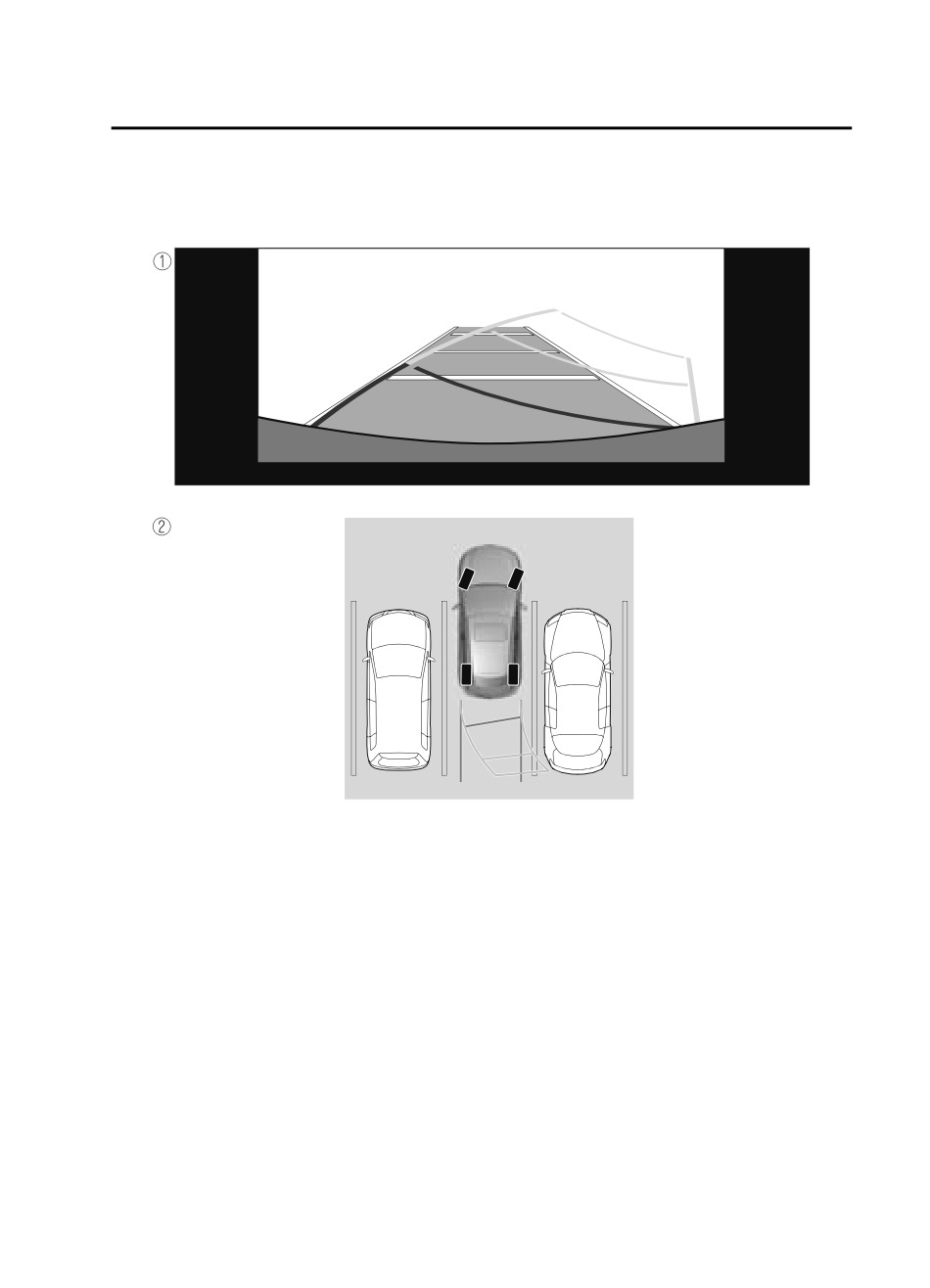

5. Once they are parallel, straighten the wheels and back your vehicle slowly into

the parking space. Continue checking the vehicle's surroundings and then stop

the vehicle in the best possible position. (If the parking space has division lines,

check whether the vehicle width guide lines are parallel to them.)

(Display condition)

(Vehicle condition)

6. When the selector lever is shifted from reverse (R) position to another selector

lever position, the screen returns to the previous display.

NOTE

Because there may be a difference between the displayed image, such as indicated

below, and the actual conditions when parking, always verify the safety at the rear of

the vehicle and the surrounding area directly with your eyes.

^ In the image of the parking space (or garage) displayed on the screen, the back

end and distance guide lines may appear aligned in the monitor, but they may not

actually be aligned on the ground.

4-224

When Driving

Rear View Monitor



When parking in a space with a division line on only one side of the parking space,

the division line and the vehicle width guide line appear aligned in the monitor,

but they may not actually be aligned on the ground.

Fixed assist lines display type

NOTE

Images displayed on the monitor from the rear view parking camera are reversed

images (mirror images).

1. Shift the selector lever to reverse (R) position to switch the display to the rear

view monitor display.

2. Confirming the surrounding conditions, reverse the vehicle.

4-225

When Driving

Rear View Monitor

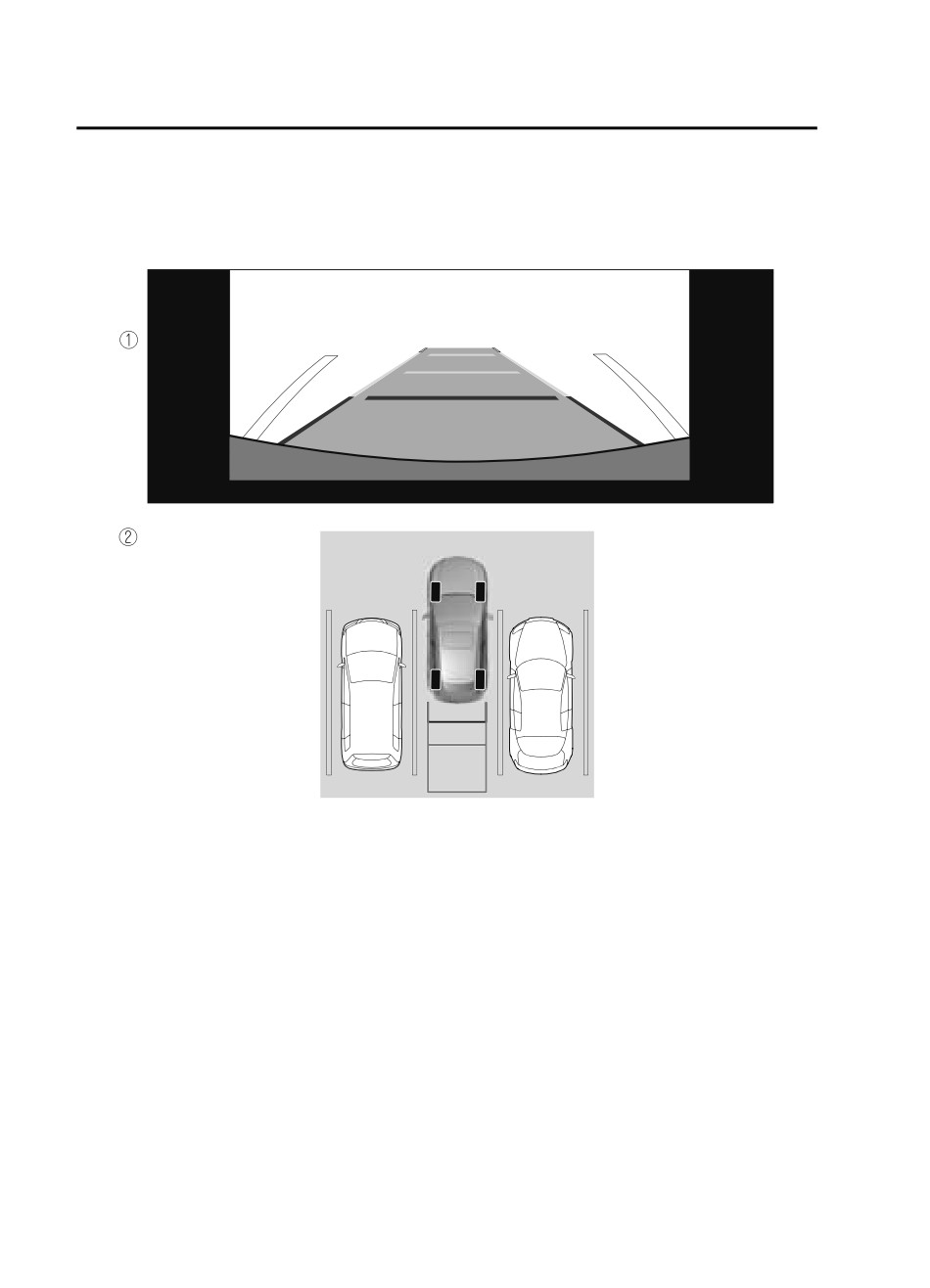

5. Once they are parallel, straighten the wheels and back your vehicle slowly into

the parking space. Continue checking the vehicle's surroundings and then stop

the vehicle in the best possible position. (If the parking space has division lines,

check whether the vehicle width guide lines are parallel to them.)

(Display condition)

(Vehicle condition)

6. When the selector lever is shifted from reverse (R) position to another selector

lever position, the screen returns to the previous display.

4-227

When Driving

Rear View Monitor

NOTE

Because there may be a difference between the displayed image, such as indicated

below, and the actual conditions when parking, always verify the safety at the rear of

the vehicle and the surrounding area directly with your eyes.

^ In the image of the parking space (or garage) displayed on the screen, the back

end and distance guide lines may appear aligned in the monitor, but they may not

actually be aligned on the ground.

^ When parking in a space with a division line on only one side of the parking space,

the division line and the vehicle width guide line appear aligned in the monitor,

but they may not actually be aligned on the ground.

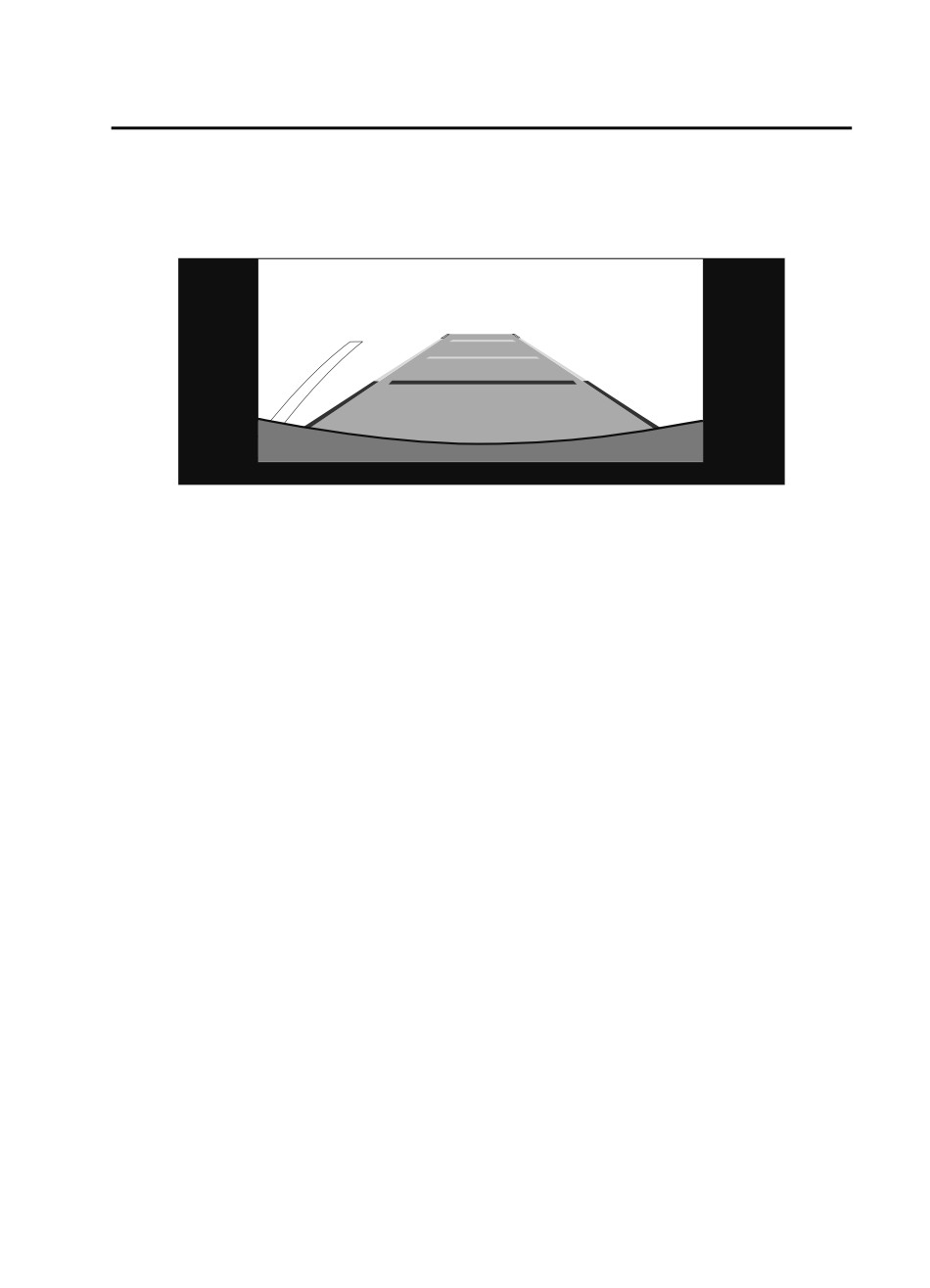

▼ Variance Between Actual Road Conditions and Displayed Image

Some variance occurs between the actual road and the displayed road. Such

variance in distance perspective could lead to an accident. Note the following

conditions that may cause a variance in distance perspective.

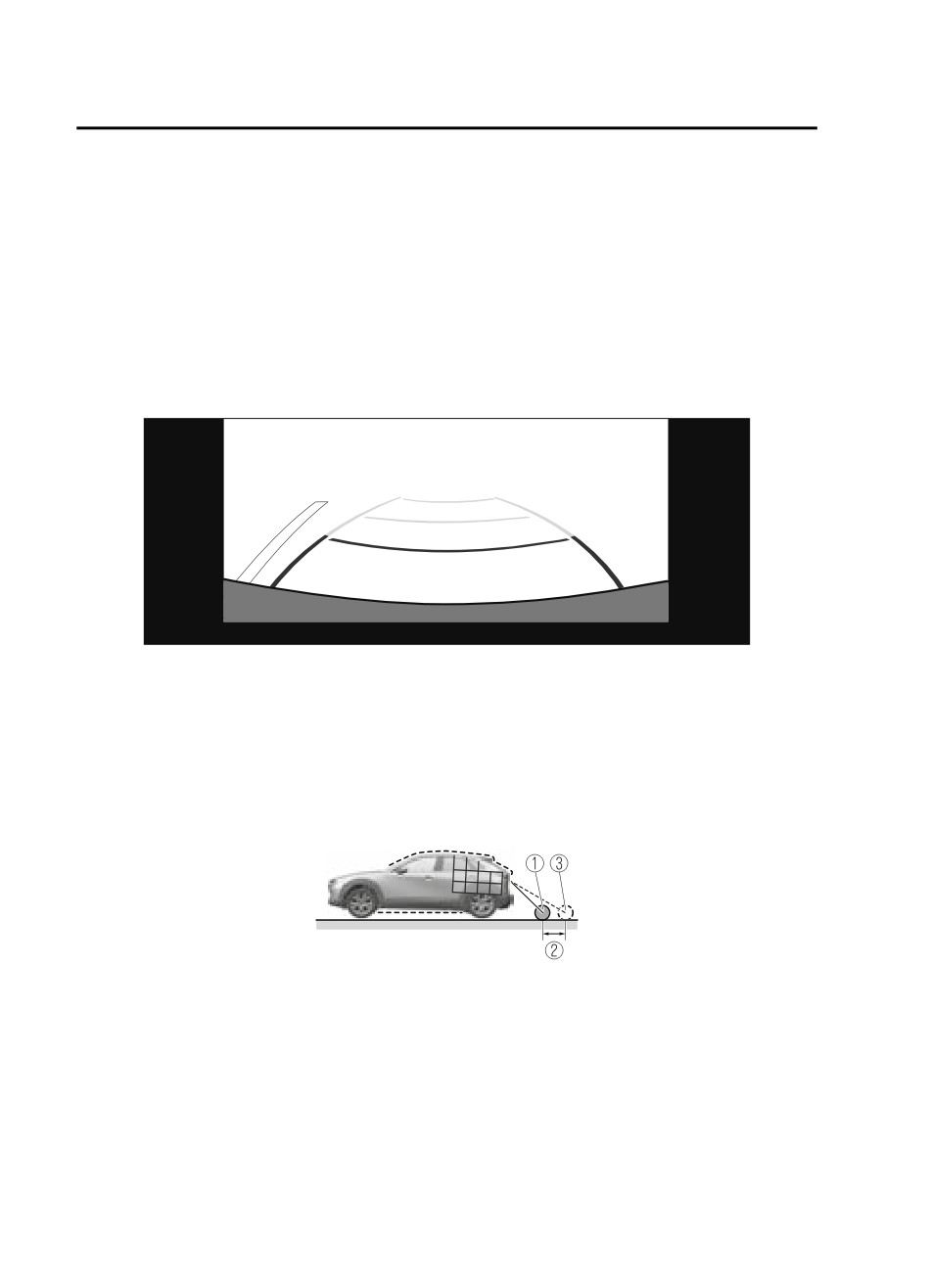

When the vehicle is tilted due to the weight of passengers and load

When the vehicle rear is lowered, the object displayed on the screen appears farther

than the actual distance.

1. Object

2. Variance

3. Object on screen

4-228

When Driving

Rear View Monitor

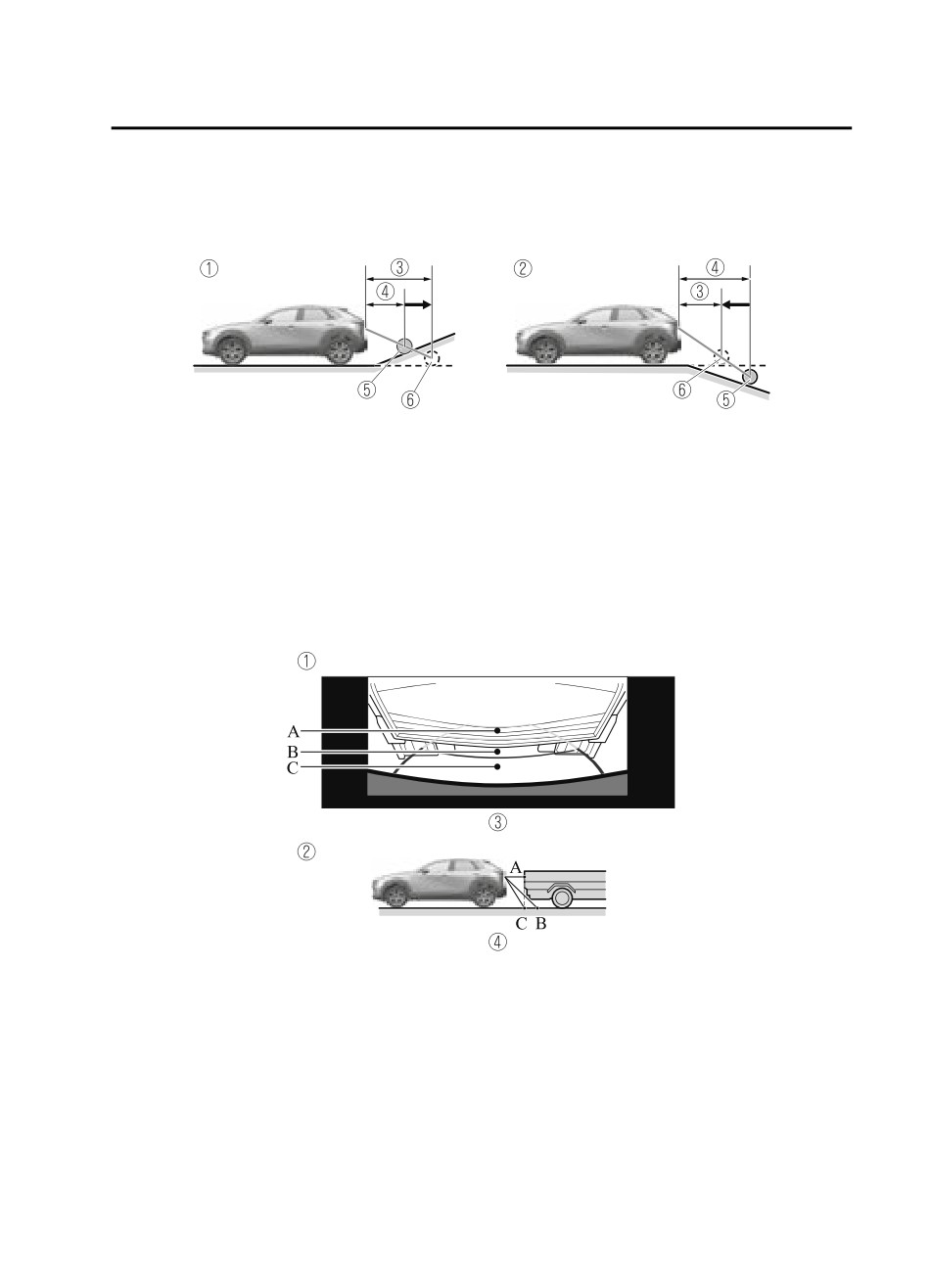

When there is a steep grade behind the vehicle

When there is a steep upgrade (downgrade) behind the vehicle, the object displayed

on the screen appears farther (downgrade: closer) than the actual distance.

1. Appears farther than actual distance

2. Appears closer than actual distance

3. Distance between the vehicle and object displayed on the screen.

4. Actual distance between the vehicle and object.

5. Object at actual position

6. Object on screen

Three-dimensional object on vehicle rear

Because the distance guide lines are displayed based on a flat surface, the distance

to the three-dimensional object displayed on the screen is different from the actual

distance.

(Screen display)

(Actual condition)

3. Sensed distance on screen A>B>C

4. Actual distance B>C=A

4-229

When Driving

Rear View Monitor

(Predicted vehicle path assist lines display type)

When reversing near a three-dimensional object

When reversing near an overhanging object, the vehicle may hit the object even if

the anticipated course line does not contact the object on the screen. The position

of the object displayed on the screen is different from the actual position because

the anticipated course lines on the screen are displayed based on a horizontal road

surface. When backing up near an overhanging object, confirm the rear and

surrounding conditions directly with your eyes.

(Screen display)

(Actual view)

4-230

When Driving

Parking Sensor System

Parking Sensor System*

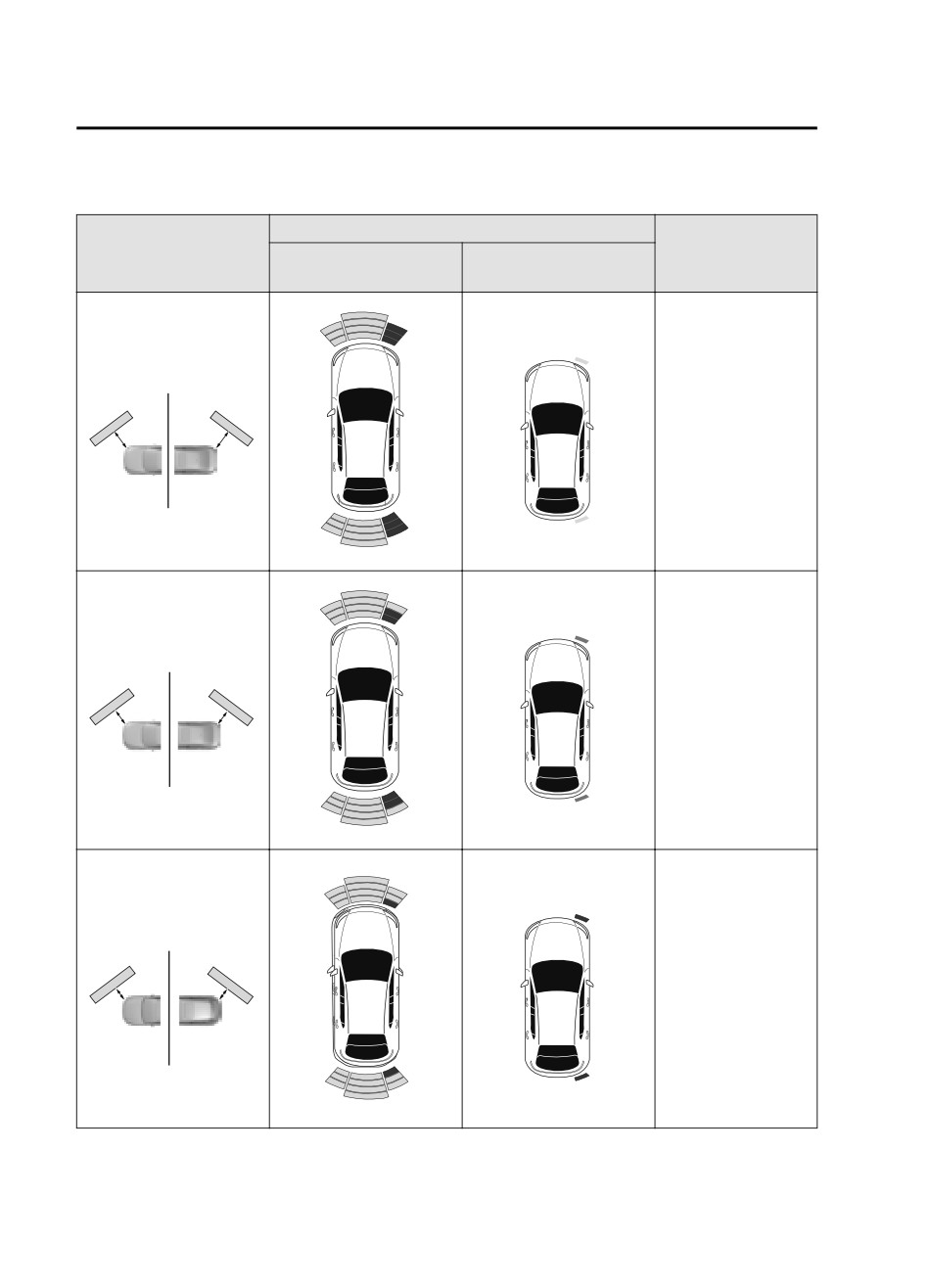

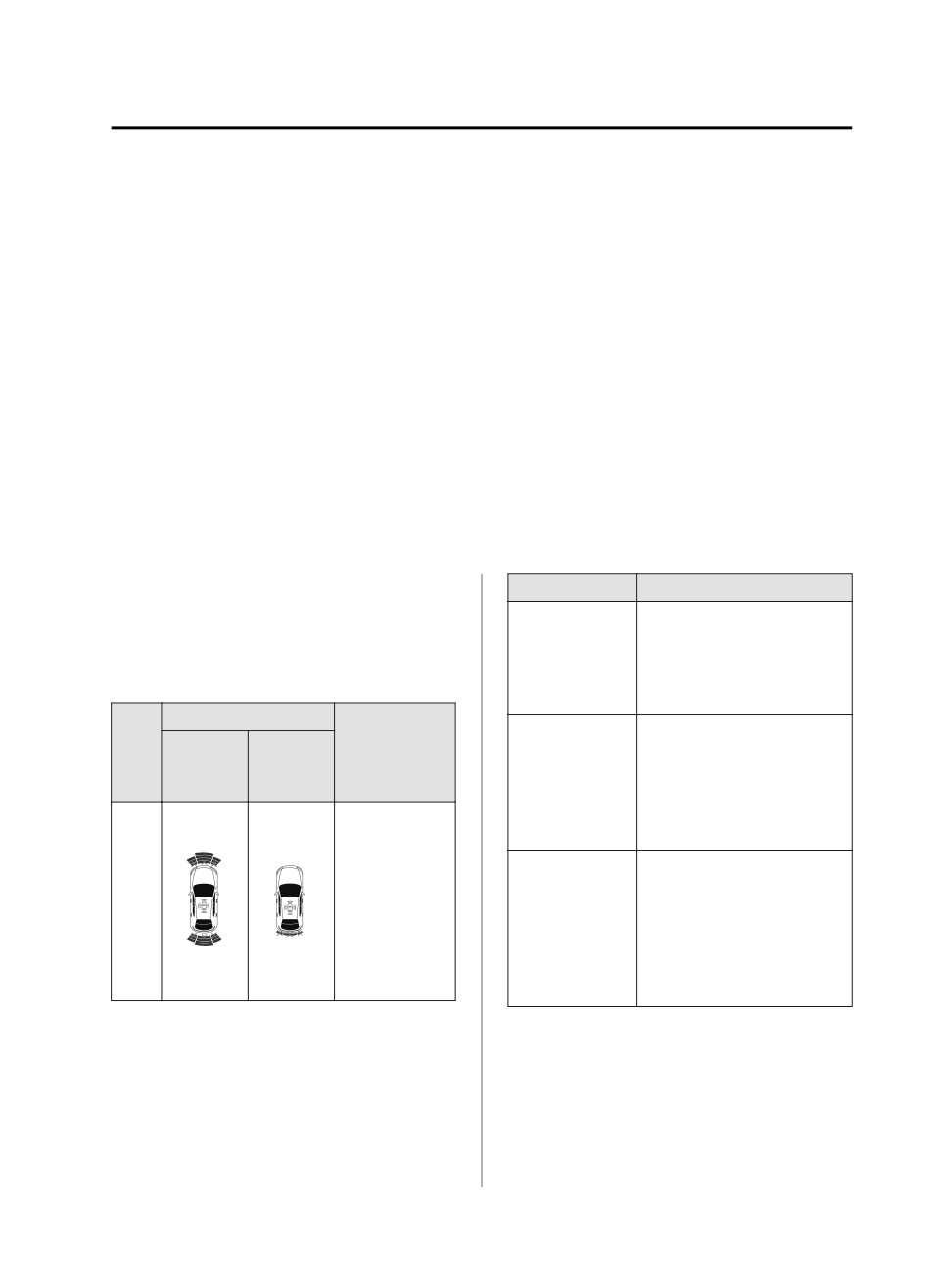

▼ Parking Sensor System

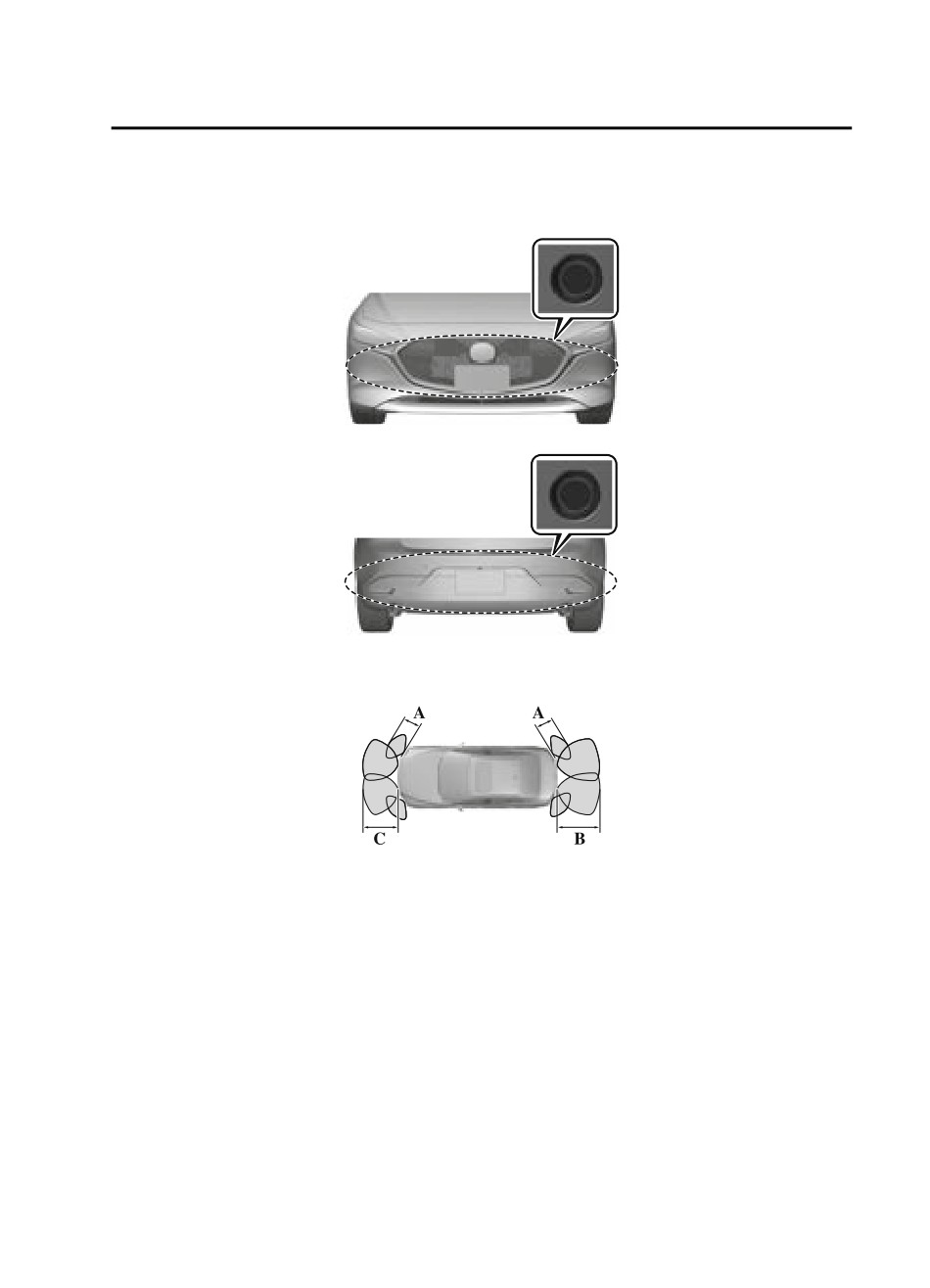

The parking sensors use ultrasonic sensors which detect obstructions around the

vehicle when the vehicle is driven at low speeds, such as during garage or parallel

parking, and a buzzer sound and detection indicator notify the driver of the

approximate distance from the vehicle to the surrounding obstruction.

WARNING

Do not rely completely on the parking sensor system and be sure to confirm the

safety around your vehicle visually when driving:

This system can assist the driver in operating the vehicle in the forward and

backward directions while parking. The detection ranges of the sensors are limited,

therefore, driving the vehicle while relying only on the system may cause an

accident. Always confirm the safety around your vehicle visually when driving.

CAUTION

¾ Do not install any accessories within the detection ranges of the sensors. It may

affect the system operation.

¾ Depending on the type of obstruction and the surrounding conditions, the

detection range of a sensor may narrow, or the sensors may not be able to detect

obstructions.

¾ When washing the vehicle, do not spray highly pressurized water against the

sensor area, or rub it strongly. Otherwise, it may not be able to detect obstructions

correctly and the system may not operate normally.

NOTE

^ When the ignition is switched OFF, the system status before it was turned off is

maintained. For example, if the ignition is switched OFF while the parking sensor

is activated, the system will be activated when the ignition is switched ON the

next time.

^ The system may not operate normally under the following conditions:

^ Mud, ice, or snow is adhering to the sensor area (Returns to normal operation

when removed).

^ The sensor area is frozen (Returns to normal operation when the ice is thawed).

^ The sensor is covered by a hand.

^ The sensor is excessively shocked.

^ The vehicle is excessively tilted.

^ Under extremely hot or cold weather conditions.

^ The vehicle is driven on bumps, inclines, gravel, grating, or grass covered roads.

*Some models.

4-231

When Driving

Parking Sensor System



Anything which generates ultrasonic waves such as another vehicle's horn, the

engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or

another vehicle's sensors approaches the vehicle.

^ The vehicle is driven in heavy rain or in road conditions causing water-splash.

^ A commercially-available fender pole or an antenna for a radio transmitter is

installed to the vehicle.

^ The vehicle is moving towards a tall or square curbstone, or a steep grade.

^ An obstruction is too close to the sensor.

^ The vehicle is moving towards an uneven wall or stairs.

^ There are multiple obstructions.

^ The vehicle is driven in a place with low ceilings.

^ Obstructions under the bumper cannot be detected. Obstructions which are

lower than the sensor or thin may not be detected even though they were

detected once.

^ The following types of obstructions may not be detected:

^ Thin objects such as wire, rope or poles

^ Things which absorb sonic waves easily such as cotton or snow

^ Angular shaped objects

^ Very tall objects, and those which are wide at the top

^ Small, short objects

^ Always have the system inspected at an Authorized Mazda Dealer if any shock is

applied to the bumpers, even in a minor accident. If the sensors are deviated, they

cannot detect obstructions.

^ The system may have a malfunction if a sound is not activated or the detection

indication is not displayed even when the parking sensor OFF switch is pressed

and the parking sensor is operable. Have your vehicle inspected by an Authorized

Mazda Dealer.

^ The system may have a malfunction if the indicator light does not turn on even

when the parking sensor OFF switch is turned on. Have your vehicle inspected by

an Authorized Mazda Dealer.

^ The system may have a malfunction if a message indicating a system malfunction is

displayed. Have your vehicle inspected by an Authorized Mazda Dealer.

^ A message may be displayed even when the ambient temperature is extremely

cold, or mud, ice, or snow adheres to the sensor area. Remove any foreign matter

from the sensor area.

^ When installing a trailer hitch, consult an Authorized Mazda Dealer.

^ If a Mazda genuine trailer hitch is used, the rear side of the parking sensor system

is automatically turned off.

4-232

When Driving

Parking Sensor System

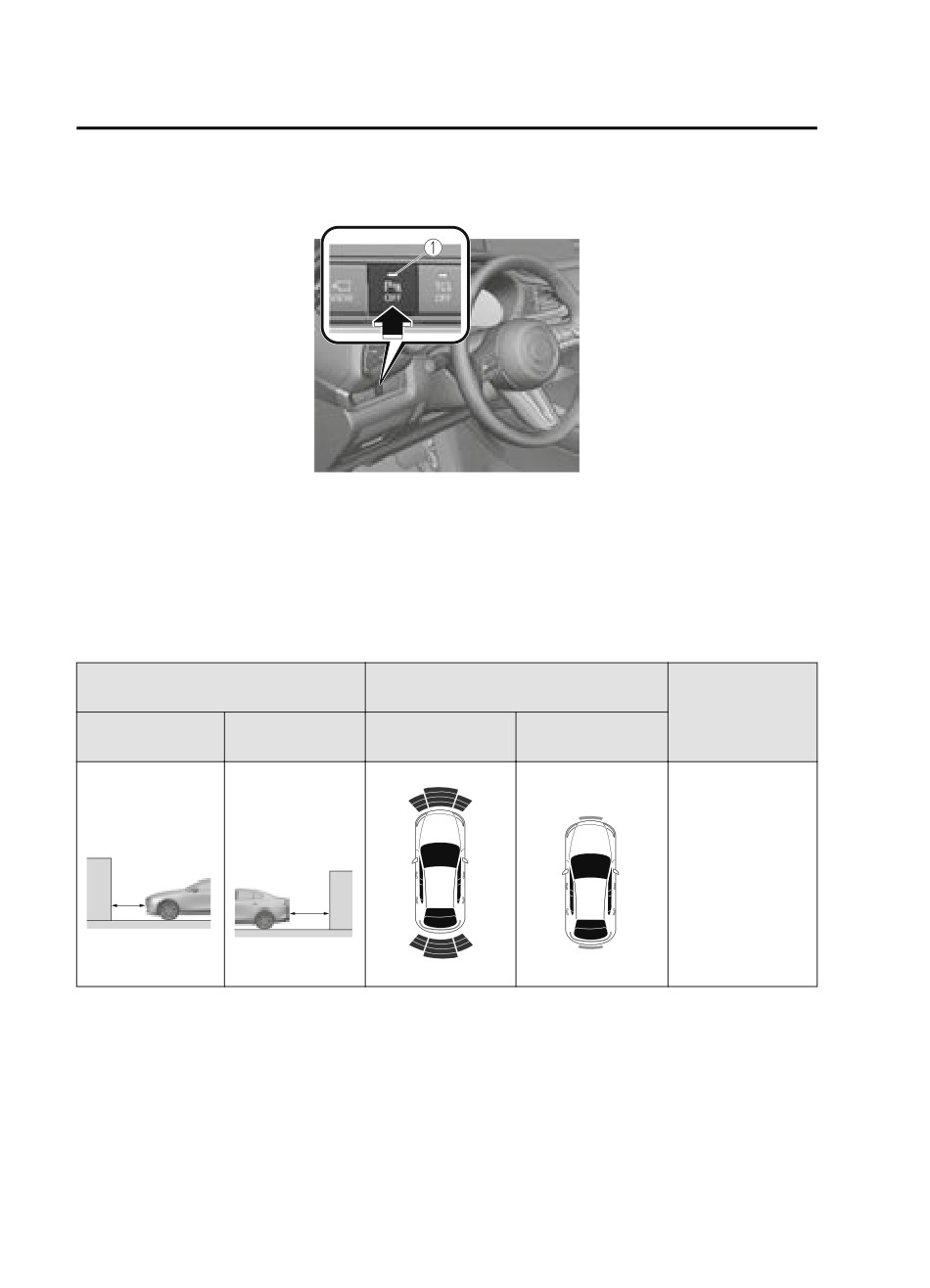

If the switch is pressed again, the parking sensor becomes operational and the

indicator light turns off.

1. Indicator light

Sound and viewing distance display

Informs the driver of the approximate distance from the vehicle to the obstruction

using warning beeps depending on the distance. If multiple obstructions are

detected at the same time, warning beeps are activated according to the distance to

the nearest obstruction.

Front*､Rear

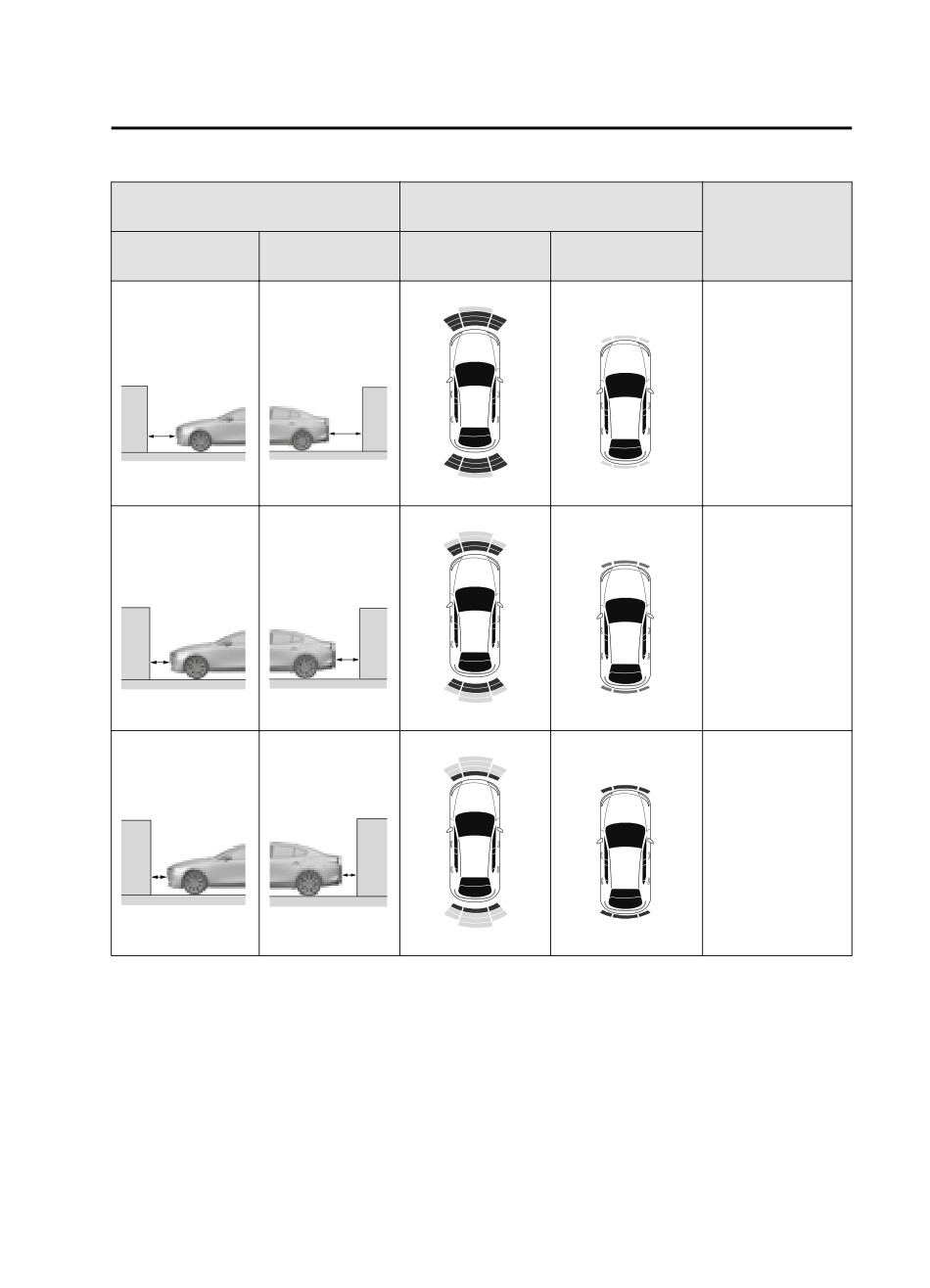

Distance between vehicle and ob-

Display

struction

Beeper sound

Without 360° view

With 360° view

Front

Rear

monitor

Green

Approx.

Approx. 100―60.0

150―60.0 cm

cm (39.3―23.6 in)

(59.0―23.6 in)

Slow intermittent

sound

4-234 *Some models.

When Driving

Parking Sensor System

Distance between vehicle and ob-

Display

struction

Beeper sound

Without 360° view

With 360° view

Front

Rear

monitor

Yellow

Approx.

60.0―45.0 cm

(23.6―17.7 in)

Medium intermit-

tent sound

Amber

Approx.

45.0―35.0 cm

(17.7―13.7 in)

Fast intermittent

sound

Red

Within approx.

35.0 cm (13.7 in)

Continuous sound

4-235

When Driving

Parking Sensor System

NOTE

^ The detection indicator can be switched between display and non-display and the

buzzer volume can be changed.

Refer to the Settings section in the Mazda Connect Owner's Manual.



(Vehicles with 360° View Monitor)

When the detection indicator is set to “Display”, even with the 360° view monitor

not displayed, if a front sensor or a front corner sensor detects an obstruction, the

360° view monitor switches automatically to display. When an obstruction is no

longer detected, the display switches to the display before the obstruction was

detected.

However, while the 360° view monitor is displayed, it continues to display no

matter if an obstruction is detected or not.

^ If an obstruction in the same area excluding the close area is detected

continuously for 6 seconds or longer, only the warning beeps stop activating.

(Detection is indicated) If the detection area changes to the close side, the

warning beeps resumes. (If the detection area changes to the far side, the warning

beeps remain off)

System Problem Indication

Indicator/Beep

How to check

If any of the problems indicated in the

A message indi-

There may be a problem

table occurs, the driver is notified of

cating a system

with the system. Have your

the problem depending on the type of

malfunction or

vehicle inspected by an Au-

system as shown.

sensor malfunc-

thorized Mazda Dealer as

tion is displayed.

soon as possible.

Detection Indicator

Remove any foreign matter

Without

With 360°

Solution

A message indi-

from the sensor area. If the

360° view

view mon-

cating that the

system does not recover,

monitor

itor

sensor is dirty is

have the vehicle inspected

The system may

displayed.

by an Authorized Mazda

have a mal-

Dealer.

Sys-

function. Have

Foreign matter may have

tem

the vehicle in-

A certain ob-

gotten on the sensor area

mal-

spected at an

struction detec-

corresponding to the detec-

func-

Authorized

tion indication is

tion indicator. If the system

tion

Mazda Dealer

continuously dis-

does not recover, have the

as soon as pos-

played.

vehicle inspected by an Au-

sible.

thorized Mazda Dealer.

The driver is notified of a problem

with the following indications.

4-237

Interior Features

Use of various features for ride comfort, including air-

conditioning system and audio system.

Climate Control System

5-2

Interior Equipment

5-39

Operating Tips

5-2

Sunvisors

5-39

Vent Operation

5-3

Interior Lights

5-40

Manual Type

5-6

Accessory Socket

5-42

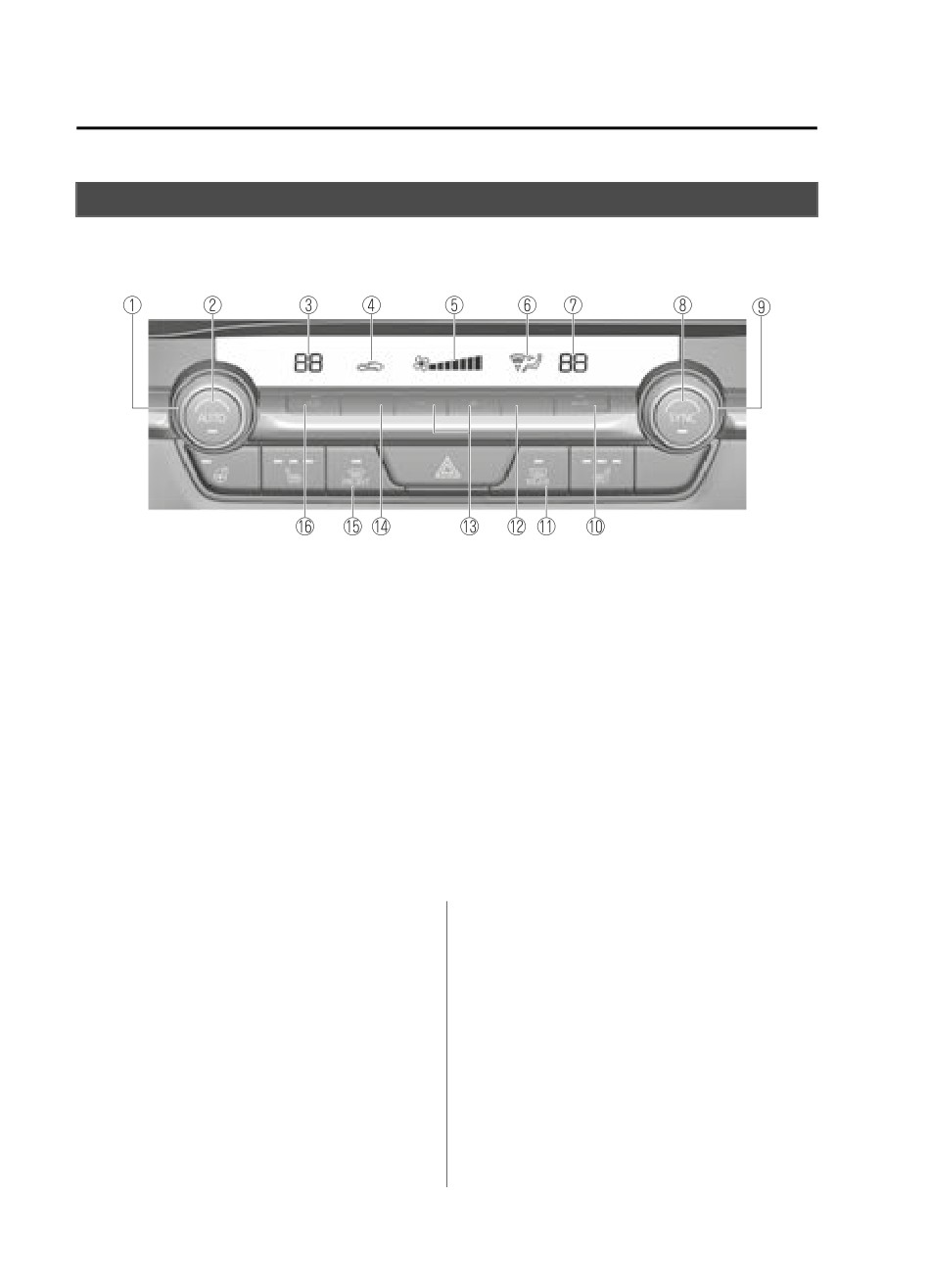

Fully Automatic Type

5-10

Cup Holder

5-43

Bottle Holder

5-44

Assist Grips

5-45

Mazda Connect

5-15

Rear Coat Hooks

5-45

What is Mazda Connect ?

5-15

Storage Compartments

5-46

Mazda Connect Basic

Operations

5-19

Connected Service (If

applicable)

5-37

5-1

Interior Features

Climate Control System

^ Have the air conditioner checked

Operating Tips

before the weather gets hot. Lack of

refrigerant may make the air

▼ Operating Tips

conditioner less efficient.

^ Operate the climate control system

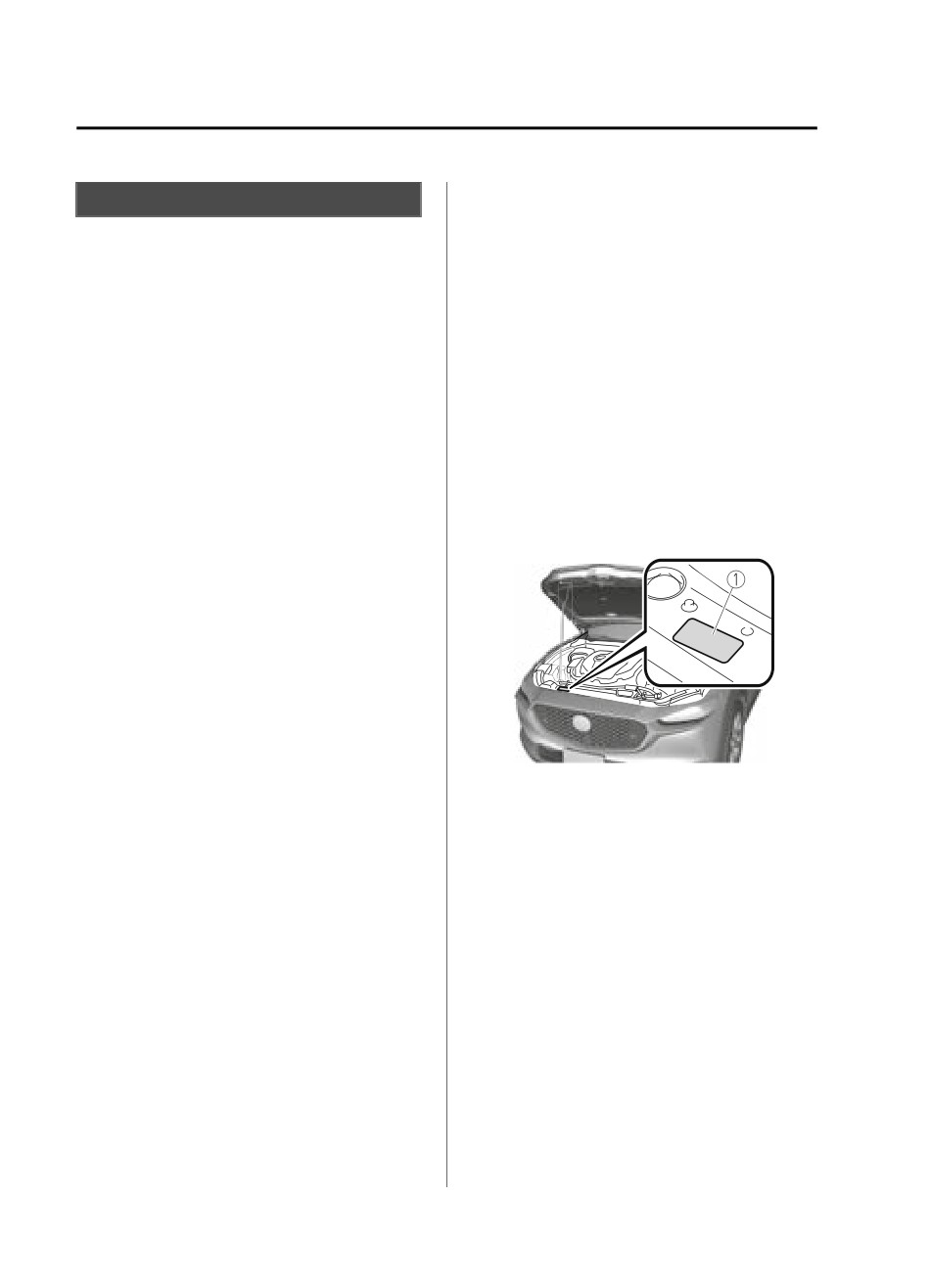

The refrigerant specifications are

with the engine running.

indicated on a label attached to the

^ To prevent the battery from being

inside of the engine compartment. If

discharged, do not leave the fan

the wrong type of refrigerant is used,

control switch on for a long period of

it could result in a serious

time with the ignition switched ON

malfunction of the air conditioner.

when the engine is not running.

Consult a professional, government

^ Clear all obstructions such as leaves,

certified repairer for the inspection

snow and ice from the hood and the

or repair because a special device is

air inlet in the cowl grille to improve

required for the air conditioner

the system efficiency.

maintenance.

^ Use the climate control system to

For details, consult an Authorized

defog the windows and dehumidify

Mazda Dealer.

the air.

^ The recirculate mode should be used

when driving through tunnels or

while in a traffic jam, or when you

would like to shut off outside air for

quick cooling of the interior.

^ Use the outside air position for

ventilation or windshield defrosting.

^ If the vehicle has been parked in

direct sunlight during hot weather,

open the windows to let warm air

1. Label

escape, then run the climate control

system.

^ Run the air conditioner about 10

minutes at least once a month to

keep internal parts lubricated.

5-2

Interior Features

Climate Control System

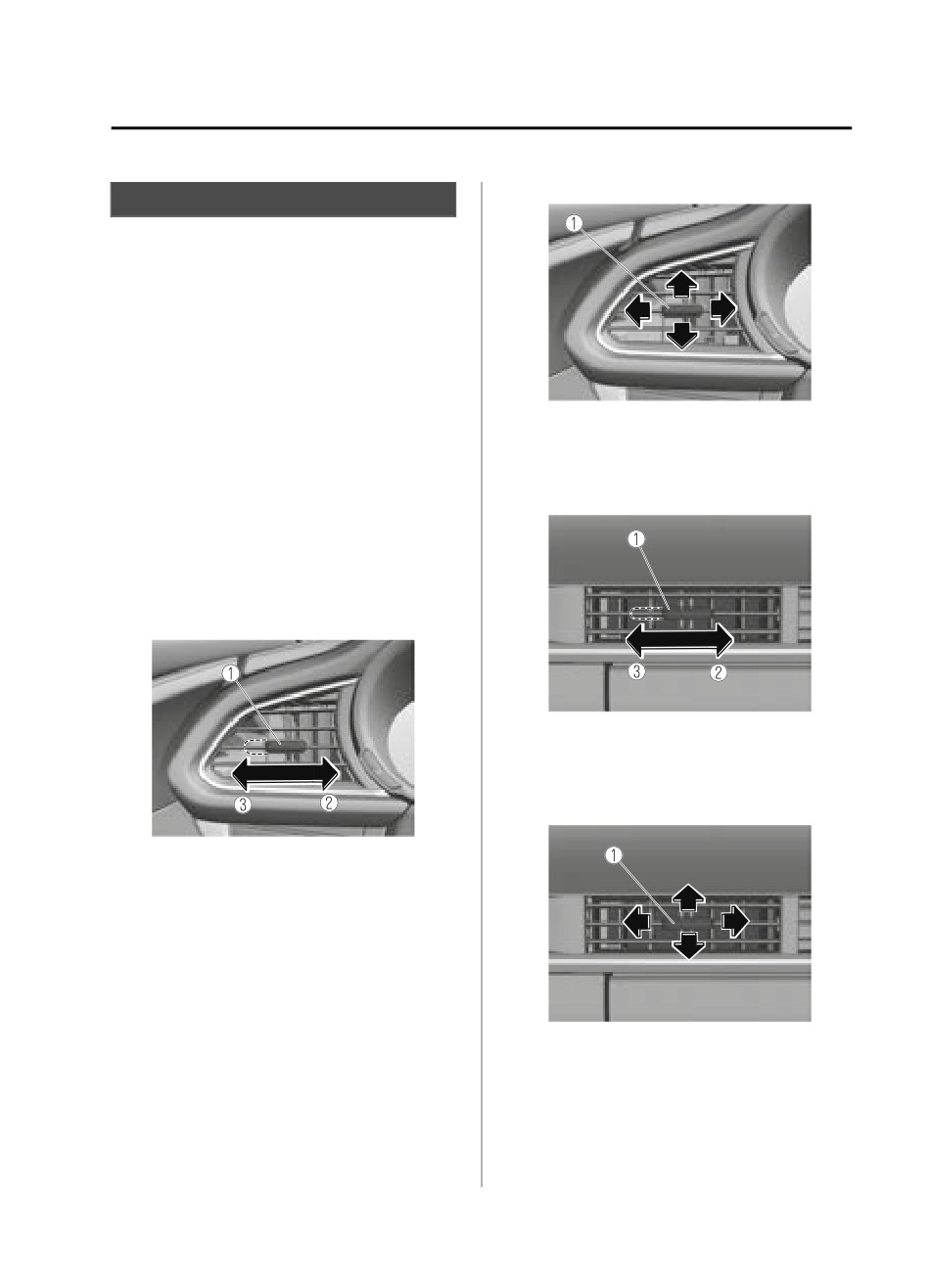

Airflow direction adjustment

Vent Operation

▼ Adjusting the Vents

Directing airflow

To adjust the direction of airflow, move

the adjustment knob.

NOTE

^ When using the air conditioner

1. Knob

under humid ambient temperature

conditions, the system may blow fog

from the vents. This is not a sign of

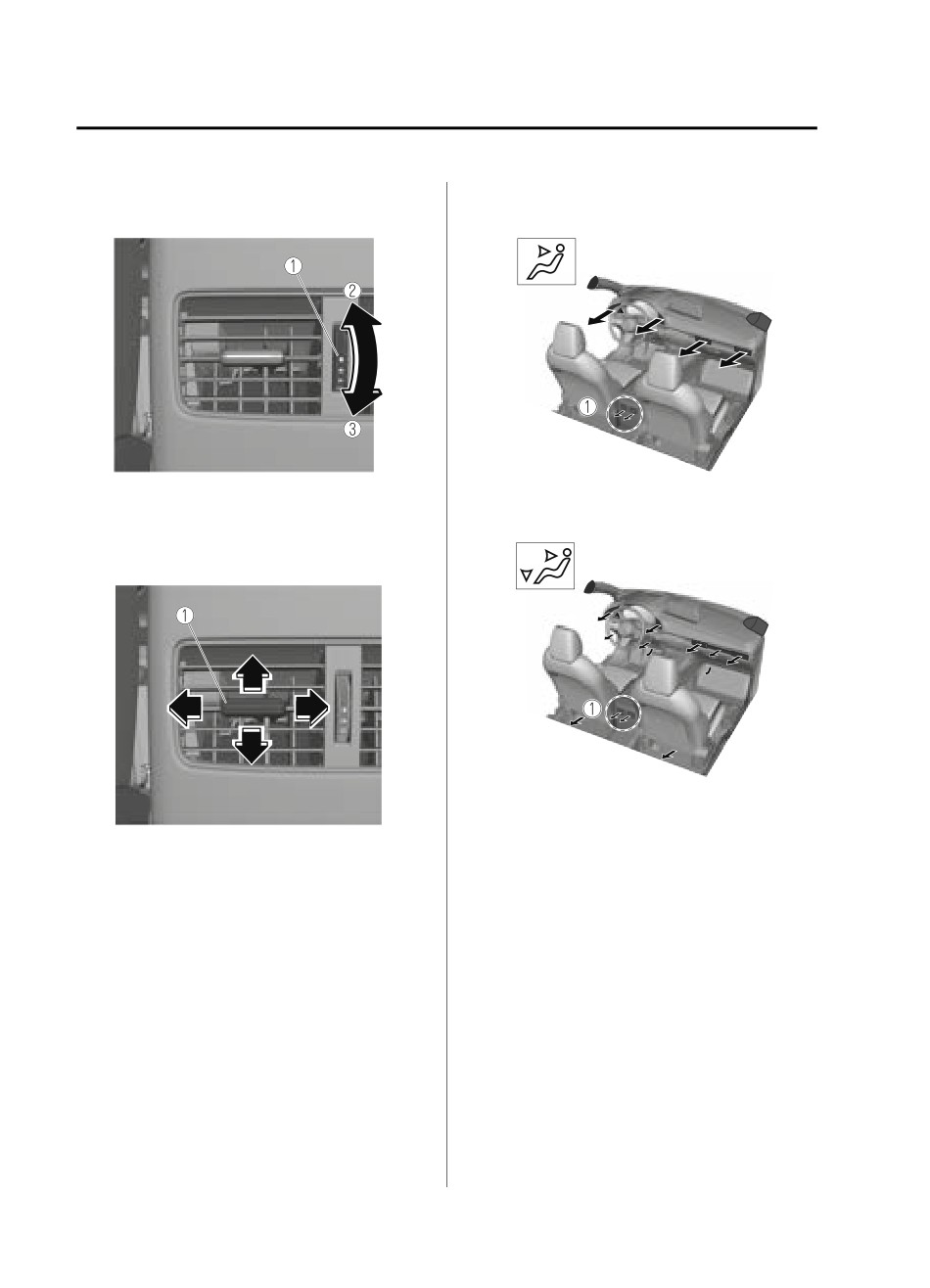

Passenger's Side Vents

trouble but a result of humid air

Air vent open/close

being suddenly cooled.

^ The air vents can be fully opened and

closed by operating the knob/dial.

Driver's Side Vents

Air vent open/close

1. Knob

2. Open

3. Close

Airflow direction adjustment

1. Knob

2. Open

3. Close

NOTE

The figure indicates the air vent on the

left side of the instrument cluster. The

operation direction for the air vent on

the right side of the instrument cluster

is symmetrical with the air vent on the

1. Knob

left side.

5-3

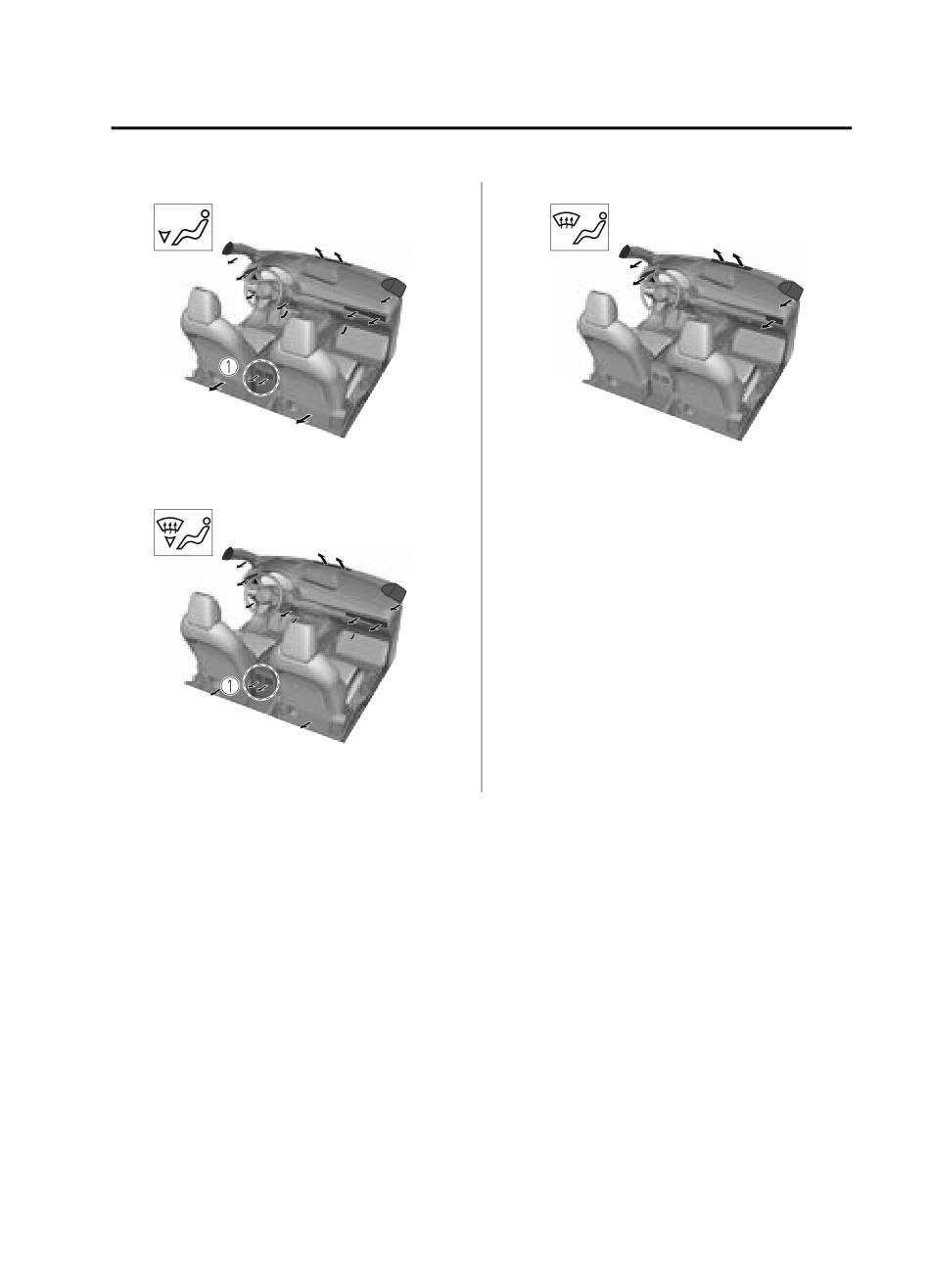

Interior Features

Climate Control System

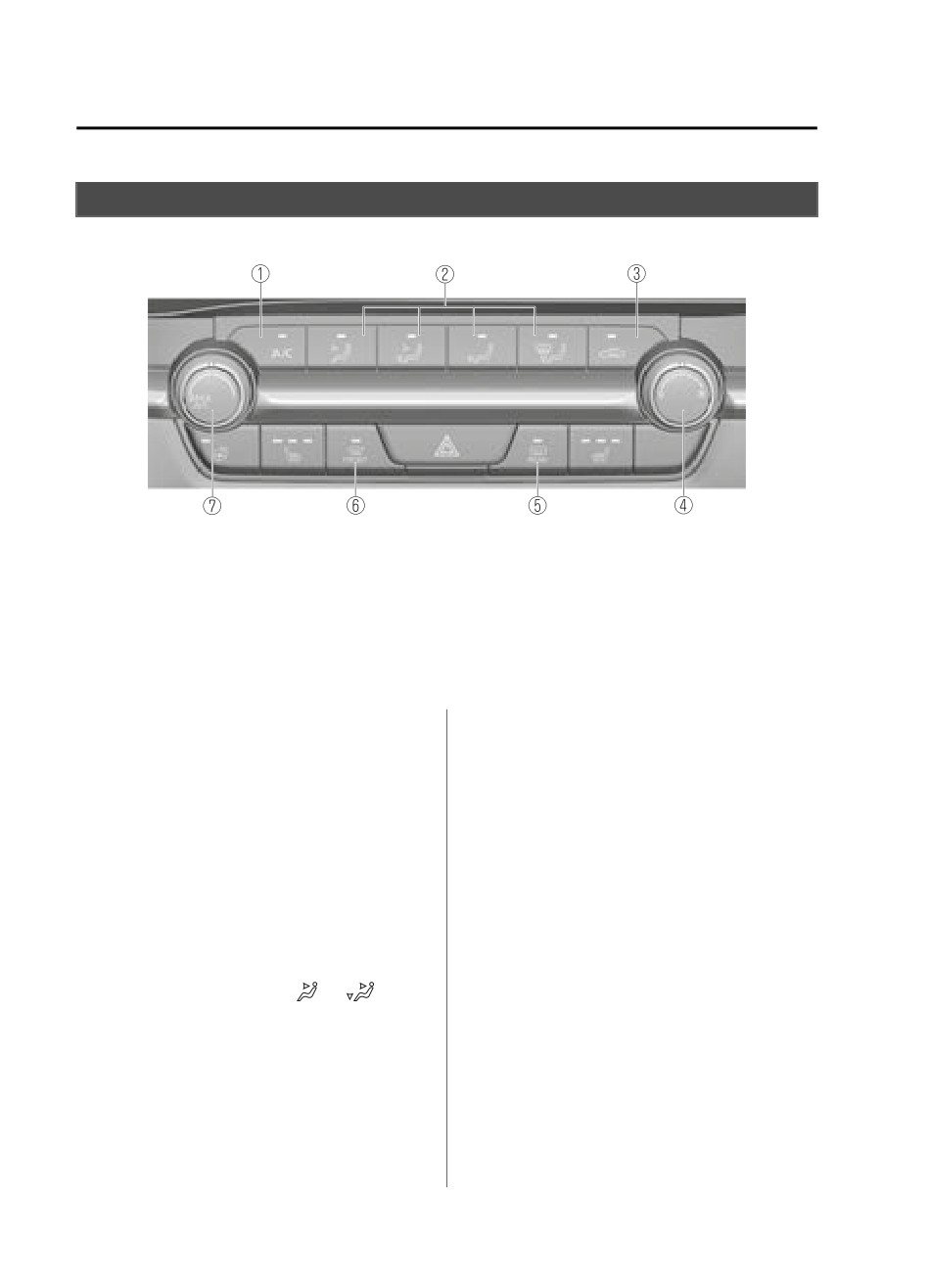

Manual Type

▼ Manual Type

1. A/C switch

2. Mode selector switch

3. Air intake selector switch

4. Fan control dial

5. Rear window defogger switch

6. Windshield defroster switch

7. Temperature control dial

▼ Control Switches

Fan control dial

Temperature control dial

This dial allows variable fan speeds.

The fan has seven speeds.

This dial controls temperature. Turn it

clockwise for hot and

Mode selector switches

counterclockwise for cold.

The desired airflow mode can be

MAX A/C

selected (page 5-4).

Fully turn the temperature control dial

A/C switch

counterclockwise for MAX A/C

Press the A/C switch to turn the air

(maximum cooling).

conditioner on. The indicator light on

NOTE

the switch will illuminate when the fan

control dial is in any position except

When the mode is set to or

with

OFF.

the fan control dial in a position other

than 0 and the temperature control

Press the switch once again to turn the

dial in the MAX A/C position, the air

air conditioner off.

intake selector switches to the

recirculated air position and the A/C

NOTE

turns on automatically.

The air conditioner may not function

If A/C is not desired, press the A/C

when the outside temperature

switch to turn it off.

approaches 0 °C (32 °F).

5-6

Interior Features

Climate Control System

Air intake selector switch

^ To exit the default recirculated air

position, press the air intake selector

This switch controls the source of air

switch to select the outside air

entering the vehicle.

position.

^ When the air intake selector switch is

Outside or recirculated air positions

set to the outside air position and

can be selected. Press the switch to

the outside temperature exceeds

select outside/recirculated air

about 73°F (23℃), the climate

positions.

control system may automatically

Recirculated air position (indicator

select the recirculated air position to

light illuminated)

improve the efficiency of the climate

control system.

Outside air is shut off. Air within the

vehicle is recirculated. Use this

Windshield defroster switch

position when going through tunnels,

Press the switch to defrost the

driving in congested traffic (high engine

windshield and front door windows.

exhaust areas), or when quick cooling

Refer to Windshield Defrosting and

is desired.

Defogging on page 5-9.

Outside air position (indicator light

Rear window defogger switch

turned off)

Press the rear window defogger switch

Outside air is allowed to enter the

to defrost the rear window.

cabin. Use this position for ventilation

Refer to Rear Window Defogger on

or windshield defrosting.

page 4-64.

WARNING

▼ Heating

Do not use the

position (indicator

1. Press the

switch.

2. Set the air intake selector to the

light turns on) in cold or rainy

weather:

outside air position (indicator light

turns off).

Using the

position (indicator light

turns on) in cold or rainy weather is

3. Set the temperature control dial to

the hot position.

dangerous as it will cause the windows

to fog up. Your vision will be

4. Set the fan control dial to the

desired speed.

hampered, which could lead to a

serious accident.

5. If dehumidified heating is desired,

turn on the air conditioner.

NOTE

^ The recirculated air position is the

^ If the windshield fogs up easily, press

default position whenever the

the

switch.

ignition is switched ON, the climate

^ If cooler air is desired at face level,

control system is on, and the outside

press the

switch and adjust the

temperature exceeds about 73°F

temperature control dial to maintain

(23℃).

maximum comfort.

5-7

Interior Features

Climate Control System



The air to the floor is warmer than air

CAUTION

to the face (except when the

temperature control dial is set at the

If the air conditioner is used while

extreme hot or cold position).

driving up long hills or in heavy traffic,

monitor the high engine coolant

▼ Cooling

temperature warning indication to see

if it is displayed (page 7-24).

Press the switch.

The air conditioner may cause engine

Set the temperature control dial to

overheating. If the warning indication

the cold position.

is displayed, turn the air conditioner

Set the fan control dial to the

off (page 7-17).

desired speed.

Turn on the air conditioner by

pressing the A/C switch.

NOTE

After cooling begins, adjust the fan

^ When maximum cooling is desired,

control dial and temperature

set the temperature control dial to

control dial as needed to maintain

the extreme cold position and set

maximum comfort.

the air intake selector to the

recirculated air position, then turn

the fan control dial fully clockwise.

^ If warmer air is desired at floor level,

press the

switch and adjust the

temperature control dial to maintain

maximum comfort.

^ The air to the floor is warmer than air

to the face (except when the

temperature control dial is set at the

extreme hot or cold position).

▼ Ventilation

1. Press the switch.

2. Set the air intake selector to the

outside air position (indicator light

turns off).

3. Set the temperature control dial to

the desired position.

4. Set the fan control dial to the

desired speed.

5-8

Interior Features

Climate Control System

▼ Windshield Defrosting and

^ With the

*1 switch, the air

Defogging

conditioner is automatically turned

on and the outside air position is

1. Press the

switch.

automatically selected to defrost the

2. Set the temperature control dial to

windshield. In the

switch, the

the desired position.

outside air position cannot be

3. Set the fan control dial to the

changed to the recirculated air

desired speed.

position.

4. If dehumidified heating is desired,

turn on the air conditioner.

Depending on the market.

WARNING

▼ Dehumidifying

Operate the air conditioner in cool or

Do not defog the windshield using the

cold weather to help defog the

switch with the temperature

windshield and side windows.

control set to the cold position:

1. Press the desired mode switch you

Using the

switch with the

want to set.

temperature control set to the cold

2. Set the air intake selector to the

position is dangerous as it will cause

outside air position (indicator light

the outside of the windshield to fog

turns off).

up. Your vision will be hampered,

3. Set the temperature control dial to

which could lead to a serious accident.

the desired position.

Set the temperature control to the hot

4. Set the fan control dial to the

desired speed.

or warm position when using the

5. Turn on the air conditioner by

switch.

pressing the A/C switch.

NOTE

One of the functions of the air

^ Fogging on the windows clears up

conditioner is dehumidifying the air

more easily while the air conditioner

and, to use this function, the

is on, but they will fog up more easily

temperature does not have to be set to

if the air conditioner is turned off.

cold. Therefore, set the temperature

^ Be careful that the windows do not

control dial to the desired position

fog up when doing any of the

(hot or cold) and turn on the air

following:

conditioner when you want to

^ Switching to recirculate mode

dehumidify the cabin air.

^ Turning off the air conditioner

^ For maximum defrosting, turn on the

air conditioner, set the temperature

control dial to the extreme hot

position, and turn the fan control

dial fully clockwise.

^ If warm air is desired at the floor,

press the

switch.

5-9

Interior Features

Climate Control System

Fully Automatic Type

▼ Fully Automatic Type

Climate control system information is displayed on the display.

1. Driver temperature control dial

2. AUTO switch

3. Temperature setting display (driver’s side)

4. Air intake display

5. Airflow display

6. Mode selector display

7. Temperature setting display (passenger’s side)

8. SYNC (synchronized temperature) switch

9. Passenger temperature control dial

10.A/C switch

11.Rear window defogger switch

12.Mode selector switch

13.Fan control switch

14.Air intake selector switch

15.Windshield defroster switch

16.Power switch

▼ Control Switches

^ Seat warmer level selection*

^ Heated steering wheel operation*

AUTO switch

By pressing the AUTO switch the

NOTE

following functions will be

AUTO switch indicator light

automatically controlled in accordance

^ When the AUTO switch indicator

with the selected set temperature:

light is on, it indicates auto

^ Airflow temperature

operation, and the system will

^ Amount of airflow

function automatically.

^ Selection of airflow mode

^ If any of the following switches are

^ Outside/Recirculated air selection

operated while in auto control, the

^ Air conditioner operation

AUTO switch indicator turns off.

5-10

*Some models.

Interior Features

Climate Control System



Mode selector switch

^ The temperature units for the

^ Fan control switch

temperature setting display can be

^ Windshield defroster switch

changed in conjunction with the

The functions for switches other

temperature units for the outside

than those operated continue to

temperature display.

operate in auto control.

Refer to Outside Temperature

Display on page 4-25.

Power switch (System On/Off)

Fan control switch

The climate control system turns on or

off by pressing the power switch.

The fan has 7 speeds. The selected

speed will be displayed.

Temperature control dial

Mode selector switch

This dial controls temperature. Turn it

clockwise for hot and

The desired airflow mode can be

counterclockwise for cold.

selected (page 5-4).

Turn the temperature control dial to

NOTE

adjust the temperature between 15 °C

(60 °F) and 29 °C (84 °F).

^ With the airflow mode set to the

position and the temperature control

^ When the SYNC switch is on:

Turn the driver temperature control

dial set at a medium temperature,

heated air is directed to the feet and

dial to control the temperature

throughout the entire cabin.

air at a comparably lower

temperature will flow through the

^ When the SYNC switch is off:

Turn the driver or front passenger

central, left and right vents.

temperature control dial to

^ To set the air vent to

, press the

independently control the

windshield defroster switch.

temperature on each side of the

^ In the

position, the outside air

cabin.

position is automatically selected.

A/C switch

NOTE

Pressing the A/C switch while the

^ The climate control system changes

AUTO switch is turned on will turn off

to the individual operation mode

the air conditioner (cooling/

(SYNC switch indicator light turns

dehumidifying functions).

off) by turning the front passenger

The on/off of the air conditioner

temperature control dial even when

switches each time the A/C switch is

the SYNC switch is on, which allows

pressed.

individual control of the set

temperature for the driver and front

NOTE

passenger.

^ The air conditioner operates when

^ When you set the temperature to the

the A/C switch is pressed while the

lower or upper limit, “Lo” or “Hi” is

air conditioner is turned off.

displayed.

^ The air conditioner may not function

when the outside temperature

approaches 0 °C (32 °F).

5-11

Mazda CX-30 (2022 year). Manual in english - page 12
