Mazda MX-5 RF (2017 year). Instruction - part 15





4–90

When Driving

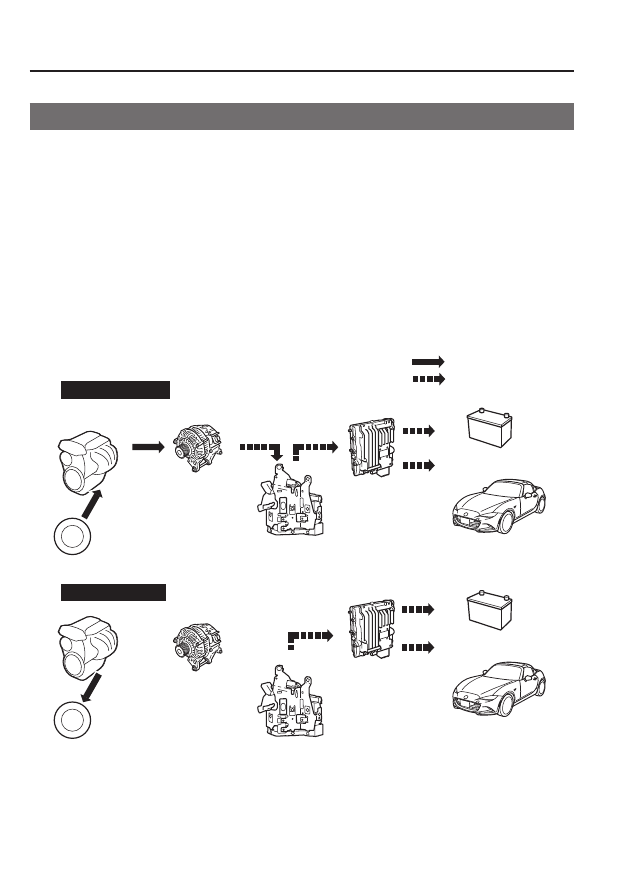

i-ELOOP

*Some models.

      i-ELOOP

*

            i-ELOOP  is  a  regenerative  braking  system.  When  you  depress  the  brake  pedal  or  use
engine braking, the kinetic energy that occurs is converted to electrical energy by the power
generator and the converted electrical energy is stored in the rechargeable battery (capacitor
and battery). The stored electricity is used as power to charge the battery and the vehicle's
electrical devices.



 A variable voltage alternator is incorporated in the power generator which converts

the kinetic energy to electricity and can generate electricity ef

¿ ciently according to the

vehicle conditions.



 A capacitor is used to store large amounts of electricity instantly which can be utilized

quickly.



 A DC-DC converter is incorporated which steps down the stored electricity to voltage

useable by the vehicle's electrical devices.

Vehicle electric
devices

Vehicle electric
devices

Accelerator OFF

Accelerator ON

Energy
regeneration

Charge

Battery

Battery

Power

Power

Engine

Variable
voltage
alternator

Variable
voltage
alternator

Engine

Tyre

Tyre

Capacitor

Capacitor

DC-DC converter

DC-DC converter

Kinetic energy
Electrical power

/:A



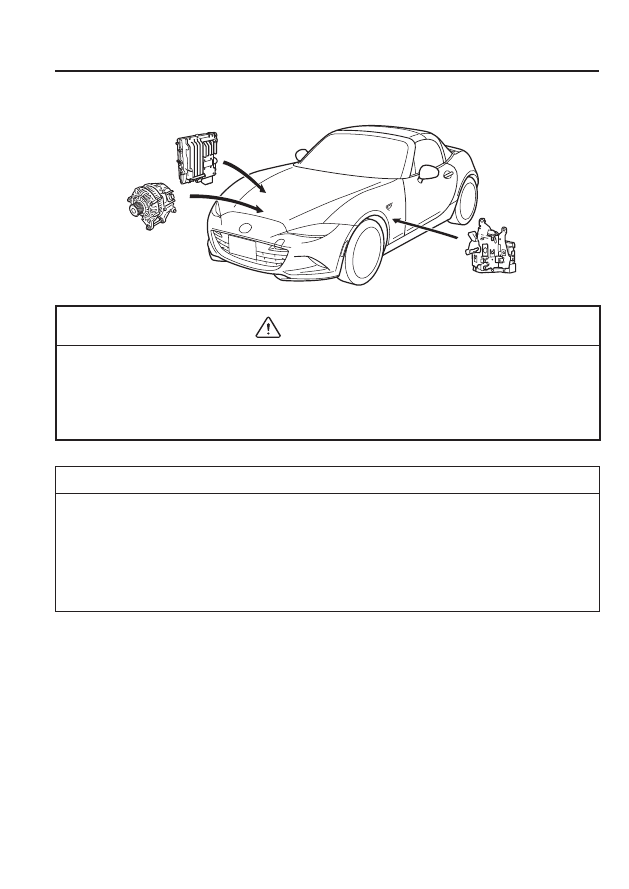

4–91

When Driving

i-ELOOP

Variable
voltage
alternator

Capacitor

DC-DC converter

 CAUTION

 High-current  electricity

À ows through the following parts, therefore do not touch them.



  Variable voltage alternator



 DC-DC converter



 Capacitor

 NOTE



  A difference in the fuel economy may occur depending on how the vehicle's electrical

devices are used.



  If the capacitor is to be disposed of, always consult an expert repairer, we recommend

an Authorised Mazda Repairer.



  For details, go to the following URL.



 http://mazda.com/recycle/capa/

/:A



4–92

When Driving

i-ELOOP

 i-ELOOP Indicator Light/Control

Status Display

              The driver is noti

¿ ed of the i-ELOOP

power generating status and the vehicle
conditions by the i-ELOOP indicator light
(green) and the control status display.

  i-ELOOP indicator light (green)
(vehicles with Type B instrument
cluster)

  The light turns on during power
generation.

  Control status display (vehicles with
type B/type C audio)

   The i-ELOOP power generating status is
displayed in the centre display.
  Refer to Control Status Display on page
 4-94 .

/:A



4–93

When Driving

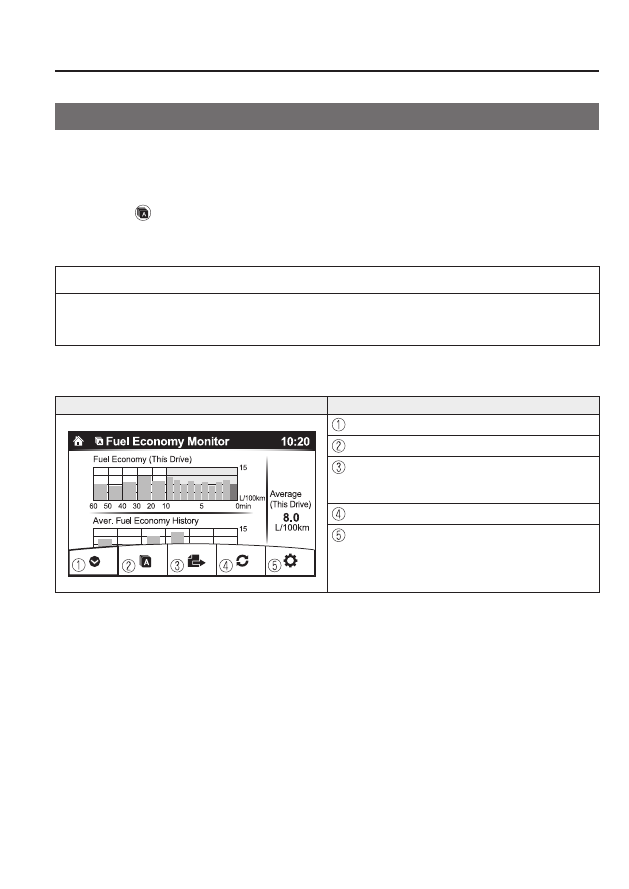

Fuel Economy Monitor

*Some models.

    Fuel  Economy  Monitor

*

          For vehicles with type B/type C audio, the Control Status, Fuel Consumption, and
Effectiveness

*1

  are switched and displayed by operating each icon in the display.

 In addition, after completing a trip, the total energy ef

¿ ciency to date is displayed in the

ending display when the ending display is turned on.

   1.   Select  the

  icon on the home screen to display the applications screen.

   2.   Select  the  “Fuel  Economy  Monitor”.
   3.   Operate the commander switch or touch the screen and display the menu.

 NOTE

 When the menu is displayed by touching the screen, the display is hidden automatically
after 6 seconds.

   4.   Select the icon in the menu and perform the operation. Each icon operates as follows:

 Indication on display

 Control status

  Hides the menu display.

  Displays the application screen.

   Switches the Fuel Economy Monitor in the order of

Control Status, Fuel Consumption, and
Effectiveness

*1

 .

  Resets the fuel economy data.

  Displays the following setting screen.



  Ending display on/off switching



   On/off switching for function which synchronizes
reset fuel economy data to trip meter (Trip A)

   *1   With  i-stop  function.

/:A



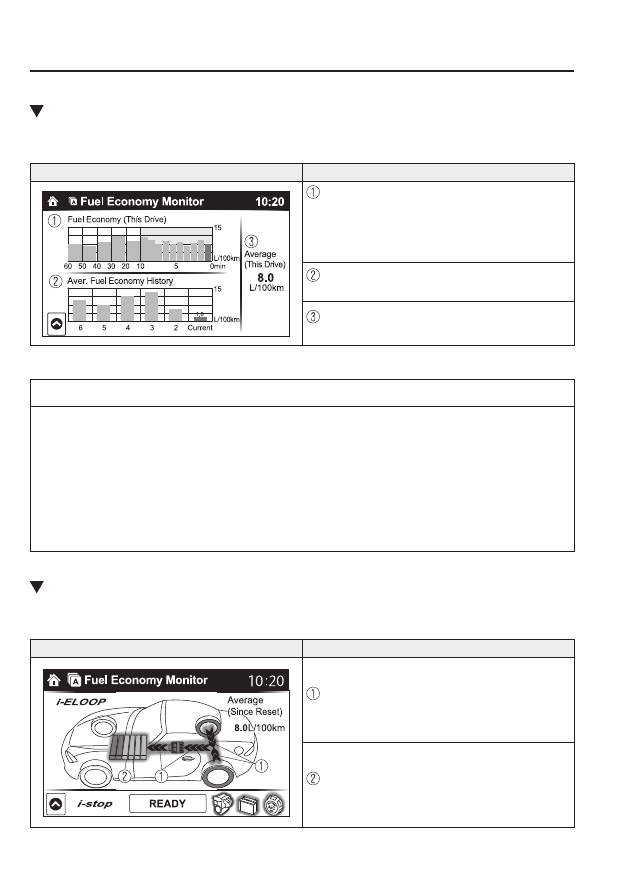

4–94

When Driving

Fuel Economy Monitor

 Fuel Consumption Display

              Information  regarding  the  fuel  economy  is  displayed.

 Indication on display

 Control status

  Displays the fuel economy for the past 60 minutes.



   Displays the fuel economy every minute for the
past 1 to 10 minutes.



   Displays the fuel economy every 10 minutes for
the past 10 to 60 minutes.

   Displays the average fuel economy over the past 5

resets and after the current reset.

   Calculates the average fuel economy every minute

after vehicle travel begins, and displays it.

 NOTE



  The fuel economy data can be reset by doing the following operation:



  Press the reset switch from the menu screen.



  When the function which synchronizes the fuel economy monitor and the trip meter

is on, reset trip A of the trip meter.



  Delete the average fuel economy information displayed in the trip computer.



  After resetting the fuel economy data, “-- -” is displayed while the average fuel

economy is calculated.

 Control Status Display (With i-stop Function)

              The  i-stop  operation  status  and  the  i-ELOOP  power  generating  status  are  displayed.

 Indication on display

 Control status

   Displays the level of electricity generated by

regenerative braking.

   Displays the amount of the electricity stored in the

rechargeable battery.

/:A



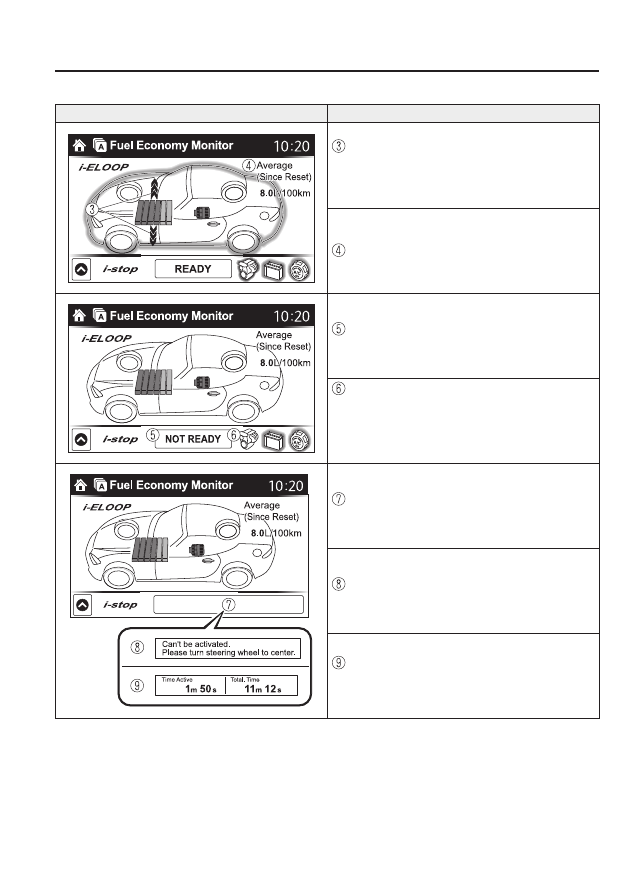

4–95

When Driving

Fuel Economy Monitor

 Indication on display

 Control status

   Displays the status of the electricity stored in the

rechargeable battery and being supplied to the
electrical devices (whole vehicle in display is
illuminated simultaneously).

  Displays the accumulated fuel economy.

   Displays the readiness status as to whether operation

of the i-stop function is available.

   Displays the operation readiness status of the i-stop

function on the vehicle side (engine, battery, and
A/C) using icon colouring. The blue colour indicates
that the i-stop function is ready to operate, and the
grey colour indicates that it is not ready for
operation.

   Displays the i-stop function status while the vehicle

is stopped.

   Indicates the operations required by the driver to

operate the i-stop function while it is not operating.

   Displays the current amount of time that the i-stop

function has been operating and the accumulated
amount of time that it has been operating.

/:A



4–96

When Driving

Fuel Economy Monitor

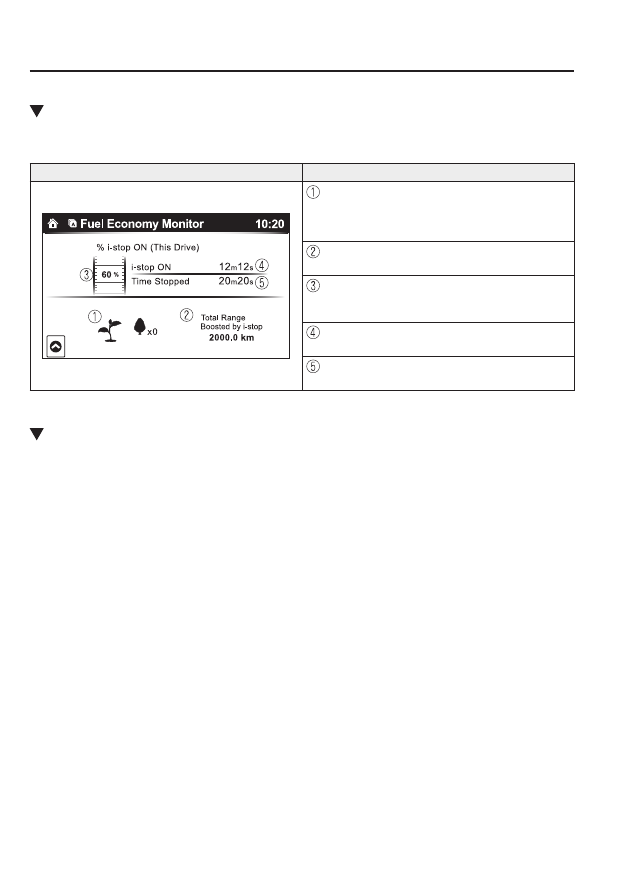

 Effectiveness Display (With i-stop Function)

              The  actual  performance  of  the  energy  ef

¿ ciency is displayed.

 Indication on display

 Control status

   The leaf graphic grows according to the amount of

CO

2

  emissions reduced by the system effects. The

cumulative total amount of leaf growth is indicated
in terms of the number of tree graphics.

   Displays the total driving distance which could be

extended by the operation of the i-stop function.

   Displays the percentage of time that the vehicle was

stopped by the i-stop function operation out of the
total amount of time that the vehicle was stopped.

   Displays the amount of time that the i-stop function

has operated.

   Displays the total amount of time that the vehicle

was stopped.

 Ending Screen Display

              If the ending display on the fuel economy monitor is on when the ignition is switched from
ON to OFF, the actual energy ef

¿ ciency (with i-stop function) or the information regarding

the fuel economy (without i-stop function) is displayed.

/:A



4–97

When Driving

Drive Selection

*Some models.

      Drive  Selection

*

            Drive selection is a system to switch the vehicle's drive mode. When the sport mode
is selected, vehicle's response against accelerator operation is enhanced. This provides
additional quick acceleration which may be needed to safely make manoeuvres such as lane
changes, merging onto freeways, or passing other vehicles.

 CAUTION

 Do not use the sport mode when driving on slippery roads such as wet or snow-covered
roads. It may cause tyre slipping.

 NOTE



  When the sport mode is selected, driving at higher engine speeds increases and it may

increase fuel consumption. Mazda recommends that you cancel the sport mode on
normal driving.



  Drive mode cannot be switched in the following conditions:



  ABS/TCS/DSC is operating



  Cruise control is operating.



  Steering wheel is being operated abruptly

/:A



4–98

When Driving

Drive Selection

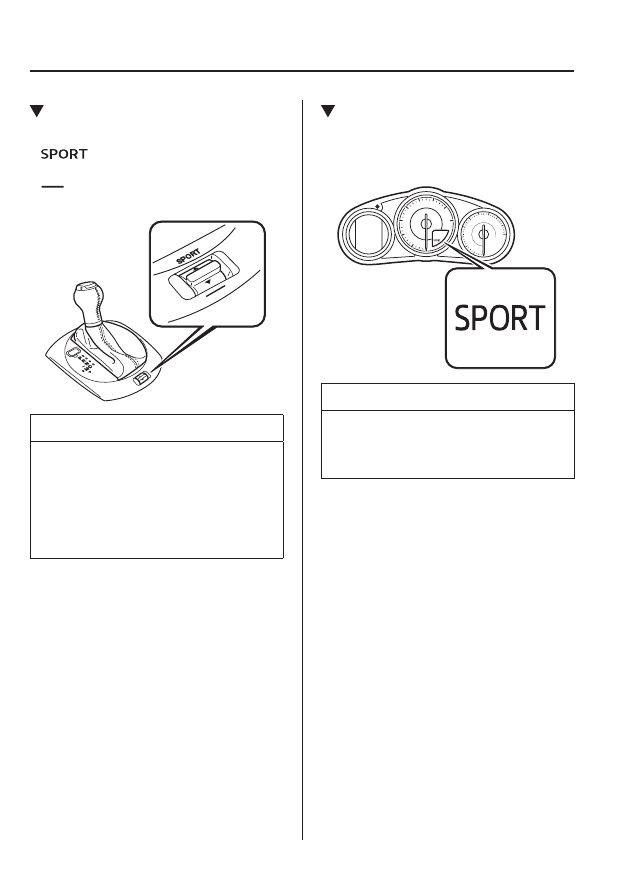

 Drive Selection Switch

    Press the drive selection switch forward
(“

 ”) to select the sport mode.

  Pull the drive selection switch back
(“

 ”) to cancel the sport mode.

 NOTE



  When the ignition is switched off, the

sport mode is cancelled.



  Depending on the driving conditions

when sport mode is selected, the
vehicle may perform shift-down or
slightly accelerate.

 Select Mode Indication

    When the sport mode is selected, the select
mode indication turns on in the instrument
cluster.

 NOTE

 If the drive selection cannot be
switched to sport mode, the select mode
indication

À ashes to notify the driver.

/:A



4–99

When Driving

Power Steering

      Power  Steering



 Power steering is only operable when

the engine is running. If the engine is
off or if the power steering system is
inoperable, you can still steer, but it
requires more physical effort.



  If the steering feels stiffer than usual

during normal driving or the steering
vibrates, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.



 The warning light noti

¿ es the driver

of system abnormalities and operation
conditions.



  Refer to Warning Indication/Warning

Lights on page  4-42 .

 CAUTION

 Never hold the steering wheel to the
extreme left or right for more than
5 seconds with the engine running.
This could damage the power steering
system.

/:A



4–100

When Driving

i-ACTIVSENSE

*Some models.

      i-ACTIVSENSE

*

            i-ACTIVSENSE is a collective term covering a series of advanced safety and driver support
systems which make use of a Forward Sensing Camera (FSC) and radar sensors.
  Because each system has its limitations, always drive carefully and do not rely solely on the
systems.

  Driver awareness support systems

    Nighttime  visibility

Adaptive  Front  Lighting  System  (AFS) ............................................................................      4-102
High  Beam  Control  System  (HBC)  ..................................................................................     4-103

   Left/right side and rear side detection

Lane  Departure  Warning  System  (LDWS)  .......................................................................      4-106
Blind Spot Monitoring (BSM) System .............................................................................   4-112

   Rear obstruction detection when leaving a parking space

Rear Cross Traf

¿ c  Alert  (RCTA)  ......................................................................................      4-119

   Driver  support  system

    Speed  control

Adjustable  Speed  Limiter  .................................................................................................      4-122

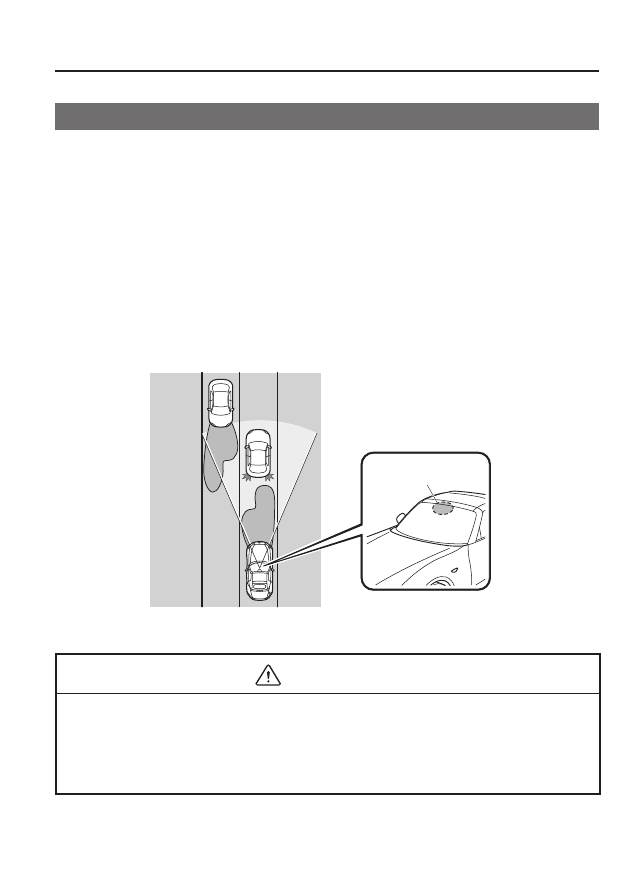

 Camera and Sensors

            Forward sensing camera (FSC)

    The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while
travelling at night and detects traf

¿ c lanes. The following systems also use the Forward

Sensing Camera (FSC).



 High Beam Control system (HBC)



 Lane Departure Warning System (LDWS)

  The Forward Sensing Camera (FSC) is installed at the top of the windscreen near the
rearview mirror.
  Refer to Forward Sensing Camera (FSC) on page  4-129 .

/:A



4–101

When Driving

i-ACTIVSENSE

  Radar  sensors  (rear)

    The radar sensors (rear) function by detecting the radio waves re

À ected off a vehicle

approaching from the rear or an obstruction sent from the radar sensors. The following
systems also use the radar sensors (rear).



 Blind Spot Monitoring (BSM) System



 Rear Cross Traf

¿ c Alert (RCTA)

  The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
  Refer to Radar Sensors (Rear) on page  4-132 .

/:A



4–102

When Driving

i-ACTIVSENSE

*Some models.

 Adaptive Front Lighting System (AFS)

*

              The  adaptive  front  lighting  system  (AFS)  automatically  adjusts  the  headlight  beams  to  the
left or right in conjunction with the operation of the steering wheel after the headlights have
been turned on.
  A system malfunction or operation conditions are indicated by a warning.
  Refer to Warning/Indicator Lights on page  4-42 .

 NOTE



  Headlights do not blind drivers approaching in the opposite direction no matter

what side of the road you must drive your vehicle (left-hand or right-hand traf

¿ c).

Therefore, it is not necessary to adjust the optical axis of the headlights when
switching temporarily to driving on the opposite side of the road (left-hand or right-
hand traf

¿ c).



  The Adaptive Front Lighting System (AFS) function can be switched to operable/

inoperable using the personalisation function.



  Refer to Personalisation Features on page  9-10 .

/:A



4–103

When Driving

i-ACTIVSENSE

*Some models.

 High Beam Control System (HBC)

*

              The  High  Beam  Control  System  (HBC)  determines  the  conditions  in  front  of  the  vehicle
using the Forward Sensing Camera (FSC) while driving in darkness to automatically switch
the headlights between high and low beams.
  Refer to Warning/Indicator Lights on page  4-42 .
  While driving the vehicle at a speed of about 30 km/h (19 mph) or more, the headlights are
switched to high beams when there are no vehicles ahead or approaching in the opposite
direction.
  The system switches the headlights to low beams when one of the following occurs:



 The system detects a vehicle or the headlights/lights of a vehicle approaching in the

opposite direction.



 The vehicle is driven on roads lined with streetlamps or on roads in well-lit cities and

towns.



 The vehicle is driven at less than about 20 km/h (12 mph).

Forward Sensing
Camera (FSC)

The recognition distance of the
Forward Sensing Camera (FSC)
varies according to the
surrounding conditions.

The warning light turns on when the system has a malfunction.
  Refer to Warning Indication/Warning Lights on page  4-42 .

 CAUTION



  Do not adjust the vehicle height, modify the headlight units, or remove the camera,

otherwise the system will not operate normally.



  Do not rely excessively on the High Beam Control System (HBC) and drive the

vehicle while paying suf

¿ cient attention to safety. Switch the headlights between the

high beams and low beams manually if necessary.

/:A



4–104

When Driving

i-ACTIVSENSE

 NOTE

 The timing in which the system switches the headlights changes under the following
conditions. If the system does not switch the headlights appropriately, manually switch
between high and low beams according to the visibility as well as road and traf

¿ c

conditions.



  When there are sources of light in the area such as street lamps, illuminated

signboards, and traf

¿ c signals.



  When there are re

À ective objects in the surrounding area such as reÀ ective plates and

signs.



  When visibility is reduced under rain, snow and foggy conditions.



  When driving on roads with sharp turn or hilly terrain.



  When the headlights/rear lamps of vehicles in front of you or in the opposite lane are

dim or not illuminated.



  When there is suf

¿ cient darkness such as at dawn or dusk.



  When the luggage compartment is loaded with heavy objects.



  When visibility is reduced due to a vehicle in front of you spraying water from its tyres

onto your windscreen.

/:A



4–105

When Driving

i-ACTIVSENSE

 To Operate the System

            The  High  Beam  Control  System  (HBC)
operates to switch the headlights
automatically between high and low
beams after the ignition is switched ON
and the headlight switch is in the AUTO
and high beam position.
  The High Beam Control System (HBC)
determines that it is dark based on the
brightness of the surrounding area. At the
same time, the High Beam Control System
(HBC) indicator light (green) in the
instrument cluster illuminates.

 NOTE



  When the vehicle speed is about

30 km/h (19 mph) or more, the
headlights automatically switch
to high beams when there are no
vehicles ahead or approaching in the
opposite direction.



  When the vehicle speed is less

than about 20 km/h (12 mph), the
High Beam Control System (HBC)
switches the headlights to low
beams.



  The low beams may not switch to

high beams when cornering.



  Operation of the High Beam Control

System (HBC) function can be
disabled. Refer to Personalisation
Features on page 9-10 .

 Manual  Switching

    Switching  to  low  beams

    Shift the lever to the low beam position.
  The High Beam Control System (HBC)
indicator light (green) turns off.

  Switching to high beams

    Turn the headlight switch to the
position.
  The High Beam Control System (HBC)
indicator light (green) turns off and the
is illuminated.

/:A

















Content   ..  13  14  15  16   ..
