Mazda MX-5 RF (2017 year). Instruction - part 13





4–58

When Driving

Transmission

*Some models.

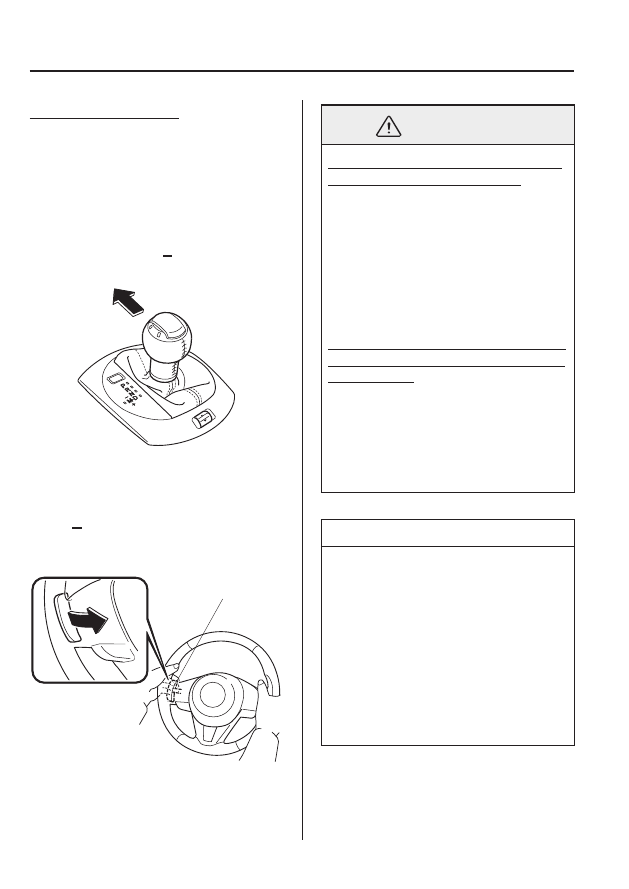

  Manually  shifting  down

    You can shift gears down by operating
the selector lever or the steering shift
switches

*

 .

  M6

ĺ M5 ĺ M4 ĺ M3 ĺ M2ĺ M1

  Using  selector  lever

    To shift down to a lower gear, tap the
selector lever forward

   once.

  Using steering shift switch

*

    To shift down to a lower gear with the
steering shift switches, pull the DOWN
switch

  toward you once with your

¿ ngers.

DOWN switch (-)

 WARNING

 Do not use engine braking on slippery
road surfaces or at high speeds:
 Shifting down while driving on wet,
snowy, or frozen roads, or while driving
at high speeds causes sudden engine
braking, which is dangerous. The
sudden change in tyre speed could
cause the tyres to skid. This could
lead to loss of vehicle control and an
accident.

 Keep your hands on the steering wheel
rim when using

¿ ngers on the steering

shift switches:
 Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous. If
the driver's air bag were to deploy in a
collision, your hands could be impacted
causing injury.

 NOTE



  When driving at high speeds, the

gear may not shift down.



  During deceleration, the gear may

automatically shift down depending
on vehicle speed.



  When depressing the accelerator

fully, the transmission will shift to
a lower gear, depending on vehicle
speed. However, the gears do not
kickdown while the DSC is turned
off.

/:A



4–59

When Driving

Transmission

  Second  gear

¿ xed mode

    When the selector lever is moved back
while the vehicle speed is about 10 km/h
(6.2 mph) or less, the transmission is set in
the second gear

¿ xed mode. The gear is

¿ xed in second while in this mode for
easier acceleration from a stop and driving
on slippery roads such as snow-covered
roads.
  If the selector lever is moved back      or
forward

  while in the second gear

¿ xed

mode, the mode will be cancelled.

/:A



4–60

When Driving

Transmission

    Shift  gear  (shifting)  speed  limit

    For each gear position while in the manual mode, the speed limit is set as follows: When the
selector lever is operated within the range of the speed limit, the gear is shifted.

  Shift  up

    The gear does not shift up while the vehicle speed is lower than the speed limit.

  Shift  down

    The gear does not shift down while the vehicle speed exceeds the speed limit.
  If the vehicle speed exceeds the speed limit and the gear does not shift down, the gear
position indication

À ashes 2 times to notify the driver that the gear cannot be shifted.

  Kickdown

    When the accelerator pedal is depressed fully while driving, the gear shifts down.
  However, the gears do not kickdown while the DSC is turned off.

 NOTE

 The gear also shifts down using kickdown while in the second gear

¿ xed mode.

  Auto-shift  down

    The gear shifts down automatically depending on the vehicle speed during deceleration.

 NOTE

 If the vehicle comes to a stop while in the second gear

¿ xed mode, the gear remains in

second.

/:A



4–61

When Driving

Transmission

*Some models.

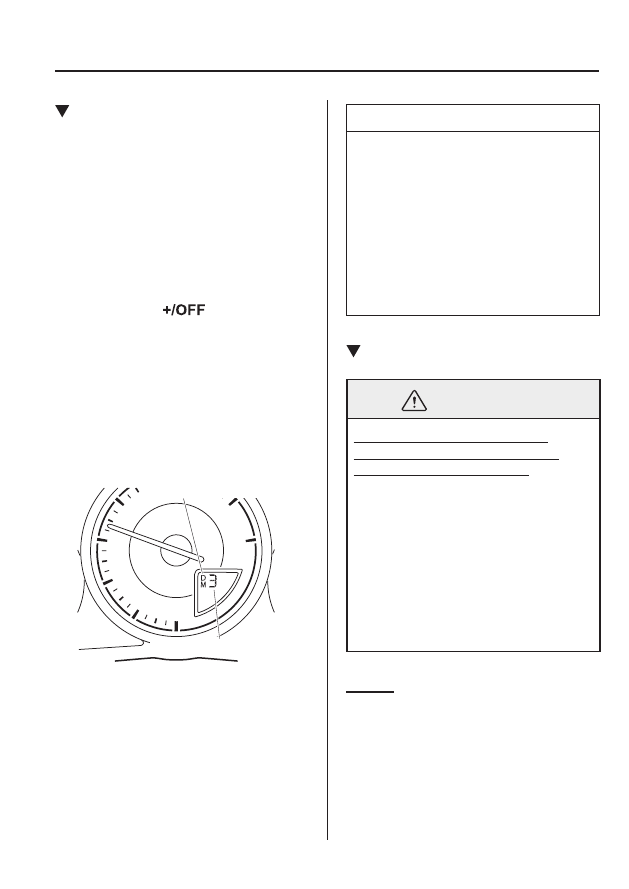

 Direct  Mode

*

            Direct  mode  can  be  used  for  temporarily
switching gears by operating the steering
shift switch while the vehicle is being
driven with the selector lever in the D
range.
  While in direct mode, the D and M
indication illuminate and the gear position
in use is illuminated.
  Direct mode is cancelled (released) under
the following conditions.



 The UP switch (

 ) is pulled

rearward for a certain amount of time or
longer.



 The vehicle is driven for a certain

amount of time or longer (time differs
depending on the driving conditions
while operating).



 The vehicle is stopped or moving at a

slow speed.

Gear position indication

Direct mode indication

 NOTE

 Shifting up and down while in direct
mode may not be possible depending on
the vehicle speed. In addition, because
direct mode is cancelled (released)
depending on the rate of acceleration
or if the accelerator is fully depressed,
use of the manual shift mode is
recommended if you need to drive the
vehicle in a particular gear for long
periods.

 Driving  Tips

 WARNING

 Do not let the vehicle move in a
direction opposite to the direction
selected by the selector lever:
 Do not let the vehicle move backward
with the selector lever in a forward
position, or do not let the vehicle move
forward with the selector lever in the
reverse position. Otherwise, the engine
may stop, causing the loss of the power
brake and power steering functions,
and make it dif

¿ cult to control the

vehicle which could result in an
accident.

  Passing

    For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transmission will
shift to a lower gear, depending on vehicle
speed.

/:A



4–62

When Driving

Transmission

 NOTE



  The accelerator pedal may initially

feel heavy as it is being depressed,
then feel lighter as it is depressed
further. This change in pedal force
aids the engine control system
in determining how much the
accelerator pedal has been depressed
for performing kickdown, and
functions to control whether or not
kickdown should be performed.



  While the selector lever is in the M

position and the DSC is turned off,
manual shift mode does not switch
to automatic shift mode even if
the accelerator pedal is completely
depressed. Operate the selector lever.

  Climbing steep grades from a stop

    To climb a steep grade from a stopped
position:

   1.   Depress  the  brake  pedal.
   2.   Shift to D or M1, depending on the

load weight and grade steepness.

   3.   Release the brake pedal while gradually

accelerating.

  Descending  steep  grades

    When descending a steep grade, shift to
lower gears, depending on load weight and
grade steepness. Descend slowly, using the
brakes only occasionally to prevent them
from overheating.

/:A



4–63

When Driving

Switches and Controls

      Lighting  Control

 Headlights

            Turn the headlight switch to turn the headlights, other exterior lights and instrument panel
illumination on or off.
  When the headlight switch is turned to the

  or     position, the lights-on indicator light in

the instrument cluster turns on.
(With auto-light control)
  When the headlight switch is turned to the

  position, the lights-on indicator light in the

instrument cluster turns on/off in conjunction with the automatic on/off operation of the
headlights.

 NOTE



  To prevent discharging the battery, do not leave the lights on while the engine is off

unless safety requires them.



  Headlights do not blind drivers approaching in the opposite direction no matter

what side of the road you must drive your vehicle (left-hand or right-hand traf

¿ c).

Therefore, it is not necessary to adjust the optical axis of the headlights when
switching temporarily to driving on the opposite side of the road (left-hand or right-
hand traf

¿ c).

/:A



4–64

When Driving

Switches and Controls

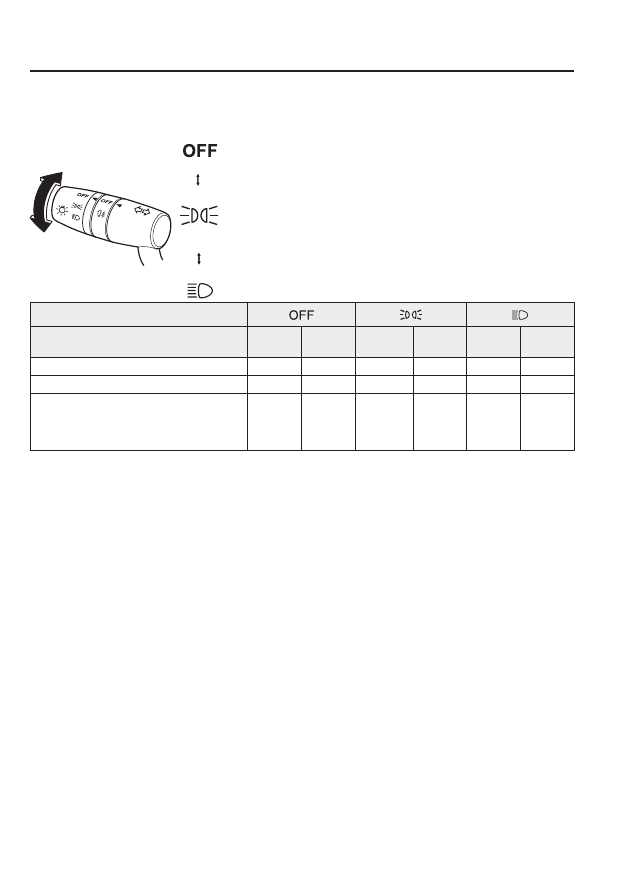

Without auto-light control

 Switch  Position

 Ignition  Position

  ON

 ACC  or

 OFF

  ON

 ACC  or

 OFF

  ON

 ACC  or

 OFF

 Headlights

 Off

 Off

 Off

 Off

 On

 Off

 Running  lights

 On

*1



 Off

 Off

 Off

 Off

 Off

 Tail  lights
  Position  lights
  Number  plate  lights
  Instrument  panel  illumination

 On

*2



 Off

 On

 On

 On

 On

*3

     *1   It  turns  on  while  driving  the  vehicle.
   *2   When the running lights are turned on, the position lights, tail lights, and number plate lights turn on. The

instrument panel illumination does not turn on.

   *3   If the driver's door is opened or 30 s have elapsed with the lights turned on, the lights turn off.

/:A



4–65

When Driving

Switches and Controls

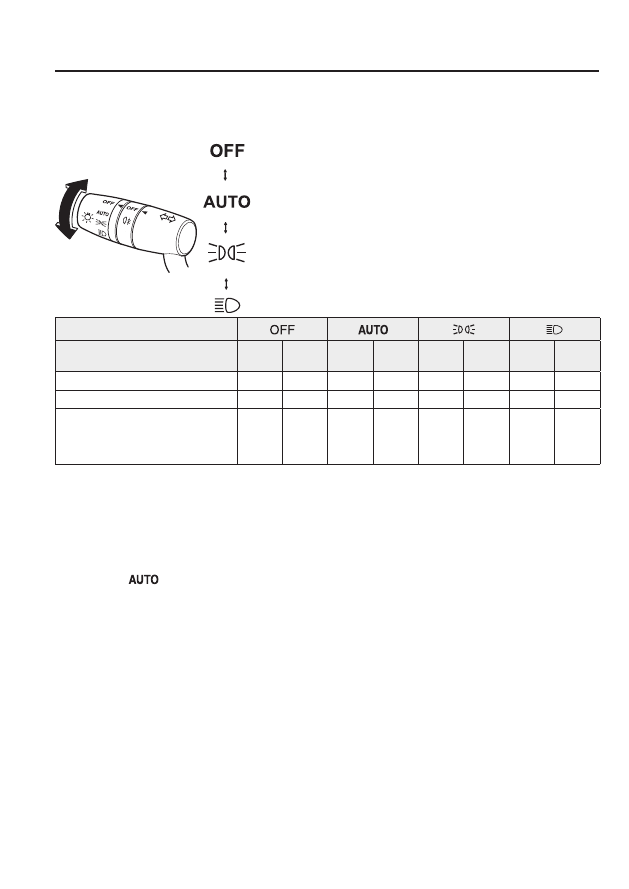

With auto-light control

 Switch  Position

 Ignition  Position

  ON

 ACC

or   OFF

  ON

 ACC

or   OFF

  ON

 ACC

or   OFF

  ON

 ACC

or   OFF

 Headlights

Off

Off

Auto

*1



 Off

 Off

 Off

 On

 Off

 Running  lights

 On

*2



 Off

 Auto

*1



 Off

 Off

 Off

 Off

 Off

 Tail  lights
  Position  lights
  Number  plate  lights
  Instrument  panel  illumination

 On

*3



 Off

 Auto

*1

 On

*4

 /

Off

*5

 On

 On

 On

 On

*6

     *1   The headlight and other light settings switch automatically depending on the surrounding brightness detected by

the sensor.

   *2   It turns on while driving the vehicle.
   *3   When the running lights are turned on, the position lights, tail lights, and number plate lights turn on. The

instrument panel illumination does not turn on.

   *4   While the lights are turned on, they will remain on even if the ignition is switched to a position other than  ON .


If the driver’s door is opened or 30 s have elapsed with the lights turned on, the lights turn off.

   *5   When the ignition is switched to a position other than  ON , the lights will not turn on even if the light switch is

switched to

 .

   *6   If the driver’s door is opened or 30 s have elapsed with the lights turned on, the lights turn off.

/:A



4–66

When Driving

Switches and Controls

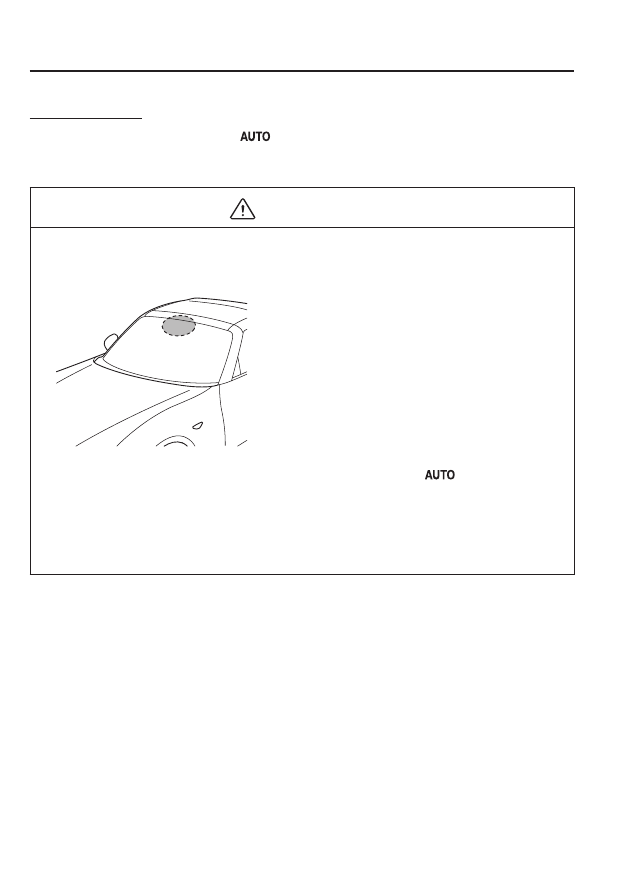

  Auto-light  control

    When the headlight switch is in the

  position and the ignition is switched ON, the light

sensor senses the surrounding lightness or darkness and automatically turns the headlights,
other exterior lights and instrument panel illumination on or off (see chart above).

 CAUTION



  Do not shade the light sensor by adhering a sticker or a label on the windscreen.

Otherwise the light sensor will not operate correctly.





  The light sensor also works as a rain sensor for the auto-wiper control. Keep hands and

scrapers clear of the windscreen when the wiper lever is in the

  position and the

ignition is switched ON as

¿ ngers could be pinched or the wipers and wiper blades

damaged when the wipers activate automatically. If you are going to clean the
windscreen, be sure the wipers are turned off completely — this is particularly
important when clearing ice and snow — when it is particularly tempting to leave the
engine running.

/:A



4–67

When Driving

Switches and Controls

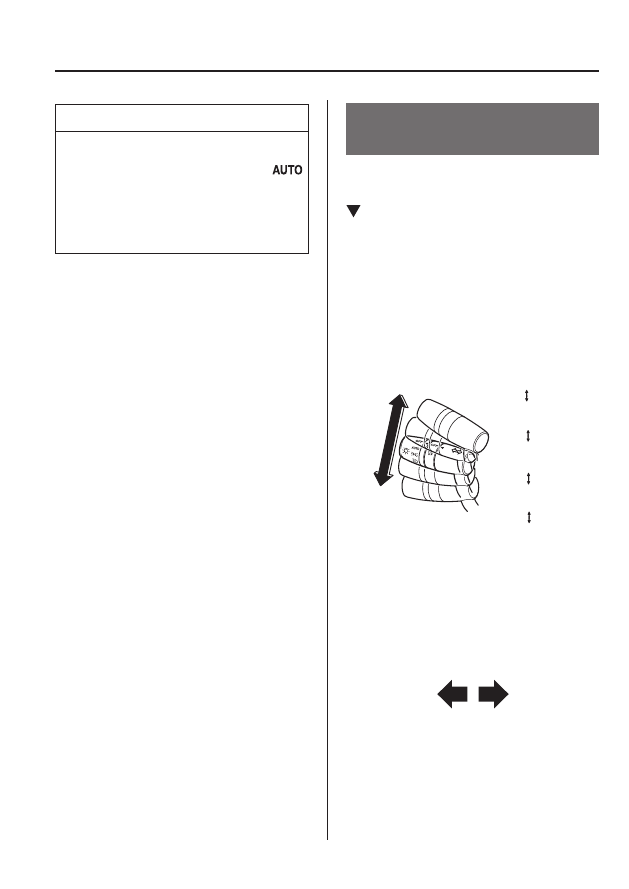

 NOTE



  The headlights, other exterior lights and instrument panel illumination may not turn

off immediately even if the surrounding area becomes well-lit because the light sensor
determines that it is night time if the surrounding area is continuously dark for several
minutes such as inside long tunnels, traf

¿ c jams inside tunnels, or in indoor parking

lots.



  In this case, the lights turn off if the light switch is turned to the

   position.



  When the headlight switch is in the

  position and the ignition is switched to ACC

or the ignition is switched off, the headlights, other exterior lights and instrument panel
illumination will turn off.



  The instrument panel illumination can be adjusted by rotating the knob in the

instrument cluster. Also, the antidazzle mode can be changed by rotating the knob until
a beep sound is heard. To adjust the brightness of the instrument panel illumination:
Refer to Instrument Panel Illumination on page 4-28 .



  The sensitivity of the AUTO lights may be changed by an Authorised Mazda Repairer.

Refer to Personalisation Features on page 9-10 .

/:A



4–68

When Driving

Switches and Controls

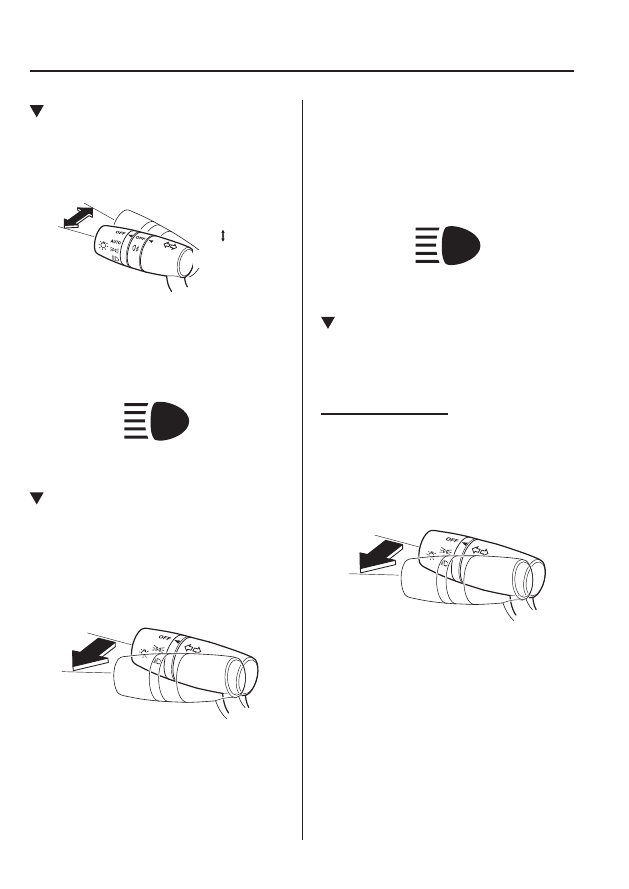

 Headlight High-Low Beam

            The  headlights  switch  between  high  and
low beams by moving the lever forward or
backward.

High beam

Low beam

  When the headlight high-beams are on,
the headlight high-beam indicator light is
turned on.

 Flashing the Headlights

            Can  be  used  when  the  ignition  is  switched
ON.
  To

À ash the headlights, pull the lever fully

towards you (the headlight switch does not
need to be on).

OFF

Headlight
flashing

  The headlight high-beam indicator light
in the instrument cluster illuminates
simultaneously. The lever will return to the
normal position when released.

 Coming Home Light

              The  coming  home  light  turns  on  the
headlights (low beams) when the lever is
operated.

  To turn on the lights

    When the lever is pulled with the ignition
switched to ACC or OFF, the low beam
headlights turn on.
  The headlights turn off after a certain
period of time has elapsed after the doors
are closed.

/:A



4–69

When Driving

Switches and Controls

 NOTE



  The time until the headlights turn off

after all of the doors are closed can
be changed.



  Refer to Personalisation Features on

page 9-10 .



  If no operations are done for 3

minutes after the lever is pulled, the
headlights turn off.



  The headlights turn off if the lever is

pulled again while the headlights are
illuminated.

 Leaving Home Light

              The  leaving  home  light  turns  on  the  lights
when the transmitter unlock button is
pressed while away from the vehicle.
  The following lights turn on when the
leaving home light is operated.
  Low beams, Position lights, Tail lights,
Number plate lights.

  To turn on the lights

    When the ignition switch and the headlight
switch are in the following conditions,
the headlights will illuminate when the
transmitter unlock button is pressed and
the vehicle receives the transmitter signal.
The headlights turn off after a certain
period of time has elapsed (30 seconds).



 Ignition switch: off



 Headlight switch:

  or

Lock button

Unlock
button

 NOTE



  Operation of the leaving home light

can be turned on or off.



  Refer to Personalisation Features on

page   9-10 .



  When the transmitter lock button is

pressed and the vehicle receives the
transmitter signal, the headlights turn
off.



  When the headlight switch is in a

position other than

  or    ,  the

headlights turn off.

/:A



4–70

When Driving

Switches and Controls

*Some models.

 Headlight  Levelling

            The  number  of  passengers  and  weight  of
cargo in the luggage compartment change
the angle of the headlights.

  The angle of the headlights will be
automatically adjusted when turning on
the headlights.

 Running  Lights

            Some  countries  require  moving  vehicles  to
have their lights on (running lights) during
the daytime.

  The running lights turn on automatically
when the vehicle starts moving.

  They turn off when the parking brake is
operated or the selector lever is shifted
to the P position (automatic transmission
vehicle).

 NOTE

(Except countries prohibited by law)
 The running lights can be deactivated.
 Refer to Personalisation Features on
page 9-10 .

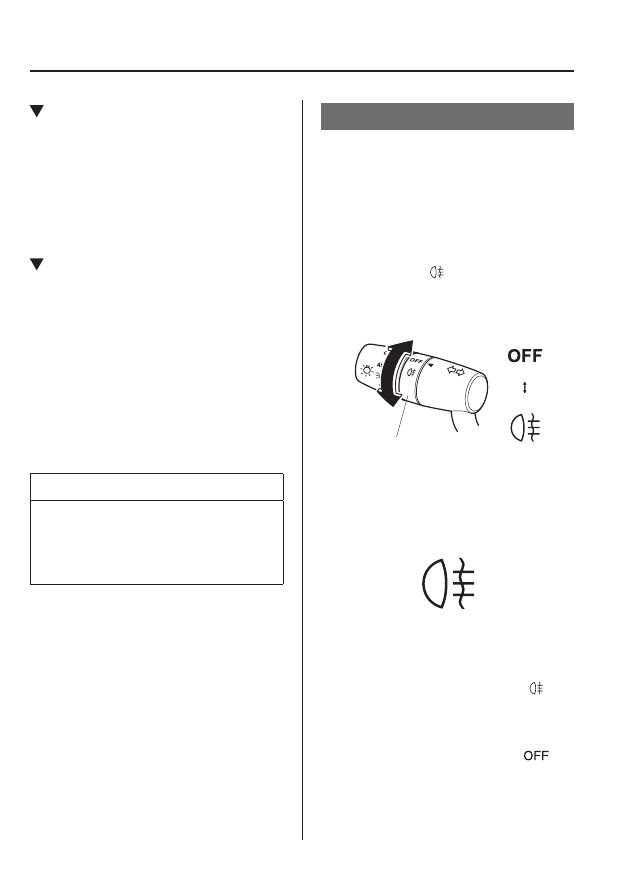

 Rear Fog Light

*

            The  rear  fog  light  can  be  used  when  the
ignition is switched ON.
  The rear fog light helps your vehicle to be
seen.
  The headlights must be turned on to turn
on the rear fog light.

  To turn the rear fog light on, rotate the fog
light switch to the

  position (the fog

light switch returns to its original position
automatically).

Fog light switch

  The rear fog light indicator light in the
instrument cluster illuminates while the
rear fog light is on.

  To turn the rear fog light off, do any of the
following:



 Rotate the fog light switch to the

position again (the fog light switch
returns to its original position
automatically).



 Turn the headlight switch to the

position.

  The rear fog light indicator light in the
instrument cluster goes off when the rear
fog light is turned off.

/:A



4–71

When Driving

Switches and Controls

 NOTE

(With auto-light control)

 When the headlight switch is in the
position and the headlights, exterior
lights and instrument panel illuminated,
the rear fog light turns on when the rear
fog light switch is turned on.

 Turn and Lane-change
Signals

    The ignition must be switched ON to use
the turn and lane-change signals.

 Direction  Indicators

            Move  the  signal  lever  down  (for  a  left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.

  If the indicator light continues to

À ash

after a turn, manually return the lever to its
original position.

Right turn

Left turn

Right lane change

Left lane change

OFF

  The direction indicators in the instrument
cluster

À ash according to the operation of

the direction indicator lever to show which
signal is working.

/:A



4–72

When Driving

Switches and Controls

 NOTE



  If an indicator light stays on without

À ashing or if it À ashes abnormally,
one of the direction indicator bulbs
may be burned out.



  A personalised function is available

to change the turn indicator sound
volume. (page 9-10 )

 Lane-change  Signals

            Move  the  lever  halfway  toward  the
direction of the lane change—until the
indicator

À ashes— and hold it there. It will

return to the off position when released.

 Three-

À ash Turn Signal

            After  releasing  the  direction  indicator
lever, the direction indicator

À ashes three

times. The operation can be cancelled by
moving the lever in the direction opposite
to which it was operated.

 NOTE

 The  three-

À ash turn signal function can

be switched to operable/inoperable using
the personalisation function.
 Refer to Personalisation Features on
page 9-10 .

 Windscreen  Wipers  and
Washer

    The ignition must be switched ON to use
the wipers.

 WARNING

 Use only windscreen washer

À uid or

plain water in the reservoir:
 Using radiator antifreeze as washer
À uid is dangerous. If sprayed on the
windscreen, it will dirty the windscreen,
affect your visibility, and could result in
an accident.

 Only use windscreen washer

À uid

mixed with anti-freeze protection in
freezing weather conditions:
 Using windscreen washer

À uid without

anti-freeze protection in freezing
weather conditions is dangerous as it
could freeze on the windscreen and
block your vision which could cause
an accident. In addition, make sure
the windscreen is suf

¿ ciently warmed

using the defroster before spraying the
washer

À uid.

/:A



4–73

When Driving

Switches and Controls

 NOTE

 If the windscreen wipers are operated
under cold weather conditions or
during snowfall, they could stop due to
accumulated snow on the windscreen.
If the windscreen wipers stop due to
accumulated snow on the windscreen,
park the vehicle in a safe place, turn the
wiper switch off, and then remove the
accumulated snow. If the wiper switch
is turned to another position other than
OFF, the wipers will operate. If the
wipers do not operate even though the
wiper switch is turned to a position other
than OFF, consult an expert repairer,
we recommend an Authorised Mazda
Repairer as soon as possible.

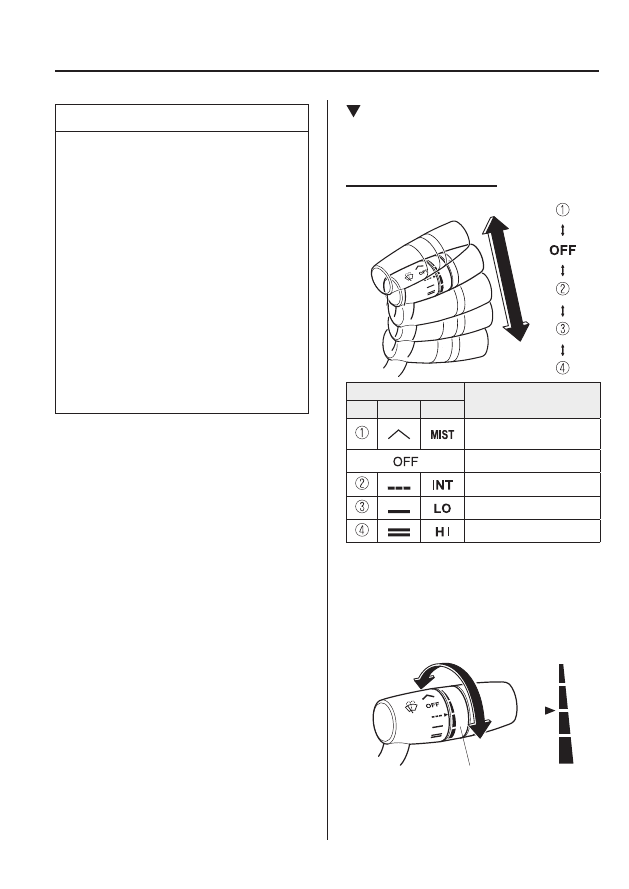

 Windscreen  Wipers

            Turn  the  wipers  on  by  pressing  the  lever
up or down.

  With  intermittent  wiper

 Switch  Position

 Wiper  operation

 No.   Type  A   Type  B

 Operation while pulling
up lever

 Stop

 Intermittent

 Low  speed

 High  speed

  Variable-speed  intermittent  wipers

    Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.

INT ring

/:A

















Content   ..  11  12  13  14   ..
