Black plate (344,1)

GCW

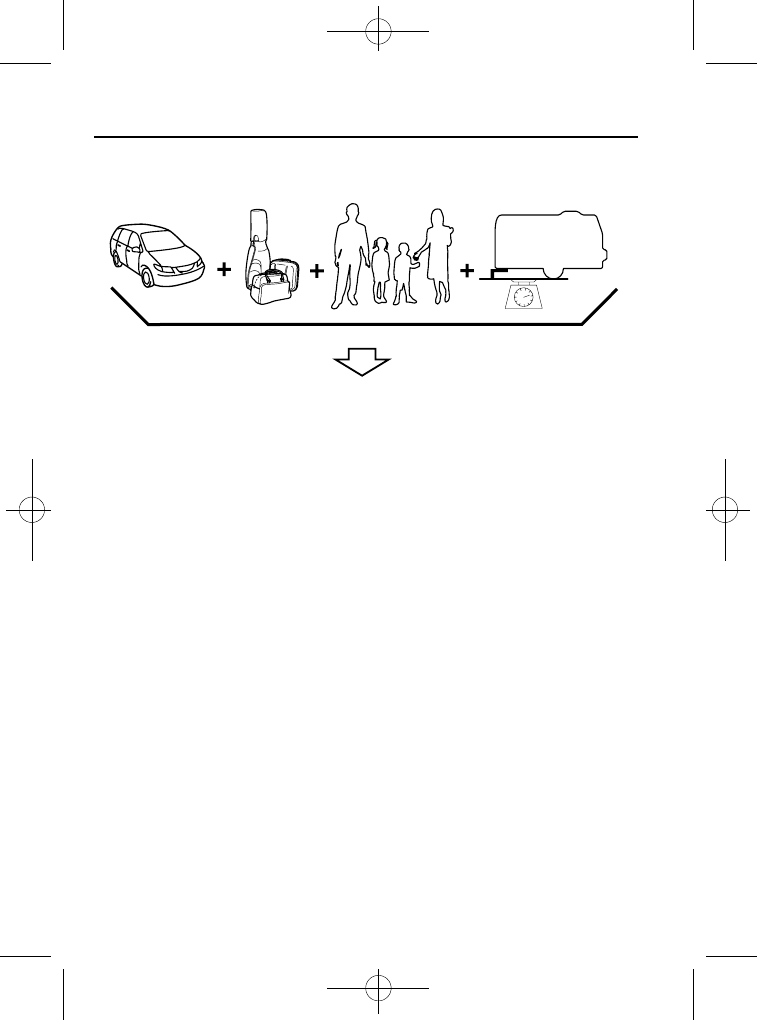

GCW (Gross Combined Weight) is the weight of the loaded vehicle (GVW) plus the
weight of the fully loaded trailer.

GCWR (Gross Combined Weight Rating) is the maximum allowable weight of the
vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can
handle without risking damage. (Important: The towing vehicle's braking system is rated
for operation at GVWR, not at GCWR. Separate functional brakes should be used for safe
control of towed vehicles and for trailers weighing more than 1,500 lbs). The GCW must
never exceed the GCWR.

Maximum Loaded Trailer Weight is the highest possible weight of a fully loaded trailer
the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal or
external), a tongue load of 10_15% (conventional trailer) or king pin weight of 15_25%
(fifth-wheel trailer), and driver only (150 lbs). Consult your dealership (or the RV and
Trailer Towing Guide provided by your dealership) for more detailed information.
Tongue Load or Fifth-Wheel King Pin Weight refers to the amount of the weight that a
trailer pushes down on a trailer hitch.

Examples: For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a
proper tongue load range of 500 to 750 lbs. For an 11,500 lb fifth-wheel trailer, multiply by
0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs.

9-34

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazda MPV_8U61-EA-05G_Edition1 Page344
Tuesday, June 21 2005 9:38 AM

Black plate (345,1)

WARNING

Exceeding GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the certification label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement
tires with a higher limit than the originals do not increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR specified on the certification label.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-35

Mazda MPV_8U61-EA-05G_Edition1 Page345
Tuesday, June 21 2005 9:38 AM

Black plate (346,1)

Steps for Determining the Correct Load Limit:

Steps for Determining Correct Load Limit:

(1) Locate the statement

“The combined weight of occupants and cargo should never

exceed XXX kg or XXX lbs

” on your vehicle's placard.

(2) Determine the combined weight of the driver and passengers that will be riding in your

vehicle.

(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.

(4) The resulting figure equals the available amount of cargo and luggage load capacity.

For example, if the

“XXX” amount equals 1400 lbs. and there will be five 150 lb

passengers in your vehicle, the amount of available cargo and luggage load capacity is
650 lbs. (1400_ 750 (5 × 150) = 650 lbs.)

(5) Determine the combined weight of luggage and cargo being loaded on the vehicle.

That weight may not safely exceed the available cargo and luggage load capacity
calculated in Step 4.

(6) If your vehicle will be towing a trailer, the load from your trailer will be transferred to

your vehicle. Consult this manual to determine how this reduces the available cargo
and luggage load capacity of your vehicle.

9-36

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazda MPV_8U61-EA-05G_Edition1 Page346
Tuesday, June 21 2005 9:38 AM

Black plate (347,1)

Reporting Safety Defects (U.S.A.)

If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).

If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).

To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1
(800) 424-9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA,
U.S. Department of Transportation. Washington, D.C. 20590. You can also
obtain other information about motor vehicle safety from the Hotline.

NOTE

If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:

Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500

If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-8) in this booklet.

Customer Information and Reporting Safety Defects

Reporting Safety Defects

9-37

Mazda MPV_8U61-EA-05G_Edition1 Page347
Tuesday, June 21 2005 9:38 AM

Black plate (348,1)

Reporting Safety Defects (Canada)

Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.

For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm

9-38

Customer Information and Reporting Safety Defects

Reporting Safety Defects

Mazda MPV_8U61-EA-05G_Edition1 Page348
Tuesday, June 21 2005 9:38 AM

Black plate (349,1)

Service Publications

Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.

When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.

If they don't have what you need in stock, they can order it for you.

PUBLICATION ORDER NUMBER

PUBLICATION DESCRIPTION

9999-95-038B-06

2006 WORKSHOP MANUAL (English)

9999-95-024G-06

2006 WIRING DIAGRAM (English)

9999-95-029C-06 (U.S.A. only)

2006 OWNER'S MANUAL

9999-EC-029C-06 (Canada only)

2006 OWNER'S MANUAL

9999-PR-029C-06 (Puerto Rico only)

2006 OWNER'S MANUAL

qWORKSHOP MANUAL:

Covers recommended maintenance and repair procedures of the drive train, body and
chassis.

qWIRING DIAGRAM:

Provides electrical schematics as well as component location for the entire electrical
system.

qOWNER'S MANUAL:

This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.

Customer Information and Reporting Safety Defects

Service Publications

9-39

Mazda MPV_8U61-EA-05G_Edition1 Page349
Tuesday, June 21 2005 9:38 AM

Black plate (352,1)

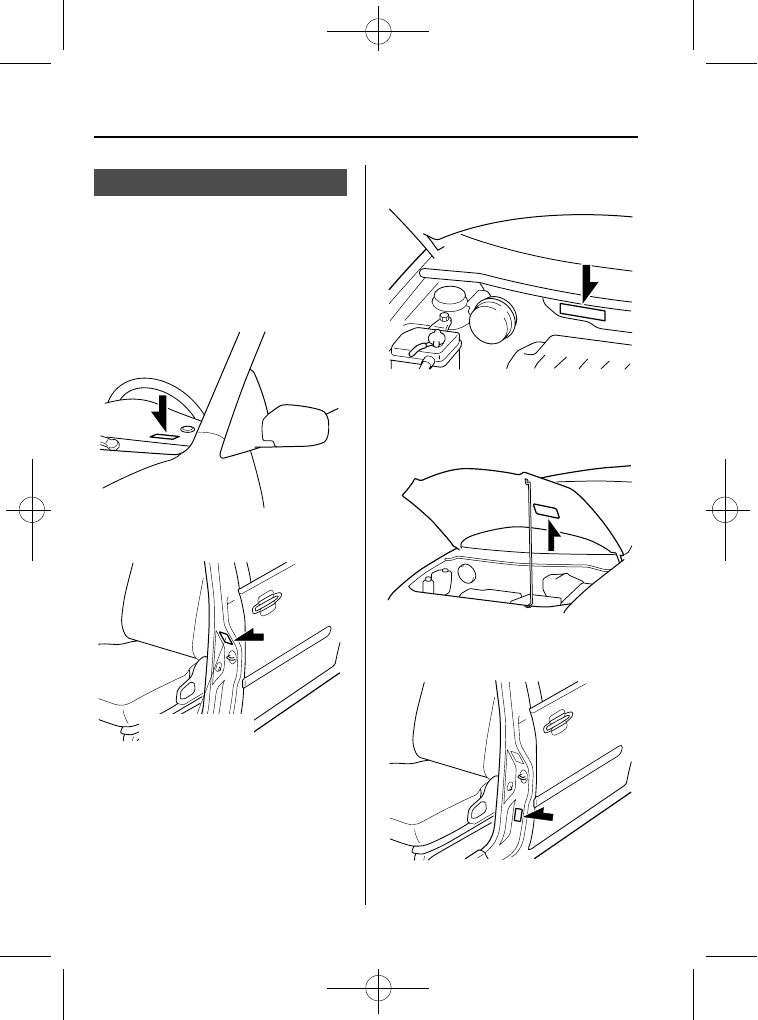

Vehicle Information Labels

qVehicle Identification Number

The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.

qMotor Vehicle Safety Standard Label

Includes tire pressure
information

qChassis Number

qVehicle Emission Control

Information Label

qTire Pressure Label

10-2

Identification Numbers

Mazda MPV_8U61-EA-05G_Edition1 Page352
Tuesday, June 21 2005 9:38 AM

Black plate (353,1)

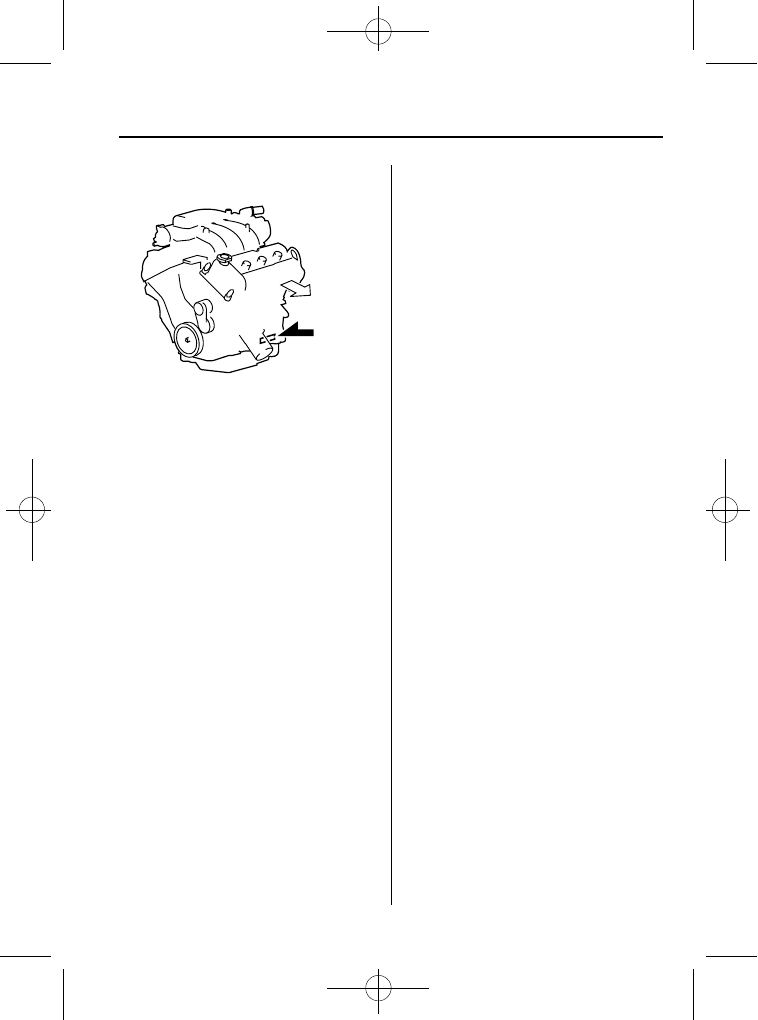

qEngine Number

Forward

Identification Numbers

10-3

Mazda MPV_8U61-EA-05G_Edition1 Page353
Tuesday, June 21 2005 9:38 AM

Black plate (354,1)

Specifications

qEngine

Item

Classification

Type

DOHC-24V 60°V, 6-cylinder

Bore × Stroke

89.0 × 79.5 mm (3.50 × 3.13 in)

Displacement

2,967 ml (2,967 cc, 181.0 cu in)

Compression ratio

10.0

qElectrical System

Item

Classification

Battery

12V-48AH/5HR MF

12V-55AH/5HR MF

Alternator

12 V - 110 A

Starter

12 V - 1.4 kW

Spark-plug number

AJ09 18 110

Spark-plug gap

1.32

―1.42 mm (0.052―0.056 in)

* ex factory

qLubricant Quality

Lubricant

Classification

Engine oil

Refer to the recommended SAE viscosity numbers on page 8-11.

Automatic transaxle fluid

ATF M-III or equivalent (e.g. Dexron® III)

Power steering fluid

ATF M-III or equivalent (e.g. Dexron® III)

Brake fluid

SAE J1703, or FMVSS116 DOT-3

qCapacities

(Approximate Quantities)

Item

Unit

US qt

Imp qt

Engine oil

With oil filter replacement

5.7

6.0

5.0

Without oil filter replacement

5.2

5.5

4.6

Coolant

With rear heater

11.6

12.3

10.2

Without rear heater

9.8

10.4

8.6

Automatic transaxle fluid

9.7

10.3

8.5

Washer fluid

With 4-Seasons package

5.5

5.8

4.8

Without 4-Seasons package

2.2

2.3

1.9

Fuel tank

19.8 (US gal)

16.5 (Imp gal)

Check oil and fluid levels with dipsticks or reservoir gauges.

10-4

Specifications

Mazda MPV_8U61-EA-05G_Edition1 Page354
Tuesday, June 21 2005 9:38 AM

Black plate (355,1)

qDimensions

Item

Model

Overall length

Without GFX Package

4,807 mm (189.3 in), 4,821 mm (189.8 in)

With GFX Package

4,813 mm (189.5 in), 4,833 mm (190.3 in)

Overall width

1,830 mm (72.1 in)

Overall height

1,745 mm (68.7 in), 1,755 mm (69.1 in)

Front tread

1,540 mm (60.6 in)

Rear tread

1,545 mm (60.8 in)

, 1,550 mm (61.0 in)

Wheelbase

2,840 mm (111.8 in)

*1 With license plate holder
*2 17 inch wheel vehicle
*3 Rear drum brake
*4 Rear disc brake

qWeights

Item

Weight

GVWR (Gross Vehicle Weight Rating)

2,386 kg (5,260 lb)

GAWR (Gross Axle Weight Rating)

Front

1,189 kg (2,621 lb)

Rear

1,218 kg (2,685 lb)

qAir Conditioner

Refrigerant complies with SAE J639

Maximum operating charge

HFC134a (R-134a)

Front air-conditioner

0.6 kg (21.2 oz)

Front and rear air-conditioner

0.8 kg (28.2 oz)

Specifications

10-5

Mazda MPV_8U61-EA-05G_Edition1 Page355
Tuesday, June 21 2005 9:38 AM

Black plate (356,1)

qLight Bulbs

Exterior light

Light bulb
