Mazda MPV (2006 year). Instruction

Black plate (328,1)

11. Tread wear, traction and temperature grades

12. Max. permissible inflation pressure

13. SAFETY WARNING

P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.

Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).

NOTE

If your tire size does not begin with a letter this may mean it is designated by either
ETRTO (European Tire and Rim Technical Organization) or JATMA (Japan Tire
Manufacturing Association).

215
“215” is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.

65
“65” is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.

R
“R” is the tire construction symbol. R indicates “Radial ply construction”.

15
“15” is the wheel rim diameter in inches.

95
“95” is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.

9-18

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazda MPV_8U61-EA-05G_Edition1 Page328
Tuesday, June 21 2005 9:38 AM

Black plate (329,1)

H
“H” is the speed rating. The speed rating denotes the maximum speed for which the use of
the tire is rated.

Letter Rating

Speed Rating

99 mph

106 mph

112 mph

118 mph

124 mph

130 mph

149 mph

168

mph

186

mph

* For tires with a maximum speed capability over 149 mph, tire manufacturers sometimes use the letters ZR. For

tires with a maximum speed capability over 186 mph, tire manufacturers always use the letters ZR.

M+S or M/S: Mud and Snow

AT: All Terrain.
AS: All Season. The

“M+S” or “M/S” indicates that the tire has some functional use in

mud and snow.

U.S. DOT Tire Identification Number (TIN)

This begins with the letters

“DOT” which indicates the tire meets all federal standards. The

next two numbers or letters are the plant code where it was manufactured, and the last four
numbers represent the week and year the tire was manufactured. For example, the numbers
457 means the 45st week of 1997. After 2000 the numbers go to four digits. For example,
the number 2102 means the 21th week of 2002. The other numbers are marketing codes
used at the manufacturer's discretion. This information is used to contact consumers if a tire
defect requires a recall.

Tire Ply Composition and Materials Used

The number of plies indicates the number of layers of rubber-coated fabric in the tire. In
general, the greater the number of plies, the more weight a tire can support. Tire
manufacturers also must indicate the tire materials, which include steel, nylon, polyester,
and other.

Maximum Load Rating

This number indicates the maximum load in kilograms and pounds that can be carried by
the tire.

Maximum Permissible Inflation Pressure

This number is the greatest amount of air pressure that should ever be put in the tire under
normal driving conditions.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-19

Mazda MPV_8U61-EA-05G_Edition1 Page329
Tuesday, June 21 2005 9:38 AM

Black plate (330,1)

Tread Wear, Traction and Temperature Grades

Tread wear: The tread wear grade is a comparative rating based on the wear rate of the tire
when tested under controlled conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100.
Traction: The traction grades, from highest to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pavement as measured under controlled conditions
on specified government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Temperature: The temperature grades are A (the highest), B and C, representing the tire's
resistance to the generation of heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory test wheel.

Snow Tires

In some heavy snow areas, local governments may require true snow tires, those with very
deeply cut tread. These tires should only be used in pairs or placed on all four wheels.
Make sure you purchase snow tires that are the same size and construction type as the other
tires on your vehicle.

SAFETY WARNING

The following safety warning appears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:

EXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-
MATCH TIRE DIAMETER TO RIM DIAMETER; NEVER EXCEED 40 psi (275 kPa)
TO SEAT BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT
TIRES.

TIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/DAMAGE-
FOLLOW OWNER'S MANUAL AND PLACARD IN VEHICLE-FREQUENTLY
CHECK INFLATION PRESSURE AND INSPECT FOR DAMAGE.

9-20

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazda MPV_8U61-EA-05G_Edition1 Page330
Tuesday, June 21 2005 9:38 AM

Black plate (331,1)

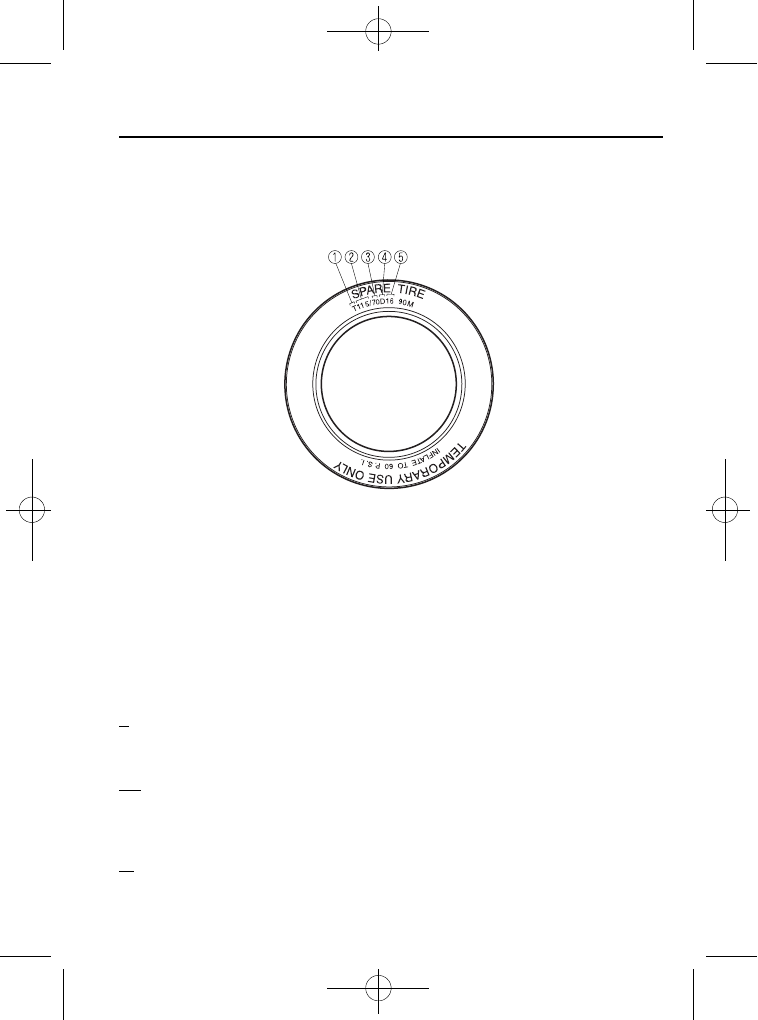

qInformation on Temporary Tires

Please refer to the diagram below.

1. Temporary tires

2. Nominal width of tire in millimeters

3. Ratio of height to width (aspect ratio)

4. Diagonal

5. Rim diameter code

T115/70D 16 is an example of a tire size and load index rating. Here is an explanation of
the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.

Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).

115
“115” is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.

70
“70” is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-21

Mazda MPV_8U61-EA-05G_Edition1 Page331
Tuesday, June 21 2005 9:38 AM

Black plate (333,1)

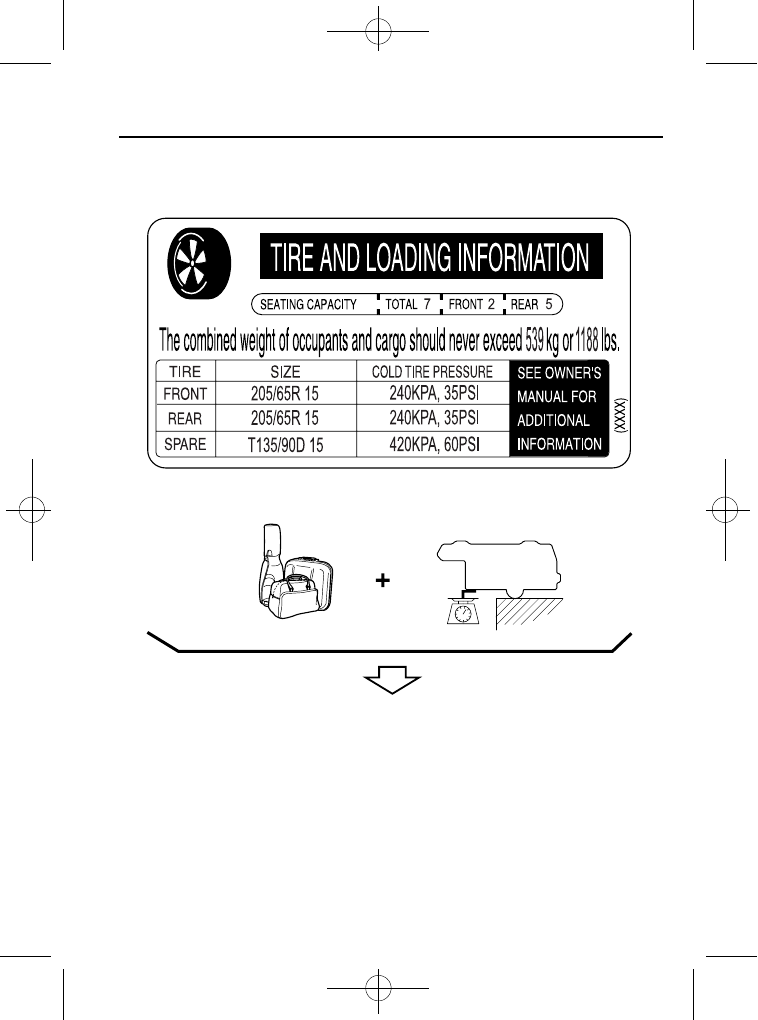

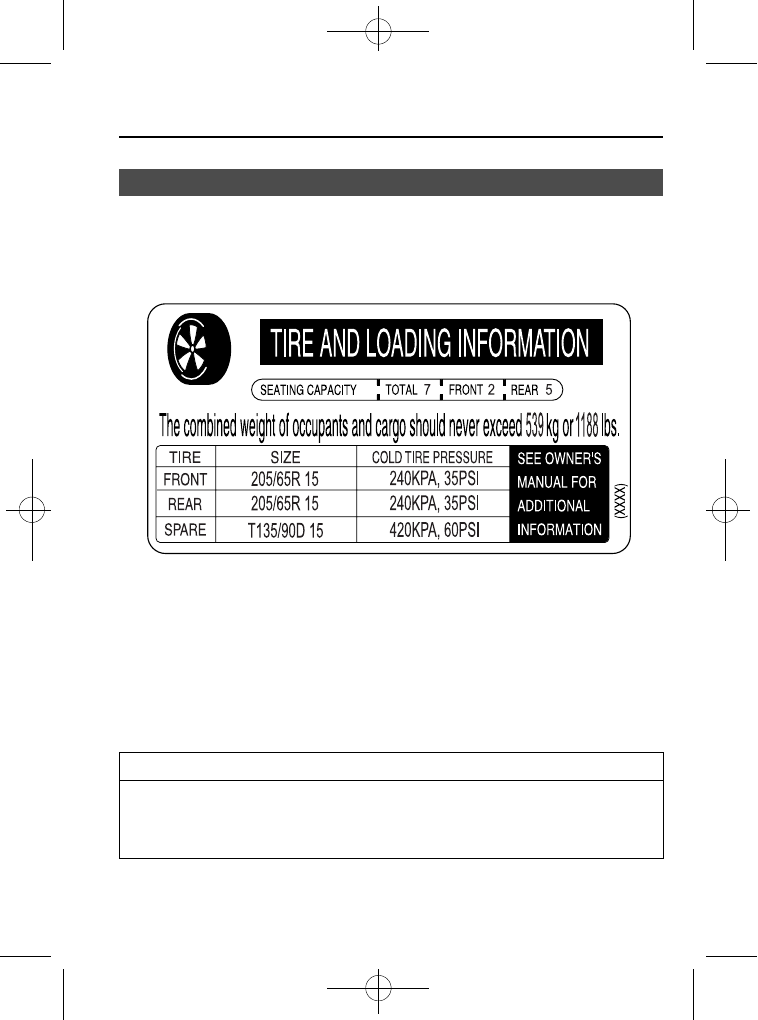

Location of the Tire Label (Placard)

You will find the tire label containing tire inflation pressure by tire size and other important
information on the driver's side B-pillar or on the edge of the driver's door.

SAMPLE

qRecommended Tire Inflation Pressure

On the tire label you will find the recommended tire inflation pressure in both kPa and psi
for the tires installed as original equipment on the vehicle. It is very important that the
inflation pressure of the tires on your vehicle is maintained at the recommended pressure.
You should check the tire pressure regularly to insure that the proper inflation pressure is
maintained.

Refer to Tires on page 10-6.

NOTE

Tire pressures listed on the vehicle placard or tire information label indicate the
recommended cold tire inflation pressure, measured when the tires are cold, after the
vehicle has been parked for at least 3 hours. As you drive, the temperature in the tire
warms up, increasing the tire pressure.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-23

Mazda MPV_8U61-EA-05G_Edition1 Page333
Tuesday, June 21 2005 9:38 AM

Black plate (334,1)

WARNING

Tire Under-Inflation:
Driving your vehicle with under-inflated tires is dangerous.
Under-inflation is the most common cause of failures in any kind of tire and may
result in severe cracking, tread separation or

“blowout”, with unexpected loss of

vehicle control and increased risk of injury. Under-inflation increases sidewall flexing
and rolling resistance, resulting in heat buildup and internal damage to the tire. It
results in unnecessary tire stress, irregular wear, loss of control and accidents. A tire
can lose up to half of its air pressure and not appear to be flat!
It is impossible to determine whether or not tires are properly inflated just by looking
at them.
Always check the tire inflation pressures on a regular basis according to the
recommended tire inflation pressure on the tire label and in conjunction with the
information in this owner's manual.

qChecking Tire Pressure

1. When you check the air pressure, make sure the tires are cold

―meaning they are not

hot from driving even a mile.

2. Remove the cap from the valve on one tire.

3. Firmly press a tire gauge onto the valve.

4. Add air to achieve recommended air pressure.

5. If you overfill the tire, release air by pushing on the metal stem in the center of the

valve. Then recheck the pressure with your tire gauge.

6. Replace the valve cap.

7. Repeat with each tire, including the spare.

NOTE

Some spare tires require higher inflation pressure.

8. Visually inspect the tires to make sure there are no nails or other objects embedded that

could poke a hole in the tire and cause an air leak.

9. Check the sidewalls to make sure there are no gouges, cuts, bulges, cracks or other

irregularities.

9-24

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazda MPV_8U61-EA-05G_Edition1 Page334
Tuesday, June 21 2005 9:38 AM

Black plate (335,1)

NOTE

Warm tires normally exceed recommended pressures. Don't release air from warm tires
to adjust the pressure.
Under-inflation can cause serious failures and accidents.
Over-inflation can produce a harsh ride and the greater possibility of damage from road
hazards.

qGlossary of Terms

Tire Placard: A label indicating the OE tire sizes, recommended inflation pressure, and
the maximum weight the vehicle can carry.
Tire Identification Number (TIN): A number on the sidewall of each tire providing
information about the tire brand and manufacturing plant, tire size, and date of
manufacture.
Inflation Pressure: A measure of the amount of air in a tire.
kPa: Kilopascal, the metric unit for air pressure.
psi: Pounds per square inch, the English unit for air pressure.
B-pillar: The structural member at the side of the vehicle behind the front door.
Original Equipment (OE): Describes components originally equipped on the vehicle.

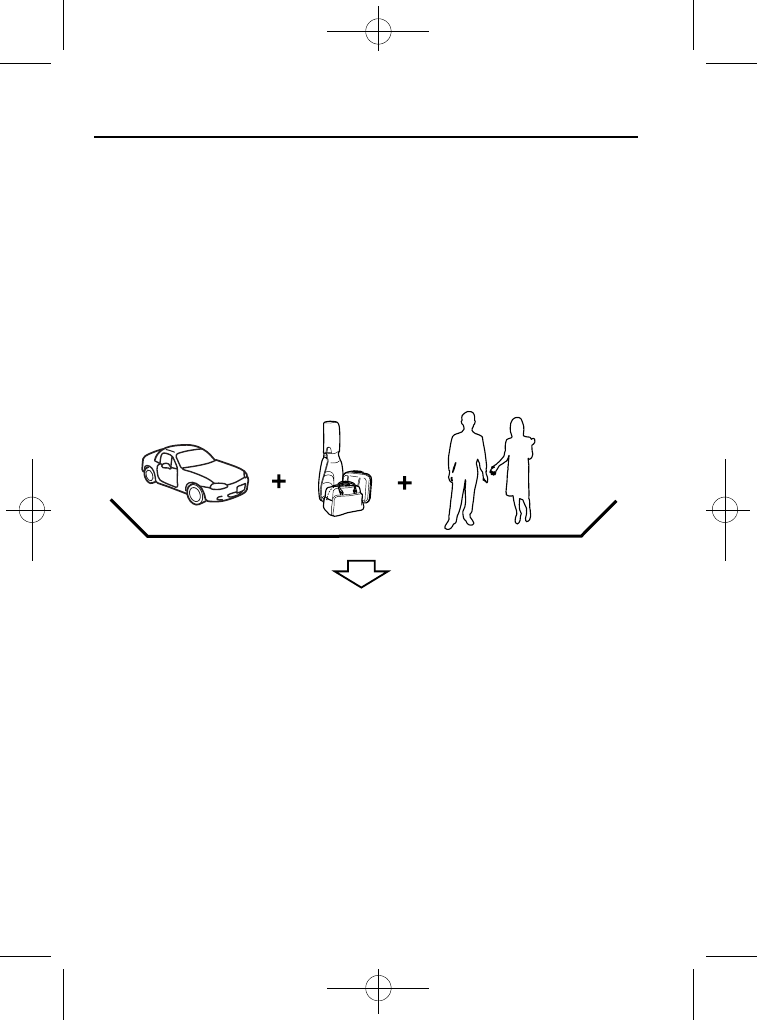

Vehicle Load Limit: The maximum value of the combined weight of occupants and cargo.
Bead Area of the Tire: Area of the tire next to the rim.
Sidewall Area of the Tire: Area between the bead area and the tread.
Tread Area of the Tire: Area on the perimeter of the tire that contacts the road when it's
mounted on the vehicle.

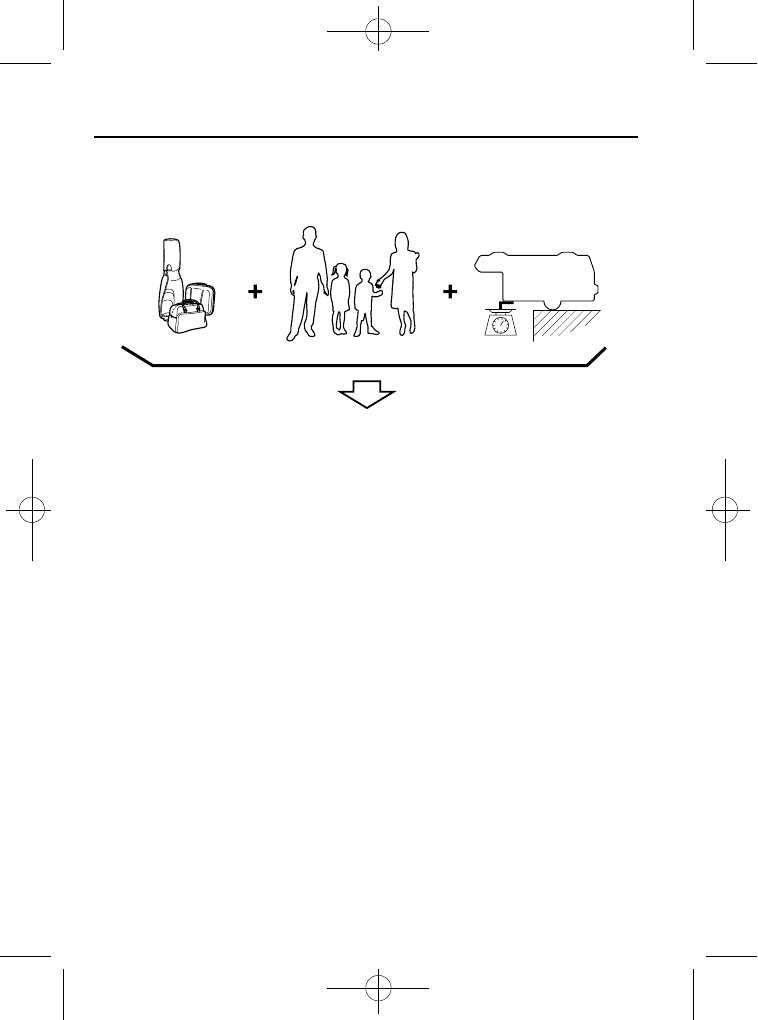

Seating capacity means the total allowable number of vehicle occupants. Seating capacity
is described on the tire label.

Production options weight is the combined weight of installed regular production options
weighing over 2.3 kilograms in excess of the standard items which they replace, and not
previously considered in the curb weight or accessory weight, including heavy duty brakes,
ride levelers, roof rack, heavy duty battery, and special trim.

Rim is the metal support (wheel) for a tire or a tire and tube assembly upon which the tire
beads are seated.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-25

Mazda MPV_8U61-EA-05G_Edition1 Page335
Tuesday, June 21 2005 9:38 AM

Black plate (336,1)

Tire Maintenance

Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are
some important maintenance points:

qTire Inflation Pressure

Inspect all tire pressure monthly (including the spare) when the tires are cold. Maintain
recommended pressures for the best ride, top handling, and minimum tire wear. Use the
pressures specified on the vehicle tire information placard or tire label for optimum service.

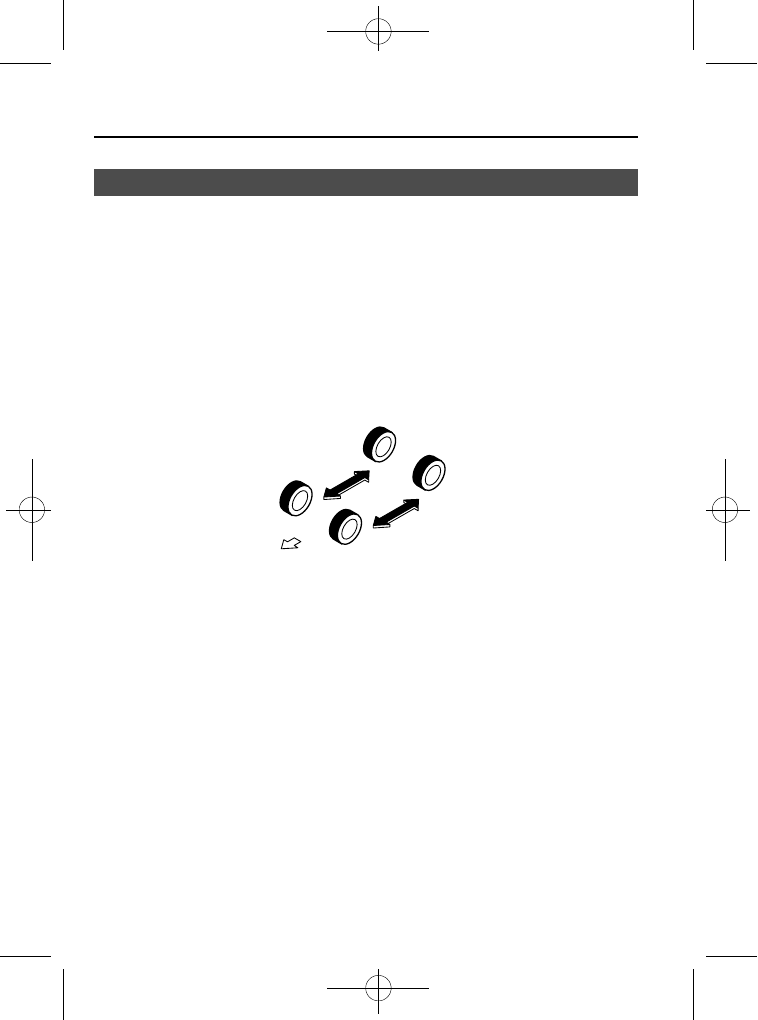

qTire Rotation

To equalize tread wear, rotate the tires every 12,000 km (7,500 miles) or sooner if irregular
wear develops. During rotation, inspect them for correct balance.

Do not include (TEMPORARY USE ONLY)
spare tire in rotation.

Forward

Inspect the tires for uneven wear and damage. Abnormal wear is usually caused by one or a
combination of the following:

Incorrect tire pressure

Improper wheel alignment

Out-of-balance wheel

Severe braking

After rotation, inflate all tire pressures to specification (page 10-6) and inspect the lug nuts
for tightness.

9-26

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazda MPV_8U61-EA-05G_Edition1 Page336
Tuesday, June 21 2005 9:38 AM

Black plate (337,1)

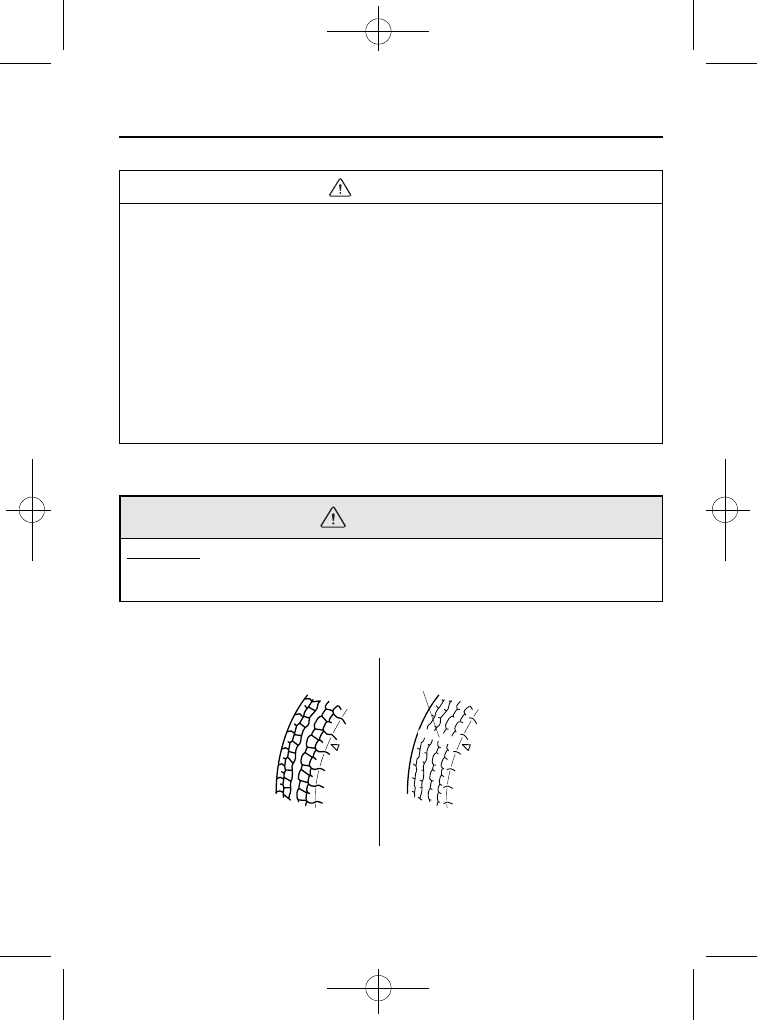

CAUTION

Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern or
studs only from front to rear, not from side to side. Tire performance will be weakened if
rotated from side to side.

(With limited-slip differential)
Don't use the following:

Tires not of the designated size

Tires of different sizes or types at the same time

Tires not sufficiently inflated

If these instructions aren't followed, the rotation of the left and right wheels will be
different and will thus apply a constant load on the limited-slip differential.
This will cause a malfunction.

qReplacing a Tire

WARNING

Worn Tires:
Driving with worn tires is dangerous. Reduced braking, steering, and traction could
result in an accident. Always use tires that are in good condition.

If a tire wears evenly, a wear indicator will appear as a solid band across the tread. Replace
the tire when this happens.

New tread

Tread wear indicator

Worn tread

You should replace it before the band is across the entire tread.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-27

Mazda MPV_8U61-EA-05G_Edition1 Page337
Tuesday, June 21 2005 9:38 AM

Black plate (338,1)

NOTE

Tires degrade over time, even when they are not being used on the road. It is
recommended that tires generally be replaced when they are 6 years or older. Heat
caused by hot climates or frequent high loading conditions can accelerate the aging
process. You should replace the spare tire when you replace the other road tires due to
the aging of the spare tire. Regarding the manufacturing week and year is indicated with
4 digit. Refer to The tire labeling on page 9-17.

qSafety Practices

The way you drive has a great deal to do with your tire mileage and safety. So cultivate
good driving habits for your own benefit.

Observe posted speed limits

Avoid fast starts, stops and turns

Avoid potholes and objects on the road

Do no run over curbs or hit the tire against the curb when parking

CAUTION

If you feel a sudden vibration or ride disturbance while driving or you suspect your tire
or vehicle has been damaged, immediately reduce your speed. Drive with caution until
you can safely pull off the road. Stop and inspect the tire for damage. If the tire is under-
inflated or damaged, deflate it, remove the tire and rim and replace it with your spare
tire. If you cannot detect a cause, have the vehicle towed to the nearest vehicle or tire
dealer to have the vehicle inspected.

9-28

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazda MPV_8U61-EA-05G_Edition1 Page338
Tuesday, June 21 2005 9:38 AM

Black plate (339,1)

Vehicle Loading

This section will guide you in the proper loading of your vehicle and/or trailer, to keep
your loaded vehicle weight within its design rating capability, with or without a trailer.
Properly loading your vehicle will provide maximum return of vehicle design performance.
Before loading your vehicle, familiarize yourself with the following terms for determining
your vehicle's weight ratings, with or without a trailer, from the vehicle's Safety
Certification Label and Tire and Load Information Label:

WARNING

Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's suspension
system can cause spring or shock absorber failure, brake failure, handling or steering
problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely,
particularly on steep grades. The load a tire will carry safely is a combination of the
size of the tire, its load range, and corresponding inflation pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.

Base Curb Weight is the weight of the vehicle including a full tank of fuel and all
standard equipment. It does not include passengers, cargo, or optional equipment.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-29

Mazda MPV_8U61-EA-05G_Edition1 Page339
Tuesday, June 21 2005 9:38 AM

Black plate (340,1)

Vehicle Curb Weight is the weight of your new vehicle when you picked it up from your
dealer plus any aftermarket equipment.

PAYLOAD

Payload is the combined weight of cargo and passengers that the vehicle is designed to
carry. The maximum payload for your vehicle can be found on the Tire and Load
Information label on the driver's door or door pillar. Look for

“THE COMBINED

WEIGHT OF OCCUPANTS AND CARGO SHOULD NEVER EXCEED XXX kg or
XXX lbs

” for your maximum payload. The payload listed on the tire label is the maximum

payload for the vehicle as built by the assembly plant. If any aftermarket or dealer installed
equipment has been installed on the vehicle, the weight of the equipment must be
subtracted from the payload listed on the tire label in order to be accurate.

9-30

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazda MPV_8U61-EA-05G_Edition1 Page340
Tuesday, June 21 2005 9:38 AM

Black plate (341,1)

SAMPLE

CARGO

Cargo Weight includes all weight added to the Base Curb Weight, including cargo and
optional equipment. When towing, trailer tongue load or king pin weight is also part of
cargo weight.

The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the

“combined weight of occupants and cargo should never exceed” value on the tire label.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-31

Mazda MPV_8U61-EA-05G_Edition1 Page341
Tuesday, June 21 2005 9:38 AM

Black plate (342,1)

Examples: Based on a single occupant weight of 68 kg, and a value of 385 kg for the

“combined weight of occupants and cargo should never exceed”:
The cargo weight limit with one occupant is 385 kg _ 68 kg = 317 kg
The cargo weight limit with two occupants is 385 kg _ (68 × 2) kg = 249 kg
If the weight of the occupant increases, the cargo weight limit decreases by that much.

GAW (Gross Axle Weight) is the total weight placed on each axle (front and rear) -
including vehicle curb weight and all payload.

GAWR (Gross Axle Weight Rating) is the maximum allowable weight that can be carried
by a single axle (front or rear). These numbers are shown on the Safety Compliance
Certification Label located on the driver's door or door pillar. The total load on each
axle must never exceed its GAWR.

GVW

GVW (Gross Vehicle Weight) is the Vehicle Curb Weight + cargo + passengers.

GVWR (Gross Vehicle Weight Rating) is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is
shown on the Safety Compliance Certification Label located on the driver's door or
door pillar. The GVW must never exceed the GVWR.

9-32

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazda MPV_8U61-EA-05G_Edition1 Page342
Tuesday, June 21 2005 9:38 AM

Black plate (343,1)

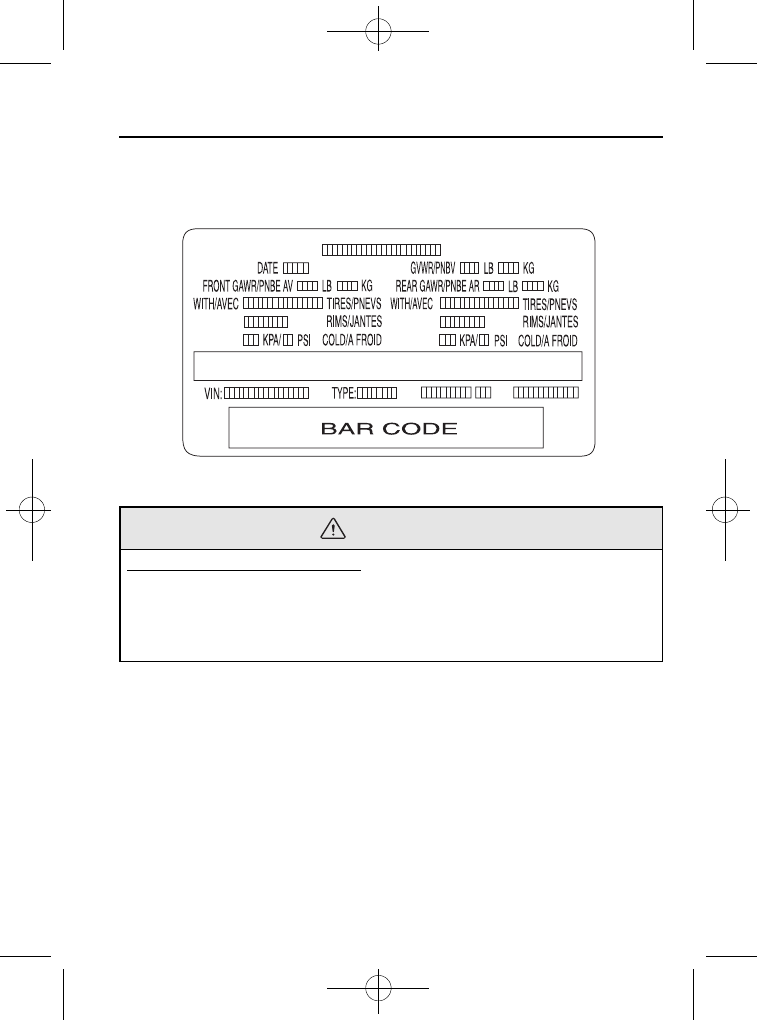

SAMPLE

WARNING

Exceeding Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-33

Mazda MPV_8U61-EA-05G_Edition1 Page343
Tuesday, June 21 2005 9:38 AM

Mazda MPV (2006 year). Instruction - part 21
