qLocking Lug Nuts

If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it
in the accompanying envelope. If you lose
this key, consult an Authorized Mazda
Dealer or use the lock manufacturer's
order form, which is with the registration
card.

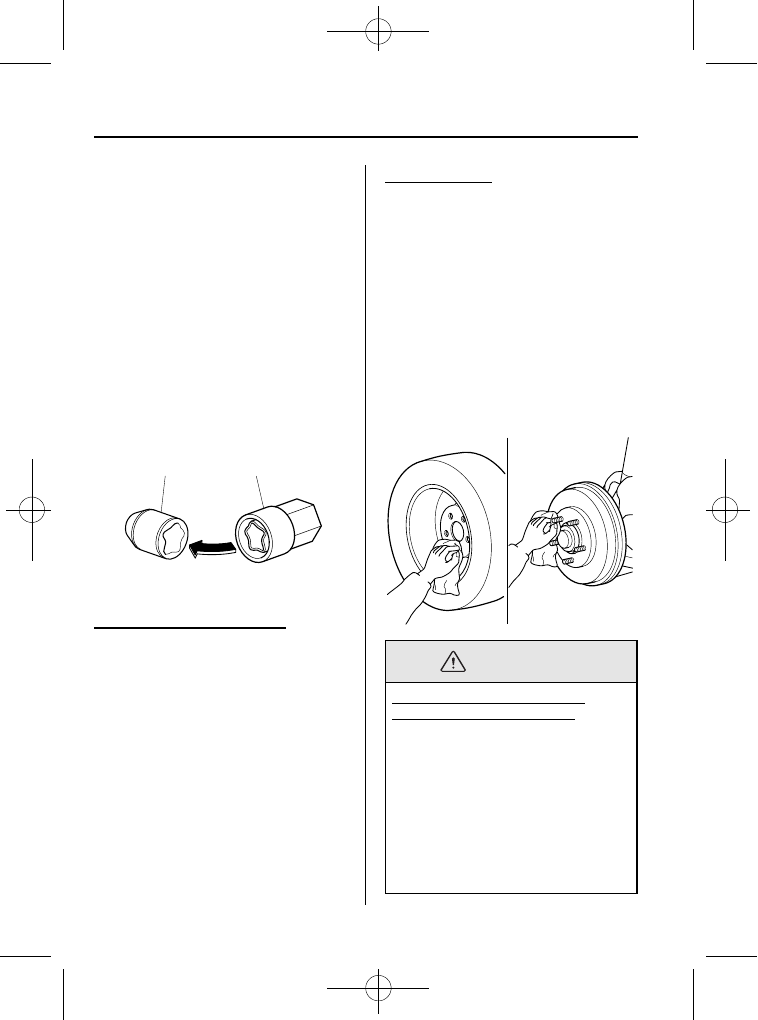

Special key

Antitheft lug nut

To remove an antitheft lug nut

1. Obtain the key for the antitheft lug nut.

2. Place the key on top of the nut, and be

sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.

3. Place the lug wrench on top of the key

and apply pressure. Turn the wrench
counterclockwise.

To install the nut

1. Place the key on top of the nut, and be

sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.

2. Place the lug wrench on top of the key,

apply pressure, and turn it clockwise.

qMounting the Spare Tire

1. Remove dirt and grime from the

mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.

WARNING

Removing Dirt and Grime from
Wheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.

7-12

In Case of an Emergency

Some models.

Flat Tire

Mazda MPV_8U61-EA-05G_Edition1 Page248
Tuesday, June 21 2005 9:37 AM

Black plate (249,1)

2. Mount the spare tire.

3. Install the lug nuts with the beveled

edge inward; tighten them by hand.

WARNING

Don't Apply Oil or Grease to Lug
Nuts, Bolts:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident.
In addition, lug nuts and bolts could
be damaged if tightened more than
necessary. Do not apply oil or grease
to lug nuts and bolts and do not
tighten the lug nuts beyond the
recommended tightening torque.

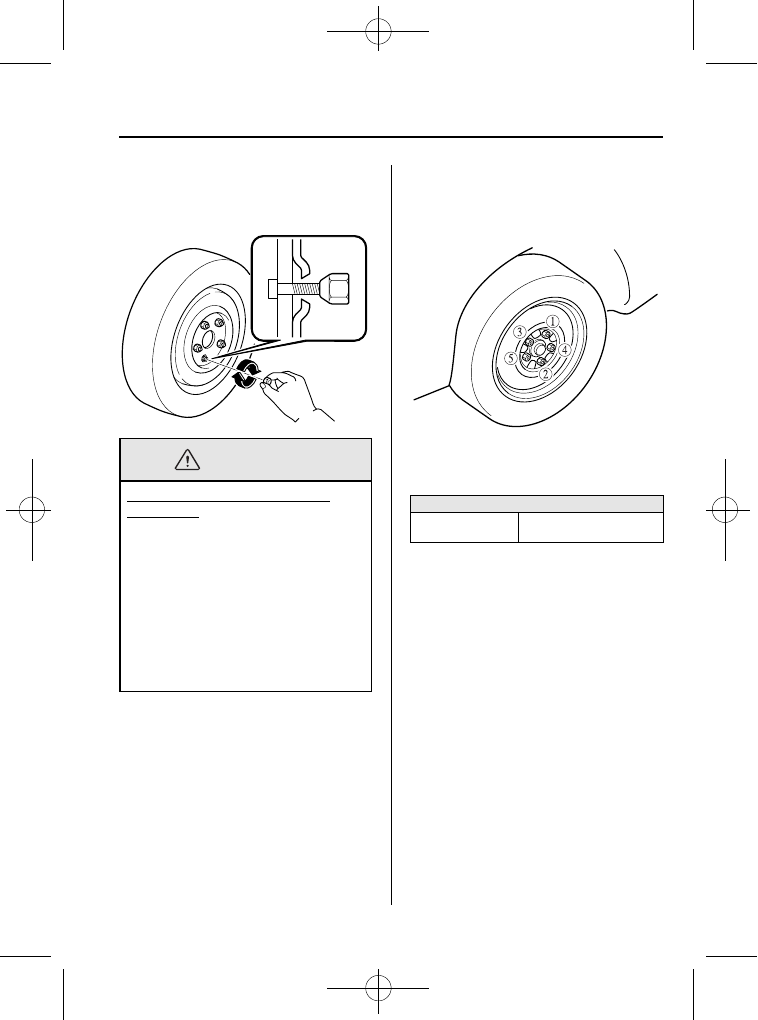

4. Turn the lug wrench counterclockwise

and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.

If you're unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.

Nut tightening torque

N·m (kgf·m, ft·lbf)

108

―147

(11

―15, 80―108)

In Case of an Emergency

Flat Tire

7-13

Mazda MPV_8U61-EA-05G_Edition1 Page249
Tuesday, June 21 2005 9:37 AM

Black plate (250,1)

WARNING

Loose Lug Nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident. Always securely and
correctly tighten the lug nuts.

Metric Studs and Lug Nuts:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident. Be sure to
reinstall the same nuts you removed or
replace them with metric nuts of the
same configuration.

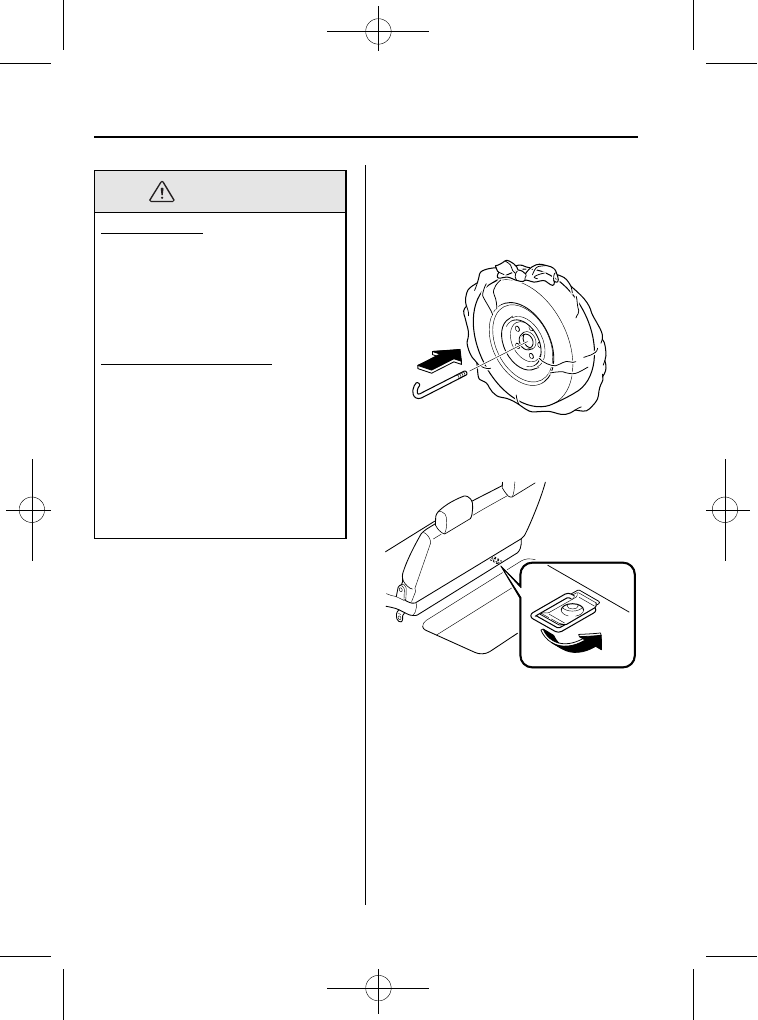

5. If your vehicle is equipped with a

center cap, pry off the center cap with
the beveled end of the jack lever.

6. Put the flat tire in the special vinyl bag

and tie it at the top.

7. With the tire facing outward, punch a

hole through the vinyl bag and the
center hole, using the flat tire securing
bolt.

8. Lift the anchor clip on the back of

third-row seat.

7-14

In Case of an Emergency

Flat Tire

Mazda MPV_8U61-EA-05G_Edition1 Page250
Tuesday, June 21 2005 9:37 AM

Black plate (251,1)

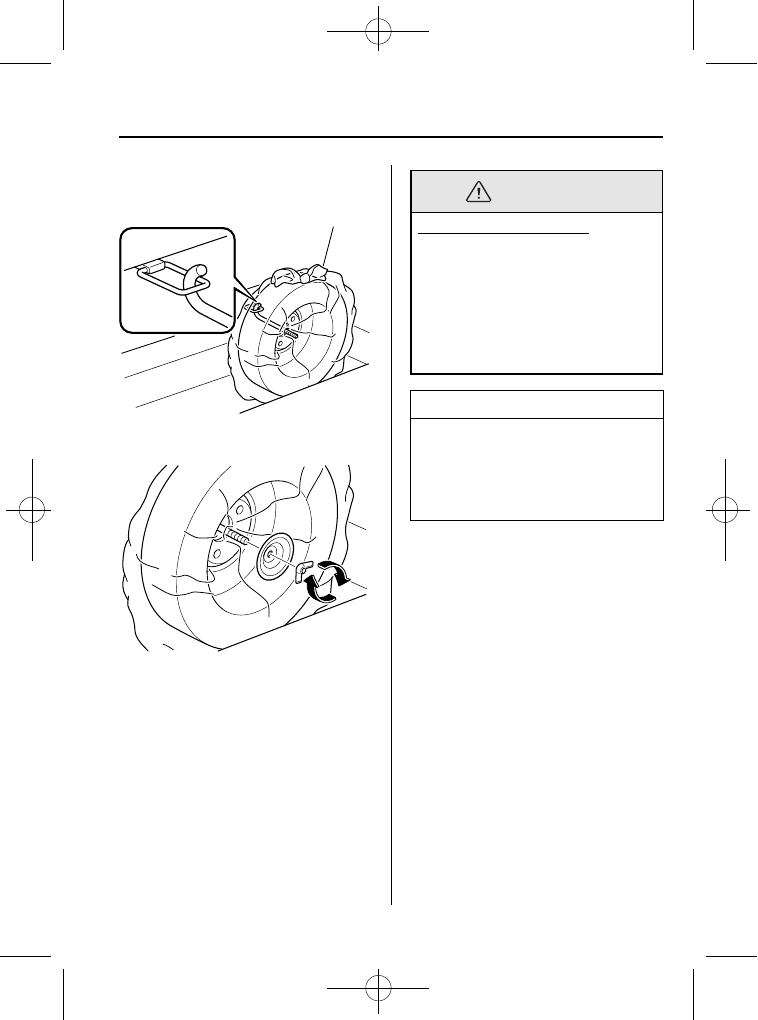

9. Install the flat tire with the tire securing

bolt hooked in the anchor clip as
shown below.

10. Secure the flat tire with the tire clamp

and wing nut as shown below.

11. Check the inflation pressure. Refer to

the specification charts on page 10-6.

12. Have the flat tire repaired or replaced

as soon as possible.

WARNING

Incorrect Tire Air Pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
Don't drive with any tires that have
incorrect air pressure. When you
check the regular tires' air pressure,
check the spare tire, too.

NOTE

If the tire rattles even through the
wing nut is tightened, reverse the tire
clamp and retighten the wing nut.

To prevent the jack and tool from
rattling, store them properly.

In Case of an Emergency

Flat Tire

7-15

Mazda MPV_8U61-EA-05G_Edition1 Page251
Tuesday, June 21 2005 9:37 AM

Black plate (252,1)

Overheating

If the temperature gauge indicates
overheating, the vehicle loses power, or
you hear a loud knocking or pinging
noise, the engine is probably too hot.

WARNING

Cooling Fan and Engine

Inspection:
Inspecting the engine with the ignition
switch in the ON position is
dangerous. The cooling fan could turn
on unexpectedly even when the engine
isn't running. You could be seriously
injured by the fan. Turn the ignition
switch off and remove the key from the
ignition switch when you inspect the
engine.

Cooling System Cap:

When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury. Don't remove the cooling
system cap when the engine and
radiator are hot.

Steam from Overheated Engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine.

If the temperature gauge indicates
overheating:

1. Drive safely to the side of the road and

park off the right-of-way.

2. Shift into park (P).

Apply the parking brake.

3. Turn off the air conditioner.

4. Check whether coolant or steam is

escaping from under the hood or from
the engine compartment.

If steam is coming from the engine
compartment:
Don't go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.

If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.

CAUTION

If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.

5. Make sure the cooling fan is operating,

then turn off the engine after the
temperature has decreased.

6. When cool, check the coolant level.

If it's low, look for coolant leaks from
the radiator and hoses.

7-16

In Case of an Emergency

Overheating

Mazda MPV_8U61-EA-05G_Edition1 Page252
Tuesday, June 21 2005 9:37 AM

Black plate (253,1)

If you find a leak or other damage, or if
coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.

If you find no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
8-14).

CAUTION

If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.

In Case of an Emergency

Overheating

7-17

Mazda MPV_8U61-EA-05G_Edition1 Page253
Tuesday, June 21 2005 9:37 AM

Black plate (254,1)

Starting a Flooded Engine

If the engine fails to start, it may be
flooded (excessive fuel in the engine).

Follow this procedure:

1. Depress the accelerator all the way and

hold it there.

2. Turn the ignition switch to the START

position and hold it there

―for up to 10

seconds. If the engine starts, release the
key and accelerator immediately
because the engine will suddenly rev
up.

3. If the engine fails to start, crank it

without depressing the accelerator

―for

up to 10 seconds.

7-18

In Case of an Emergency

Emergency Starting

Mazda MPV_8U61-EA-05G_Edition1 Page254
Tuesday, June 21 2005 9:37 AM

Black plate (255,1)

Jump-Starting

Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.

WARNING

Follow These Precautions Carefully:

To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.

Eye Protection:

Working without eye protection is dangerous. Battery fluid contains SULFURIC
ACID which could cause blindness if splashed into your eyes. Also, hydrogen gas
produced during normal battery operation, could ignite and cause the battery to
explode. Always wear eye protection when working near the battery.

Spilled Battery Fluid:

Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets
in eyes, skin or clothing. If this happens, immediately flush your eyes with water for
15 minutes or wash your skin thoroughly and get medical attention. Wear eye
protection and protective gloves to prevent contact with battery fluid.

Children and Batteries:

Allowing children to play near batteries is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or on the skin. Always keep batteries out of the
reach of children.

In Case of an Emergency

Emergency Starting

7-19

Mazda MPV_8U61-EA-05G_Edition1 Page255
Tuesday, June 21 2005 9:37 AM

Black plate (256,1)

WARNING

Keep Flames Away:

Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells. When working near a battery, do
not allow metal tools to contact the positive (

) or negative (

) terminal of the

battery. Do not allow the positive (

) terminal to contact the vehicle body.

Battery-Related Explosion:

Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames, including
cigarettes, and sparks away from open battery cells.

Low Fluid Level or Frozen Battery:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Don't jump-start a frozen battery or one with a low fluid level.

Connecting to Negative Terminal:
Connecting the end of the second cable to the negative (

) terminal of the discharged

battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Connect the negative cable to a good ground point away from the battery.

Connecting Jumper Cable to Moving Parts:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury. Never

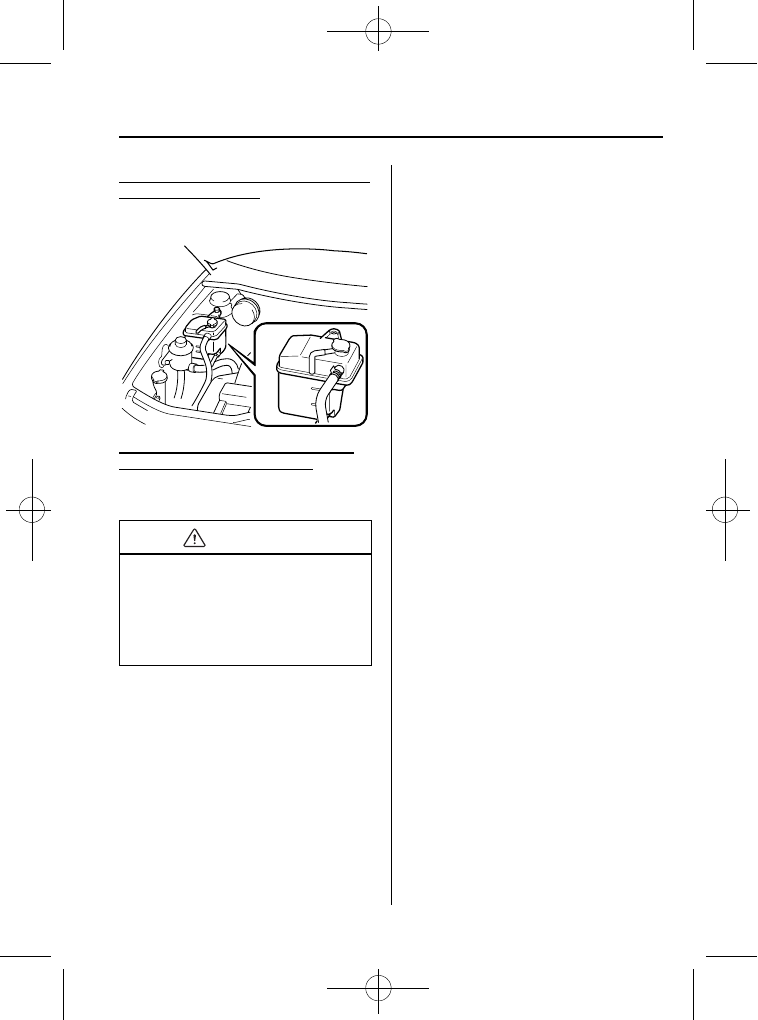

connect a jumper cable to or near any part that moves.

CAUTION

Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).

7-20

In Case of an Emergency

Emergency Starting

Mazda MPV_8U61-EA-05G_Edition1 Page256
Tuesday, June 21 2005 9:37 AM

Black plate (257,1)

1. Make sure the booster battery is 12 V

and that its negative terminal is
grounded.

2. If the booster battery is in another

vehicle, don't allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.

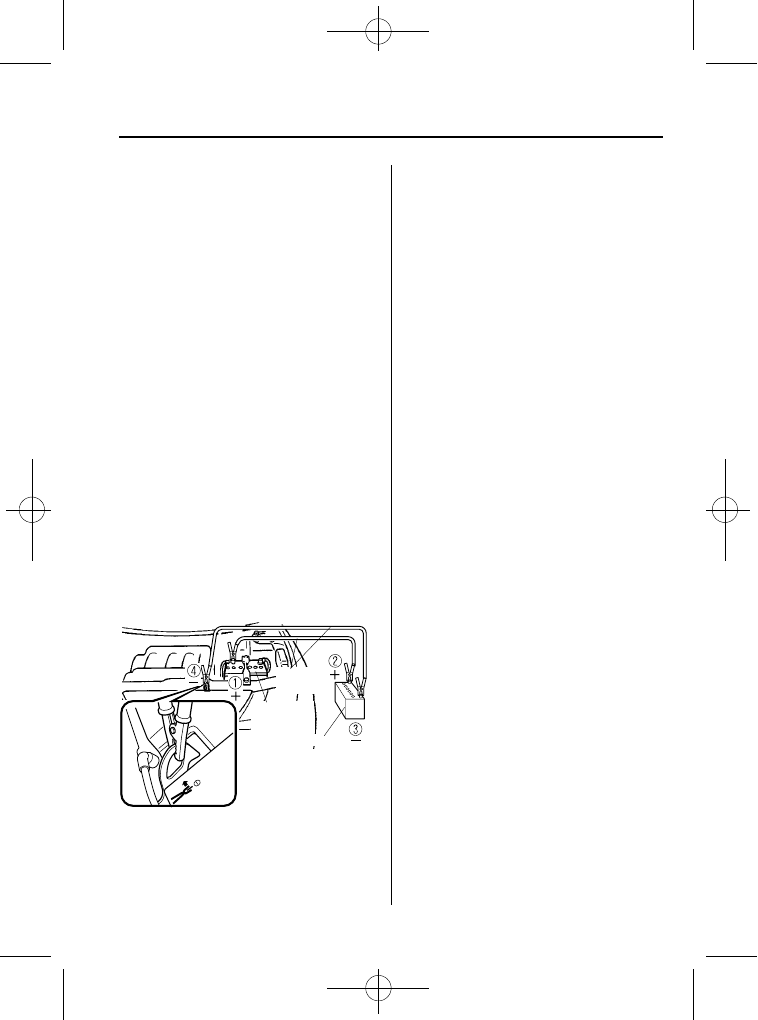

3. Connect the jumper cables in the exact

sequence as in the illustration.

Connect one end of a cable to the
positive terminal on the discharged
battery (1).

Attach the other end to the positive
terminal on the booster battery (2).

Connect one end of the other cable
to the negative terminal of the
booster battery (3).

Connect the other end to a solid,
stationary, exposed metallic point
(for example, the engine hanger)
away from the discharged battery
(4).

Jumper
cables

Discharged
battery

Connect cables in
numerical order and
disconnect in reverse
order.

Booster battery

4. Start the engine of the booster vehicle

and run it a few minutes. Then start the
engine of the other vehicle.

5. When finished, carefully disconnect the

cables in the reverse order described in
Step 3.

In Case of an Emergency

Emergency Starting

7-21

Mazda MPV_8U61-EA-05G_Edition1 Page257
Tuesday, June 21 2005 9:37 AM

Black plate (258,1)

Push-Starting

You can't start a vehicle with an automatic
transaxle by pushing it.

7-22

In Case of an Emergency

Emergency Starting

Mazda MPV_8U61-EA-05G_Edition1 Page258
Tuesday, June 21 2005 9:37 AM

Black plate (259,1)

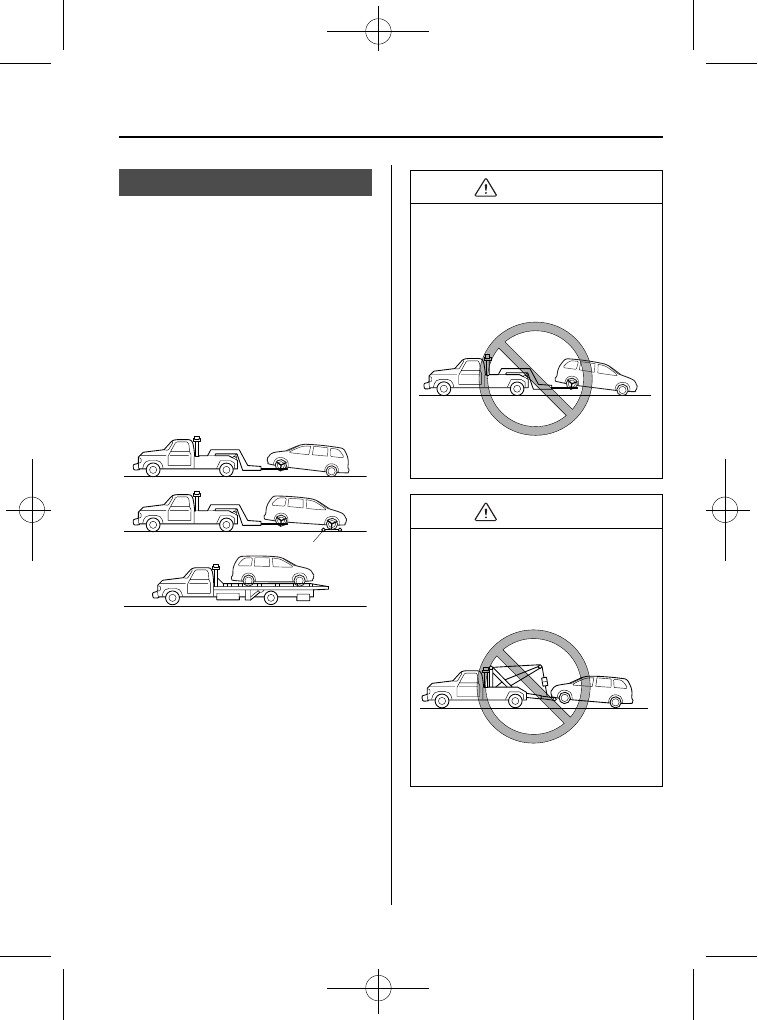

Towing Description

We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.

Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.

A towed vehicle usually should have its
front wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.

Wheel dollies

When towing with the rear wheels on the
ground, release the parking brake.

CAUTION

Don't tow the vehicle pointed backward
with driving wheels on the ground. This
may cause internal damage to the
transaxle.

CAUTION

Don't tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.

In Case of an Emergency

Emergency Towing

7-23

Mazda MPV_8U61-EA-05G_Edition1 Page259
Tuesday, June 21 2005 9:37 AM

Black plate (260,1)

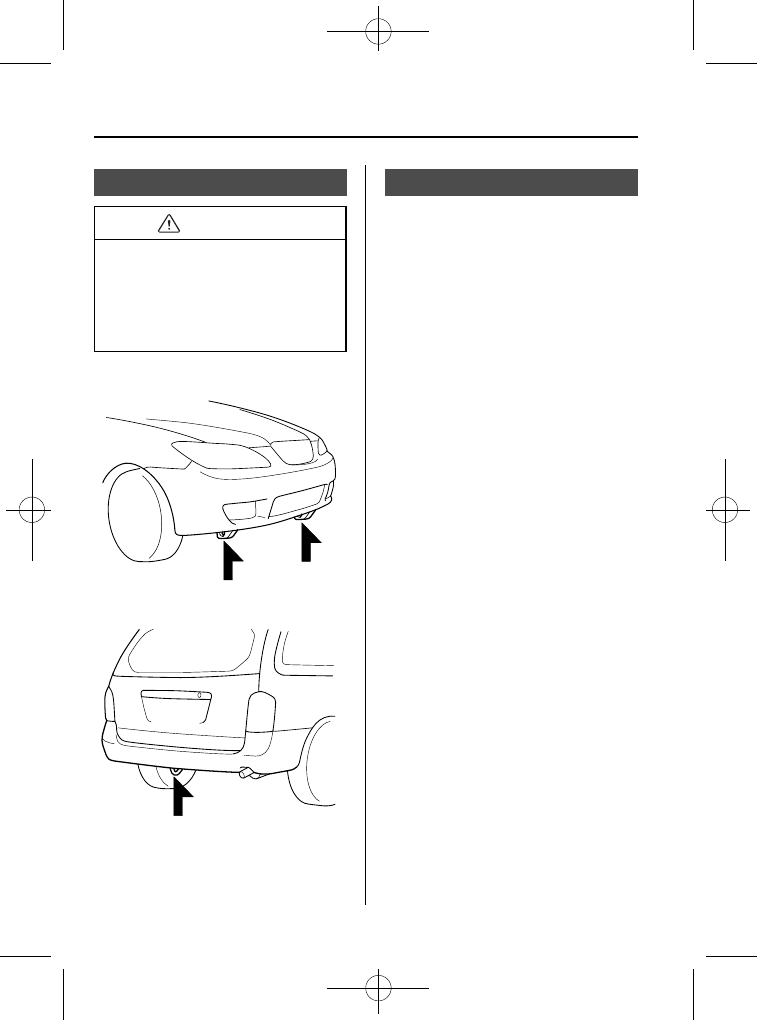

Tiedown Hooks

CAUTION

Don't use the tiedown hooks under the
front and rear for towing.
They are designed ONLY for tying
down the vehicle when it's being
transported. Using them for towing will
damage the bumper.

qTiedown Hooks-Front

qTiedown Hook-Rear

Recreational Towing

An example of

“recreational towing” is

towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to

“Towing Description” (page 7-23) and

“Tiedown Hooks” (page 7-24) and
carefully follow the instructions.

7-24

In Case of an Emergency

Emergency Towing

Mazda MPV_8U61-EA-05G_Edition1 Page260
Tuesday, June 21 2005 9:37 AM

Black plate (261,1)

Maintenance and Care

How to keep your Mazda in top condition.

Introduction .................................................................................. 8-2

Introduction ............................................................................... 8-2

Scheduled Maintenance ................................................................ 8-3

Scheduled Maintenance ............................................................ 8-3

Owner Maintenance ..................................................................... 8-8

Appearance Care ........................................................................ 8-44

How to Minimize Environmental Paint Damage .................... 8-44
Exterior Care ........................................................................... 8-46
Interior Care ............................................................................ 8-49

8-1

Mazda MPV_8U61-EA-05G_Edition1 Page261
Tuesday, June 21 2005 9:37 AM

Black plate (262,1)

Introduction

Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.

If you're unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.

Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.

For expert advice and quality service, consult an Authorized Mazda Dealer.

The owner should retain evidence that proper maintenance has been performed as
prescribed.

Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.

Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.

8-2

Maintenance and Care

Introduction

Mazda MPV_8U61-EA-05G_Edition1 Page262
Tuesday, June 21 2005 9:37 AM

Black plate (263,1)

Scheduled Maintenance

Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).

Repeated short-distance driving

Driving in dusty conditions

Driving with extended use of brakes

Driving in areas where salt or other corrosive materials are being used

Driving on rough or muddy roads

Extended periods of idling or low-speed operation

Driving for long periods in cold temperatures or extremely humid climates

Towing a trailer

NOTE

After the prescribed period, continue to follow the described maintenance at the
recommended intervals.

Maintenance and Care

Scheduled Maintenance

8-3

Mazda MPV_8U61-EA-05G_Edition1 Page263
Tuesday, June 21 2005 9:37 AM

Content .. 14 15 16 17 ..
