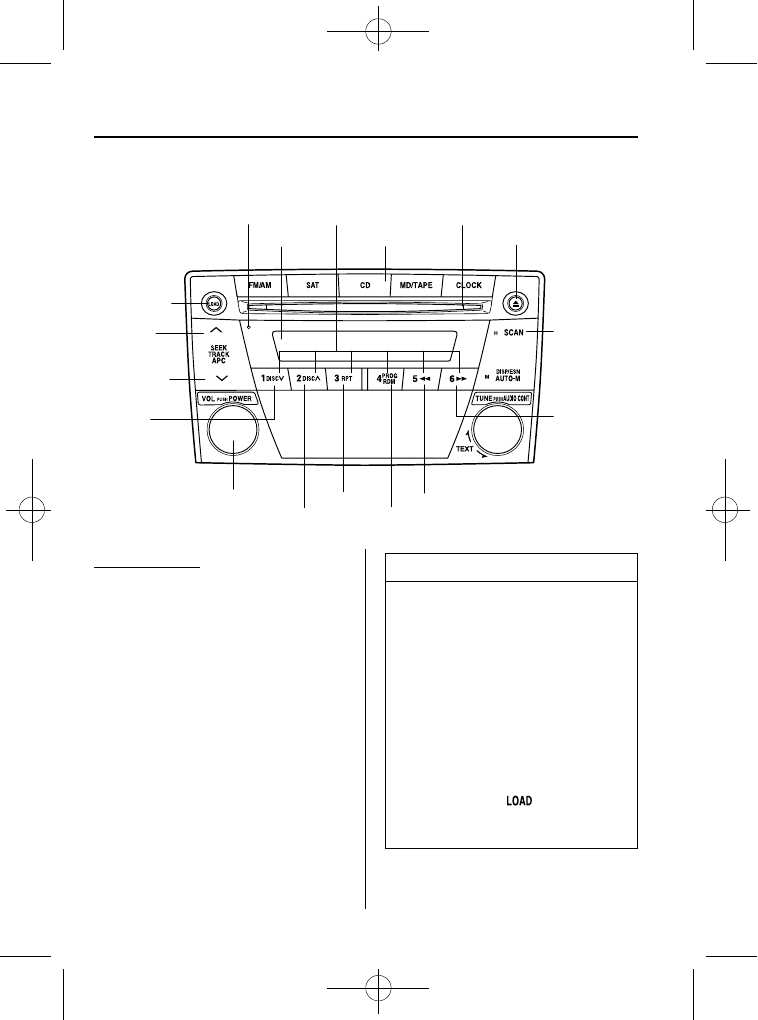

qOperating the In-Dash CD Changer

CD eject button

Load button

Random button

Repeat button

Disc up button

Reverse button

Power/Volume dial

Display

CD slot

CD play button

Channel preset buttons

Disc-in indicator

Track up
button

Track down
button

Disc down
button

Scan
button

Fast-forward
button

Inserting the CD

The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number, the track number and
the elapsed play back time for the current
track will be displayed.

NOTE

When the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed
play back time, turn the audio
control dial to the right. Turn the dial
to the left to return to the previous
display.

A CD cannot be inserted while the
display reads

“WAIT”. A beeping

sound can be heard during this
waiting time. Simultaneously
pressing the power/volume dial and
the load button (

) for about 2

seconds will turn this beeping sound
ON or OFF.

6-38

Interior Comfort

Some models.

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page216
Tuesday, June 21 2005 9:36 AM

Black plate (217,1)

Normal insertion

1. Press the load button (

2. When

“In” is displayed, insert the CD.

Inserting CDs into desired tray number

1. Press and hold the load button (

)

for about 2 seconds until a beep is
heard.

2. Press the channel preset button for the

desired tray number within 3 seconds
after the beep is heard.

3. When

“In” is displayed, insert the CD.

NOTE

The CD cannot be inserted to the
desired tray number if the number is
already occupied.

Multiple insertion

1. Press and hold the load button (

)

for about 2 seconds until a beep is
heard.

2. When

“In” is displayed, insert the CD.

3. When

“In” is displayed again, insert

the next CD.

NOTE

The first-inserted CD will be played
automatically when:

No other CD is inserted within 15
seconds after

“In” is displayed.

The CD trays are full.

Ejecting the CD

Normal ejection

1. Press the CD eject button (

). The

disc number and

“DISC OUT” will be

displayed.

2. Pull out the CD.

NOTE

When the CD is ejected during play, the
next CD will be played automatically.

Ejecting CDs from desired tray number

1. Press and hold the CD eject button (

)

for about 2 seconds until a beep is
heard.

2. Press the channel preset button for the

desired CD number within 3 seconds
after the beep is heard.

3. Pull out the CD.

Multiple ejection

1. Press and hold the CD eject button (

)

for about 2 seconds until a beep is
heard.

2. Wait 3 seconds or press the CD eject

button (

) again within 3 seconds

after the beep is heard.

3. Pull out the CD, then the next CD will

be ejected.

Interior Comfort

Audio System

6-39

Mazda MPV_8U61-EA-05G_Edition1 Page217
Tuesday, June 21 2005 9:36 AM

Black plate (218,1)

NOTE

CDs will be ejected starting with the
one with the lowest number.

All CDs in the tray will be ejected
continuously.

CDs can be ejected when the ignition
switch is off. Press and hold the CD
eject button (

) for about 2 seconds

and all CDs will eject.

Playing

Press the CD play button (

) to start

playing when a CD is in the unit.

Fast-forward/Reverse

Press and hold the fast-forward button
(

) to advance through a track at high

speed.
Press and hold the reverse button (

)

to reverse through a track at high speed.

Track search

Press the track up button (

) once to

skip forward to the beginning of the next
track.
Press the track down button (

) once to

skip back to the beginning of the current
track.

Disc search

Press the disc up button (

) to skip

forward to the beginning of the next CD.
Press the disc down button (

) to

skip back to the beginning of the previous
CD.

Music scan

This feature helps to find a program by
playing about the first 10 seconds of each
track.

Press the scan button (

) during play

to start scan play operation (the track
number will flash).
Press the scan button (

) once again

to cancel scan play.

NOTE

If the unit is left in scan, normal play
will resume where scan was selected.

Repeat play

This feature makes it possible to listen to
a selection repeatedly.

Press the repeat button (

) during play.

The current selection will be repeated
(

“RPT” will be displayed).

Press the repeat button (

) once again

to cancel repeat play.

Random play

This feature allows the CD player to
randomly select the order of the songs.

Press the random button (

) during

play. The next selection will be randomly
selected (

“RDM” will be displayed).

Press the random button (

) once

again to cancel random play.

6-40

Interior Comfort

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page218
Tuesday, June 21 2005 9:36 AM

Black plate (219,1)

qError Indications

If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.

Indication

Cause

Solution

CHECK MD

MD is inserted upside down

Insert the MD properly. If the error indication does not
disappear, consult an Authorized Mazda Dealer.

MD is defective

Insert another MD properly. If the error indication does not
disappear, consult an Authorized Mazda Dealer.

CHECK CD

CD is inserted upside down

Insert the CD properly. If the error indication does not disappear,
consult an Authorized Mazda Dealer.

CD is defective

Insert another CD properly. If the error indication does not
disappear, consult an Authorized Mazda Dealer.

Interior Comfort

Audio System

6-41

Mazda MPV_8U61-EA-05G_Edition1 Page219
Tuesday, June 21 2005 9:37 AM

Black plate (220,1)

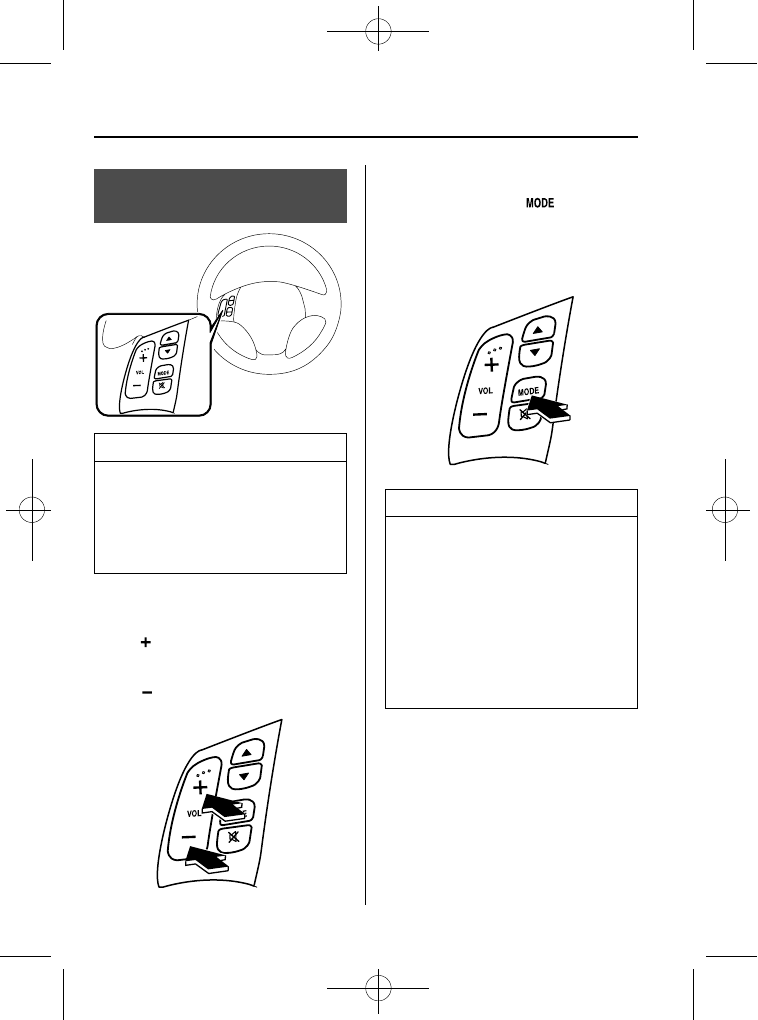

Audio Control Switch
Operation (Steering Wheel)

NOTE

Mazda has installed this system to
prevent distraction while driving the
vehicle and using audio controls on the
dashboard.
Always make safe driving your first
priority.

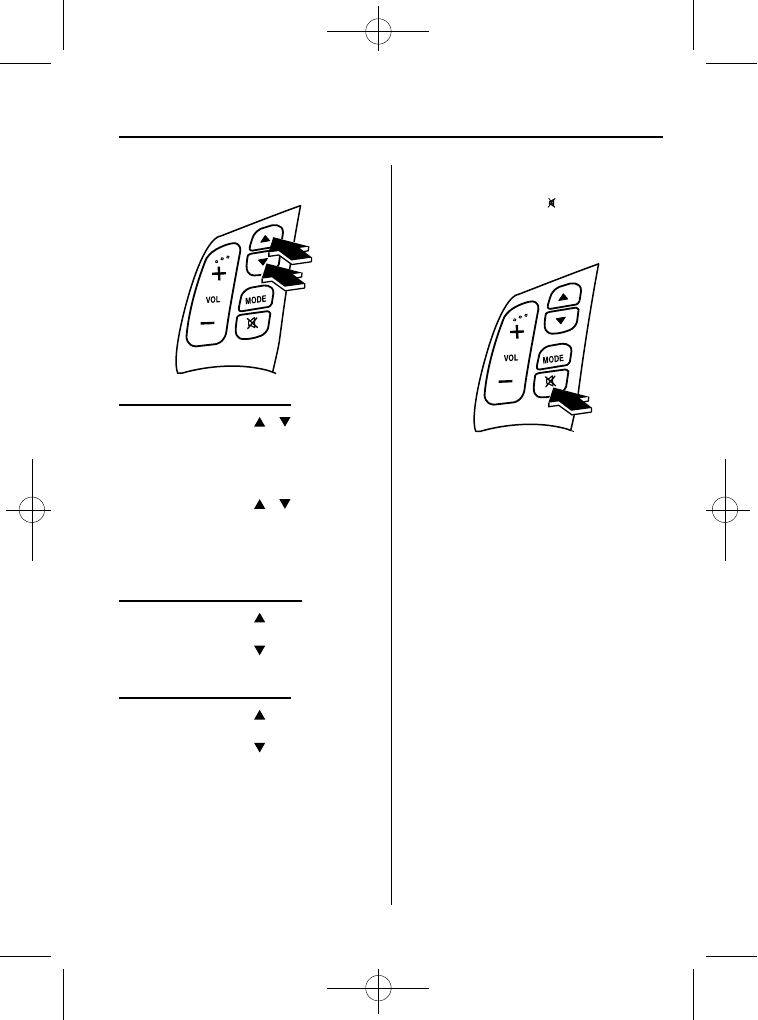

qAdjusting the Volume

To increase the volume, press the volume
button (

To decrease the volume, press the volume
button (

qChanging the Source

Press the mode switch (

) to change

the audio source (FM1 radio> FM2 radio>
AM radio> CD player or CD changer>
SIRIUS1> SIRIUS2> SIRIUS3> Cassette
tape player or MD player> cyclical).

NOTE

Cassette tape, MD, CD, CD changer
and SIRIUS digital satellite radio
modes cannot be selected in the
following cases:

A cassette deck, MD, CD, CD
changer, or SIRIUS digital satellite
radio unit is not equipped on the
audio system.

A cassette tape, MD, or CD has not
been inserted.

6-42

Interior Comfort

Some models.

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page220
Tuesday, June 21 2005 9:37 AM

Black plate (221,1)

qSeek Switch

When listening to the radio

Press the seek switch (

), the radio

switches to the next/previous stored
station in the order that it was stored
(1

―6).

Press the seek switch (

) for about 2

seconds until a beep sound is heard to
seek all usable stations at a higher or
lower frequency whether programmed or
not.

When playing a cassette tape

Press the seek switch (

), release, and it

will advance to the next selection.
Press the seek switch (

), release, and it

will repeat the selection being played.

When playing a CD or MD

Press the seek switch (

) to skip to the

next track.
Press the seek switch (

) to repeat the

current track.

qMute Switch

Press the mute switch ( ) once to mute
audio, press it again to resume audio
output.

Interior Comfort

Audio System

6-43

Mazda MPV_8U61-EA-05G_Edition1 Page221
Tuesday, June 21 2005 9:37 AM

Black plate (222,1)

Safety Certification

This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.

CAUTION

This CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.

Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.

Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.

NOTE

For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.

6-44

Interior Comfort

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page222
Tuesday, June 21 2005 9:37 AM

Black plate (223,1)

Sunvisors

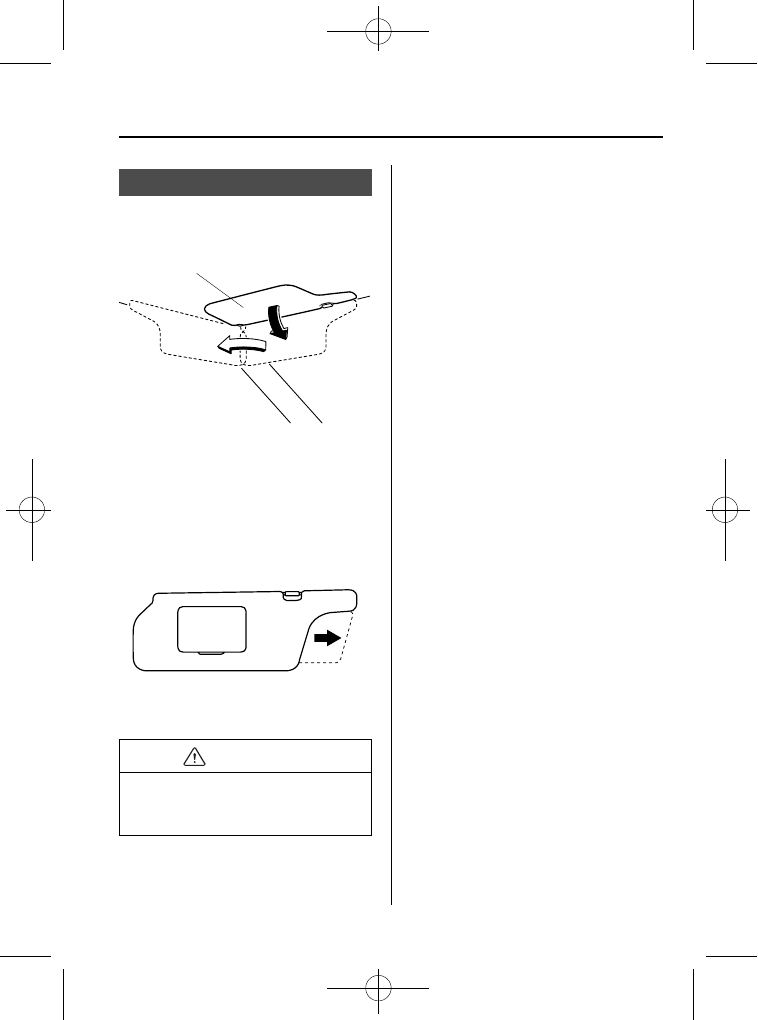

When you need a sunvisor, lower it for
use in front or swing it to the side.

Sunvisor

qSide Extention Sunvisors

The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.

CAUTION

When moving the sunvisor, reinsert the
visor extender, otherwise the visor
extender could hit the rearview mirror.

qVanity Mirrors

To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
open the cover.

Interior Comfort

6-45

Mazda MPV_8U61-EA-05G_Edition1 Page223
Tuesday, June 21 2005 9:37 AM

Black plate (224,1)

Interior Lights

qIlluminated Entry System

When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position), the luggage
compartment light (switch is in the ON
position) and the courtesy lights turn on
for:

About 30 seconds after the driver's
door is unlocked and the ignition key is
removed.

About 15 seconds after all doors are
closed.

About 15 seconds after the key is
removed from the ignition with all
doors closed.

The light also turns off when:

The ignition switch is turned to the ON
position and all doors are closed.

The driver's door is locked.

NOTE

Battery saver
If any door is left opened, the light goes
out after about 5 minutes to save the
battery.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.

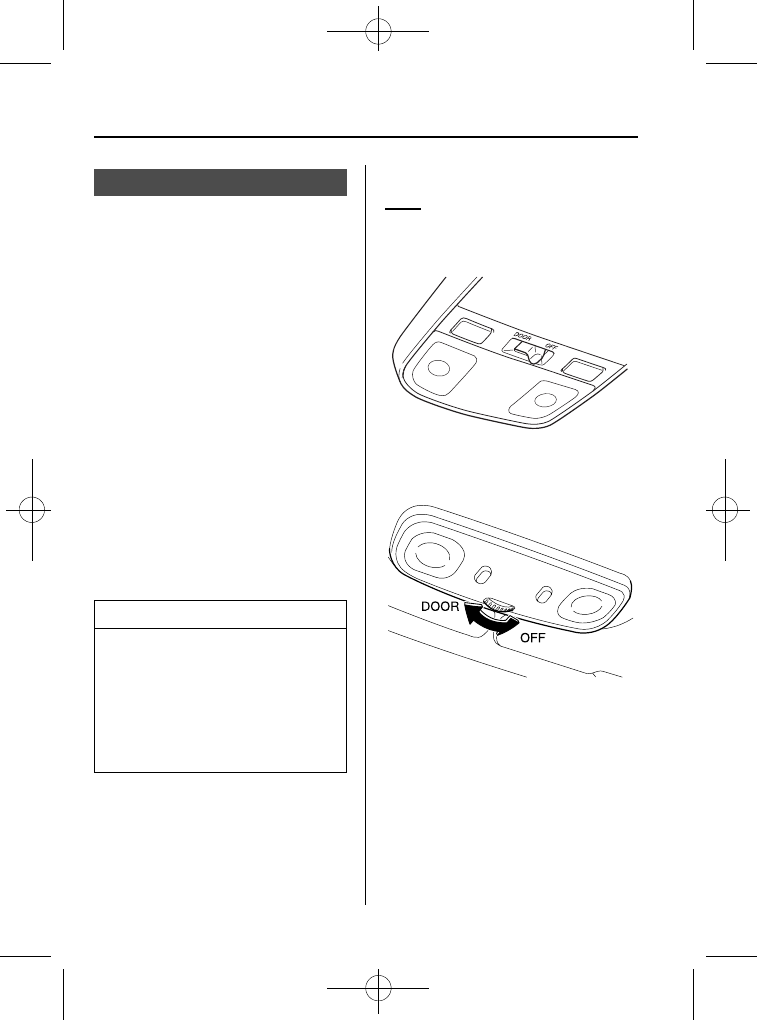

qOverhead Lights

Front

Without moonroof (with overhead
console)

Without moonroof (without overhead
console)

6-46

Interior Comfort

Some models.

Mazda MPV_8U61-EA-05G_Edition1 Page224
Tuesday, June 21 2005 9:37 AM

Black plate (225,1)

With moonroof

Switch

Position

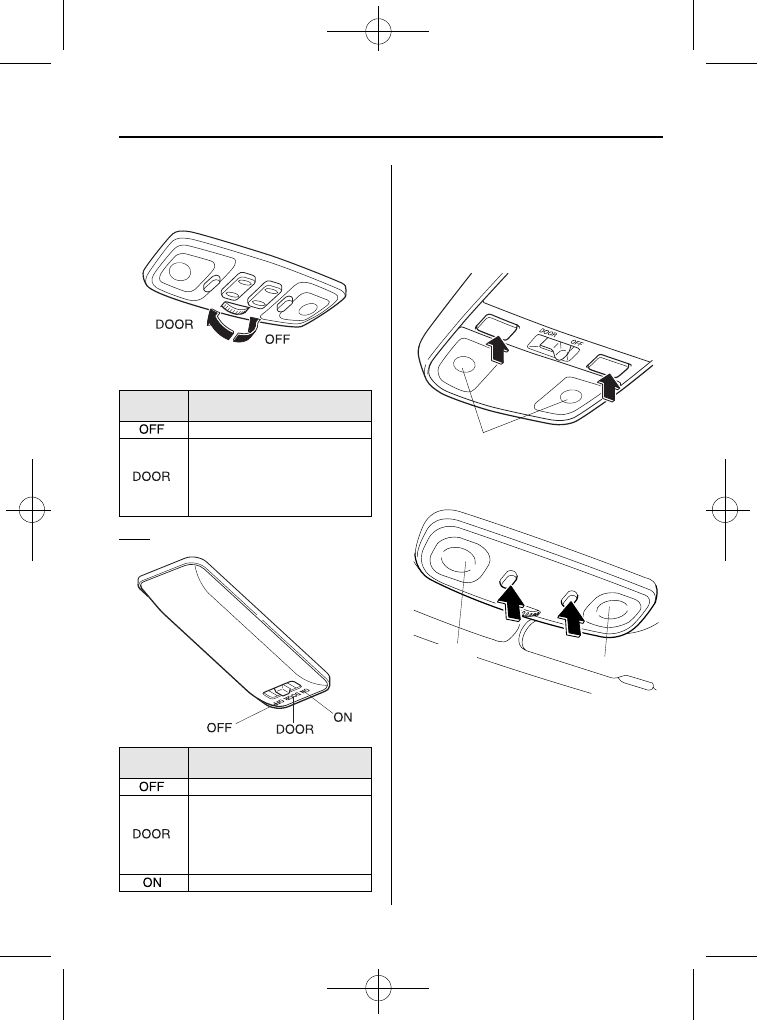

Front Overhead Lights

Light off

Light on when any door or the
liftgate is open

(With illuminated entry system)
Light on or off when the
illuminated entry system is on

Rear

Switch

Position

Rear Overhead Lights

Light off

Light on when any door or the
liftgate is open

(With illuminated entry system)
Light on or off when the
illuminated entry system is on

Light on

qMap Lights

The map lights are switched on or off by
pressing the switches.
Without moonroof (with overhead
console)

Map light

Without moonroof (without overhead
console)

Map light

Interior Comfort

6-47

Mazda MPV_8U61-EA-05G_Edition1 Page225
Tuesday, June 21 2005 9:37 AM

Black plate (226,1)

With moonroof

Map light

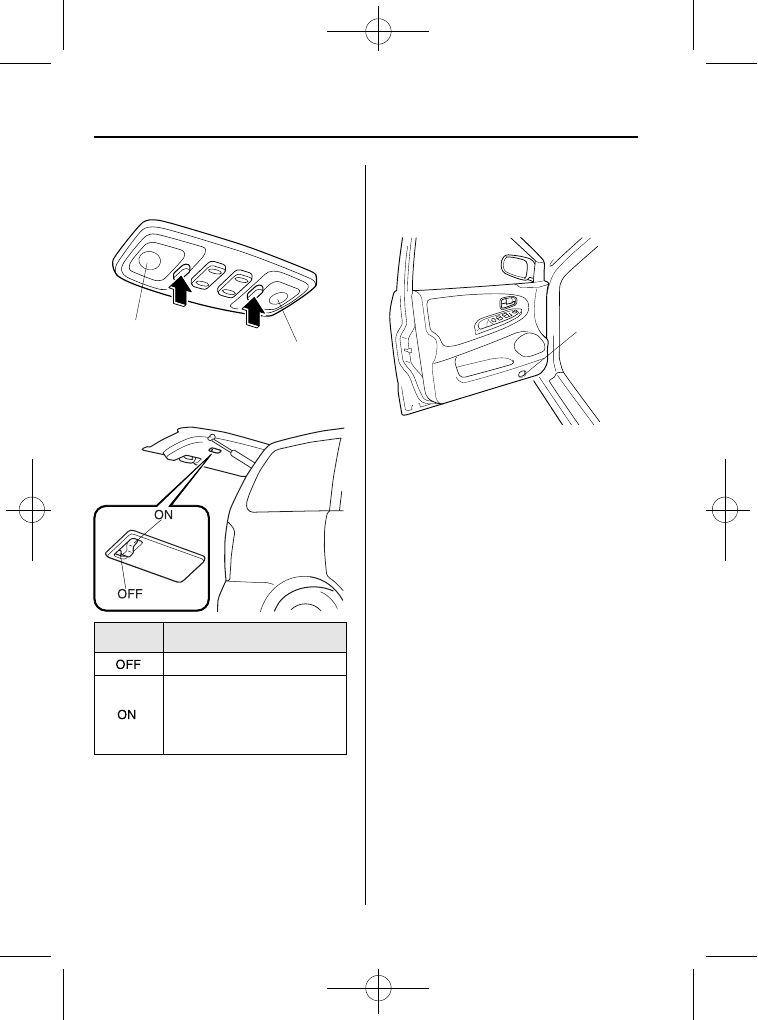

qLuggage Compartment Light

Switch

Position

Luggage Compartment Light

Light off

Light on when any door or the
liftgate is open

(With illuminated entry system)
Light on or off when the
illuminated entry system is on

qCourtesy Lights

Turns on when any door is open or the
illuminated entry system is on.

Courtesy
Light

6-48

Interior Comfort

Mazda MPV_8U61-EA-05G_Edition1 Page226
Tuesday, June 21 2005 9:37 AM

Black plate (227,1)

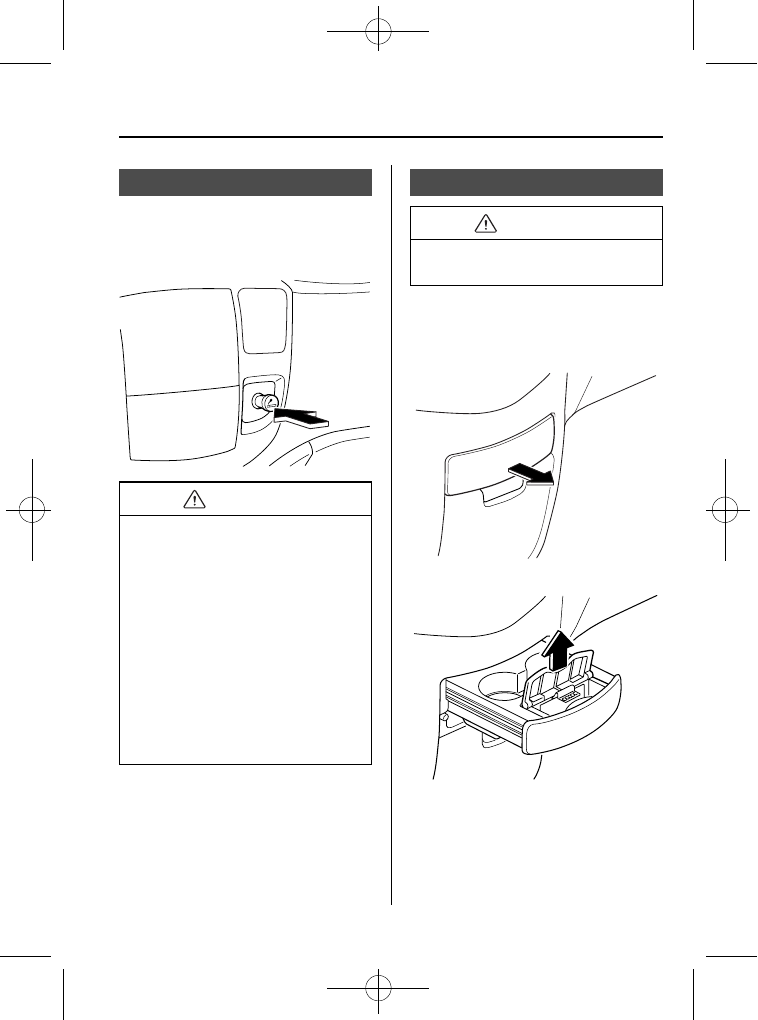

Lighter

The ignition switch must be in the ACC
or ON position.
Press the lighter in and release it. When
ready for use, it automatically pops out.

CAUTION

Don't touch the metal part of the
lighter, you may burn yourself.

Don't hold the lighter in because it
will overheat.

Don't use the lighter socket for plug-
in accessories such as shavers and
coffee pots. They may damage it or
cause electrical failure. Use only a
genuine Mazda lighter or the
equivalent.

If the lighter doesn't pop out within
30 seconds, remove it to prevent
overheating.

Ashtray

CAUTION

Don't use the ashtray for trash. You
might start a fire.

qFront

To open, pull the tray out and open the
cover.

To remove, open and pull up the ashtray.

Interior Comfort

6-49

Some models.

Mazda MPV_8U61-EA-05G_Edition1 Page227
Tuesday, June 21 2005 9:37 AM

Black plate (228,1)

qRear

WARNING

Using Ashtray Removed from its
Fixed Position:
Using an ashtray removed from its
fixed position or not completely
inserted is dangerous. Cigarettes could
roll around or spill out of the ashtray
into the vehicle and start a fire.
Moreover, cigarette stubs will not
extinguish themselves completely even
if the ashtray lid is closed. Only use a
rear ashtray in its fixed position, and
make sure it is completely inserted.

Type A

To remove, open the cover and pull the
ashtray upward.

Type B

To remove, open and push down on the
lock spring.

6-50

Interior Comfort

Mazda MPV_8U61-EA-05G_Edition1 Page228
Tuesday, June 21 2005 9:37 AM

Black plate (229,1)

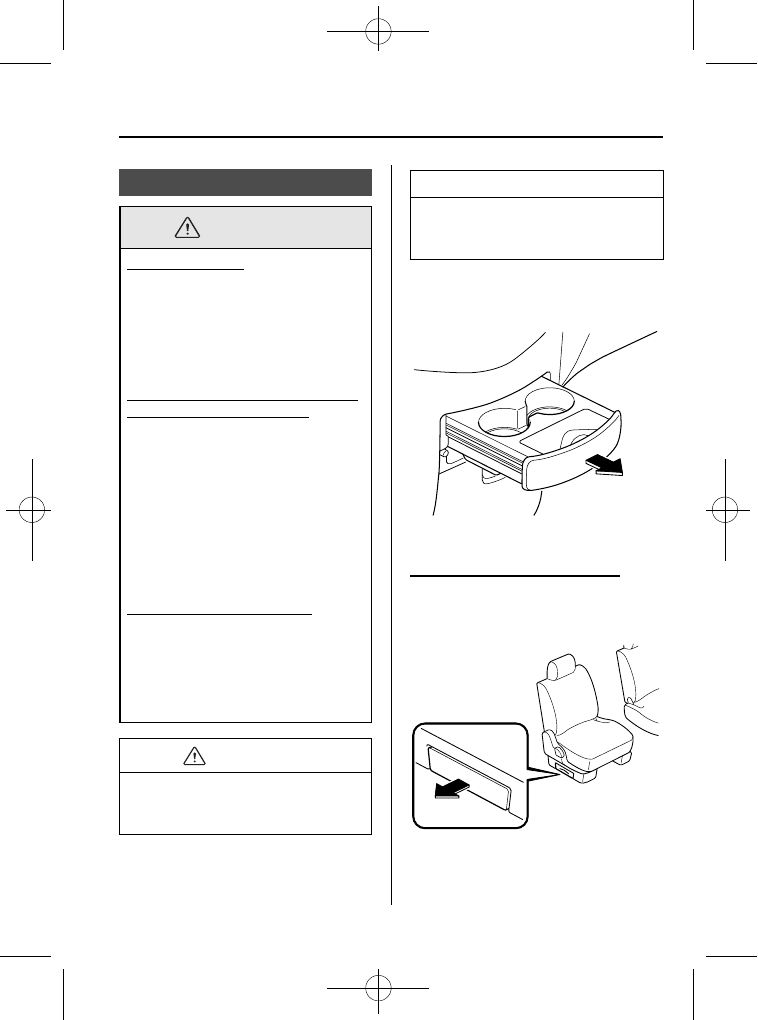

Cup Holder

WARNING

Using Cup Holder:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded. Never use a cup
holder to hold hot liquids while the
vehicle is moving.

Don't Put Anything Other Than Cups
or Drink cans in Cup Holder:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.

Using Cup Holder as Ashtray:
Using a cup holder as an ashtray is
dangerous because it could cause a
fire or damage the cup holder.
Be sure the removable ashtray is in
place before smoking and never use
the cup holder as an ashtray.

CAUTION

To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.

NOTE

Replacement ashtrays are available
from an Authorized Mazda Dealer if
they are missing.

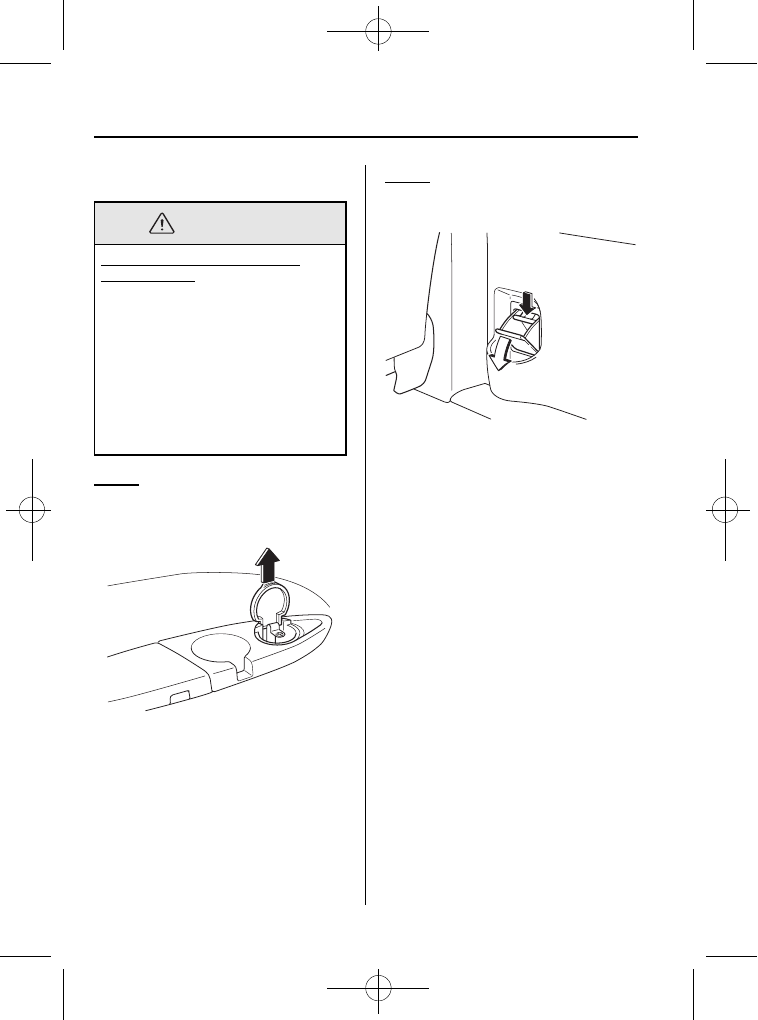

qFront

To use, pull the tray out.

qRear

Second seat (Passenger seat only)

The cup holder is located on the outboard
side of the right second-row seats. To use
the cup holder, pull it out.

Interior Comfort

6-51

Mazda MPV_8U61-EA-05G_Edition1 Page229
Tuesday, June 21 2005 9:37 AM

Black plate (230,1)

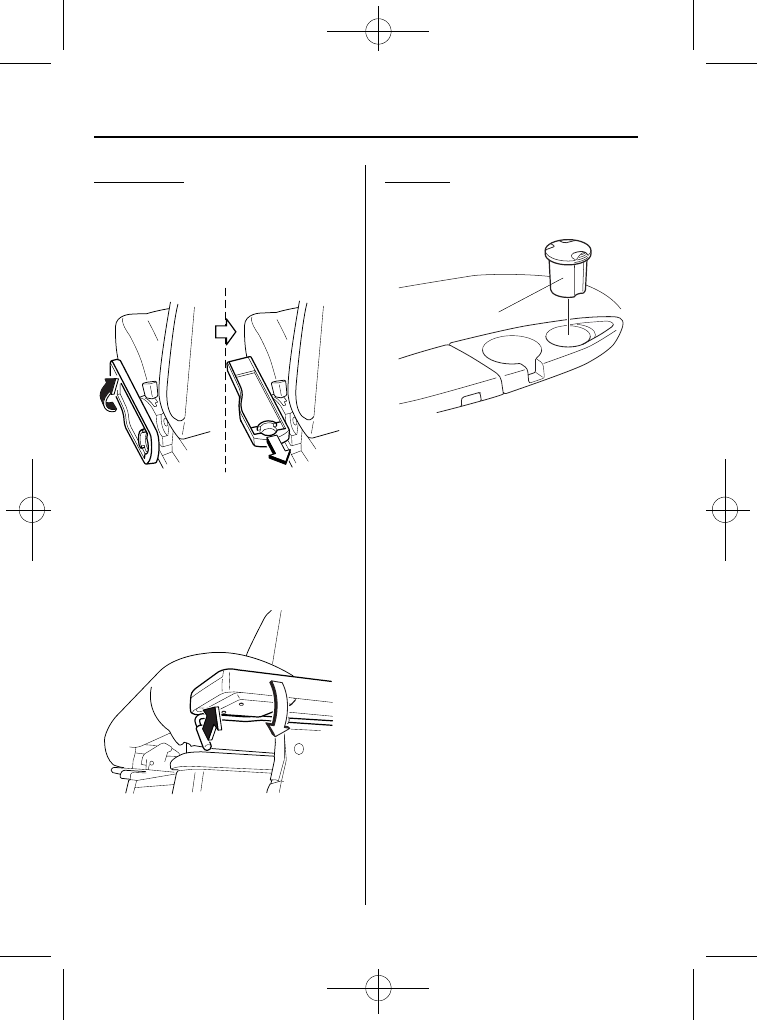

Seat side table

To use the cup holder

1. Raise the table (page 2-6)(page 2-11).

2. Pull the cup holder end to extend it

rearwards.

To collapse the table

1. Push the cup holder back into the table.

2. Pull the lever under the table, then

lower it (page 2-6)(page 2-11). After
the table is collapsed, press the table
surface to lock it in place.

Third seat

If an ashtray is equipped, pull it out and
use the hole for an additional cup holder.

Ashtray

6-52

Interior Comfort

Mazda MPV_8U61-EA-05G_Edition1 Page230
Tuesday, June 21 2005 9:37 AM

Black plate (231,1)

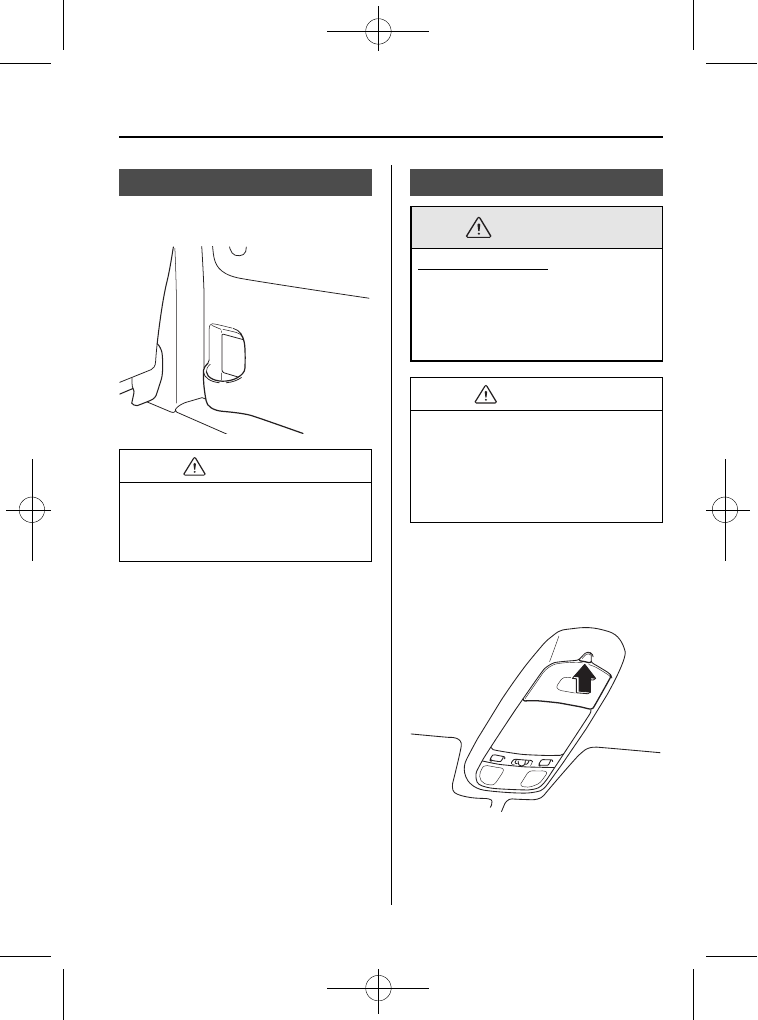

Bottle Holder

Bottle holders are on the inside of the
sliding doors.

CAUTION

Don't use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.

Storage Compartments

WARNING

Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.

CAUTION

Don't leave lighters or eyeglasses in the
storage boxes while parked under the
sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.

qOverhead Console

This console box is designed to store a
garage door opener or other accessories.
Push and release to open.

To store the garage door opener:

1. Open the console box.

2. Take out the urethane spacer.

Interior Comfort

6-53

Some models.

Mazda MPV_8U61-EA-05G_Edition1 Page231
Tuesday, June 21 2005 9:37 AM

Content .. 12 13 14 15 ..
