Trunk Lid (4 Door)

WARNING

Never allow a person to ride in the
trunk:

Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously
injured or killed during sudden
braking or a collision.

Keep the trunk closed when driving:

Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.

qOpening and Closing the Trunk Lid

WARNING

Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:

Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.

Always keep the car from being a
tempting place to play by latching the
rear seats, doors and the trunk, and
keeping the keys where children can
not play with them:

Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.

CAUTION

For vehicles equipped with a rear
spoiler, do not raise or lower the
trunk lid using the spoiler. Otherwise,
the rear spoiler and the trunk lid
could be damaged.

3-42

Knowing Your Mazda

Doors and Locks

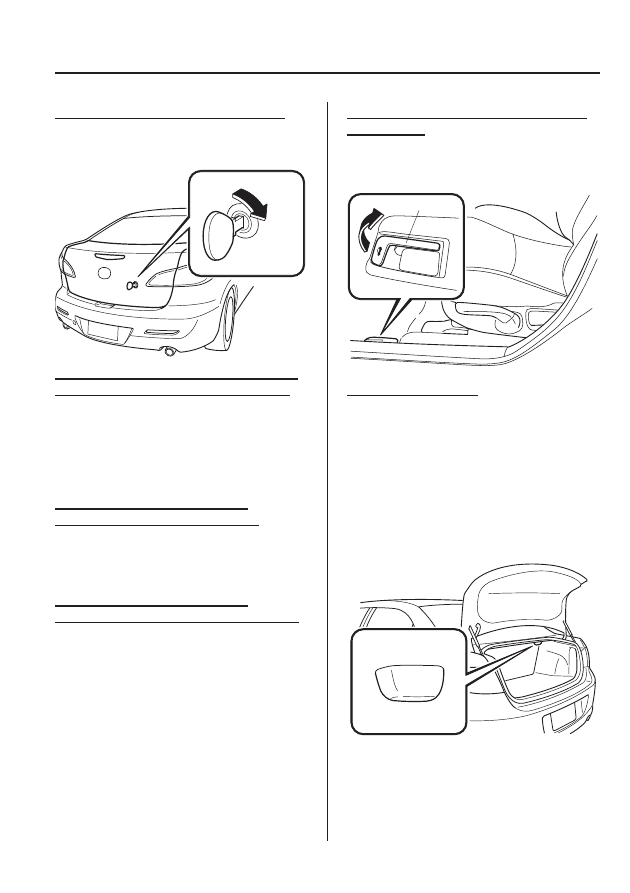

Opening the trunk lid with the key

Insert the key into the slot and turn it
clockwise.

Open

Opening the trunk lid with the electric
trunk lid opener (with advanced key)

The trunk lid can be opened by operating
the request switch on the trunk lid while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).

Opening the trunk lid with the
transmitter (with advanced key)

The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-16).

Opening the trunk lid with the
transmitter (with retractable type key)

The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-26).

Opening the trunk lid with the remote
release lever

Pull up the release lever next to the
driver's seat.

Release lever

Closing the trunk lid

Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.

qTrunk Light

The trunk light is on when the lid is open
and off when it's closed.

Knowing Your Mazda

Doors and Locks

3-43

Some models.

NOTE

To prevent the battery from being
discharged, do not leave the trunk open for
a long period when the engine is not
running.

(Battery saver)
If the lid is left open, the trunk light turns
off after about 30 minutes to prevent battery
depletion.

Inside Trunk Release Lever

Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.

No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.

Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles do not have such levers.

3-44

Knowing Your Mazda

Doors and Locks

WARNING

Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:

Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.

Always keep the car from being a
tempting place to play by latching the
rear seats, doors and the trunk, and
keeping the keys where children can
not play with them:

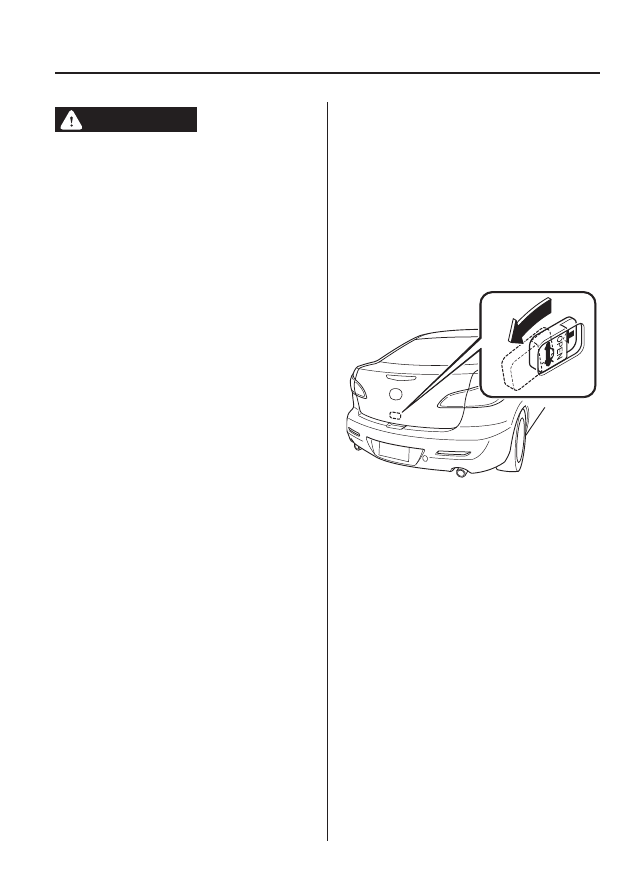

qOpening the Trunk Lid from the

Inside

Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.

The inside trunk release lever is located
on the inside of the trunk lid.

Knowing Your Mazda

Doors and Locks

3-45

Power Windows

The ignition must be switched ON for the
power windows to operate.

WARNING

Make sure the opening is clear before
closing a window:

Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.

Never allow children to play with
power window switches:

Power window switches that are not
locked with the power window lock
switch would allow children to
operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.

CAUTION

To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.

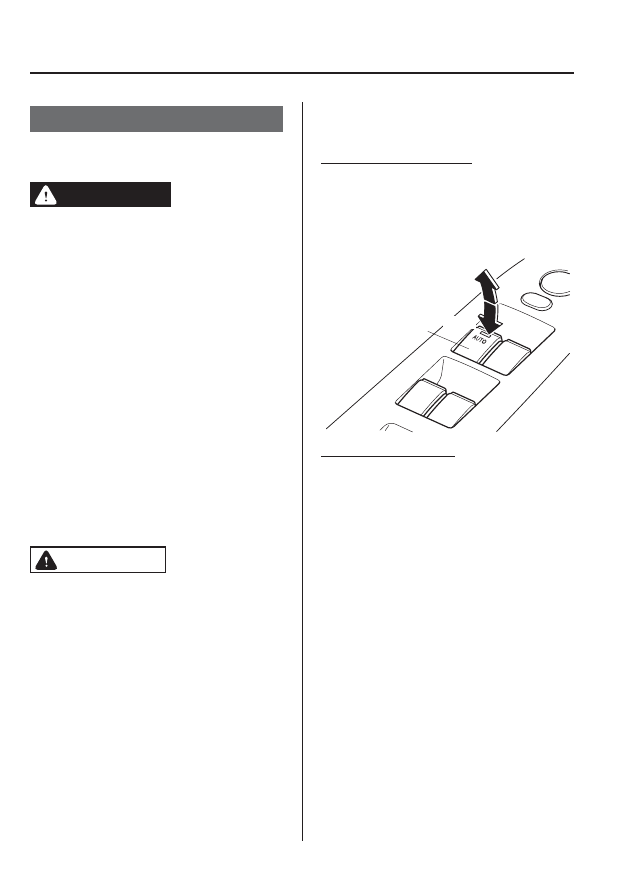

qOperating the Driver's Side

Power Window

Normal opening/closing

To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.

Driver's window

Master control switches

Open

Auto-opening/closing

To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.

To stop the window partway, pull or press
the switch in the opposite direction and
then release it.

3-46

Knowing Your Mazda

Doors and Locks

Power window system initialization
procedure

If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically. Carry out the following
procedure to resume operation:

1. Switch the ignition ON.

2. Press the switch and fully open the

window.

3. Pull up the switch to fully close the

window and continue holding the
switch for about 2 seconds after the
window fully closes.

Jam-safe window

If a person's hands, head or an object
blocks the window during the auto-
closing operation, the window will stop
and open halfway.

WARNING

Make sure nothing blocks the window
just before it reaches the fully closed
position or while holding up the power
window switch:

Blocking the power window just
before it reaches the fully closed
position or while holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.

NOTE

Depending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is similar
to something blocking it.
In the event the jam-safe function activates and
the power window cannot be closed
automatically, pull and hold the switch and the
window will close.

Engine-off power window operation

The power window can be operated for
about 45 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will be inoperable.

NOTE

For engine-off operation of the power window,
the switch must be held up firmly throughout
window closure because the auto-closing
function will be inoperable.

Knowing Your Mazda

Doors and Locks

3-47

qOperating the Passenger Power

Windows

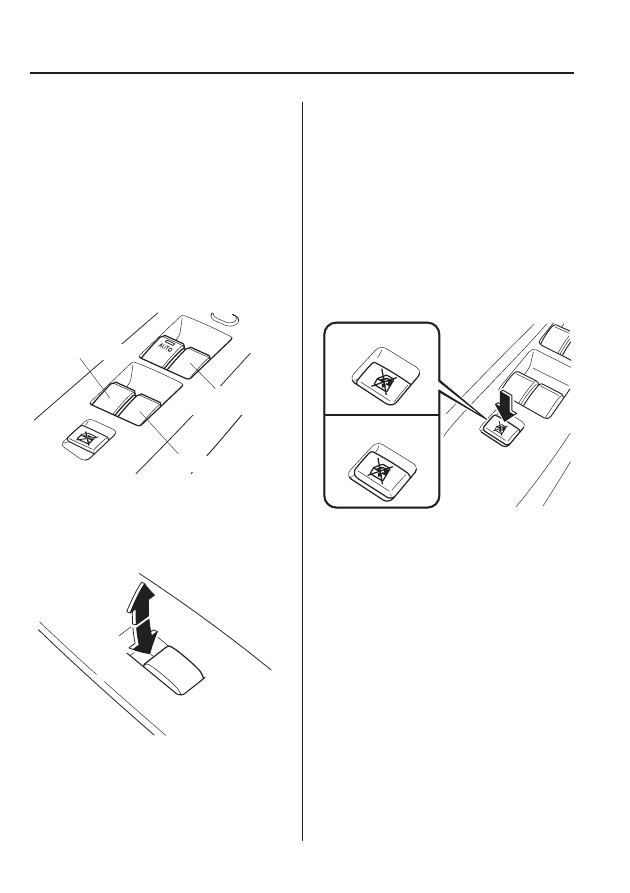

The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.

The passenger windows may be opened or
closed using the master control switches
on the driver's door.

Master control switches

Right rear window

Front passenger's
window

Left rear window

To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.

Open

qPower Window Lock Switch

This feature prevents all power windows
from operating, except the driver's power
window. Keep this switch in the locked
position while children are in the vehicle.
Locked position (button depressed):
Only the driver's power window can be
operated.
Unlocked position (button not
depressed):
All power windows on each door can be
operated.

Locked position

Unlocked position

3-48

Knowing Your Mazda

Doors and Locks

Fuel-Filler Lid and Cap

WARNING

When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:

Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.

Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:

Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.

CAUTION

Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.

qFuel-Filler Lid

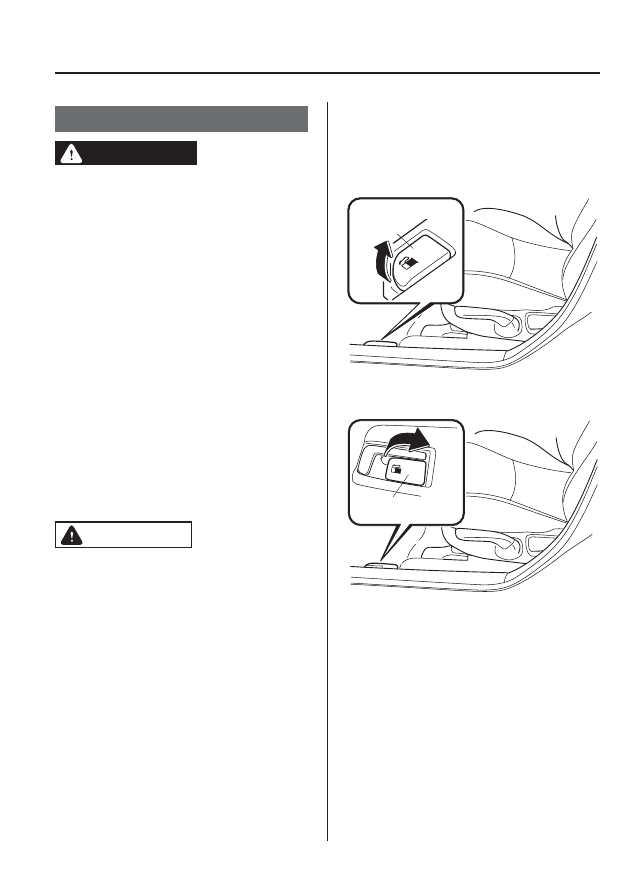

To open, pull the remote fuel-filler lid
release.
5 door

Remote fuel-filler
lid release

4 door

Remote fuel-filler
lid release

qFuel-Filler Cap

To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.

Knowing Your Mazda

Doors and Locks

3-49

To close the fuel-filler cap, turn it
clockwise until a click is heard.

Open

CAUTION

If the check fuel cap warning light
illuminates, the fuel-filler cap may
not be properly installed. If the
warning light illuminates, park your
vehicle safely off the right-of-way,
remove the fuel-filler cap and
reinstall it correctly. After the cap has
been correctly installed, the fuel cap
warning light may continue to
illuminate until a number of driving
cycles have been completed. A drive
cycle consists of starting the engine
(after four or more hours with the
engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.

Hood

WARNING

Always check that the hood is closed
and securely locked:

A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.

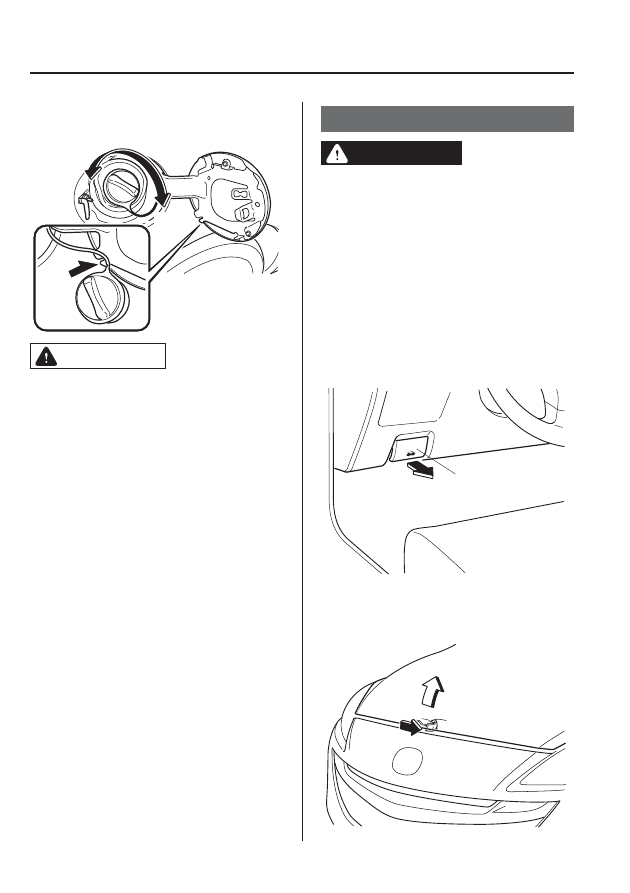

qOpening the Hood

1. With the vehicle parked, pull the

release handle to unlock the hood.

Release handle

2. Insert your hand into the hood opening,

slide the hood latch lever, and lift the
hood.

3-50

Knowing Your Mazda

Doors and Locks

3. Grasp the support rod in the padded

area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.

Support rod

Clip

Pad

qClosing the Hood

1. Check under the hood area to make

certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.

2. Lift the hood, grasp the padded area on

the stay, and secure the stay in the clip.
Verify that the support rod is secured in
the clip before closing the hood.

Clip

3. Lower the hood slowly from a height

of about 20 cm (7.9 in) above its closed
position and then let it drop.

CAUTION

When closing the hood, do not push
it excessively such as by applying
your weight. Otherwise, the hood
could be deformed.

Knowing Your Mazda

Doors and Locks

3-51

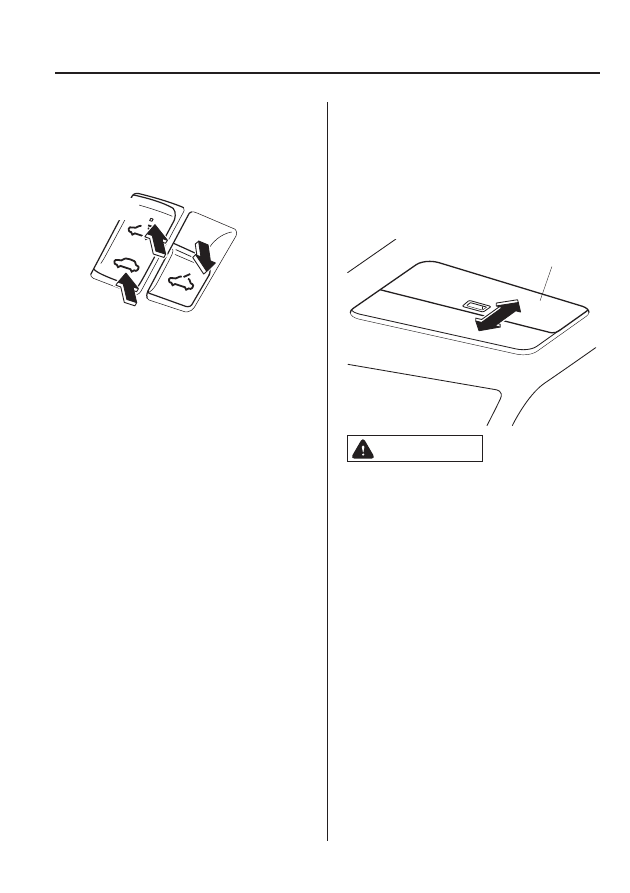

Moonroof

The moonroof can be opened or closed
electrically only when the ignition is
switched ON.

Slide switch

Tilt switch

WARNING

Do not let passengers stand up or
extend part of their body through the
open moonroof while the vehicle is
moving:

Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.

Make sure the opening is clear before
closing the moonroof:

A closing moonroof is dangerous. The
hands, head, or even neck of a
person, especially a child, could be
caught in it as it closes, causing
serious injury or even death.

NOTE

Before washing your Mazda, make sure the
moonroof is completely closed so that water
does not get inside the cabin area. After
washing your Mazda or after it rains, wipe the
water off the moonroof before operating it to
avoid water penetration which could cause
rust and water damage to your headliner.

qTilt Operation

The rear of the moonroof can be tilted
open to provide more ventilation.

To fully tilt automatically, momentarily
press the tilt switch.
To stop tilting partway, press any part of
the tilt or slide switch.

To close to the desired position, press the
front of the slide switch or pull the tilt
switch.

Close (Tilt down)

Tilt down

Tilt up

qSlide Operation

To fully open automatically, momentarily
press the rear of the slide switch.
To stop sliding partway, press any part of
the tilt or slide switch.

3-52

Knowing Your Mazda

Some models.

Doors and Locks

To close to the desired position, press the
front of the slide switch or pull the tilt
switch.

Tilt down
(Close)

Open

qPower Moonroof Re-set Procedure

If the battery is disconnected, the
moonroof will not operate. The moonroof
will not operate correctly until it is re-set.
Carry out the following procedure to re-
set the moonroof and resume operation:

1. Switch the ignition ON.

2. Press the tilt switch while the rear of

the moonroof tilts open to the fully
open position. The moonroof then
closes a little.

NOTE

If the re-set procedure is performed while the
moonroof is in the slide position (partially
open) it closes before the rear tilts opens.

qSunshade

The sunshade can be opened and closed
by hand.

The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.

Sunshade

CAUTION

Ø The sunshade does not tilt. To

avoid damaging the sunshade, do
not push up on it.

Ø Do not close the sunshade while

the moonroof is opening. Trying to
force the sunshade closed could
damage it.

Knowing Your Mazda

Doors and Locks

3-53

Immobilizer System (with
Advanced Key)

The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.

If someone attempts to start the engine
with an unrecognized advanced key, the
engine will not start, thereby helping to
prevent the theft of your vehicle.
If you have a problem with the
immobilizer system or the advanced key
(including auxiliary key), consult an
Authorized Mazda Dealer.

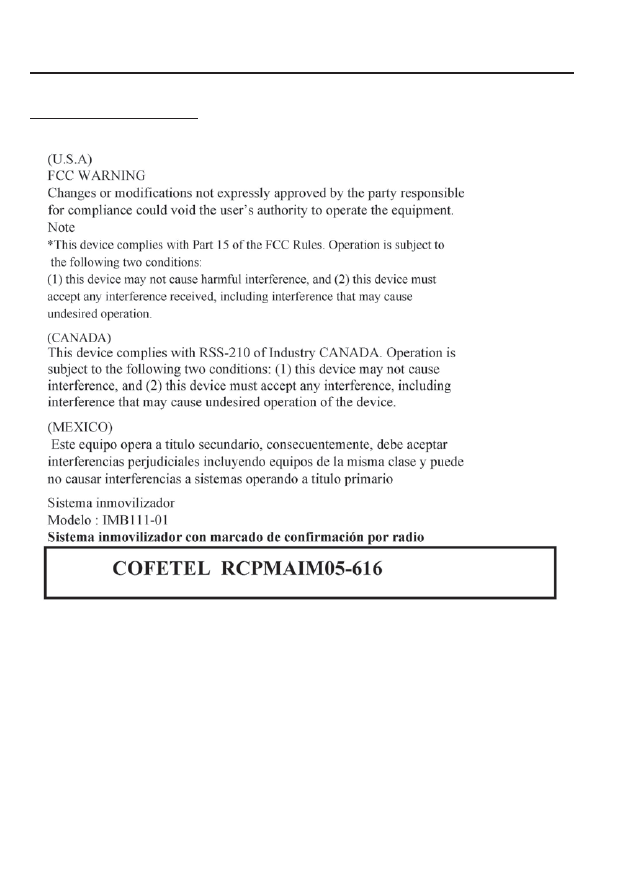

CAUTION

Ø Radio equipment like this is

governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.

Ø To avoid damage to the key, do

not:

Drop the key.

Get the key wet.

Expose the key to any kind of
magnetic field.

Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.

CAUTION

Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction.
Otherwise the signal from the
auxiliary key will not be received
correctly and the engine may not
start.

Ø A key ring rests on the auxiliary

key grip.

Ø Metal parts of other keys or metal

objects touch the auxiliary key
grip.

Ø Spare auxiliary keys or keys for

other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.

3-54

Knowing Your Mazda

Security System

Ø Devices for electronic purchases, or

security passage which touch or
come near the auxiliary key.

NOTE

The advanced keys (including auxiliary key)
carry a unique electronic code. For this
reason, and to assure your safety, obtaining
a replacement advanced key (including
auxiliary key) requires some waiting time.
They are only available through an
Authorized Mazda Dealer.

Always keep a spare advanced key in case
one is lost. If an advanced key is lost,
consult an Authorized Mazda Dealer as
soon as possible.

If you lose an advanced key (including
auxiliary key), an Authorized Mazda Dealer
will reset the electronic codes of your
remaining advanced keys (including
auxiliary keys) and immobilizer system.
Bring all the remaining advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.

Knowing Your Mazda

Security System

3-55

qOperation

Arming

The system is armed when the ignition is
switched from ON to ACC or OFF. The
security indicator light in the instrument
cluster flashes every 2 seconds until the
system is disarmed.

Disarming

The system is disarmed when the ignition
is switched ON with the registered
advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.

If the engine does not start with the
correct advanced key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.

NOTE

The engine may not start and the security
indicator light may illuminate or flash if the
advanced key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard, or in the
glove box. Move the advanced key to
another place, switch the ignition off, and
then restart the engine.

Signals from a TV or radio station, or from
a transceiver or a mobile telephone could
interfere with your immobilizer system. If
you are using the proper advanced key and
the engine fails to start, check the security
indicator light. If the indicator light is
flashing, switch the ignition to ACC or
switch the ignition off and wait for a while,
then restart the engine. If it does not start
after 3 or more tries, contact an Authorized
Mazda Dealer.

If the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.

Since the electronic codes are reset when
repairing the immobilizer system, the
advanced key (including auxiliary key) are
needed. Bring all the advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer.

Knowing Your Mazda

Security System

3-57

Mazda Mazdaspeed 3 (2013 year). Instruction - part 8
