Mazda Mazdaspeed 3 (2013 year). Instruction - part 7

Key extend/retract method (Retractable
type key)

To extend the key, press the release
button.

To retract the key, rotate it into the holder
while pressing the release button.

Keyless Entry System

This system remotely locks and unlocks
the doors and the liftgate, and opens the
trunk lid.
It can also help you signal for attention.
Operating the theft-deterrent system with
the keyless entry system transmitter is
also possible on theft-deterrent system-
equipped vehicles.
Press the buttons slowly and carefully.

CAUTION

To avoid damage to the transmitter,
do not:

Ø Drop the transmitter.

Ø Get the transmitter wet.

Ø Disassemble the transmitter.

Ø Expose the transmitter to any kind

of magnetic field.

Ø Expose the transmitter to high

temperatures on places such as
the dashboard or hood, under
direct sunlight.

NOTE

The keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.

The system does not operate when the key is
in the ignition switch.

If the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-30).

Additional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.

3-26

Knowing Your Mazda

Some models.

Doors and Locks

qTransmitter

5 door

Lock button

Unlock button

Panic button

Operation
indicator light

4 door

Lock button

Unlock button

Trunk button

Panic button

Operation
indicator light

The operation indicator light flashes when
the buttons are pressed.

Lock button

To lock the doors and the liftgate, press
the lock button.

To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.
The system can be set not to sound the
horn.
Refer to Personalization Features on page
10-13.

NOTE

Doors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. However, the
hazard warning lights will not flash and the
horn will not sound.

(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before
the theft-deterrent system is properly
armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to Theft-Deterrent System on page
3-62.

The hazard warning lights can be set to not
flash when the doors are locked or
unlocked.
Refer to Personalization Features on page
10-13.

All doors and the liftgate cannot be locked
when the key is in the ignition switch.

Confirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.

Unlock button

To unlock the driver's door, press the
unlock button.

To unlock all doors and the liftgate, press
the unlock button again within 5 seconds.

Knowing Your Mazda

Doors and Locks

3-27

NOTE

(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors and the liftgate are
unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the theft
deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
When the doors are unlocked by pressing the
unlock button on the transmitter while the
theft-deterrent system is turned off, the hazard
warning lights will flash twice to indicate that
the system is turned off.
Refer to Theft-Deterrent System on page 3-62.
The system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-13.

NOTE

Auto re-lock function
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if one
of the doors or the liftgate/trunk lid is not
opened within about 30 seconds.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
10-13.

Trunk button

To open the trunk, press and hold the
trunk button until the trunk lid opens.

NOTE

To open the trunk when the ignition is switched
to a position other than off, use the remote
release lever inside the vehicle (page 3-42).

Panic button

If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.

NOTE

The panic button will work whether any door
or the liftgate/trunk lid is open or closed.

Turning on the alarm

Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:

The horn sounds intermittently.

The hazard warning lights flash.

Turning off the alarm

Press any button on the transmitter.

3-28

Knowing Your Mazda

Doors and Locks

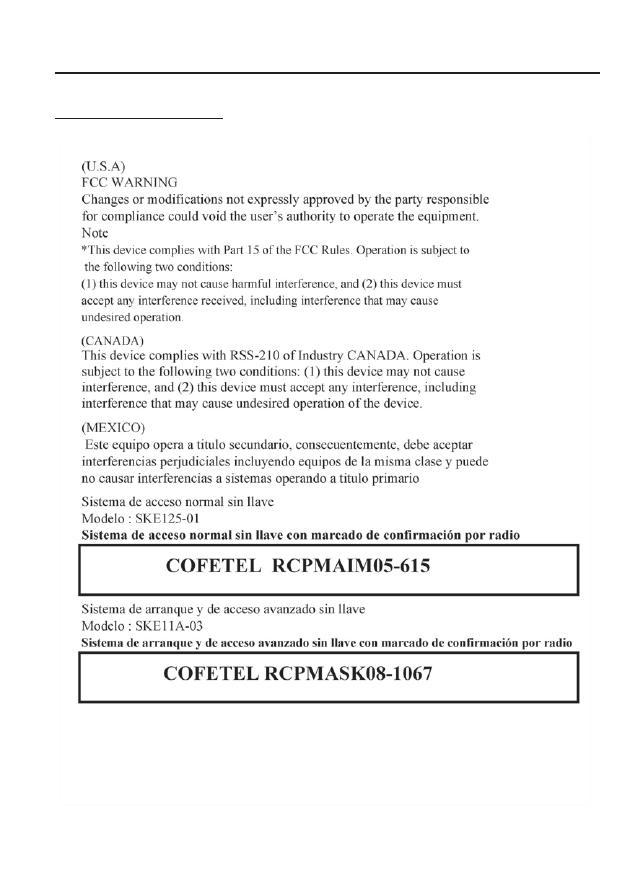

Declaration of Conformity

Keyless entry system

Knowing Your Mazda

Doors and Locks

3-29

qTransmitter Maintenance

If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.

CAUTION

Ø Install the battery with the positive

pole (

) facing down. Battery

leakage could occur if it is not
installed correctly.

Ø When replacing the battery, be

careful not to touch any of the
internal circuitry and electrical
terminals, bend the electrical
terminals, or get dirt in the
transmitter as the transmitter
could be damaged.

Ø There is the danger of explosion if

the battery is not correctly
replaced.

Ø Replace only with the same type

battery (CR1620 or equivalent).

Ø Dispose of used batteries

according to the following
instructions.

Insulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.

Never disassemble.

Never throw the battery into
fire and/or water.

Never deform or crush.

Replacing the transmitter battery

1. Unfold the key (page 3-25).

2. Insert a screwdriver into the slot and

push the tab to remove the key from
the transmitter.

Tab

3. Insert a screwdriver into the slot and

gently pry open the transmitter.

4. Remove the battery.

3-30

Knowing Your Mazda

Doors and Locks

5. Put in the new battery (CR1620 or

equivalent) with the positive pole (

)

facing down.

6. Align the front and back covers and

snap the transmitter shut.

7. Align the key with the transmitter as

shown in the figure, and insert the key
until a click sound is heard.

CAUTION

Insert the key into the transmitter
securely until a click sound is heard.
If it is not inserted securely, it could
detach from the transmitter.

qService

If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.

If your transmitter is lost or stolen, consult
an Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.

CAUTION

Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.

Knowing Your Mazda

Doors and Locks

3-31

Door Locks

WARNING

Always take all children and pets with
you or leave a responsible person with
them:

Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.

Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:

Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.

Keep all doors locked when driving:

Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.

Always close all the windows and the
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended:

Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, or
become trapped by climbing into the
trunk, which could result in death.
Also, a vehicle left unlocked becomes
an easy target for thieves and
intruders.

After closing the doors, always verify
that they are securely closed:

Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident.

Always confirm the safety around the
vehicle before opening a door:

Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.

qLocking, Unlocking with Key

The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to lock,
toward the back to unlock.

Lock

Unlock

NOTE

If your vehicle is equipped with a front
passenger door key cylinder, the door can be
locked/unlocked with the key.

3-32

Knowing Your Mazda

Doors and Locks

qLocking, Unlocking with Request

Switch (with Advanced Key)

The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).

qLocking, Unlocking with

Transmitter (with Advanced Key)

The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-16).

qLocking, Unlocking with Transmitter

(with Retractable Type Key)

The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-26).

qLocking, Unlocking with Door-

Lock Knob

To lock any door from the inside, press
the door-lock knob.
To unlock, pull it outward.
This does not operate the other door
locks.

Lock

Unlock

To lock the front passenger door with the
door-lock knob from the outside, press the
door-lock knob to the lock position and
close the door.
This does not operate the other door
locks.

Door-lock knob

NOTE

When locking the doors this way, be careful
not to leave the key inside the vehicle.

(With advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside.

(Without advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside if the
key is in the ignition switch.

The red indication can be seen when the
door-lock knob is unlocked.

Red indication

Knowing Your Mazda

Doors and Locks

3-33

qPower Door Locks

Vehicle lock-out prevention

(With advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. All doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
(Without advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.

Locking, unlocking with key

All doors and the liftgate lock
automatically when any front door is
locked with the key.
All doors and the liftgate unlock when the
driver's door is unlocked and the key is
held in the unlock position for one second
or longer.

Lock

Unlock

NOTE

Holding the key in the unlocked position in
the driver's door lock for about a second
unlocks all doors and the liftgate. To unlock
only the driver's door, insert the key into the
driver's door lock and turn the key briefly
to the unlock position and then immediately
return it to the center position.

The system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
10-13.

Locking, unlocking with door-lock
switch

All doors and the liftgate lock
automatically when lock side is pressed.
They all unlock when unlock side is
pressed.

Lock

Unlock

Locking, unlocking with request switch
(with advanced key)

All doors and the liftgate can be locked/
unlocked by operating the request switch
on the front doors and the liftgate while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).

3-34

Knowing Your Mazda

Some models.

Doors and Locks

Locking, unlocking with transmitter
(with advanced key)

All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-16).

Locking, unlocking with transmitter
(with retractable type key)

All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-26).

Auto lock/unlock function

WARNING

Do not pull the inner handle on a front
door:

Pulling an inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if a front door accidentally
opens, which could result in death or
serious injury.

When the vehicle speed exceeds 20
km/h (12 mph), all doors and the
liftgate lock automatically.

When the ignition is switched off, all
doors and the liftgate unlock
automatically.

These functions can also be disabled so
that they do not operate.

Auto lock/unlock function setting
change using door-lock switch

The doors and the liftgate can set to lock
or unlock automatically by selecting any
one of the functions from the following
table and using the driver's door-lock
switch on the interior to perform the
setting change as indicated in the
procedure which follows.

Settings can be changed using the
following operation.

Function

number

Function

The auto door-lock function is
disabled.

All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.

All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors and the liftgate unlock
when the ignition is switched from ON
to ACC or Off.

(Automatic transaxle vehicles only)
When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.

(Automatic transaxle vehicles only)
When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
When the shift lever is shifted to park
(P) while the ignition is switched ON,
all the doors and the liftgate unlock
automatically.

*1 Other settings for the auto door lock function are

available at an Authorized Mazda Dealer. For
details consult an Authorized Mazda Dealer.
Refer to Personalization Features on page 10-13.

1. Stop the vehicle and close all the doors.

2. Switch the ignition ON.

3. Press and hold the lock side of the

driver's door-lock switch within 10
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.

Knowing Your Mazda

Doors and Locks

3-35

4. Referring to the auto lock/unlock

function setting table, determine the
function number for the desired setting
and press the unlock side of the driver's
door-lock switch only in the amount of
the selected function number (Ex. If
you select function 2, press the unlock
side of the switch only 2 times).

NOTE

There are only a total of five auto lock/unlock
settings available for automatic transaxle
vehicles, and three for manual transaxle
vehicles. Be sure to press the unlock side of the
driver's door-lock switch the correct number of
times according to the selected function
number. If the switch is mistakenly pressed six
times on an automatic transaxle vehicle or
four times on a manual transaxle, the
procedure will be invalidated. If this occurs,
start the procedure from the beginning.

5. Three seconds after the function setting

has been changed, a beep sound will
beep in the amount of the selected
function number.

(Manual transaxle vehicles)

Press 2 times

Press 3 times

Current Function Number

Function Number 1

Function Number 2

Function Number 3

Press 4 times

Press unlock side of
lock switch once

Cancel setting

Function set (The
number of beeps
heard is the same as
the selected function
number)

Press lock side of
lock switch

Wait for 3 second

3-36

Knowing Your Mazda

Doors and Locks

(Automatic transaxle vehicles)

Press unlock side of
lock switch once

Press 2 times

Press 3 times

Current Function Number

Function Number 1

Function Number 2

Press 4 times

Function Number 3

Press 5 times

Function Number 4

Press 6 times

Function Number 5

Cancel setting

Function set (The
number of beeps
heard is the same as
the selected function
number)

Press lock side of
lock switch

Wait for 3 second

NOTE

The doors cannot be locked or unlocked
while the setting function is being
performed.

The procedure can be cancelled by pressing
the lock side of the driver's door-lock
switch.

qRear Door Child Safety Locks

These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.

If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.

Lock

Unlock

Knowing Your Mazda

Doors and Locks

3-37

Liftgate (5 Door)

WARNING

Never allow a person to ride in the
luggage compartment:

Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.

Do not drive with the liftgate open:

Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.

CAUTION

Be careful not to apply excessive force
to the damper stay on the liftgate
such as by putting your hand on the
stay. Otherwise, the damper stay
may bend and affect the liftgate
operation.

Damper stay

qLocking, Unlocking with Key

The liftgate can be locked/unlocked by
inserting the key into the driver's door key
cylinder, refer to Power Door Locks (page
3-34).

qLocking, Unlocking with Request

Switch (with Advanced Key)

The liftgate can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).

qLocking, Unlocking with

Transmitter (with Advanced Key)

The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-16).

3-38

Knowing Your Mazda

Doors and Locks

qLocking, Unlocking with Transmitter

(with Retractable Type Key)

The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-26).

qLocking, Unlocking with Door-

Lock Knob

The liftgate can be locked/unlocked by
operating the driver's door-lock knob,
refer to Power Door Locks (page 3-34).

qLocking, Unlocking with Door-

Lock Switch

The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-34).

qOpening and Closing the Liftgate

NOTE

(With advanced key)
When using the advanced keyless function to
open the liftgate, refer to Opening the liftgate
(page 3-11).

Opening the liftgate

Grasp the lower end of the liftgate, press
the electric liftgate opener on the liftgate,
and then raise the liftgate when the latch
releases.

Electric liftgate
opener

While the ignition is switched ON, the
liftgate can be opened only when the
vehicle is stopped with the parking brake
applied (manual transaxle), or with the
selector lever in the P position (automatic
transaxle).

Knowing Your Mazda

Doors and Locks

3-39

NOTE

When the liftgate is unlocked by pressing
the electric liftgate opener button, the
liftgate raises slightly to allow it to be
opened. If the liftgate is not operated for a
certain period of time after the electric
liftgate opener button has been pressed, the
liftgate cannot be raised any more from its
slightly raised position. Press the electric
liftgate opener button again to fully open
the liftgate. To close the liftgate from its
slightly raised position, open it first by
pressing the electric liftgate opener button
and wait for 1 second or longer, then close
it.
The door-ajar warning light will illuminate
if the liftgate is not fully closed.

The sound of the latch may be heard for a
few seconds after the electric liftgate
opener has been pressed, however, this does
not indicate a malfunction.

When the liftgate cannot be opened

If the vehicle battery is dead or there is a
malfunction in the electrical system and
the liftgate cannot be unlocked, perform
the following procedure as an emergency
measure to unlock it:

1. Fold down the rear seatbacks.

Refer to Split-Folding Rear Seatback
on page 2-8.

2. Remove the cap on the interior surface

of the liftgate with a flathead
screwdriver.

Cap

3. Turn the lever to the right to unlock the

liftgate.

Lever

After performing this emergency measure,
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.

Closing the liftgate

To close, lower the liftgate slowly using
the liftgate grip recess, and then push the
liftgate closed using both hands.

3-40

Knowing Your Mazda

Doors and Locks

Do not slam it. Pull up on the liftgate to
make sure it is secure.

Liftgate grip
recess

qLuggage Compartment

WARNING

Do not place anything on top of the
cover:

Placing luggage or other cargo on
top of the luggage compartment
cover is dangerous. During sudden
braking or a collision, the cargo
could become a projectile that could
hit and injure someone. The vehicle
has a light weight luggage
compartment cover to keep the
contents of your luggage area out of
sight; it will not retain heavy objects
that are not tied down in an accident
such as a rollover. Tie down all heavy
objects, whether luggage or cargo,
using the tie down hooks.

Make sure luggage and cargo are
secured before driving:

Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.

CAUTION

Make sure the luggage compartment
cover is firmly secured. If it is not
firmly secured, it could unexpectedly
disengage resulting in injury.

Luggage compartment cover strap

The luggage compartment can be
accessed by opening the liftgate when the
straps are attached to the sides of the
liftgate.

Strap

Luggage compartment cover

This cover can be removed for more
room. To do this, just unfasten the straps;
then lift and pull it out.

Knowing Your Mazda

Doors and Locks

3-41

Content .. 5 6 7 8 ..
