Activity 14: PATS Key programming

After you have completed this activity you will be able to:

•  access Mazda6 PATS security

•  erase all stored key codes

•  reprogram keys


What you will need to complete this activity:

•  Mazda approved laptop with IDS installed

•  M-MDS

•  Access to MS3 to retrieve an incode

Double click the IDS icon on your desk top

Ids.lnk







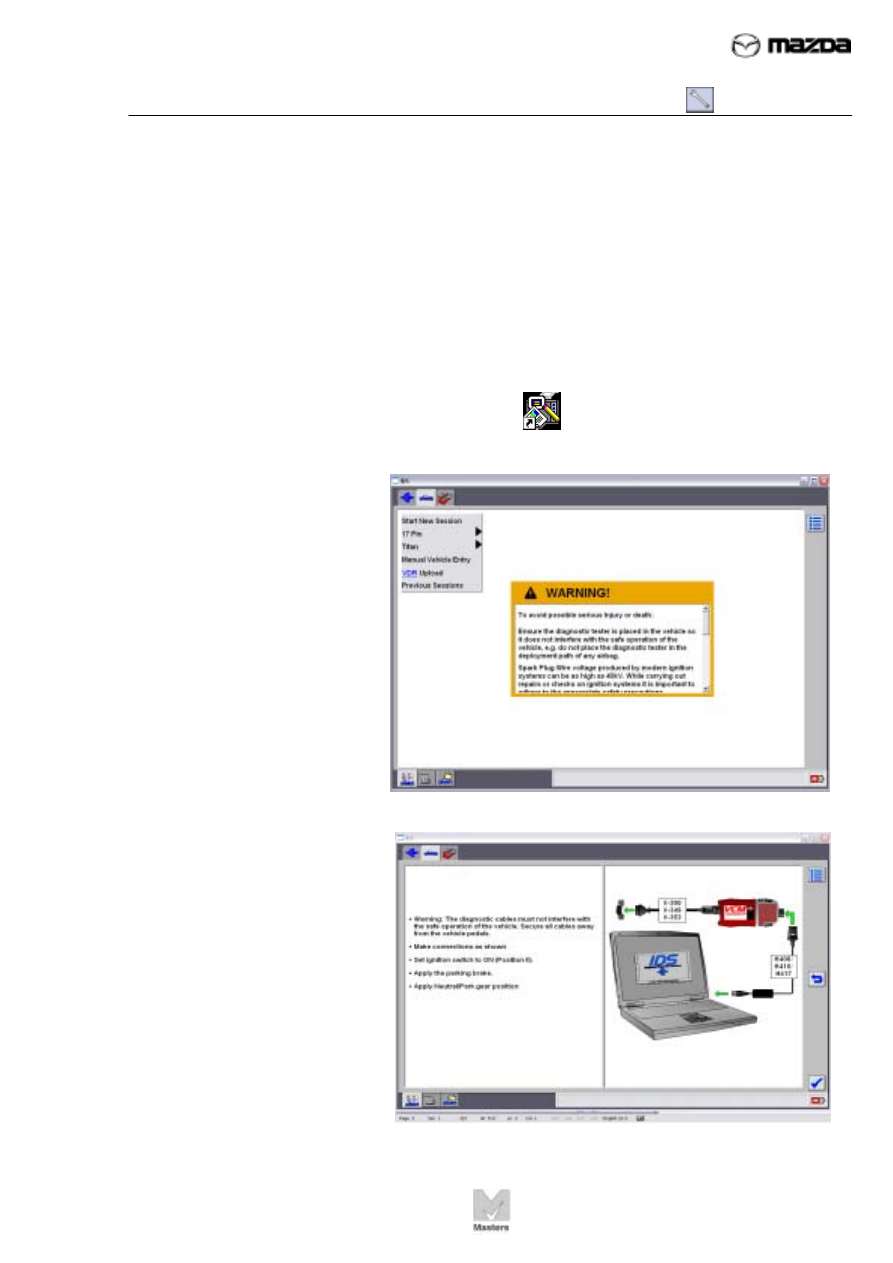

Highlight Start new session and click tick





Make connections as shown and click tick

TC001-18-01H

INTRODUCTION TO M-MDS
14 - PATS Key programming






Activity 14- Page 2

Activity 14
(Continued)





Operation in progress…..

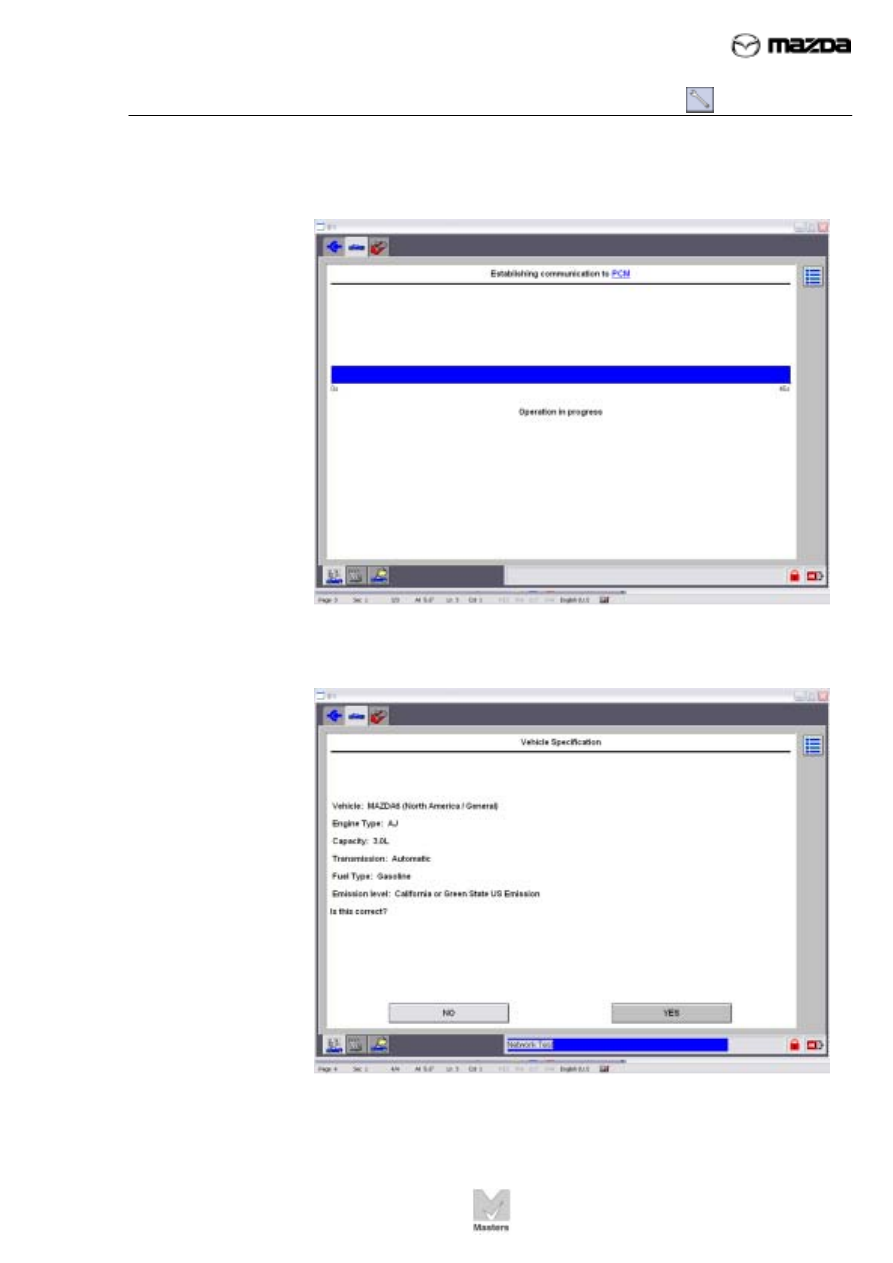

Click yes



TC001-18-01H

INTRODUCTION TO M-MDS
14 - PATS Key programming






Activity 14- Page 3

Activity 14
(Continued)

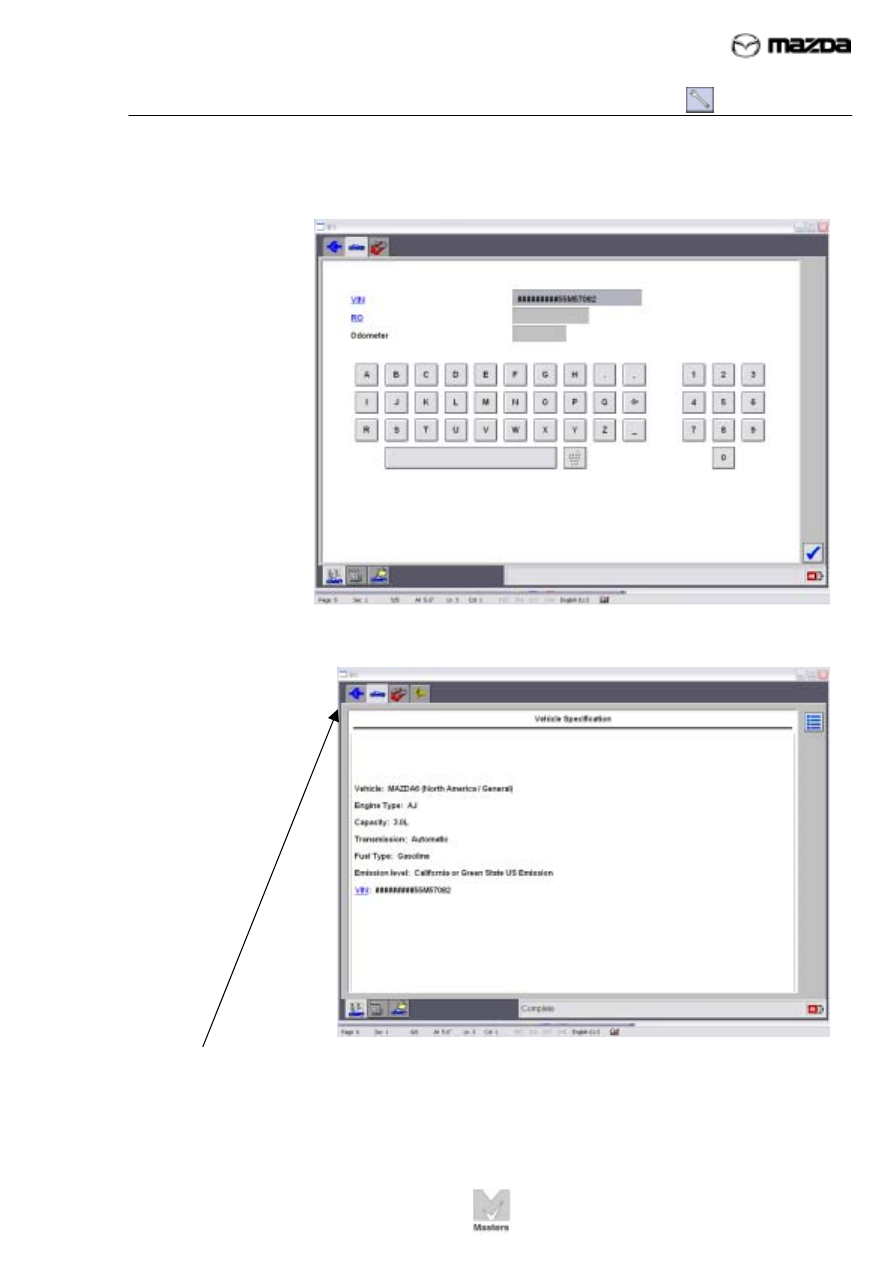

Fill in information as needed and click tick





Select Toolbox




TC001-18-01H

INTRODUCTION TO M-MDS
14 - PATS Key programming






Activity 14- Page 4

Activity 14
(Continued)

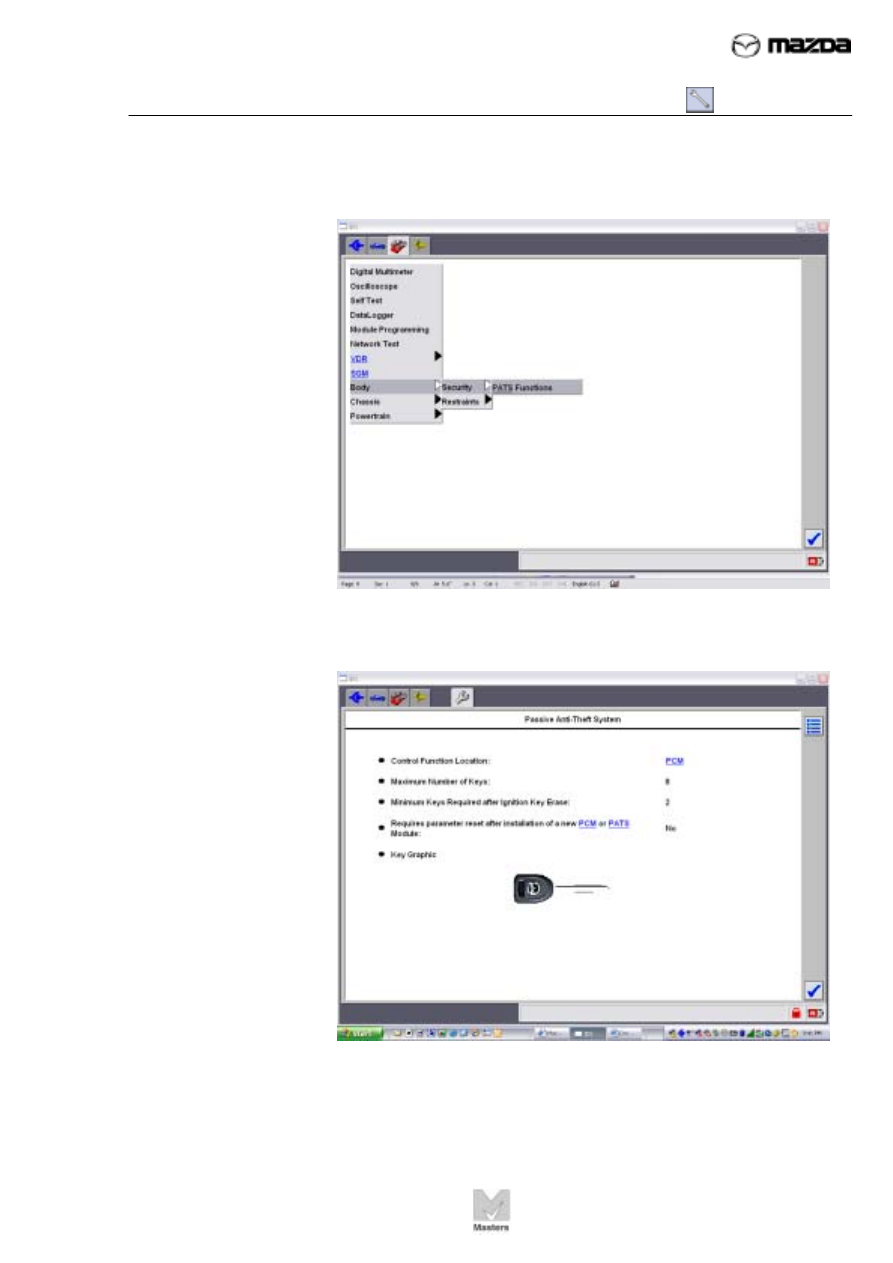

Select Body, Security then Pats functions and click tick






Click Tick
