Mazda Training manual - part 217

TC001-18-01H

INTRODUCTION TO M-MDS
13 - Retrieving DTCs and Freeze Frame Data






Activity 13- Page 5

Activity 13
(Continued)

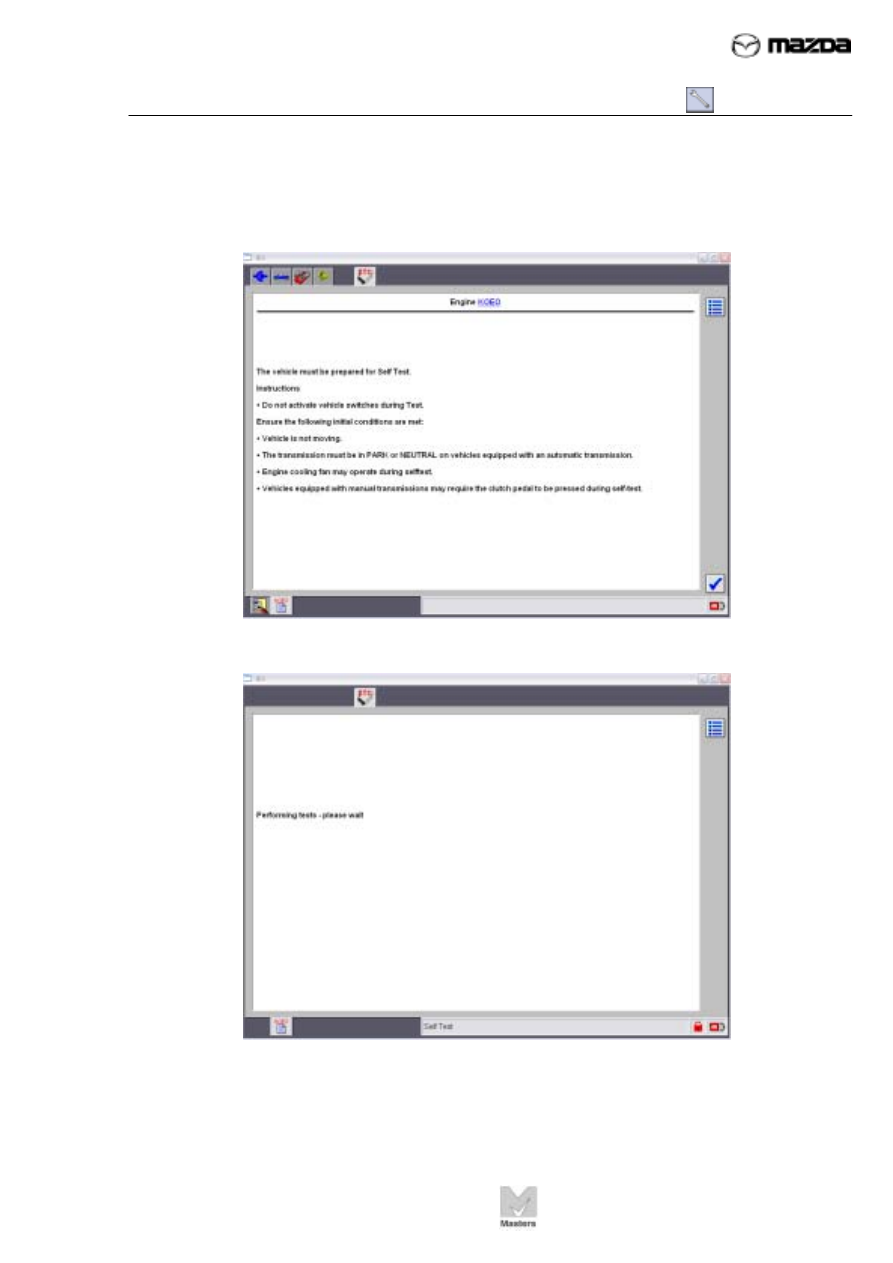

10.  Follow the screen instructions to prepare the vehicle, then tap tick.



















11.  This will take a few minutes






















TC001-18-01H

INTRODUCTION TO M-MDS
13 - Retrieving DTCs and Freeze Frame Data






Activity 13- Page 6

Activity 13
(Continued)

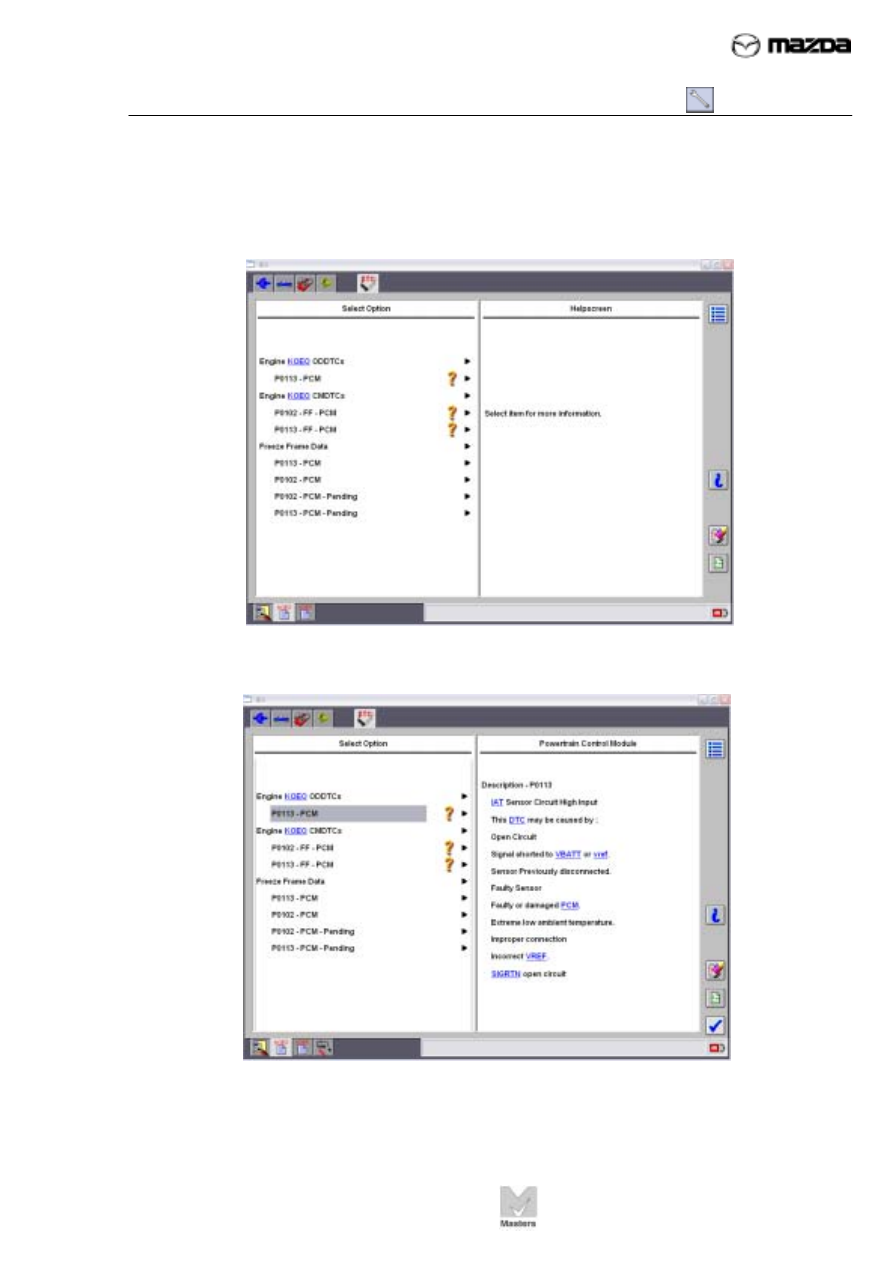

12.  The following screen lists KOEO test results.




















13.  Select a DTC to view its description on the right side of the screen.
























TC001-18-01H

INTRODUCTION TO M-MDS
13 - Retrieving DTCs and Freeze Frame Data






Activity 13- Page 7

Activity 13
(Continued)

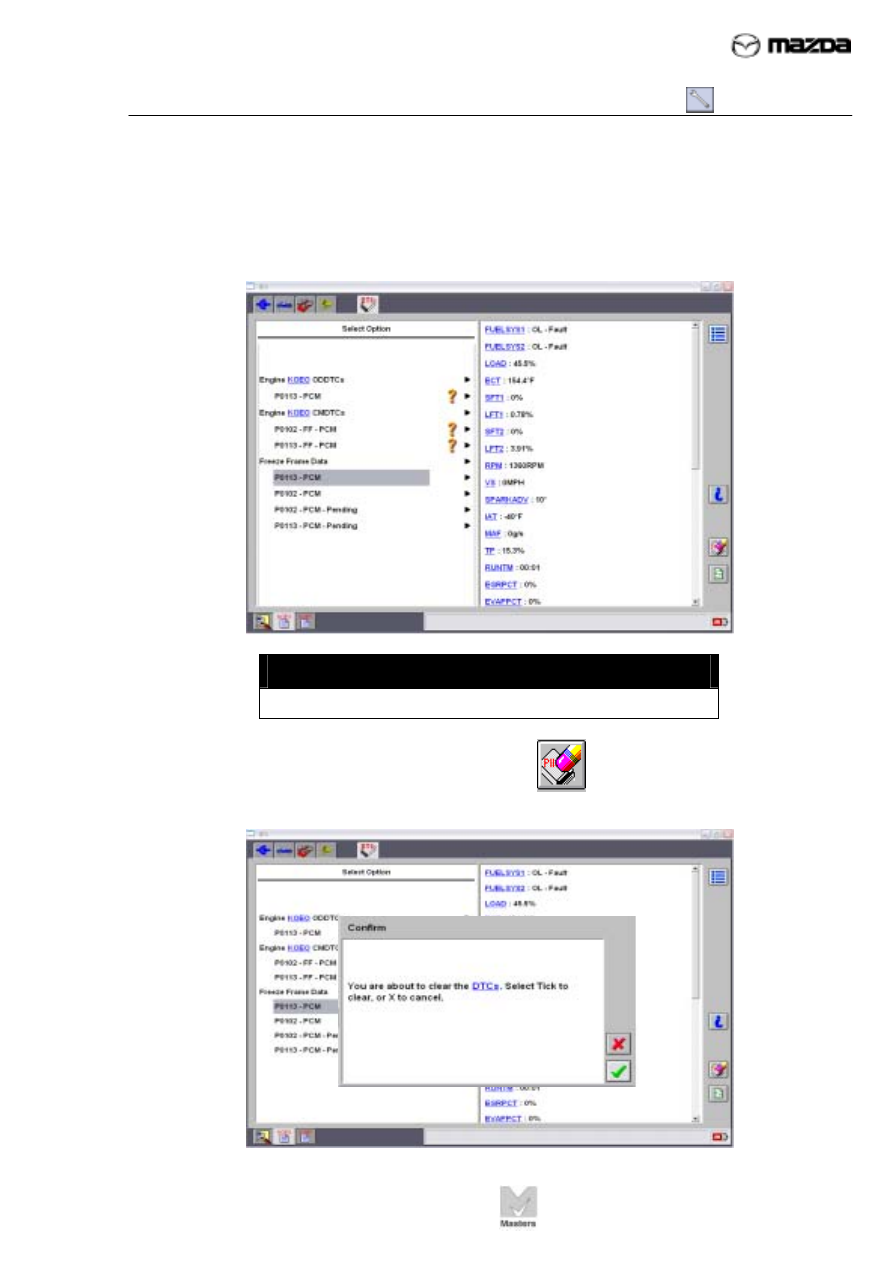

14.  Select a DTC under Freeze Frame Data to retrieve Freeze Frame Data for the

selected DTC.  Use the scroll bar on the right as needed to view all the data.























NOTE

Freeze Frame Data will be printed later in this activity.



15.  Make repairs as needed, and then click the

 “eraser” icon on the lower

right to clear DTCs.  Click tick in the popup message to close.

















TC001-18-01H

INTRODUCTION TO M-MDS
13 - Retrieving DTCs and Freeze Frame Data






Activity 13- Page 8

Activity 13
(Continued)

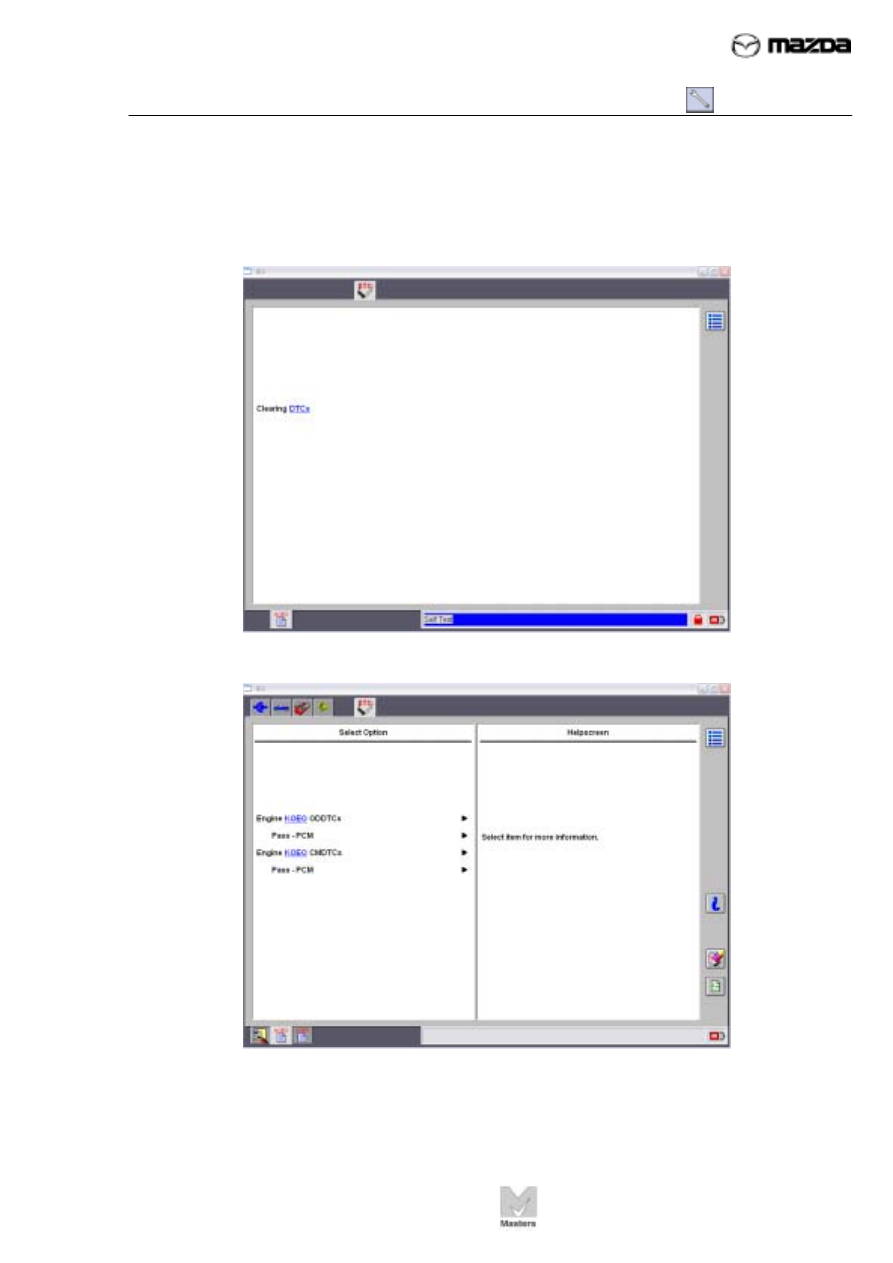

16.  The next screen displays while IDS clears DTCs.



















17.  Confirm your repair by verifying there are no DTCs.
