Mazda Training manual - part 194





TC001-18-01H

INTRODUCTION TO M-MDS
05 – Reading and Printing Freeze Frame Data (FFD)

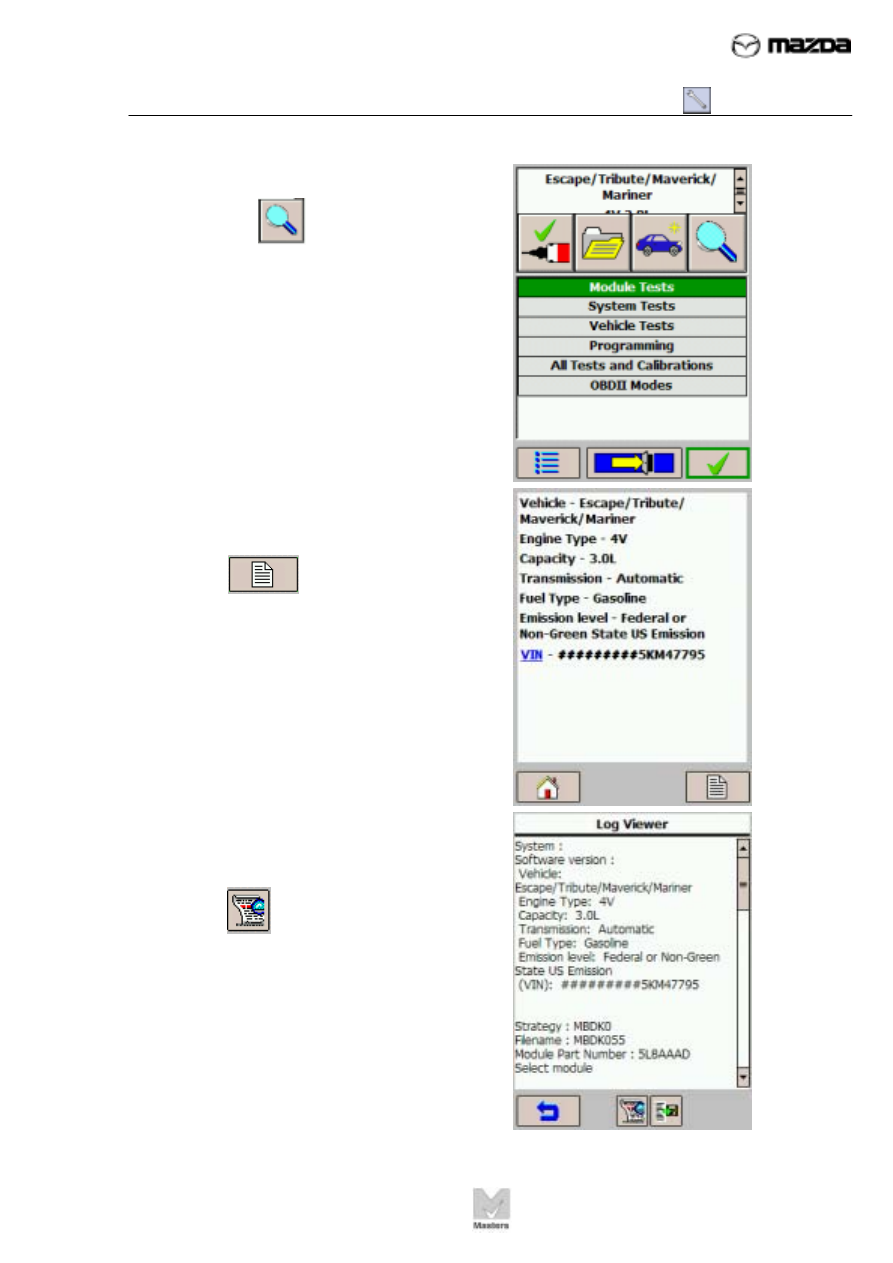

Activity 05- Page 3

Activity 05
(Continued)

8.

Tap the             Vehicle Details menu.

















9.

Tap                 Previous Sessions



















10.  Tap            Select Item Types












TC001-18-01H

INTRODUCTION TO M-MDS
05 – Reading and Printing Freeze Frame Data (FFD)

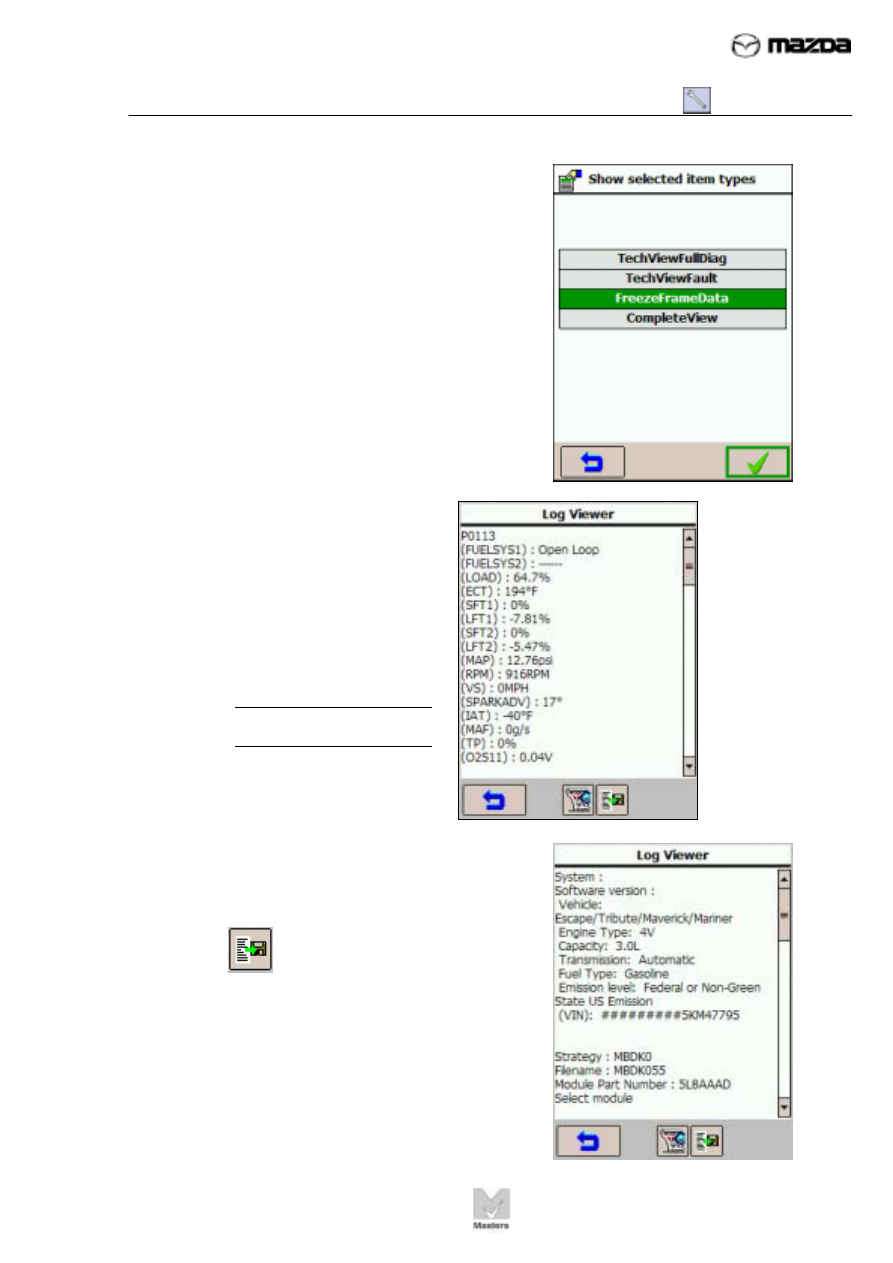

Activity 05- Page 4

Activity 05
(Continued)

11. Tap

Freeze Frame Data, then tap tick.
















12.  The Log Viewer screen displays

the Freeze Frame Data.




List the following values when
the DTC was stored:










13.  Tap            Write Contents to File in the

lower right corner.










ECT:

VS:

TC001-18-01H

INTRODUCTION TO M-MDS
05 – Reading and Printing Freeze Frame Data (FFD)

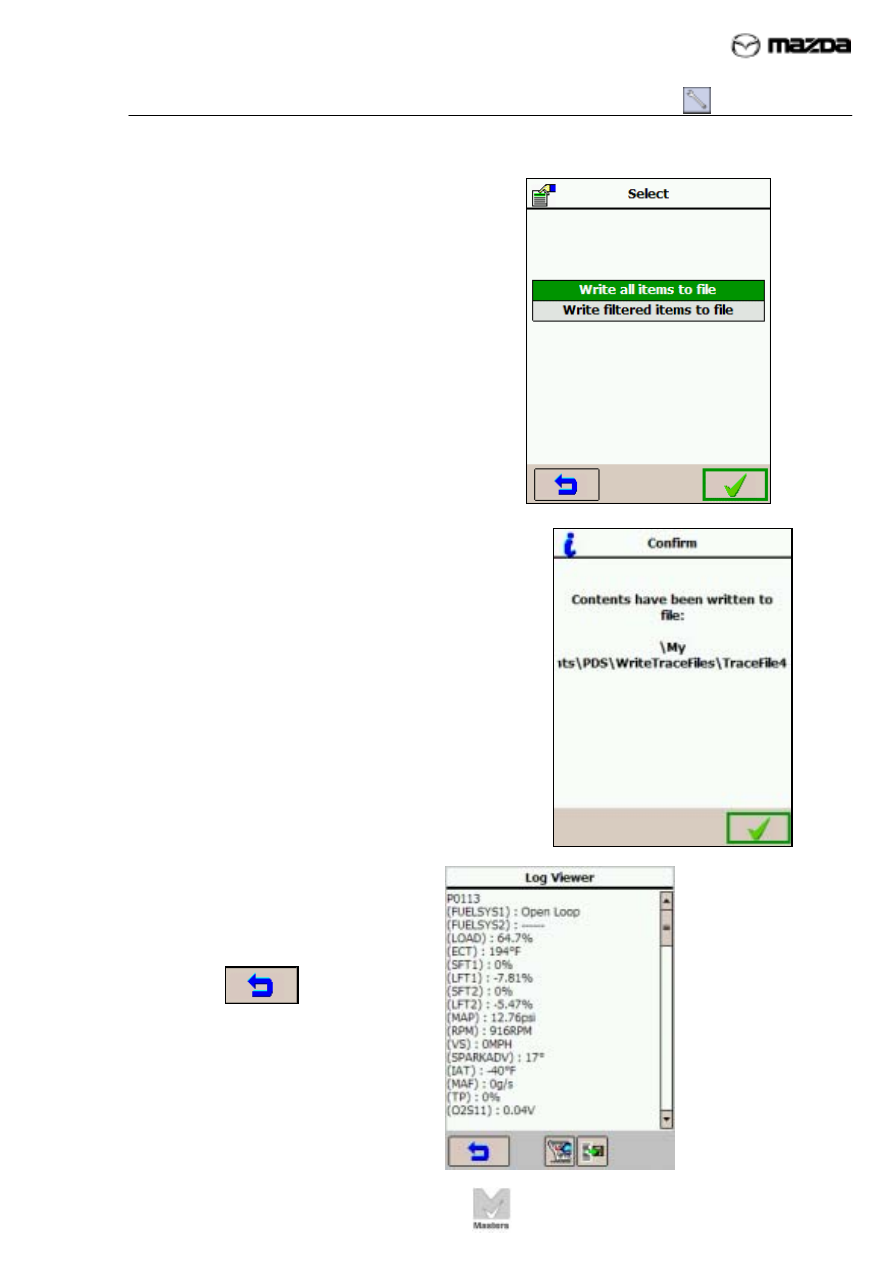

Activity 05- Page 5

Activity 05
(Continued)

14. Confirm

Write all items to file is

selected, and then tap tick.


















15.  The PDA automatically assigns and

displays the Trace File number on the
Confirm screen. In the example below,
TraceFile4 is the fourth trace file saved on
the PDA.




Write the Trace File number below so you
can locate the file later:



My Documents \ PDS \ WriteTraceFiles \

TraceFile___




Tap

tick.









16. Tap

 Go to

Previous Screen.









TC001-18-01H

INTRODUCTION TO M-MDS
05 – Reading and Printing Freeze Frame Data (FFD)

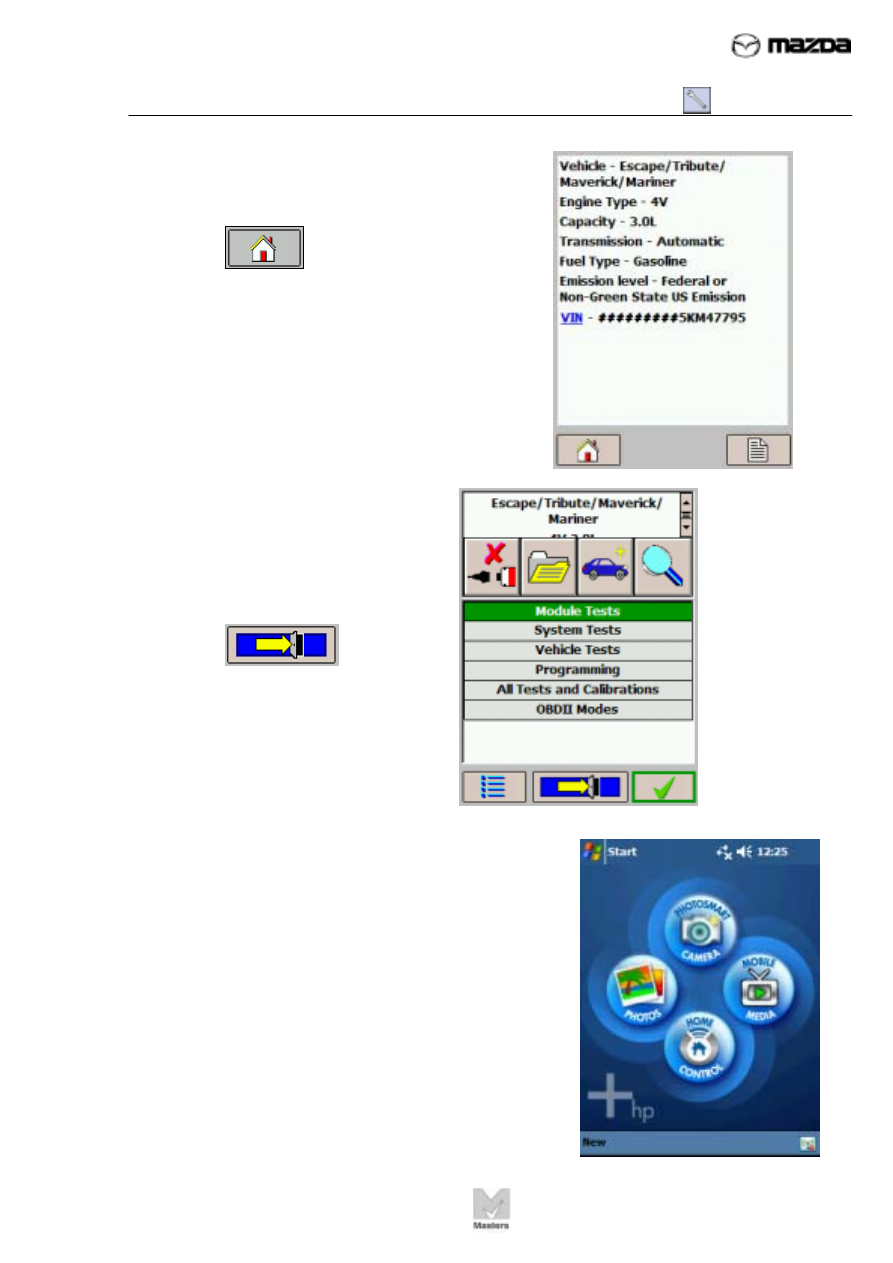

Activity 05- Page 6

Activity 05
(Continued)


17. Tap

 Go to Previous Screen



















18. Tap

 Exit PDS











19.  The PDA’s main screen displays. Continue

with step 20 for printing the FFD.














Your PDA’s main screen
may look slightly different
than this example.
