Mazda Transaxle FN4A-EL. Manual - part 10





K1–32

AUTOMATIC TRANSAXLE

.

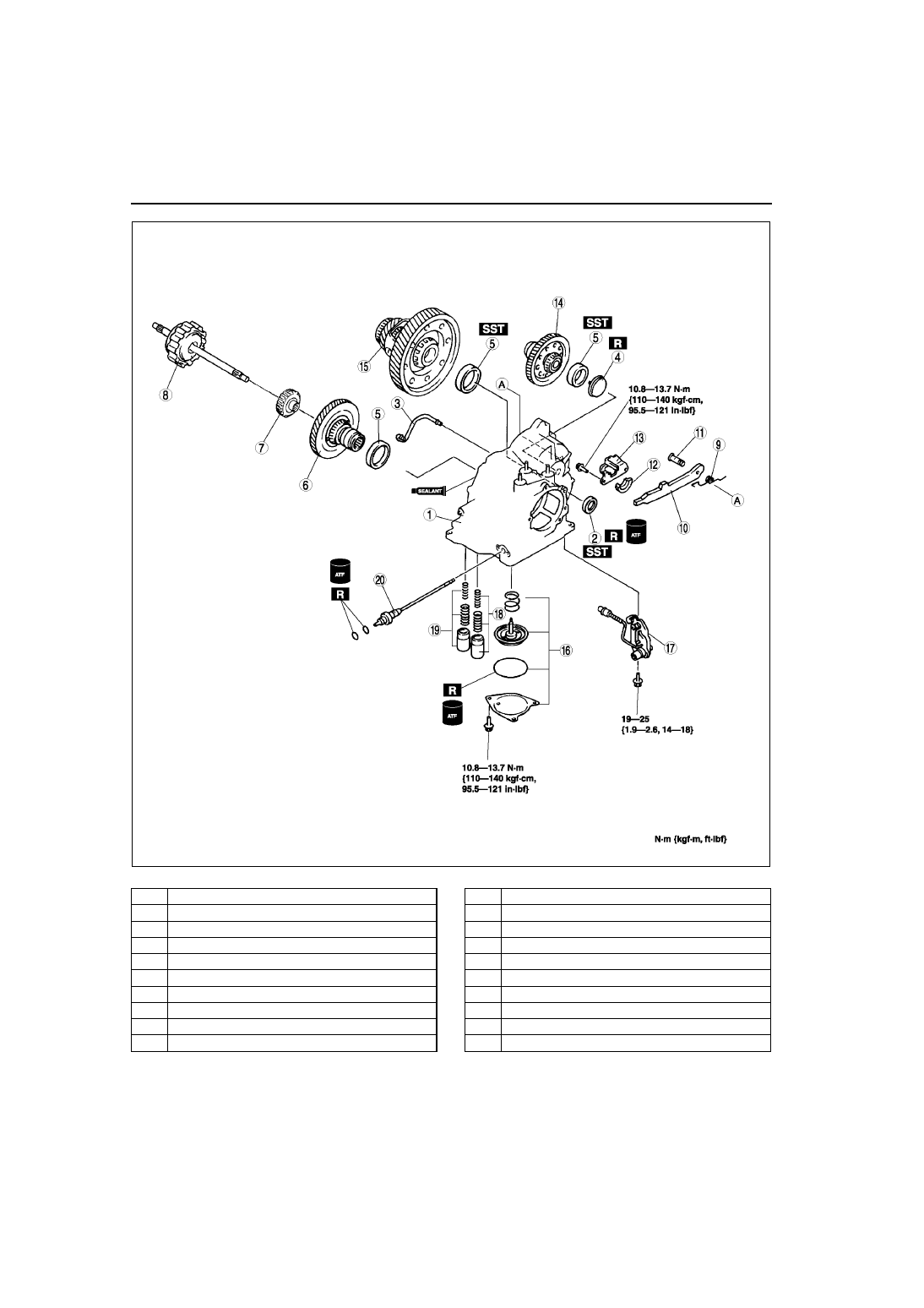

A6E5714A062

1

Transaxle case

2

Oil  seal

3

Oil  pipe

4

Funnel

5

Bearing race

6

Primary gear

7

Forward clutch hub

8

Forward clutch

9

Pawl return spring

10

Parking pawl

11

Parking pawl shaft

12

Support actuator

13

Actuator plate

14

Secondary gear and output gear

15

Differential

16

Band servo

17

Parking rod lever component

18

Forward accumulator

19

Servo apply accumulator

20

Manual shaft

AUTOMATIC TRANSAXLE

K1–33

K1

.

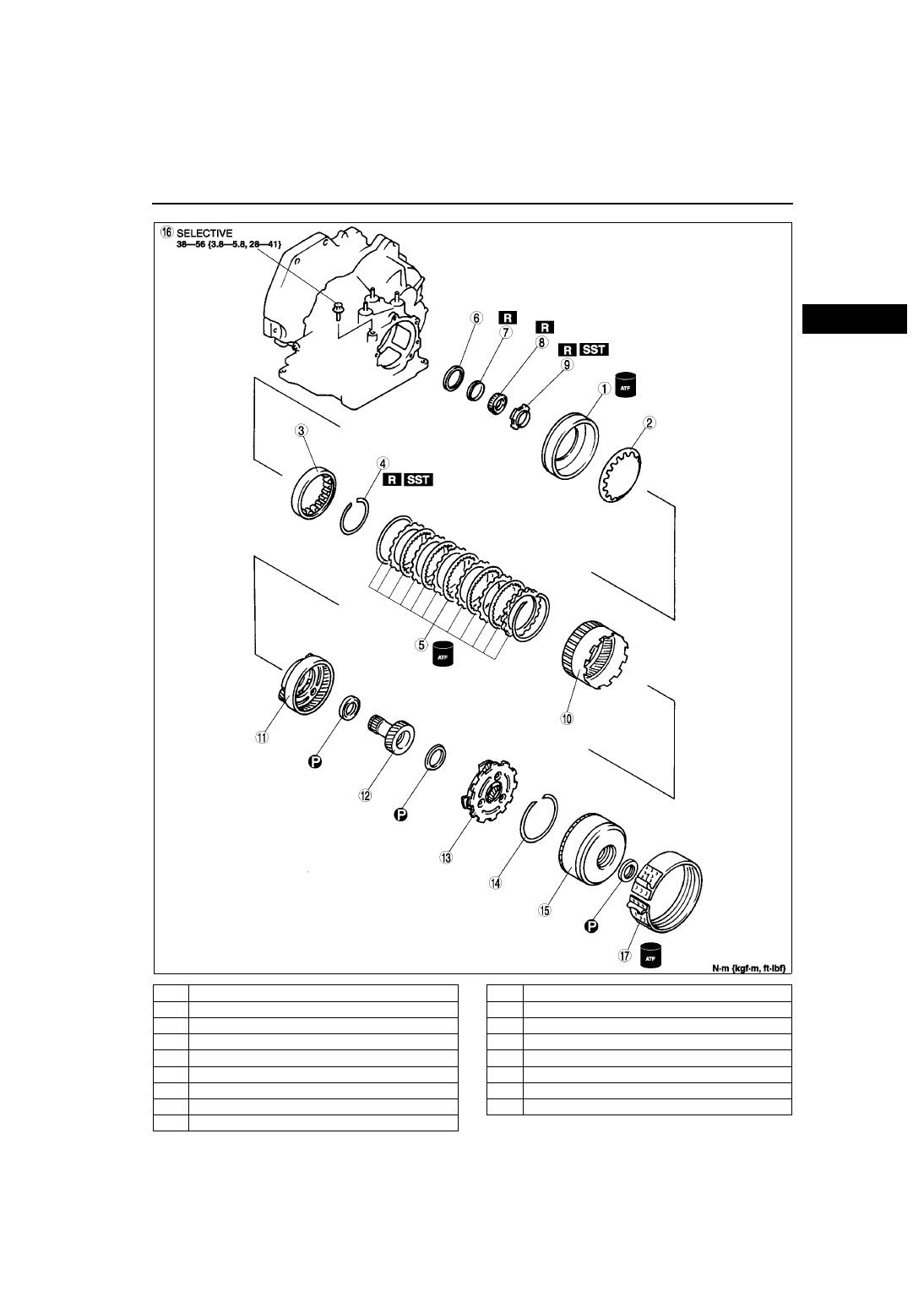

A6E5714A063

1

Low and reverse brake piston

2

Low and reverse brake return spring

3

One-way clutch inner race

4

Snap ring

5

Low and reverse brake

6

Bearing race

7

Distance piece

8

Bearing

9

Locknut

10

Front internal gear and one-way clutch

11

Front planetary gear component

12

Front sun gear

13

Rear planetary gear component

14

Snap ring

15

Clutch component

16

Band strut

17

2-4 brake band

K1–34

AUTOMATIC TRANSAXLE

.

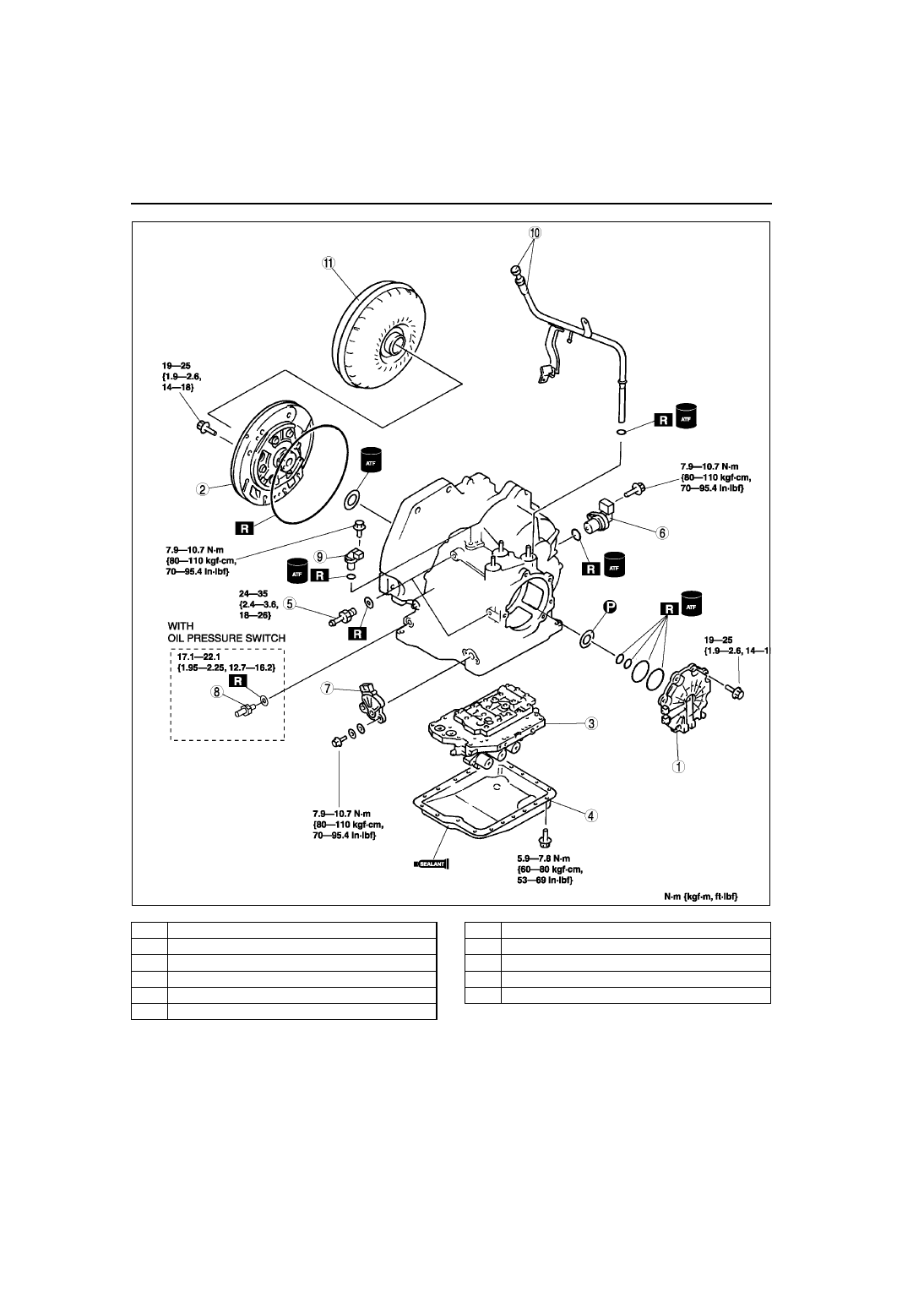

A6E5714A064

1

End cover

2

Oil  pump

3

Control valve body

4

Oil  pan

5

Connector pipe

6

Vehicle speed sensor

7

Transaxle range switch

8

Oil pressure switch

9

Input/turbine speed sensor

10

Oil dipstick and oil filler tube

11

Torque converter

AUTOMATIC TRANSAXLE

K1–35

K1

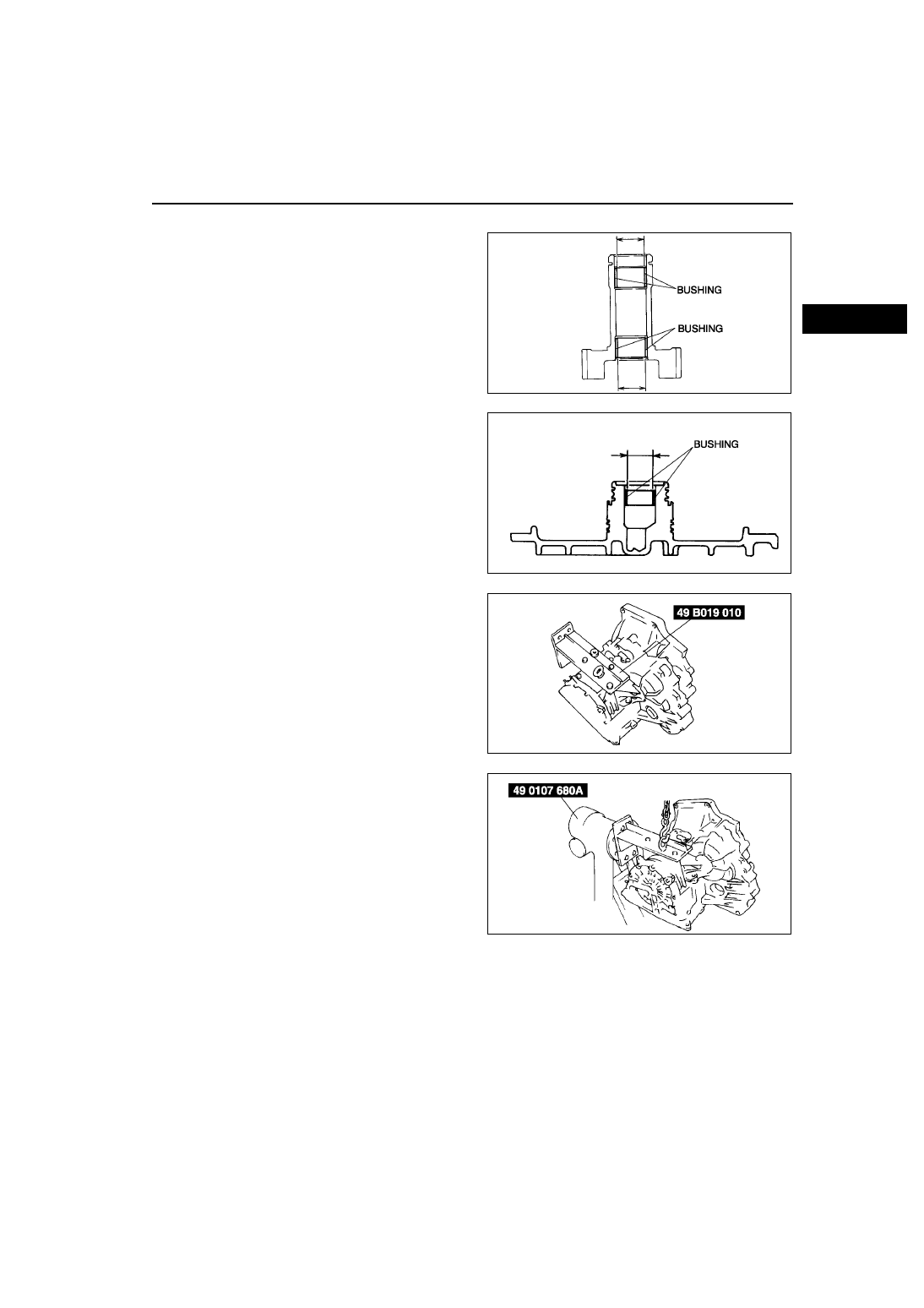

Assembly procedure

1. Measure the bushing of the front sun gear.

Bushing inner diameter

Standard: 18.000—18.018 mm

{0.70866—0.70936 in}

Maximum: 18.038 mm {0.71016 in}

2. If not as specified, replace the front sun gear.

3. Measure the bushing of the end cover.

Bushing inner diameter

Standard: 23.600—23.621 mm

{0.92913—0.92995 in}

Maximum: 23.641 mm {0.93075 in}

4. If not as specified, replace the end cover.

5. Assemble the SST.

6. Lift the transaxle case and mount it on the SST.
7. Install the oil pipe.

A6E5714A065

A6E5714A066

A6E5714A005

A6E5714A006
