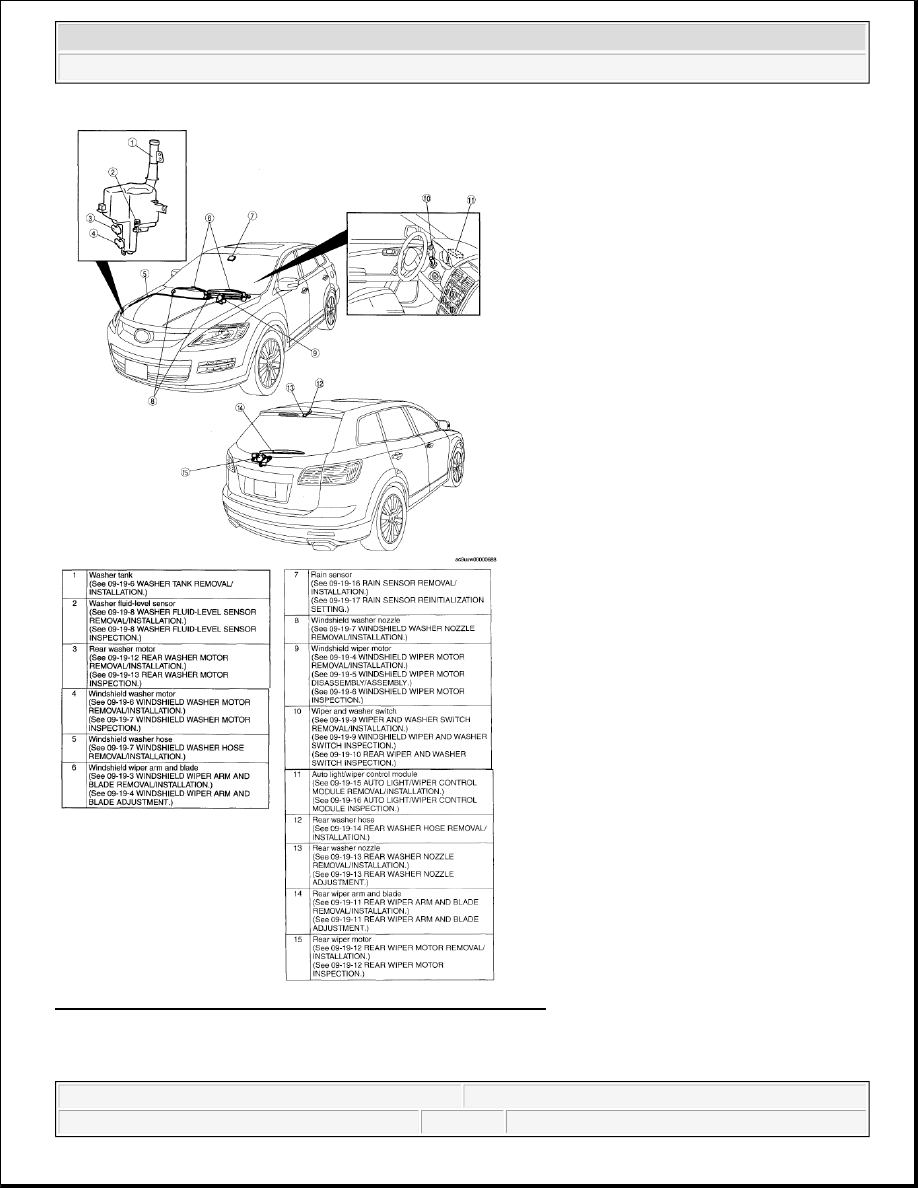

Fig. 1: Identifying Wiper/Washer System Components Location
Courtesy of MAZDA MOTORS CORP.

WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:19 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

1. Remove in the order indicated in the table.

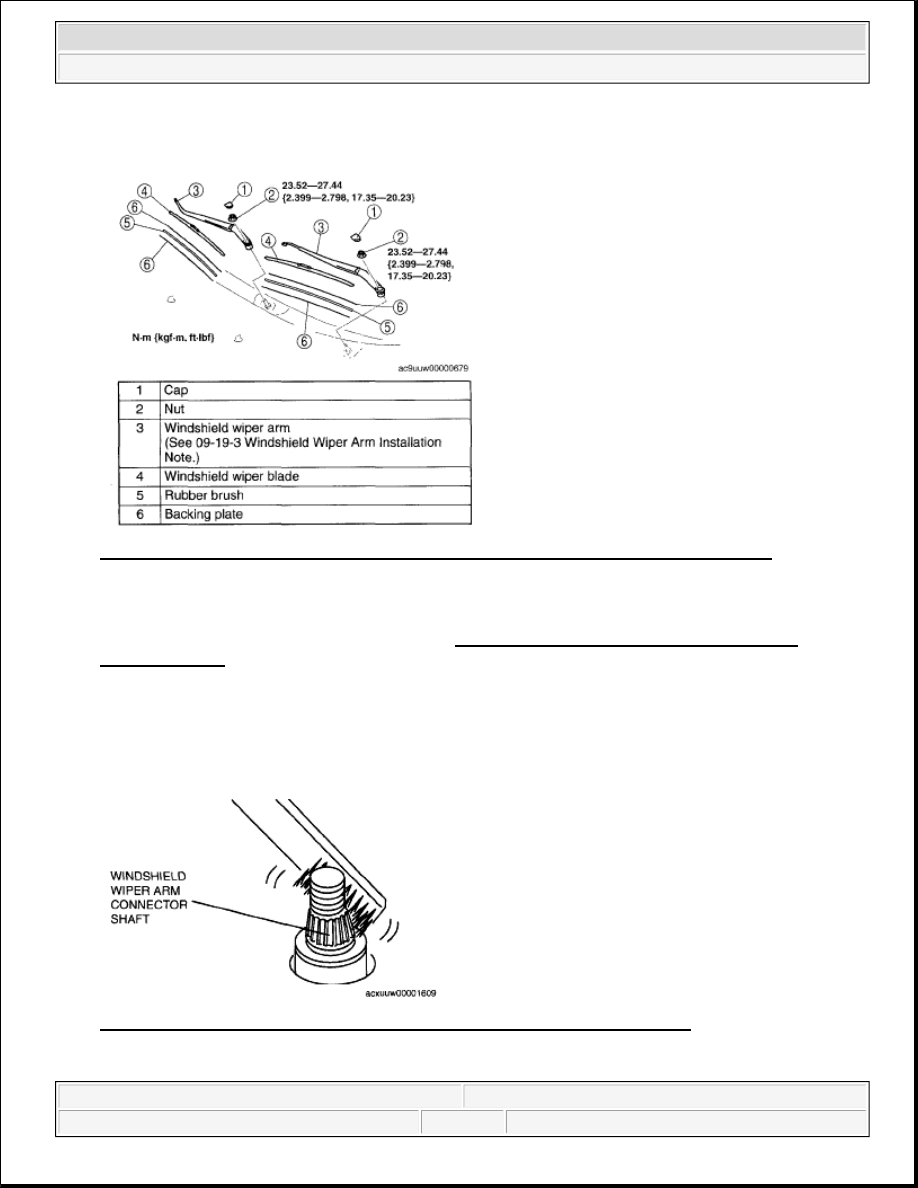

Fig. 2: Identifying Windshield Wiper Arm, Blade Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

2. Install in the reverse order of removal.

3. Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE

ADJUSTMENT.)

WINDSHIELD WIPER ARM INSTALLATION NOTE

1. Clean the windshield wiper arm connector shafts using a wire brush before installing the windshield

wiper arms.

Fig. 3: Cleaning Windshield Wiper Arm Connector Shafts Using Wire Brush
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:19 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT

1. Operate the windshield wipers, and then turn off the windshield wiper motor to set the wipers in the park

position.

2. Slide the serrated connecting part and adjust the windshield wiper arm and blade so that its end is aligned

with the hollowed mark in the ceramic coating.

WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION.)

3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)

4. Remove in the order indicated in the table.

NOTE:



If the hollowed mark in the ceramic coating cannot be located, measure
the distance from the cowl grille end line, and adjust the windshield wiper
arm and blade.

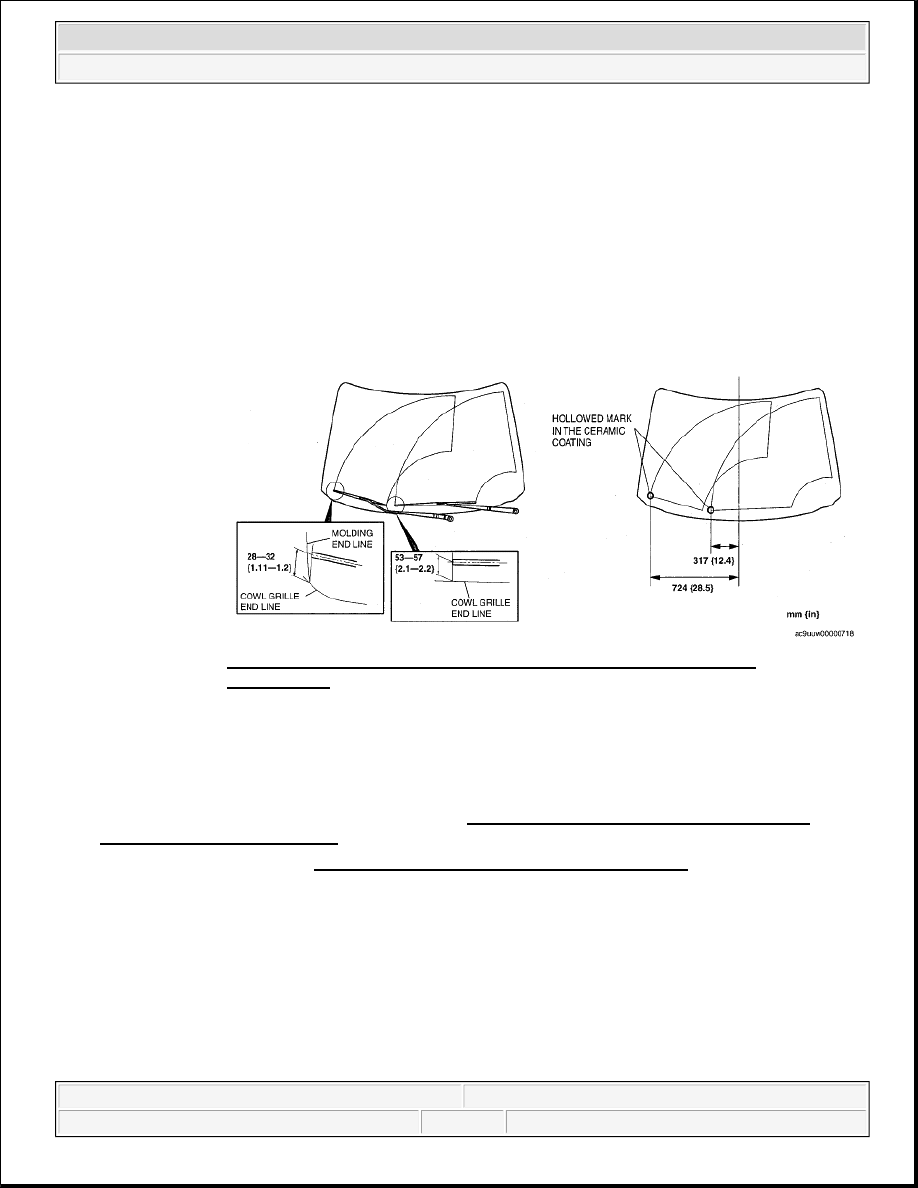

Fig. 4: Identifying Windshield Wiper Arm And Blade Adjusting
Dimensions
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ACCESSORIES & BODY, CAB Wiper/Washer System - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:35:19 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

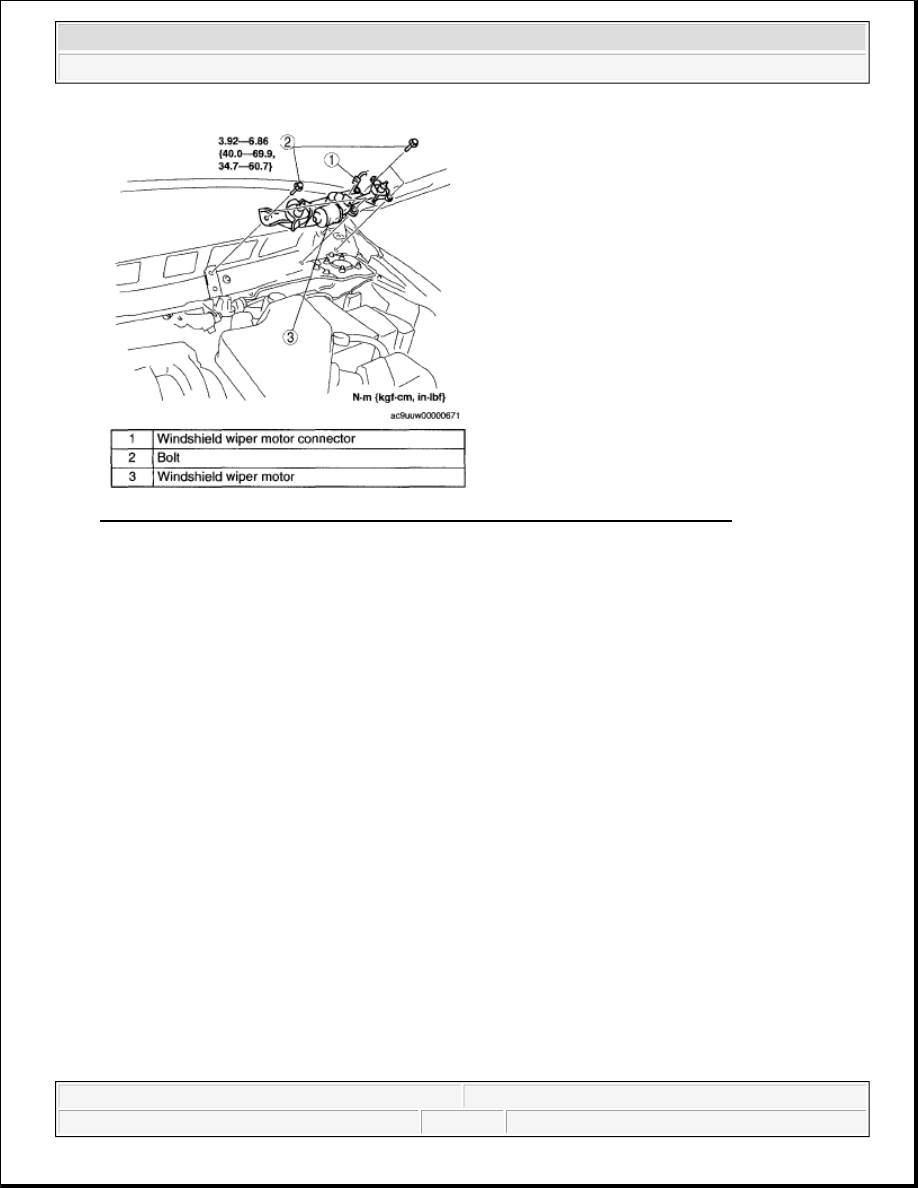

Fig. 5: Identifying Windshield Wiper Motor Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.

WINDSHIELD WIPER MOTOR DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.
