6. Remove the rearview mirror in the direction of the arrow.

REARVIEW MIRROR REMOVAL [VEHICLES WITHOUT AUTO LIGHT/WIPER
SYSTEM]

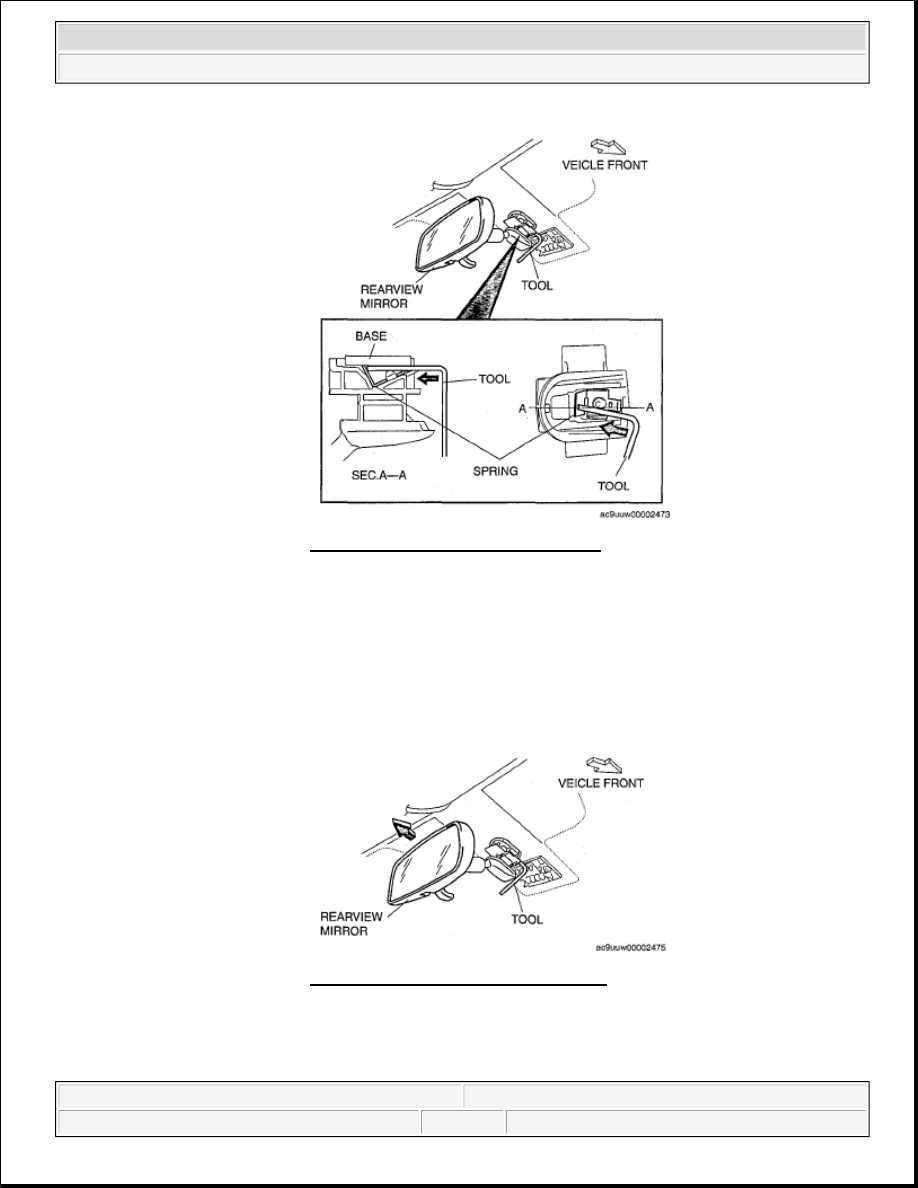

Fig. 82: Inserting Tool To Position
Courtesy of MAZDA MOTORS CORP.

CAUTION:



When removing the rearview mirror, the mirror may hit the top
sealing, possibly damaging it. Therefore, hold the mirror body
securely by hand when removing the rear view mirror so that
the mirror does not contact it.

Fig. 83: Removing Rearview Mirror
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:17 AM

Page 54

© 2005 Mitchell Repair Information Company, LLC.

1. Insert a flathead screwdriver between the mirror and the base.

2. Insert the flathead screwdriver to the position shown in the figure and press the center part of the spring.

3. Remove the rearview mirror in the direction of the arrow.

REARVIEW MIRROR INSTALLATION [VEHICLES WITH AUTO LIGHT/WIPER
SYSTEM]

1. Install the rearview mirror onto the base.

2. Install the rain sensor.(See RAIN SENSOR REMOVAL/INSTALLATION .)

CAUTION:



When removing the rearview mirror, the mirror may hit the top
sealing, possibly damaging it. Therefore, hold the mirror body
securely by hand when removing the rear view mirror so that
the mirror does not contact it.

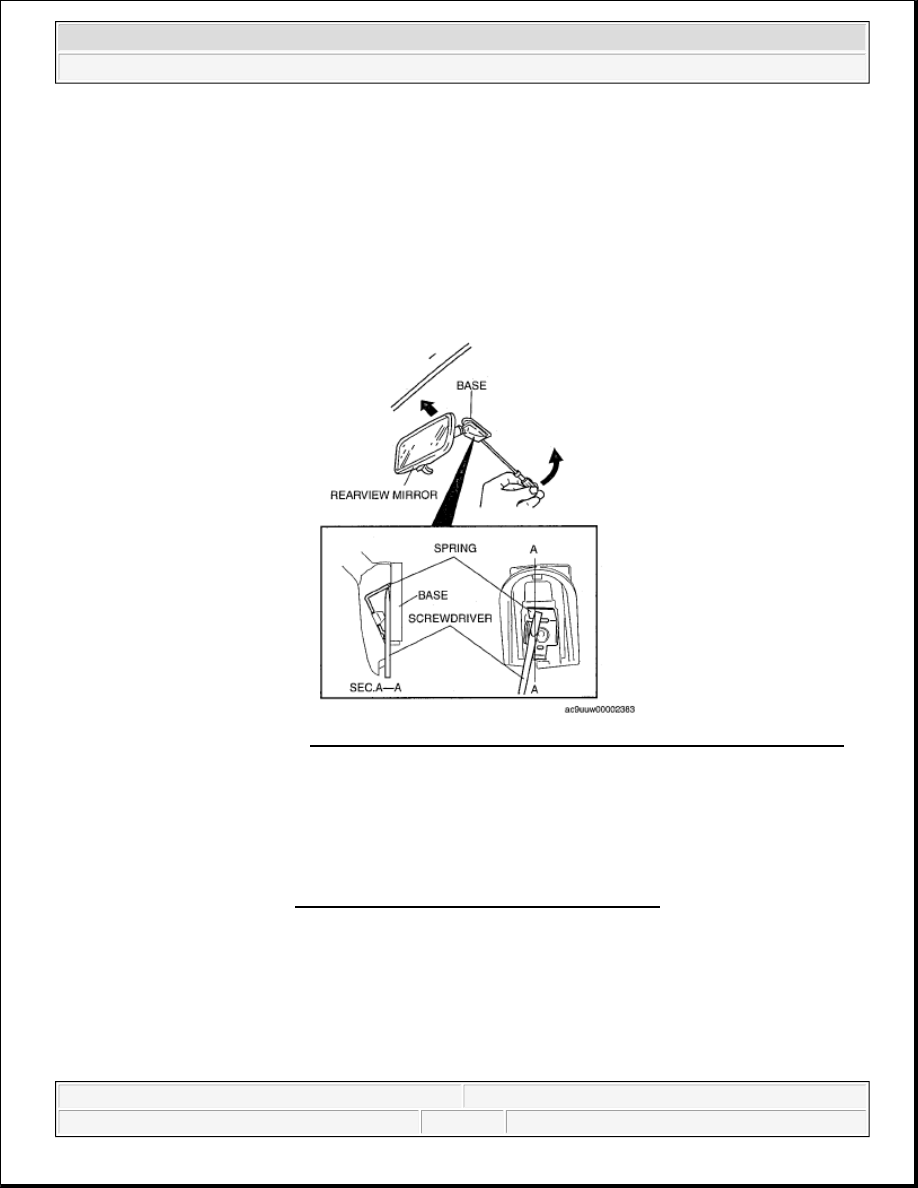

Fig. 84: Inserting Flathead Screwdriver Between Mirror & Base
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:17 AM

Page 55

© 2005 Mitchell Repair Information Company, LLC.

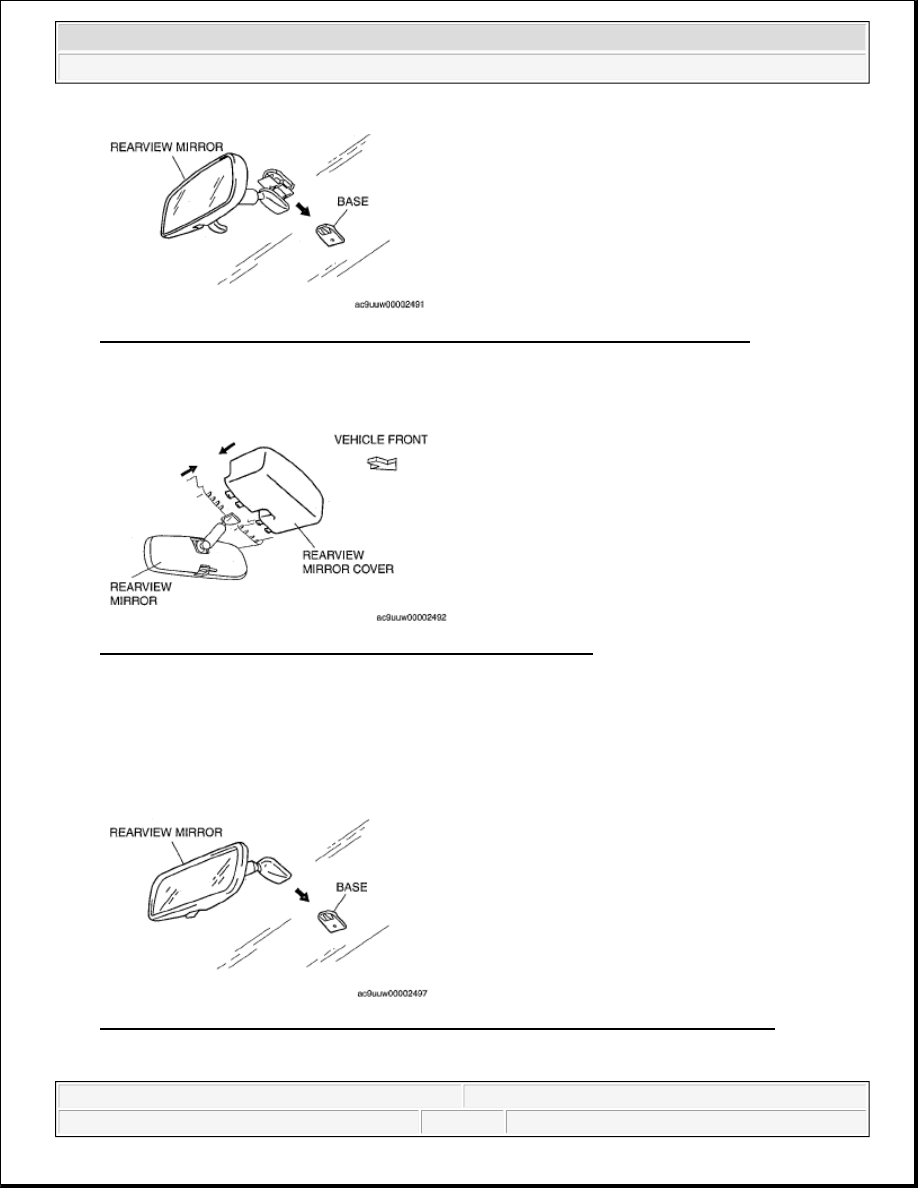

Fig. 85: View Of Rearview Mirror & Base (Vehicles With Auto Light/Wiper System)
Courtesy of MAZDA MOTORS CORP.

3. Install the covers.

Fig. 86: Identifying Rearview Mirror & Rearview Mirror Cover
Courtesy of MAZDA MOTORS CORP.

REARVIEW MIRROR INSTALLATION [VEHICLES WITHOUT AUTO
LIGHT/WIPER SYSTEM]

1. Install the rearview mirror onto the base.

Fig. 87: View Of Rearview Mirror & Base (Vehicles Without Auto Light/Wiper System)
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Glass/Windows/Mirrors - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:36:17 AM

Page 56

© 2005 Mitchell Repair Information Company, LLC.
