Mazda CX-9 Grand Touring. Manual - part 585

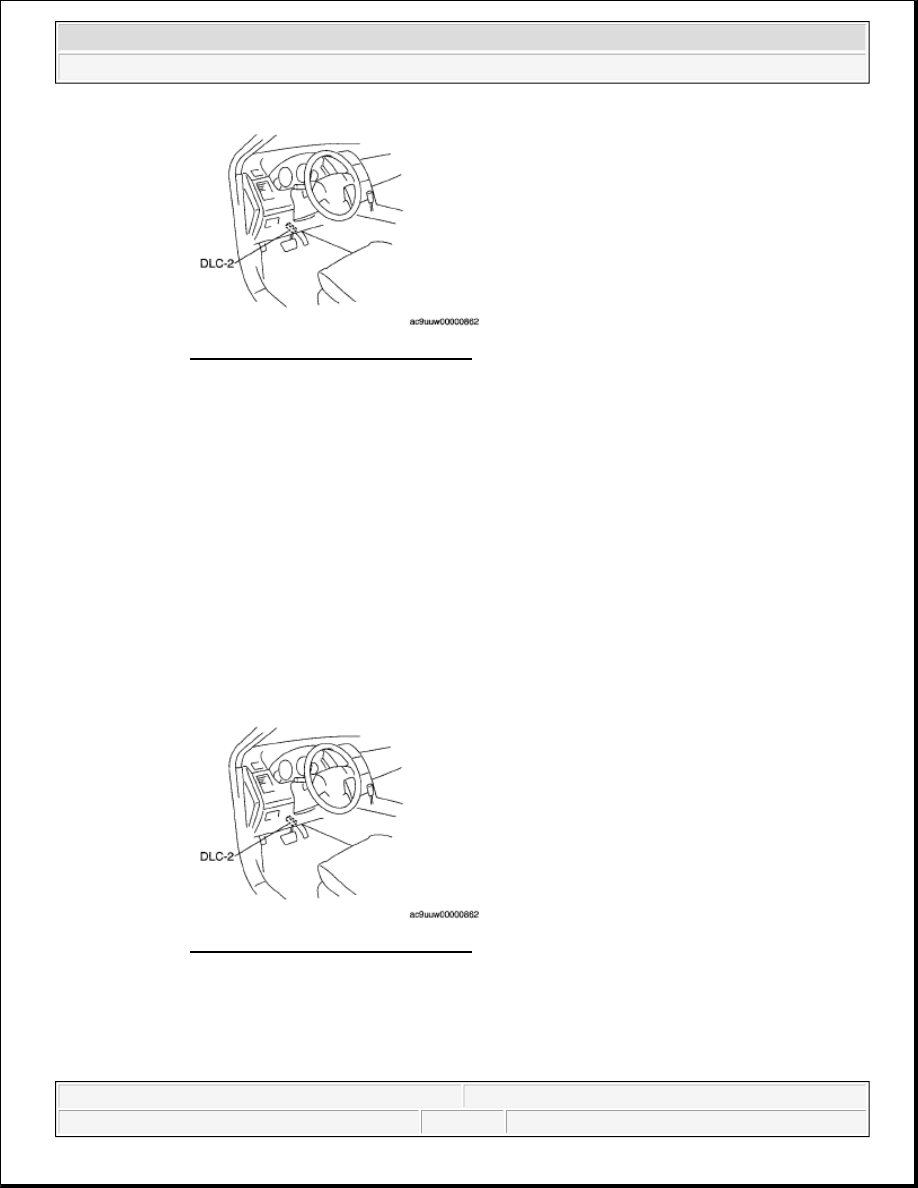

Fig. 5: Identifying DLC-2 Connector
Courtesy of MAZDA MOTORS CORP.

ACTIVE COMMAND MODES PROCEDURE

1. Connect the M-MDS to the DLC-2.

2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)

1. Select "DataLogger".

2. Select "Modules".

3. Select "IC".



When using the PDS (Pocket PC)

1. Select "Module Tests".

2. Select "IC".

3. Select "DataLogger".

NOTE:



The PID data screen function is used for monitoring the calculated
value of input/output signals in the module. Therefore, if the
monitored value of the output parts is not within the specification, it
is necessary to inspect the monitored value of input parts
corresponding to the applicable output part control. In addition,
because the system does not display an output part malfunction as
an abnormality in the monitored value, it is necessary to inspect the
output parts individually.

2008 Mazda CX-9 Grand Touring

2008 SUSPENSION On-Board Diagnostic (Suspension) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:25:36 AM

Page 5

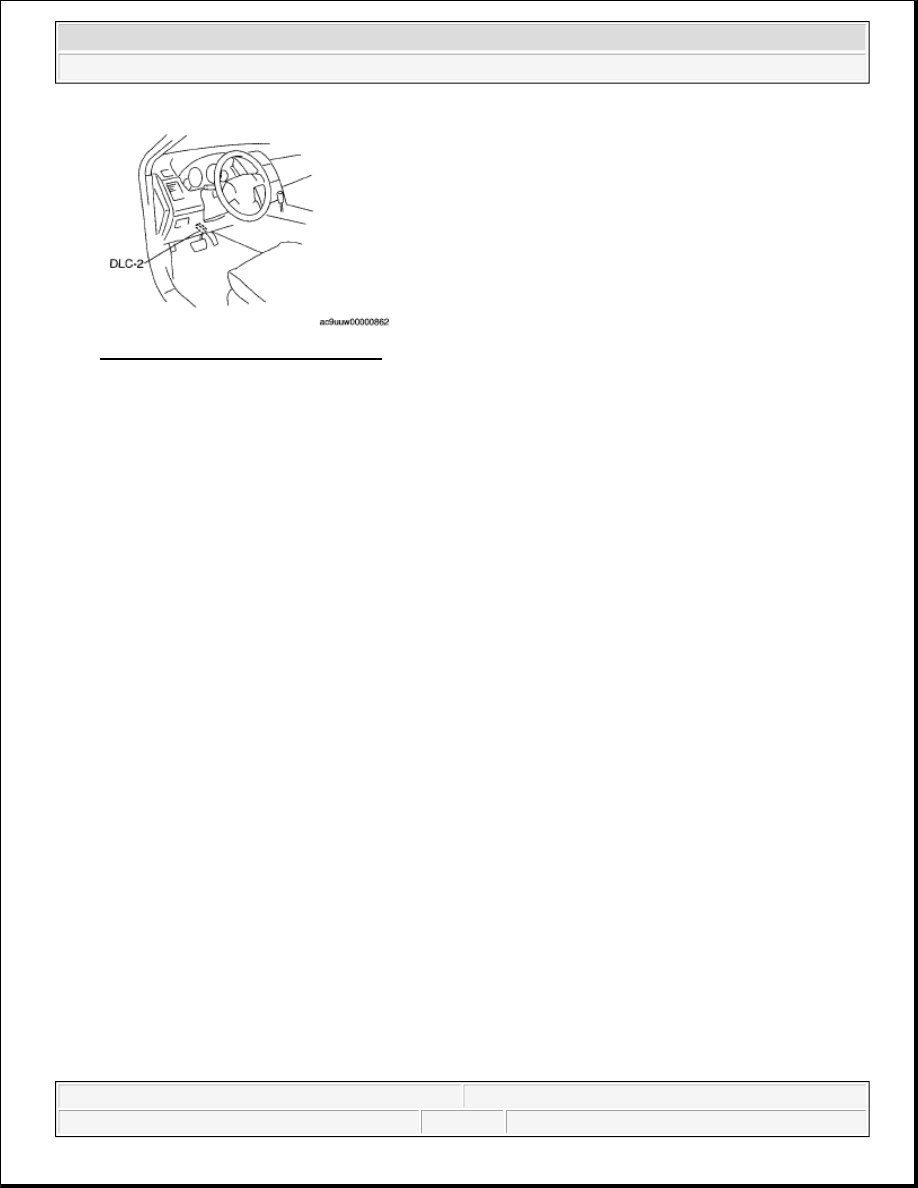

Fig. 6: Identifying DLC-2 Connector
Courtesy of MAZDA MOTORS CORP.

3. Select the active command modes from the PID table.

4. Perform the active command modes, inspect the operations for each parts.



If the operation of output parts cannot be verified after the active command mode inspection is
performed, this could indicate the possibility of an open or short circuit, sticking, or operation
malfunction in the output parts.

FREEZE FRAME PID DATA ACCESS PROCEDURE

1. Connect the M-MDS to the DLC-2.

2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



This function is available for only the IDS (laptop PC)

1. Select the "Body" tab.

2. Select "TPMS Functions".

Fig. 7: Identifying DLC-2 Connector
Courtesy of MAZDA MOTORS CORP.

3. Select "Freeze Frame Data".

DTC TABLE

2008 Mazda CX-9 Grand Touring

2008 SUSPENSION On-Board Diagnostic (Suspension) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:25:36 AM

Page 6

DTC CHART

PID/DATA MONITOR TABLE

PID/DATA MONITOR CHART

DTC

Description

Page

M-

MDS

B1342 Instrument cluster internal malfunction

(See DTC B1342 [INSTRUMENT
CLUSTER] .)

B2143 ID registration failure

(See DTC B2143.)

B2477 Instrument cluster configuration not performed

(See DTC B2477 [INSTRUMENT
CLUSTER] .)

B2868 Wheel unit No.1 internal malfunction

(See DTC B2868, B2869, B2870,
B2871.)

B2869 Wheel unit No.2 internal malfunction

(See DTC B2868, B2869, B2870,
B2871.)

B2870 Wheel unit No.3 internal malfunction

(See DTC B2868, B2869, B2870,
B2871.)

B2871 Wheel unit No.4 internal malfunction

(See DTC B2868, B2869, B2870,
B2871.)

U0127

Communication failure between instrument cluster and
keyless receiver

(See DTC U0127.)

U2616 Wheel unit No.1 (No response)

(See DTC U2616, U2617, U2618,
U2619.)

U2617 Wheel unit No.2 (No response)

(See DTC U2616, U2617, U2618,
U2619.)

U2618 Wheel unit No.3 (No response)

(See DTC U2616, U2617, U2618,
U2619.)

U2619 Wheel unit No.4 (No response)

(See DTC U2616, U2617, U2618,
U2619.)

PID Name (Definition) Unit/Condition

Condition/Specification

Action

AI_WU1_ID
AI_WU2_ID
AI_WU3_ID
AI_WU4_ID
(Wheel unit ID code
(during ID registration))

Indicates the wheel unit ID code.
(During wheel unit ID
registration.)



Replace the wheel
unit.



Perform the wheel
unit ID registration.

AI_WU1_P
AI_WU2_P
AI_WU3_P
AI_WU4_P
(Tire pressure value
(during ID registration))

Pa, psi

Indicates the tire pressure. (During
ID registration.)



Adjust tire pressure.



Replace the wheel
unit.



Perform the wheel
unit ID registration.

2008 Mazda CX-9 Grand Touring

2008 SUSPENSION On-Board Diagnostic (Suspension) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:25:36 AM

Page 7

FFD1_WU1_P
FFD1_WU2_P
FFD1_WU3_P
FFD1_WU4_P
(Tire pressure value
(freeze frame PID data
1))

Pa, psi

Indicates the tire pressure. (Freeze
frame PID data 1)

Adjust tire pressure.

FFD2_WU1_P
FFD2_WU2_P
FFD2_WU3_P
FFD2_WU4_P
(Tire pressure value
(freeze frame PID data
2))

Pa, psi

Indicates the tire pressure. (Freeze
frame PID data 2)

Adjust tire pressure.

FFD1_WU1_T
FFD1_WU2_T
FFD1_WU3_T
FFD1_WU4_T
(Internal tire air
temperature value
(freeze frame PID data
1))

°C, °F

Indicates the internal tire air
temperature. (Freeze frame PID
data 1)

Adjust tire pressure.

FFD2_WU1_T
FFD2_WU2_T
FFD2_WU3_T
FFD2_WU4_T
(Internal tire air
temperature value
(freeze frame PID data
2))

°C, °F

Indicates the internal tire air
temperature. (Freeze frame PID
data 2)

Adjust tire pressure.

FFD1_MLG
(Wheel unit mileage
value (freeze frame PID
data 1))

m, mi (ft)

Indicates the mileage. (Freeze
frame PID data 1)

Adjust tire pressure.

FFD2_MLG
(Wheel unit mileage
value (freeze frame PID
data 2))

m, mi (ft)

Indicates the mileage. (Freeze
frame PID data 2)

Adjust tire pressure.

FFD1_SPD
(Wheel unit speed value
(freeze frame PID data
1))

KPH, MPH

Indicates the speed. (Freeze frame
PID data 1)

Adjust tire pressure.

FFD2_SPD
(Wheel unit speed value
(freeze frame PID data
2))

KPH, MPH

Indicates the speed. (Freeze frame
PID data 2)

Adjust tire pressure.

2008 Mazda CX-9 Grand Touring

2008 SUSPENSION On-Board Diagnostic (Suspension) - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:25:36 AM

Page 8
