The glass stops after it has moved approx. 30 mm {1.2 in} towards the closed position.
2. When the tilt up switch is pressed again, the glass continues to move approx. 30 mm {1.2 in} and stops.
3. Repeat this procedure several times so that the glass moves to the fully closed, full tilt (normal operation
position), and full tilt (mechanical stopper position) positions.
4. After the glass is moved to the full tilt position (mechanical stopper position), it returns to the tilt down
direction slightly and the initialization is completed.
REAR DRIP ASSEMBLY NOTE

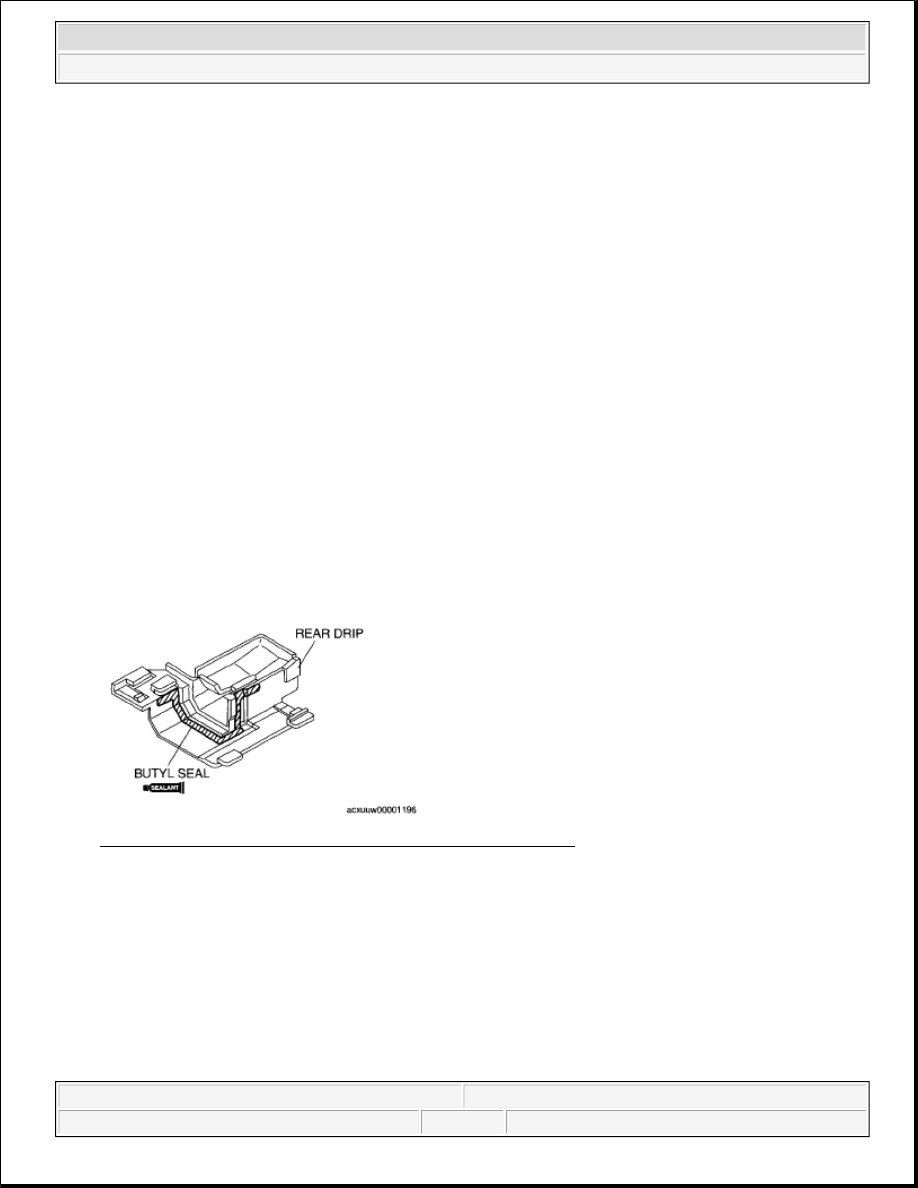

1. Apply a 6.0-8.0 mm {0.24-0.31 in} wide line of butyl seal to the area shown in the figure.
Fig. 9: Identifying Applying Area Of Wide Line To Butyl Seal
GUIDE DISASSEMBLY NOTE

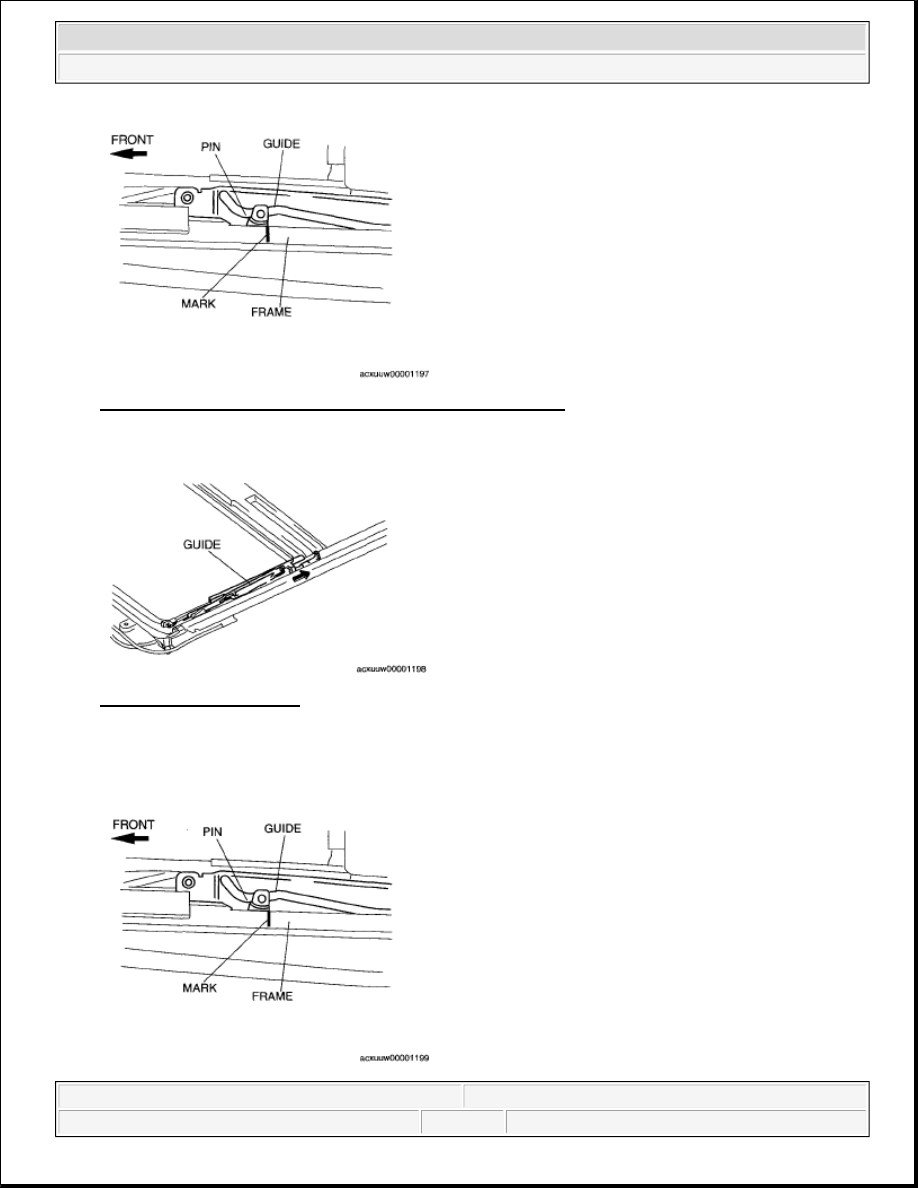

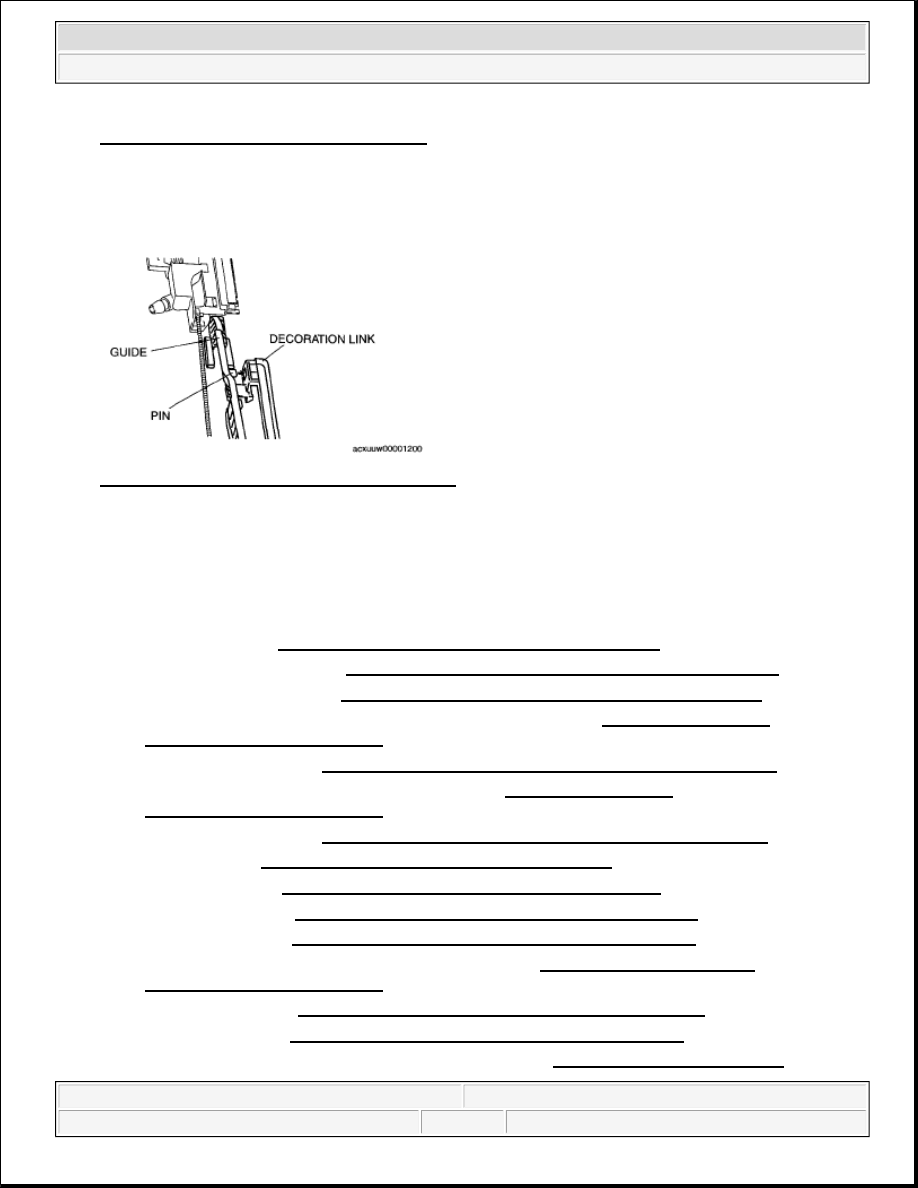

1. Place an alignment mark on the guide pin and flame.
NOTE:
Only the tilt up switch is available during the initialization mode.
The initialization may finish at the first inching operation depending
on the glass position when the motor is installed.
If the glass position is between the closed and semi-tilt positions
when the motor is removed, the glass moves in the tilt up direction
(to the full tilt position stored in the motor). However, if the tilt up
switch is pressed and held, the initialization mode starts.
NOTE:
If the rear drip is removed, butyl seal must be applied when re-installing.
