Minimum: 2.75 N {0.28 kgf, 0.62 lbf}

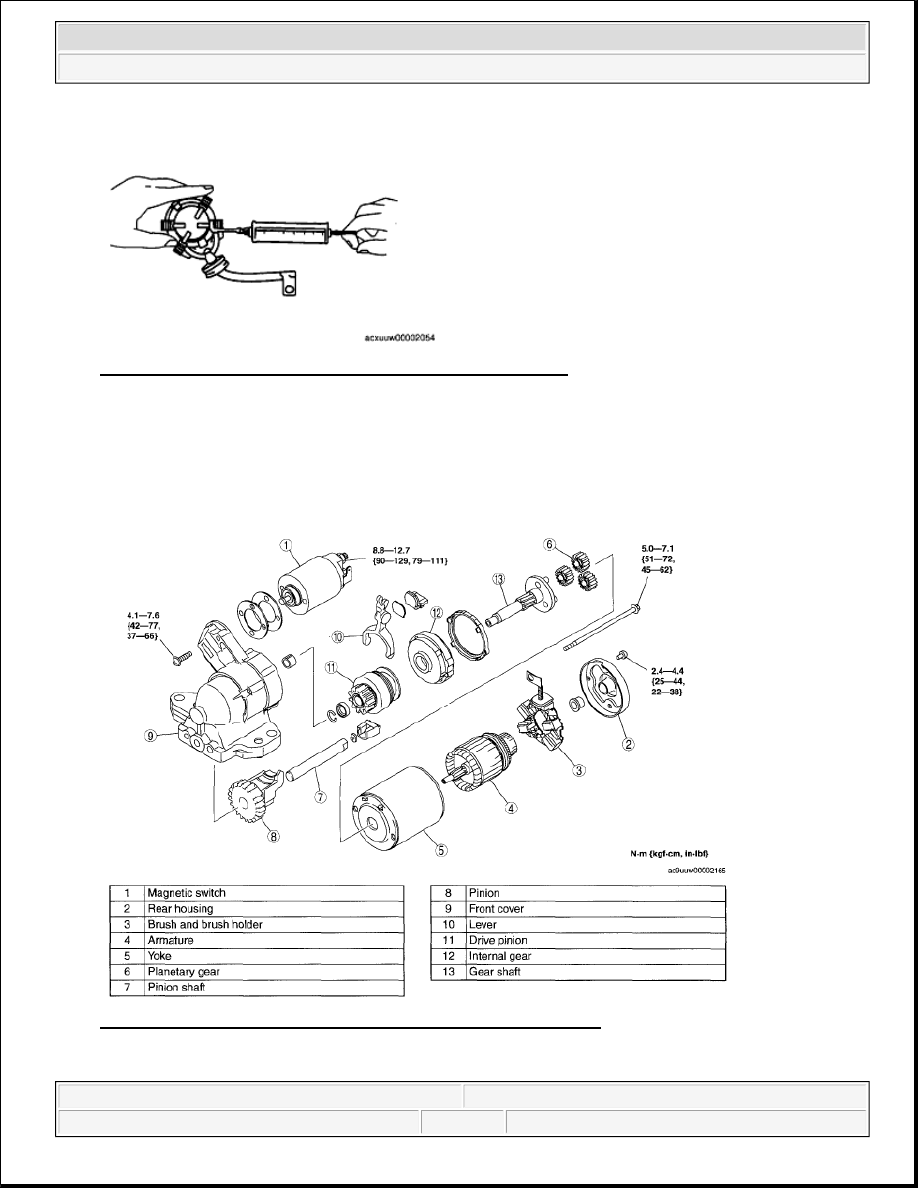

Fig. 18: Measuring Brush Spring Force With Spring Balance
Courtesy of MAZDA MOTORS CORP.

STARTER DISASSEMBLY/ASSEMBLY [MZI-3.7]

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

Fig. 19: Identifying Starter Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 ENGINE Starting System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 9:56:47 AM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

2008 STEERING

Technical Data (Steering) - Mazda CX-9

STEERING TECHNICAL DATA

STEERING TECHNICAL DATA

Item

Specification

Power steering fluid type

ATF-MIII, M-V or Dexron®II

Power steering fluid capacity (approximate
quantity)

1.27 L {1.34 US qt, 1.11 Imp qt}

Oil pump fluid pressure

11.3-11.8 MPa {116-120 kgf/cm

2

 , 1639-1711 psi}

Gear housing fluid pressure

11.3-11.8 MPa {116-120 kgf/cm

2

 , 1639-1711 psi}

Steering wheel play

0-30 mm {0-1.18 in}

Steering wheel effort

7.8 N.m {80 kgf.cm, 58 in.lbf} max.

Steering shaft length

211.6 mm {8.331 in}

Steering rack runout

Near point A: 0.15 mm {0.006 in} max.

Near point B: 0.20 mm {0.008 in} max.

Tie-rod end rotational torque

0.4-2.7 N.m {4.1-27.5 kgf.cm, 3.6-23.8 in.lbf}

[Pull scale reading: 3.4-25.5 N {0.35-2.60 kgf, 0.8-5.7 lbf}]

Tie-rod swing torque

0.1-4.0 N.m {1.1-40 kgf.cm, 0.89-35 in.lbf}

[Pull scale reading: 1.0-40.0 N {0.2-4.0 kgf, 0.23-8.99 lbf}]

Pinion shaft rotation torque

Center of rack ± 90°: 1.0-1.6 N.m {1-16 kgf.cm, 8.9-14

in.lbf}

[Pull scale reading: 9-13 N {1.0-1.3 kgf, 2.1-2.9 lbf}]

Except center of rack ± 90°: Less than 1.68 N.m {17.1

kgf.cm, 14.8 in.lbf}

[Pull scale reading: Less than 13.8 N {1.4 kgf, 3.1 lbf}]



2008 Mazda CX-9 Grand Touring

2008 STEERING Technical Data (Steering) - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 STEERING Technical Data (Steering) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:22:33 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 10:22:38 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

2008 BODY & ACCESSORIES

Sunroof - Mazda CX-9

SUNROOF LOCATION INDEX

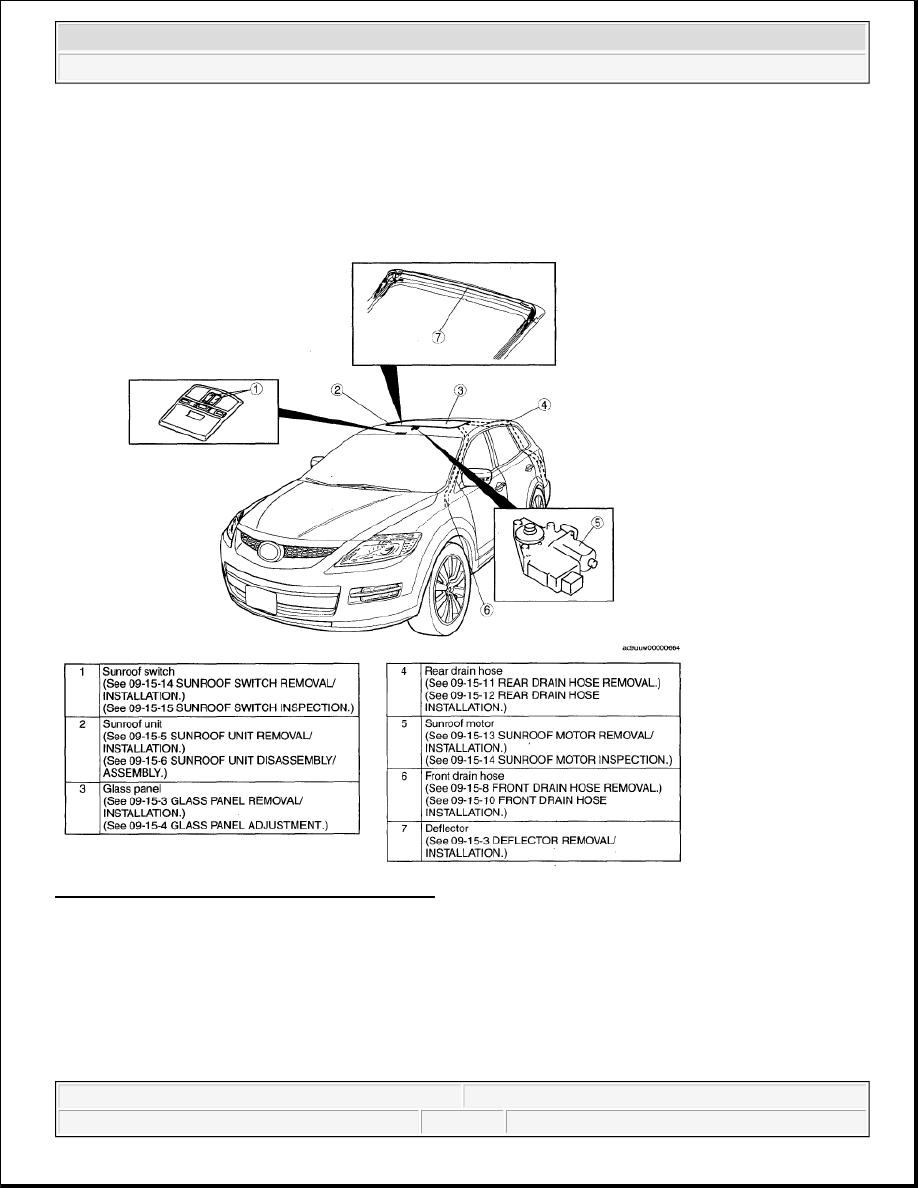

Fig. 1: Identifying Sunroof Components Location

DEFLECTOR REMOVAL/INSTALLATION

1. Fully open the glass panel.

2. Press the spring in the direction shown by the arrow and remove it from the hook.

3. Remove the deflector.

4. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Sunroof - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Sunroof - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:38:25 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 10:38:29 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

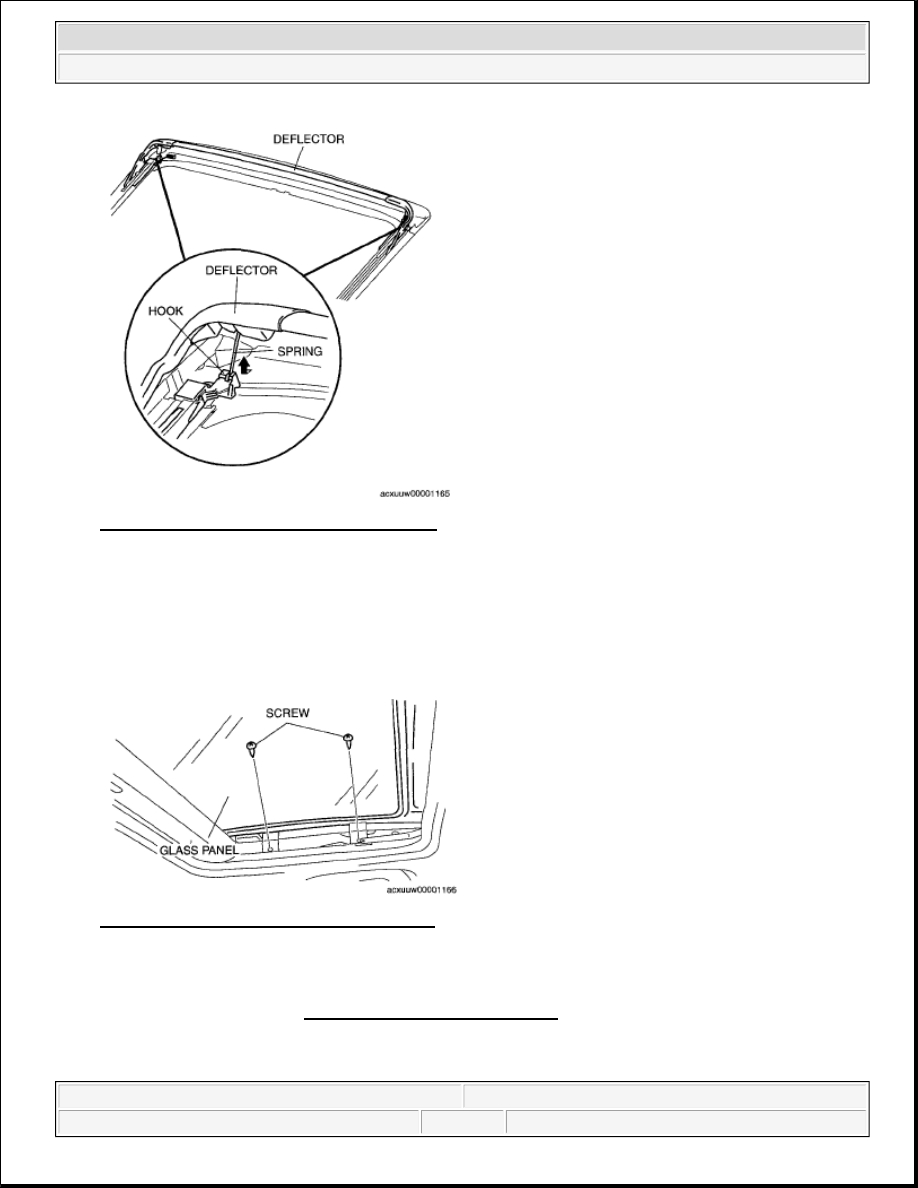

Fig. 2: Identifying Deflector Hook & Spring

GLASS PANEL REMOVAL/INSTALLATION

1. Fully close the glass panel.

2. Fully open the sunshade.

3. Remove the screws, and then remove the glass panel.

Fig. 3: Identifying Glass Panel With Screws

4. Peel the weatherstrip off the glass panel.

5. Install in the reverse order of removal.

6. Adjust the glass panel. (See GLASS PANEL ADJUSTMENT.)
