18. Start the engine with key 1.

19. Verify that the security light and keyless warning light operate as follows:



From the point when the ignition switch is turned to the ON position, the security light illuminates
for approx. 3 s , and goes out.



The keyless warning light illuminates when the ignition switch is turned to the ON position, and the
light goes out after approx. 1 s , and then displays the number of the programmed keys.

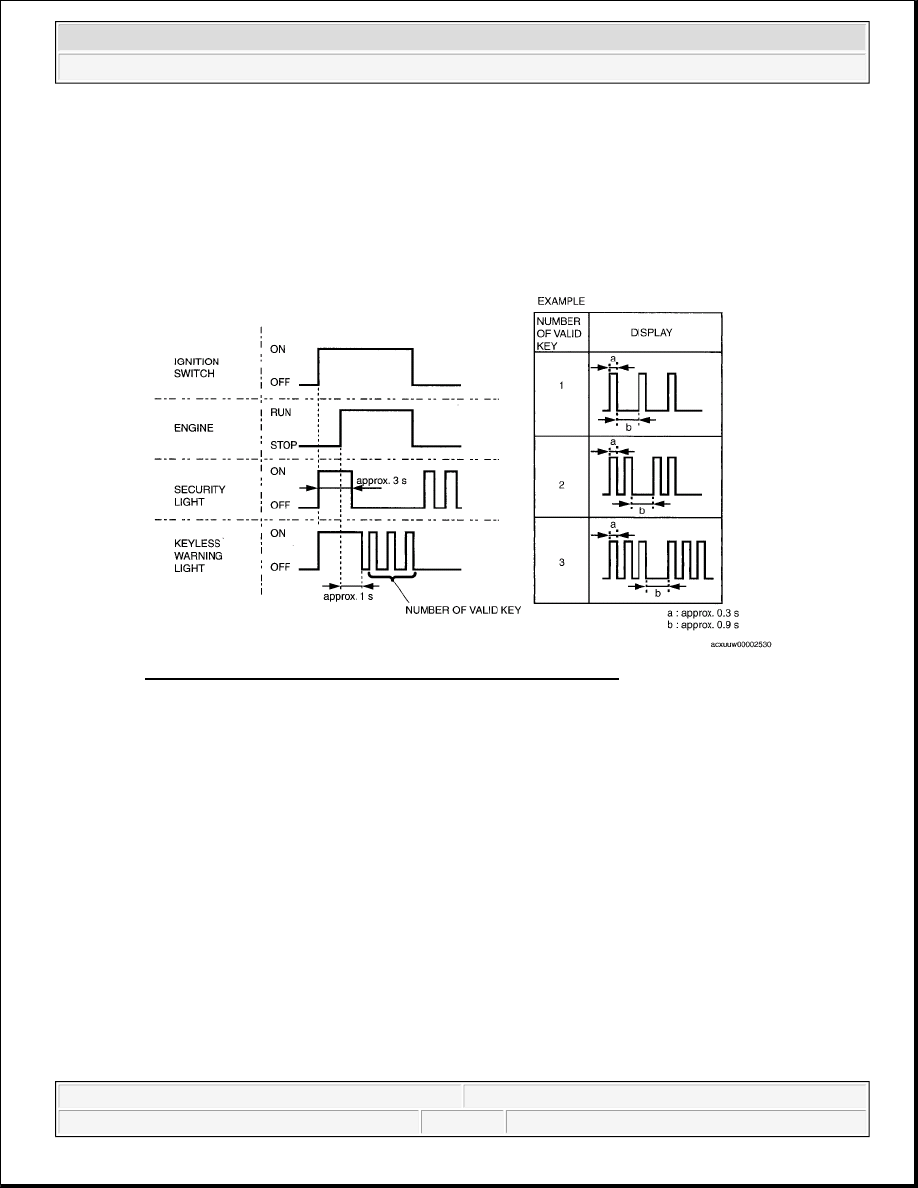

Fig. 90: Identifying Blinking Pattern - Keyless Warning Light
Courtesy of MAZDA MOTORS CORP.

20. After verifying that the keyless warning light goes out, turn the ignition switch to the LOCK position

using key 1, and then remove the key.

21. Repeat Steps 18 to 20 using key 2 instead of key 1.

22. Start the engine using the card key 1.

23. Verify that the security light and keyless warning light operate as follows:



From the point that ignition switch is turned to the ON position, the security light illuminates for

NOTE:



If three or more keys have already been programmed, perform Steps
18 to 20.

CAUTION:



Remove any key from the key cylinder.



Close all doors.



Bring the card key into the vehicle.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:47:59 AM

Page 67

approx. 3 s , and goes out.



The keyless warning light illuminate when the ignition switch is turned to the ON position for
approx. 1 min , and goes out.

24. After verifying that the keyless warning light goes out, turn the ignition switch to the LOCK position.

25. Verify that the all keys can start the engine for 5 s or more after the procedure.

NO.4 PCM REPLACEMENT PROCEDURE

Condition



Prepare a valid key or a card key that can start the engine.

Procedure

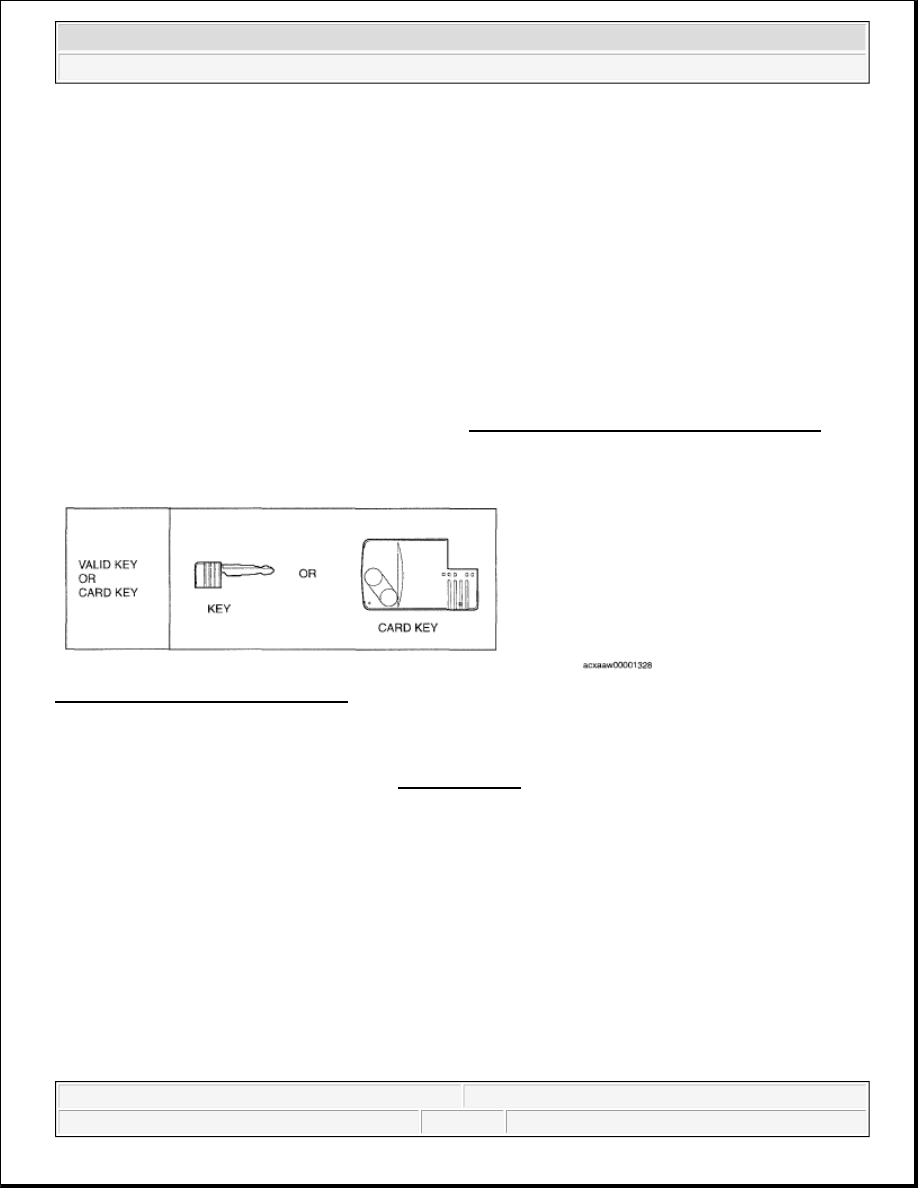

Fig. 91: PCM Replacement Procedure
Courtesy of MAZDA MOTORS CORP.

1. Turn the ignition switch to the LOCK position.

2. Connect the M-MDS to the DLC-2. (See M-MDS MENU.)

3. Using a valid key or card key, turn the ignition switch to the ON position.

4. Verify that the keyless warning light illuminates for approx. 3 s , and then goes out.

5. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)



Select "Body".



Select "Security".



When using the PDS (Pocket PC)

CAUTION:



Before starting Step 1, complete the procedure for PCM
replacement. (See PCM REMOVAL/INSTALLATION [MZI-3.7] .)

NOTE:



Although the security light remains illuminated and DTC 23 is
displayed after approx. 1 min, this does not indicate an improper
procedure. Continue to perform the procedure as indicated.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:47:59 AM

Page 68



Select "Programming".

6. Then, select items from the screen menu in the following order.



Select "PATS Functions".

7. Select "Parameter Reset" from the M-MDS screen menu and perform the procedure according to the M-

MDS screen

8. Perform the security access according to the directions on the M-MDS screen. (See SECURITY

ACCESS PROCEDURE.)

9. Select the replaced parts according to the directions on the M-MDS.



If the PCM is replaced: Select "PCM".

10. After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Exit (From

This Menu)" to finish the M-MDS procedure.

11. After Step 10, wait 5 s or more , and then turn the ignition switch to the LOCK position.

12. Using key, turn the ignition switch to the ON position.

13. After verifying that the security light and keyless warning light illuminates for 3 s or more turn the

ignition switch to the LOCK position and remove key 1.

14. Verify that the all keys can start the engine for 5 s or more after the procedure.

NO. 5 KEY ADDITIONAL PROGRAMMING PROCEDURE CHANGING

Procedure

1. Using the key, turn the ignition switch to the ON position. (The key can be either the valid key or an

unprogrammed key)

2. Connect the M-MDS to the DLC-2. (See M-MDS MENU.)

NOTE:



At this time, do not select the other parts from the M-MDS menu.

NOTE:



This procedure is performed for enabling/disabling the "No.1 Additional
Key Programming Procedure (Using Two Valid Keys)" setting.



This procedure is possible when the vehicle is new, and when replacing
the keyless unit with a new one.



If "No.1 Additional Key Programming Procedure (Using Two Valid Keys)"
is set to disable, the additional key programming can be only performed
using the M-MDS preventing the forging of a spare key by using two keys
that can start the engine. This function is for use by rental car agencies or
other companies with vehicle fleets.

NOTE:



Although the security light starts flashing and DTC 15 is displayed
after approx. 1 min, this does not indicate an improper procedure.
Continue to perform the procedure as indicated.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:47:59 AM

Page 69

3. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)



Select "Body".



Select "Security".



When using the PDS (Pocket PC)



Select "Programming".

4. Then, select items from the screen menu in the following order.



Select "PATS Functions".

5. Select "Customer Spare Key Programming Enable" or "Customer Spare Key Programming Disable" from

the M-MDS screen menu. The key additional programming procedure is as follows according to the
selected menu:

ADDITIONAL KEY PROGRAMMING PROCEDURE

6. Perform the security access according to the directions on the M-MDS screen. (See SECURITY

ACCESS PROCEDURE.)

7. After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Exit (From

This Menu)" to finish the M-MDS procedure.

8. After Step 7, wait 5 s or more and then turn the ignition switch to the LOCK position.

9. Verify that the all keys can start the engine for 5 s or more after the procedure.

NO.6 STEERING LOCK UNIT REPLACEMENT PROCEDURE

Condition



Have two or more keys to be programmed after the replacement.

Procedure

Setting

Additional key programming procedure

Method using two valid keys Method using the M-MDS

Customer spare key programming enable

Customer spare key programming disable

- : Available
x : Unavailable

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:47:59 AM

Page 70
