3. Verify that the security light illuminates for approx. 3 s , and then goes out.

4. Turn the ignition switch to the LOCK position.

5. Connect the M-MDS to the DLC-2. (See M-MDS MENU.)

6. Using key 2, turn the ignition switch to the ON position.

7. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)



Select "Body".



Select "Security".



When using the PDS (Pocket PC)



Select "Programming".

8. Then, select items from the screen menu in the following order.



Select "PATS Functions".

9. Select "Program additional ignition key" from the M-MDS screen menu and perform the procedure

according to the M-MDS screen

10. Perform the security access according to the directions on the M-MDS screen. (See SECURITY

ACCESS PROCEDURE.)

11. After verifying that the PATS function menu is displayed again on the M-MDS screen, select the "Exit

(From This Menu)" to finish the M-MDS procedure.

12. After Step 11, wait 5 s or more , and then turn the ignition switch to the LOCK position.

13. Verify that the all keys can start the engine for 5 s or more after the procedure.

Procedure (If two or more keys are to be programmed)

performed. If the engine is started with the card key, remove the
card key from the vehicle after the engine is started.

NOTE:



Although the security light starts flashing and DTC 15 is displayed
after approx. 1 min, this does not indicate an improper procedure.
Continue to perform the procedure as indicated.

NOTE:



After selecting the above menu, "This operation has been
successful" is displayed. At this point, the key that turned the
ignition switch to the ON position is completely programmed.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:47:58 AM

Page 63

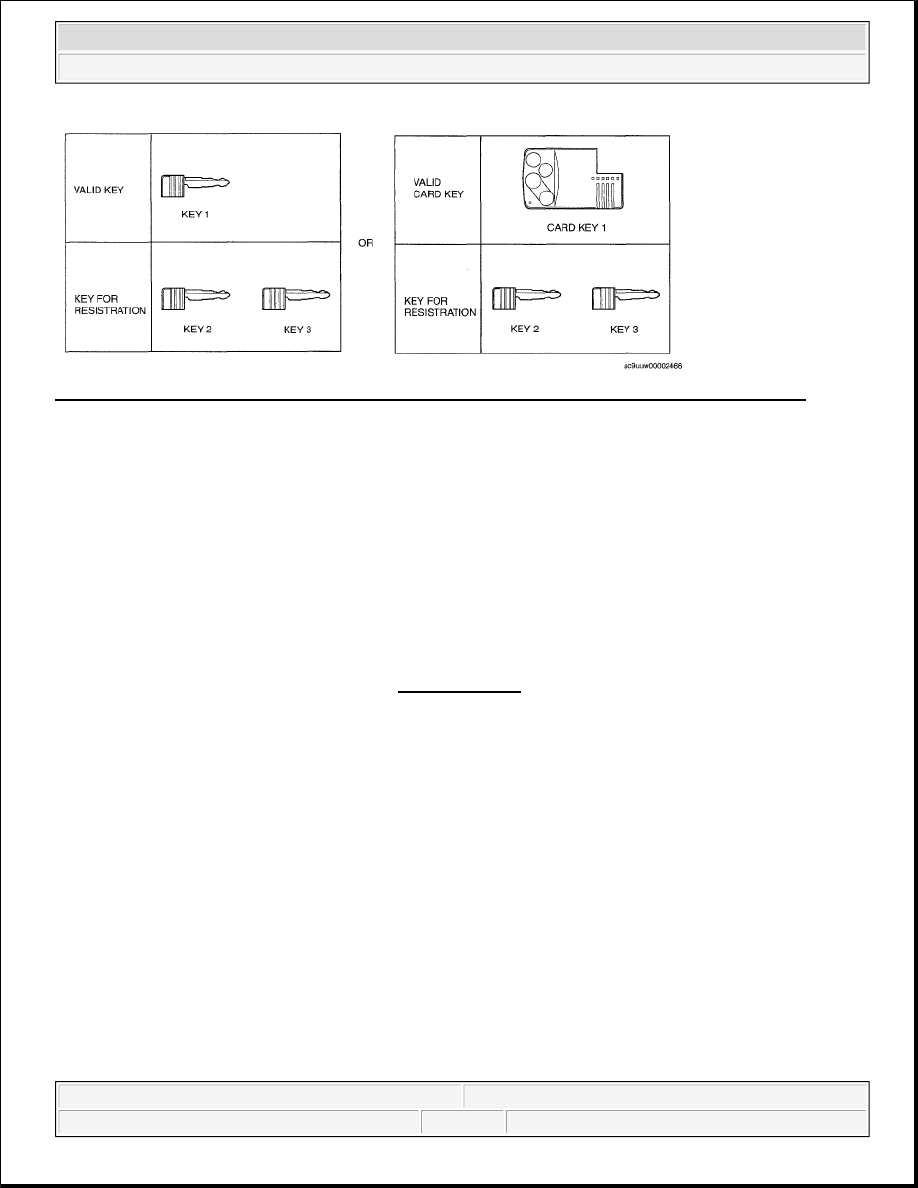

Fig. 88: Key Additional Programming Procedure (If Two Or More Keys Are To Be Programmed)
Courtesy of MAZDA MOTORS CORP.

1. Prepare key 2 for programming.

2. Start the engine using a valid key 1 or card key 1.

3. Verify that the security light illuminates for approx. 3 s , and then goes out.

4. Turn the ignition switch to the LOCK position.

5. Connect the M-MDS to the DLC-2. (See M-MDS MENU.)

6. Using key 2, turn the ignition switch to the ON position.

7. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)



Select "Body".



Select "Security".



When using the PDS (Pocket PC)



Select "Programming".

8. Then, select items from the screen menu in the following order.



Select "PATS Functions".

9. Select "Program additional ignition key" from the M-MDS screen menu and perform the procedure

according to the M-MDS screen

CAUTION:



Do not place the card key in the vehicle when starting the
engine with the valid key, otherwise programming cannot be
performed. If the engine is started with the card key, remove the
card key from the vehicle after the engine is started.

NOTE:



Although the security light starts flashing and DTC 15 is displayed
after approx. 1 min, this does not indicate an improper procedure.
Continue to perform the procedure as indicated.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:47:58 AM

Page 64

10. Perform the security access according to the directions on the M-MDS screen. (See SECURITY

ACCESS PROCEDURE.)

11. Turn the ignition switch to the LOCK position and remove key 2.

12. If additional keys need to be programmed, repeat Steps 6-10, and replace key 3 in Step 10 with the key to

be programmed.

13. After verifying that the PATS function menu is displayed again on the M-MDS screen, select the "Exit

(From This Menu)" to finish the M-MDS procedure.

14. After Step 10, wait 5 s or more , and then turn the ignition switch to the LOCK position.

15. Verify that the all keys can start the engine for 5 s or more after the procedure.

NO.3 KEY REPLACEMENT PROCEDURE (CLEARING PREVIOUSLY PROGRAMMED KEY ID
NUMBERS, KEY RE-PROGRAM)

Condition



Prepare two or more keys to be programmed after the key ID number is cleared.

Procedure

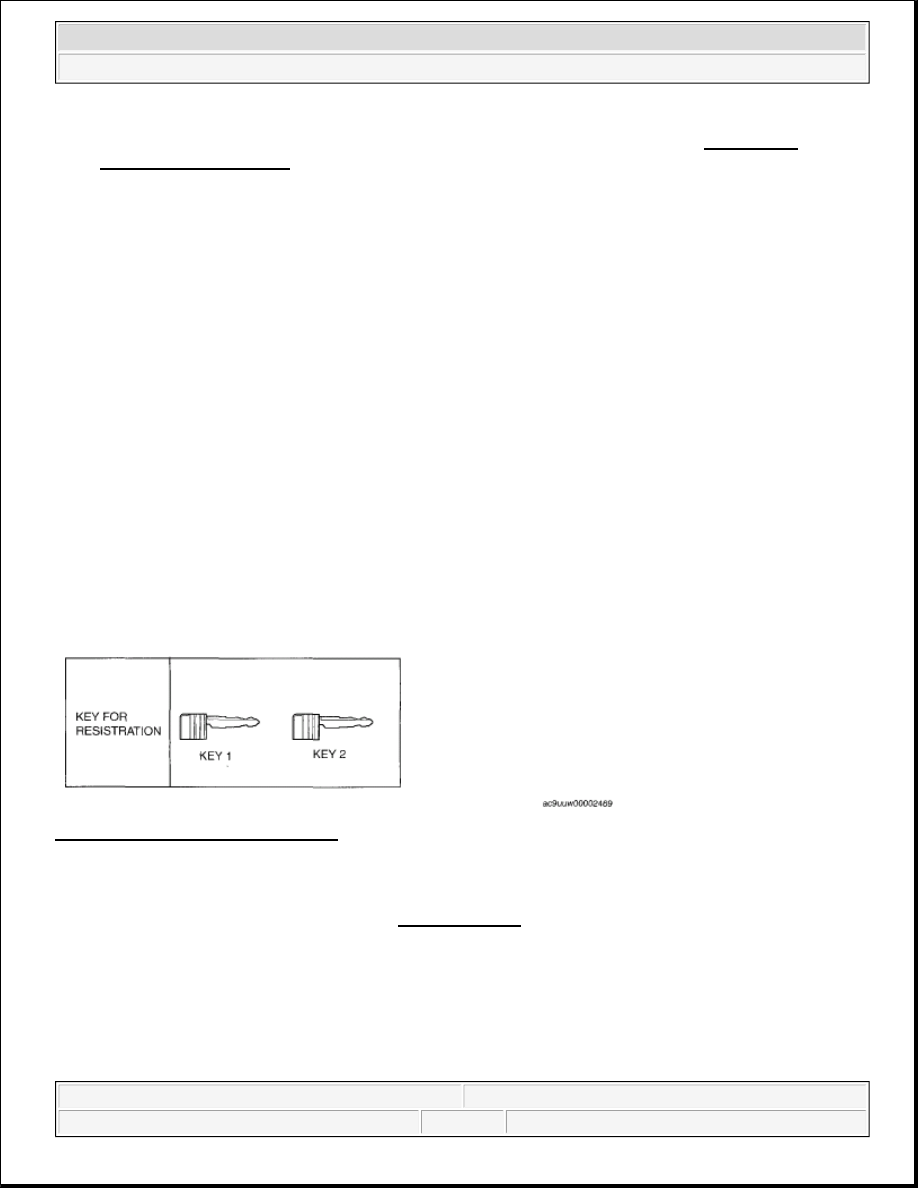

Fig. 89: Key Replacement Procedure
Courtesy of MAZDA MOTORS CORP.

1. Prepare two or more keys to be programmed after the key ID number is cleared.

2. Connect the M-MDS to the DLC-2. (See M-MDS MENU.)

3. Using key 1, turn the ignition switch to the ON position.

NOTE:



After selecting the above menu, "This operation has been
successful" is displayed. At this point, the key that turned the
ignition switch to the ON position is completely programmed.

NOTE:



Although the security light starts flashing and DTC 15 or DTC 23 is
displayed after approx. 1 min, this does not indicate an improper
procedure. Continue to perform the procedure as indicated.

2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9

Microsoft

Sunday, November 15, 2009 10:47:59 AM

Page 65

4. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.



When using the IDS (laptop PC)



Select "Body".



Select "Security".



When using the PDS (Pocket PC)



Select "Programming".

5. Then, select items from the screen menu in the following order.



Select "PATS Functions".

6. Select "Ignition Key Code Erase" from the M-MDS screen menu and perform the procedure according to

the M-MDS screen

7. Perform the security access according to the directions on the M-MDS screen. (See SECURITY

ACCESS PROCEDURE.)

8. After verifying that the PATS function menu is displayed again on the M-MDS screen, select "Exit (From

This Menu)" to finish the M-MDS procedure.

9. After Step 8, wait 5 s or more and then turn the ignition switch to the ON position.

10. Ignition switch to the LOCK position.

11. Disconnect the M-MDS from the DLC-2.

12. Using key 1, turn the ignition switch to the ON position.

13. After verifying that the security light and keyless warning light illuminate for 3 s or more , turn the

ignition switch to the LOCK position and remove key 1.

14. Using key 2, turn the ignition switch to the ON position.

15. Verify that the security light and keyless warning light illuminate for approx. 3 s , and then goes out.

16. After verifying that the security light goes out, turn the ignition switch to the LOCK position using key 2,

and then remove key 2.

17. If programming one more keys, repeat Steps 14 to 16 with a key to be programmed as key 3. If the

vehicle is left with the ignition switch in the ON position for 1 min or more, additional key programming
according to Steps 14 to 16 is disabled. If this occurs, refer to the "NO.1 ADDITIONAL KEY
PROGRAMMING PROCEDURE (USING TWO VALID KEYS)" to program any additional keys.
(See NO.1 ADDITIONAL KEY PROGRAMMING PROCEDURE (USING TWO VALID KEYS).)

CAUTION:



The M-MDS displays "You must now program a minimum of two
keys.", however, do not perform the key programming and
proceed to Step 7. If the procedure is not followed, the engine
may not be started. The key programming procedure is
performed at Steps 12 to 17.

NOTE:



Although the security light remains illuminated and DTC 21 is
displayed after approx. 1 min, this does not indicate an improper
procedure. Continue to perform the procedure as indicated.
