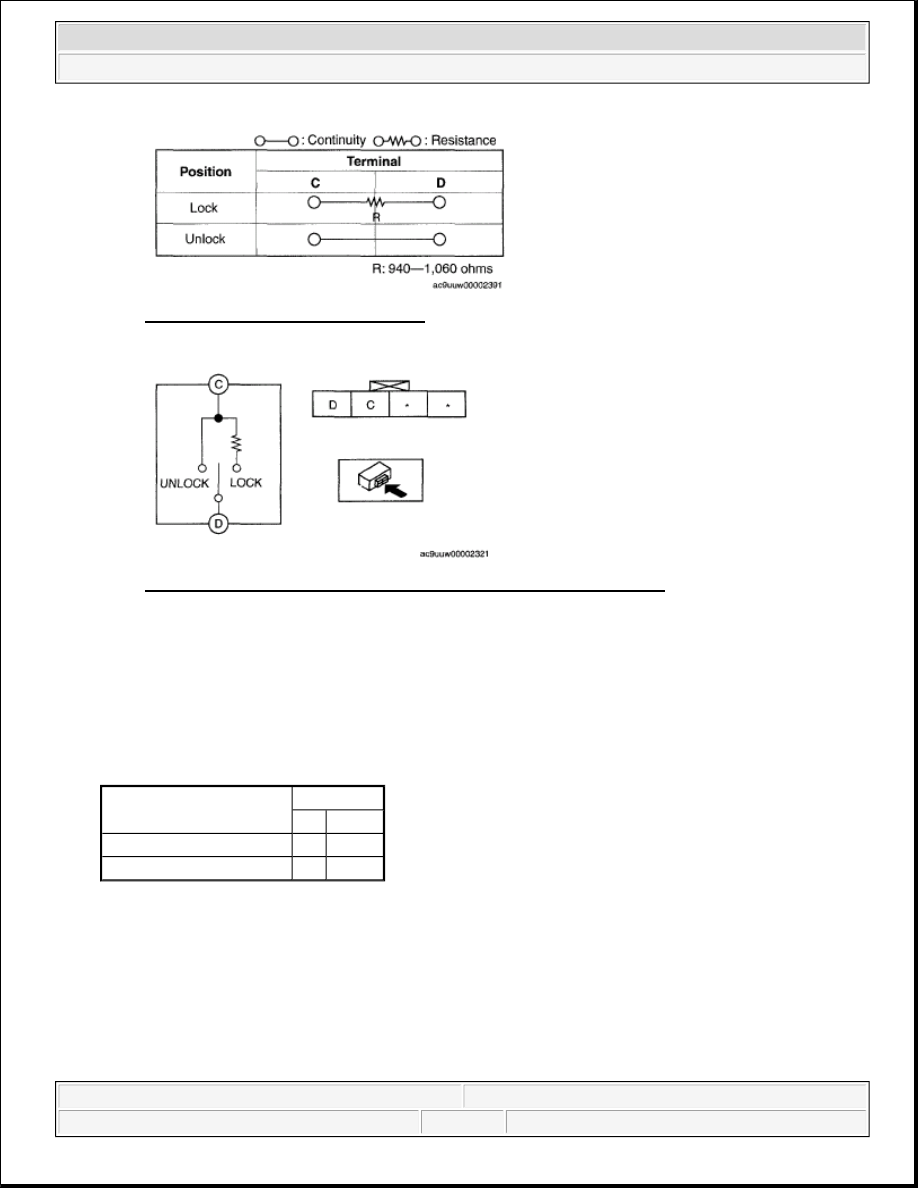

Fig. 23: Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 24: Checking Continuity Between Door Lock Switch Terminals
Courtesy of MAZDA MOTORS CORP.

FRONT DOOR LOCK ACTUATOR INSPECTION

1. Apply battery positive voltage and connect ground to the corresponding front door lock actuator

terminals, and inspect the front door lock actuator operation.



If not as specified, replace the front door latch and lock actuator.

FRONT DOOR LOCK ACTUATOR REFERENCE

Lock actuator operation

Connection

B+ GND

Lock

1A

1B

Unlock

1B

1A



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

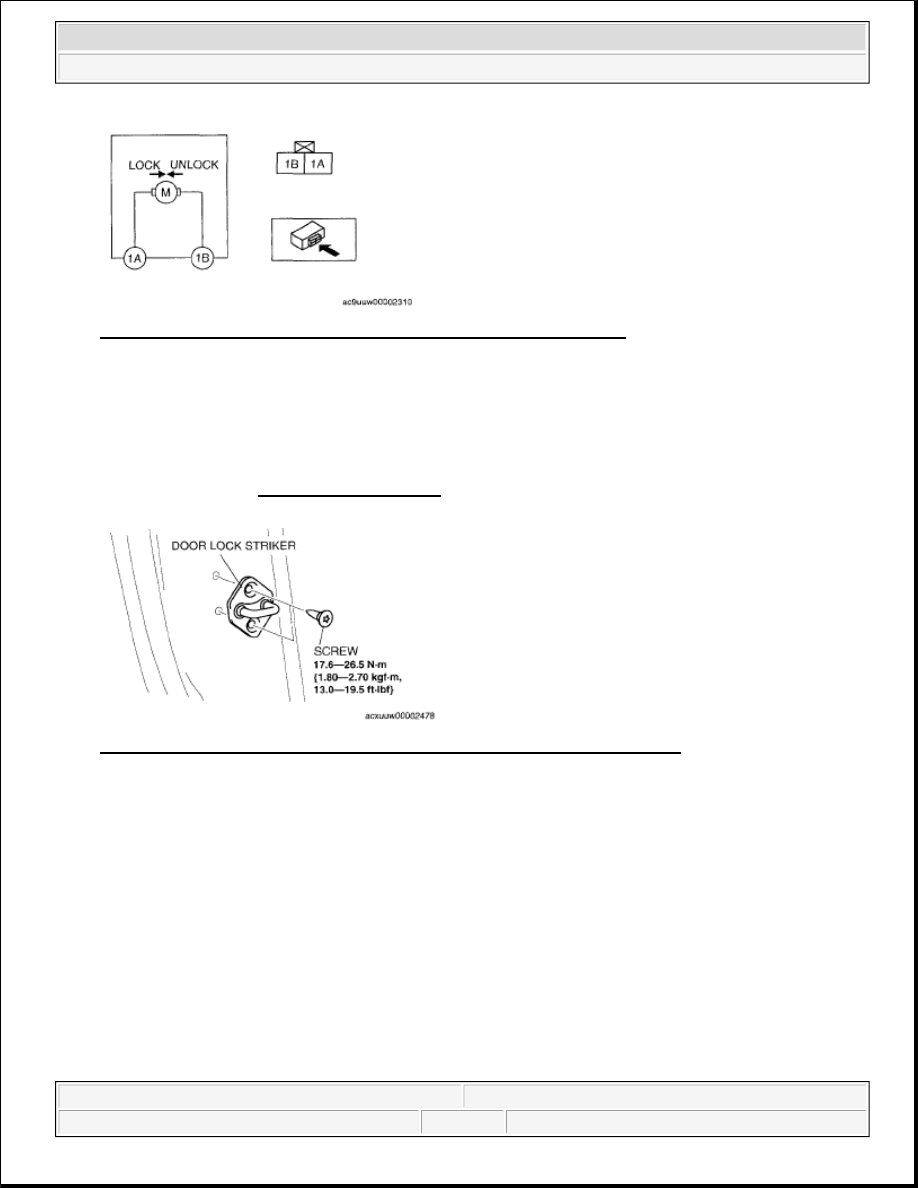

Fig. 25: Identifying Front Door Lock Actuator Connector Terminals
Courtesy of MAZDA MOTORS CORP.

DOOR LOCK STRIKER REMOVAL/INSTALLATION

1. Remove the screws, then remove the door lock striker.

2. Install in the reverse order of removal.

3. Adjust the door. (See DOOR ADJUSTMENT .)

Fig. 26: Identifying Door Lock Striker With Screw & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

DOOR LOCK-LINK SWITCH INSPECTION

FRONT/REAR

1. Inspect for continuity between the door lock-link switch terminals.



If not as specified, replace the front door latch and lock actuator.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

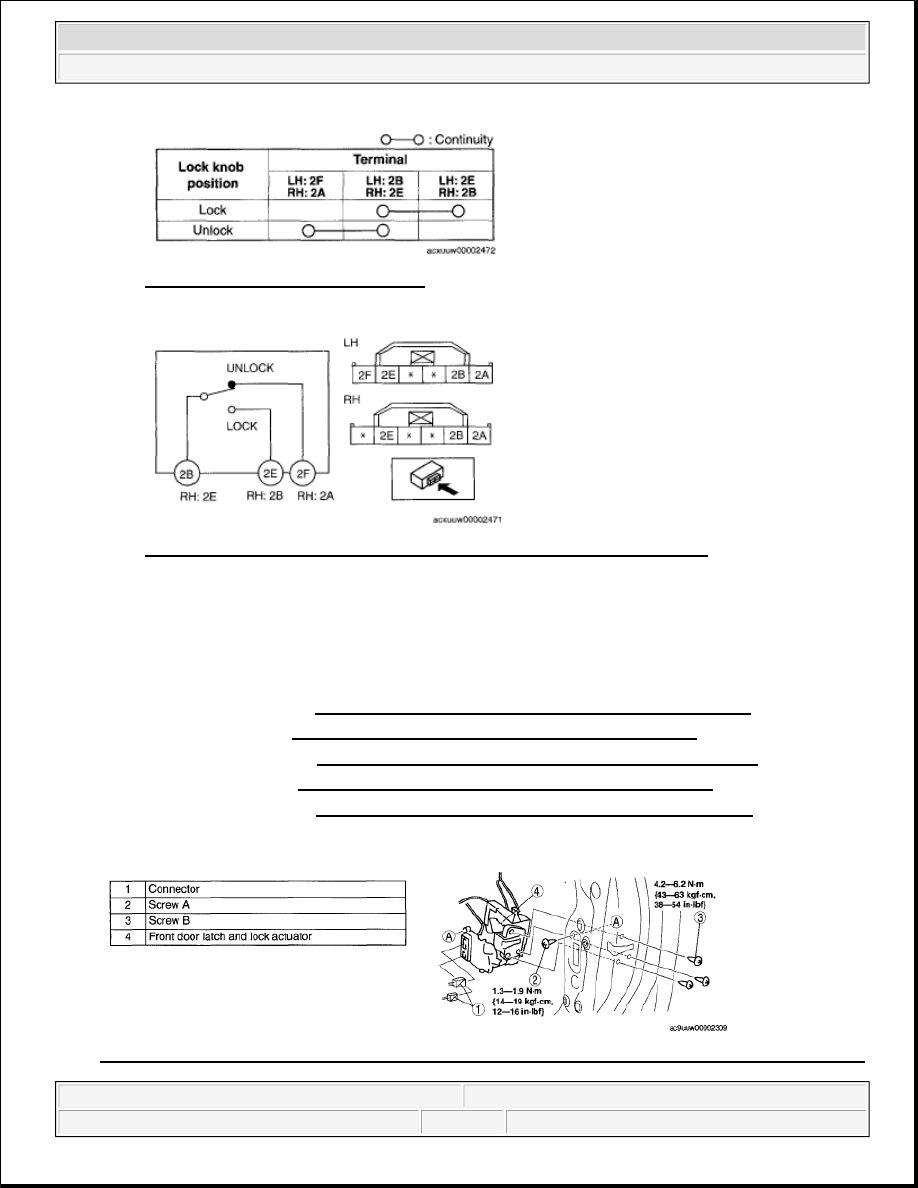

Fig. 27: Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 28: Checking Continuity Between Door Lock-Link Switch Terminals
Courtesy of MAZDA MOTORS CORP.

REAR DOOR LATCH & LOCK ACTUATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

1. Inner sail garnish. (See INNER SAIL GARNISH REMOVAL/INSTALLATION .)

2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

3. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)

4. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)

5. Rear door module (See REAR DOOR MODULE REMOVAL/INSTALLATION .)

3. Remove in the order indicated in the table.

Fig. 29: Identifying Rear Door Latch & Lock Actuator, Connector, Screws & Torque Specifications
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

4. Install in the reverse order of removal.

REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION

1. The following actuator and switch are integrated with the rear door latch and lock actuator. Inspect the

rear door latch and lock actuator according to each inspection procedure for the following items.



Rear door lock actuator (See REAR DOOR LOCK ACTUATOR INSPECTION.)



Rear door latch switch (See DOOR LOCK-LINK SWITCH INSPECTION.)

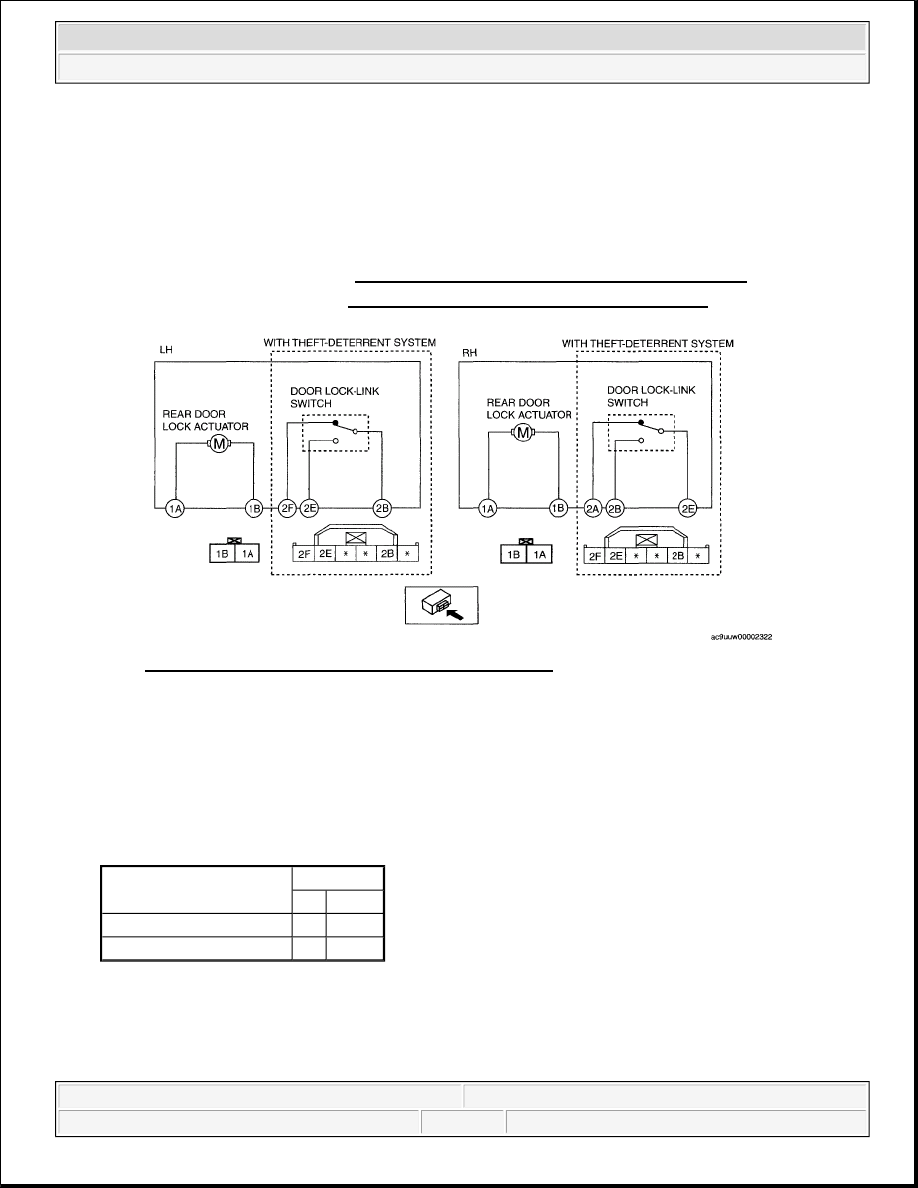

Fig. 30: Checking Rear Door Latch & Lock Actuator
Courtesy of MAZDA MOTORS CORP.

REAR DOOR LOCK ACTUATOR INSPECTION

1. Apply battery positive voltage and connect ground to the corresponding front door lock actuator

terminals, and inspect the front door lock actuator operation.



If not as specified, replace the front door latch and lock actuator.

REAR DOOR LOCK ACTUATOR REFERENCE

Lock actuator operation

Connection

B+ GND

Lock

1A

1B

Unlock

1B

1A
